XBP06V4E2HR-G
ETR2902-004
Transient Voltage Suppressor (TVS)
■GENERAL DESCRIPTIO N ■APPLICATIONS
Two elements in USP-3 package (Anode Common)
High ESD
■
BSOLUTE MAXIMUM RATINGS ■PACKAGING INFORMATION
Ta=25℃
PARAMETER SYMBOL RATINGS UNITS
⑤
(*1)
Ppk 70 W
120
(*2)
1000
(*3)(*4)
2 1
3
Tstg -55～+150 ℃
Vpp 30 kV
①②③：BP1(Product Number)
④⑤：Lot Number
1. Cathode
2. Cathode
3. Anode
mW
Peak Pulse Power
Power Dissipation Pd
Junction Temperature Tj 150 ℃
Storage Temperature Range
ESD Durability
Contact Discharge
(*1): tp=8/20μs
(*2): This is a reference data taken by using the test board.
(*3): Test Condition IEC61000-4-2 Standard
(*4): Criterion： No damage to device elements
■MARKING RULE
②③
①
④
■PIN CONFIGURATION
3
BOTTOM VIEW
■ ELECTRICAL CHARACTERISTICS
PARAMETER SYMBOL TEST CONDITION
Breakdown Voltage VBR IR =5mA 6.4 6.8 7.2 V
ESD protection
■PRODUCT NAME
PRODUCT NAME PACKAGE ORDER UNIT
XBP06V4E2HR-G* USP-3 3,000/Reel
*
The “-G” suffix indicates that the products are Halogen and Antimony free
as well as being fully RoHS compliant.
LIMITS
MIN. TYP. MAX.
Ta=25℃
UNITS
Leakage Current IRM VRM=5V - - 1.0 μA
Forward Voltage VF IF=10mA - - 1.25 V
Inter-Terminal Capacity Ct VR=0V, f=1MHz - 40 - pF
1/4
XBP06V4E2HR-G
■TYPICAL PERFORMANCE CHARACTERISTICS
(1) Reverse Current vs. Breakdown Voltage (2) Reverse Current vs. Reverse Voltage
100
1
10
(mA)
R
1
0.1
Reverse Current I
0.01
75℃
25℃
-25℃
0.001
5.0 5.5 6.0 6.5 7.0 7.5 8.0
Breakdown Voltage V
BR
Ta=125℃
(V)
0.1
(uA)
R
Ta=125℃ 25℃75℃
0.01
0.001
Reverse Current I
0.0001
0123456
Reverse Voltage V
R
(V)
(3) Breakdown Voltage vs. Operating Temperature (4) Reverse Current vs. Operating Temperature
8.0
10
7.5
(V)
BR
7.0
IR=5mA
6.5
1
(uA)
R
0.1
6.0
0.01
Breakdown Voltage V
5.5
Reverse Current I
V
-25℃
=5.25V
5V
3V
5.0
-50 0 50 100 150
Operating Temperature Ta (℃)
0.001
-50 0 50 100 150
Operating Temperature Ta (℃)
(5) Inter-Terminal Capacity vs. Reverse Voltage (6) Forward Current vs. Forward Voltage
100
90
80
70
f=1MHz
100
10
(mA)
F
Ta=125℃
60
50
1
40
30
20
Inter-Terminal Capacity Ct (pF)
10
0
0123456
Reverse Voltage V
R
(V)
Ta=25℃
0.1
Forward Current I
0.01
0 0.2 0.4 0.6 0.8 1 1.2
Forward Voltage V
2/4
F
(V)
75℃
25℃
-25℃
p
(
)
■PACKAGING INFORMATION
● USP-3 Power Dissipation
Power dissipation data for the USP-3 is shown in this page.
The value of power dissipation varies with the mount board conditions.
Please use this data as one of reference data taken in the described
condition.
1. Measurement Condition (Reference data)
Condition: Mount on a board
Ambient: Natural convection
Soldering: Lead (Pb) free
Board: Dimensions 40 x 40 mm (1600 mm
Material: Glass Epoxy (FR-4)
Thickness: 1.6 mm
Through-hole: 4 x 0.8 Diameter
Copper (Cu) traces occupy 50% of the board area
in top and back faces.
Package heat-sink is tied to the copper traces.
2
in one side)
2. Power Dissipation vs. Ambient temperature
Board Mount (Tj max = 150℃)
Ambient Temperature (℃)
Power Dissipation Pd (mW)

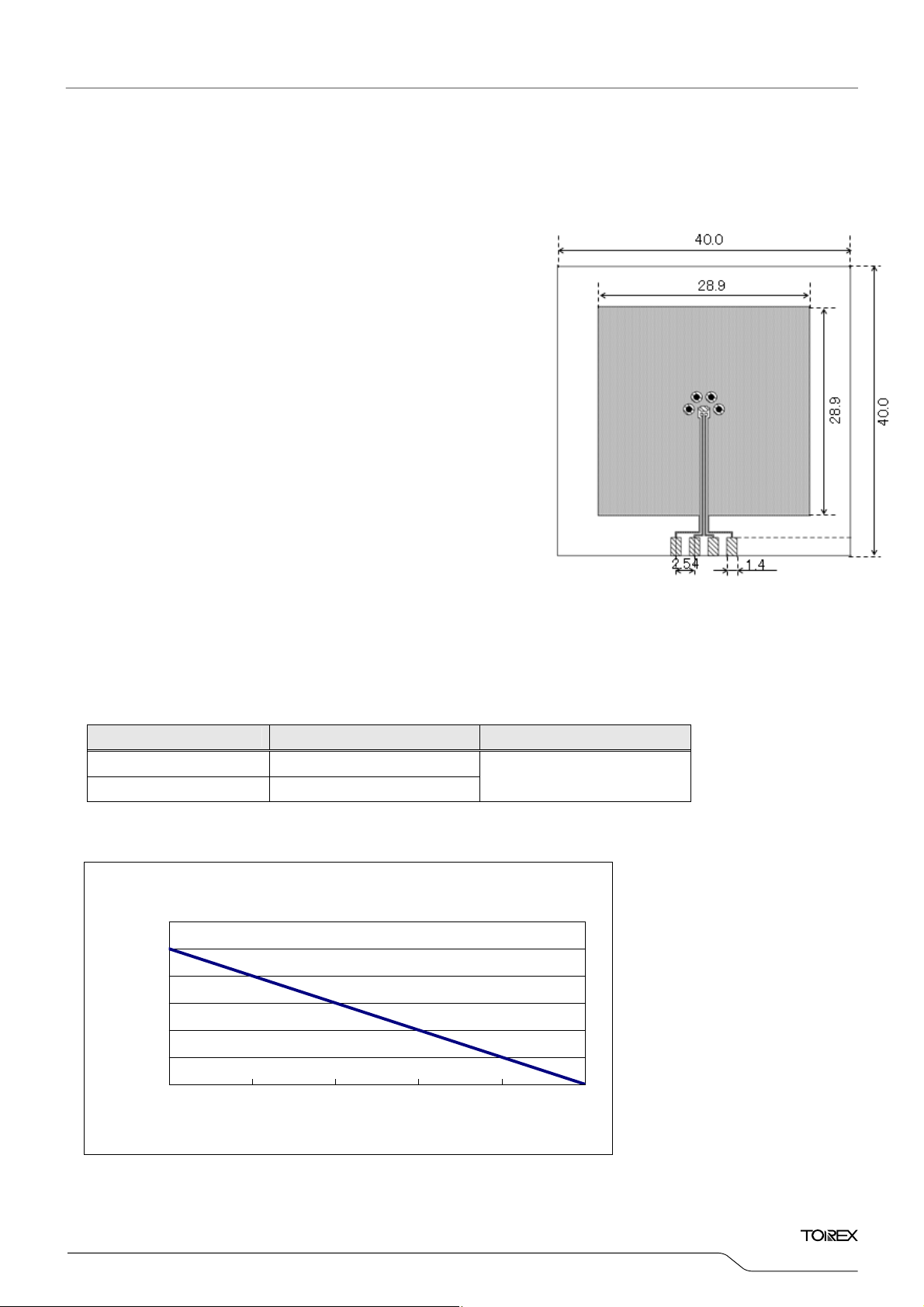

Evaluation Board (Unit: mm)
Thermal Resistance (℃/W)
XBP06V4E2HR-G
25 1000
150 0
125.00
1200
mW
1000
800
Pd（mW）
600
ation: Pd
400
200
許容損失
0
Power Dissi
Pd-Ta特性
Pd vs. Ta
25 50 75 100 125 150
Ambient Temperature: Ta (℃)
周囲温度
グラフ
Ta（℃）
3/4
XBP06V4E2HR-G
4/4
