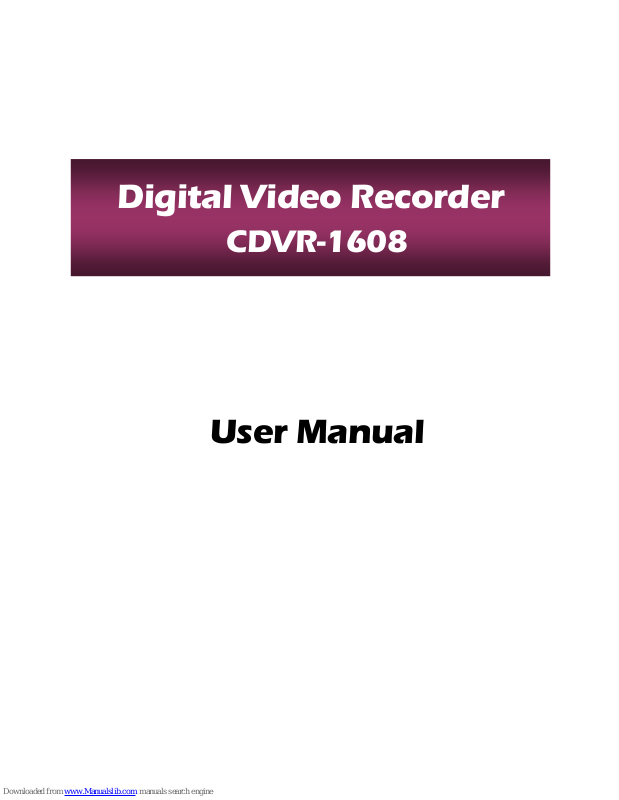

TORCHVIEW CDVR-1608CDRW User Manual

User Manual

Digital Video Recorder

CDVR-1608

NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

WARNING

To reduce Fire or Shock hazard, do not expose the unit to rain or moisture!

Installation sho uld be perform ed by a qualified se rvice person and should conf orm to all local c odes.

Cautions

Read Before System Operation.

Follow thes e details to prev ent personal inju ry or material

Warning : This sign indicates that the user could die or become seriously wounded if not used

or installed properly.

Caution : This sign indicates that the user could be wounded or could expect property damage

if not used or installed properly.

The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “d angerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance(servicing) instructions on the literature accompanying the appliance.

WARNING

FCC Compliance Statement

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT

REMOVE COVER(OR BACK) NO USER-SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

1. Read Instructions

All the safety and oper ating instr uctions should b e read before the pro duct is operat ed.

2. Retain Instruction Manuals

The safety and oper ating instru ctions should be retained for fu ture referenc e.

3. Heed Warnings

All warning s on the prod uct and in the operatin g instruction s should be ad hered to.

4. Follow Instructions

All opera ting and use in structions s hould be follo wed.

5. Cleaning

Unplug this product fro m the wall out let before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do no use this product near water - for example, near a bath tub , wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product ma y fall, causing serious injury to a child or adult, and serious damage t o the product . Use only with a cart, stand, tr ipod, bra cket, or table recommended by the manuf acturer, or sold with the product. Any mounting of the product should follow th e manufacturer’s in structions, and should use a mounting acces sory recommended by the manufacturer.

9. Ventilation

Slots and openings in the cabinet are pro vided for ve ntilation and to en sure reliab le opera tion of the produc t and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adh ered to.

10. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power , or other sources, refer to the operating instructions.

11. Grounding or Polarization

This product may be e q ui ppe d with a polarized al t er n ating-current line pl u g(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing t he plug . If the plug sh ould still fa il to fit, cont act your electrician to replace yo ur obsolete outlet. Do not defeat the safety purpose of the p olarized plug.

* Alternate War nings

This product is eq uip pe d wi th a t hree -wire gr oundi ng -type plu g, a plu g h aving a thi rd( gro undi ng) pin . Thi s pl ug will only f it into a groun ding-ty pe pow er outle t. This is a safet y featu re. If y ou are un able to insert t he plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the groundingtype plug.

MPORTANT SAFETY INSTRUCTION

12. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cards at plugs, convenience receptacles, and the point where they exit from

13. Protective Attachment Plug

The product is equipped with an attachment plug having overload protection. This is a safety feature. See instruction Manual for replacement or resetting of protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug specified by the manufacturer that has the same overload protection as the or iginal plug.

14. Outdoor Antenna Grounding

If an outside antenna or c able system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protect ion a ga inst voltage surges and built-up static charges. Art icle 81 0 of th e National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

15. Lightning

For added protection for this produ ct d urin g a lightning stor m, or when it is left unat tende d and unused for lon g periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightn ing and power-line surges.

16. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits . When installing an outside a ntenna system, extreme care should be tak en to keep from touching suc h po wer lin es o r cir cu its as con tact w it h th em mi ght b e fatal.

17. Overloading

Do not overloa d w a ll o u t lets , ex t e nsion cords, or int eg r a l c on venience receptac le a s th is c an r e su lt in a r isk of fire or electric shock.

18. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could res ult in a fire or electric s hock. Never spill liqu id of any kind on the product.

19. Servicing

Do not attempt to serv ice t his p rod uct y o urs elf as op ening o r r emo vin g co v ers may expo se y ou t o da ng erou s voltage or other hazards. Ref er all servicing to qua lified service personnel.

20. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the power-supply cord or plug is damaged. b) If liquid has been spil led, or objects hav e fallen into the pro duct. c) If the product h as been expose d to rain or w ater. d) If the product does n ot operat e normally by fo llowing the op erating in structions . Adjust only tho se controls

that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal

operation. e) If the product has been dropped or damaged in any way and f) When the product exhibits a distinct change in performance - this indicates a need for service.

Important Safety Instruction

21. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22. Safety Check

Upon completion of any service or repairs to this product ask the service technician to perform safety checks to determine that the product is in proper operating c ondition.

23. Wall or Ceilin g Mounting

The product should be mo unted to a wall or c eiling only as reco mmended by the manu facturer.

24. Heat

The product should be situ ated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat the product.

Important Safety Instruction

Warning

1. Change the battery after turning off the power of the product.

2. Check the polarity of the lit hium battery wh ile changing.

3. Change the battery with the same type which is in the product or with the similar type recommended by your vendor .

4. Dispose of the chan ged battery ac cording to the in structions of the battery man ufacturer.

• There is danger of explo sion when instr uctions are no t followed.

General Warning

Warning

1. Use the power cord, which is supplied or recommended by the supplier .

- Otherwise, it may ca use fire.

2. Do not dismantle or assemble the product.

- It may cause malfunction or fire.

3. Enquire from your vendor for repair.

- It may cause el ectric shock or fire if the rep air is no t done properly.

4. Do not touch the product with wet hands.

- It may cause malfunction or electric shock.

5. Matters must be ensured to a professional for product installation.

- It may cause malfunction, electric shock or fire.

6. Consult the place of purchase if the need for installation a rises.

- Delinquent installation may be the reason for malfunction, electric shock or fire.

7. Ground applies to video products equipped with a 3-wire grounding type plug having a third (grounding) pin. This plug only fits into a groun ding-type po wer outlet.

- If grounding is not don e, it may cause ma lfunction or elect ric shock.

8. Ground connection must not touch gas pipe, water pipe or telephone line.

- If grounding is not don e properly, it may cause electric shock .

9. Prevent metallic foreign sub stance from go ing inside the pr oduct.

- It may cause malfunction or electric shock.

10. Do not spray insecticide or flam mable spray on the product.

- It may cause fire.

11. Prevent water from entering inside electrical parts.

- Clean with a dry towel. Malfunc tion or electric shock c ould result.

Caution

1. The internal fan rotates at high speed and may cause an accident.

2. Do not drop and avoid strong vibration or shock to the product.

- It may cause malfunction.

3. The air inhaler of th e top cover and air outlet of th e back panel mu st not be block ed during inst allation.

- The internal temperature of the product w ould be grea ter than allo wab le and could caus e malfunct ion or

fire.

4. Do not touch the product or the power cord when there is a thunder storm.

- It may cause electric shock.

5. Do not install the product near or on top of heating source.

- The internal temperature of th e product w ould be grea ter than allo wable a nd could caus e malfunct ion or

fire.

6. Do not install the pro duct on inclined or un stable location or p lace of vibratio n.

- It may cause malfunction.

MPORTANT SAFEGUARD

Power Connections

Warning

1. Must use the outlet of the grounding to connect th e power cord .

- It may cause fire.

2. Do not connect on the middle of power cord or use extension cord.

- It may generate heat or cause fire.

3. Do not touch the power cord with wet hands.

- It may cause electric shock.

4. Keep power cord dry and protect from humidity.

- It may generate heat or cause fire. The power cord is not waterproof.

5. Hold the body of the plug while removing the power plug.

- Do not pull the power cord. Damage to the power cord may generate heat or cause fire.

6. Check the power plug regularly.

- Humidity and moderation in smoking may cause fire.

7. Remove power cord from outlet when product is not used for a long time.

- It may cause short-circuit or electric shock.

Caution

1. Do not turn off the power by removal of the power plug. T o turn off the power, click the power button from the front panel. When the system stops ab normally , the po wer button might not work. Click power button for 5 full seconds to turn power off.

2. Do not cut off the power ar tificially, or give shock or vibra tion to unit while th e hard disk is activ ating.

- It may cause hard disk failure or loss of data.

3. T o turn on DVR, press POWER button of the DVR(not remote controller) until the front LED lights up.

4. Do not remove power during recording, playback, backup, and etc. It may cause fatal error.

Important Safeguard

1. INTRODUCTION

1.1. DVR Components……………………........

1.2. Product Description…………….………….

1.2.1. Fron t Panel…………………………….

1.2.2. Rear Panel………………………….….

1.2.3. Remote Controller…………………….

2. INSTALLATION

2.1. Hard Drive…………………………….…….

2.2. Starting the DVR………………..…………. Cautions & Warnings……………..………..

2.3. Log In & Log Out……..…………………….

3. CONFIGURATION

3.1 Config uration Menu…….…………..……….

3.2. System Setup…………………………..….

3.3. Camera Setup……………………..……….

3.4. Sensor Setup…………………………….….

3.5. Network Setup……………………..……….

3.6. Record Setup………………………..………

3.7. Record Scheduler………………..………….

3.8. Display Setup…………………………….….

3.9. Device Setup & Information…..…….…….

3.10. Log List……………..……………………….

3.11. Backup & Format……………………………. Exiting from Setup………………………………

4. OPERATION

4.1. Monitoring……………………………..….

4.1.1. Multi -Screen Display…………………….

4.1.2. Chan ging Ch annel…………………….

4.1.3. Freeze Screen………………….…….

4.1.4. Full Screen Display…………………….

4.2. Monitoring Control……………………….

4.2.1. Displ ay……………………………….

4.2.2. Video …………………………..…….

4.2.3. Audi o……………………………..….

4.2.4. etc ………………………………..…..

4.3. Playback (Search)

……………………….

4.3.1. Time /Date Se arch…………………….

4.3.2. Even t Searc h…………….……….…

4.3.3. File Search(CD-RW , USB)……...….

4.3.4. Cap ture…………………………..…. Image Capture……………..……… Video Clip Copy………………..……

4.4. PTZ Control………………………….……….

4.5. Recording……………………………..…..…. Panic Record ing………………………..…..…

Appendix A. Compatible HDD

Appendix B. Trouble Shooting

NDEX

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1.1. DVR Components

1. I

NTRODUCTION

DVR Unit

Remote Controller

Operation Manual

Mouse

Power Cable

Program CD

Rack Mount Grip and Screws

8 Screws(HDD Installation)

1.2. Product Description

1.2.1. Front Panel

1. CD-RW Slot (1 to 16) : Insert CD.

2. Channel Indicator (1 to 16) : Indicates which channels are operating.

3. POWER : Press to turn on/off power. The power ind icator will light up when power is on.

4. REC Indicator : The indicator will blink during recording. NT Indicator : The indicator will light up during network c onnection.

AR Indicator : The indicator will light up when sensor is triggered.

5. PANIC : Toggle to start/s top panic recording of all channels with high record ing quality .

6. MONITOR : Display the Monitoring Control Menu on the screen.

7. PTZ : Enter the PTZ control mode.

8. SETUP : Enter the Setup Mode.

9. ESC : Clear the Monitoring Control Menu.

Return to a high er Category/Group/F ield.

Cancel the selected Field button.

10. : Insert and eject CD.

11. Operation Keys :

: Activate a function or complete an entry that you have made during setup.

Display the Mon itoring Control Men u on the screen .

: Move between categories and change field values.

12. TAB : Move between menu groups.

13. JOG Shuttle : Change channels during monitoring.

Frame by frame reverse/forward during Playback mode.

14. USB Port : Connect ion for USB storage device

15. MOUSE Port : Connection for PS2 mouse.

Introduction

③ ④

②

⑤ ⑥ ⑦ ⑧ ⑨ ⑪⑩ ⑫ ⑬⑭

①

⑮

1.2.2. Rear Panel

1. AC POWER Socket : Supports 110 V ~ 220V free volt.

2. SENSOR Terminal

* Connect G(Ground) before connecting the sensor s.

3. SPOT OUT Connector

- Output connector for Spot Out signal to monitor .

4. VOUT & AOUT Connectors

- Output connector for video (VOUT) and audio(AOUT ) signals to monitor.

5. AUDIO INPUT Connectors

- Input connectors for audio signals.

6. VIDEO INPUT Connectors

- Input connectors for video signals.

7. ALARM Output Terminal

- Connect the alarm devices in its correspond ing numbers.

8. VGA(Monitor) Port

- Connection to PC monitor.

9. S-Video Connector

- Connection to S-Video jack.

10. RMC Connector

- Connection to remote controller extension cable.

11. MOUSE Port

- Connection to Mouse.

G G 8 7 6 5 4 3 2 1

8 7 6 5 4 3 2 1

Introduction

①

②

③

④

⑤

⑥

⑮

⑦

⑧ ⑨ ⑩

⑫⑬⑭⑪

12. PTZ Connector

- Connection to PTZ camera.

13. LAN Port

- Connection to LAN cab le.

14. SW(Dip Switch)

- Adjust the Dip Switch set ting according to r equired functions. The system must be r estarted after adjustments.

* Only PC monitors that support Interlace RGB must be used. Or TVs with RGB j ack

(SONY monitors) may be used after connecting RGB and HSYNC to the external SYNC. Switch between TV↔VGA may be performed only during the Monitoring Mode.

15. TERMINAL

* Lower serial connection jack : For serial remote control.

16. MODEM Port

Introduction

4 3 2 1 9 8 7 6

PIN No. Explanation PIN No. Explanation

1 nRS485 5 GND 9 RS485 2,3,4,6,7,8 Not used

Functions OFF Position ON Position OFF Color System NTSC PAL

Booting CDRW Booting

ON Booting USB Booting Monitor Output VGA *TVRGB, Composite,

S-Video

4 3 2 1

9 8 7

PIN No. Explanation PIN No. Explanation

2 RX 5 GND 3 TX 1,4,6,7,8,9 Not used

4 3 2 1 9 8 7 6

PIN No. Explanation PIN No. Explanation

2 RX 5 GND 3 TX 1,4,6,7,8,9 Not used

1.2.3. Remote Controller

※ Usage of Numeral Keys. (T o input FUZ42 )

☞ F : 333 → U : 88 → Z : 9999 → 4 : Press 4 until it appears on screen → 2 : Press 2

until it appears on s creen.

Introduction

OSD OSD On/Off during Monitoring/Full-screen Playback. PANIC Panic Recording On/Off. Numeral Keys S elect channel o r type in char acters. CAPTURE Capture video clip/image to USB Memory. F/F Remove image distortion during frame by frame advance. PREVIOUS Move to previous catego ry . NEXT Move to next category.

Direction Keys

Move cursor left/right/up/down.

PTZ control MENU / ENTER

Enter Menu.

Select/Enable a hig hlighted cate gory/item. ESC Stop current operation or return to previous mode.

AUDIO Change audio channel during monitoring/playback. LOG Enter Log Search mode. PTZ Enter PTZ control mode. SEARCH Enter Search(Playback) mode. SETUP Enter Setup mode. PAUSE Pause during playback. Fast reverse playback Playback in reverse/forward direction Fast forward playback. FULL SCR Change to full screen display of one channel. Playback in slow motion

-/+ SKIP

Reverse/forward jump in 5 minute intervals during

playback. CH Change channels.

DISPLAY Toggle between single and 4 channel display mode.

-/+ ZOOM

Adjust zoom of PTZ camer a.

T oggle between zoom 2x and normal vie w during

monitoring. FREEZE Freeze screen during monitoring

SEQUENCE Automatic sequence display during monitoring.

/ FOCUS Adjust focus of PTZ camera

ID Set

Set ID of remote controller .

Same ID must be applied for the DVR and remote

controller .

☞ Press the ID SET button and input the ID using the

numeral k eys. The ID must be set in 3 digits.(If DVR ID is “1” press “001”)

The ID SET button must remain press ed while

inputting the ID. PRESET Enter preset controls of PTZ IRIS

Adjust apertu re of PT Z camer a.

2.1. Installation of Hard Disk Drives

※ Compatible Hard Drives : Samsung, Maxtor, Fujitsu, Western Digital

2.1.1. Installation Order.

Unscrew the Br ackets fro m the DVR bott om in order to insta ll Hard Driv es.

- Installing one HDD : PRIMARY MASTER

- Installing two HDD : PRIMARY MASTER → SECONDARY MASTER

- Insta llin g thr ee HD D : PRIMARY MASTER → SECONDARY MASTER → PRIMARY SLAVE

- Installing four HDD : PRIMARY MASTER → SECONDARY MASTER → PRIMARY SLAVE → SECONDARY SLAVE

* Hard Drives mu st be insta lled in t he DVR ac cording t o the abov e order a nd adjust the Jumper

Pin of the Hard Drive to the Master or Slave pos ition.

- Fasten 2 screws on each side of the HDD brack et to fix the Hard Driv es to the bra cket.

2.1.2. Cable Connection.

Connect the Power Plug and IDE Cable to the Hard Drive.

2. I

NSTALLATION

Primary Slave (Above)

Primary Maste

(Below)

Secondary Slave (Above)

Secondary Maste

(Below)

IDE Cable

Power Cable

DVR FRONT

Power Cable

IDE Cable

Bracket 1

Bracket

Screw 1 Screw 2

Screw 3 Screw 4

2.2. Starting the DVR

After installing t he hard disk, con nect the power c ord to start the DVR. When starting the DVR for the first time, formatting of the hard disk will commence automatically and the DVR will be initializ ed as follow s.

The DVR will perform “S.M.A.R.T.” check of the installed har d disk. If no problem is detected [S.M.A.R.T. PASS] will be indicated and if a problem is detected [S.M.A.R.T.

FAILURE] will be indicated and a warning will appear on the monitoring screen every 1 minute for a duration of 5 seconds.

The hard disk capacity indicated may be smaller than the capacity declared by the hard disk producer . This difference may occur due to the difference in measure units and therefore is not a defect.

If the hard disk detected has not been formatted, recording will start after the formatting is completed.

Installation

※ S.M.A.R.T. (Self Monito ring, Analysis and Reporting T echnology)

S.M.A.R.T. is a reliability prediction technology to anticipate the failure of a hard disk drive with

sufficient notice to allow a system or user to back up data prior to a drive’s failure. If the controller detects problems in the disk drive reliability, it will release a warning to the user. In such a case, the use of the disk drive should be s topped immediately and have it examined.

※ Cautions & Warnings

1. Press the Power button on the DVR until the Power Indicator lights up.

2. The Hard Disk used in this D VR is compat ible with the Wind ows OS b y using th e F AT32 file system. However, we cannot guarantee safety against the possibility that the system may crash with vaccine programs such as Anti-Virus, V3, etc.

3. If the Hard Disk is formatted in the Windows environment, it should be performed in Windows XP or a higher edition and must use the FA T32 format.

4. Do not remove devices during b ackup or playback of recorded dat a. It may cause DVR malfunctions.

2.3. Log In & Log Out

1. Select USER

Using

buttons, select the USER. (ADMIN, USER1

~USER5)

2. Enter the PASSWORD

A Key P anel will appear au tomatically wh en the LOGIN screen

pops up.

Enter the Password using the Key Panel

3. LOG OUT

Click the mouse right button o r mov e the cursor to the bo ttom of th e scre en to brin g up the Menu bar

on to the monitoring screen. Click the mouse left button on th e [LOG OUT] button on the right hand corner of the Menu Bar to esca pe from the Administrator Mode.

This will prohibit any other users other than the authorized personnel with proper password to enter PLAY(Search), PTZ Control, and SETUP

Menu Bar

Installation

※ Default value of the Password is set at “0000”. ※ Password can be changed in the SYSTEM SETUP menu.

Key Panel

3.1. Configuration Menu

SYSTEM CAMERA SENSOR

LANGUAGE MOTION DETECTION SENSOR ID(DVR) MASKING AREA CAMERA LINK DATE TY PE SENSITIVITY(CAMERA) ALARM LINK TIME DATE COVERT OPERATIO N TIME DST COLOR SETTING TYPE TRANSPARENCY(GUI) BRIGHTNESS OPERATIO N MODE ADMIN PASSWORD CONTRAST RECORDING DWELL TIME MOUSE SENSITIVITY HUE OUTPUT DWELL TIME(ALARM) USER(NUMBER) PTZ SETTING USER PASSWORD ID USER AUTHORITY DRIVER COLOR SYSTEM(NTSC/PAL) BAUD RATE S/W VERSION DATA BIT UPGRADE(SETUP, F/W, BMP) PARITY FACTORY DEFAULT(RESET) STOP BIT

NETWORK RECORD SCHEDULER

IP TYPE RESOLUTION SCHEDULE PORT WATERMARK USE CONTINUOUS

IP ADDRESS WATERMARK STRENGTH MO TION

GATEWAY WATERMARK KEY MOTION+SENSOR SUBNET MASK RECORD TIME ST AMP SENSOR DNS SERVER AUDIO RECORD NONE SMTP SERVER FPS(RECORDING SPEED) COPY SCHEDULE MAC ADDRESS QUALITY E-MAIL SERVER ID E-MAIL SERVER PASSWORD E-MAIL SENDER E-MAIL RECEIVER PPPOE ID PPPOE PASSWORD DVR NAME EVENT MAIL

ONFIGURATION

DISPLAY DEVICE LOG LIST

MULTI-DISPLAY DISK MANAGEMENT EVENTS

SEQUENCE MODE END OF DISK POWER SEQUENCE DWELL TIME FULL DISK ALARM SENSOR

VIDEO ADJUSTMENT FULL DISK PRE-ALARM(5%) RECORD

FLICKER CANCEL SMART FAILURE CAMERA COLOR DIFFUSION DEVICE INFORMATION LAN VGA DE-INTERLACE DEVICE BACKUP

SPOT OUT SIZE SETUP

SEQUENCE DWELL TIME TEMPERATURE TIME SENSOR ACTIVATION RAW READ ERROR RATE CHANNELS

RE-ALLOCA TED SEC TOR COUNT CALENDAR SEEK ERROR RATE

BACKUP & FORMAT

FORMAT BACKUP

Configuration

3.2. System Setup

Before starting your DVR for the first time, you should establish the initial s ettings. This inc ludes categories such as Language, DVR ID, Date and Time, DST, Password, User Authorization.

Click the [SETUP] button on the Menu Bar to enter SETUP and the [SYSTEM] Setup screen will appear on the monitor.

CATEGORY

DEFAULT

VALUE

FUNCTION & OPERATION METHOD

LANGUAGE ENGLISH

• Select GUI(Graphic User Interface) Language

• The display will change immediately according to the selected

language.

• If the new values are not saved when exiting [SETUP], the

settings will return to its prev ious values.

T urn the mouse w heel to change Language.

ID 0

• Assign an ID number for the DVR

• When using several DVRs, each DVR will be differentiated with

this ID number.

• Input Range : 0~255

Use pop-up Key P anel or turn the mouse wheel to change the

number.

DATE TY PE

• Select DATE indication method.(YYYY-MM-DD, MM-DD-YYYY,

DD-MM-YYYY.)

Turn the mouse wheel to change the Date Type.

TIME DATE

• Adjust the Time and Date.

• A calendar will appear when the Time & Date Field is select ed.

• Date is available from January of the DVR production year to end

of year 2099.

Use the

buttons on the calendar to change the Month . Click on the Date with mouse left button and cha nge the Time by turning the mouse wheel or clicking the buttons.

DST

• Select whether to apply the DST(Day light Saving Time)

T urn the mouse wheel to select between YES or NO ..

TRANSPARENCY 0

• Set the transparency level of the Gr aphic User Interface(GUI) .

• The GUI will appear more transparent with lower inp ut values

• Input Range : 0~10

Turn t he mouse wheel to c hange the input v alue or use the

pop-up Key P anel.

ADMIN PASSWORD 0000

• Register Password of the DVR Administrator .

• Max. 8 characters(Letters and n umerals) can be us ed.

Use the pop-up Key Panel to change the passwo rd.

Configuration

CATEGORY

DEFAULT

VALUE

FUNCTION & OPERATION METHOD

MOUSE SENSITIVITY 2

• Set the Mouse Sensitiv ity level.

• Input Range : 1(Slow)~3 (Fast )

T urn the mouse wheel to change the input va lue.

USER

• Assign the number of autho rized Users hav ing access to the DVR .

• Max. number of Users : 1~5 persons.

• User Password and Authority Level will need to be assigned for

each Users.

• Register the User Password and Authority Level after selecting the

User.

T urn the mouse w heel to change the User.

USER PASSWORD 0000

• Register the Password of the selected User .

• Max. 8 characters(Letters and n umerals) can be us ed.

Use the pop-up Key Pane l to change the pass word.

USER AUTHORITY

• Assign the Authority Leve l of the selected User.

• Assign w hich mod e/mo des(P LAY, PTZ , RECORD C ONT ROL, USB)

the User is permitted to access.

Click on the mode or modes the User is permitted to access. The button will be highlighted in pink when selected.

COLOR SYSTEM NTSC / PAL

• Displays the current Color System se lected for the D VR.

• Setting values : NTSC, PAL

The DIP Switch in the DVR rear panel should be positioned to

the Color System applica ble in your region before starting the

DVR.

S/W VERSION

• Displays the installed Soft ware version of th e DVR.

UPGRADE

• Upgrade Setup V alues, Firmwa re and BMP Image(GUI) files

: Setup Va lues : Firmware : Image files used in th e GUI. : Upgrade(Download) Firm ware, Setup Inform ation,

BMP files to the DVR from a CD or USB memory.

: Copy Firmware, Setu p information, BMP files o f the

DVR to a CD or USB memory.

: Select the CD-RW or USB .

DVR UPGRADE : Select the Upgrade c ategory(Setup, Firm ware,

BMP) and click on IMPOR T and click th e STA RT button with the mouse left button.

Copy to CD or USB : Select the Upgrade cat egory and click on

EXPORT and click ST AR T.

FACOTRY DEFAULT

• All settings will be reset to the initial F actory default v alues

Click the F ACTORY D EFAULT button with the mouse left but ton.

PRE-VALUE

• All settings in the System Setup will return to its Previous values. Click the Pre-V alue button with the mouse left button.

DEFAULT

• All settings in the System Setup will return to its factory default

values.

Click on the DEFAUL T butto n.

Configuration

3.3. Camera Setup

In Camera Setup, you may designate Motion Detection and Masking Areas, sele ct Covert funct ion, and adjust the Color and PTZ settings for individual/all cameras connected to the DVR.

S elect the camera number from the channel

buttons displayed at the top of the screen for individual camera setup or click on the [ALL] button to apply same setting v alues for all came ras.

※ Select the Camera befor e changing the Camera

settings..

CATEGORY

DEFAULT

VALUE

FUNCTION & OPERATION METHOD

NAME Channel No.

• Assign the Camera Name to display on the On Screen Display

(OSD).

• Max. 8 characters(Letters and n umerals) can be us ed.

Use the pop-up Key Pane l to input char acters..

MOTION DETECTION ALL

• Designate the Motion Detection Area

Click the [MOTION DETECTION] button, and th en designate the Motion Detection Area by clicking on the desired areas in the

view screen. Designated area will be highlighted in purple.

Clicking on the [ALL] button will designate the ent ire area.

Clicking on the [CLEAR] but ton will clear all designat ed areas.

MASKING AREA NO NE

• Designate a specific area that ne eds to be hidden dur ing

monitoring and recording.

• Designation of Masking area in the semitransparent area on the

right hand side of the vi ew screen is not possib le.

Designation m ethod is same a s in Mot ion Det ection .

SENSITIVITY 80

• Set the Motion Detection S ensitivity level.

• Recording will perform continuo usly if the sensit ivity lev el is se t at

100.

• Input Range : 10~100

Use the pop-up Key Pane l or turn the mous e wheel to change

the input value.

COVERT

• The selected camera will not be d isplayed on the monitor.

• Recording of the se lected camera will continue.

Click the check box to apply Covert c amera function.

COLOR SETTING

• Set the Brightness, Contr ast , Hue level of t he selected camer a

• Input Range : 0~10

Use the pop-up K ey Pa nel or turn the mous e wheel to chan ge the level and click on [OK] or [CANCEL] button.

Configuration

PTZ SETT ING

• As sign the PTZ ID, Driver, B aud Rate, Data Bit, Parity, Stop Bit

for the selected PTZ Camer a

• Input Range :

- PTZ ID : 1~255

- PTZ Drivers : PELCO-D, PELCO-P, PANASONIC, PT-A100L, DOME1, DOME2, HSDN-251N, WPT-101, SJ-2819, SK2162D, DSC-230, GROOM-D106, CAZ1723, VC-C4, SCCC4201, CRR1600T, SRX-100B , VVK -3000, ORX -1000

- Baud Rate : 300 ~115,200

- Data Bit : 7 ⇔ 8

- Parity : EVEN ⇔ ODD ⇔ NONE,

- Stop Bit : 1 ⇔ 2

Use the pop-up Key Pane l or turn the mous e wheel to change the input values.

Click the [TEST] button to test whether the PTZ camera is

operating prop erly .

Click the [OK] or [CANCEL] button after completing the PTZ

setting.

Configuration

3.4. Sensor Setup

In Sensor Setup, you may designate Camera and Alarm (Output) Link for each Se nsors.

Select the Sensor from the Sensor nu mbers

displayed at the top of the screen and then make the necessary linkage with the Camera and Alarm (Output).

CATEGORY

DEFAULT

VALUE

FUNCTION & OPERATION METHOD

CAMERA LINK

• Assign the Camera that is to be connected to the Sensor.

Click the Camera channel or chann els that is to be linked to the

Sensor.

ALARM LINK

• Assign the Output(Alarm) that will activate when the Sensor is

triggered.

Click the Output Channel or Channels that is to be linked to the Sensor.

OPERATION TI ME 0~24

• Set the Time for which the Sensor will operate.

• Input Range : Between 0~24(Unit : Hour)

T urn the mouse wheel to change the time.

TYPE NO

• Select the Sensor T y pe

• Please refer to the Sensor Manua l to select the correct type.

T urn the mouse wheel to select between NO(Normal Open) and

NC(Normal Closed)

OPERAT ION MODE NOR MAL

• Select the Monitoring Screen Display type when the Sensor is

triggered.

- NORMAL : Displ ay vide o in 16 c hanne l multi- screen d isplay.

- INTENSIVE : For 1:1 Camera and Sensor link, the activated camera view will appear in Full Screen Disp lay and the DVR internal buzzer will beep while the Sensor is activated.

• If several Cameras are linked to the Sensor, the Intensive mode

cannot be applied.

T urn the mouse wheel to select between NORMAL and INTENSIVE.

RECORDING DWELL TIME

• Set the length of time you would like to record for the associated

event.

• Input Range : 0~600 Seconds

T urn the mouse wheel to change the Recording Dwell Time.

OUTPUT DWELL TIME

• Set the length of time you want the Output(Alarm) act ivated.

• Input Range : 0~600 Seconds

T urn the mouse wheel to change the Output Dwell Time.

Configuration

3.5. Network Setup

Remote access and contr ol of the DVR t hrough the

internet may be performed with the Network Client Software inclu ded in this packa ge. Configuration of the Network settings is required to connect the DVR to the internet.

Select the IP Type that meets your network environ ment and set up the appropriate LAN

paramet ers.

CATEGORY

DEFAULT

VALUE

FUNCTION & OPERATION METHOD

IP TYPE FIXED IP

• Select the IP T ype : FIXED, AUT O, PPPOE

T urn the mouse wheel to select the IP T y pe. Fields that do not require any input will be highlighted in green.

PORT 7050

• Set the Port num ber.

• Input Range : 0~65000

Use the pop-up Key Panel or t urn the mouse wheel to inp ut the numbers.

IP ADDRESS

• Set the IP Address
