Torbal IP68 User Manual

Download

Page 1

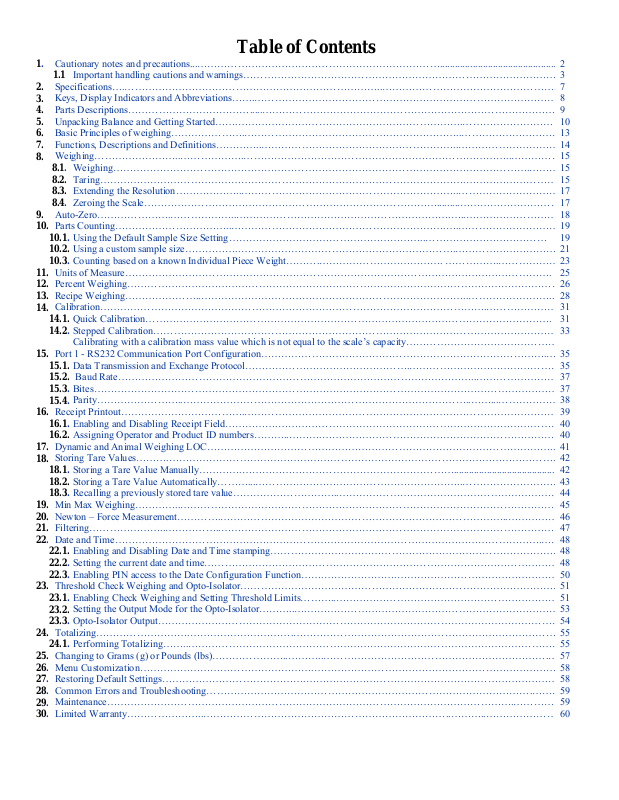

Table of Contents

…

Cautionary notes and precautions...……………………………………………………………….............................................

Important handling cautions and warnings………………………………………………………………………………

1.1

Specifications….…………………………………………………………………..……………………………………………

Keys, Display Indicators and Abbreviations…….……………………………………………………………………………

Parts Descriptions……………………………….....…………………………………………………………………………… 9

Unpacking Balance and Getting Started…….………………………………………………………….……………………… 10

Basic Principles of weighing………………….………………………………………………………..………………………

Functions, Descriptions and Definitions…………..…………………………………………………..………………………

Weighing……………………..……………….……………………………………………………………………..…………

Weighing…………………………………………………………………………………………………………….……

8.1.

Taring……………………………………………………………………………………………….……………………

8.2.

Extending the Resolution………………..………………………………………………………..………………………

8.3.

Zeroing the Scale…………………………………………………………………………….........………………………

8.4.

Auto-Zero………………….………………..……………………………………………………….…..……………………

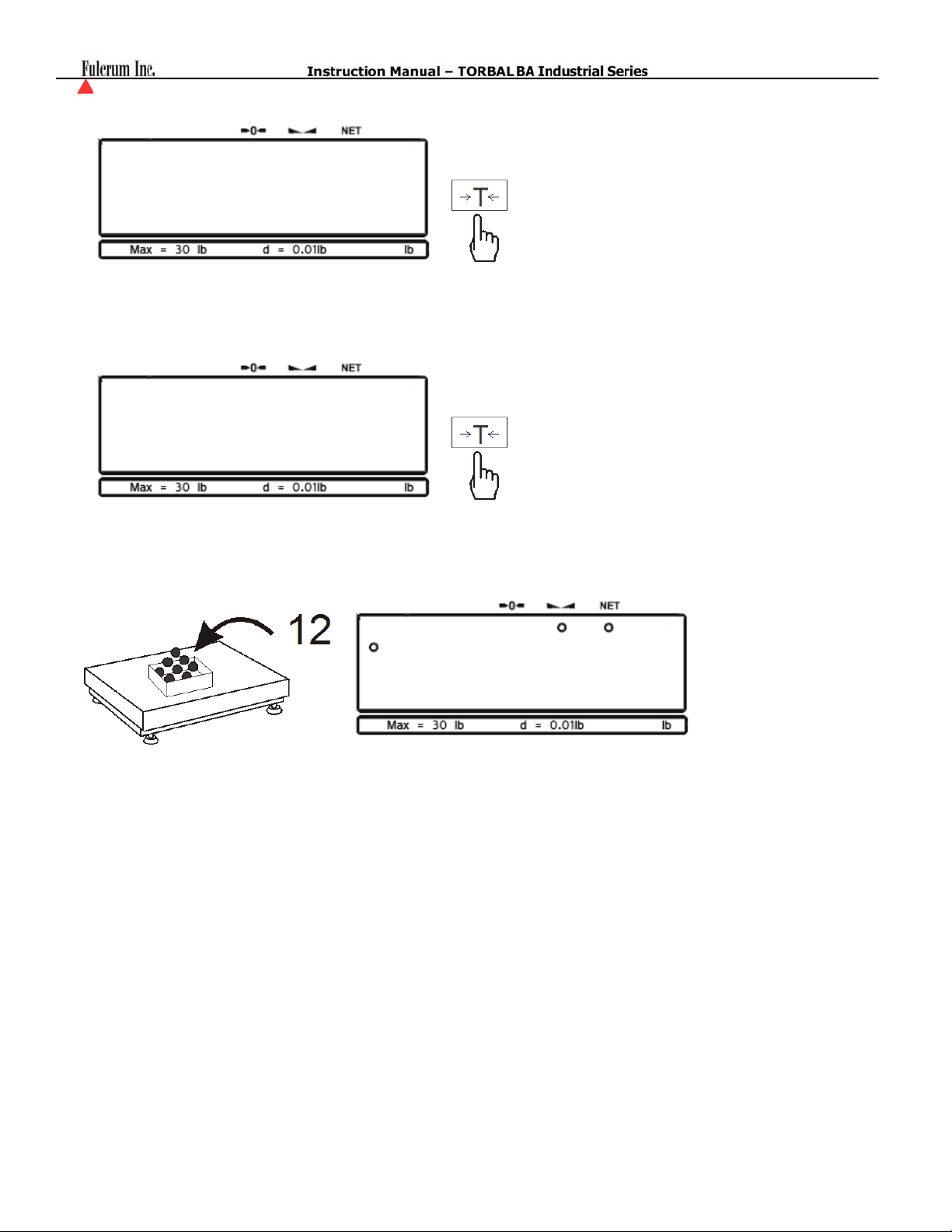

Parts Counting……………………………..……………………………………………………….….………………………

10.

Using the Default Sample Size Setting…………………………………………………..……………………………… 19

10.1.

Using a custom sample size……………..……………………………………………………….………………………

10.2.

Counting based on a known Individual Piece Weight……….………………………………. …………….……………

10.3.

Units of Measure………………………………………………………………………………………………………………. 25

11.

Percent Weighing………………………………………………………………………………………………………………

12.

Recipe Weighing…………………..……………………………………………………………………..…………………….. 28

13.

Calibration…………………………………………………………………………………………………….………………

14.

Quick Calibration…………………………………………………………………………………………………………. 31

14.1.

Stepped Calibration………………………………………………………………………………………………………

14.2.

Calibrating with a calibration mass value which is not equal to the scale’s capacity……………………………………

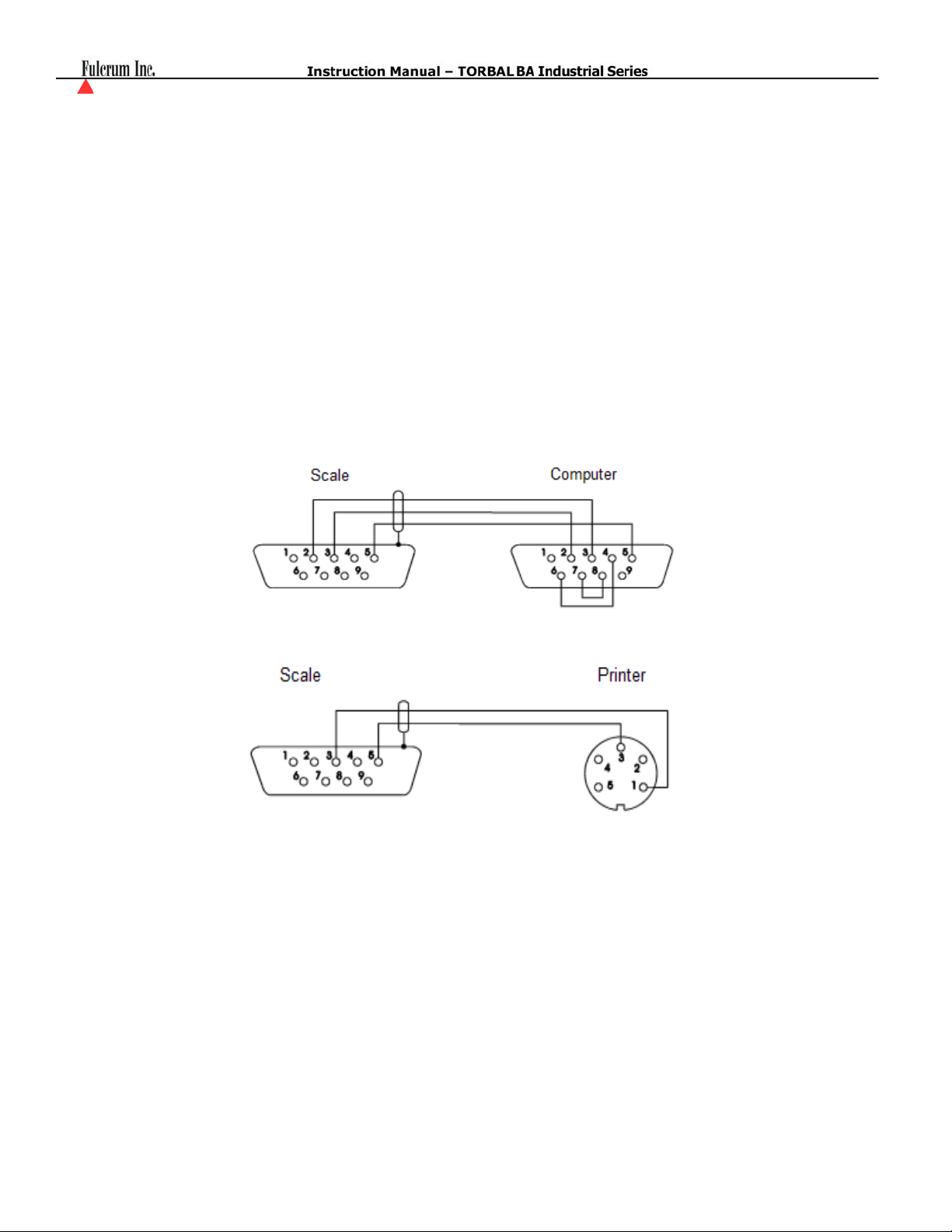

Port 1 - RS232 Communication Port Configuration………………………………………………………………………….

15.

Data Transmission and Exchange Protocol………………………………………….……………………………………

15.1.

Baud Rate……………………………………………………………………………………………..…………………

15.2.

Bites………………………………………………………………………………………………………………………

15.3.

Parity……………………..…………………………………………………………………………..……...……………

15.4.

Receipt Printout……………………………….………………………………………………………………………………

16.

Enabling and Disabling Receipt Field…………….………………………………………………………………………

16.1.

Assigning Operator and Product ID numbers………..……….…………………………………………………………… 40

16.2.

Dynamic and Animal Weighing LOC………………………………………………………………………………………….. 41

17.

Storing Tare Values……….……………………………………………………………………………………………………. 42

18.

Storing a Tare Value Manually………….………………………………………………………........................................ 42

18.1.

Storing a Tare Value Automatically………...……………………………………………………..………………………

18.2.

Recalling a previously stored tare value…………………………..………………………………………………………

18.3.

Min Max Weighing…………..………………………………………………………………………………………………… 45

19.

ewton – Force Measurement………….…………………………………………………………………………..……………46

20.

Filtering…………………..……………..……………………………………………………………………………………… 47

21.

Date and Time……………………………………………………………………………………………………………….…

22.

Enabling and Disabling Date and Time stamping…………………………………………………………………………

22.1.

Setting the current date and time…………………………………………………………………………………………

22.2.

Enabling PIN access to the Date Configuration Function…….………………….………………………………………

22.3.

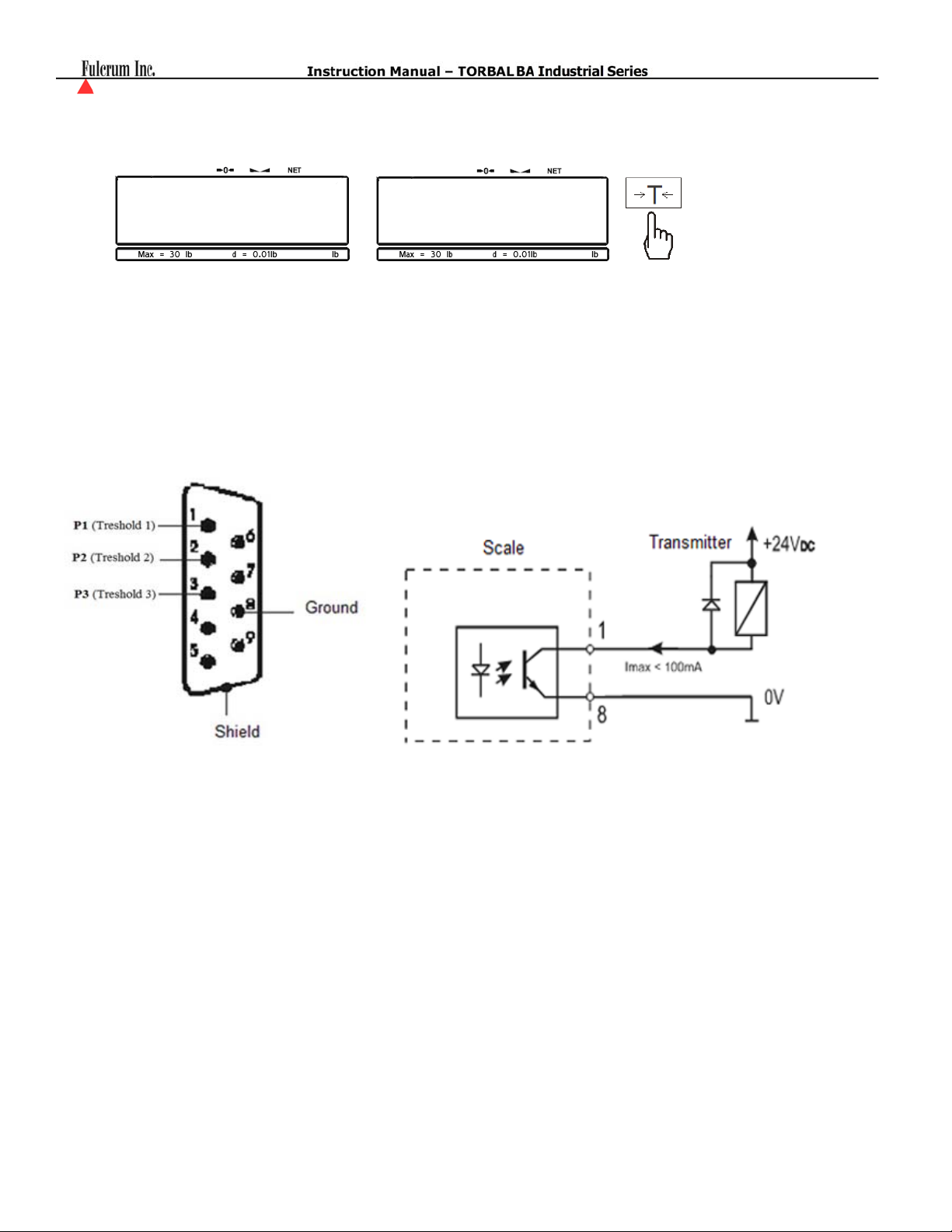

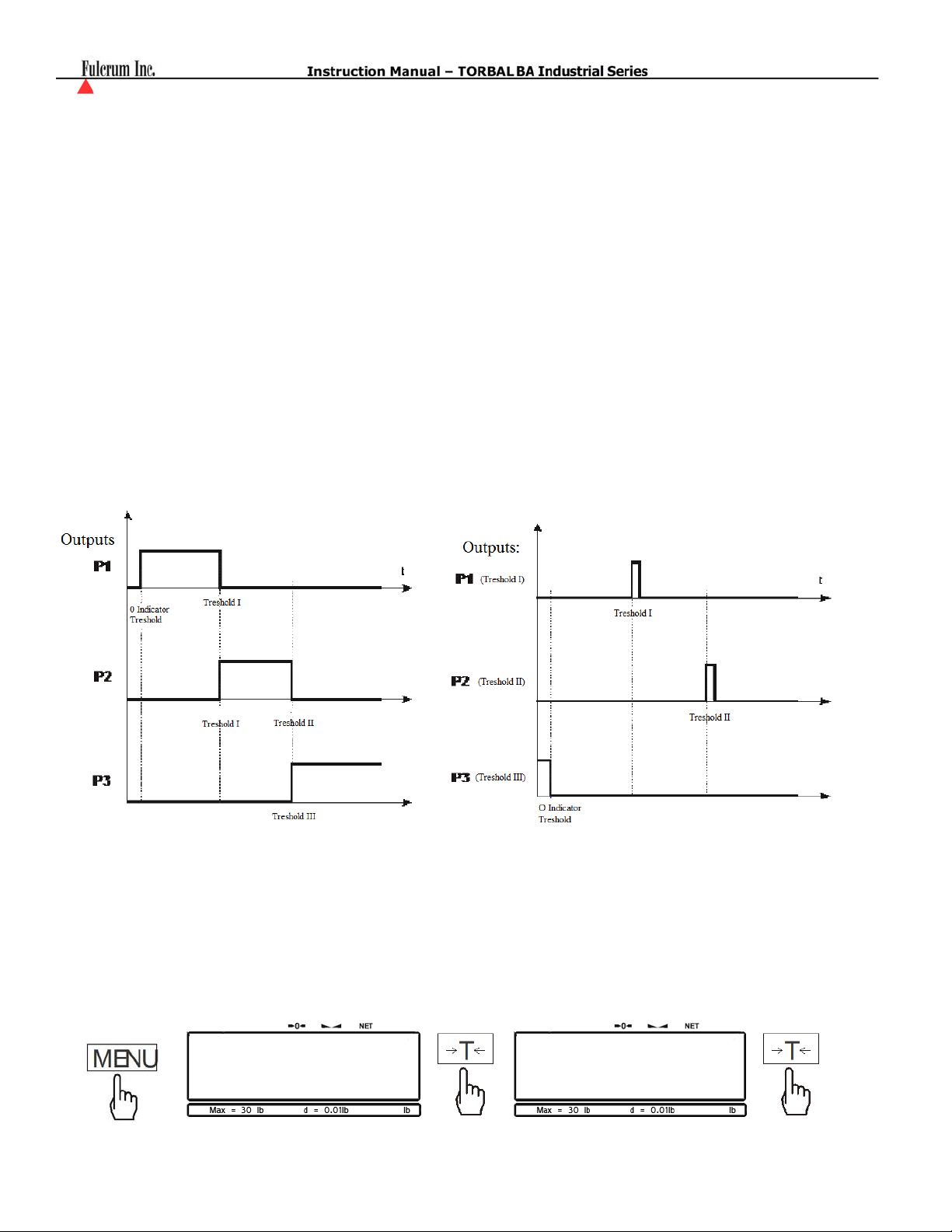

Threshold Check Weighing and Opto-Isolator…………………………………………………………………………………

23.

Enabling Check Weighing and Setting Threshold Limits………..………………………………………………………

23.1.

Setting the Output Mode for the Opto-Isolator………..….………………………………………………………………

23.2.

Opto-Isolator Output………………………………………………………………………………………………………

23.3.

Totalizing……………………….………………………….…………………………………………………………………

24.

Performing Totalizing……..………………………………………………………………………………………………

24.1.

Changing to Grams (g) or Pounds (lbs)…………………..………..………………………………………………………….

25.

Menu Customization…………………………………………….……………………………………………………………

26.

Restoring Default Settings…………………………………….………………………………………………………………

27.

Common Errors and Troubleshooting…………………………………………………………………………………….……

28.

Maintenance………………………………………………………………………………………………………….………… 59

29.

Limited Warranty…………………..………………………………………………………………..………..………………

30.

2 3 7 8

13 14 15 15 15 17 17 18 19

21 23

35 35 37 37 38 39 40

43 44

48 48 48 50 51 51 53 54 55 55 57 58 58 59

Page 2

Torbal Washdown Balances

Chapter 1: Cautionary Notes

Remember choose a proper location for you scale and to always handle the unit with care.

The correct location and proper environment makes an important contribution to the accuracy of the weighing

results of TORBAL industrial scales.

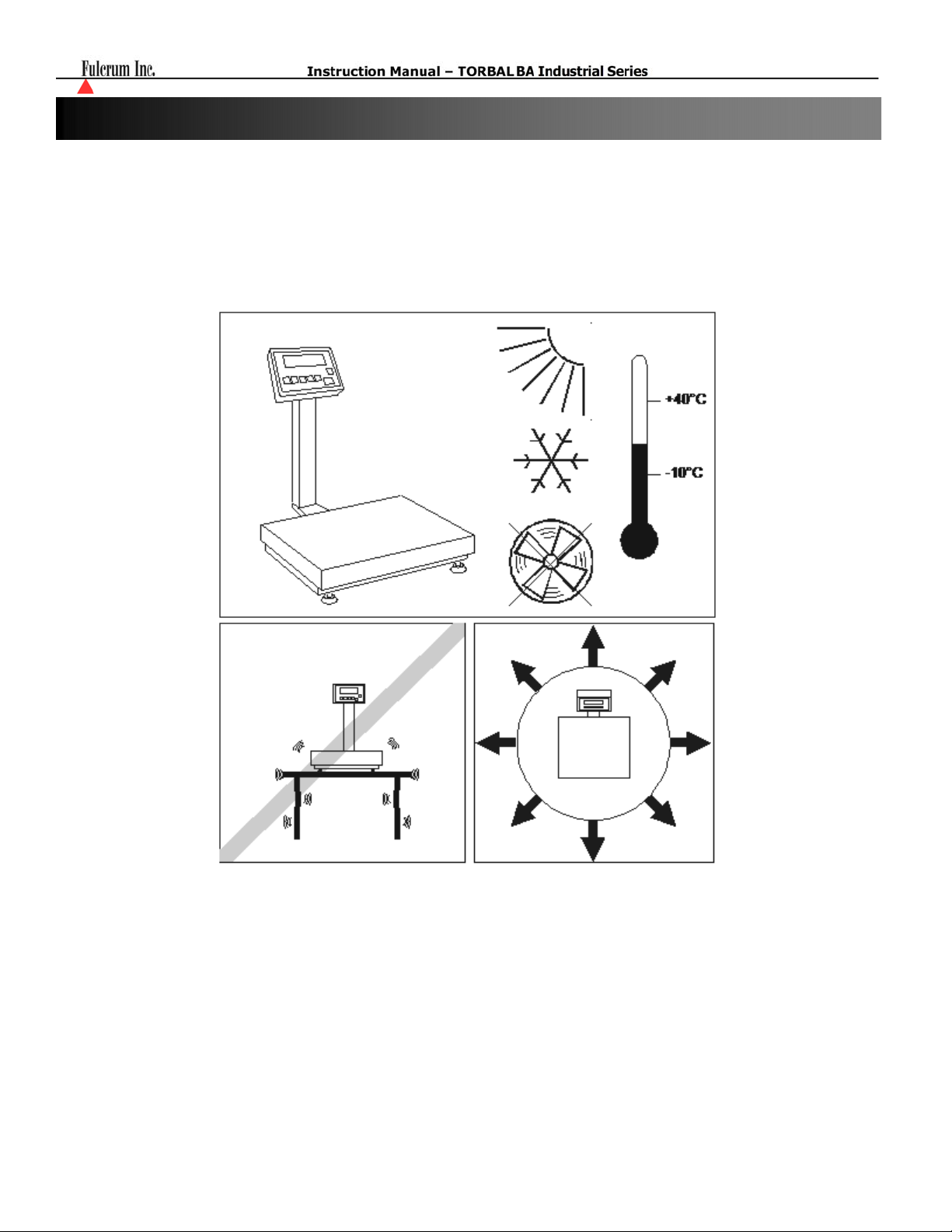

The optimum location for your scale:

• Stable, vibration-free base as horizontal as possible

• Away from direct sunlight

• Not exposed to high temperature variations

• Away from direct drafts

• The best location is a stable surface away from direct drafts, doors, windows, radiators and air

conditioner vents.

- 2 -

Page 3

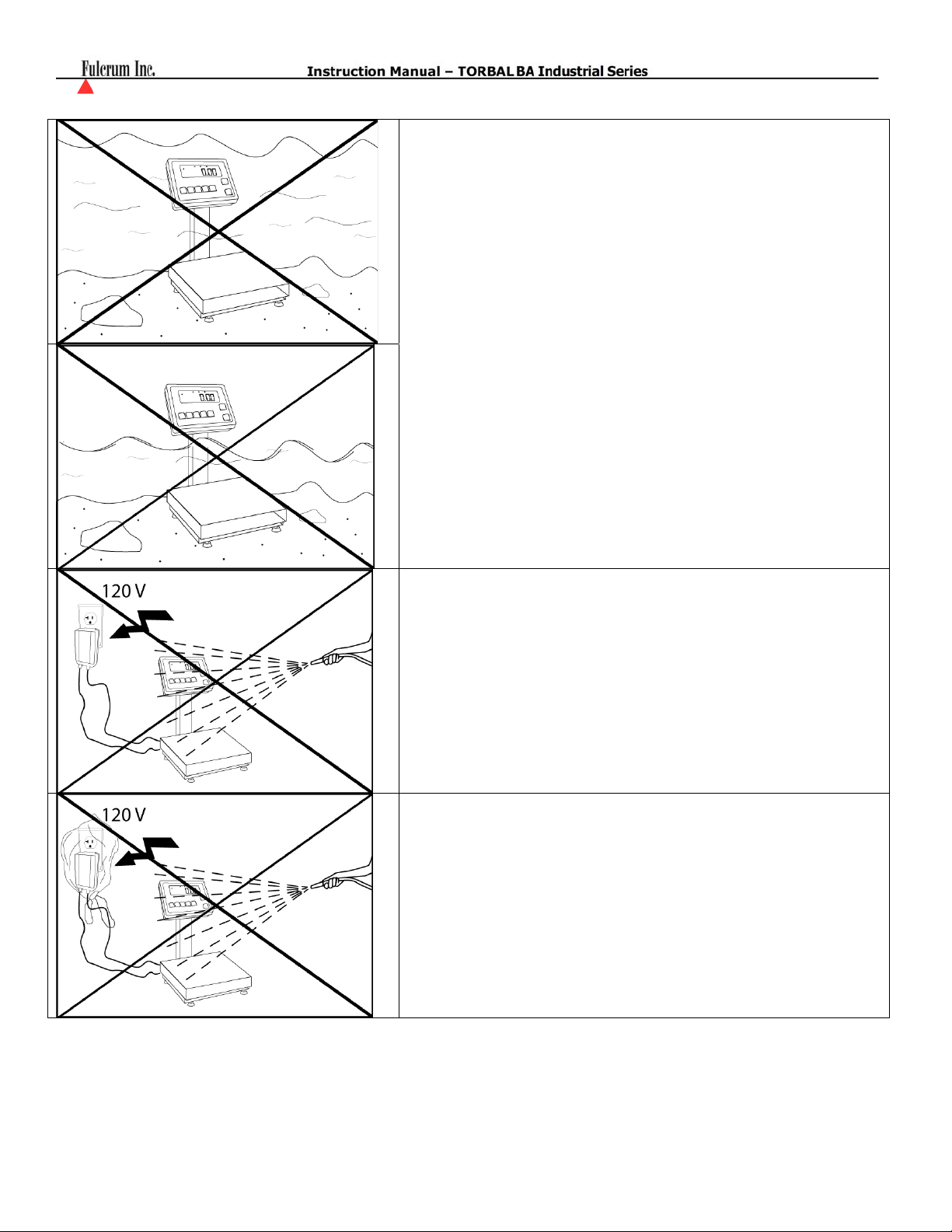

NEVER submerge the scale.

Ingress Protection Rating - Load cell: IP68 , Indicator:IP65

Never spray water on the scale’s power supply. The AC Adapter is NOT waterproof and may not be exposed to the washdown process.

Never attempt to cover the adapter with a plastic bag or covering. This will not protect the adapter. Covering the adapter is dangerous, may cause damage and an electrical shock.

- 3 -

Page 4

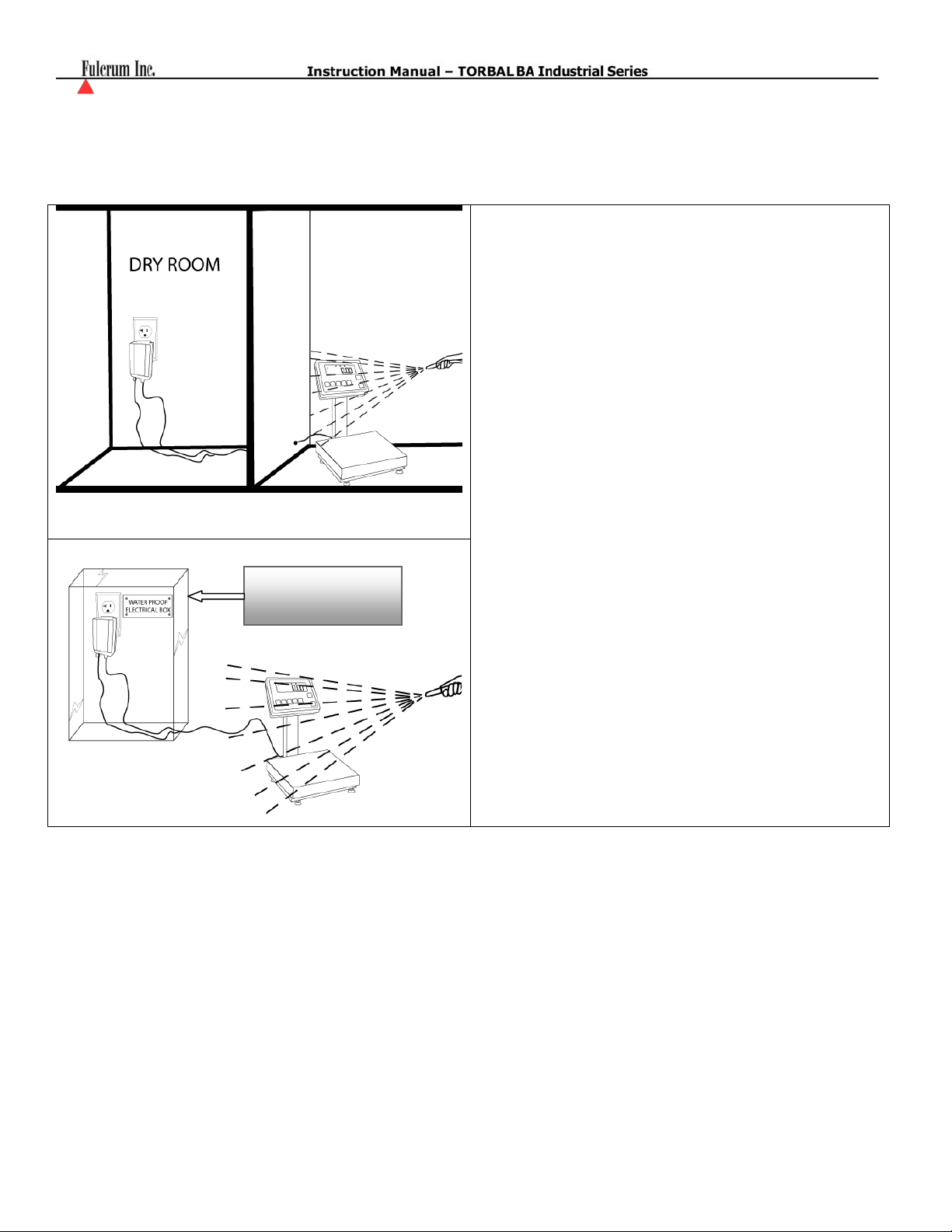

The power cord should be “fished” into a dry room or a waterproof electrical box. Consult a licensed electrician regarding an appropriate location and connection methods.

Waterproof electrical box

- 4 -

Page 5

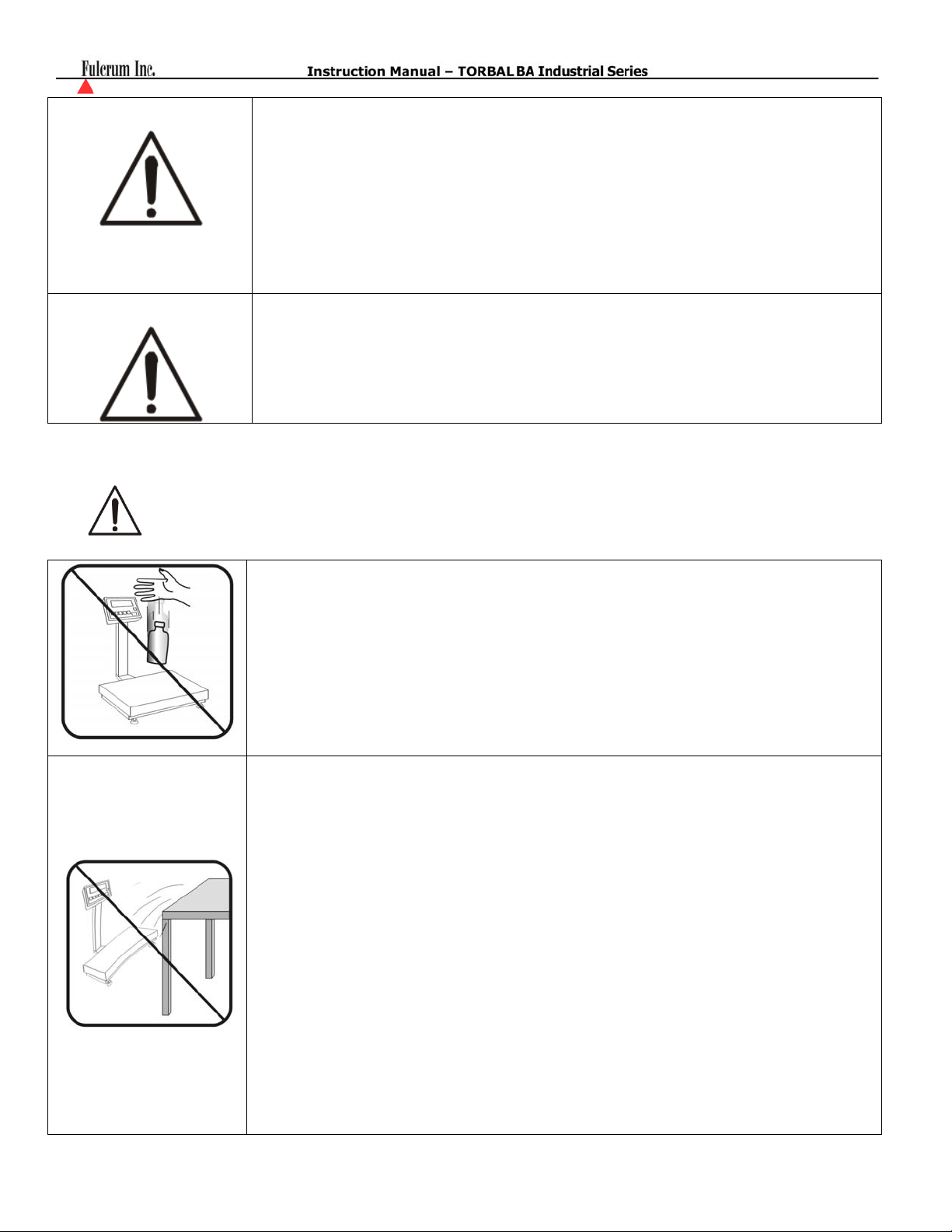

CAUTION:

• The scale is designed for indoor use only.

• Do not operate the scale in hazardous areas or conditions..

• Be sure to set the scale on a firm, stable, horizontal surface.

• Never stand on or lean on this product. Equipment may fall or collapse, causing breakage

and possible injury.

• Before moving the product, unplug it and unplug all cables connected to it.

• When storing, transporting or returning the scale for service, always use the original

packaging.

WARNING:

• Never attempt to repair, disassemble or modify the scale yourself. Tampering with the scale

• Be sure to use the specified power source.

• Do not allow foreign matter to fall into the scale.

may result in injury and cause more damage to the equipment.

1.1. Important handling Cautions and Warnings

Always handle your scale with care. Damage caused by improper handling is not covered under the scale’s warranty.

Never drop or throw any articles onto the scale’s pan or onto any other parts of the unit!

DO NOT let the scale fall or drop from its tabletop surface!

- 5 -

Page 6

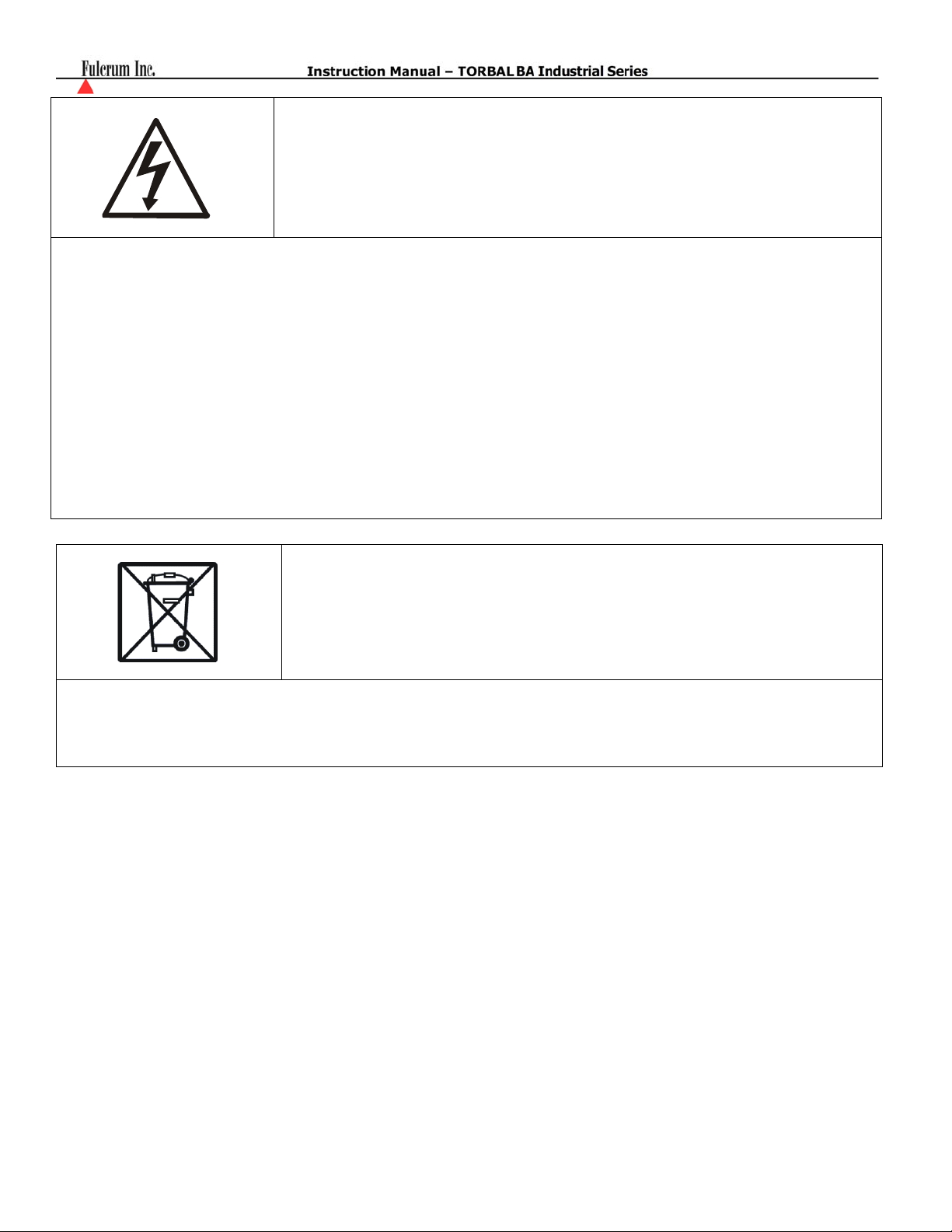

Follow all safety guidelines in order to avoid electrical shock, or damage to

connected peripheral devices.

• All necessary repairs or internal adjustments should be made by authorized personnel only.

• To avoid the risk of fire use an outlet of the proper type that provides the specified voltage. The

required voltage for the power supply is 115vAC @ 60Hz and requires a minimum of 1.2 amperes of current.

• Do not use the scale when the cover is open.

• Do not use the scale in explosive atmospheres.

• If the scale does not operate properly, unplug the power supply and do not use it until checked by

authorized personnel.

Disposal of electronic equipment in waste containers is

forbidden by law.

• Please dispose of electronic equipment in appropriate recycling centers or by

returning to the original point of purchase.

- 6 -

Page 7

Chapter 2: Specifications

Table 1. Hermetic (Wash down) Series

Specification

Capacity Kg/lb

Readability (d) g/lb

Increased Resolution (5sec) g/lb Stabilization time

Tare Range in Kg

Platform Dimensions mm

Overall Dimensions mm (in) Scale Weight Kg / lb

Operating Temp

3H 6H 15H 15

3/6 6/15 15/30 30/60 60/

0.002

0.1 0.2 0.5 1/

-3 -6 -15 -30 -60 --150 -300

250 X 260X130 400X

0.005

<3 SEC <4 SEC

250X260X400 (10X10X15.7)

7/15.4 13/

0.01

400X

130 402x 582x

590

28.6

MODEL NUMBER

30H 60H 63H 150H 151H 300H 301H

150/

120

10/

0.02

0.002

500X400

X130

402x672x690

(16X26X29)

23/50.6 35/77 50/

20/

0.05

0.005

600X500

X150

602x667x690

(23.7x26.2x

27.2)

-10C TO +40C

300

50/

0.1

0.01

800X 800X

160 803x 982x

690

110

600X500

X150

602x667x

35/77 60/

690

300/

600

100/

0.2

10/

0.02

800X800

X160

803x982x

690

132

Power Supply

RS-232 Port

USB

Class

IP Rating

Warranty

12VDC@500ma 12VDC@850ma

BIDIECTIONAL

B tper

III

Load cell: IP68 , Indicator:IP65

ONE YEAR

- 7 -

Page 8

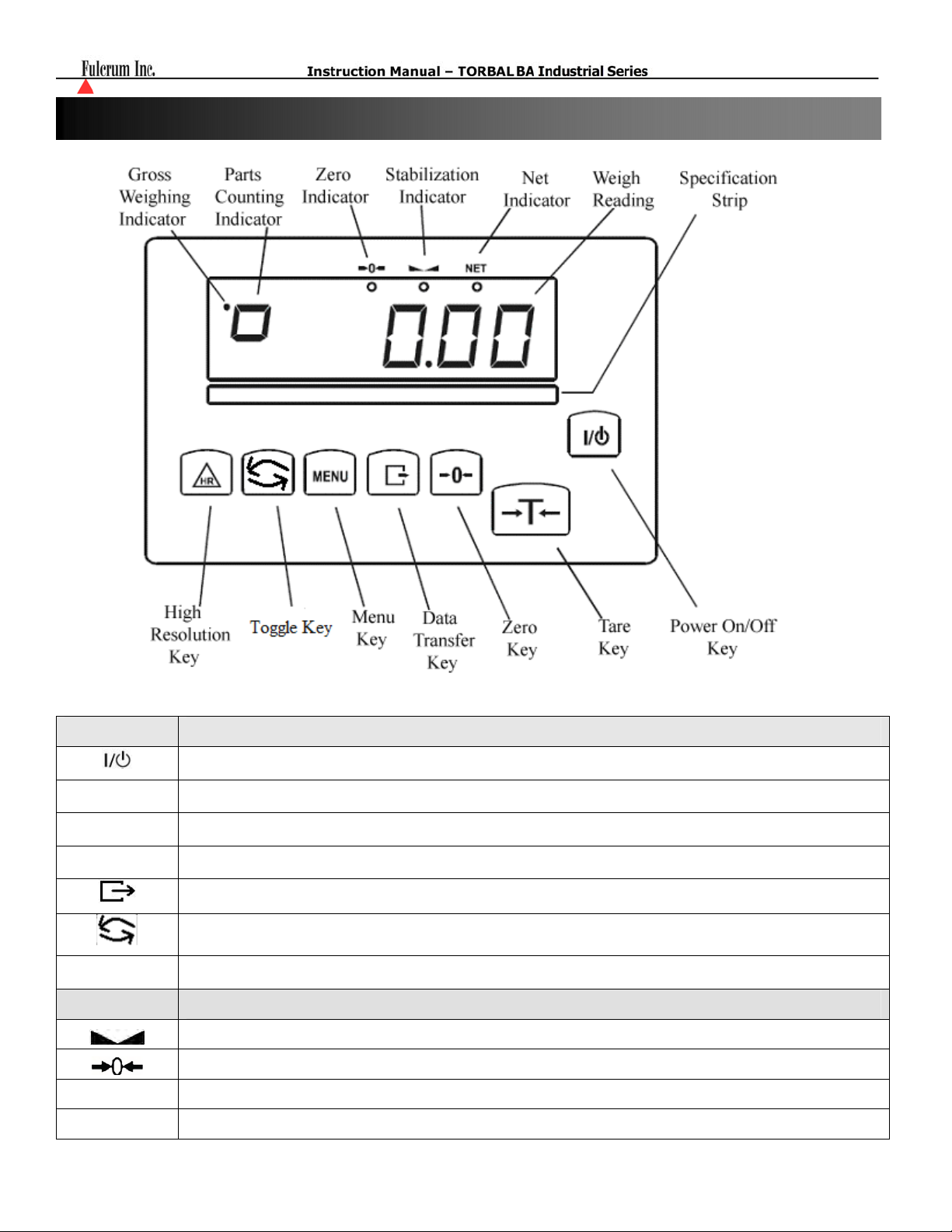

Chapter 3: Keys, Display Indicators and Abbreviations

Key Primary Function

ÆTÅ

Æ0Å

Display Indicator

AUT

Zero – used to zero the scale (Legal for Trade models only)

Menu – used to access the main menu

Data Transfer – used to print data or transfer data to a PC via the RS232 communication port

Toggle – used to toggle between various parameters in several different functions

High Resolution – temporarily (5 sec) increases the display resolution

Stability Indicator - The weighing result has stabilized and an accurate reading may be taken. Zero - The scale is maintaining a “center of zero” condition. (Legal for Trade models only) AZSM (Automatic Zero Setting Mechanism) is enabled. Always enabled in Legal for Trade models.

Power On and Power Off

Tare – used to tare the weighing pan

Description

NET

Net Weight – indicates that the container weight has been removed by tare

- 8 -

Page 9

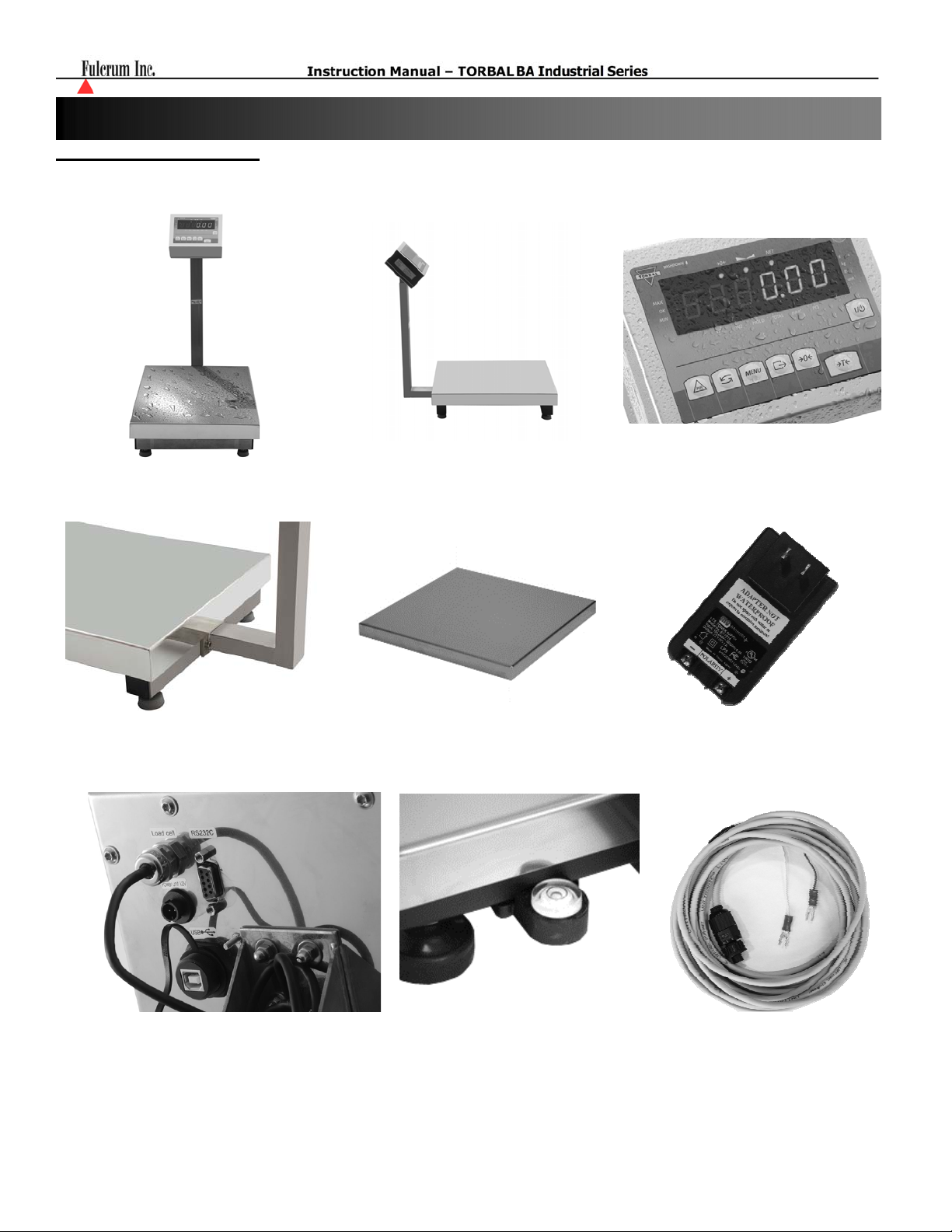

Chapter 4: Parts Description

Pictures must be changed BA Models:

Front View Side View Indicator

Column Pan AC Adapter

RS232, USB, and power

Ports

Level Indicator Power Cord

- 9 -

Page 10

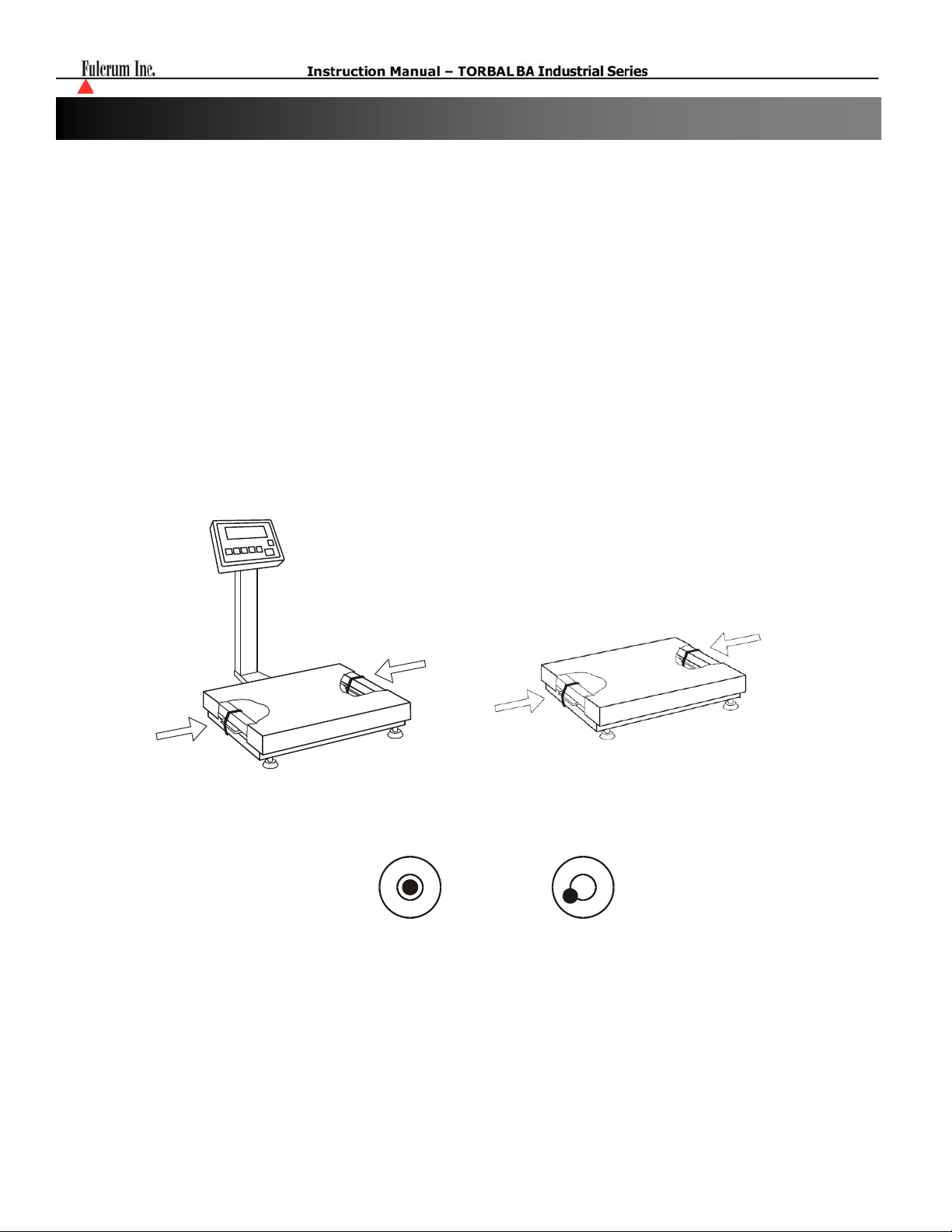

Chapter 5: Unpacking the Balance and Getting Started

1. Carefully remove the scale, pan, and all of its components out of the packaging and place them on a

stable surface where the scale will not be affected by any mechanical vibrations or high air

movements.

2. After removing all components from the packaging refer to the assembly instructions which have been

provided with the scale, and carefully assemble the unit.

3. After assembling the scale lift the platform pan and then remove straps which are used to secure the

frame during shipping.

Important: When transporting the scale these straps must be replaced prior to shipping.

4. Use the rotational feet to level the scale. An air bubble level is built into the platform for this purpose.

Adjust the feet until the bubble is center in the level indicator.

Correct Incorrect

- 10 -

Page 11

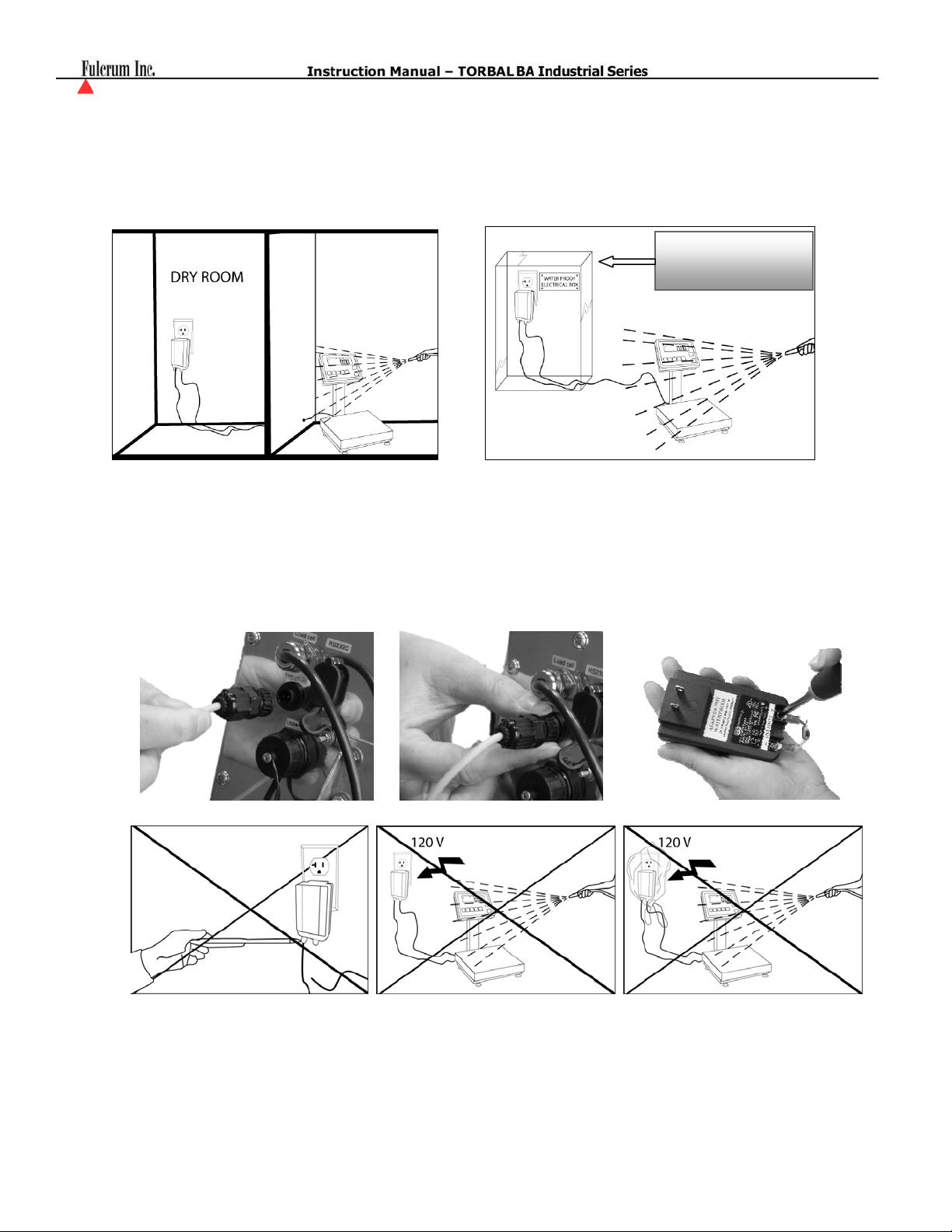

5. The AC Adapter is not waterproof! A long power cord is provided to allow the Adapter to be plugged

into a receptacle that is protected from the washdown process. The power cord should be “fished” into a dry room or a waterproof electrical box. Consult a licensed electrician regarding an appropriate location and connection methods.

Waterproof electrical box

(A) Connect the power cord supplied with the scale to the power port located in the rear of the scale.

(Do not plug the ac adapter into the power receptacle at this time) (B) Firmly secure the power cord

on the port. (C) Use a screwdriver to connect the power cord spade lugs to the AC adapter terminals.

Do NOT plug the AC adapter into the power receptacle until the power cable is connected to the scale and the power terminals have been connected to the adapter.

B. C.

Never connect the spade lugs with adapter plug into the wall outlet. Never spray water on the adapter. Do not cover the adapter with plastic bag or any type of covering (it will not protect the adapter from moisture)

- 11 -

Page 12

6. Make sure the protective waterproof covers are in place on any unused communications connectors.

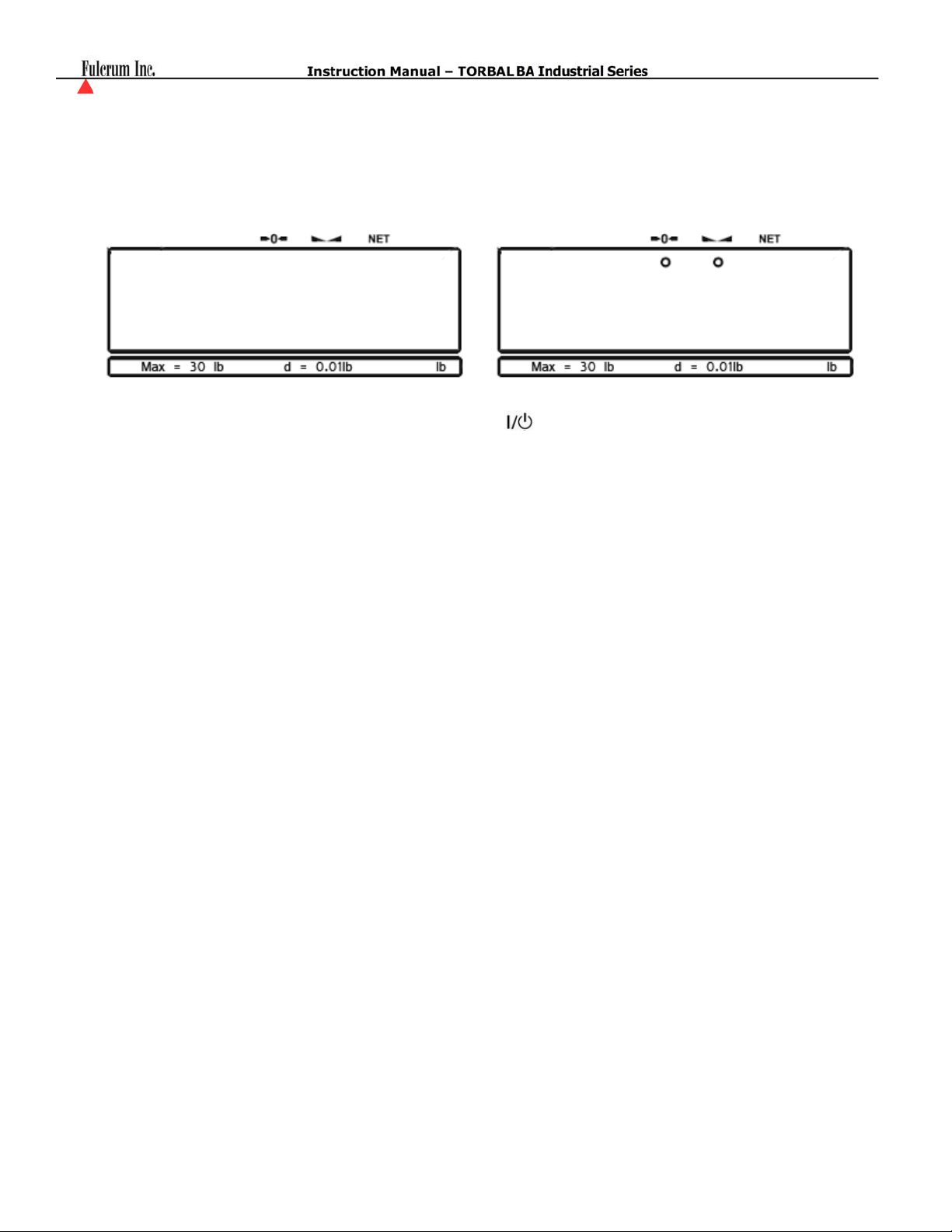

7. When the AC adapter is plugged into the wall outlet, the scale will turn “ON” automatically, initialize

itself, and enter weighing mode.

C-1

8. To turn the scale off press the Power “OFF” button ( ).

- 12 -

Page 13

Chapter 6: Basic Principles of Weighing

1. The scale should be properly zeroed before weighing. Proper zeroing is indicated by the Zero

Indicator ( (

→0←

2. Weighing allows taring over the entire weight range. This is accomplished by pressing the Tare

key, ( capacity is not overloaded.

3. An accurate weighing result should not be taken until the stability indicator ( ), indicates that the

result is stable.

4. For best results place the unknown weight in the center of the pan.

5. Use the “Active” function to customize the scale’s main menu and disable functions that are not used.

This makes using the main menu fast and easy.

→0←

) on the display. If the display signals an out of zero condition (----), press the

) key to Zero an empty pan.

→T←

). Care should be exercised when tare is in use to be sure that the scale’s maximum

Never overload the scale in excess of 20% of the scale’s rated maximum capacity.

- 13 -

Page 14

Chapter 7: Functions, Descriptions and Definitions

• Parts Counting is used to count parts based on their established average piece weight.

• Percent weighing is used to establish the relative weight of an unknown, compared to that of a stored

reference weight and expressed as a percent.

• Recipe Making is used for weighing and summing individual ingredients such as powers or liquids

during recipe making or mixing compounds.

• Check weighing is used to check whether a weight of an object falls within specified threshold limits.

• Animal and dynamic weighing is used to weigh animals or objects which are in motion while on the

pan.

• Tare Storing is used to store the values of various containers used for weighing.

• Filtering is used to minimize or eliminate the effects of vibrations on the weighing surface.

• Min / Max Indication is used in conjunction with Check Weighing to control external indication or

sorting equipment.

• Totalizing is used for summation of sequential weighing results of items or articles.

- 14 -

Page 15

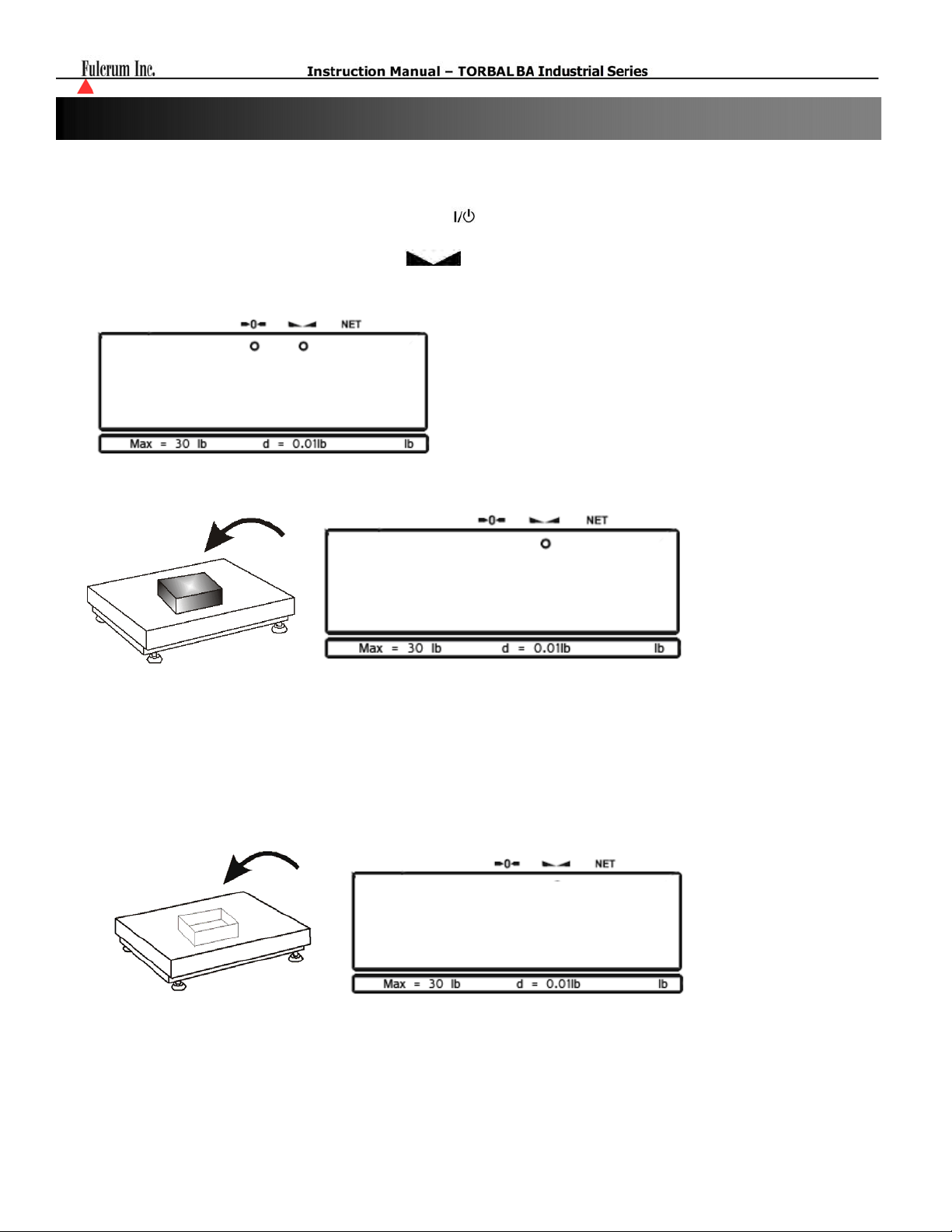

Chapter 8: Weighing

8.1. Weighing

1. To begin weighing, press the power button ( ) to turn the scale ON. The scale will go through its

initialization procedure and automatically enter “Weighing Mode”. The scale is ready to begin

weighing as soon as the stabilization (

2. When weighing, always place the mass in the middle of the pan. The weighed result may be taken

when the stabilization indicator appears on the display.

) and zero (Æ0Å) indicators appears on the display.

8.2.Taring

1. If a container is used for weighing, it may be tared. In taring the container, the scale subtracts the

weight of the container from the gross weight to obtain the net weight.

2. To tare the weighing container, place it in the middle of the pan. The container’s weight will be shown

on the display.

- 15 -

Page 16

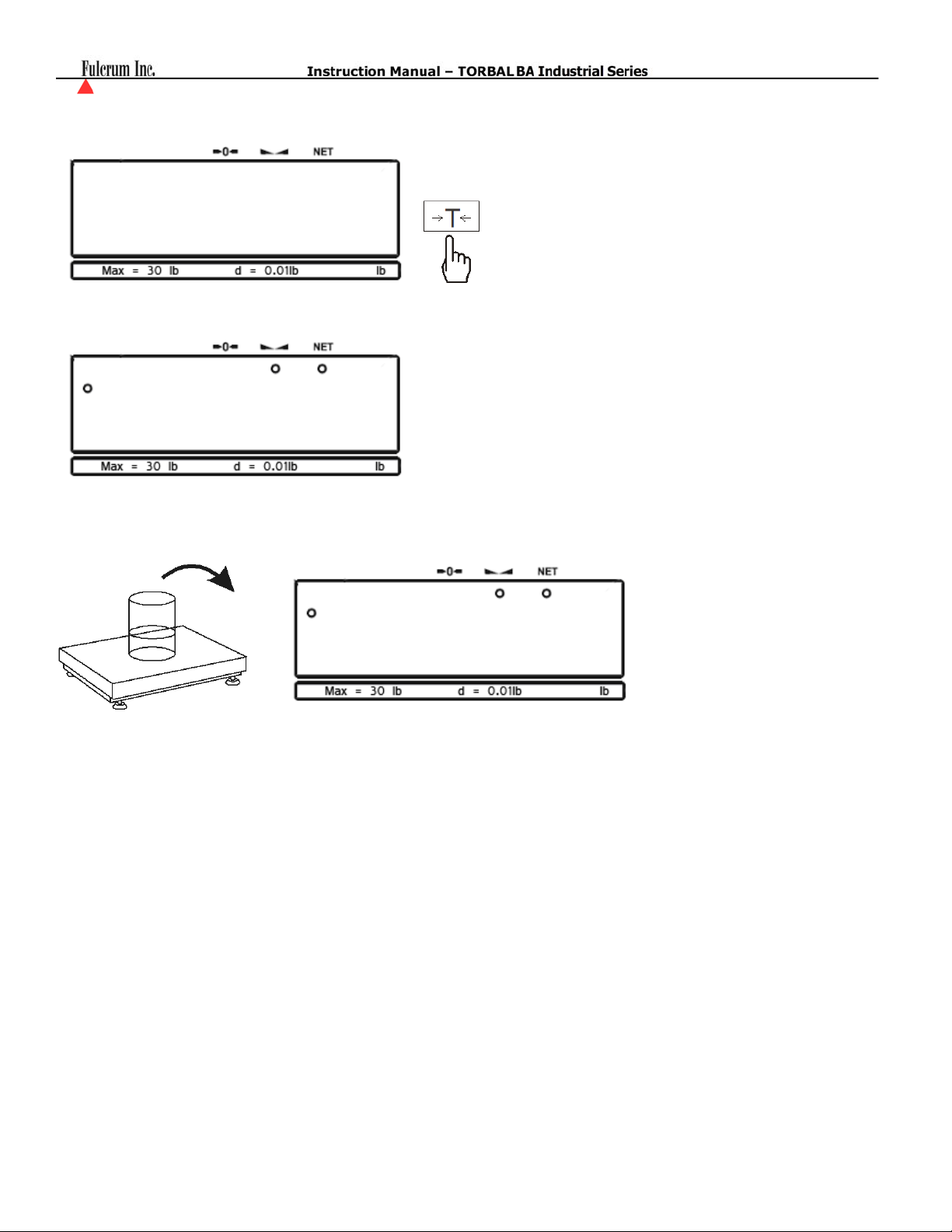

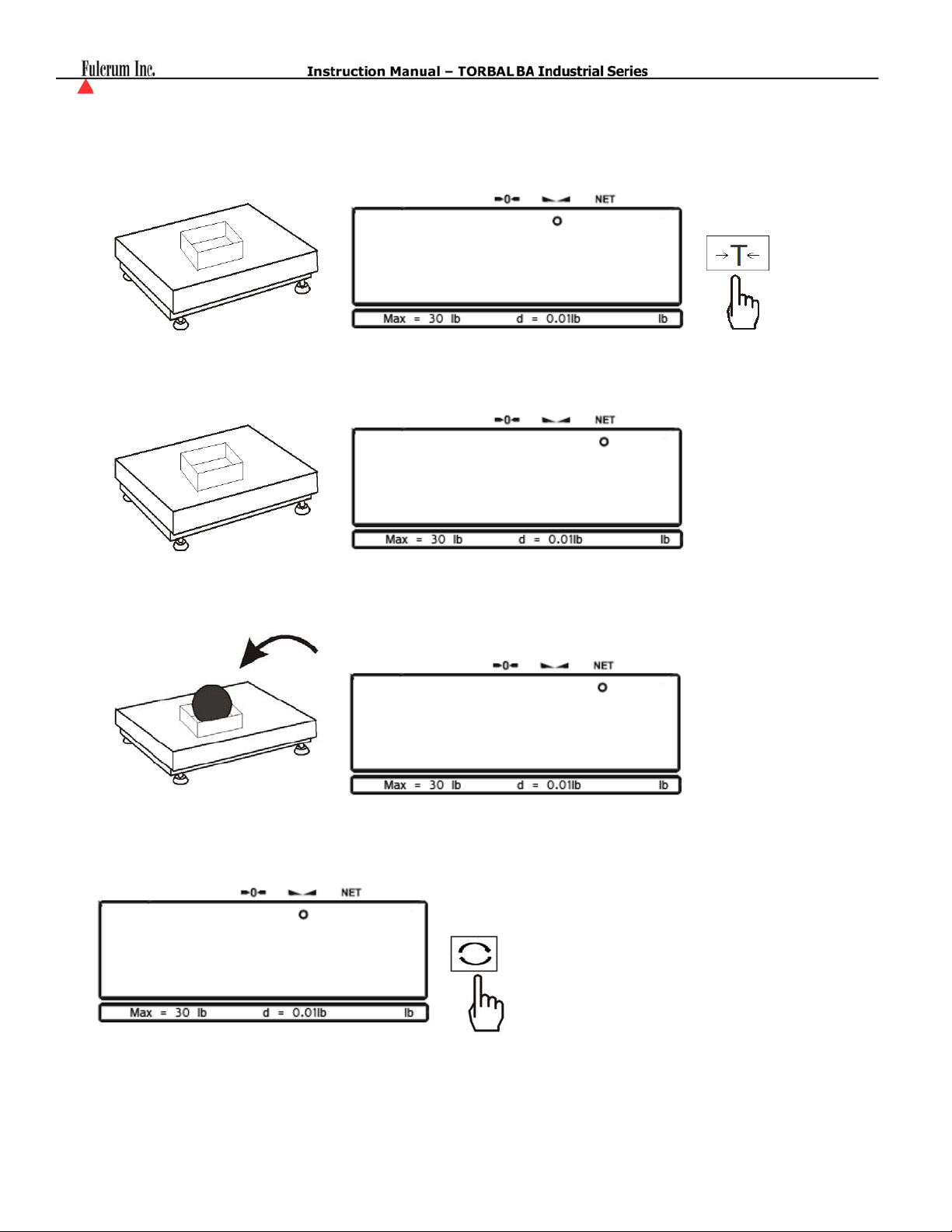

3. Once the stabilization indicator appears on the display, the container is ready to be tared. To tare the

container, press the “T” button. The display will show a dotted line which indicates the scale has begun the taring process.

-------

4. When finished taring, the balance will return to weighing and the NET indicator will be lit. The

display will indicate 0.00g.

5. Place the unknown weight in the tared container. The NET weight will be displayed.

6. To obtain the gross weight (Tared container + unknown weight) press the TOGGLE key.

- 16 -

Page 17

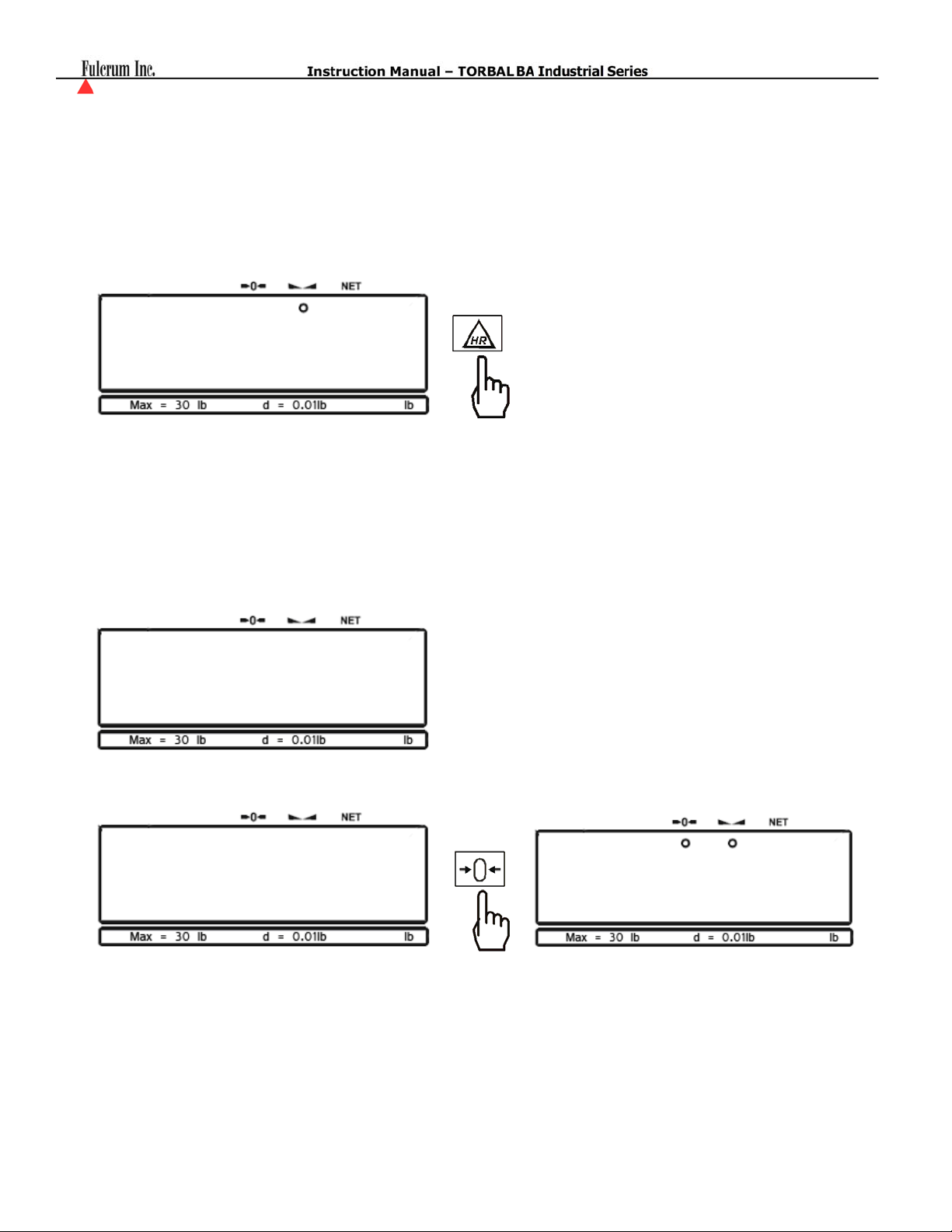

8.3. Extending the resolution

1. The resolution of the scale can be temporarily increased by pressing the HR key. This temporary

increase in resolution can be very useful in scales where d=e. The display resolution is increased for 5

seconds and then reverts automatically.

Note: These results are not legal for trade and cannot be sent to a printer or an external computer.

8.4. Zeroing the scale

If the display signals are out of zero condition “--", the scale must be zeroed before weighing.

036

- -

1. To zero the scales press the Æ0Å key.

-------

- 17 -

Page 18

(

)

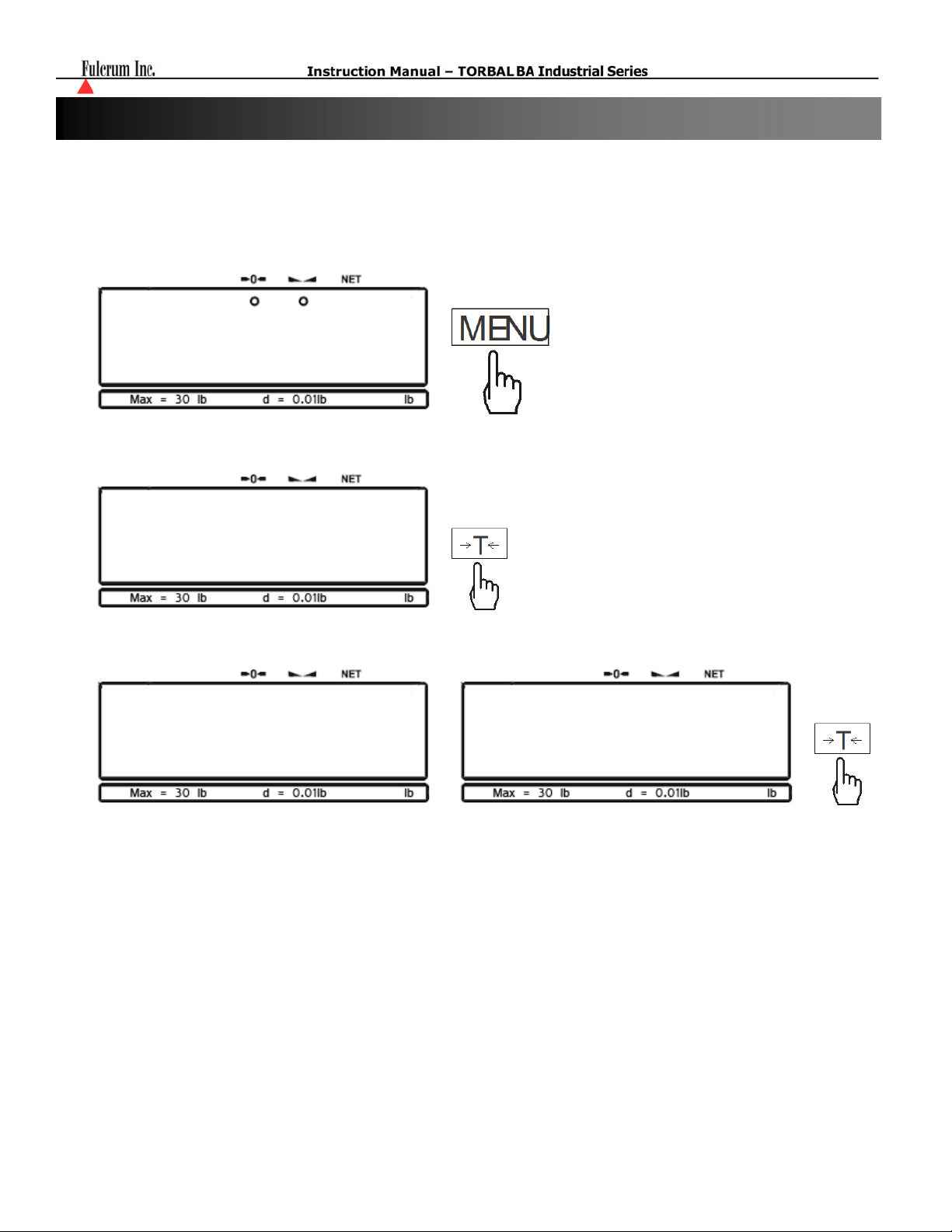

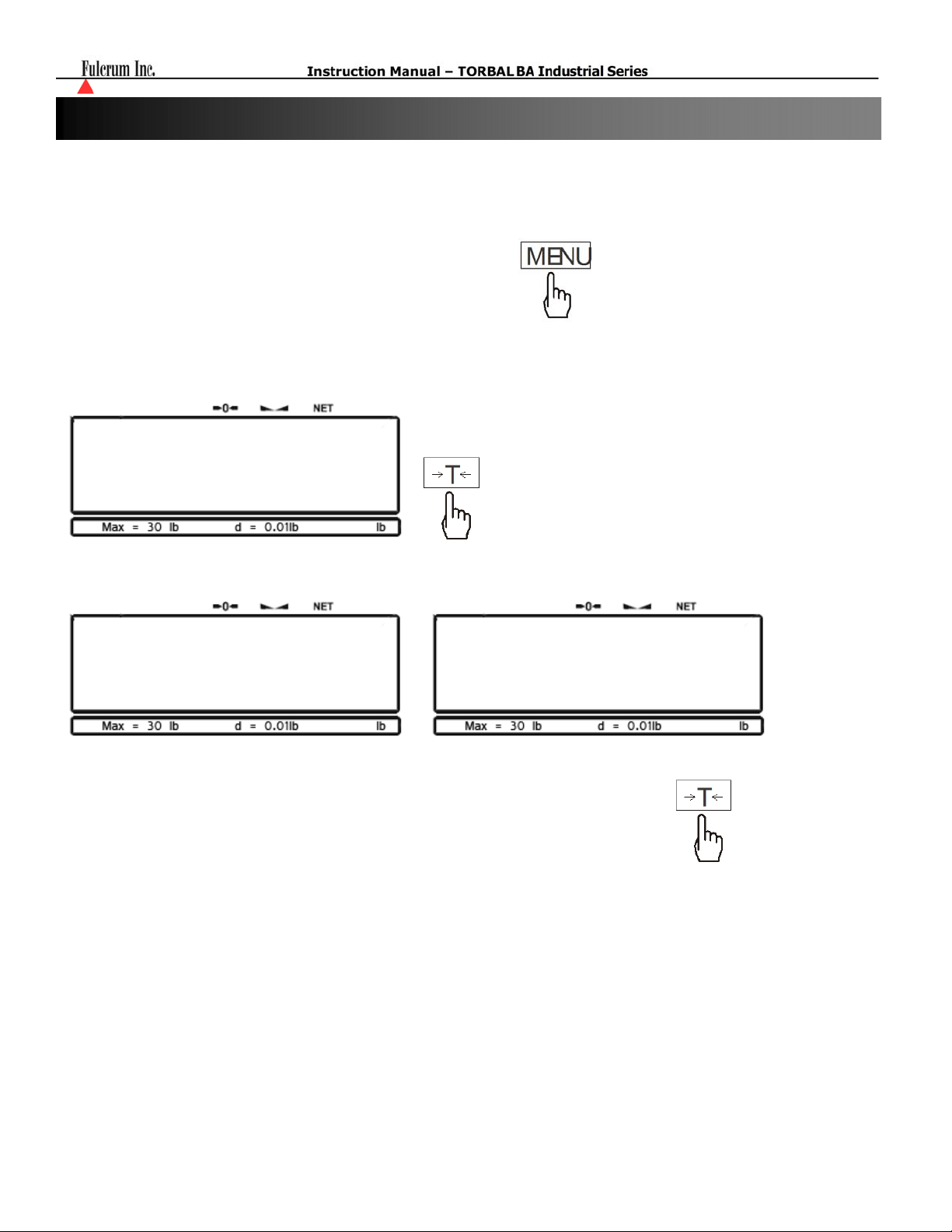

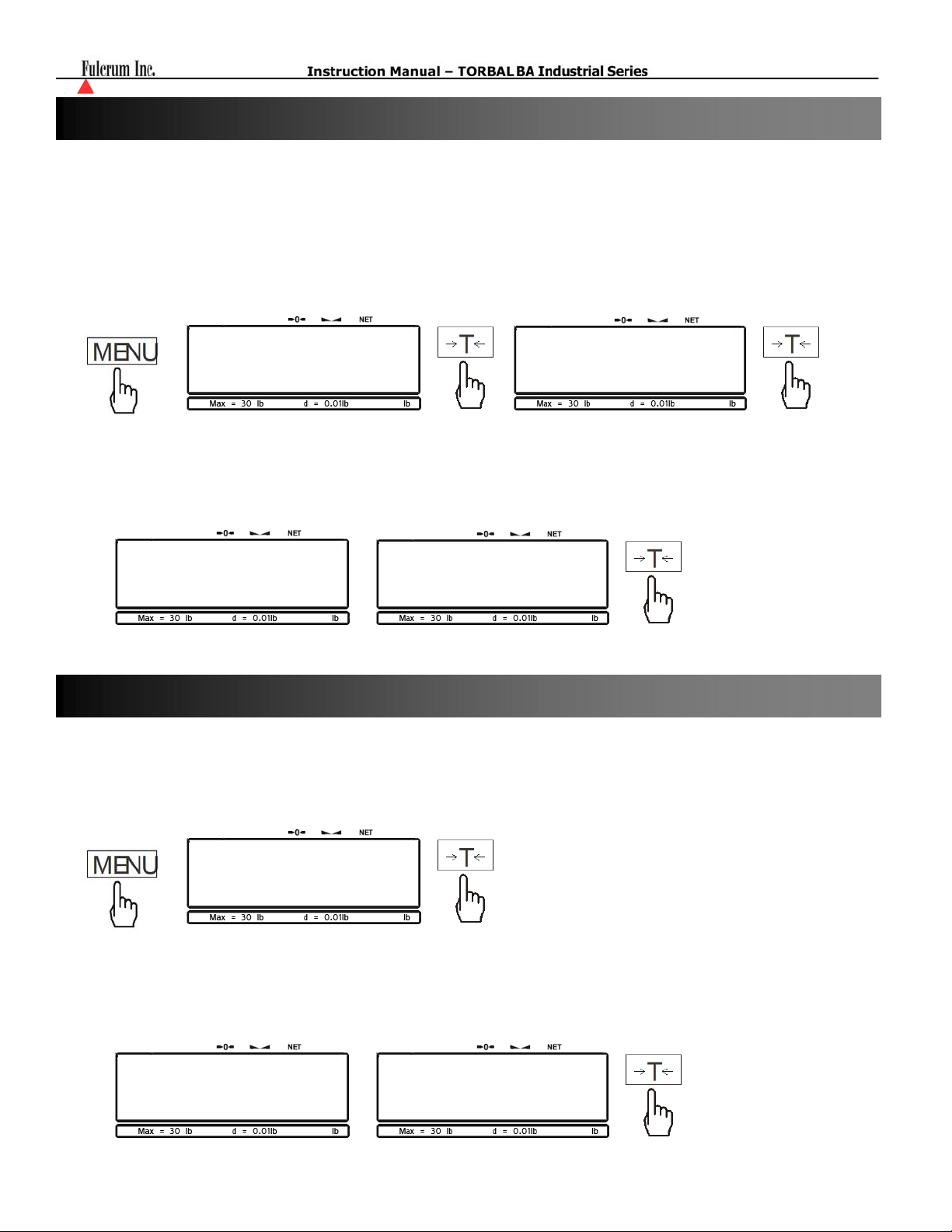

Chapter 9: Auto-zero

The Scale is equipped with AZSM, the “Auto Zero Setting Mechanism.” AZSM automatically maintains a center of zero and it is set to 0.5d/s.

1. Enter the main Menu by pressing the MENU key

2. Select “AutotA” by pressing the T key.

AutotA

Autota

3. To enable Auto-zero press the T key when “Aut on” is displayed, to disable press the T key when

“AutoFF” is displayed or select “out” to exit.

Aut on Autoff

- 18 -

Page 19

(

)

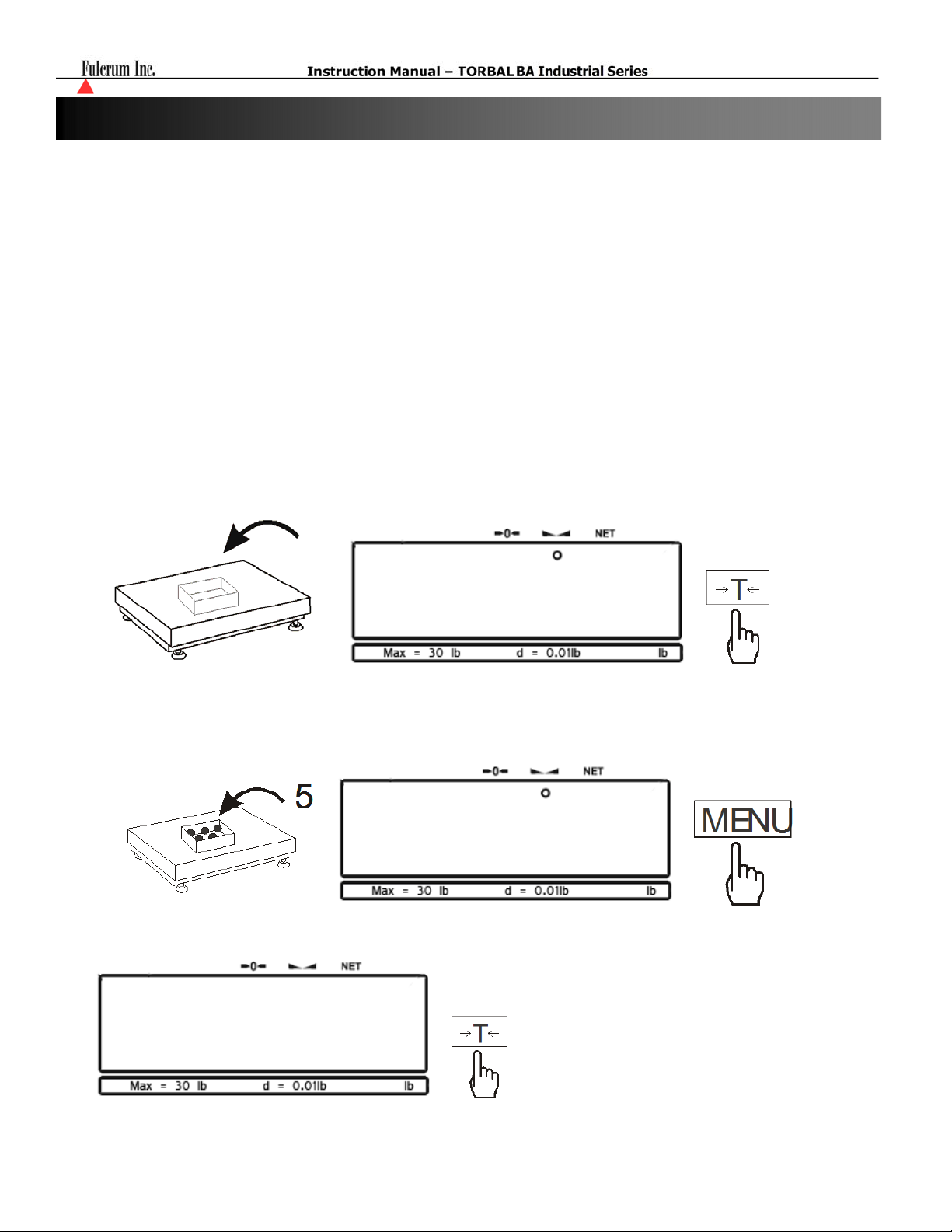

Chapter 10: Parts Counting

Functions Options: PCS Off

PCS On PCS .. PC Set PC UM PCS RS

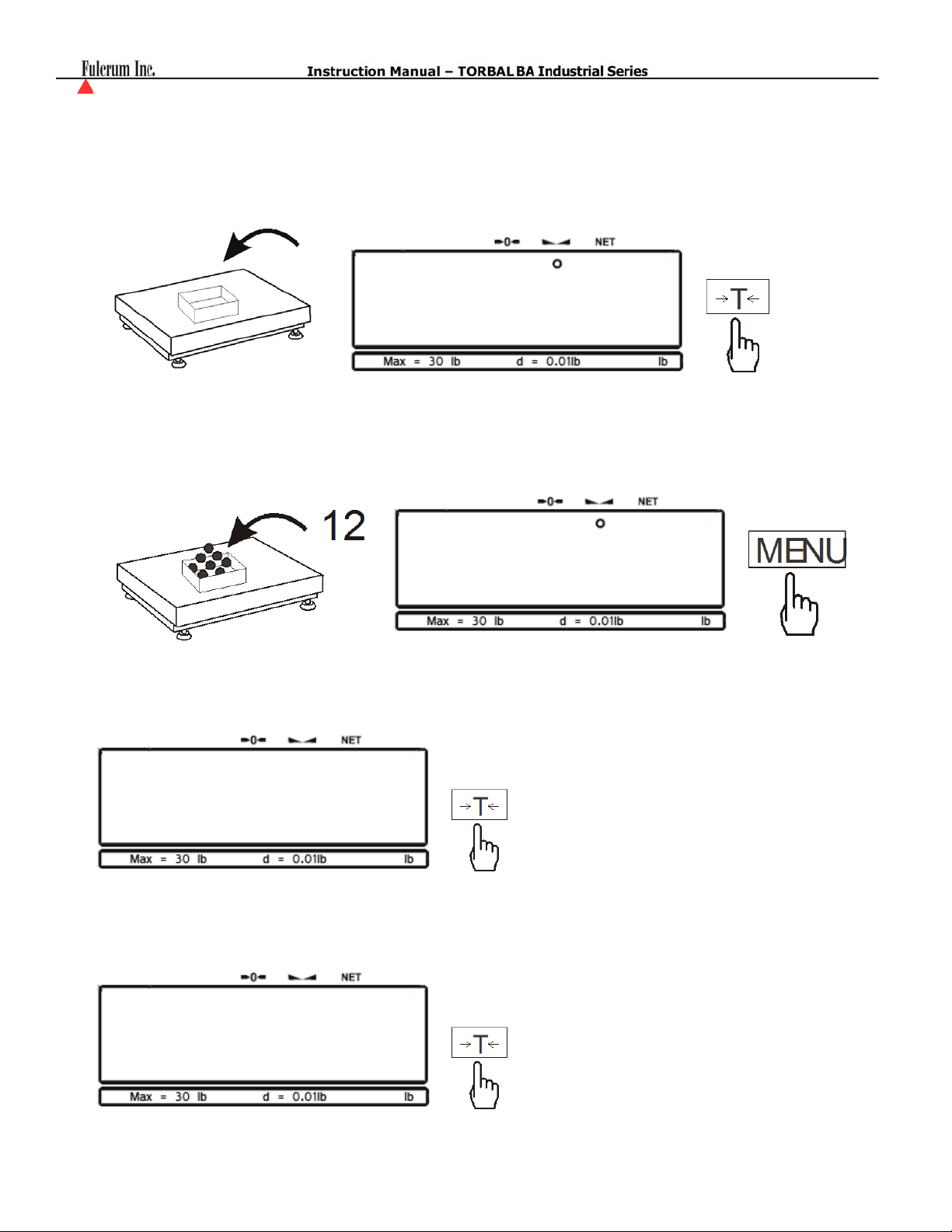

10.1. Using a default sample size setting

( PCsoff) (pcs on)

(PCS . .)

(PC SET) (PC UMM) (PCs rS)

1. Place the counting container on the pan while in the weighing and press the T key to tare the

container.

Disables Parts Counting Enables Parts Counting Recalls the last Average Pieces Weigh used in for counting Setting a custom sample size Setting a custom known Individual Piece Weight obtaining the average piece weight from secondary higher accuracy scale via RS232

PCS

-------

2. Place a sample in the container. The sample size must equal to one of the pre-set options:

5,10,20,50,100, 200,500, and press the MENU key

3. Wait for PCS to appear on the display and press the T key

pCS

- 19 -

Page 20

4. Select “PCS on” by pressing the T key.

pCS on

5. Available sample size options will alternate on the display. Press the T key to select a size value

equal to the number of the sample placed in the container.

pCS 5

6. After the sample size has been selected, the scale will display the count of the sample. At any time

you can proceed with the count.

7. To turn parts counting off, select PCS from the main menu and press the T key when “PCSoFF” is

displayed.

- 20 -

Page 21

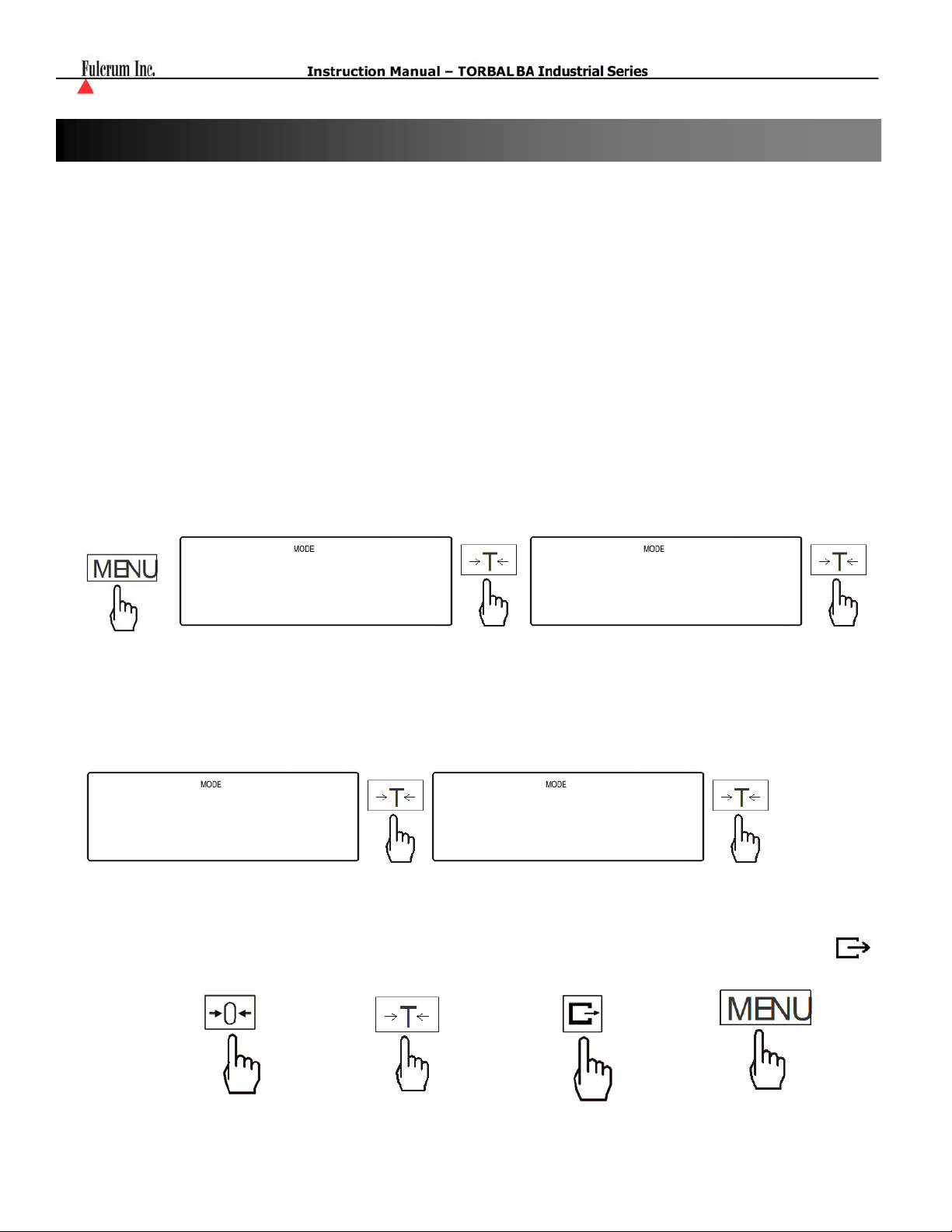

10.2. Using a custom sample size

1. Place the counting container on the pan while in the weighing mode and press the T key to tare the

container.

2. Place a desired sample size in the container and press the MENU key. (i.e. 12 as illustrated)

-------

3. Wait for “PCS” to appear on the display and press the T key

pCS

4. Select “PCS on” by pressing the T key.

pCS on

- 21 -

Page 22

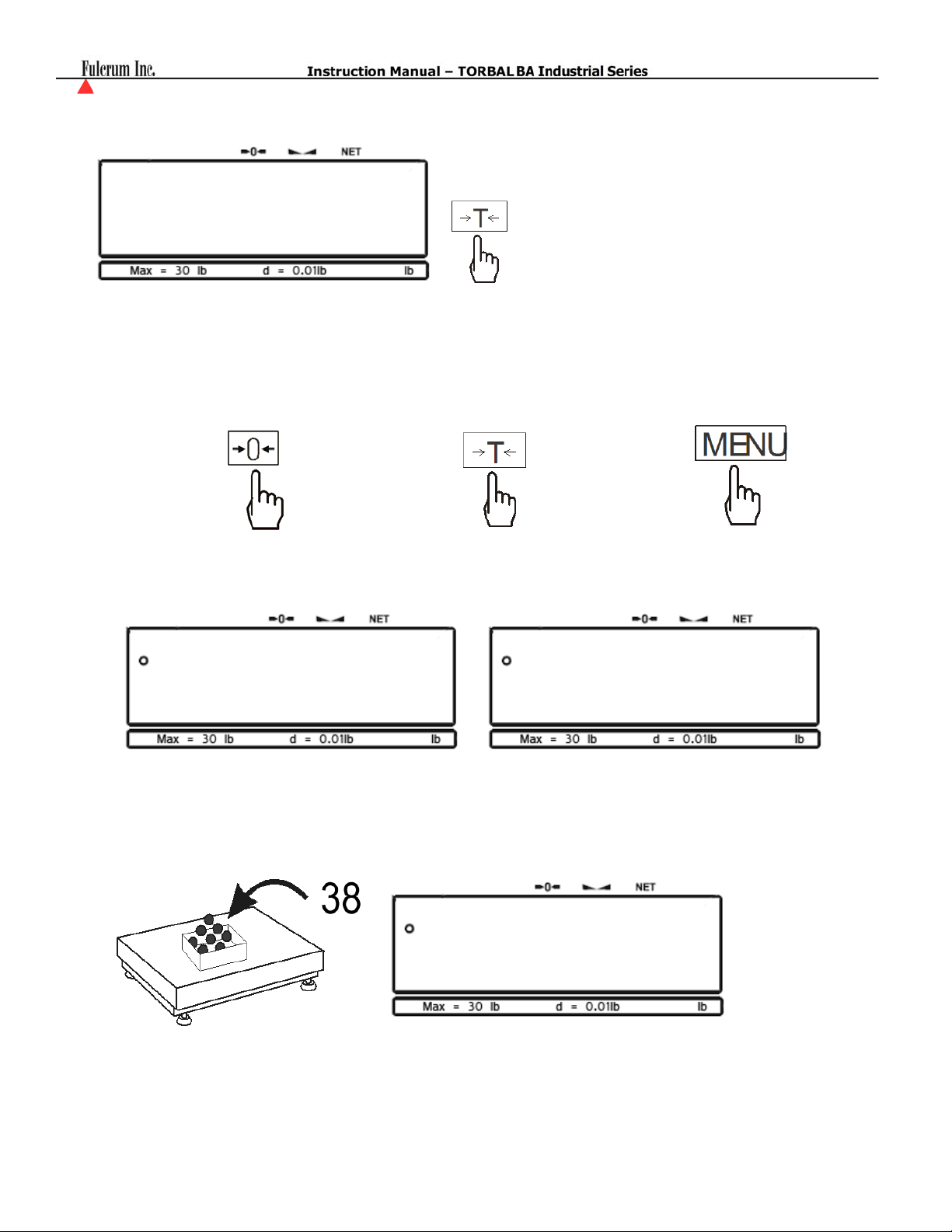

5. Available sample size options will alternate on the display. Press the T key when “PC Set” is

displayed.

pC set

6. A dashed line will be displayed indicating to manually enter the value for your sample size in the

container. To do so, use the following keys: the Æ0Å key to increment a digit, the T key to accept and go to the next digit, and MENU to accept the entire setting.

To increment a digit To accept and go to next digit To accept entered value

7. Once your custom sample size value has been entered and the MENU key pressed, the scale will

display the count of the sample. At any time you can proceed with the count.

8. Once an accurate count has been taken, the container and its contents may be removed from the

scale. To Turn parts counting off, select “PCS” from the main menu and press the T key when “PCSoFF” is displayed.

- 22 -

Page 23

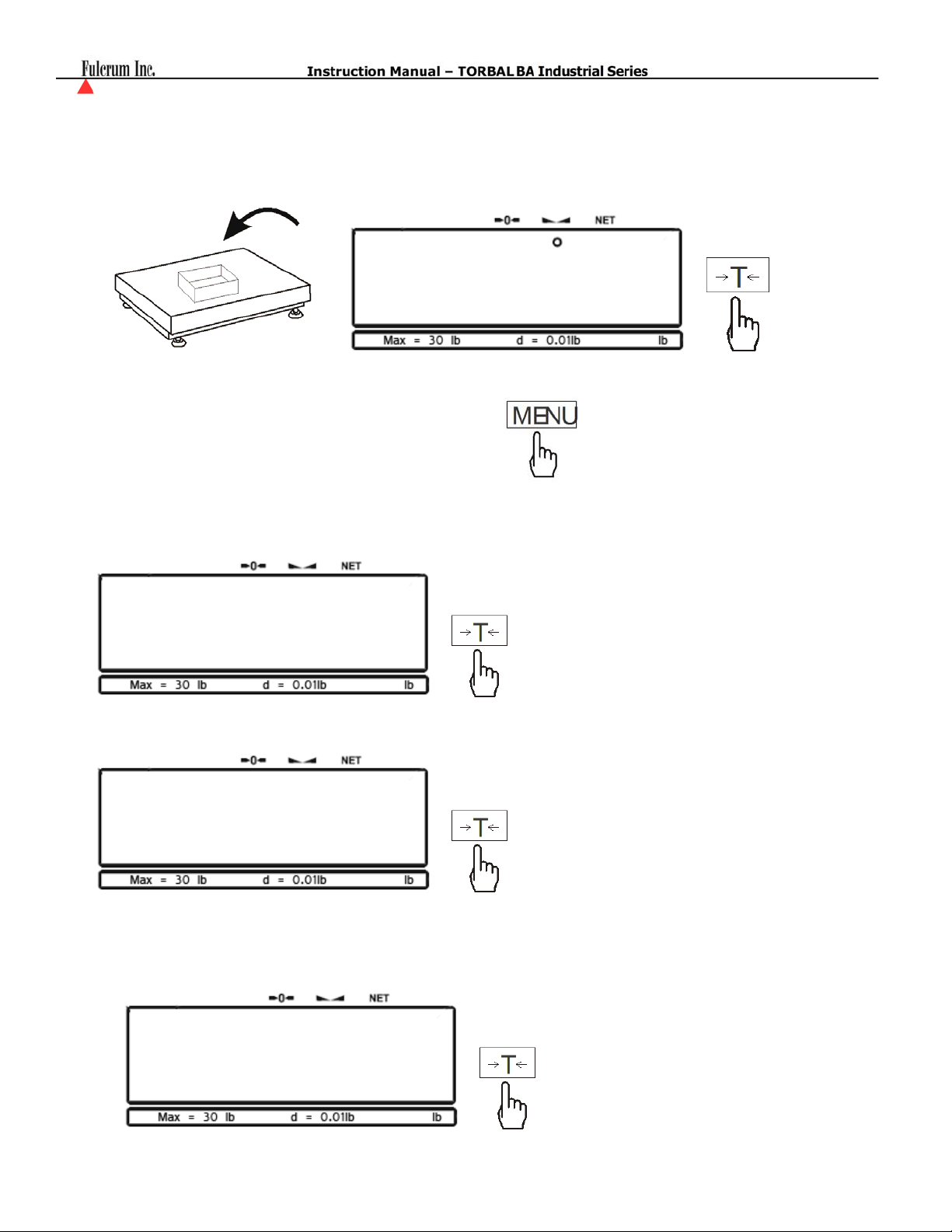

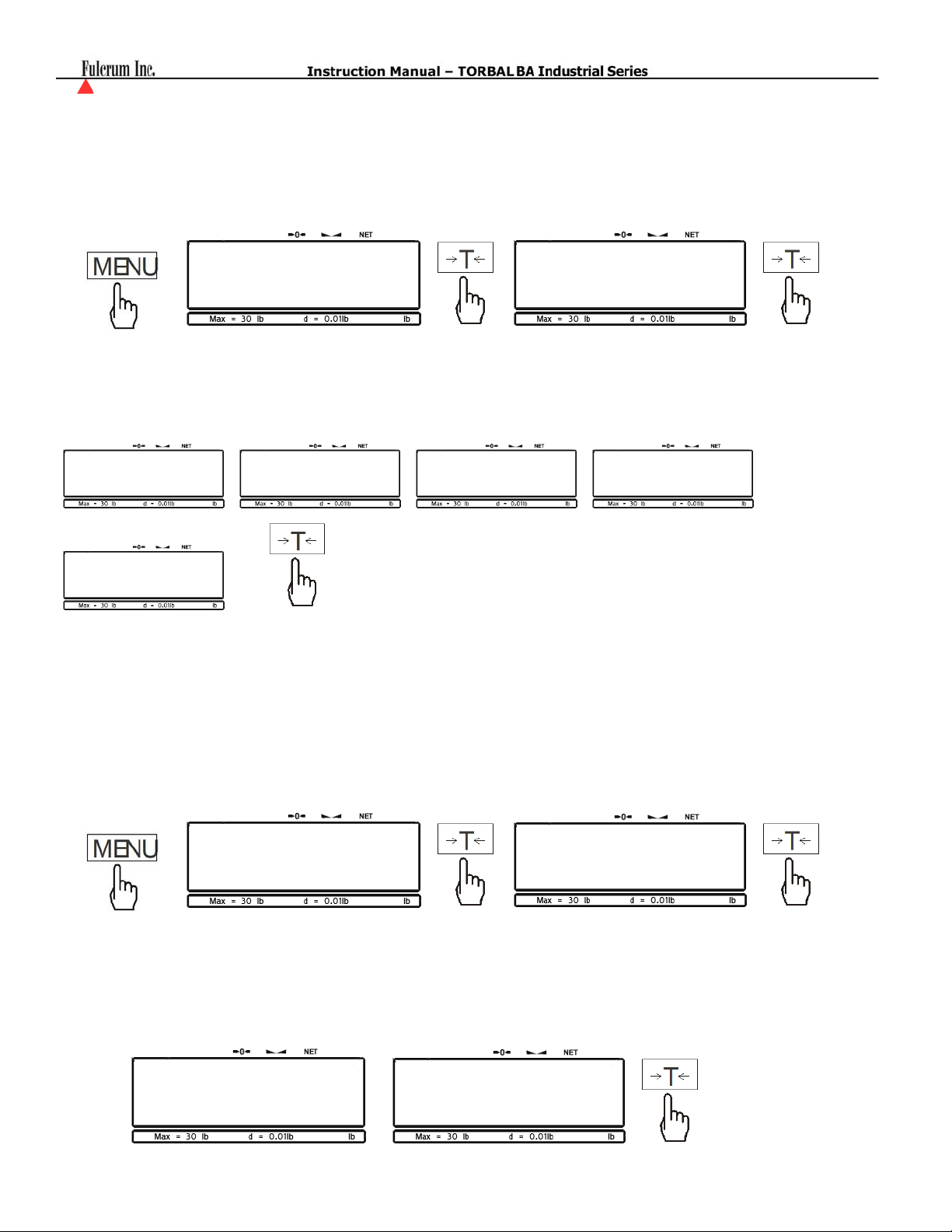

10.3. Counting based on a known Individual Piece Weight (No Sample Size Required)

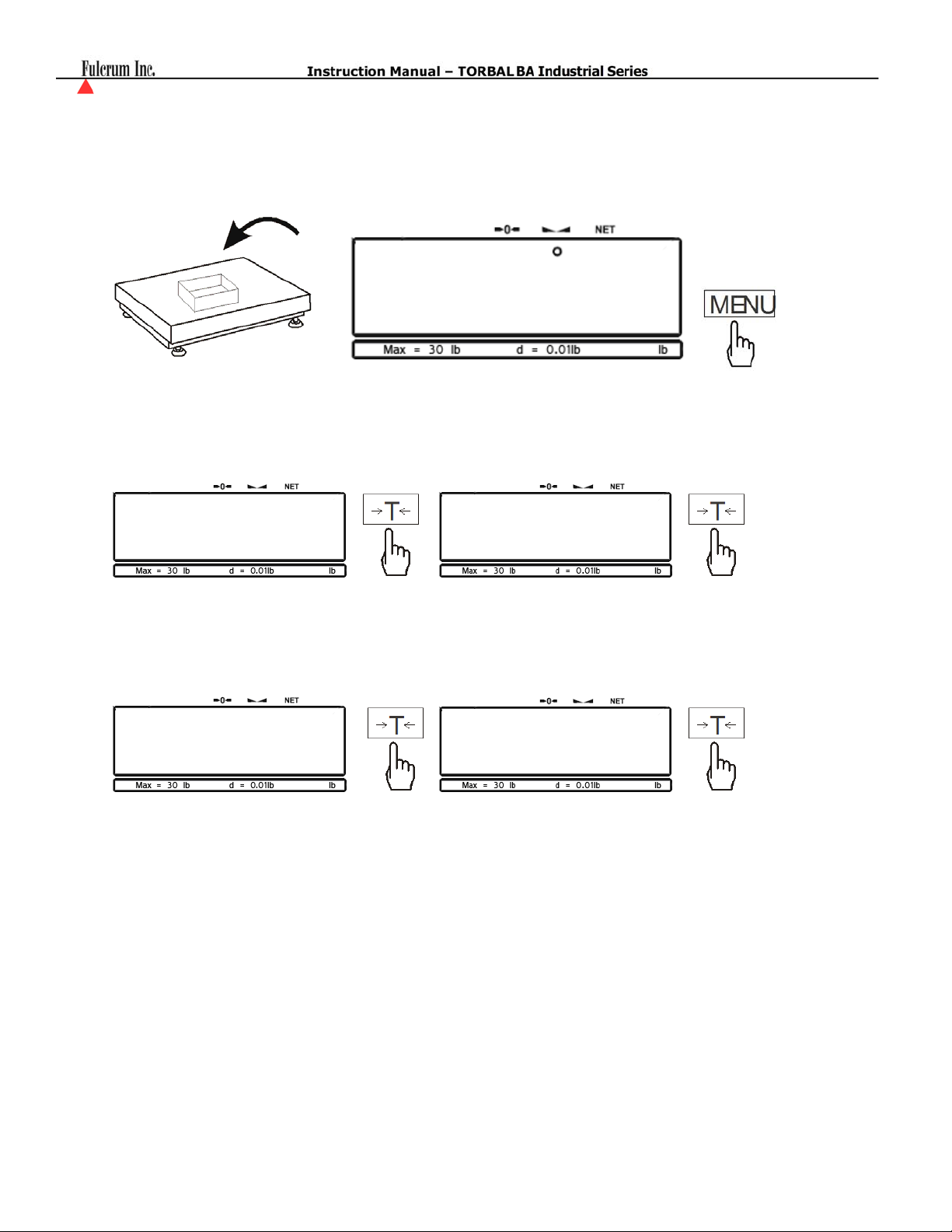

1. Place the counting container on the pan and press the T key to tare the container.

-------

2. Press the MENU key to enter the main menu.

3. Wait for “PCS” to appear on the display and press the T key

pCS

4. Select “PCS on” by pressing the T key.

pCS on

5. Available sample size options will alternate on the display. Press the T key when “PC uM” is

displayed.

pC UMM

- 23 -

Page 24

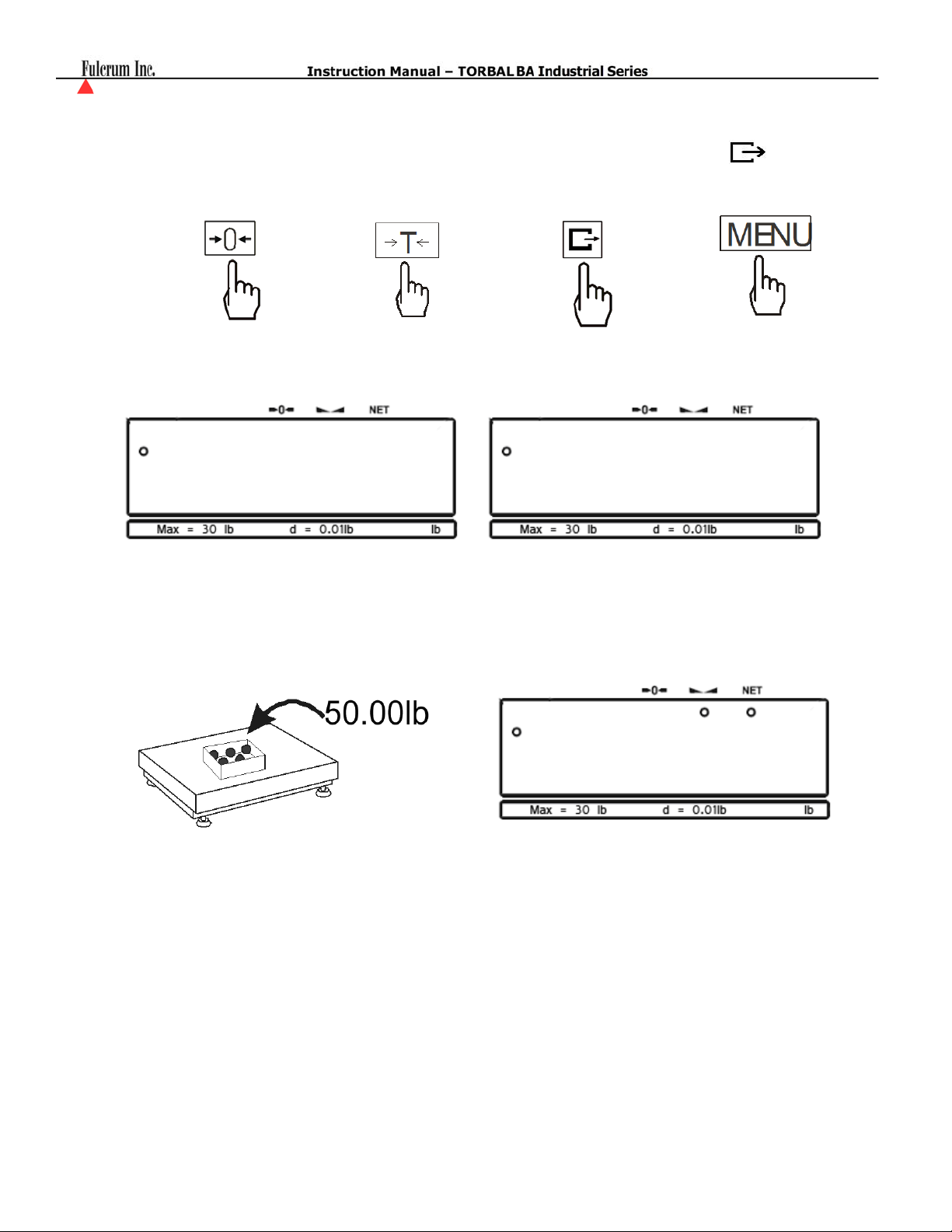

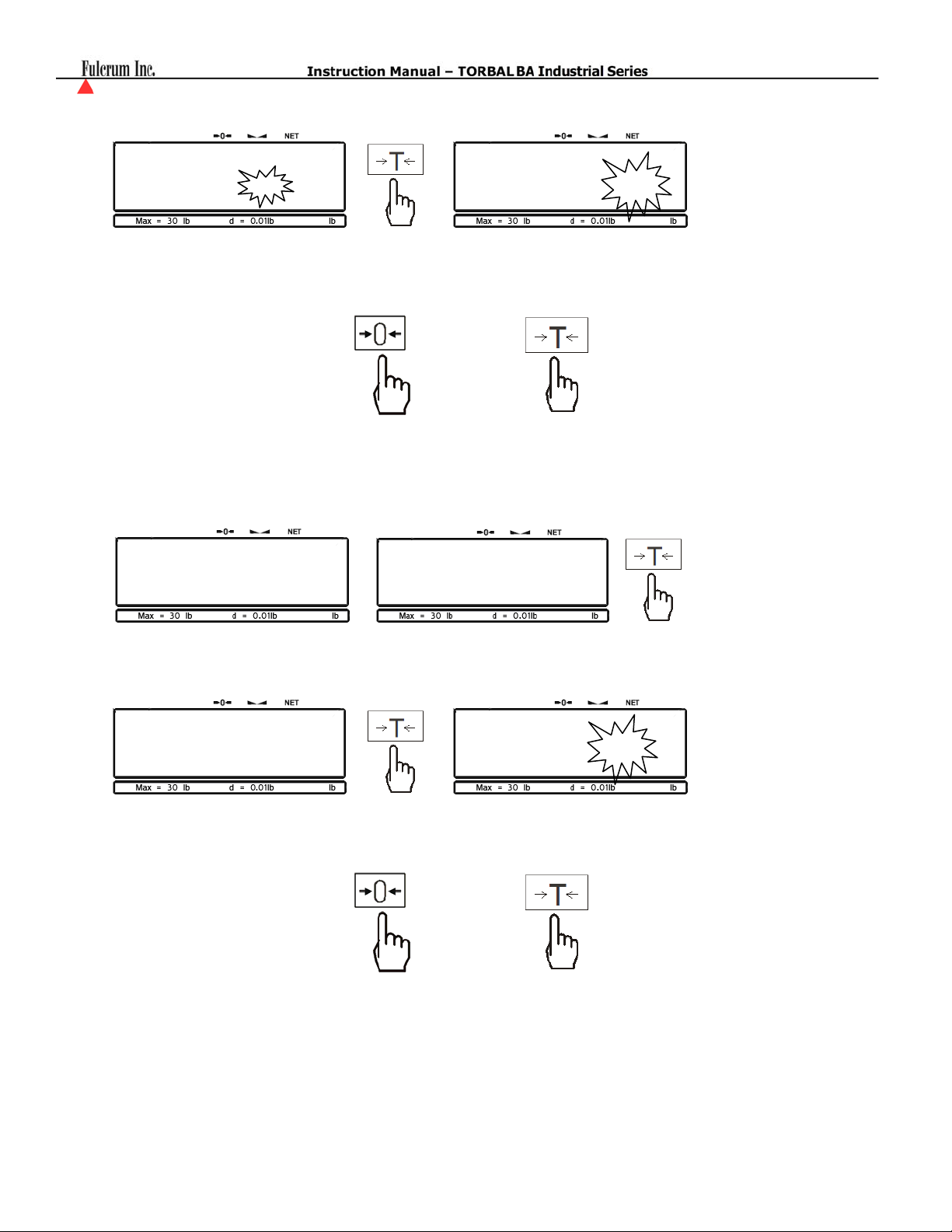

6. A dashed line will be displayed indicating to manually enter the exact individual piece weight of

the counted parts. To manually enter the individual piece weight, use the following keys: the --

>0<-- key to increment a digit, the T key to accept and go to the next digit, the key to insert a decimal, and the MENU key to accept the entire setting.

To increment a digit To accept and go to

next digit

7. Once the individual piece weight is entered and the MENU key pressed, the scale will display

“0pcs”. At any time proceed with the count.

To insert a decimal To accept entered

value

10.00

8. Once an accurate count has been taken, the container and its contents may be removed from the

scale. To exit parts counting and return to basic weighing, select “PCS OFF” from the parts counting menu.

- 24 -

Page 25

(

)

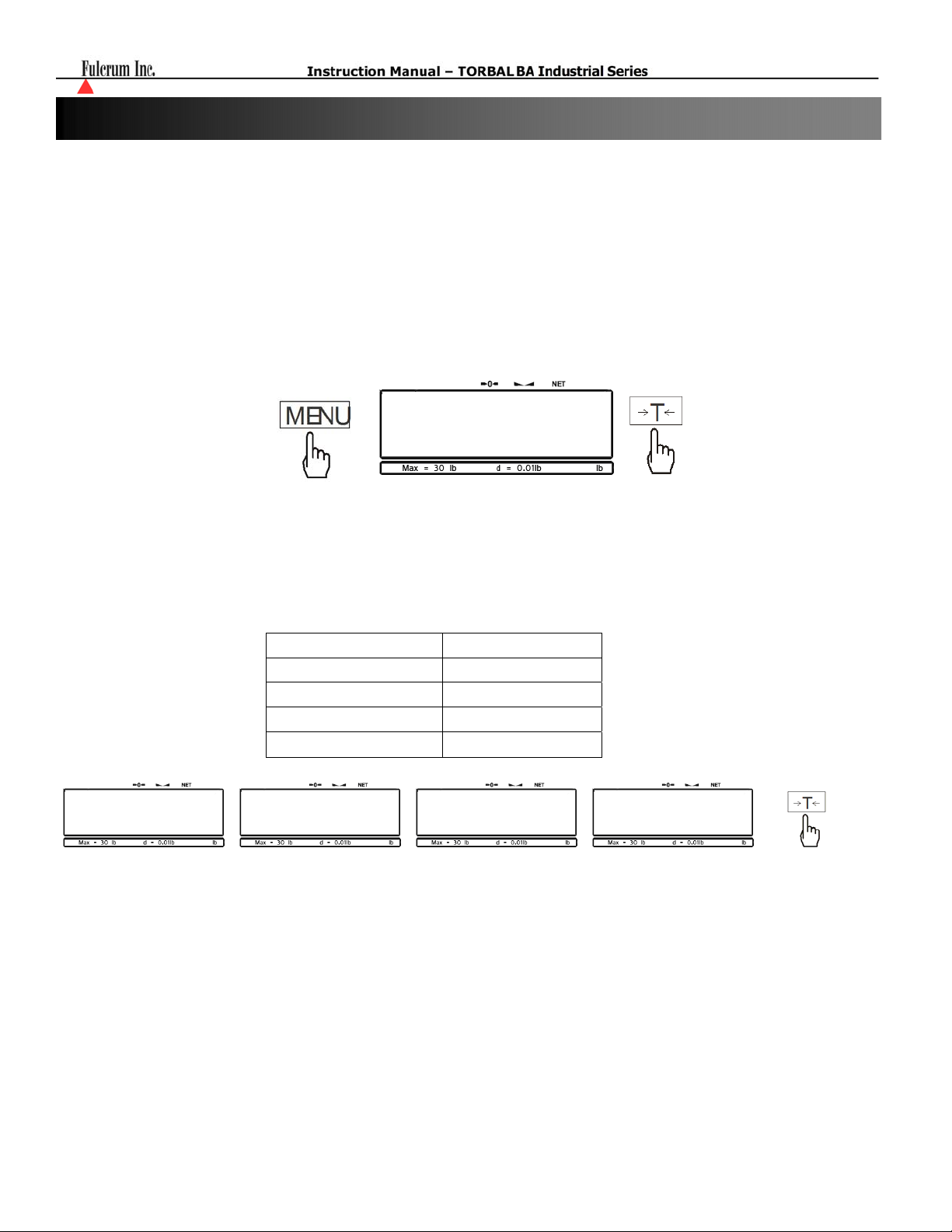

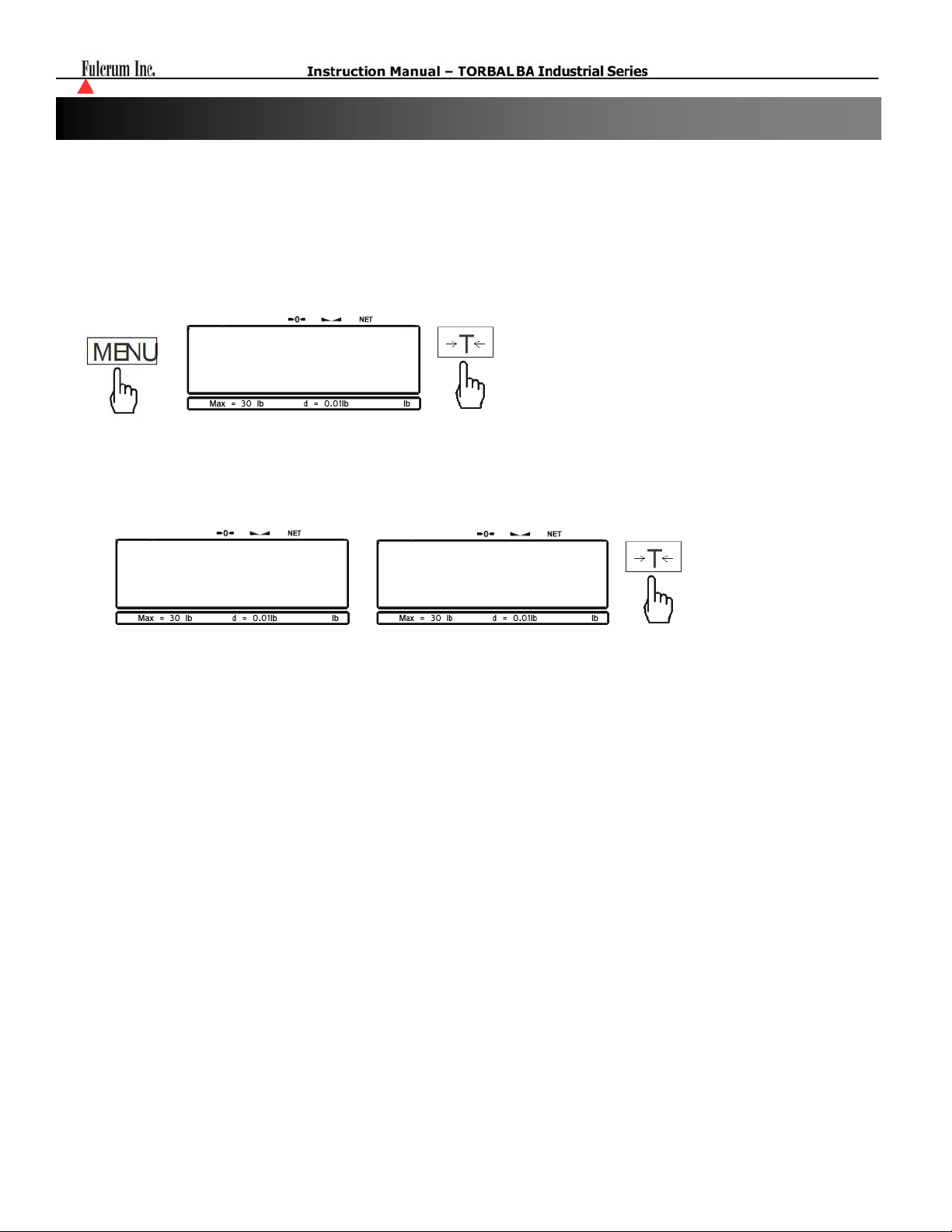

Chapter 11: Units of measure

The BA Scales can operate in nine different units of measure: Grams (g), Kilograms (kg), Carats (ct), Pounds (lb), Newton, Grains, Ounces, Ounces Troy, Pennyweight. By factory default, the scale is set to weigh in grams (lb). To select a different unit of measure, follow the steps below.

1. Enter the main menu by pressing the MENU key.

2. When command “UNITS” is displayed, press the T key.

Unit

3. The scale will display available units of measure sequentially.

Carat penny

4. When the desired unit is displayed, press the T key to make the selection.

5. Once the selection is made, the scale will automatically return to the weighing mode

- 25 -

Page 26

(

)

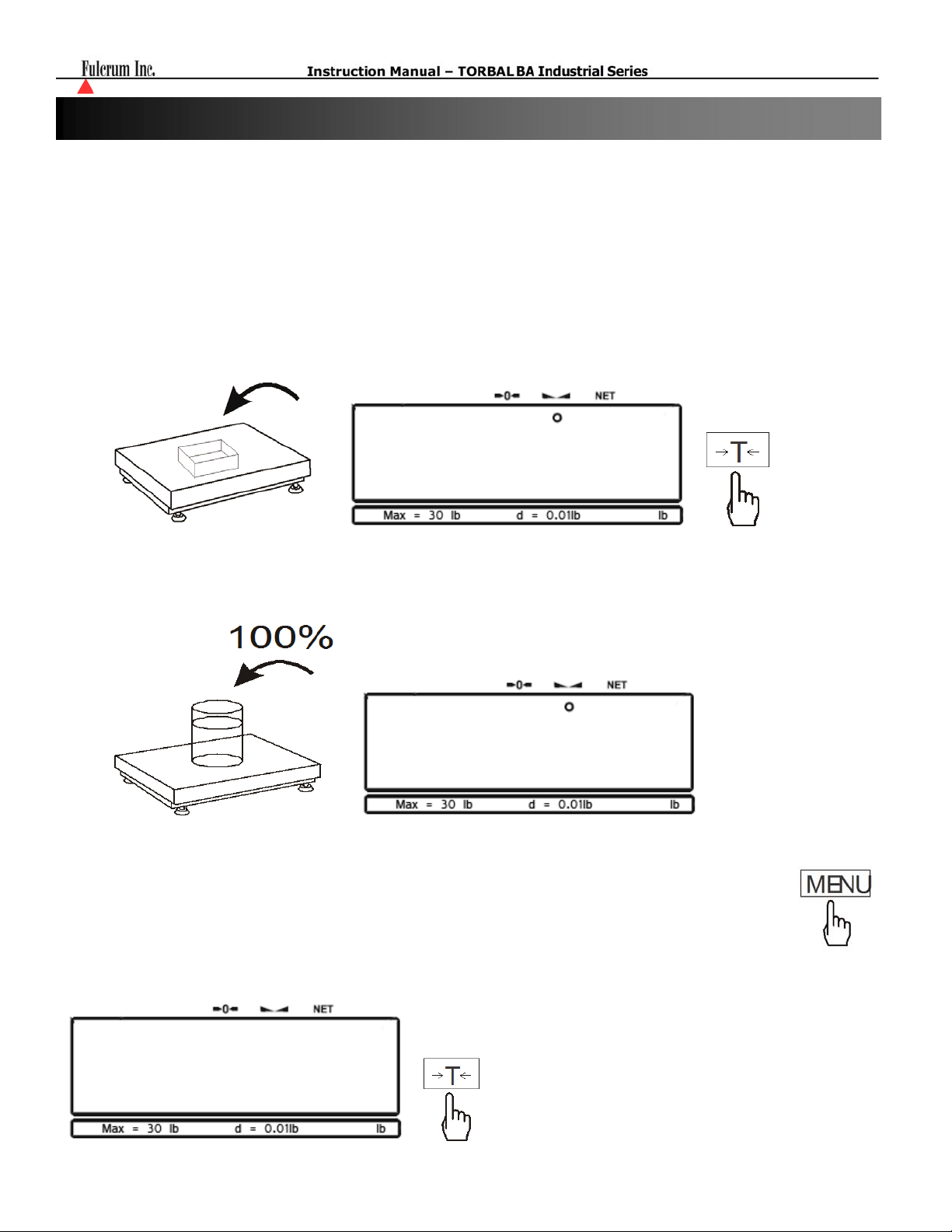

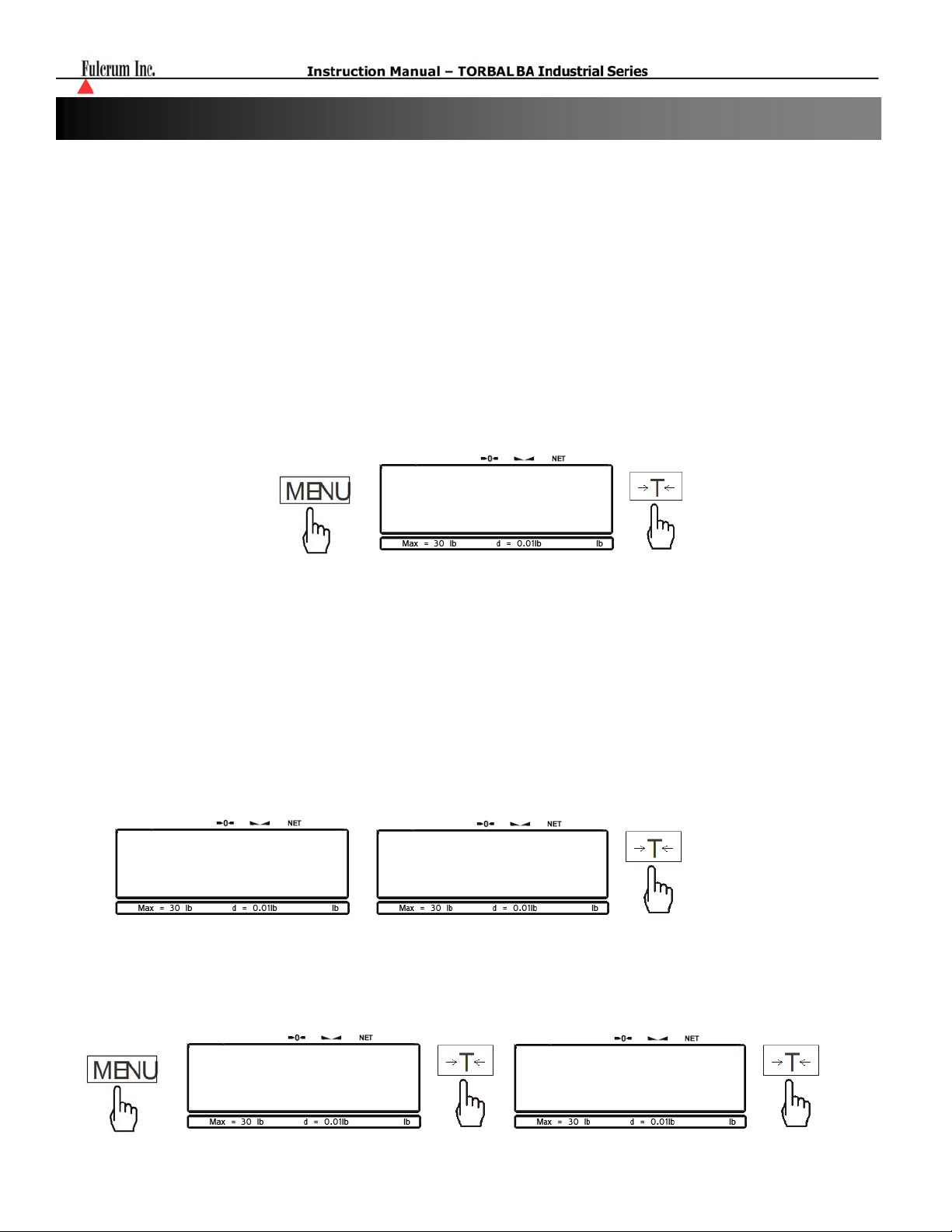

Chapter 12: Percent Weighing

Function Options: PER Off

PER On

Percent weighing is used to express the weight of an object as a percentage of a stored sample weight. To use percent weighing, follow these steps:

1. Place container on the pan and press the T key to tare.

( Peroff) (per on)

Disables Percent Weighing Enables Percent Weighing

Perc

-------

2. Once the scale has been tared, place the sample reference weight on the pan.

3. The weight of the sample will be displayed as it is placed on the pan. Once the weight of the

sample stabilizes and the stability indicator appears on the display, press the MENU key to enter the main menu.

4. When “PERCENT” is displayed, press the T key.

PerC

- 26 -

Page 27

5. Commands “PER OFF” and “PER ON” will be displayed sequentially. To proceed with percent weighing

and set the reference sample weight, press the T key when command “PER ON” is displayed.

Per on

6. Once the reference sample weight is set, the scale will express the weight as a percentage.

100

7. Remove the sample and place an object in the container. The scale will express the weight of that object as

a percentage of the stored sample.

8. To exit percent weighing and return to basic weighing, select “PER OFF” from the percent menu.

- 27 -

Page 28

(

)

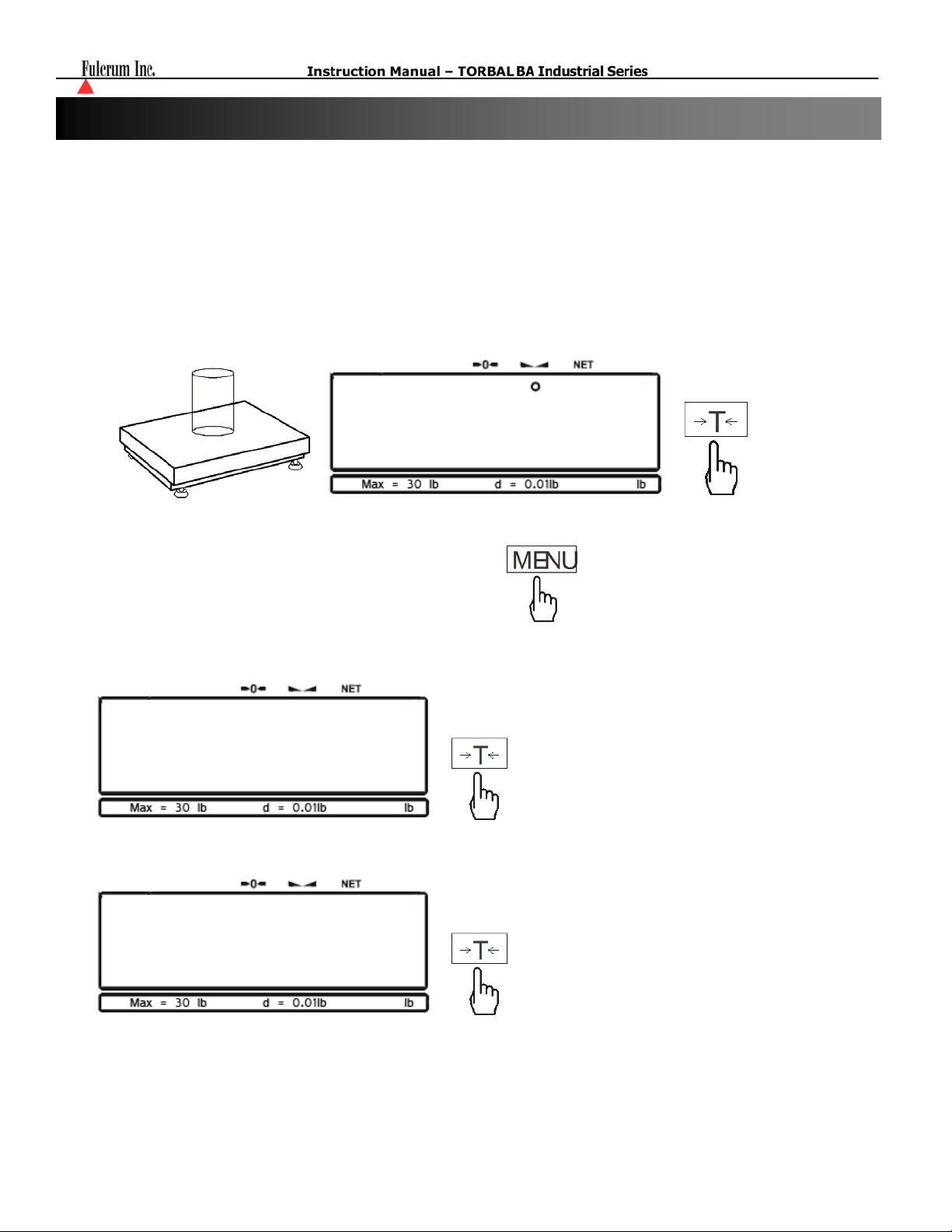

Chapter 13: Recipe Weighing

Recipe

Function Options:

Rec Off Rec On Rec Con

( rECoff) (reC on) (reCCon)

Disables Recipe Weighing Enables Recipe Weighing

allows to continue recipe making after obtaining a total

1. Place the counting container on the pan and press the T key to tare the container.

-------

2. Press the MENU key to enter the main menu.

3. Wait for “RECIPE” to appear on the display and press the T key

reCIpe

4. Select “Rec on” by pressing the T key.

REC on

- 28 -

Page 29

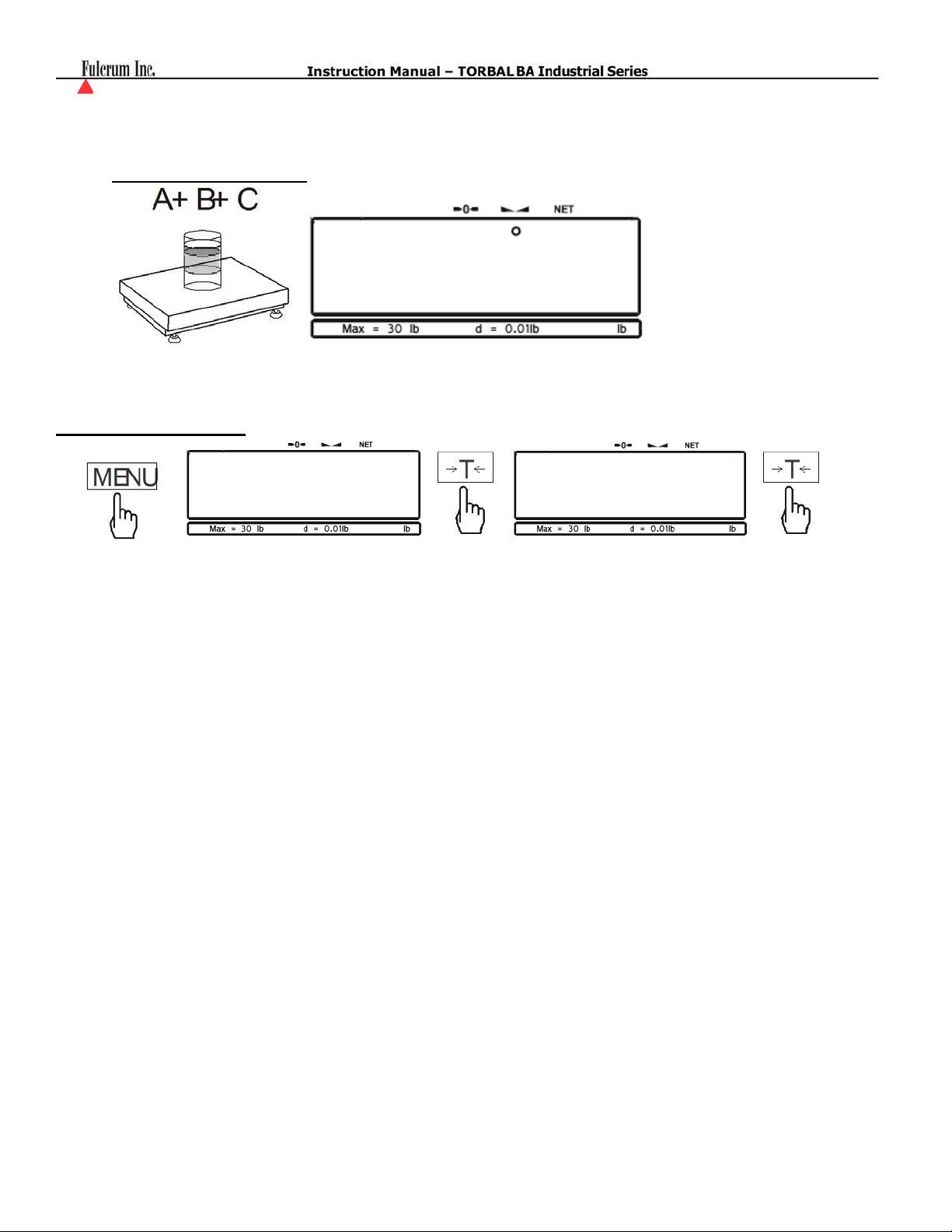

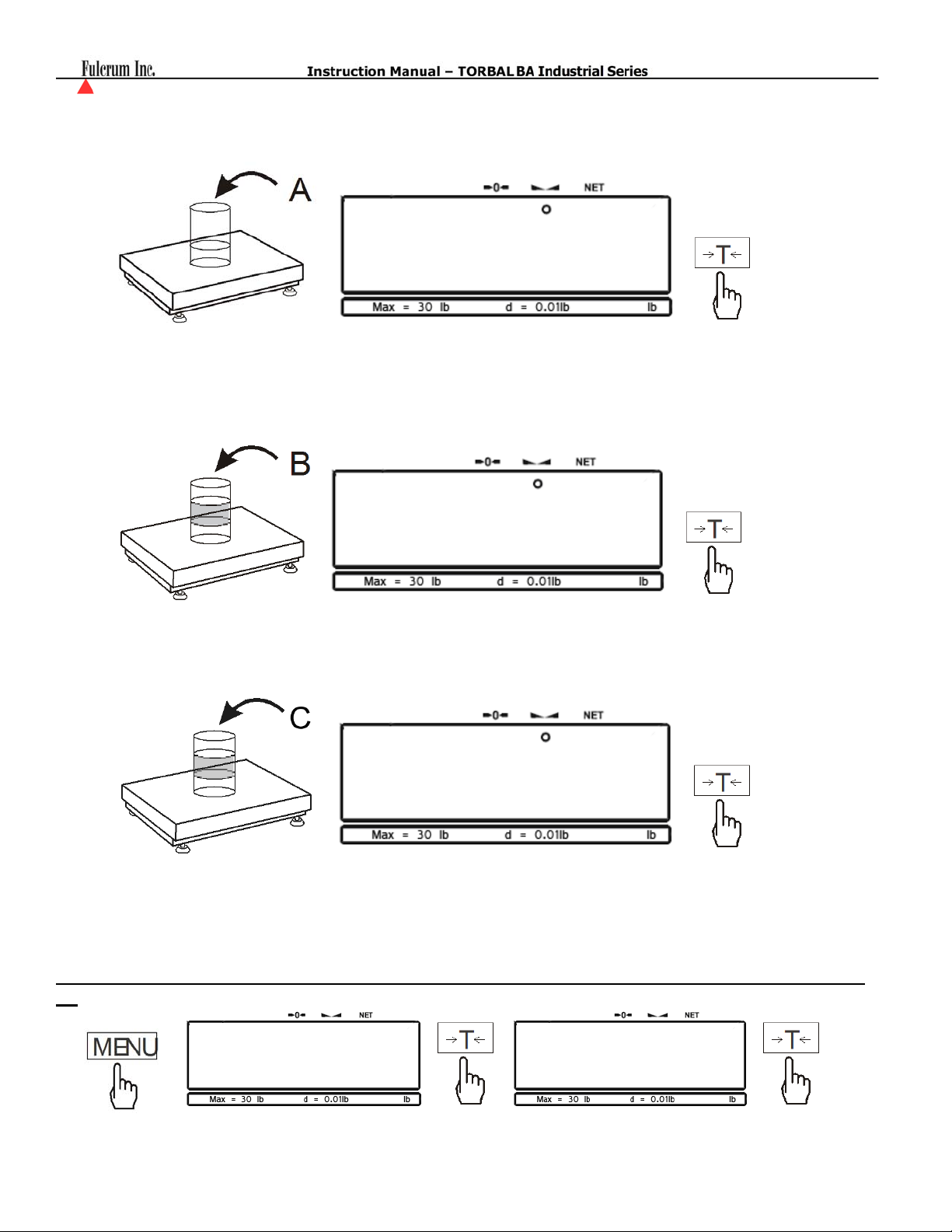

5. The display will read 0 indicating that you may place the first ingredient into the container. Once the

Weight of the ingredient stabilized press the T key to accept the ingredient weight.

6. Once the weight has been accepted place the second ingredient into the container. Once the weight of the

second ingredient stabilizes press the T key to accept the ingredient weight.

7. Steps 1 and 2 can be repeated until all ingredients are in the container. Before obtaining a Total make sure

that the last ingredient weight was accepted and the display reads 0.

8. To obtain the Total for the recipe press the TOGGLE key and the total weight for all of the ingredients

will be displayed along with 2 horizontal bars on the left of the display which indicate that the total is being displayed.

Change these to picture below (that was item 9) revised for function light, net light, and left hand bars (2)

reCIpe

- 29 -

reCoff

Page 30

Use above with revisions

9. To continue Recipe making press the TOGGLE key again and the unit returns to the recipe mode with the

ingredient weights stored. Repeat steps 5 thru 7 to add more ingredients to the present recipe.

These must be changed.

reCIpe reCCon

10. Repeat step 8 to see the new total at any time and step 9 to resume building the recipe.

11. To Clear and start a new recipe, remove all ingredients from the pan and press the Tare key ÆTÅ. Once

the result is cleared, repeat steps 5 through 9.

- 30 -

Page 31

(

)

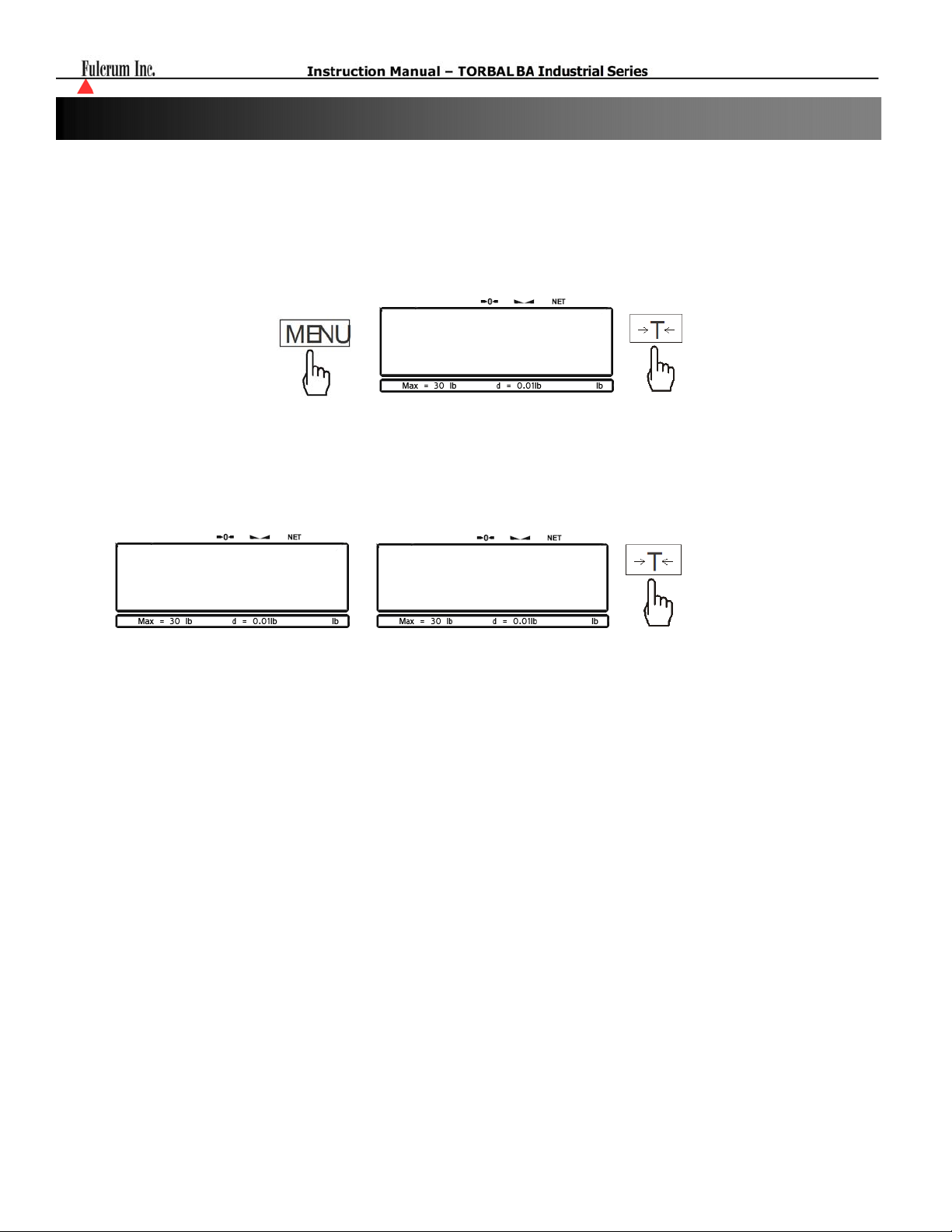

Chapter 14: Calibration

Function Options: CAL On

CAL Stp

Other

Calibration with an external Calibration Weight should be performed if the scale exhibits erroneous readings or periodically to assure accuracy of all weighing results. The scale should be calibrated with a high accuracy weight equal to its maximum capacity. Before starting calibration, have the appropriate calibration weight available.

14.1 Quick Calibration (calibrating with a single calibration weight).

1. Press the MENU key, when the option “Calib” is displayed press the T key, and then select the option

“CAL On” by press the T key once again.

( CaL oN)

(CALSTP)

(other)

Starts Quick Calibration. Recommended when calibrating with a single calibration weight. Starts Stepped Calibration. Recommended when calibrating with multiple calibration weights. Calibration with calibration mass not equal to the scale’ capacity.

CaLIb

CAL oN

2. The scale will display a full a calibration mass equal to the scales capacity i.e.”30”, and an option to select

a different calibration mass”other“. To calibrate the scale with a mass value equal to the scales capacity press the T key when the calibration mass value is displayed (proceed to step 4). To calibrate the scale with a mass lower than the scale’s maximum capacity, press the T when “other” is displayed (proceed to step 3).

30 other

3. If option “other” has been selected a dashed line will be displayed indicating to manually enter the exact

value of the calibration mass used to calibrate the scale. To manually enter the calibration value, use the

following keys: the -->0<-- key to increment a digit, the T key to accept and go to the next digit, the key to insert a decimal, and the MENU key to accept the entire setting.

To increment a digit To accept and go to

next digit

- 31 -

To insert a decimal To accept entered

value

Page 32

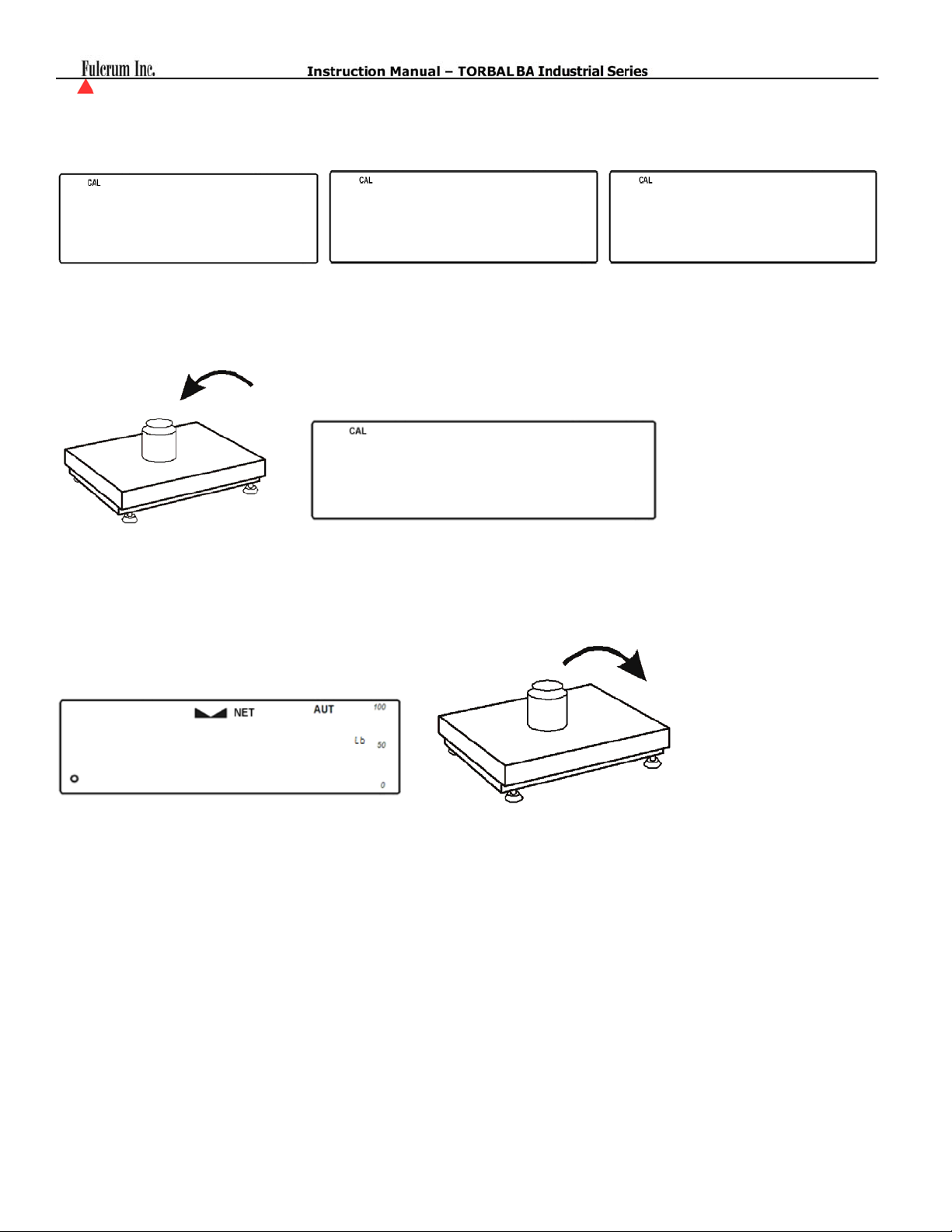

4. The scale will perform a tare and the message “LOAD” will be displayed.

-CAL-

5. When the message “LOAD” is displayed, place the calibration weight on the scale’s hanging pan.

Calibration will begin automatically and “WAIT” will be displayed indicating that calibration is in progress.

------

LOAD

wwAIT

6. When finished the scale will automatically return to the weighing mode, and the calibration weight can be

removed from the pan.

- 32 -

Page 33

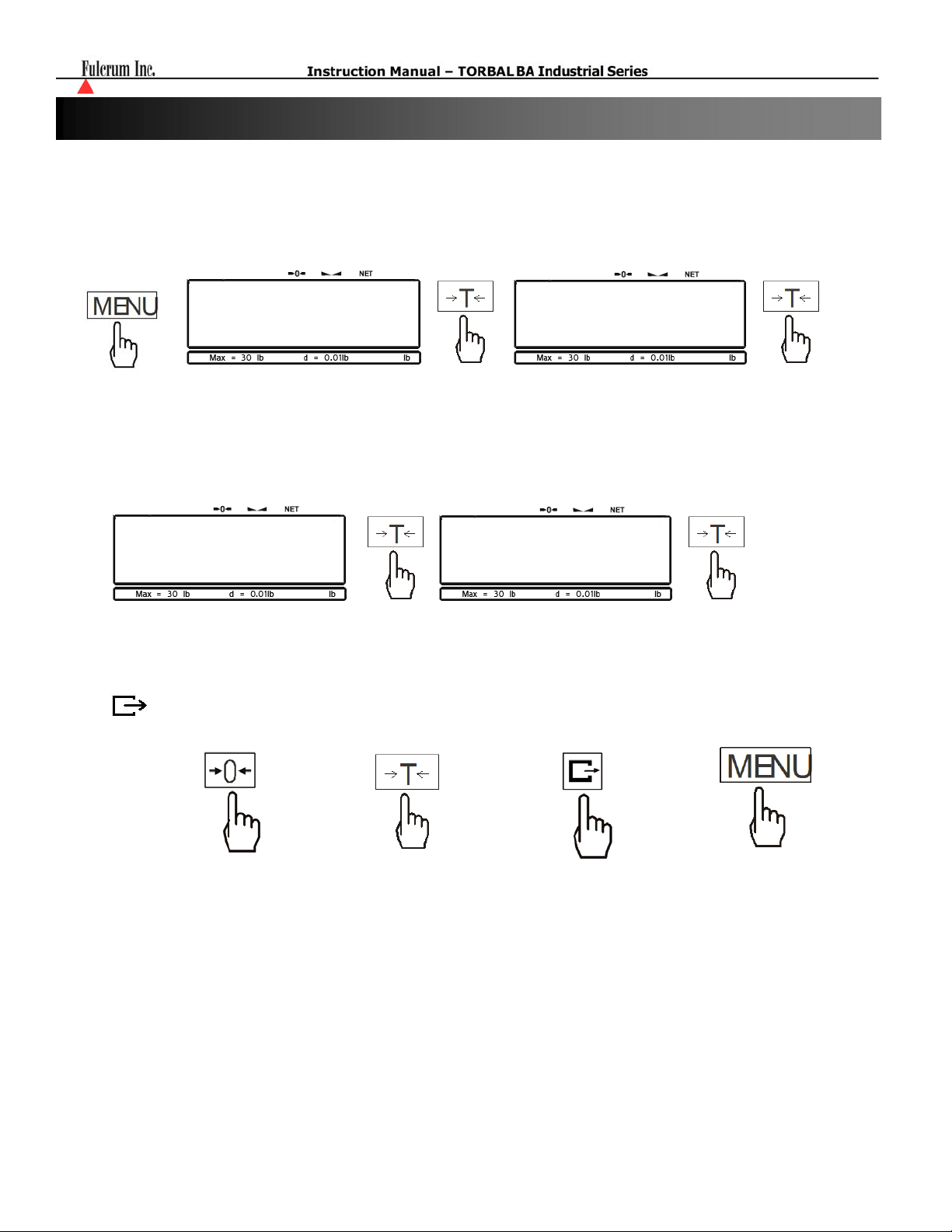

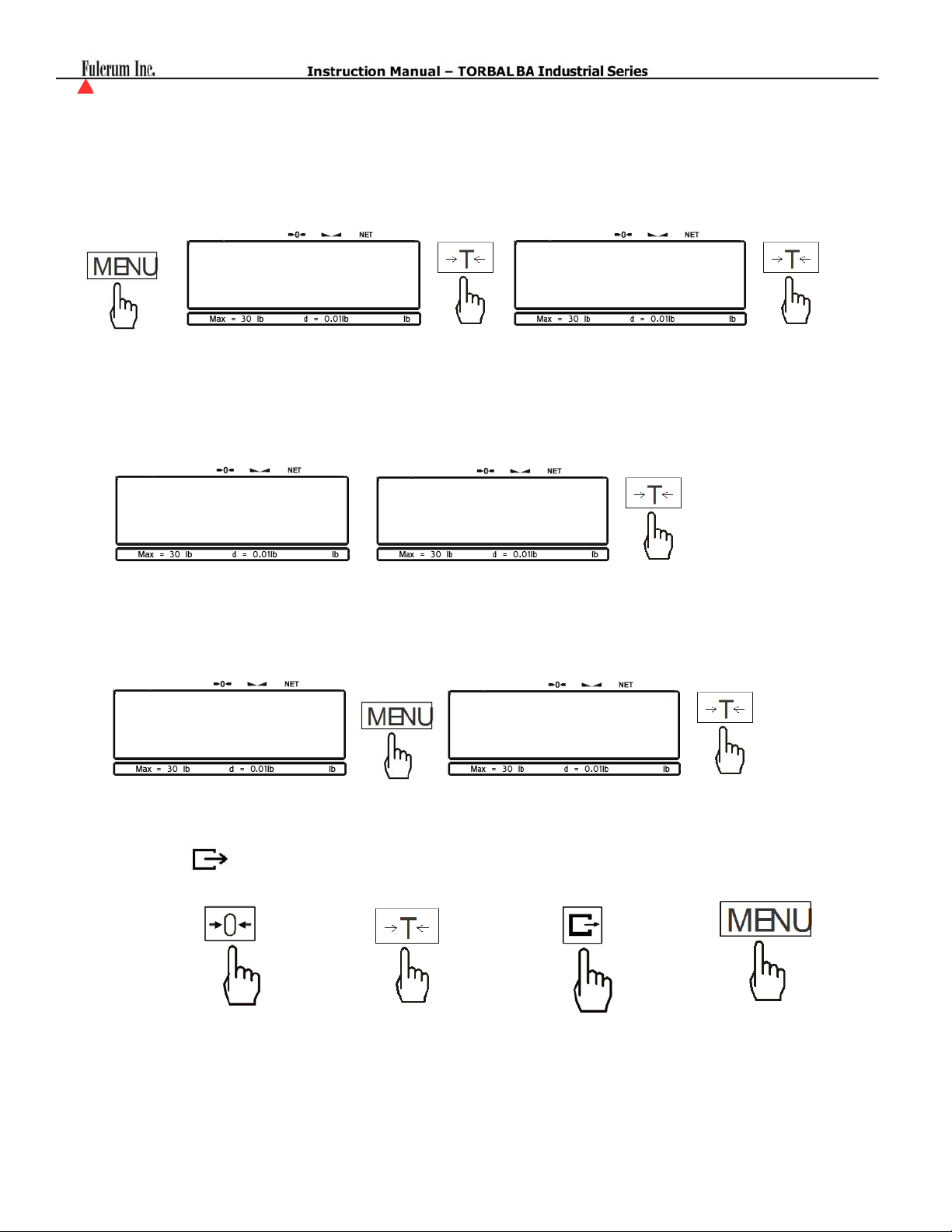

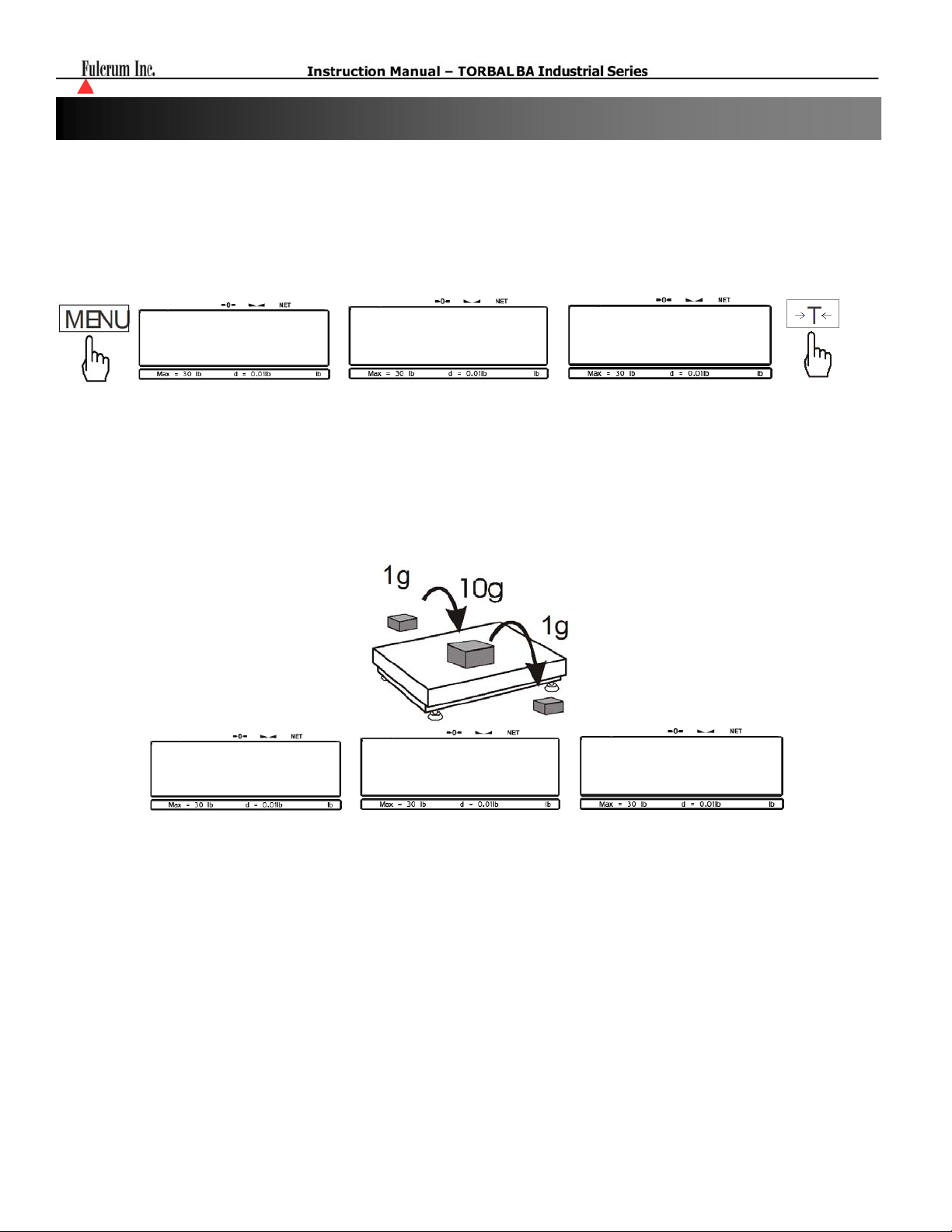

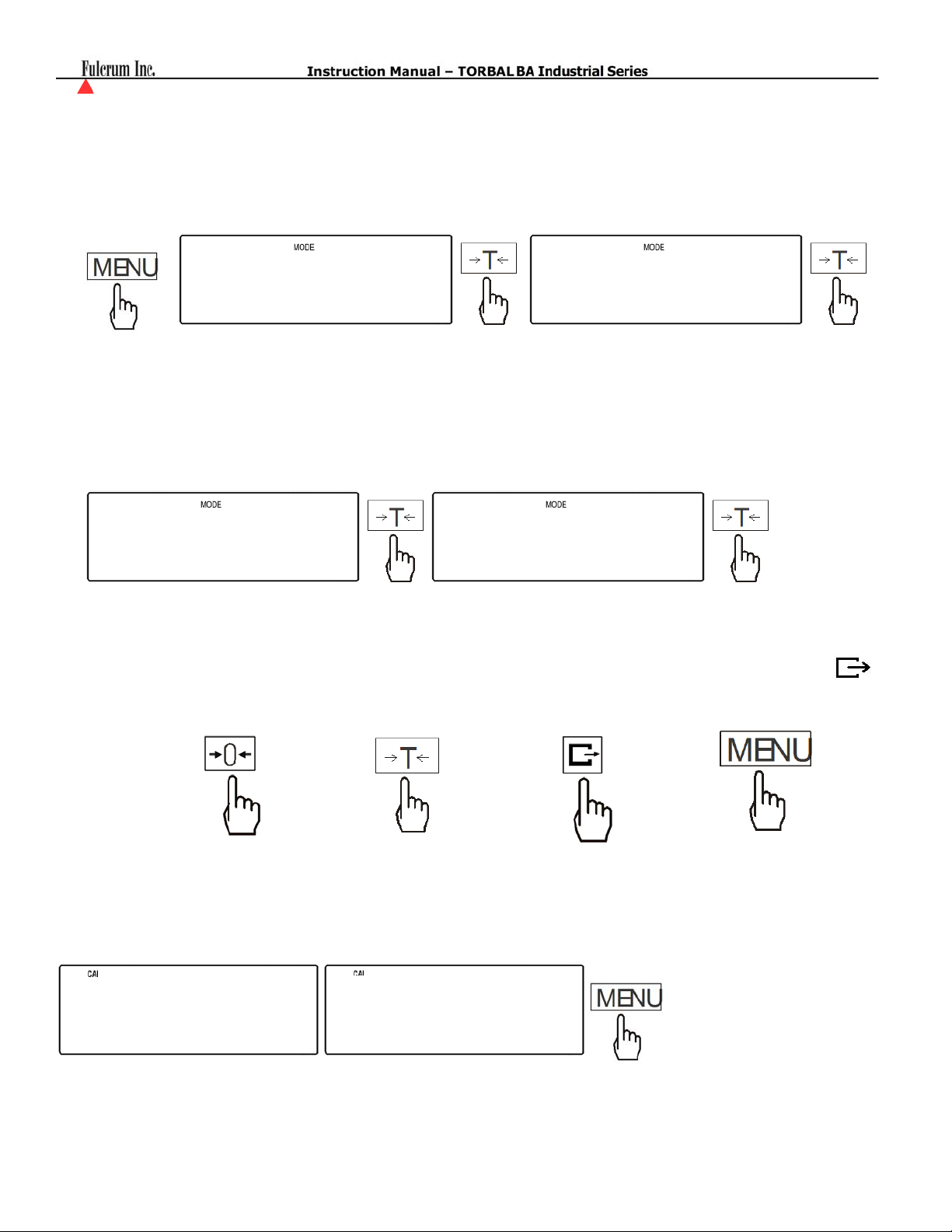

14.2 Stepped Calibration (calibrating with multiple calibration weights.)

1. Press the MENU key, when the option “Calib” is displayed press the T key, and then select the option

“CAL Stp” by press the T key once again.

CaLIb

2. The scale will display a full a calibration mass equal to the scales capacity i.e.”30”, and an option to select

CAL STP

30 other

3. If option “other” has been selected a dashed line will be displayed indicating to manually enter the exact

value of the calibration mass used to calibrate the scale. To manually enter the calibration value, use the

following keys: the -->0<-- key to increment a digit, the T key to accept and go to the next digit, the key to insert a decimal, and the MENU key to accept the entire setting.

To increment a digit To accept and go to

next digit

4. The scale will display the message “Press Menu”. When you are ready to Tare the scale Press the MENU

key.

-CAL-

press

mmenu

- 33 -

To insert a decimal To accept entered

value

Page 34

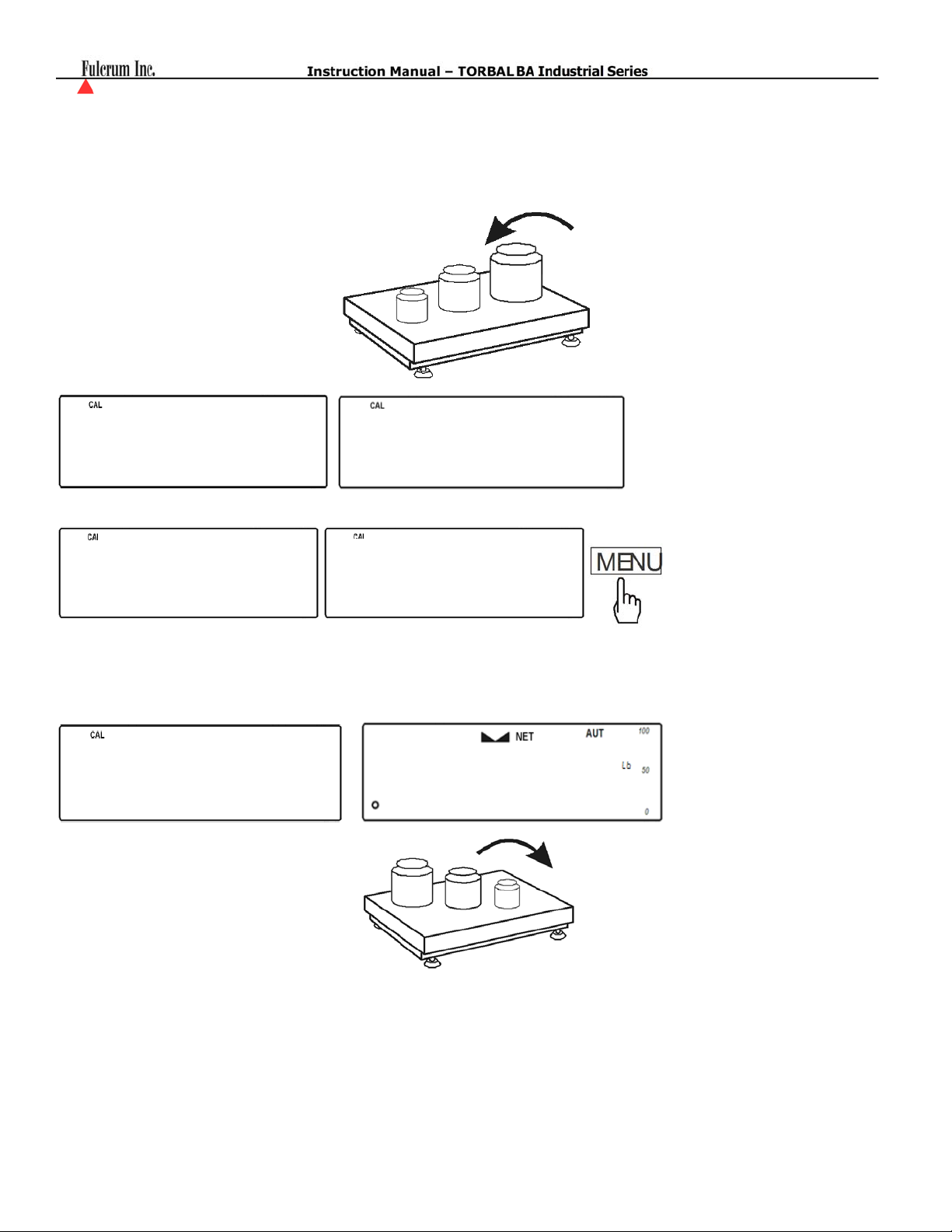

5. The scale will perform a tare and the message “LOAD” will be displayed indicating to place all

calibration weights on the pan. After placing all weights on the pan, press the Menu key to initiate the calibrations process.

Caution: Do not press Menu until all calibration weights are on the scale’s pan

------

LOAD

-CAL-

press

6. Message “CCCCCC” will be displayed indicating that calibration is in progress. When finished the scale

will automatically return to the weighing mode and the calibration weights can be removed from the pan.

CCCCCC

mmenu

30.00

- 34 -

Page 35

(

)

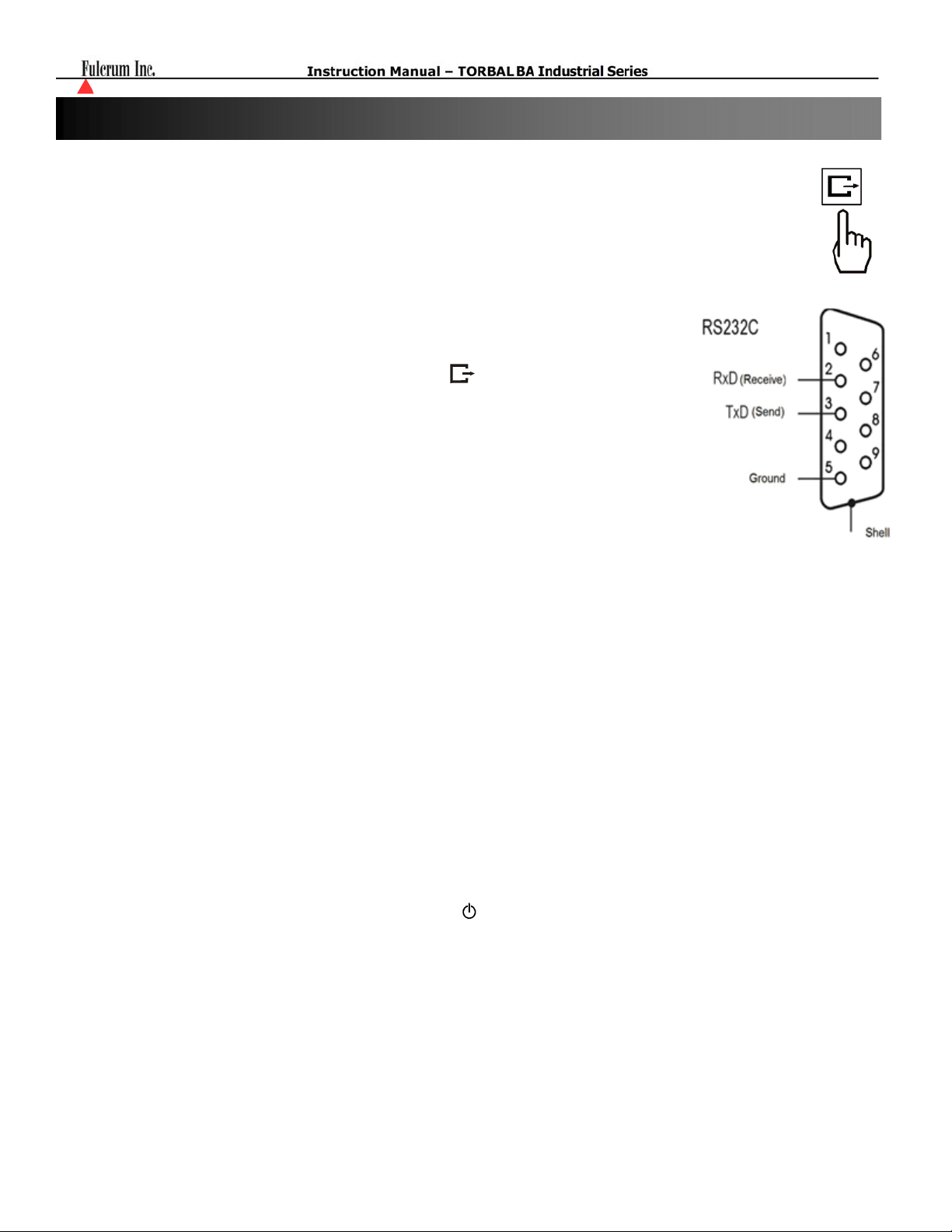

Chapter 15: Port 1 - RS232 Communication Port Configuration

After a weighing transaction is completed, a result data receipt can be printed. To initiate printing, press the data transfer key. Data may be sent to a printer or a PC via the Torbal Communication Software.

15.1. Data Transmission and Exchange Protocol

Data Transmission (LONG):

Transmission Parameters: 8 bits, 1 stop bit, no parity, baud rate 4800bps,

Exchange data:

 Transmit the weight (equivalent to the Print Key, , in weighing:

Computer→Scale: S I CR LF (53h 49h 0Dh 0Ah) – initiating signal,

Scale→Computer: scale sends 16 Bytes of data as follows:

Byte 1 - The character ‘-‘ or space Byte 2 - space Bytes 3,4 - digit or space Bytes 5-9 - digit, comma, or space Byte 10 - digit Byte 11 - space Byte 12 - k, l, c, p or space (for kg,lb,ct,pc, or%) Byte 13 - g, b, t, c or % Byte 14 - space Byte 15 - CR Byte 16 - LF

Port-1

 ‘Tare the weight’ (corresponds to the →T← key in weighing):

Computer→Scale: S T CR LF (53h 54h 0Dh 0Ah),

Scale→Computer: no response.

 ‘Zero the scale’ (corresponds to the key →0← in weighing):

Computer→Scale: S Z CR LF (53h 5Ah 0Dh 0Ah),

Scale→Computer: no reponse.

 ‘Turn On / Off the Scale (corresponds to the key I/

Computer→Scale: S S CR LF (53h 53h 0Dh 0Ah),

Scale→Computer: no response.

 ‘Display the MENU’ (corresponds to the key MENU in weighing):

Computer→Scale: S F CR LF (53h 46h 0Dh 0Ah),

Scale→Computer: no response.

 Setting the threshold 1 (optional):

Computer→Scale: S L D1...DN CR LF (53h 4Ch D1...DN 0Dh 0Ah) where: D1...DN – Threshold value, up to 8 characters,

in weighing):

- 35 -

Page 36

Scale→Computer: no response,

 Example:

To set 1000g in weight B1.5 (d=0.5g) type: S L 1 0 0 0 . 0 CR LF (53h 4Ch 31h 30h 30h 30h 2Eh 30h 0Dh 0Ah). To set 100kg in weight B150 (d=50g) type: S L 1 0 0 . 0 0 CR LF (53h 4Ch 31h 30h 30h 2Eh 30h 30h 0Dh 0Ah),

 Setting the threshold 2 (optional):

Computer→Scale: S H D1...DN CR LF (53h 48h D1...DN 0Dh 0Ah), where: D1...DN – threshold value, up to 8 characters,

Scale→Computer: no response

Cable WK-1 Configuration

Cable WD-1 Configuration

- 36 -

Page 37

15.2. Baud Rate

1. Press the Menu key, when the option “Port - 1” is displayed press the T key, and then select the option

“Baud” by press the T key once again.

Port -1

2. The scale will begin to display available baud rates: “4800”, “9600”, “19200”, “38400”, and “57600”.

To make a selection, press the T key when the desired setting is displayed.

4800 9600 19200 38400

57600

15.3. Bites

1. Press the MENU key, when the option “Port - 1” is displayed press the T key, and then select the option

“Bites” by press the T key once again.

bAUd

Port -1

2. The scale will display available Bits settings: “7-bit”,”8-bit”. To make a selection press the T key when

the desired setting is displayed.

bItES

7 - bIt 8 - bIt

- 37 -

Page 38

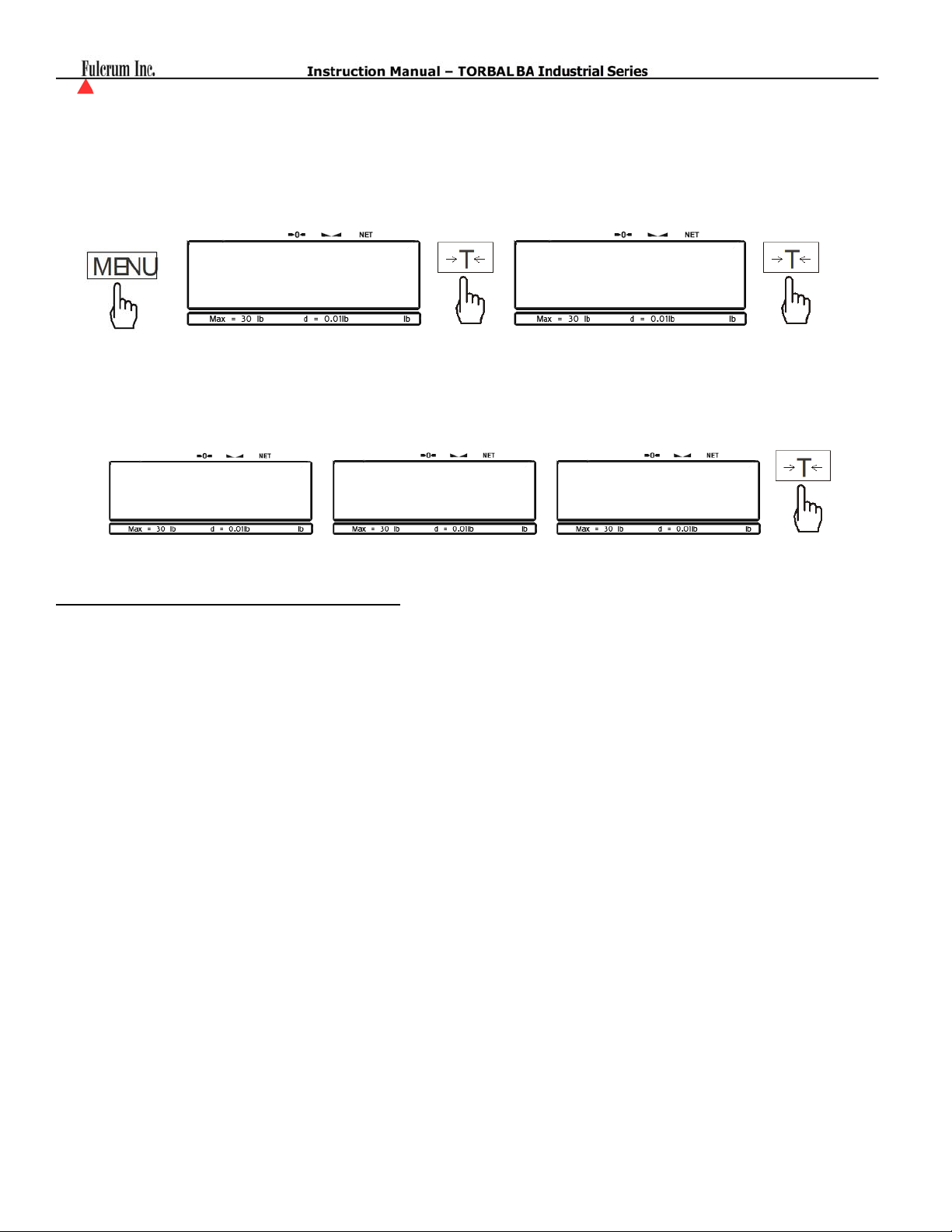

15.4. Parity

1. Press the MENU key, when the option “Port - 1” is displayed press the T key, and then select the option

“Parity” by press the T key once again.

Port -1

2. The scale will display available Parity settings: “none”, ”odd”, “even”. To make a selection press the T

key when the desired setting is displayed.

none odd

PARITY

evEN

There is no description of the send function

- 38 -

Page 39

(

)

Chapter 16: Receipt Printout

A detailed transaction receipt can be printed after weighing has been completed. The receipt can be customized to include the following information:

Header

idOPER

Header – includes unit information such as: Mode

number, Max Capacity, resolution and Unit Serial number.

Operator Id – shows the ID number of the user

which performed the weighing transaction

DATE

Date – Date of the performed transaction

TIME

Time – Time at which the transaction was performed

prn no

Printout number – Number of the receipt prenticed

in a given day

ID Prod

Product Id – ID number of the product or item

weighed

Count

Count – Result obtained in Parts Counting

APW – Average Piece weight of the counted parts in

ApWW

the Parts Counting Functions

NET

Net – Net result of the weighing transaction

tare

Tare – tared weight in the weighing transaction

gross

Gross – gross weight of the weighing transaction

total

Total – grand total obtained in the totalizing function

nummbe

Number – number of measurements

- 39 -

Page 40

16.1. Enabling and Disabling Receipt Fields

1. Press the MENU key, when the option “Print” is displayed press the T key, and then select a desired field

by press the T key once again when the name is displayed.

PrINT HEADER

2. The scale will display options “ON” and” Off”. To enable the field press the T key when “On” displayed,

to disable the field press the T key when “Off” is displayed.

ON OFF

16.2. Assigning Operator and Product ID numbers.

1. From the weighing mode press and hold the MENU key for 3 seconds or until the scales displays

“IDPROD” and “IOPER”. Select the desired option by pressing the T key.

0.00 IDPRoD

2. A dashed line will be displayed indicating to manually enter ID number. To manually enter the ID

number, use the following keys: the -->0<-- key to increment a digit, the T key to accept and go to the

next digit, the key to insert a decimal, and the MENU key to accept the entire setting.

To increment a digit To accept and go to

next digit

To insert a decimal To accept entered

value

- 40 -

Page 41

(

)

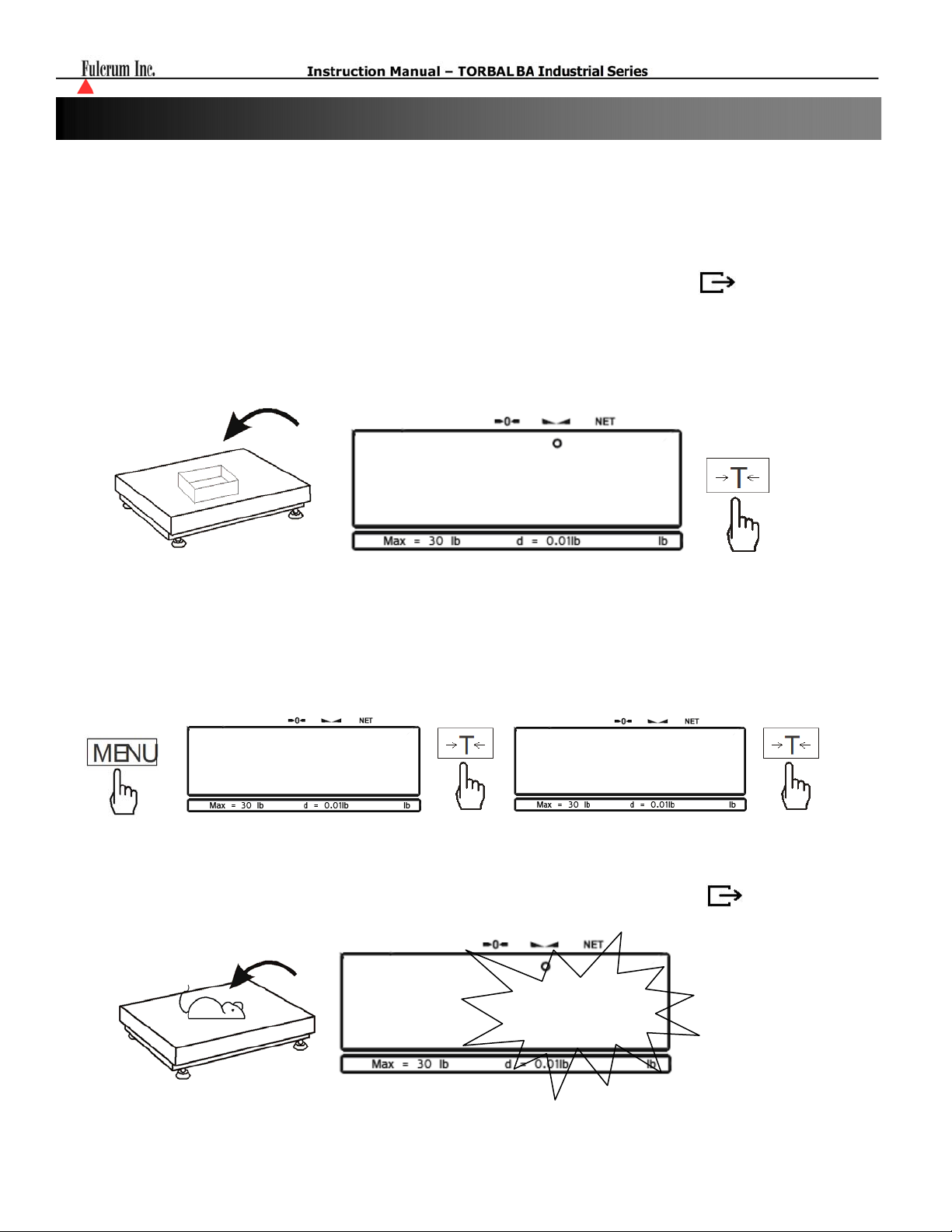

Chapter 17: Dynamic and Animal Weighing

Function Options: LOC Off

LOC On

LOC Prn

1. Place a container on the pan and press the T key to tare.

( LOC oFF) (LOC on)

(LOC Prn)

Disables the LOC Dynamic Weighing Function Enables and Starts the LOC Dynamic Weighing Function (Weight integration

initiates automatically)

- Enables and Starts the LOC Dynamic Weighing Function (Weight integration is

initiated manually with the press of the Data Transfer Key )

LOC

-------

2. Press the MENU key, when the option “LOC” is displayed press the T key, and then select the option

“LOC On” or “LOC Prn” by press the T key once again.

LOC LOC oN

3. Place the animal or the moving object on the pan. Weight integration will begin automatically. If “LOC

Prn” was selected press the data transfer key to initiate weight integration manually is integrating the weighing result the display flashes.

. While the scale

0.28

4. Final result will be automatically sent to a printer or a PC via the RS232 port. During data transmission

the word print will be displayed. The final result remains displayed for 30 seconds. To perform the next weighing remove the animal, wait for the scale to display 0 and place the next animal on the pan.

- 41 -

Page 42

(

)

Chapter 18: Storing Tare Values

18.1. Storing a Tare Value Manually

1. Press the MENU key, when the option “Tare” is displayed press the T key, and then select the option “Tar

Set ” by press the T key once again.

Tare

tare tarset

2. The scale will begin to display tare locations. Locations marked with a dot in the upper left corner of the

LED have a stored tare value assigned. To select a tare location or overwrite a current location press the T key when a desired location is displayed, and then select the option “Manual ” by press the T key once again.

tare 1 mmanual

3. A dashed line will be displayed indicating to manually enter the Tare value. To manually enter tare value,

use the following keys: the -->0<-- key to increment a digit, the T key to accept and go to the next digit,

the key to insert a decimal, and the MENU key to accept the entire setting.

To increment a digit To accept and go to

next digit

4. Once a tare value has been assigned, the scale will automatically store the value in the selected memory

location and return to the weighing mode with the tare value in use.

To insert a decimal To accept entered

value

- 42 -

Page 43

18.2. Storing a Tare Value Automatically

1. Place a container on the pan and press the MENU key to enter the main menu.

2. When the option “Tare” is displayed press the T key, and then select the option “Tar Set” by pressing the

T key once again.

tare tar set

3. The scale will begin to display tare locations. Locations marked with a dot in the upper left corner of the

LED have a stored tare value assigned. To select a tare location or overwrite a current location press the T key when a desired location is displayed, and then select the option “Pan ” by press the T key once again.

tare 1 PAn

4. The scale will automatically store the value of the container on the in the selected memory location and

return to the weighing mode with the tare value in use.

- 43 -

Page 44

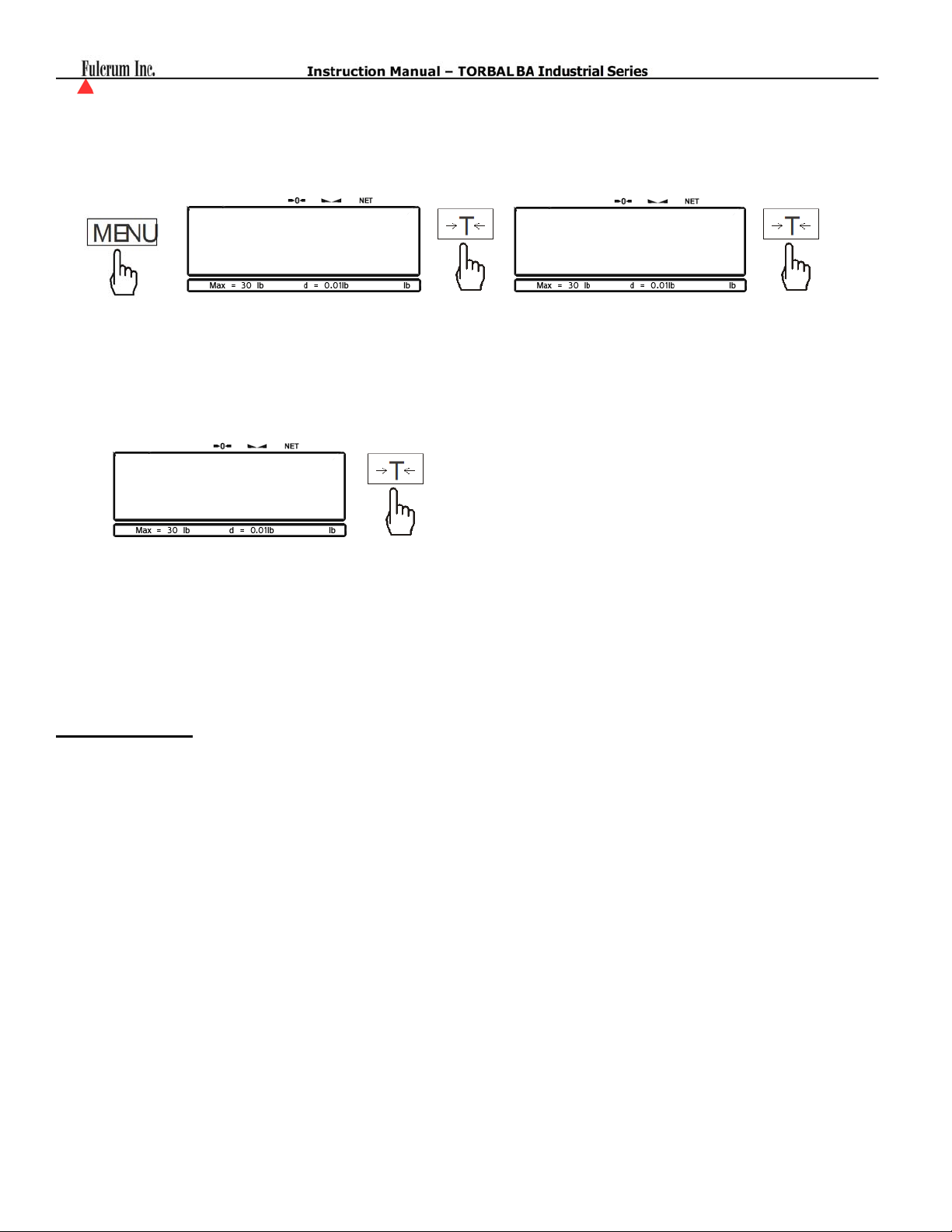

18.3. Recalling a previously stored tare value.

1. Press the MENU key, when the option “Tare” is displayed press the T key, and then select the option “Tar

On ” by press the T key once again.

tare tar on

2. The scale will begin to display tare locations. Locations marked with a dot in the upper left corner of the

LED have a stored tare value assigned. To select a tare location press the T key when a desired location is displayed.

tare 1

3. The scale will return to the weighing mode with the selected tare value in use.

What is “tar ..” ?

- 44 -

Page 45

(

)

Chapter 19: Min – Max Weighing

This function allows you to find the maximum (highest) or minimum (lowest) weight in a series of weights.

1. Press the MENU key. When the option “Up” is displayed press the T key, and then select the option

“High” or “Low” by press the T key once again.

up off

2. The scale will return to weighing and it will begin to hold on the display the highest or the lowest weight.

When seeking the highest weight in a series make sure to remove the previous weight from the pan before adding the new weight. When seeking the lowest value weight be sure to add the new weight before removing the previous weight.

Note: Add and remove weights with care in order not to increase the weight unintentionally.

LOWW HIGH

1.00

Note: Stability indicator and Auto-Zero is disabled during Min/Max weighing.

10.00

- 45 -

10.00

Page 46

(

)

Chapter 20: Newton – Force Measurement

NewwtO

This function changes the unit of weight to Newton (N) - 1N ≈0.101971 kg

1. Press the MENU key, when the option “Newton” is displayed press the T key.

newwtO

2. The scale will display options “ON” and” Off”. To enable Newton force measuring press the T key when

“New On” displayed, to disable Newton force measuring press the T key when “New Off” is displayed.

neww ON nww oFF

- 46 -

Page 47

(

)

Chapter 21: Filtering

This function is used when vibration is encountered during weighing. This may be the result of ground vibration, or a vibrating live load on the pan. Increasing the filter setting will increase the time required for a measurement. The integration time of the measurement is increased thereby eliminating higher frequency vibration.

1. Press the MENU key, when the option “Filter” is displayed press the T key.

FILter

fILTER

2. The scale will display options “Off” and available filter sensitivity levels “Fil 10, Fil 20, Fil 30 and Fil

40”. To select and enable Filtering press the T key when a desired filter level is displayed.

Filter Sensitivity

Fil 10 Low Fil 20 Medium Fil 30 High Fil 40 Severe

FIL 10 FIL 20 FIL 30 FIL 40

3. To disable filtering select “Fil Off” from the filter menu.

- 47 -

Page 48

(

)

Chapter 22: Date and Time

Function Options: Dat On

Dat Off Dat Set Dat Pin Dat For

22.1. Enabling and Disabling Date and Time stamping

1. Press the MENU key, when the option “Date” is displayed press the T key.

(DAT oN) (DAToff) (datset) (datpIn) (datfor)

Enables date and time printing with every weighing result. Disables date and time printing. Date configuration” allows to set the current date and time. Enables PIN access to the Date Configuration. Format selection (United States / Europe).

DATE

date

2. The scale will display options “Dat On, Dat Off, Dat Set, Dat Pin, Dat For” . To enable Date stamping

press the T key when “Dat On” is displayed, to disable press the T key when “Dat Off” is displayed.

dat ON dat oFF

22.2. Setting the current date and time

1. Press the MENU key, when the option “Date” is displayed press the T key, and then select the option “Dat

Set ” by press the T key once again.

Date DATSET

- 48 -

Page 49

2. The current time will be displayed. To change or to set a new time press the T key

h03-25

3. Use the following keys to change the current time

4. Once the time has been set the scale will display”PM” or “AM”. Press the T key when the desired setting is displayed.

To increment a digit To accept and go to

h03-25

next digit

PMM AMM

5. Once the Time has been set, the scale will display the current date. To change or to set a new date press the T key

d06-12

6. Use the following keys to change the date

To increment a digit To accept and go to

- 49 -

d06-12

next digit

Page 50

7. Once the time has been set the scale will display the current year. To change the years press the T key.

y - 2010

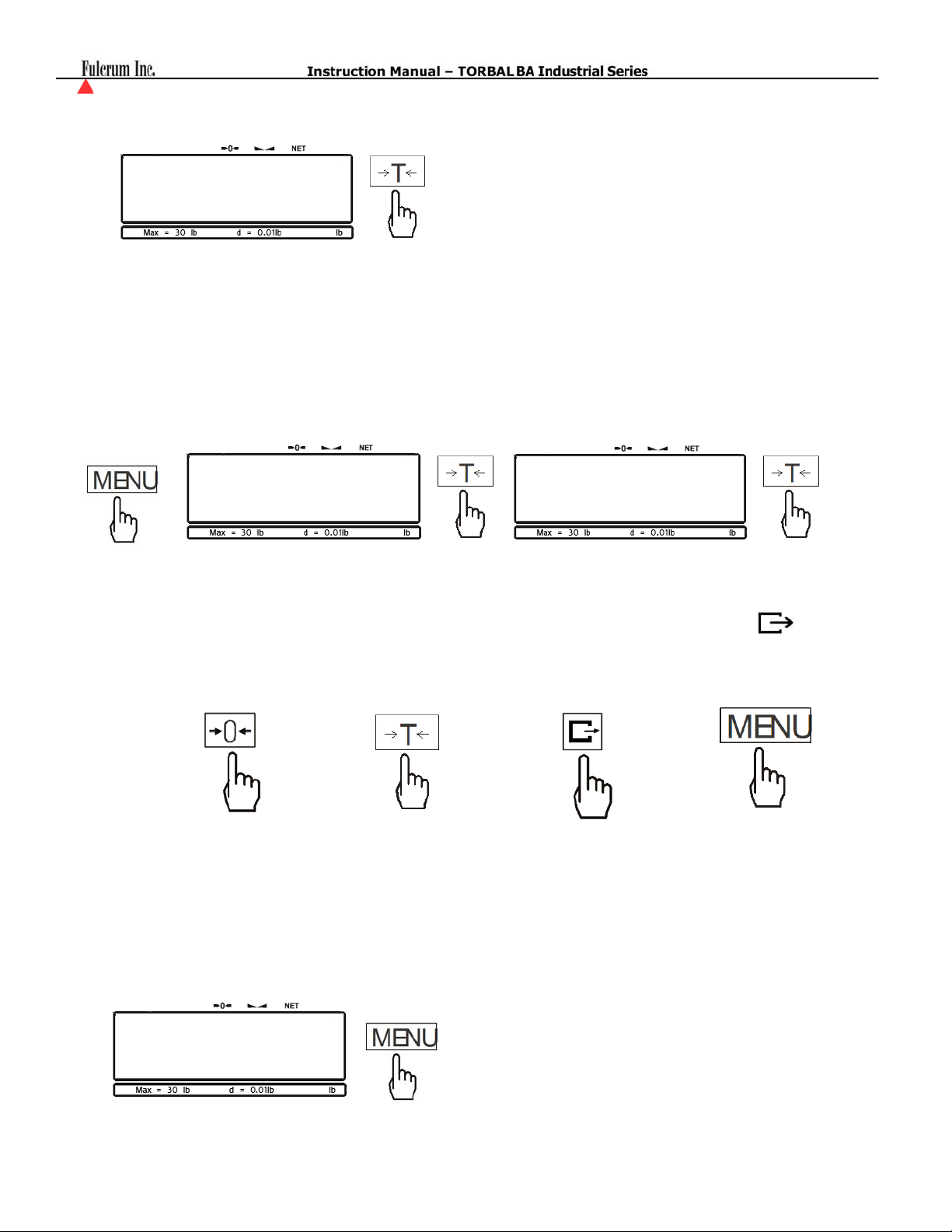

22.3. Enabling PIN access to the Date Configuration Function.

Configuration of the current date and time can be protected with a PIN. Once set the user is prompted to enter a pin number before time and date change is allowed.

1. To Set PIN for date configuration press the MENU key. When the option “Date” is displayed press the T

key, and then select the option “Dat PIN ” by press the T key once again.

Date DATPIN

2. The scale will display a dashed line indicating to enter a desired PIN. To enter the PIN, use the following

keys: the -->0<-- key to increment a digit, the T key to accept and go to the next digit, the key to insert a decimal, and the MENU key to accept the entire setting.

To increment a digit To accept and go to

next digit

3. After setting the PIN, you will be asked to key in the pin in order to access the “Date and Time” feature.

To remove or disable PIN access, enter the “Date” function and key-in the current PIN. After accessing the “Date” menu, select option “DatPin” and do not enter a new PIN number. Simply press the MENU key with the dashed line displayed.

To insert a decimal To accept entered

- 50 -

Page 51

(

)

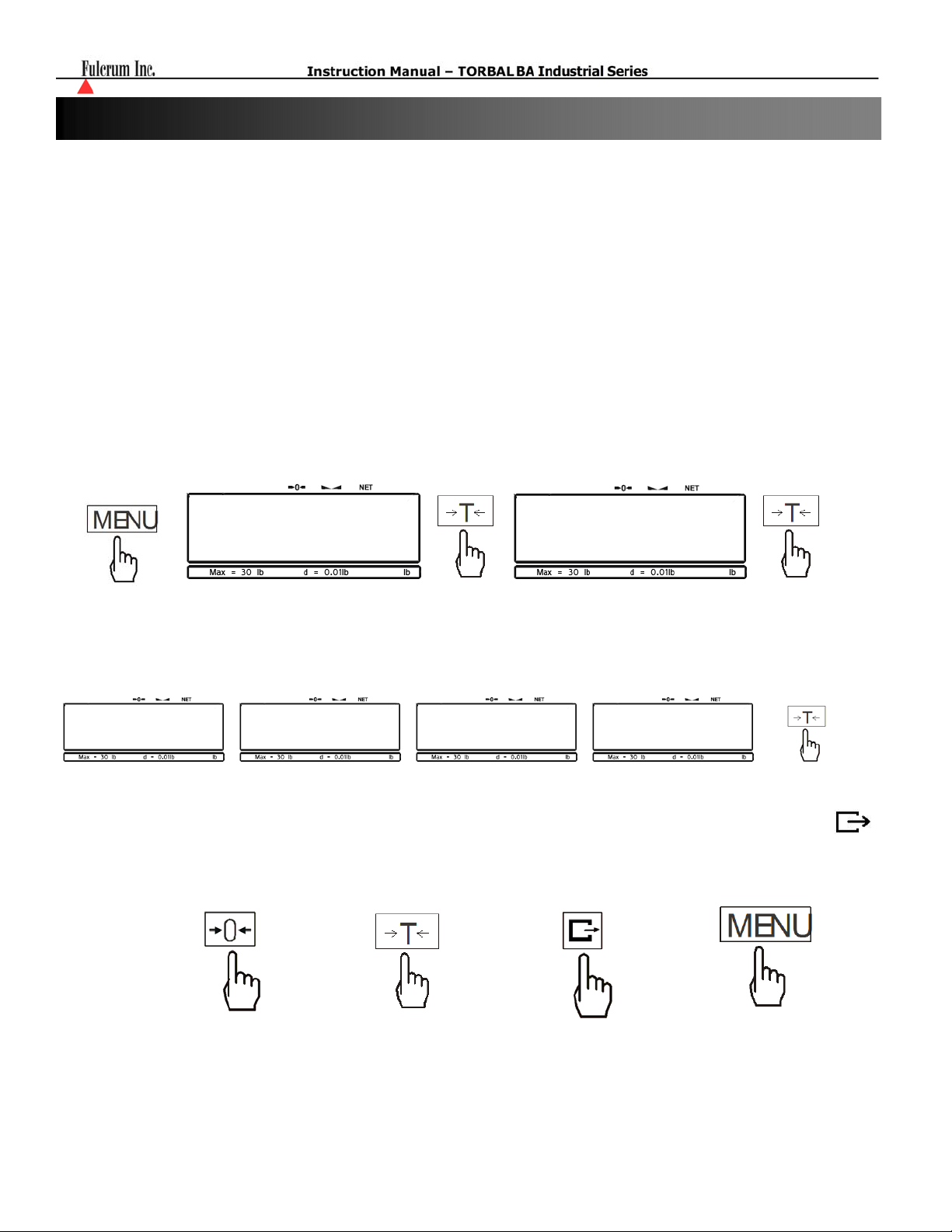

Chapter 23: Threshold Check Weighing and Opto-Isolator

Threshold check weighing is used to check whether a weight of an object falls within specified threshold limits.

Function Options: Thr Off

Thr On Thr Prn Dat Cfg

23.1. Enabling check weighing and setting threshold limits.

1. Press the MENU key, when the option “thr” is displayed press the T key, and then select the option

“thr On” by press the T key once again.

(throFF) (thr on) (thrPrn) (thrCFG)

Disables threshold and check weighing. Enables threshold weighing and sets function parameters. Prints currently set parameters. Sets output mode for the opto-isolator (Pulse Mode / Level Mode).

ThR

thr thr on

2. The scale will begin to display threshold limits. To set the Lower Limit wait for “Set-1” to display and

press the T key. To set the Upper Limit wait for “Set-2” to display and press the T key. To set the minimum weight value that should be used in check weighing select “Set-3”.

set 0 set 1 set 2 set 3

3. The scale will display a dashed line indicating to enter the limit value. To enter the value, use the

following keys: the -->0<-- key to increment a digit, the T key to accept and go to the next digit, the key to insert a decimal, and the MENU key to accept the entire setting.

To increment a digit To accept and go to

next digit

To insert a decimal To accept entered

value

- 51 -

Page 52

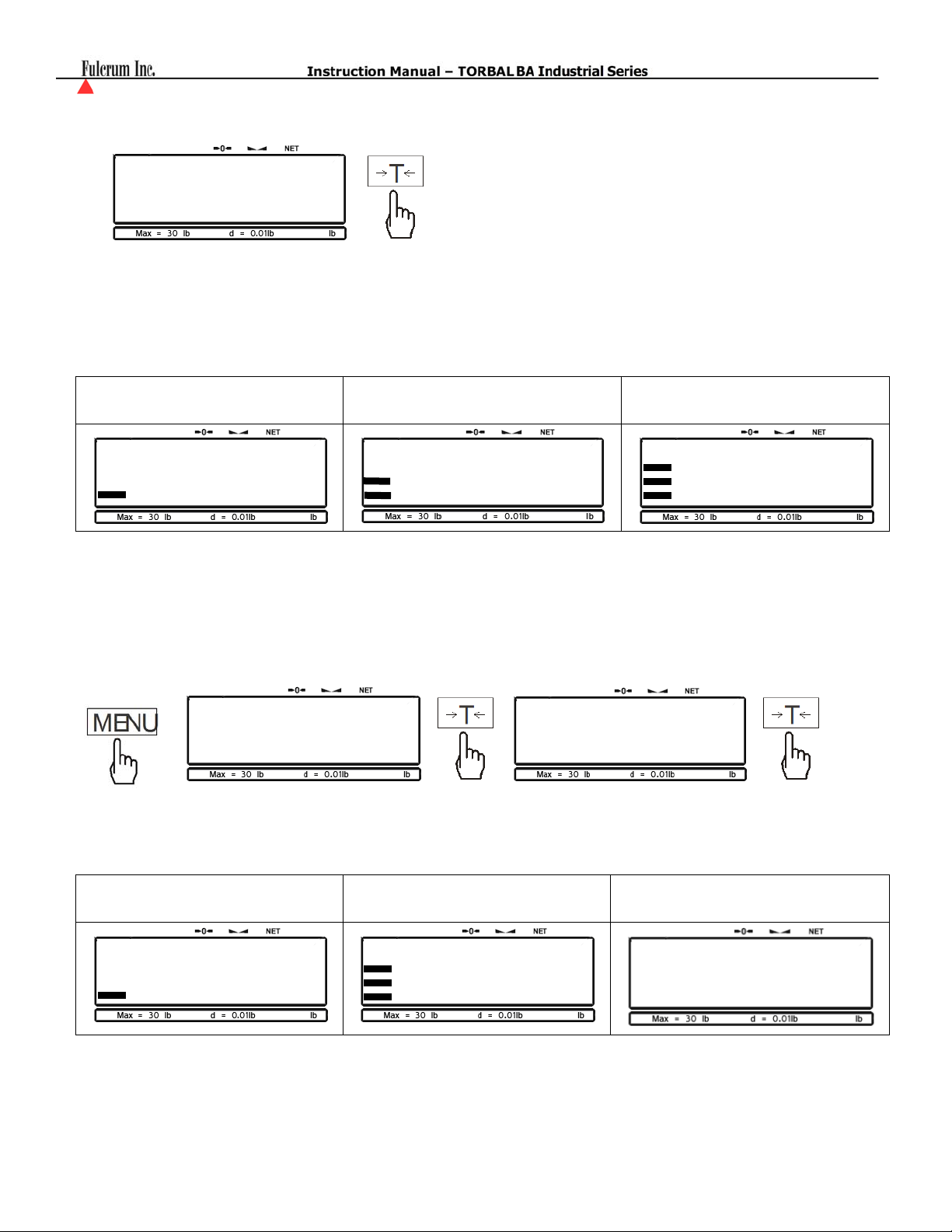

4. After setting all limit sets, select “Set-0” in order to return to weighing with the limits enabled.

set - O

5. To perform check weighing places the weigh on the Pan. The result is indicated by a dashed line located

on the left side of the display.

LOW OK HIGH

0.50

6. To disable check weighing enter the “thr” menu and select “thr Off”

7. To view the threshold limits press the MENU key, when the option “thr” is displayed press the T key, and

then select the option “thrPrn ” by press the T key once again.

1.10

3.20

thr thrprn

8. Current limit sets will be displayed and transmitted via the RS-232 port. To view all limits use the T key.

LOW HIGH Min

1.00

- 52 -

3.00

0.20

Page 53

23.2. Setting the output mode for the opto-isolator (Pulse Mode / Level Mode).

Output signals are provided for controlling sorting or signaling equipment:

• Voltage level output signals Under, OK, and Over -Signal Mode

• Pulse output signals greater than level I, greater than level II, and below the function activation level

III – Pulse mode

Signal Mode:

P1 high indicates the level III (min weight) has been passed, P2 high indicates that weight is greater

than level I, P3 high indicates that the weight is greater level II. No signal indicated that the weight is less than min. required to activate, P1 alone =LOW, P1 and P2 without P3 = OK, P1 and P2 and P3 = HIGH.

Pulse Mode:

P1 pulse indicates that the level I threshold has been passed, P2 pulse indicates that the level II threshold has been passed, P3 pulse indicates that the min weight level has been passed. P3 alone = LOW, P3 and P1 = GOOD, P3 and P1 and P2 = HIGH.

The Pulse outputs are open collector switches to ground for approximately 0.5 second. The P3 output indicates that the minimum weight required to initiate the check weighing function has been passed. The P1 and P2 pulses will not appear unless P3 occurs.

1. To select an output mode, press the MENU key, when the option “thr” is displayed press the T key, and

then select the option “Thr Cfg ” by press the T key once again.

thr thrCFG

- 53 -

Page 54

2. The scale will display options “Impuls” and” Signal”. To select Pulse Mode press the T key when

“Impuls” is displayed, to select Signal Mode press the T key when “Signal” is displayed.

IMMPUL SIGNAL

23.3. Opto-isolator Output

The outputs are open collector optically isolated switches. Each output has a current rating of 100.ma and an open circuit collector voltage rating of 24 VDC. If the outputs are used to drive relays each relay should have a flyback diode, with at least a 100.ma rating, to protect the drive transistor. If relays are used as buffers to the sorting equipment be sure the contacts have adequate ratings and are properly protected from inductive loads.

- 54 -

Page 55

(

)

Chapter 24: Totalizing

Function Options: Tot Prn

Tot Off Tot o Tot -

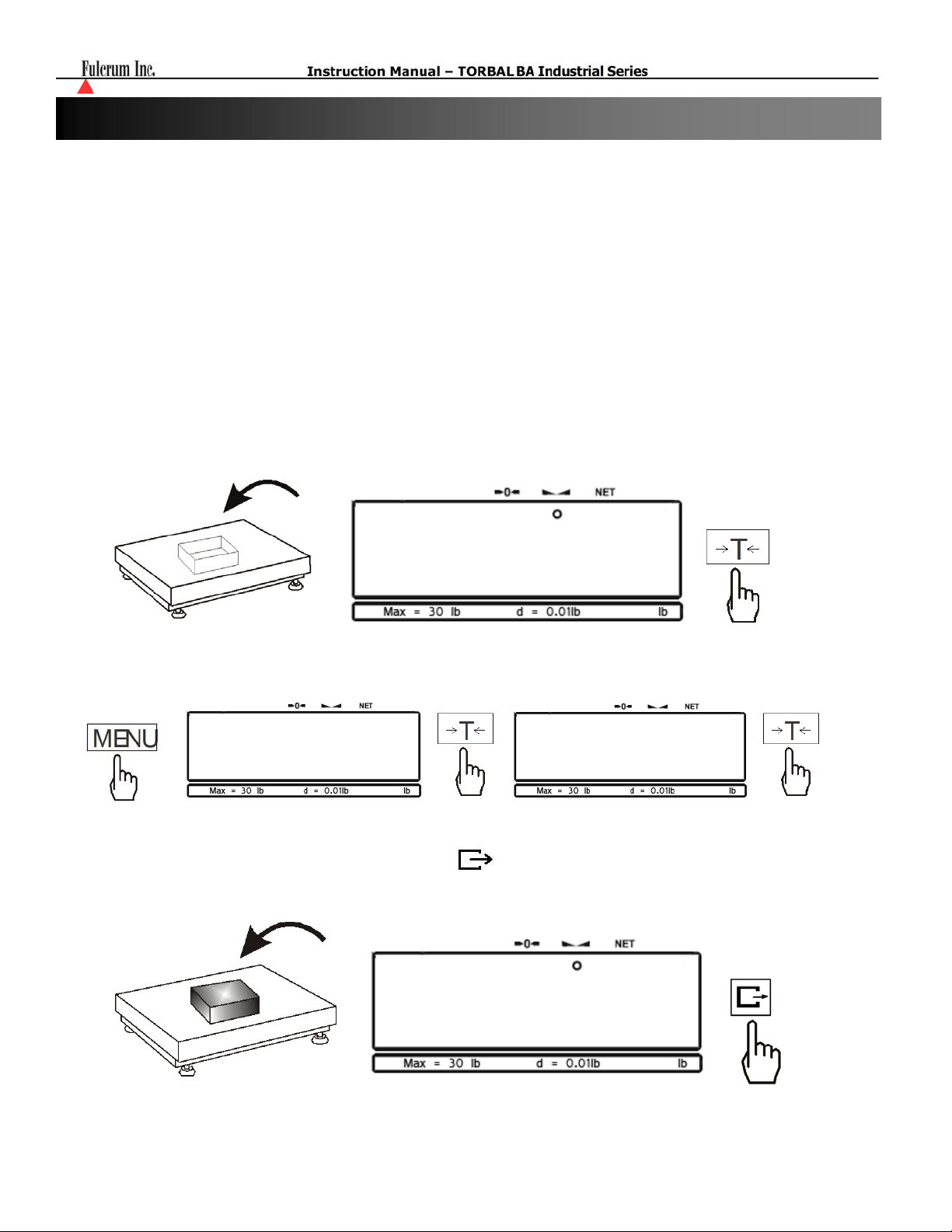

24.1. Performing Totalizing. Storing a Tare Value Automatically

1. Place a container on the pan and press the T key to tare.

(totPRN) (totoff) (tot o) (tot -)

Displays and prints transaction total. (Does not reset the sum value) Displays and disables the transaction total. (Resets the sum Value) Prints measurement weigh before adding. Adds measurement weigh to the total without printing

total

-------

2. Press the MENU key, when the option “Total” is displayed press the T key, and then select the option

“Tot o ” or “Tot –“ by press the T key once again.

total tot -

3. The display will read 0 indicating that you may place the first object into the container. Once the Weight

of the object stabilized press the data transfer key

to accept and add the object weight to the total.

- 55 -

Page 56

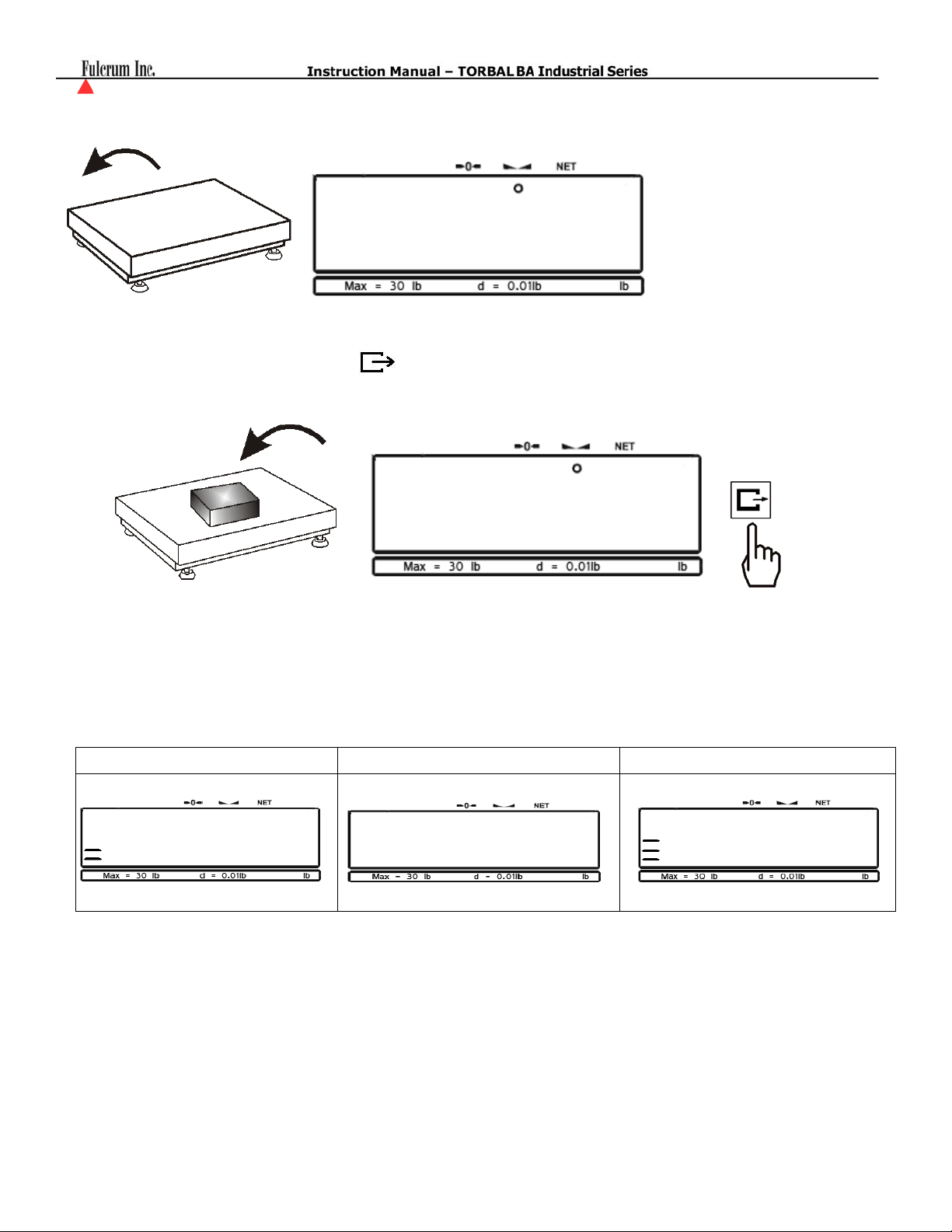

4. Once the weight has been added, remove the object from the weighing pan.

5. Wait for the scale to return to 0 and place the second object on the pan. . Once the Weight of the object

stabilized press the data transfer key to accept and add the second object weight to the total.

6. Follow steps 3 through 6 until all object have been added. To view the total of the transaction press the

Toggle key and the Total screen will appear, press the TOGGLE key again and the N7umber of Measurements screen will appear, press the TOGGLE key again and the Transaction Average screen will appear.

Total Number of measurements

0.77

7. Press the TOGGLE again and a screen saying “totEnd” will appear, press the TOGGLE key again and the scale returns to the weighing mode without clearing the parameters and allows the user to continue the totalizing process. If the TARE key is pressed instead of the TOGGLE key the screen alternates between YES and NO. If the TARE key is press while YES is displayed the stored ingredient weights are cleared but the unit remains in the Total mode. If the TARE is pressed while NO is displayed the stored ingredient vales are retained and the scale remains in the Total mode.

Transaction Average

0.39

- 56 -

Page 57

(g)

(

)

Chapter 25: Changing to Grams

The function “lb bal” is used to configure the unit to weigh in grams (g) or pounds (lb). “Lb Bal” optimize the scale’s accuracy and resolution disabling or enabling ponds (lb) as a default unit of measure.

1. To disable lb (pounds) as default unit of measure and set the scale weigh in grams (g) .Press the MENU

key, when the option “lb_bal” is displayed press the T key.

or Pounds (lbs)

LB_BAL

2. The scale will display options “Lb Off” and” Lb On”. To select disables pounds and select grams as the

default unit of measure press the T key when “Lb Off” is displayed, to disables grams and select pounds and the default unit of measure press the T key when “Lb Ob” is displayed.

Lb off Lb on

- 57 -

Page 58

(

)

(

)

Chapter 26: Menu Customization

The Active function is used to customize the scale’s Main Menu. This feature should be used to deactivate functions or features that are not used. Deactivated functions will not appear in the Main Menu which will simplify its use. To activate or deactivate features or function follow the steps below.

1. Press the MENU key, when the option “Active” is displayed press the T key, and then select a desired

function or feature by press the T key once again when the name is displayed.

AcTIU

ACTIu Avtota

2. The scale will display options “ON” and” Off”. To disable a function from appearing in the Main Menu

press the T key when “Off” is displayed, to enable a function to have it appear in the Main Menu press the T key when “On” is displayed.

ON OFF

Chapter 27: Resorting Default Settings

To restore the scale’s factory settings follow the steps below

1. Press the MENU key, when the option “Default” is displayed press the T key.

DEFAUL

DefauL

2. The scale will display options “Yes” and” No”. To restore the scale’s factory setting press the T key when

“Yes” is displayed. To cancel press the T key when “No” is displayed.

YES NO

- 58 -

Page 59

Chapter 28: Common Errors and Troubleshooting

Error or Indicator Cause Explanation / Solution

- - - - Below zero Re-zero the scale by pressing the

Æ0Å key.

- - Taring is not allowed Place a weight on the pan before taking a tare.

- - Re-zeroing is not allowed Remove weight from pan and clear stored tare values.

L Pan error Make sure that pan is properly

seated on the pan support.

H Exceeded capacity The scale has exceeded its

weighing capacity. Reduce the weight.

Err - b Pan not cleared on power-up The pan was not empty while the

scale was initiating at startup. Clear the pan and restart the scale.

Sapl LO (Parts Counting) Average piece weight is too low The average piece weight is lower

than 3e. Be sure that individual piece weight is greater than 3e.

Sapl LO (Percent Weighing) Sample reference weight is too low The sample reference weight is

lower than 100d. Increase the sample weight.

The scale will not turn on Possible power failure Check the power AC adapter

connection.

Weighing results are not accurate Inaccurate calibration Calibrate the scale. Weighing result will not stabilize Irregular environment Eliminate drafts or vibrations.

Chapter 29: Maintenance

Cleaning and maintaining your Scale:

• Do not use chemicals or benzene when cleaning the surface. Corrosive chemicals may damage the

finish.

• Alcohol may be used only to clean the scale’s stainless steel surfaces.

- 59 -

Page 60

Chapter 30: Limited Warranty

PURCHASER’S 12-MONTH WARRANTY

Warranty is valid only if the attached warranty registration card is completed and returned within 30 days.

This product is a precision device made to exacting standards of scientific accuracy. It is guaranteed to have been adjusted and inspected for proper workmanship and performance, and certified for its currently advertised specifications before shipment.

Fulcrum Products are warranted against defects in material and workmanship under normal use and service. This warranty is extended only to the first purchaser. This limited warranty will not apply if, upon inspection, it is found that the product was tampered with, misused, overloaded, or abused,mishandled, placed in an improper environment, improperly installed or adjusted, used for a purpose other than that for which it was designed, or repaired by unauthorized personnel.

Fulcrum’s liability under this warranty is limited to furnishing labor and parts necessary to remedy the defect covered by this warranty and restore the product to normal operating condition. Purchasers may be charged a minimum repair fee for in-warranty products returned for repair if those products are determined to be problem-free. To make a claim under this limited warranty, obtain an RMA number from Fulcrum and return the product, carefully packed in its original packaging, shipping prepaid, with the RMA number written on the return package.

- 60 -
