TOPWILL TP355, TP701 User Manual
2.4GHz Digital
Wireless Video Door Phone
User Manual
● Thank you for purchasing our product.
● Please carefully read this user manual before using the product and
follow the manual to install and operate.
1
Contents
1. Introduction...............................................................................1
2. Features....................................................................................2
3. Packing list................................................................................2

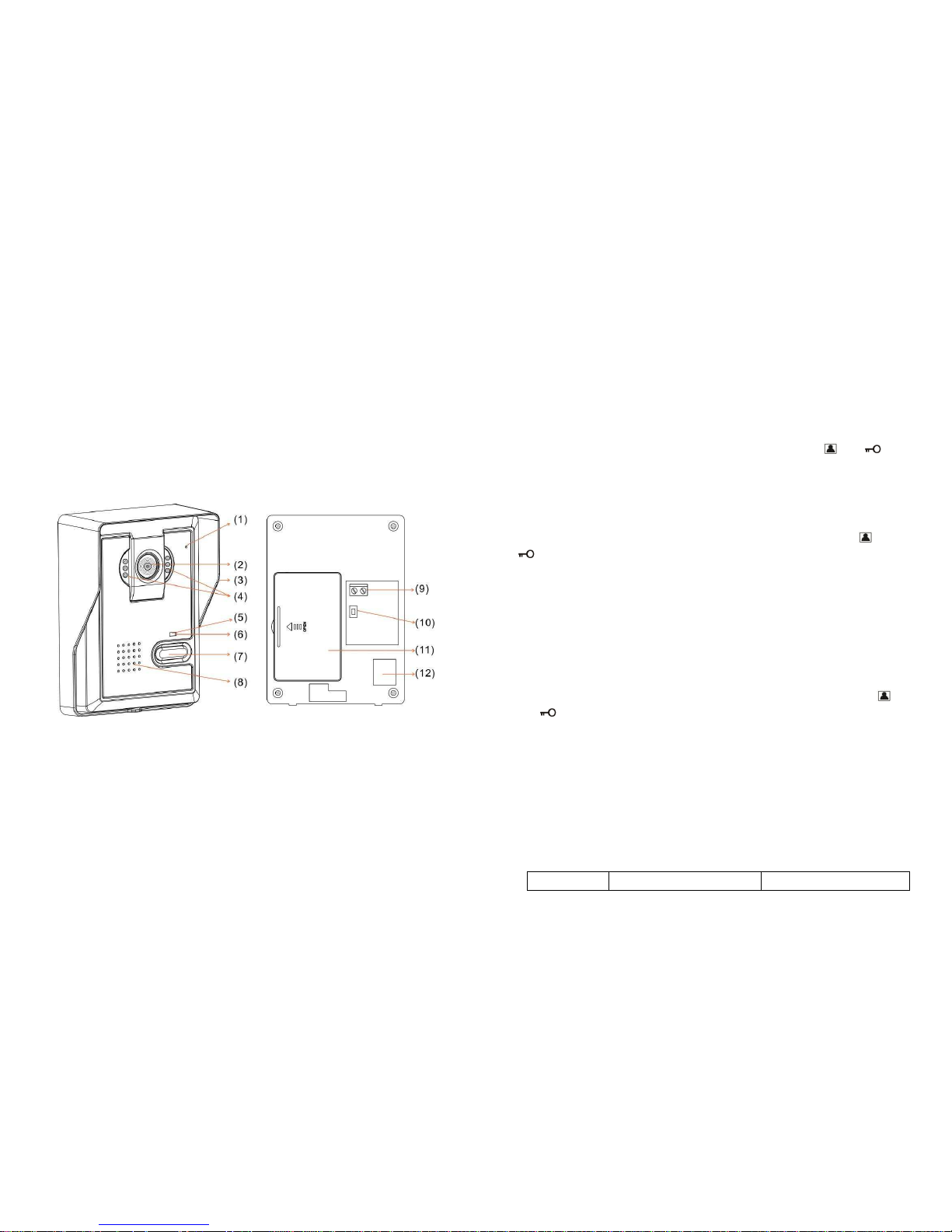

4. Outdoor camera........................................................................3

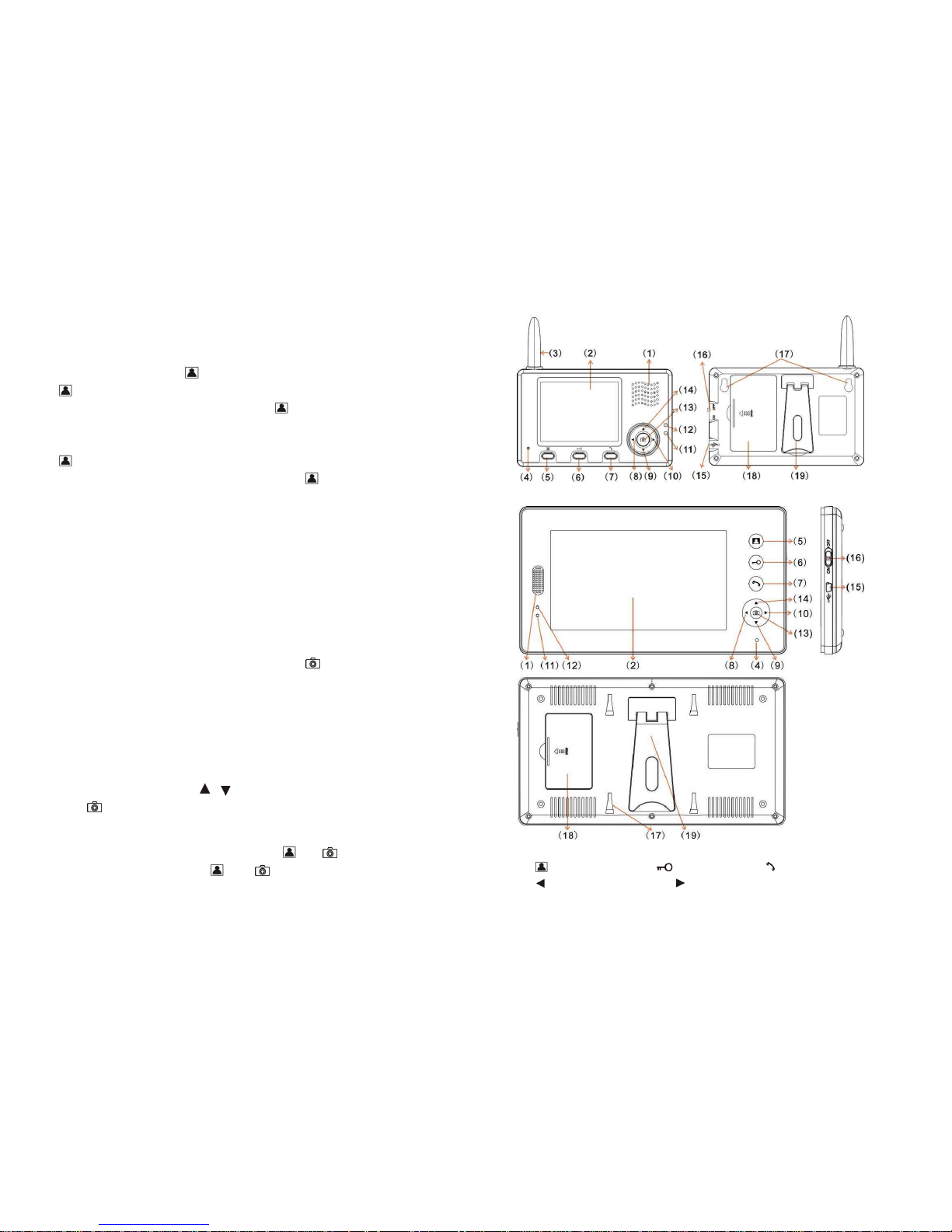

5. Indoor monitor...........................................................................3

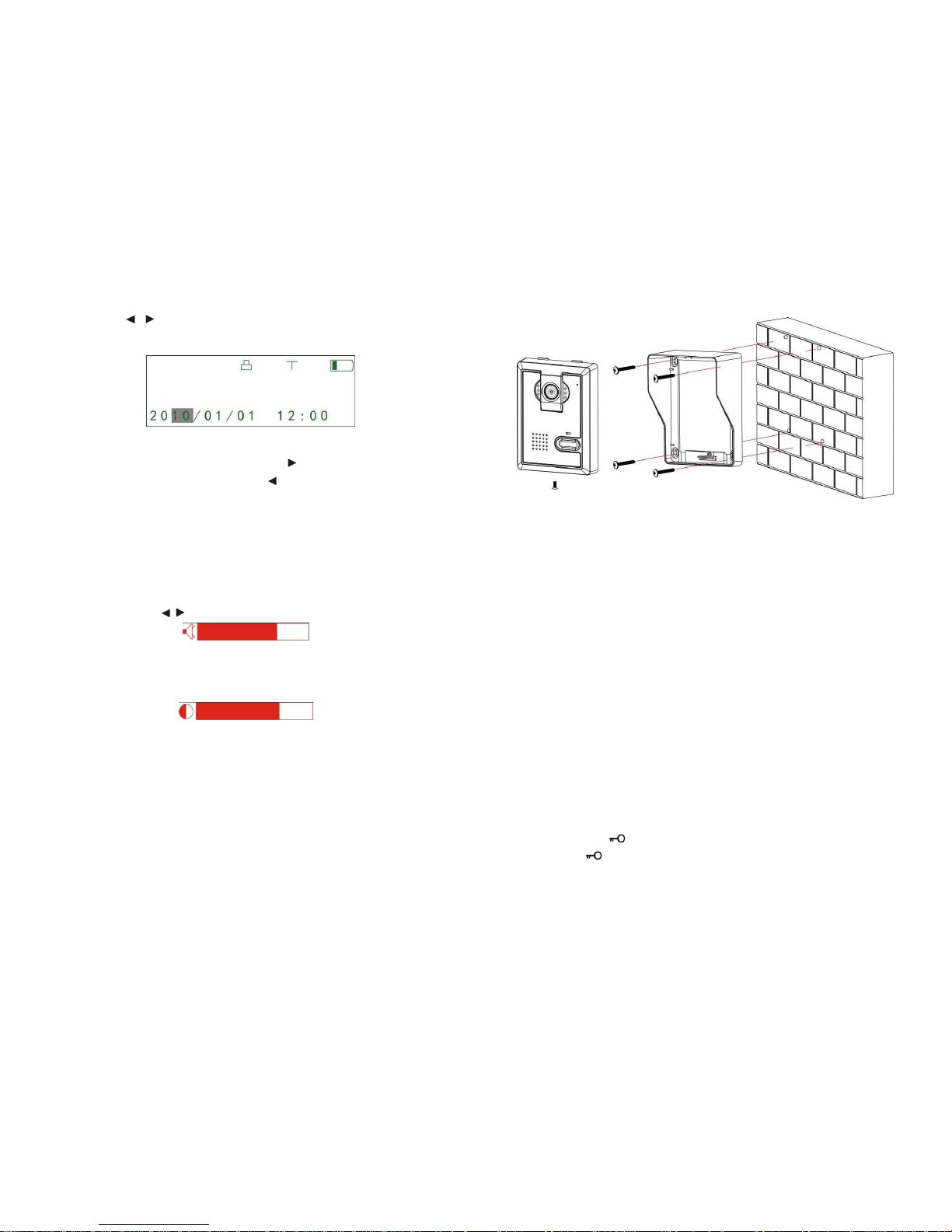

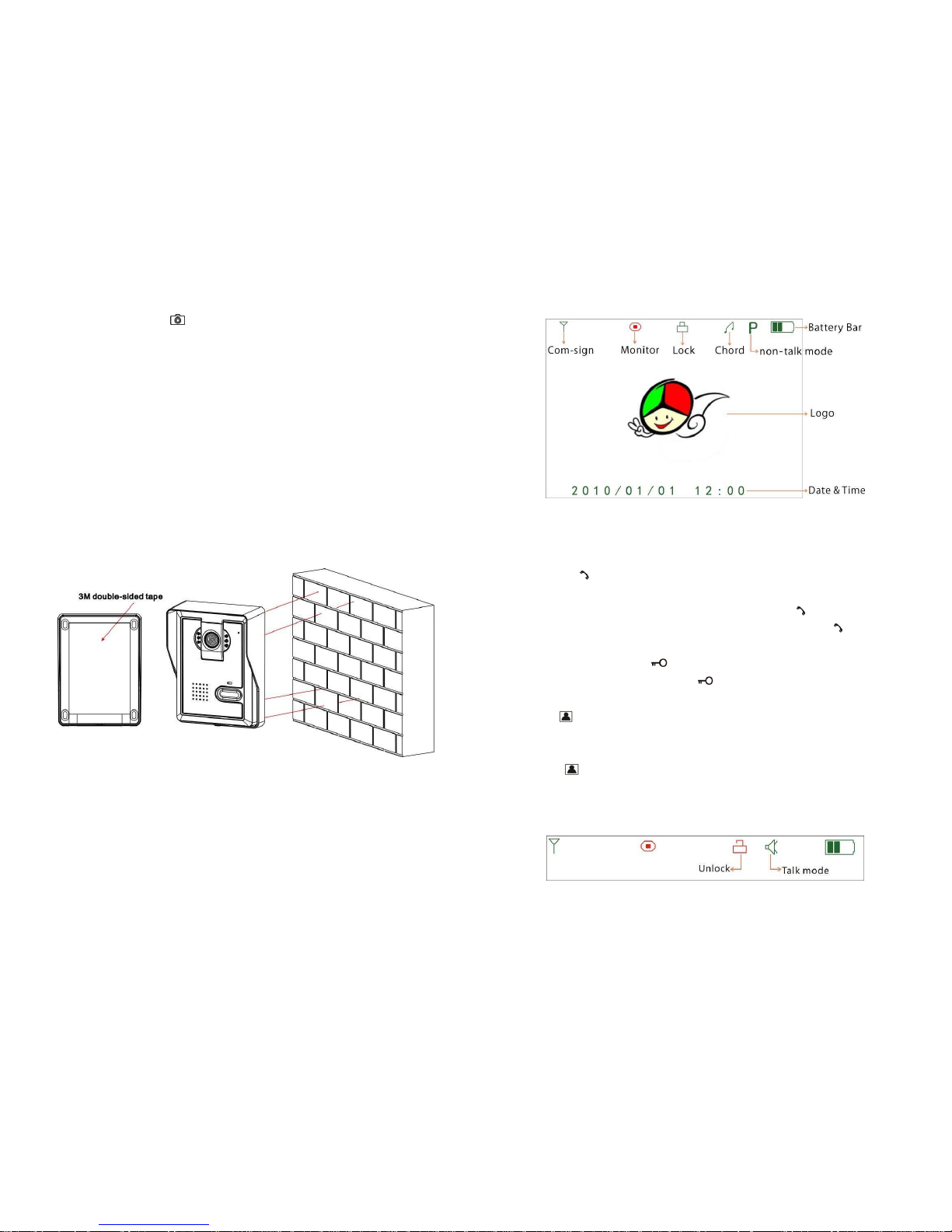

6. Installation instructions of outdoor camera ...............................5

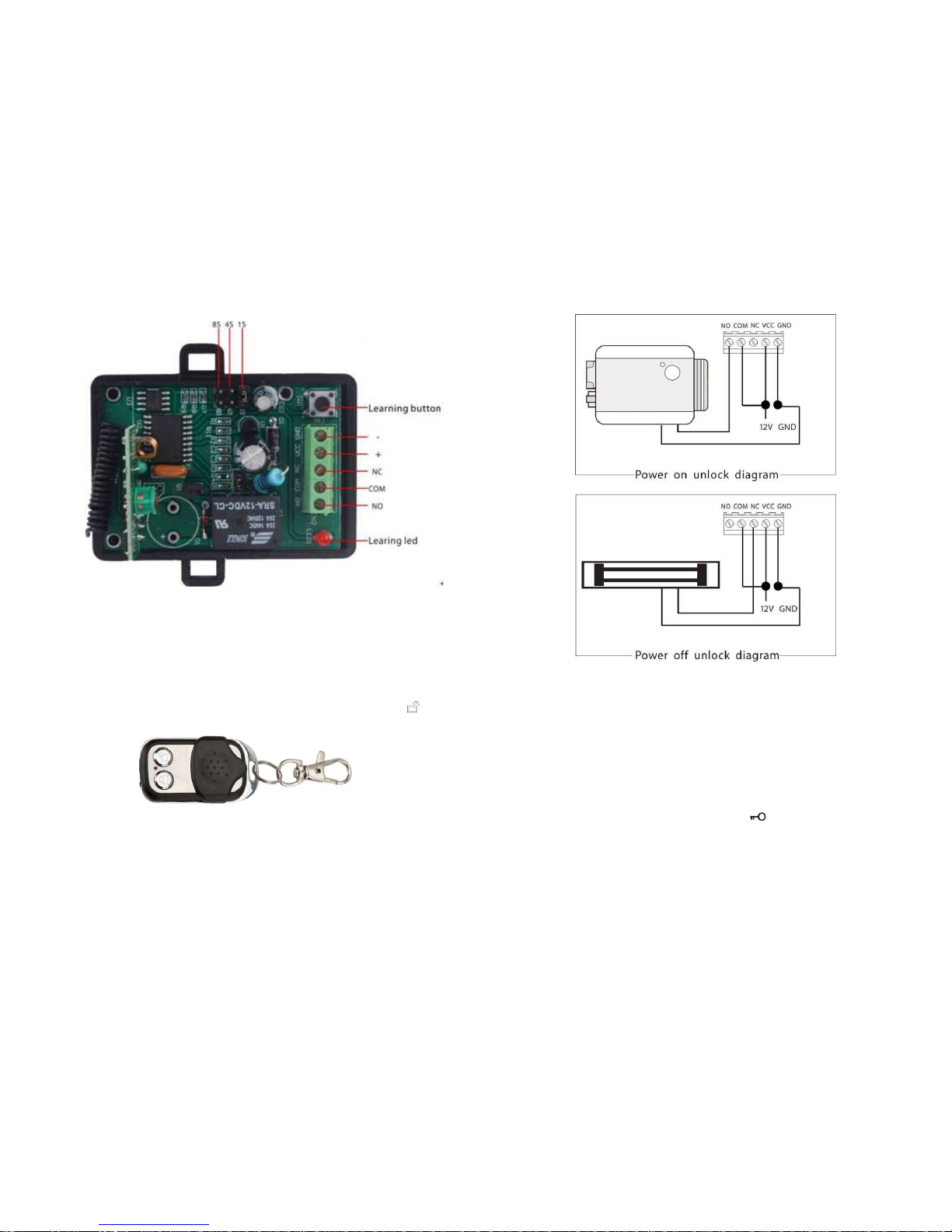

7. E-lock installation.......................................................................6
8. Operation...................................................................................8
9. Failure diagnosis.....................................................................12
10. Working environment............................................................13
11. Notices...................................................................................14
1. Introduction
Our wireless video door phone is composed of outdoor camera, indoor monitor
and wireless unlock control. You can operate the indoor monitor to communicate
14
(2) Working humidity: ≤85%
11. Notices
(1) Please don’t cover anything on the Microphone or speaker when it is in
working mode.
(2) Please always use the specified power adaptor, or that with the same
model (same standard voltage and current). Using the unspecified adaptor may
cause the damage of the product.
(3) Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
(4) Please strictly follow the user manual before you install and test this
product. If there is any question, please contact our technical support and customer
service.
13
If turn the switch to the "ON"? Turn the switch to the ON
Fail to start the
product
If the power of Li-on battery is
not enough?
Charge the Li-on battery
If the plug of power adaptor
correctly plug into miniUSB?
Re-connect indoor monitor
with power adaptor
Fail to charge
If the power adaptor correctly
get through the 100-240V AC
electricity?
Re-insert the plug to make
power adaptor get AC
electricity.
No voice in talk
mode
If the talk volume is adjusted to
be the least?
To adjust the talk volume to
be suitable.
The image is
flashing or
noisy
If the indoor monitor is close to
induction cooker and
microwave oven which has
magnetic wave?
Keep indoor monitor far away
from these things which has
magnetic wave.
If the outdoor camera doesn't
connect the power?
To connect power adaptor to
the outdoor camera
If the outdoor camera is far
away from the indoor monitor?
Keep the distance in 60
meters within (stopped by
multi-wall)
No signal in
indoor monitor
If there is other strong
magnetic space bother?
Keep indoor monitor far away
from the strong magnetic
space
10. Working environment
(1) Working temperature: -15℃—+55 ℃
2
with visitors via voice and video, and then unlock the door if you wish. It’s applicable
in apartment, hotel, house, office, building and so on.
The outdoor camera is easy to install. Indoor monitor is portable. It can be hung
on the wall or cabinet; or be placed on the desk, tea table or dining table.
2. Features
(1) 2.4GHz digital frequency hopping and encryption technology, transmission
distance up to 300 meters in free field, robust anti-interference
(2) Clear night vision can capture image in low-illumination environment
(3) Rain shield for the outdoor camera is available
(4) 3.5 or 7 inch TFT color panel
(5) Surveillance, wireless unlock, hands-free call and talk
(6) 16 chord melodies and melody volume is adjustable
(7) Brightness and talk volume are adjustable
(8) Date (only one outdoor camera with one indoor monitor system supports) and
time shown on screen
(9) Indoor monitor could take pictures automatically or by instruction. It could store
up to 100 pictures (max 500 pictures with extra storage) with date and time
(10) BL-5J battery of camera and monitor is replaceable and rechargeable
(11) Outdoor camera has two working modes:
1) Indoor monitor can proactively monitor outdoor anytime if outdoor camera’s
power adaptor is applied;
2) The indoor monitor can’t proactively monitor the outdoor if outdoor camera is
using battery instead of power adapter. The working cycle for battery is about half a
year.
(12) Wireless unlock control supports power on and power off unlock mode
(13) One outdoor camera supports up to 4 indoor monitors and one indoor monitor
can support up to 4 outdoor cameras
3. Packing list
(1) Outdoor camera, size: 126×93×31mm
(2) (A) 3.5’ indoor monitor, size: 141×87×20mm
