Page 1

EB1927WSL

LCD MONITOR

USER'S MANUAL

Page 2

Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference.

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

NOTICE:

equipment.

2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

responsibilities of the user to correct such interference.

WEEE Declaration (Optional)

Disposal of Waste Equipment by Users in Private Household in the European Union.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please

hased the product .

WARNING:

PRECAUTIONS

• Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.

• Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the

appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.

• The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

• The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct ou tlet, or ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

• Unplug the unit during a lightening storm or when it will not be used for long period of time. This will protect the monitor from damage due to power surges.

•

monitor.

• Do not attempt to service the monitor by yourself; opening or removing covers can expose you to dangerous voltages and other hazards.

•

100 - 240V AC, Min. 5A.

• The wall socket shall be installed near the equipment and shall be easily accessible.

WEEE Declaration for India (Optional)

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product .

Page 3

BEFORE YOU OPERATE THE MONITOR FEATURES

• 47.0cm(18.5") / 49.5cm(19.5") / 54.7cm(21.5")TFT Color LCD Monitor • Crisp, Clear Display for Windows

• Recommended Resolutions: 1366x768@60Hz(18.5")/1600×900@60Hz(19.5")/1920×1080@60Hz(21.5") • Ergonomic Design

• Space Saving, Compact Case Design

CHECKING THE CONTENTS OF THE PACKAGE

The product package should include the following items:

INSTALLATION INSTRUCTIONS

Install Remove

Figure 1 Installing and Removing the Base

POWER SOURCE

1. Make sure that the power cord is the correct type required in your area.

2. This LCD monitor allows operation in 100-240V AC voltage area(No user adjustment is required.).

3. Connect the AC-power cord into your LCD monitor’s AC-power-input. The AC-power cord may be connected to either a wall power outlet or the power outlet socket on your PC, depending on the type of power cord supplied with your LCD monitor.

CONTROLS AND CONNECTORS Connecting the D-Sub Cable: Connect one end of the 15-pin VGA cable to the back of the monitor and connect the other end to the

computer’s D-Sub port.

Connecting the Power Cord: Plug the AC-power cord one end to LCD monitor's AC input socket,the other end to Wall outlet.

1. AC input socket

D-Sub input socket

Figure 2 Connecting Cables

ADJUSTING THE VIEWING ANGLE

• For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference.

• Hold the stand so you do not topple the monitor when you change the monitor’s angle.

• You are able to adjust the monitor’s angle from -3° to 11°.

NOTES

• Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Figure 3 Angle

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitor and do not indicate a problem.

NOTES

•

Turn off the Power Switch and then turn it on again to make

•

• The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the

time.

• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.

•

1 2

-3 11

1. LCD Monitor 3. Power Cord 5.

6.2. User's Manual 4. 15-pin D-Sub Cable

Stand

Warranty Registration Card7.

Base

Page 4

OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS

Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences.

• The power cord should be connected.

• Connect the video cable from the monitor to the video card.

• Press the power button to turn on the monitor position. The power indicator will light up.

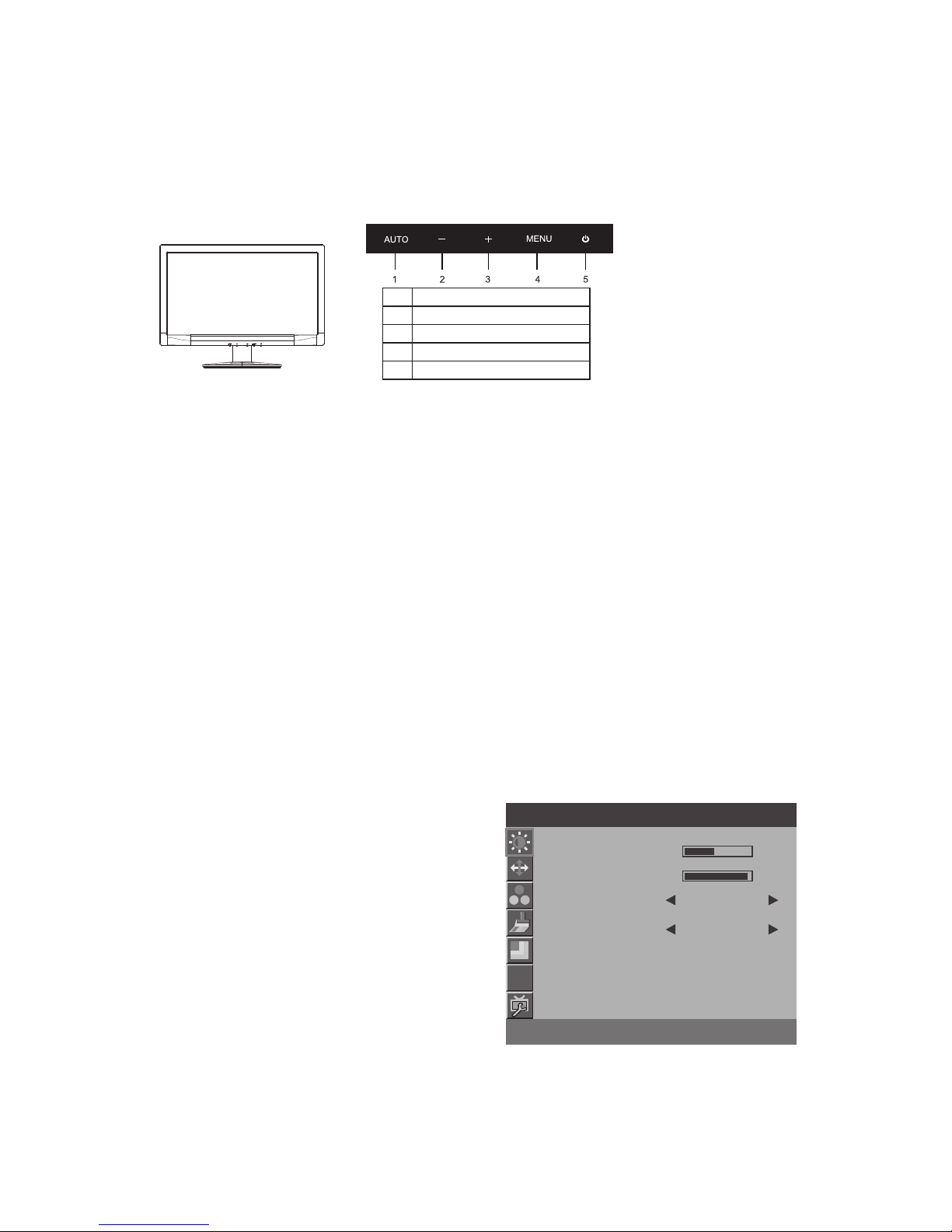

EXTERNAL CONTROLS

1. Auto/Exit

2. ECO/-

3. Full&4:3/+

nottuB rewoP .5

Figure 4 External Control Button

FRONT PANEL CONTROL

• Menu / Enter: Activate OSD menu when OSD is OFF or activate/de-activate adjustment function when OSD is ON.

• ECO / - : When OSD menu is in off status, press this key continuously to select the different ECO mode.( Eco mode hot key may not be

available in all models). When OSD menu is in active status, press this key as function select key.

• Full&4:3/+:

• When OSD menu is in off status, press this button to activate the Auto Adjustment function.

The Auto Adjustment function is used to set the HPos, VPos, Clock and Phase. When OSD menu is in active status, this button will act as EXIT-KEY (EXIT OSD menu).

•

Power Button: Press the button to turn on or turn off the monitor.

When OSD menu is in off status, press this key continuously to change 4:3 or wide image ratio( If the product screen size is 4:3 or input signal resolution is wide format, the hot key is disable to adjust.). When OSD menu is in active status, press this key as function select key.

• Power Indicator: Blue-Power On mode, Flickering Blue-Standby mode.

• OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press power button to turn the

monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off and then press power button to turn the monitor on.

NOTES

• Do not install the monitor in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.

• Save the original shipping carton and packing materials, as they will come in handy if you ever have to ship your monitor.

• For maximum protection, repackage your monitor as it was originally packed at the factory.

• To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with

a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.

• Do not scratch the screen with hard things, it may cause permanent damage.

• Don’t leak liquid into monitor which will result in the damage of component.

HOW TO ADJUST A SETTING

1. Press the MENU-button to activate the OSD window.

2. Press - or + to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. If the function selected has a sub-menu, press - or + again to navigate through the submenu functions. Once the desired function is highlighted, press MENUbutton to activate it.

3. Press - or + to change the settings of the selected function.

4. To exit and save, select the exit function. If you want to adjust any other function, repeat steps 2-3.

Figure 5 The OSD Message

O S D

Luminance

Contrast 0 50

0 90

Standard

Off

Brightness

Eco mode

DCR

Auto/Exit:

Menu/Enter

Page 5

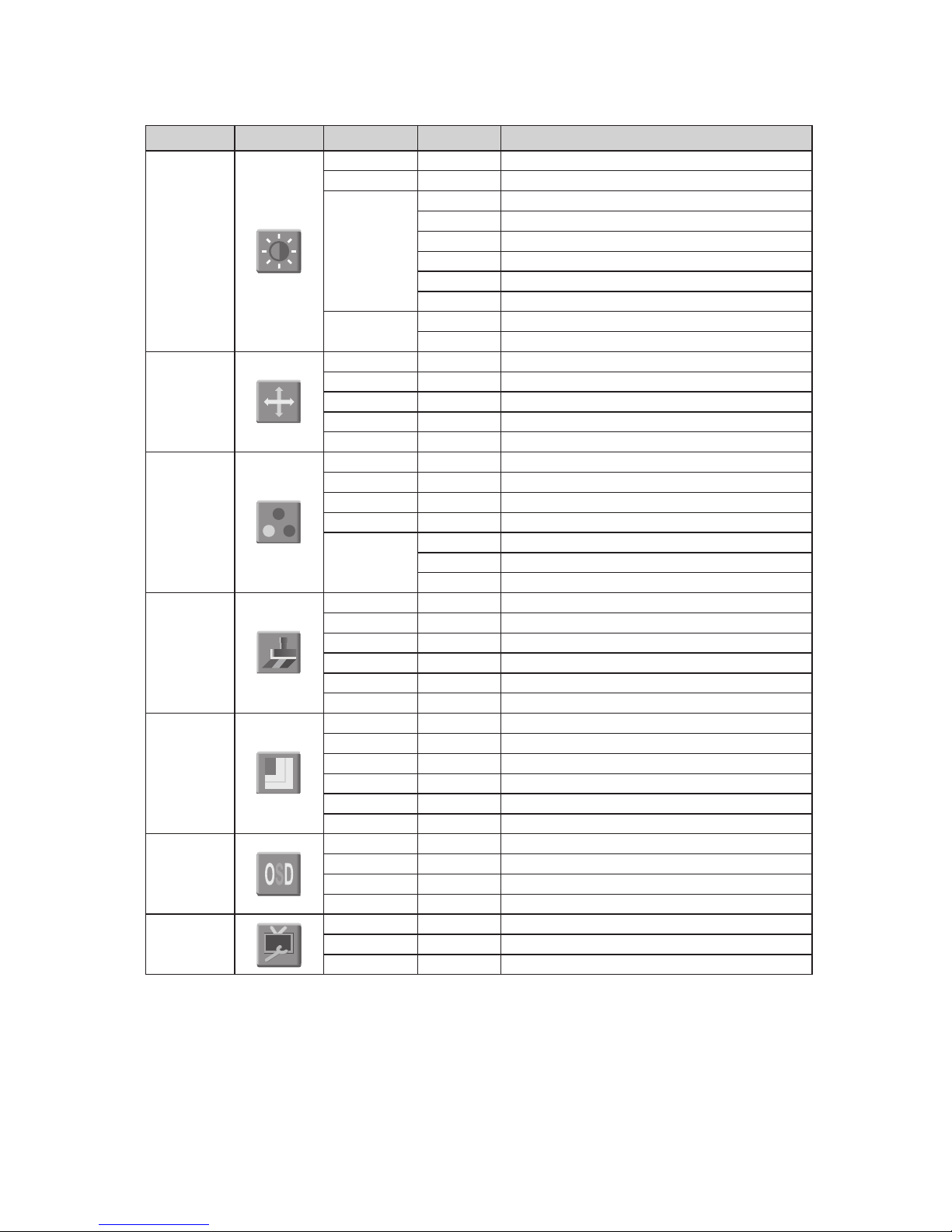

ADJUSTING THE PICTURE

The descriptions for function control

Main Menu Item Main Menu Icon Sub Menu Item Sub Menu Description

Luminance

Contrast Contrast from Digital-register

Brightness Backlight Adjustment

Eco Mode

Standard Standard Mode

Text Text Mode

Internet Internet Mode

Game Game Mode

Movie Movie Mode

Sports Sports Mode

DCR

Off Disable dynamic contrast ratio

On Enable dynamic contrast ratio

Image Setup

Clock Adjust picture Clock to reduce Vertical-Line noise

Phase Adjust Picture Phase to reduce Horizontal-Line noise

H. Position Adjust the Horizontal Position of the picture

V. Position Adjust the Vertical Position of the picture

Image Ratio Select Wide or 4:3 format for display

Color Temp

Warm Recall Warm Color Temperature from EEPROM

Normal Recall Normal Color Temperature from EEPROM

Cool Recall Cool Color Temperature from EEPROM

sRGB Recall SRGB Color Temperature from EEPROM

User

Red Red Gain from Digital-register

Green Green Gain from Digital-register

Blue Blue Gain from Digital-register

Color Boost

Full Enhance On or Off Enable or Disable Full Enhance Mode

Nature Skin Enable or Disable Nature Skin Mode

Green Field Enable or Disable Green Field Mode

Sky-blue Enable or Disable Sky-blue Mode

Auto Detect Enable or Disable AutoDetect Mode

Demo Enable or Disable Demo

Picture Boost

Frame Size Adjust Frame Size

Brightness Adjust Frame Brightness

Contrast Adjust Frame Contrast

H. Position Adjust the horizontal position of Frame

V. Position Adjust the vertical position of Frame

Bright Frame Enable or Disable Bright Frame

OSD Setup

H. Position Adjust the Horizontal Position of OSD

V. Position Adjust the Vertical Position of OSD

Timeout Adjust the OSD Timeout

Language Select the OSD Language

Extra

DDC/CI Enable or Disable DDC/CI Support

Reset Reset the menu to default

Information Show the Information of the main image and sub-image source

On or Off

Wide / 4:3

Page 6

PLUG AND PLAY PLUG & PLAY DDC2B FEATURE

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL THIS MONITOR TO OPERATE PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.

This monitor meets the Green monitor standards as set by the Video Electronics Standards Association (VESA) and The Swedish Confederation Employees (NUTEK). This feature is designed to conserve electrical energy by reducing power consumption when there is no video-input signal present. When there is no video input signal this monitor, following a time-out period, will automatically switch to an OFF mode. This reduces the monitor's internal power supply consumption. After the video input signal is restored, full power is restored and the display is automatically redrawn. The appearance is similar to a "Screen Saver" feature except the display is completely off. The display is restored by pressing a key on the keyboard, or clicking the mouse.

TECHNICAL SUPPORT (FAQ)

Problem & Question Possible Solution

Power LED is Not ON

Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.

No images on the screen

Is the power cord connected properly? Check the power cord connection and power supply. Is the cable connected correctly? (Connected using the D-sub cable) Check the DB-15 cable connection. (Connected using the DVI cable) Check the DVI cable connection. * DVI input is not available on every model. (Connected using the HDMI cable) Check the HDMI cable connection. * HDMI input is not available on every model. If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen. If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card. If the initial screen (the login screen) does not appear, contact the Service Center or your dealer. Can you see "Input Not Supported" on the screen? You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly. Adjust the maximum resolution and frequency that the monitor can handle properly.

Picture Is Fuzzy & Has Ghosting Shadowing Problem

Adjust the Contrast and Brightness Controls. Press to auto adjust. Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back .

Picture Bounces, Flickers Or Wave Pattern Appears In The Picture

Move electrical devices that may cause electrical interference as far away from the monitor as possible. Use the maximum refresh rate your monitor is capable of at the resolution your are using.

Monitor Is Stuck In Active Off-Mode"

The Computer Power Switch should be in the ON position. The Computer Video Card should be snugly fitted in its slot. Make sure the monitor's video cable is properly connected to the computer. Inspect the monitor's video cable and make sure no pin is bent. Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.

Missing one of the primary colors (RED, GREEN, or BLUE)

Inspect the monitor's video cable and make sure that no pin is damaged. Make sure the monitor's video cable is properly connected to the computer.

Screen image is not centered or sized properly

Adjust H-Position and V-Position or press hot-key (AUTO).

Picture has color defects (white does not look white)

Adjust RGB color or select desired color temperature.

Horizontal or vertical disturbances on the screen

Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and PHASE. Press to auto-adjust.

Page 7

APPENDIX SPECIFICATIONS

Preset Display Modes

Pin Assignments

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

1. Video-Red 6. GND-R 11. GND

2. Video-Green 7. GND-G 12. DDC-Serial data

3. Video-Blue 8. GND-B 13. H-sync

4. GND 9. +5V 14. V-sync

5. Detect Cable 10. GND 15. DDC-Serial clock

Standard

Resolution Horizontal Frequency(kHz) Vertical Frequency(Hz)

EB2027WSL EB2227WSL

640×480@60Hz 31.469 59.940

√

640×480@72Hz 37.861 72.809

√

VGA

640×480@75Hz 37.500 75.000

√

640×480@67Hz 35.000 66.667

√

IBM MODE DOS

720×400@70Hz 31.469 70.087

√

800×600@56Hz 35.156 56.250

√

800×600@60Hz 37.879 60.317

√

SVGA

800×600@72Hz 48.077 72.188

√

800×600@75Hz 46.875 75.000

√

MAC MODE SVGA 832×624@75Hz 49.725 74.551

√

1024×768@60Hz 48.363 60.004

√

XGA

1024×768@70Hz 56.476 70.069

√

1024×768@75Hz 60.023 75.029

√

WXGA 1280×720@60Hz

45.000 60.000

√

1280×1024@60Hz 63.981 60.020

√

SXGA

1280×1024@75Hz 79.976 75 .025

√

WXGA

1366×768@60Hz 47.712 59.790

√

WXGA+

1440×900@60Hz 55.935 59.887

√

WSXGA

1600×900@60Hz 60.000 60.000

√

WSXGA+

1680×1050@60Hz 65.290 59.954

√

FHD 1920×1080@60Hz 67.500 60.000

√

EB1927WSL EB2027WSL EB2227WSL

47.0cm (18.5") diagonal 49.5cm (19.5") diagonal 54.7cm (21.5") diagonal

0.300mm(Horizontal) x 0.300mm(Vertical)

0.27mm (Horizontal) × 0.27mm(Vertical

) 0.2482mm (Horizontal) × 0.2482mm(Vertical )

409.8mm(Horizontal) x 230.4mm(Vertical)

432.0mm (Horizontal) × 239.76mm (Vertical

) 476.64mm (Horizontal) × 268.11mm(Vertical )

Horizontal: 30 kHz~60 kHz, Vertical: 50 Hz~76 Hz

90MHz 140 MHz

165 MHz

1366×768@60Hz 1600×900@60Hz 1920×1080@60Hz

Active: 18W (Typical), Standby: < 0.5W Active: 25W (Typical), Standby: < 0.5W Active: 25W (Typical), Standby: < 0.5W

2.40Kg 2.55Kg

2.73kg

444mm (W) × 343mm (H) × 176mm (D) 479mm (W) × 358mm (H) × 176mm (D) 512mm (W) × 377mm (H) × 176mm (D)

Operating

Storage

Temperature: -25° C to 55° C, Humidity: 5% to 93% (non-condensing), Altitude: 0~12192m (0~40000ft )

100-240V~ , 50/60 Hz, 1.5 A

VESA DDC2B/CI

Menu/Enter ， ECO/- ， Full&4:3/+ ， Auto/Exit ， Power Button NO

Tilt: -3° ~ 11°, Pivot: No, Height adjust: No, Swivel: No

Front Control

Speaker

Wall Mounting Interface

Weight (monitor with stand)

Dimension (monitor with stand)

Function body

HDCP Function

Input Signal

Input Connector

Power Supply

Power Consumption

Plug & Play

Environment Cond ition

Model Name

Viewable Image Size

Pixel Pitch

Active Display Area

Frequency Range

Pixel Clock

Recommended Resolution

Display Colors

Temperature: 0° C to 40° C, Humidity: 10% to 85% (non-condensing), Altitude: 0~3658m (0~12000ft

)

Horizontal: 30 kHz~83 kHz, Vertical: 50 Hz~76 Hz

16.7M Colors

Analog 0.7Vp-p/75 OHM

D-Sub 15pin

EB1927WSL
