Thank y ou very much for choosing the AOC Color Monitor. We recommend that you take a few minutes to read carefully through this brief but

Note : The Au dio por t is not avail able till now. Top Victory doesn’t prov ide t his port befor e Submit t ed t o FCC.

Page 2

Plug & Play Driv e rs for the AOC Spe ctrum Se rie s Monitors are av ailable

Before operating the monitor please read this manual thoroughly. This manual

at AOC’s Web Site: www.aoc-europe.com

should be retained for future reference.

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE:

a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to

4. Consult the dealer or an experienced radio/TV technician for help.

1. The changes or modifications not expressly approved by the party

2. Shielded interface cables and AC power cord, if any, must be used in

3. The manufacturer is not responsible for any radio or TV interference

As an product meets the ENERGY STAR guidelines for energy efficiency.

This equipment has been tested and found to comply with the limits for

which the receiver is connected.

NOTIC E :

responsible for compliance could void the user's authority to operate the equipment.

order to comply with the emission limits. caused by unauthorized modification to this equipment. It is the

responsibilities of the user to correct such interference.

NERGY STAR



Partner AOC International has determined that this

WARNING :

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

Page 3

PRECAUTIONS

Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen

sink, laundry tub, swimming pool or in a wet basement. Do not place the monitor on an unstable cart, stand, or table. If the monitor

falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions. Slots and openings in the back and bottom of the cabinet are provided for

ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided. The monitor should be operated only from the type of power source

indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a

third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug. Unplug the unit during a lightning storm or when it will not be used for long

periods of time. This will protect the monitor from damage due to power surges. Do not overload power strips and extension cords. Overloading can result

in fire or electric shock. Never push any object into the slot on the monitor cabinet. It could short

circuit parts causing a fire or electric shock. Never spill liquids on the monitor. Do not attempt to service the monitor yourself; opening or removing covers

can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel. To ensure satisfactory operation, use the monitor only with UL listed

computers which have appropriate configured receptacles marked between 100 - 240V AC, Min. 1.5A.

Page 4

BEFORE YOU OPERATE THE MONIT OR

FEATURES

43.2cm(17”) Color Monitor

•

Crisp, Clear Display for Windows

•

Supports Resolutions up to 1280 ✕ 1024

•

Power Management

•

Ergonomic Design (MPR II Approved for 7Elr+/7ElrA+)

•

Space Saving, Compact Case Design

•

CHECKING THE CONTENTS OF THE MONITOR PACKAGE

The product package should include the following items:

1. Monitor

2. Owner's Manual

3. Power Cord ( Refer to the "Using the right power cord" statement )

4. Swivel Base

5. Audio Cable ( For 7ElrA/7ElrA+ only )

INSTALL ATIO N INSTR UCTIO NS

SW IVEL BASE

To attach the swivel base to the monitor, do the following:

Carefully turn the monitor on its side or upside down. ( see figure 1 )

•

Locate the cavities at the bottom front of the monitor.

•

Insert the pegs on the swivel base into these cavities. Push the swivel

•

base forward until the swivel base locks in place. To remove the swivel base, hold the bottom of the swivel base, then push

•

it out.

Figure 1 Installing and Removing the Swivel Base

Page 5

POW ER CORD

Power Source:

1. Make sure the power cord is the correct type that required in your area.

2. This monitor has a universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area ( No user adjustment is required. )

3. Connect the power cord into your monitor’s power input socket, and then plug the other end into a 3-pin AC power outlet. The power cord may be connected to either a wall power outlet or the power outlet socket on your PC, depending on the type of power cord supplied with your monitor.

CONTROLS AND CONNECTORS

VIDEO CABLE

Connecting the V ide o Cable :

the monitor comes with a built-in video cable. Plug the signal cable′s 15-pin connector into the computer's video port and tighten the two screws on the cable connector. (see figure 2)

Caution:Don’t bend the signal cable, otherwise it will break the inner wire.

Connecting the Power Cord:

Plug the power cord into the monitor's AC power jack. Then plug the power cord into a grounded AC outlet, ULapproved power strip, or the power output socket on your PC.

Caution: If the AC outlet is not grounded, install the proper grounding adapter (not supplied).

Connecting the Earphone Cable ( 7ElrA/7ElrA+ only ):

Plug earphone

cable into earphone output jack.

Connecting the Audio Cable (7ElrA/7ElrA+ only ):

Plug one end of the audio cable into the computer’s multi-media (or sound) card′s audio output and the other end into the monitor's audio input.

2 3

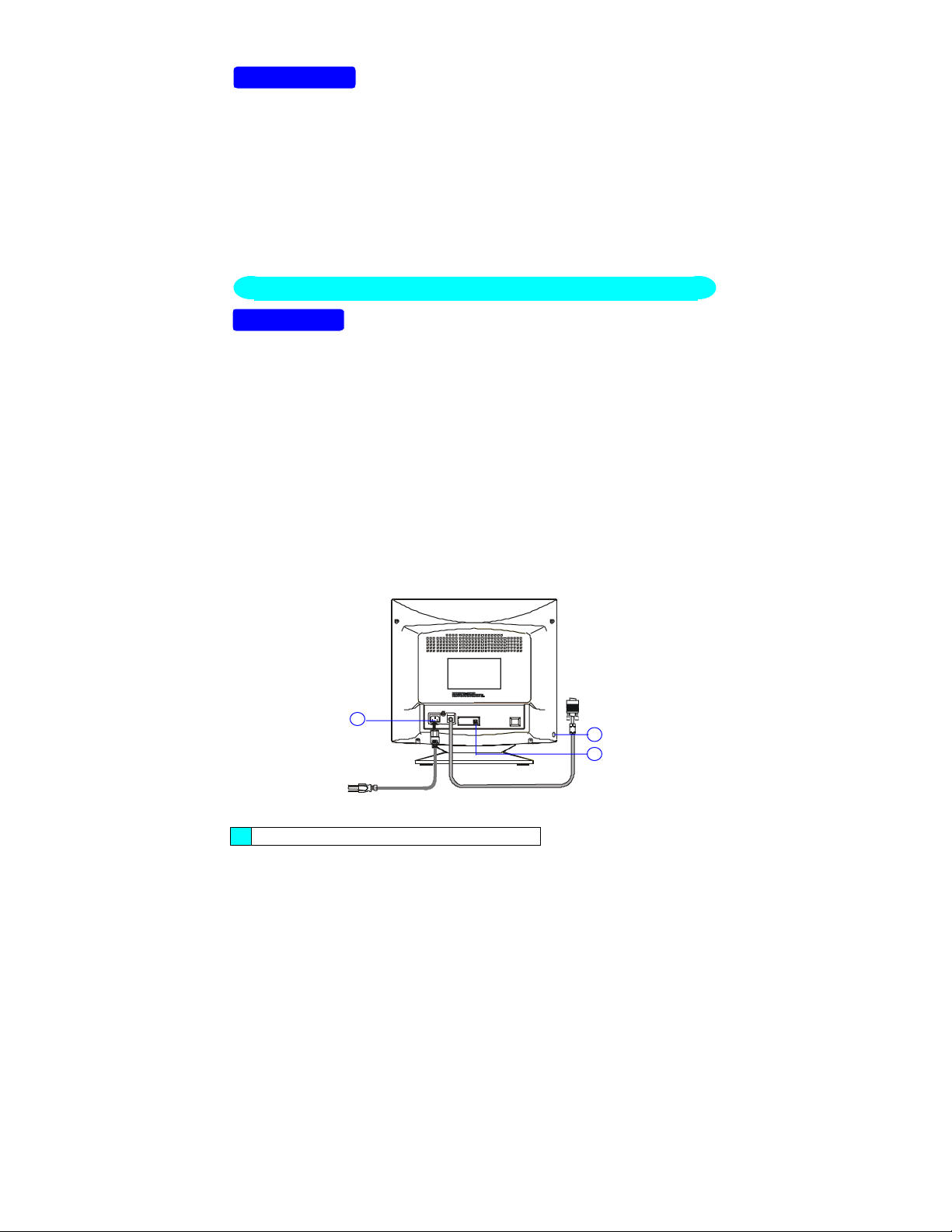

1. AC Inlet

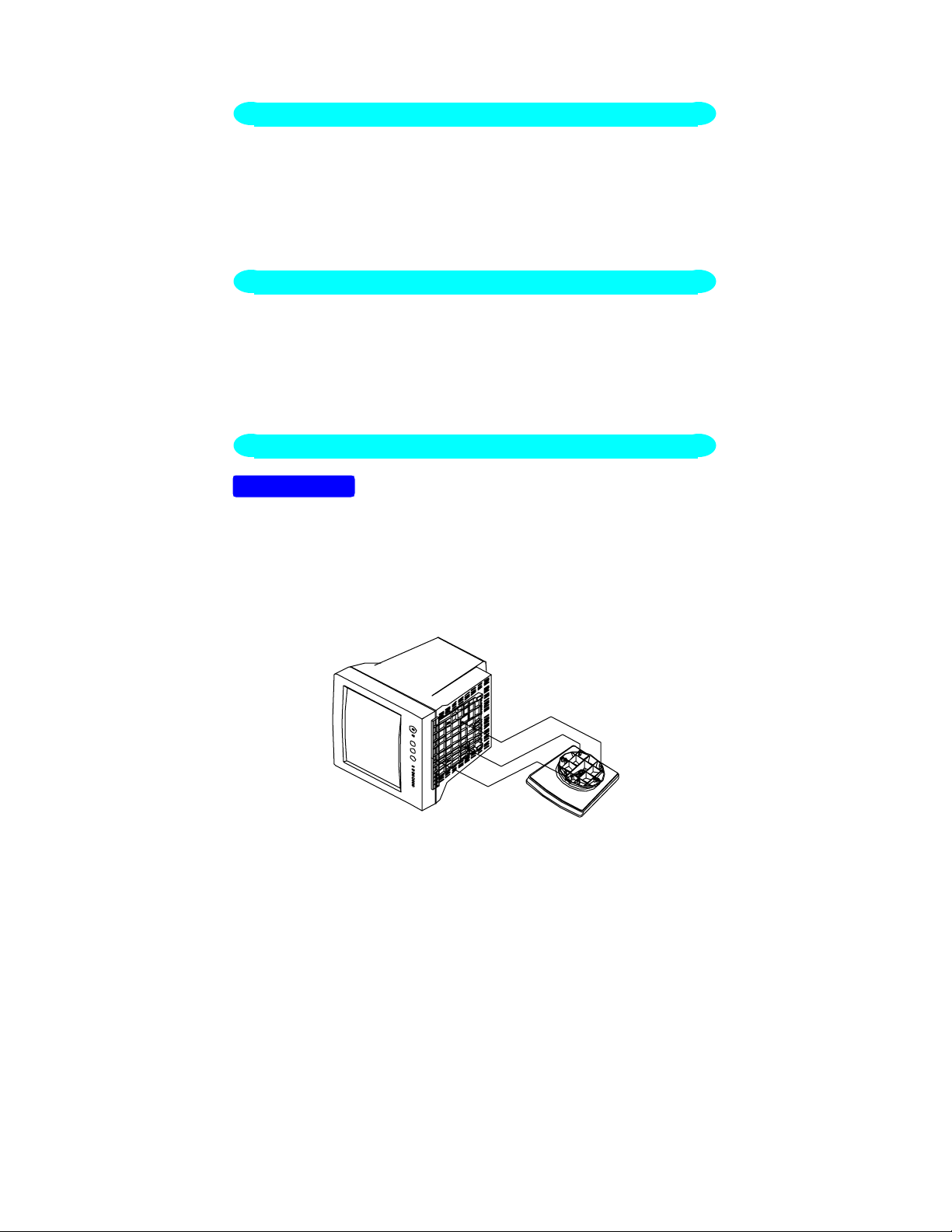

Figure 2 Connecting Cables

Page 6

2. Earphone (7ElrA/7ElrA+ only)

3. Audio In (7ElrA/7ElrA+ only)

Page 7

OPERATI NG INS TRUCTI ONS

GENERAL INSTRUCTIONS

The power switch is located at front panel of the monitor. Press the power switch to turn the monitor on or off. The other control knobs are located at the base of the monitor (See Figure 3). By changing these settings, the picture can be adjusted to your personal preferences.

The power cord should be connected.

•

Connect the video cable from the monitor to the video card.

•

To turn the monitor on, press the POWER switch to ON position. The

•

power indicator will light up. Your monitor features a unique quick switch system which provides a

•

picture within seconds after the monitor is switched on.

6 7 8

9 10 11

12 13

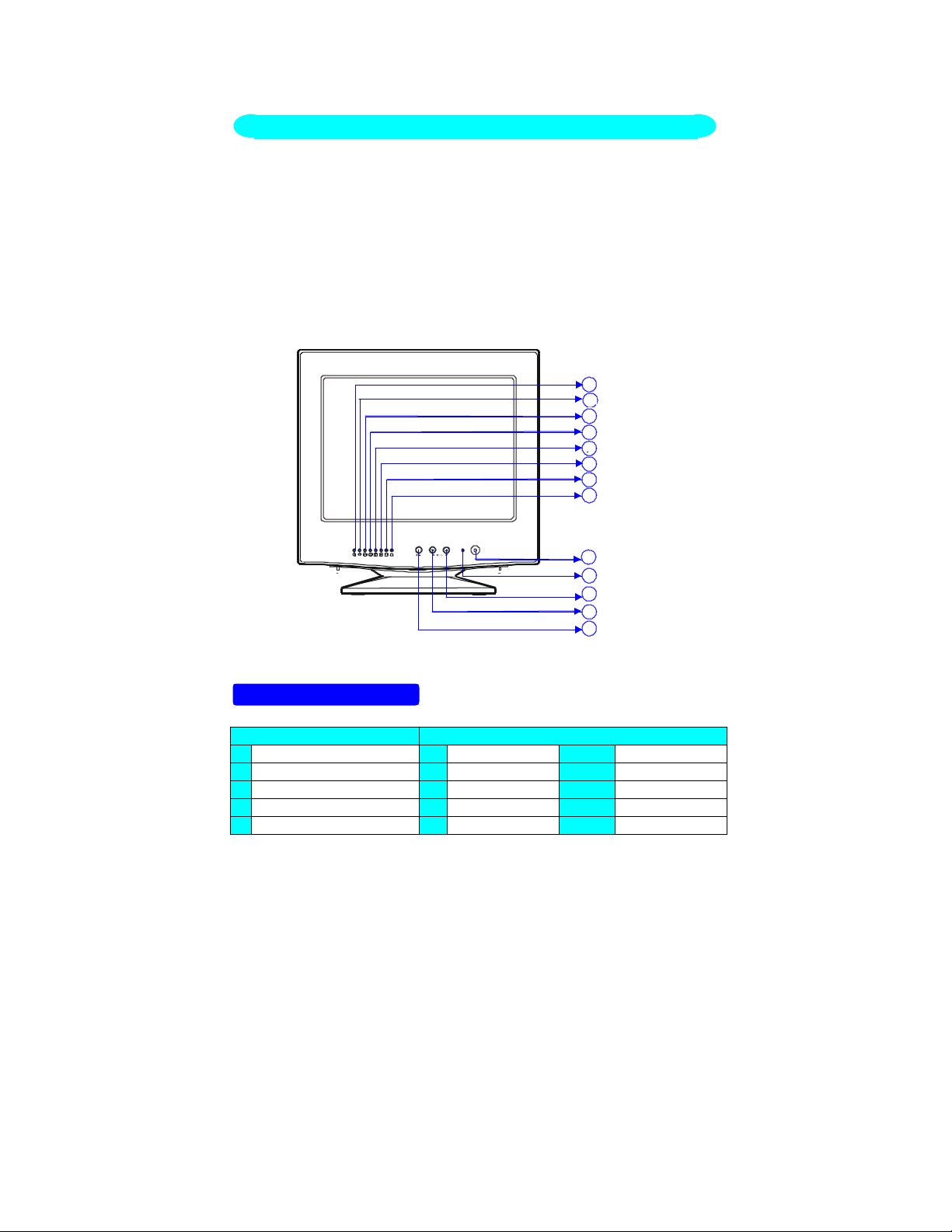

Figure 3 External Control Knob

EXTERNAL CONTROLS

Switch: Functions:

1. Power On/Off Switch 6. Contrast 11. V-Center

2. LED 7. Brightness 12. Pincushion

3. Up Key 8. H-Size 13. Trapezoid

4. Down Key 9. H-Center

5. Function Key 10. V-Size

Page 8

NOTES

Do not install the monitor in a location near heat sources such as radiators

•

or air ducts , or in a place subject to direct sunlight , or excessive dust or mechanical vibration or shock. Save the original shipping carton and packing materials, as they will come

•

in handy if you ever have to ship your monitor. For maximum protection, repackage your monitor as it was originally

•

packed at the factory. To keep the monitor looking new, periodically clean it with a soft cloth.

•

Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.

HOW TO ADJUST A SETTING

1. Press the knob, the green LED lights and the power is ON. Press this knob again, the green LED disappears and the power is OFF.

2. When press the “FUNC” key, the LED will flash to indicate the function has been selected.

3. When function has been selected, press

4. Press the Up or Down key to get the optimal volume for the multimedia model only. The most left LED will flash to indicate the adjustable levels have reached to the maximum or minimum.

5. If you press the Func. & Down keys simultaneously it functions as an audio mute, and press Up or Down key to release audio function for multimedia model only.

6. Press the “ FUNC” key until the LEDs of pincushion and trapezoid flash simultaneously, then press Up or Down key to adjust the picture tilt to horizontal position.

or to adjust picture image.

Page 9

ADJ USTING THE P ICT URE

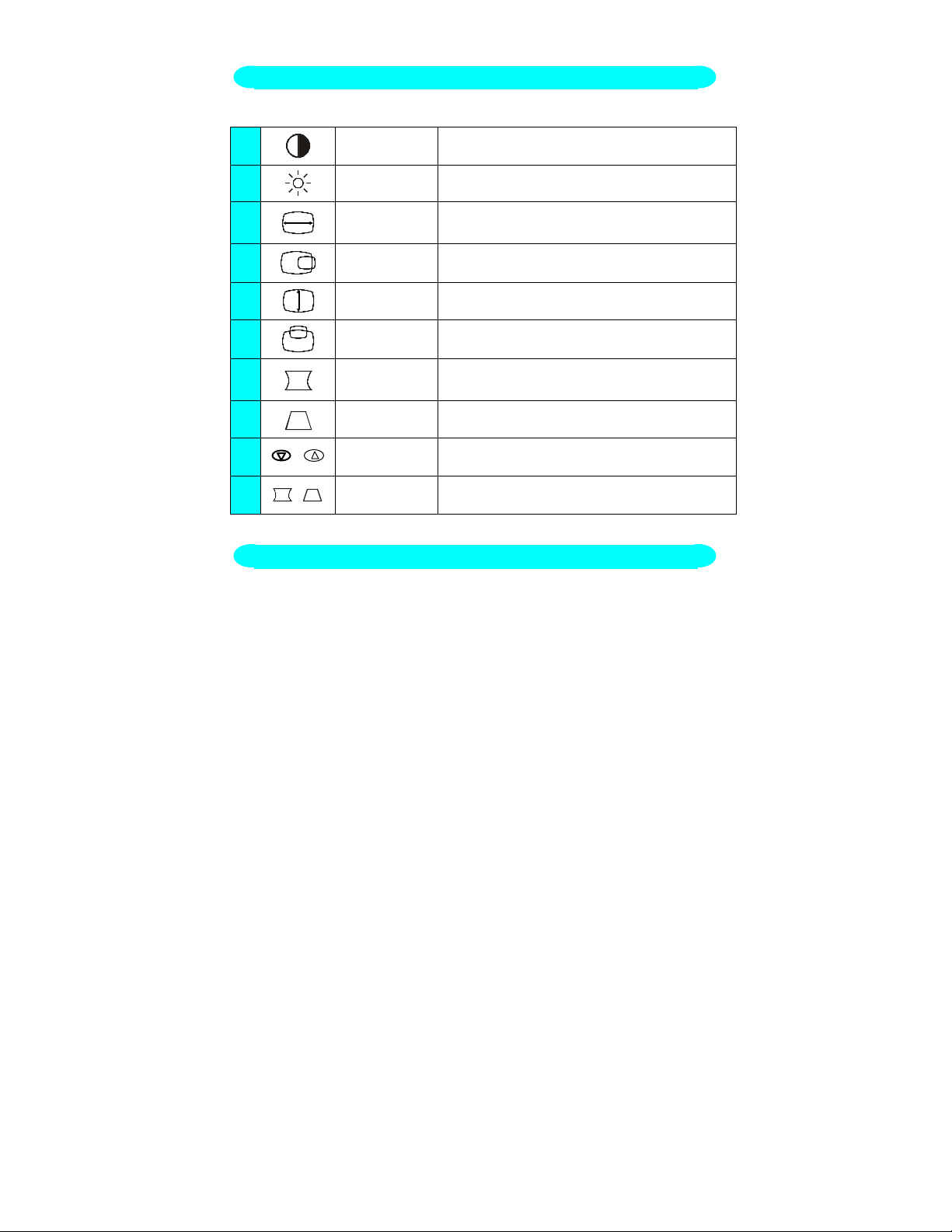

The description for funct ion control LEDS

1. CONTRAST Adjust the picture contrast.

2. BRIGHTNESS Adjust the picture brightness.

3. H-SIZE Adjust the picture’s horizontal size.

4. H-CENTER Adjust the horizontal position of the picture.

5. V-SIZE Adjust the picture’s vertical size.

6. V-CENTER Adjust the vertical position of the picture.

7. PINCUSHION Adjust the pincushion and barrel.

8. TRAPEZOID Adjust the picture’s trapezoid distortion.

10.

RECALL To recall original factory preset mode.

ROTATION Adjust the picture’s tilt to horizontal position.

POWER MANA GE ME NT FEATURE

The power management feature of this product complies with every power saving requirements of

automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS computer. There are three power management modes available, these are described below. The required settings, including the timer setting, should be made by the computer.

Stand-by Mode

••••

When the H-sync signal from the computer is off, the monitor enters into Stand-by Mode which reduces the power consumption to less than 15W. The screen becomes dark, and the power indicator turns to orange. From Stand-by Mode, the screen reappears instantaneously when the keyboard or the mouse is touched again.

NERGY STAR and VESA DPMS when activated, it

Page 10

Suspend Mode

••••

When the V-sync signal from the computer is off, the monitor enters into Suspend Mode which reduces the power consumption to less than 15W. The screen becomes dark, and the power indicator turns to orange. From Suspend Mode, the screen reappears instantaneously when the keyboard or the mouse is touched again.

Active-off Mode

••••

When both the H and V sync signals form the computer are off, the monitor enters into Active-off Mode which reduces the power consumption to less than 8W. The screen becomes dark, and the power indicator turns to orange. From Active-off Mode, the screen reappears instantaneously when the keyboard or the mouse is touched again.

The power-saving mode can be indicated by the light-emitting diode (LED)

•

on the front panel: Mode

On* Attached Yes Yes Active Green Stand-by Attached No Yes Blank Orange Suspend Attached Yes No Blank Orange Off Attached No No Blank Orange

Cable H-Sync V-Sync Video Indicator Consumption

Signal Power

120 W

≤

15 W

≤

15 W

≤

8 W

≤

FEATURES

Green monitor

The monitor has a power saving function that conforms to the VESA DPMS

•

standard. This feature will only work if your PC is a green PC. This feature is similar to a screen saver, except that your monitor will turn it off instead of activating the screen saver.

To activate this feature in Windows In Windows screen saver setting of the display properties.

1. Right click on the desktop and choose Properties.

2. Click on the tab that says Screen Saver. If your system supports Green

3. In the “Energy Saving Features of Monitor” sections are two boxes,

4. You can specify the amount of inactive time before your monitor enters

98, this feature can be activated and customized under the

PC, there will be a section entitled “Energy Saving Features of Monitor.” If there isn’t a section like that, then your PC does not support Green Monitor. The monitor will behave just like a normal monitor, so you will have to turn it off manually to save energy.

Standby and Shut off. To activate either one, click the box next to each one.

standby mode or shuts off.

98 :

Page 11

PLUG AND PLAY

Plug & Play DDC1/2B Feature

This monitor is equipped with VESA DDC1/2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The communication channel is defined in two levels, DDC1 and DDC2B. The DDC1 is a unidirectional data channel from the display to the host that continuously transmits EDID information. The DDC2B is a bidirectional data channel based on the I²C protocol. The host can request EDID information over the DDC2B channel.

THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO VIDEO INPUT SIGNAL. IN ORDER FOR THIS MONITOR TO OPERATE PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.

This monitor meets the Power Management standards as set by the Video Electronics Standards Association (VESA) and/or the United States Environmental Protection Agency (EPA) and The Swedish Confederation Employees ( NUTEK ). This feature is designed to conserve electrical energy by reducing power consumption when there is no video input signal present. When there is no video input signal this monitor, following a time-out period, will automatically switch to an OFF mode. T his reduces the monitor's internal power supply consumption. After the video input signal is restored, full power is restored and the display is automatically redrawn. The appearance is similar to a "Screen Saver" feature except the display is completely off. The display is restored by pressing a key on the keyboard, or clicking the mouse.

USING THE RIGHT POWER CORD :

The accessory power cord for the Northern American region is the wallet plug with NEMA 5-15 style and is UL listed and CSA labeled. The voltage rating for the power cord shall be 125 volts AC. Supplied with units intended for connection to power outlet of personal computer: Please use a cord set consisting of a minimum No. 18 AWG, type SJT or SVT three conductors flexible cord. One end terminates with a grounding type attachment plug, rated 10A, 250V, CEE-22 male configuration. The other end terminates with a molded-on type connector body, rated 10A,

250V, having standard CEE-22

female c o nfig ura tion.

Page 12

Page 13

TECHNI CAL SUPP ORT ( FAQ)

Problem & Question Possible Solution Power LED is not on *Check if the Power Switch is in the ON

position

*Power Cord should be connected

No Plug & Play *Check if the PC system is Plug & Play

compatible

*Check if the Video Card is Plug & Play

compatible

*Check if the D-15 plug pin of Video Cable

is bent

*Make sure the AOC Monitor Drivers are

installed (AOC Monitor Drivers are available at: www.aoc-europe.com)

No picture *Computer Power Switch should be in the

ON position

*Computer Video Card should be snugly

seated in its slot

*The Signal Cable should be completely

connected to the computer

*Check the color of the Power LED

indicator. If it is orange, then the monitor and the PC system are in power-saving mode. You need press your keyboard or move the mouse to reactivate the system.

Picture is fuzzy *Adjust the Contrast and Brightness

Controls. Picture bounces or a wave pattern is present in the picture Monitor is stuck in “Power Saving Mode”

Missing one of the primary colors (RED, GREEN, or BLUE)

*Move electrical devices that may cause

electrical interference.

*Make sure monitor’s video cable is

properly connected to the computer.

*Inspect monitor’s video cable and make

sure none of the pins are bent.

*Make sure computer is operational by

hitting the CAPS LOCK key on the

keyboard while observing the CAPS

LOCK LED. The LED should either turn

ON or OFF after hitting the CAPS LOCK

key.

*Inspect the monitor’s video cable and

make sure that none of the pins are bent.

Page 14

APPENDIX

SPECIFICATIONS

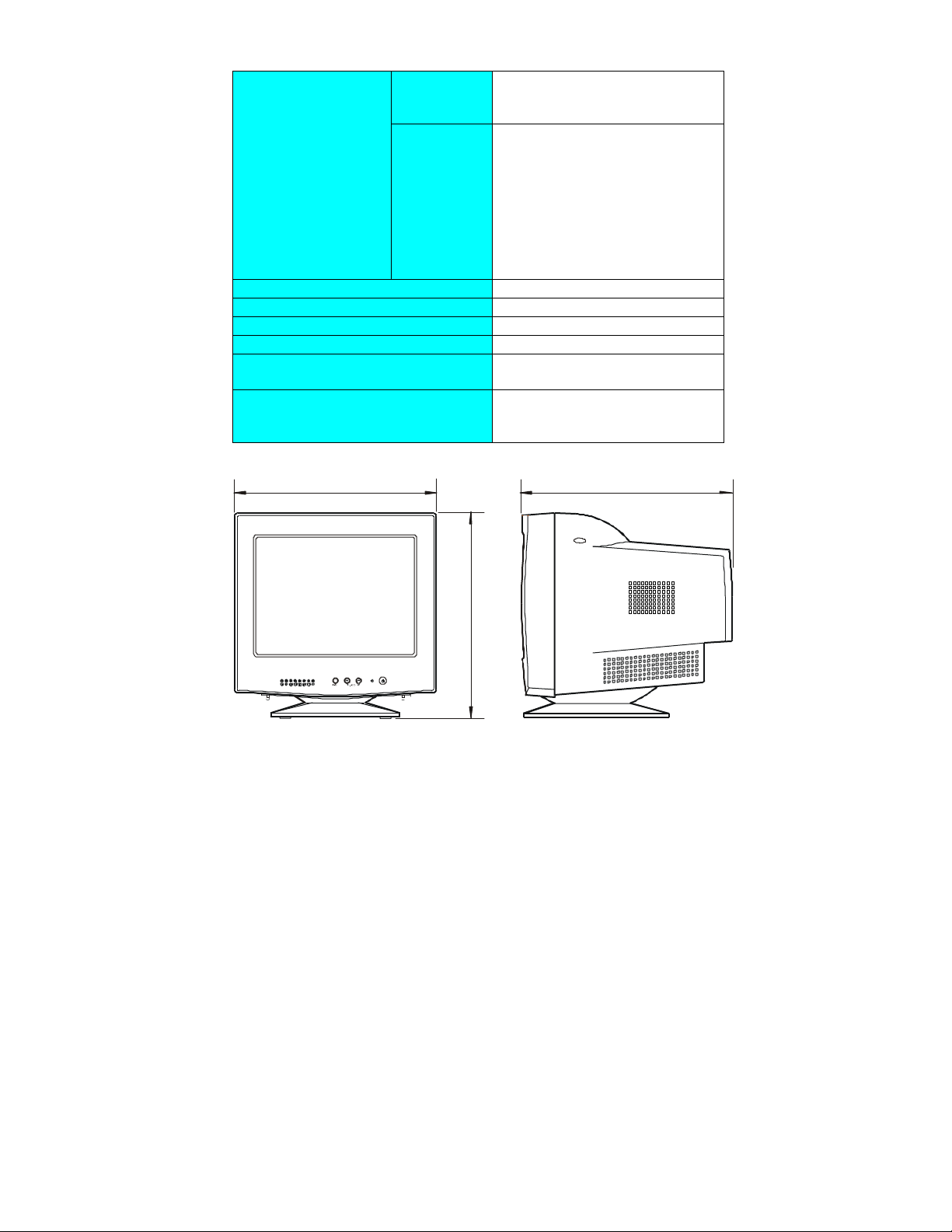

CRT Size 43.2cm(17"), 90º deflection, 27mm

neck,

CRT Viewable Image

Size Type 0.28mm dot pitch. Video 0.7Vpp, R,G,B Analog

Input Separate Sync. TTL Level

H./V.- Sync. Positive / Negative Scanning H-Frequency 30kHz - 69kHz Frequency V-Frequency 50Hz-160Hz Max. Resolution 1280 x 1024 Video Bandwidth 110MHz Factory Preset mode : 6

User Programmable mode : 10 Power Source Universal AC 100 - 240V,

Operating 0ºC to 40ºC ambient Humidity 10%to 85%relative, non-condensing Dimensions

7Elr/7Elr+: Monitor & Base 410(W) × 411(H) × 430(D)mm 7ElrA/7ElrA+: Monitor & Base 410(W) × 448(H) × 430(D)mm Weight

7Elr/7Elr+: Unit (net) 16.0kgs ( Net ) 7ElrA/7ElrA+: Unit (net) 16.8kgs ( Net ) Signal Cable: Attached Mini D-sub 15 Male

40.6cm (16"), diagonal

50Hz / 60Hz

7Elr/7Elr+

430

(in mm)

Page 15

Switch

External Controls: Functions

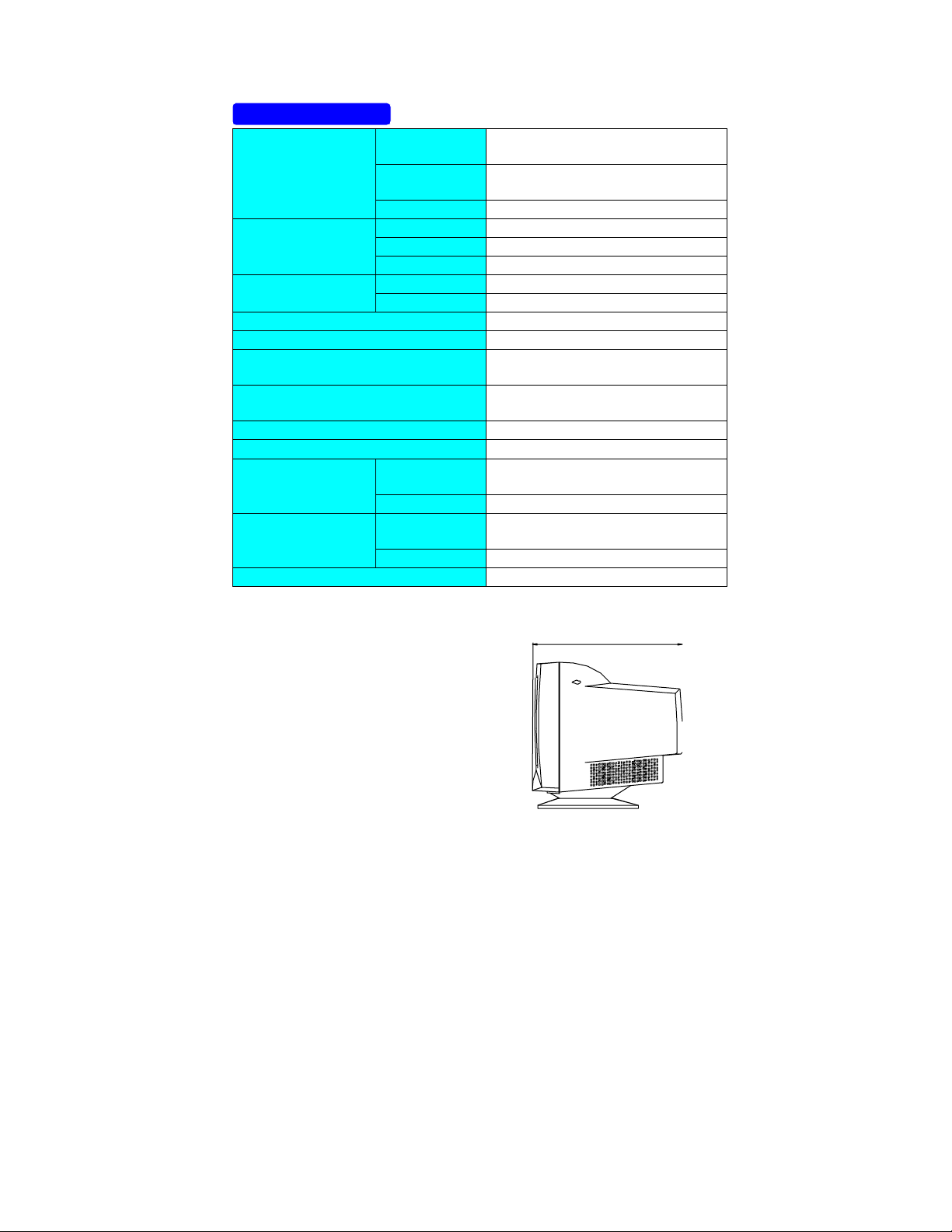

Plug & Play DDC1/2B Power Management EPA, VESA DPMS Power Consumption ( Maximum ) 120 Watts Pre-set Display Area 300mm x 230mm Audio Output (for 7ElrA /7ElrA+ only) Rated Power 1W rms

Regulatory Compliance UL, CSA, FDA, FCC, TÜV/GS, CE,

Power On/Off switch

•

Up/Down Key

•

Function Key

•

Contrast

•

Brightness

•

H-Size

•

H-Center

•

V-Size

•

V-Center

•

Pincushion

•

Trapezoid

•

Rotation (for 7ElrA/7ElrA+ only)

•

(Per channel)

MPR II TCO’99( for 7Elr+/7ElrA+ only )

360

385

364

(ln mm)

Page 16

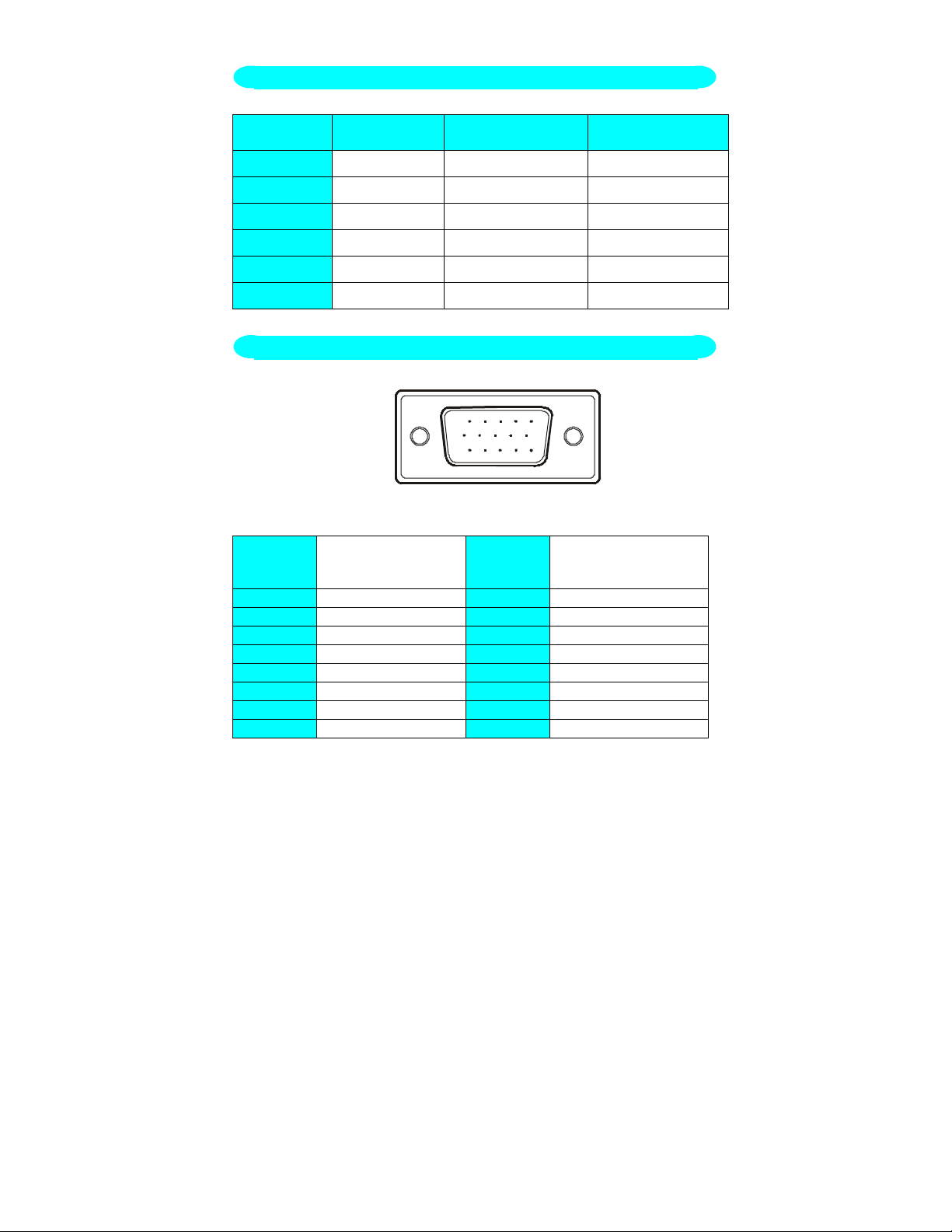

FACTORY PRESET TIMING TABLE

STANDARD

IBM

RESOLUTION

HORIZONTAL

FREQUENCY

720 x 400 31.5kHz 70Hz

VERTICAL

FREQUENCY

VGA 640 x 480 31.5kHz 60Hz VESA/85 640 x 480 43.2kHz 85Hz VESA/85 800 x 600 53.6kHz 85Hz VESA/85 1024 x 768 68.7kHz 85Hz VESA/60 1280 x 1024 64.0kHz 60Hz

CONNE CT OR PIN ASSIGNME NT

15 6

11 15

15 - Pin Color Display Signal Cable

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1. Red 9. NC

2. Green 10. Ground

3. Blue 11. Monitor Ground

4. Ground 12. DDC-Serial Data

5. Ground 13. H-Sync

6. R-Ground 14. V-Sync / *V-Clk

7. G-Ground 15. DDC-Serial Clock

8. B-Ground

✲

For DDC

Page 17

LI MI TED THRE E - YEAR W ARRANTY*

for

AOC Spectrum Color Monitors sold within Europe

AOC International (Europe) GmbH warrants this product to be free from defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) GmbH will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The defective products that are replaced become the property of AOC International (Europe) GmbH.

If the product appears to be defective, please contact your local dealer or refer to the warranty card when attached to the product.

Deliver the product freight pre-paid, along with the dated proof of purchase, to the AOC Authorized Service Center. If you cannot deliver the product in person:

Pack it in its original shipping container (or equivalent)

•

Put the RMA number on the address label

•

Put the RMA number on the shipping carton

•

Insure it (or assume the risk of loss/damage during shipment)

•

Pay all shipping charges

•

AOC International (Europe) GmbH is responsible neither for any damage or loss during inbound transport damage nor to inbound product that was not properly packaged. AOC International (Europe) GmbH will pay the return shipping charges within one of the countries specified within this warranty statement. AOC International (Europe) GmbH is not responsible for any costs associated with the transportation of product across international borders. This includes the international border within the European Union.

* This limited warranty does not cover any losses or damages that occur as a result of

Shipping or improper installation or maintenance

•

Misuse

•

Neglect

•

Any cause other than ordinary commercial or industrial application

•

Adjustment by non-authorized source

•

Repair, modification, or installation of options or parts by anyone

•

other than an AOC Authorized Service Center

Improper environment

•

Excessive or inadequate heating or air conditioning or electrical

•

powers failures, surges, or other irregularities

Page 18

This limited warranty does not cover any of the product firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) GMBH OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS ST ATED HERE. AOC INTERNATIONAL (EUROPE) GMBH LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER T HEORY, SHALL NOT EXCEED THE PRICE OF T HE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) GMBH BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT , OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.
