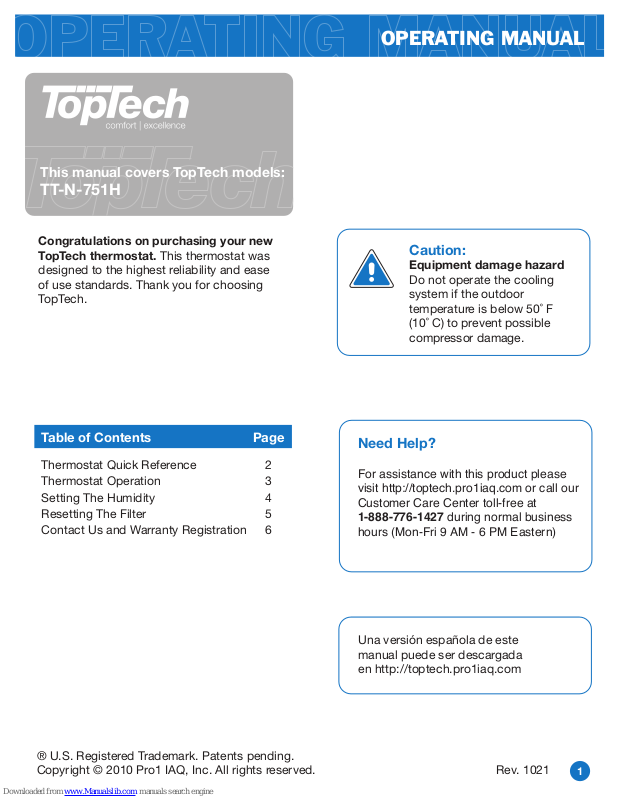

OPERATING MANUAL
This manual covers TopTech models:
TT-N-751H
Congratulations on purchasing your new
TopTech thermostat. This thermostat was
designed to the highest reliability and ease
of use standards. Thank you for choosing
TopTech.
Table of Contents Page
Thermostat Quick Reference
Thermostat Operation
Setting The Humidity
Resetting The Filter
Contact Us and Warranty Registration
2
3
4
5
6
Caution:
Equipment damage hazard
Do not operate the cooling
system if the outdoor
temperature is below 50˚ F
(10˚ C) to prevent possible
compressor damage.
Need Help?
For assistance with this product please
visit http://toptech.pro1iaq.com or call our
Customer Care Center toll-free at
1-888-776-1427 during normal business
hours (Mon-Fri 9 AM - 6 PM Eastern)
® U.S. Registered Trademark. Patents pending.
Copyright © 2010 Pro1 IAQ, Inc. All rights reserved.
Una versión española de este
manual puede ser descargada
en http://toptech.pro1iaq.com
Rev. 1021
1
Getting to know your thermostat

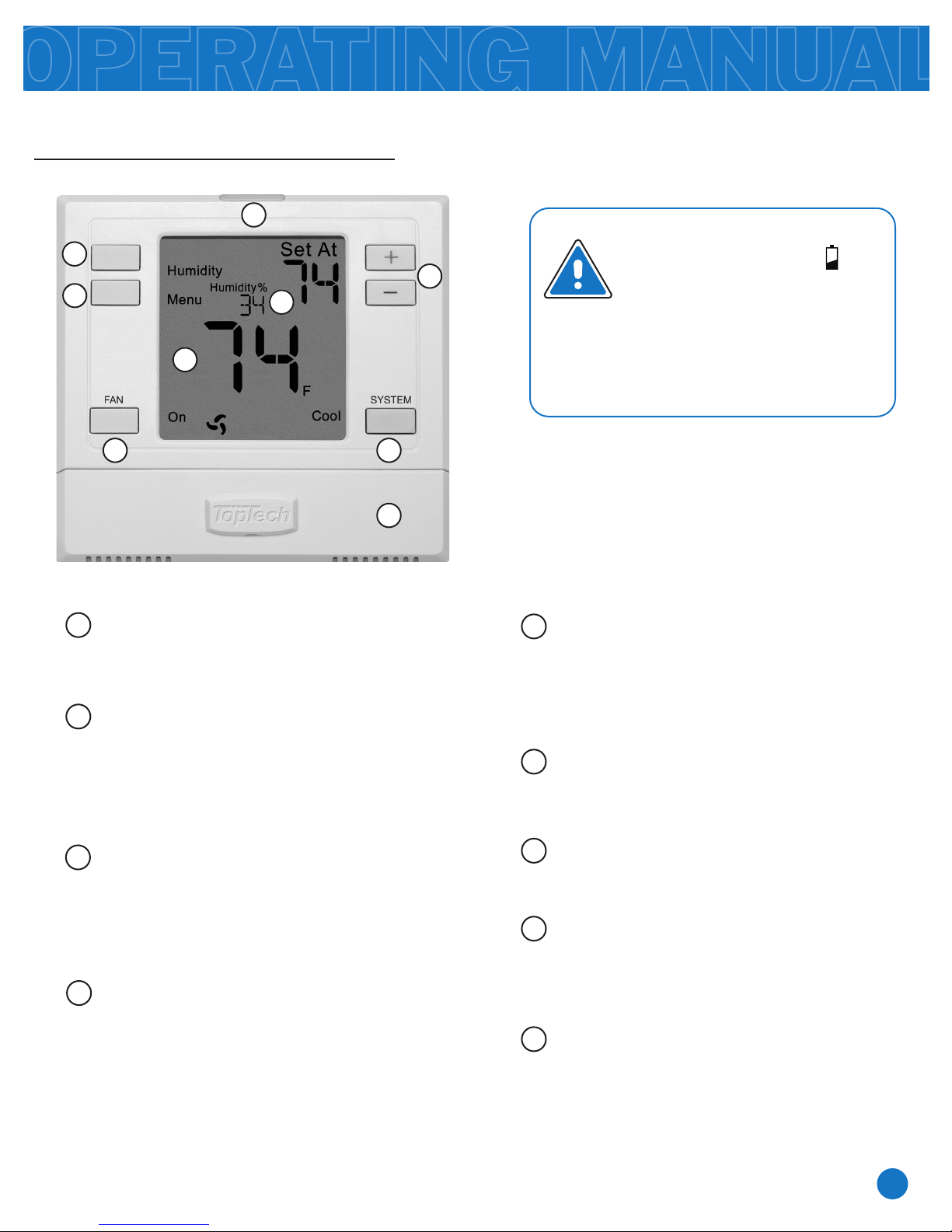

THERMOSTAT QUICK REFERENCE
2
6
5
9
1
3
4
LCD
1
Menu Options:
Shows different
options
Low Battery
Indicator:
Replace batteries
when this indicator
is shown.
Indicates the
current room
temperature.
Displays the current
ambient humidity level.
Displays the user
selectable setpoint
temperature.
+1 will appear in
the display when
second stage of
heat or cool is on.
+2 will appear for
third stage of heat.
System:
Select heat, off
or cool as needed.
8
7
The COOL, HEAT or FAN icon will display when the COOL,
HEAT or FAN is on. NOTE: The compressor delay feature is
active if these icons are flashing. The compressor will not
turn on until the 5 minute delay has elapsed.
2
Light Button (Glow in the Dark)
3
Fan Button
4
System Button
Important:
The low battery indicator is displayed
when the AA battery power is low. If the
5
Menu Buttons
6
Temperature Setpoint Buttons
user fails to replace the battery within
21 days, the thermostat display will only
show the low battery indicator as a final
Battery Door
7
Dealer Imprinting Badge
8
warning before the thermostat
becomes inoperable. The batteries are
located on the front of the thermostat.
Ambient Humidity
9
Battery information
Open the battery door on the
front of the thermostat and insert
2 AA Alkaline batteries (included).
2
Easy to use controls
THERMOSTAT OPERATION
2
8
5
1
3
LCD Display:
1
See page 2 for details about this display
read out and icons.
2
Glow in the Dark Light Button:
The glow in the dark light button will
self illuminate for several hours after
exposure to ambient light. This button
turns on the display light when pressed.
9
Caution:
6
4
7
5
Menu Buttons:
The menu buttons are only used by
installing technicians to customize
the thermostat for your heating and
cooling system.
6
Temperature Setpoint Buttons:
Press the
desired room temperature.
When the battery icon
appears replace your AA
batteries immediately. Failure
to do so may result in your
heating & cooling system
becoming inoperable.
+ or - buttons to select the
Fan Button:
3
Select ON or AUTO. The ON key will run
the fan continuously. The AUTO key will
cycle the fan on only when the heating or
cooling system is on.
System Button:
4
Selects the operation mode of your HVAC
system. Selecting HEAT turns on the heat
mode. Selecting COOL turns on the air
conditioning mode. Selecting OFF turns
both heating and cooling off. Selecting
AUTO will turn the HEAT or COOL on as
needed. (EM Heat will appear as an option if
operating a heat pump. EM Heat setting will
turn on Emergency Heat.)
7
Battery Door:
Access door to change the batteries.
8
Humidity Button:
Use this key to enter the target humidity
setpoint screen. Refer to the next page
for instructions.
9
Ambient Humidity:
Displays the current ambient humidity
percentage.
3

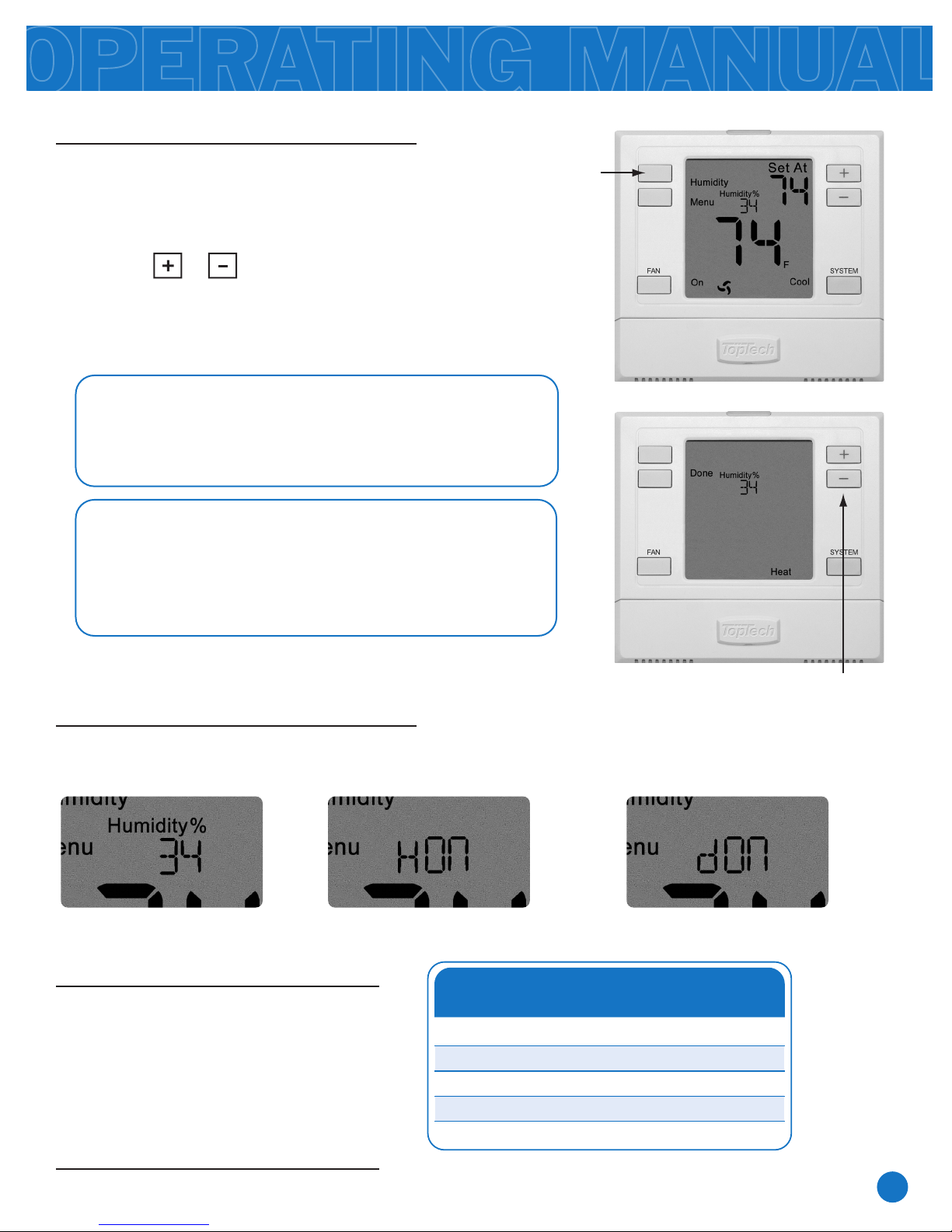

Setting Target Humidity Setpoint
SETTING THE HUMIDITY
Follow the steps below to change your
target humidity setpoint.
Press the HUMIDITY button.
Use the or button to select the
target humidity setpoint.
Press DONE when completed
Note:
The target humidity setpoint is not programmable.
Unlike temperature, humidity does not change quickly
and should not be programmed.
Note:
Humidification mode operable during heat mode only.
Dehumidification mode (A/C equipment or De-Humidifier)
operable during cooling modes only.
Heat and Cool each have their own target setpoints.
HUMIDITY
BUTTON
TARGET HUMIDITY
Ambient Humidity Display
Ambient humidity will flash opposite of the message HON if HEAT and FAN is energized at the same time.
Ambient humidity will flash opposite of the message dON if COOL and FAN is energized at the same time.
AMBIENT HUMIDITY HON (Humidify Energzied) dON (de-humidify Energzied)
SETPOINT BUTTONS
Recommended Heating Settings:
Increasing Humidity
The table on the right shows
recommended indoor humidity levels in
relation to outdoor temperatures during
heating (adding humidity).
Outside
Temperature (0°F)
+20º and above
+10º
0º
-10º
-20º
Recommended
Relative Humidity
35% to 40%
30%
25%
20%
15%
Recommended Cooling Settings:
Consult your professional HVAC technician for recommended settings for your climate.
4
Filter Change Reminder
If your installing contractor has configured the
thermostat to remind you when the air filter
needs to be changed, you will see FILT in the
display when your air filter needs to be
changed. FILT will be shown in the display
after your system has run long enough to
require an air filter change.

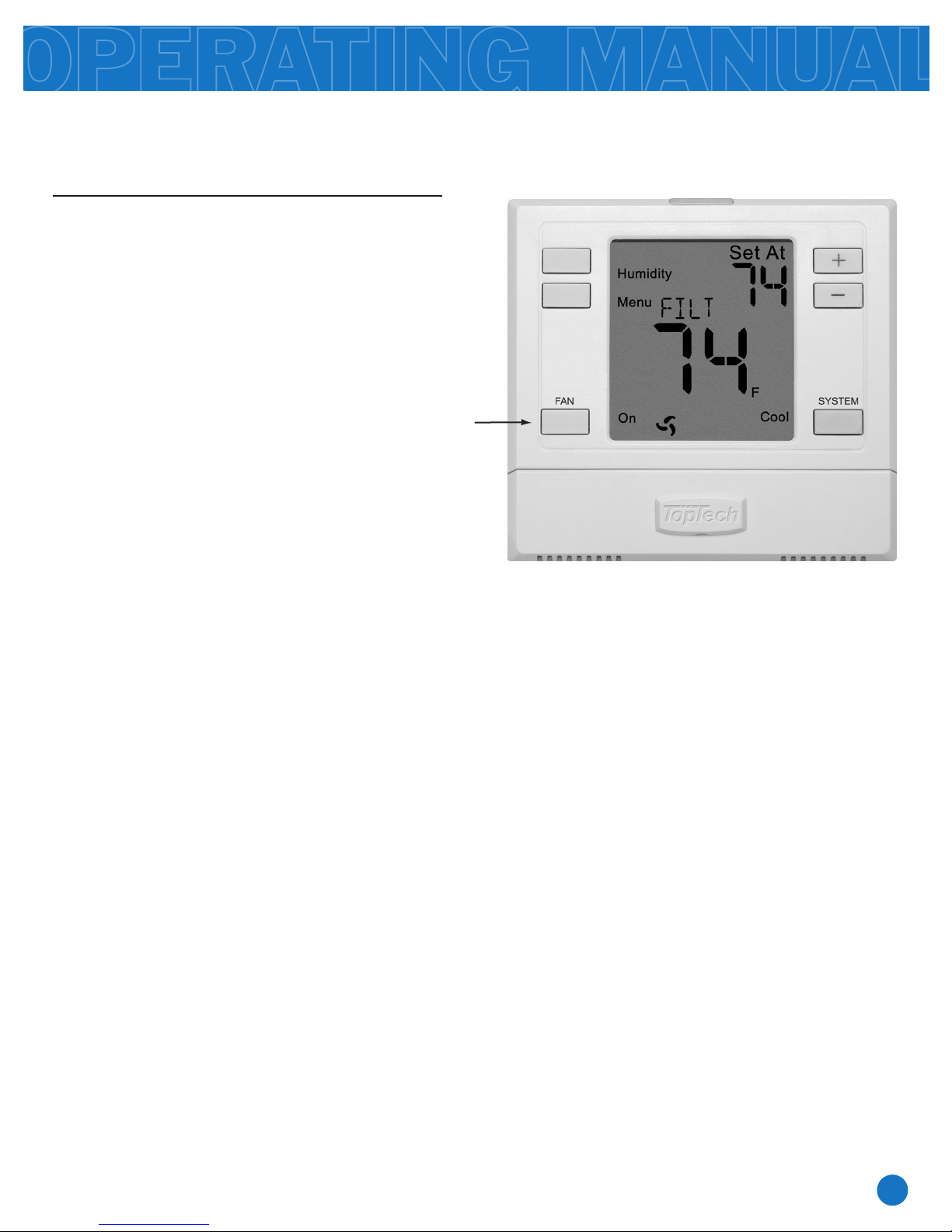

Resetting the filter change reminder:
When FILT reminder is displayed, you should
change your air filter and reset the reminder by
holding down the FAN button for 3 seconds.
RESETTING THE FILTER
5
CONTACT US AND WARRANTY INFORMATION
TopTech by Pro1
1111 S. Glenstone
Suite 2-100
Springeld, MO 65804
Toll-free: 1-888-776-1427
Toll Number (Outside the USA): 330-821-3600
Web: http://toptech.pro1iaq.com
Hours of Operation: Monday - Friday 9 AM - 6 PM Eastern
Complete form and mail to:
TopTech by Pro1
1111 S. Glenstone
Suite 2-100
Springeld, MO 65804
Contact Us Information
Warranty Registration:
Your new TopTech thermostat has a 5 year limited warranty. You must register your warranty
within 60 days of installation. You can register your new thermostat in 2 ways.
1
Go to toptech.pro1iaq.com, select warranty registration and fill out a short registration form.
- or -
2
Complete the form below and mail it to the address shown.
TopTech Warranty Registration:
Name: ____________________________
Thermostat Model: _____________________
Address: ____________________________
____________________________
City: ____________________________
State: ____________________________
Zip: _____________________
Date Installed: _____________________
TT-N-751H
6
