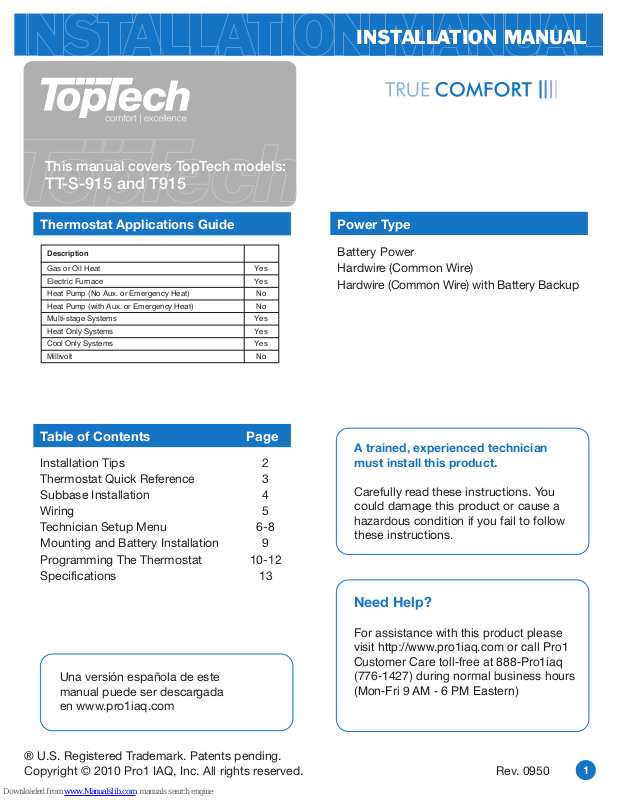

Toptech TT-S-915, T915 Installation Manual

INSTALLATION MANUAL

This manual covers TopTech models:

TT-S-915 and T915

Thermostat Applications Guide

noitpircseD

Gas or Oil Heat

Electric Furnace

Heat Pump (No Aux. or Emergency Heat)

Heat Pump (with Aux. or Emergency Heat)

Multi-stage Systems

Heat Only Systems

Cool Only Systems

Millivolt

Table of Contents

Installation Tips
Thermostat Quick Reference
Subbase Installation
Wiring
Technician Setup Menu

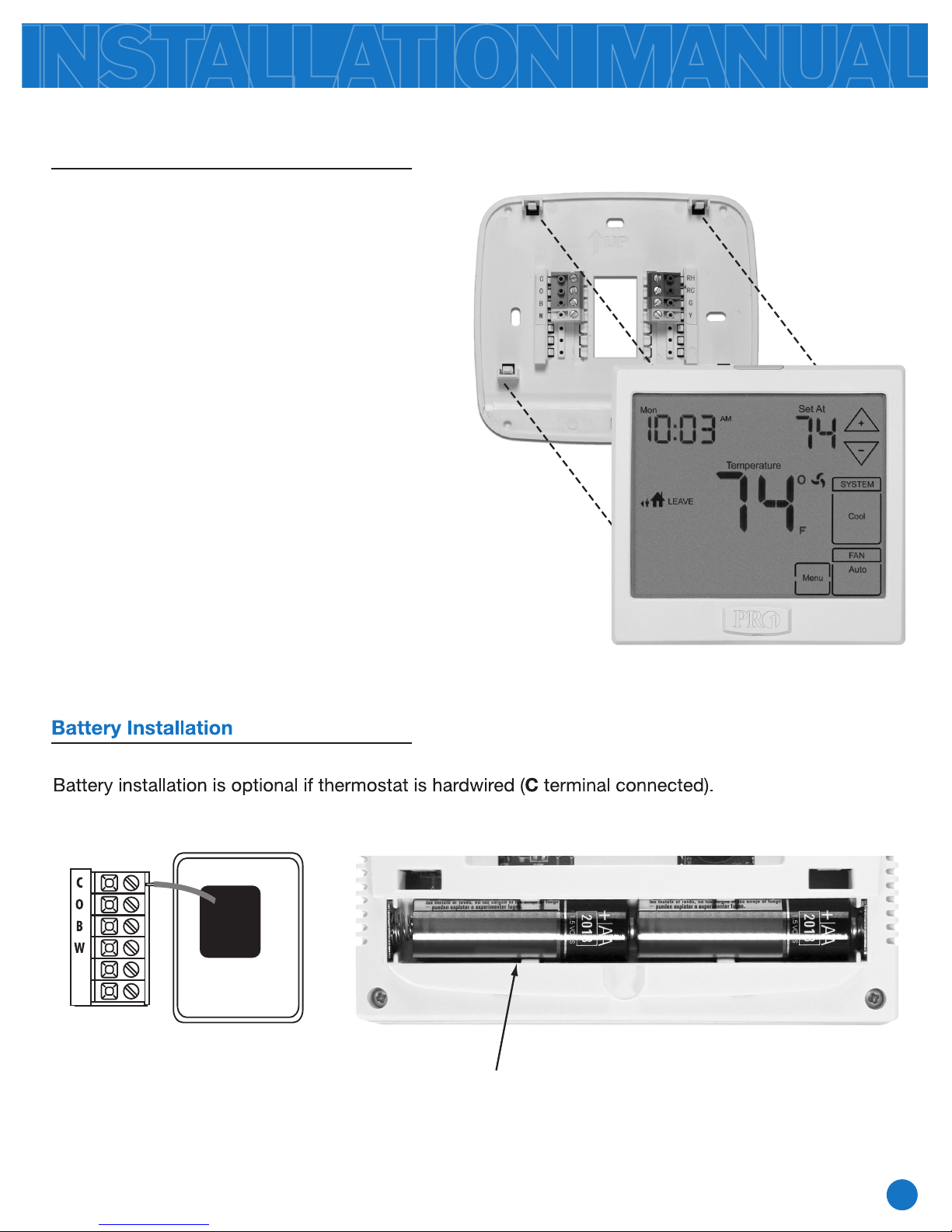

Mounting and Battery Installation

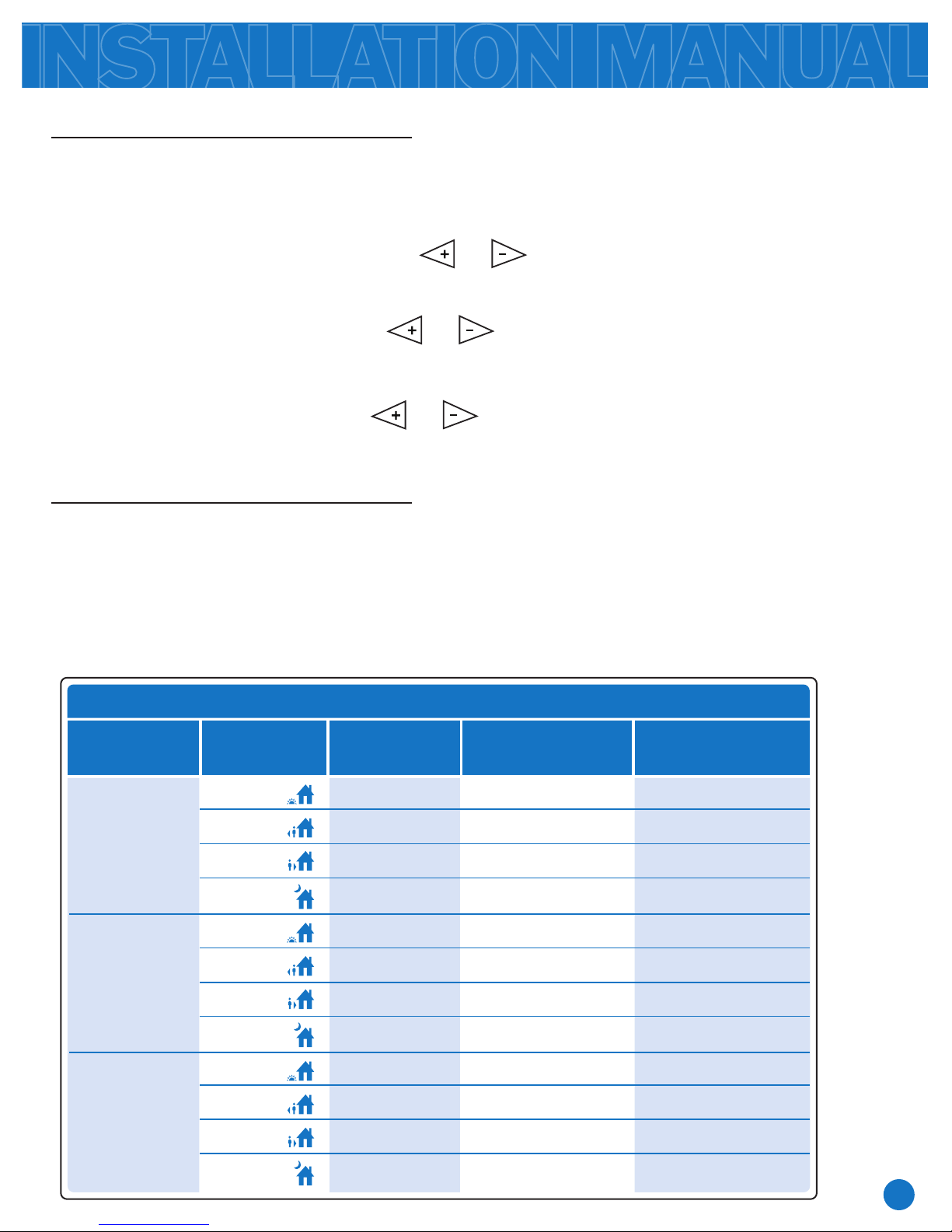

Programming The Thermostat
Specifications

Yes

Yes

No

No

Yes

Yes

Yes

No

Page

2
3
4
5

6-8

9

10-12

13

Power Type

Battery Power
Hardwire (Common Wire)
Hardwire (Common Wire) with Battery Backup

A trained, experienced technician
must install this product.

Carefully read these instructions. You
could damage this product or cause a
hazardous condition if you fail to follow
these instructions.

Una versión española de este
manual puede ser descargada
en www.pro1iaq.com

® U.S. Registered Trademark. Patents pending.
Copyright © 2010 Pro1 IAQ, Inc. All rights reserved.

Need Help?

For assistance with this product please
visit http://www.pro1iaq.com or call Pro1
Customer Care toll-free at 888-Pro1iaq
(776-1427) during normal business hours
(Mon-Fri 9 AM - 6 PM Eastern)

Rev. 0950

1

Wall locations

The thermostat should be installed approximately 4 to 5 feet above the floor.
Select an area with average temperature and good air circulation.

INSTALLATION TIPS

NO NO YES

NO

Do not install thermostat in locations:

• Close to hot or cold air ducts

• That are in direct sunlight

• With an outside wall behind the thermostat

• In areas that do not require conditioning

• Where there are dead spots or drafts (in corners or behind doors)

• Where there might be concealed chimneys or pipes

• Where appliances could radiate heat

PRO1 Tip

Pick an installation location that is easy for the user to access. The temperature of the location
should be representative of the building.

2

Getting to know your thermostat

1

Glow in the Dark

2

Light Button

Fan Button

3

System Button

4

Temperature

5

Setpoint Buttons

6

Menu Button

2

Important:

The low battery indicator is displayed
when the AA battery power is low. If the

5

user fails to replace the battery within
21 days, the thermostat display will only
show the low battery indicator as a final

4

warning before the thermostat
becomes inoperable. The batteries are
located on the back of the thermostat.

6

3

Low Battery Indicator:

Replace batteries when
this indicator is shown.

Programmable Time
Period Icons:

This thermostat has
4 programmable
time periods per day.

Clean Display:
Pressing CLEAN DISPLAY
will allow 30 seconds to
clean the display. The keys
will be inoperable during
this time. CLEAN will
appear if your contractor
has programmed a filter
change reminder. Press
CLEAN when filter has
been replaced to reset the
filter change reminder timer.

LCD

1

Days of the
week and time

Program Menu Options

Shows different options
during programming.

Indicates the current
room temperature.

Displays the user
selectable setpoint
temperature.

HOLD is displayed when
thermostat program is
permanently overridden.

COOL HEAT FAN

System operation
indicators: The COOL,
HEAT or FAN icon will
display when the COOL,
HEAT or FAN is on.
EM.HEAT is only used if

heat pump is inoperable.

NOTE: The compressor
delay feature is active if
these icons are flashing. The
compressor will not turn on
until the 5 minute delay has
elapsed.

+1 will appear in the

display when second stage
of heat or cool is on.

3

SUBBASE INSTALLATION

Caution:
Electrical Hazard

Failure to disconnect the
power before beginning to
install this product can cause
electrical shock or equipment
damage.

For vertical mount put
one screw top and one
screw bottom.

For horizontal mount put
one screw left and one
screw right.

Mercury Notice:

All of Pro1’s products are
mercury free. However, if the
product you are replacing
contains mercury, dispose of it
properly. Your local waste
management authority can give
you instructions on recycling
and proper disposal.

Vertical mount

Horizontal mount

W1

W2

UP

C

O

B

R

Horizontal mount

G

Y1

Y2

Vertical mount

4

WIRING

Caution: Electrical Hazard

Failure to disconnect the power
before beginning to install this
product can cause electrical
shock or equipment damage.

Wiring

1.

If you are replacing a thermostat, make
note of the terminal connections on the
thermostat that is being replaced. In some
cases the wiring connections will not be
color coded. For example, the green wire
may not be connected to the G terminal.

2.

Loosen the terminal block screws. Insert
wires then retighten terminal block screws.

3.

Place nonflammable insulation into wall
opening to prevent drafts.

Warning:

All components of the control
system and the thermostat
installation must conform to
Class II circuits per the NEC Code.

Terminal Designations

Heat relay, Stage 1

W1

Heat relay, Stage 2

W2

Compressor relay, Stage 1

Y1

Compressor relay, Stage 2

Y2

Fan relay

G

Heat pump changeover valve

O

energized in cooling

PRO1 Tips:

C terminal

The C (common wire) terminal does
not have to be connected when the
thermostat is powered by batteries.

R

Transformer power for heating

B

Heat pump changeover valve
energized in heating

C

Common wire from system transformer

Wire specifications

Use shielded or non-shielded
18 - 22 gauge thermostat wire.

5

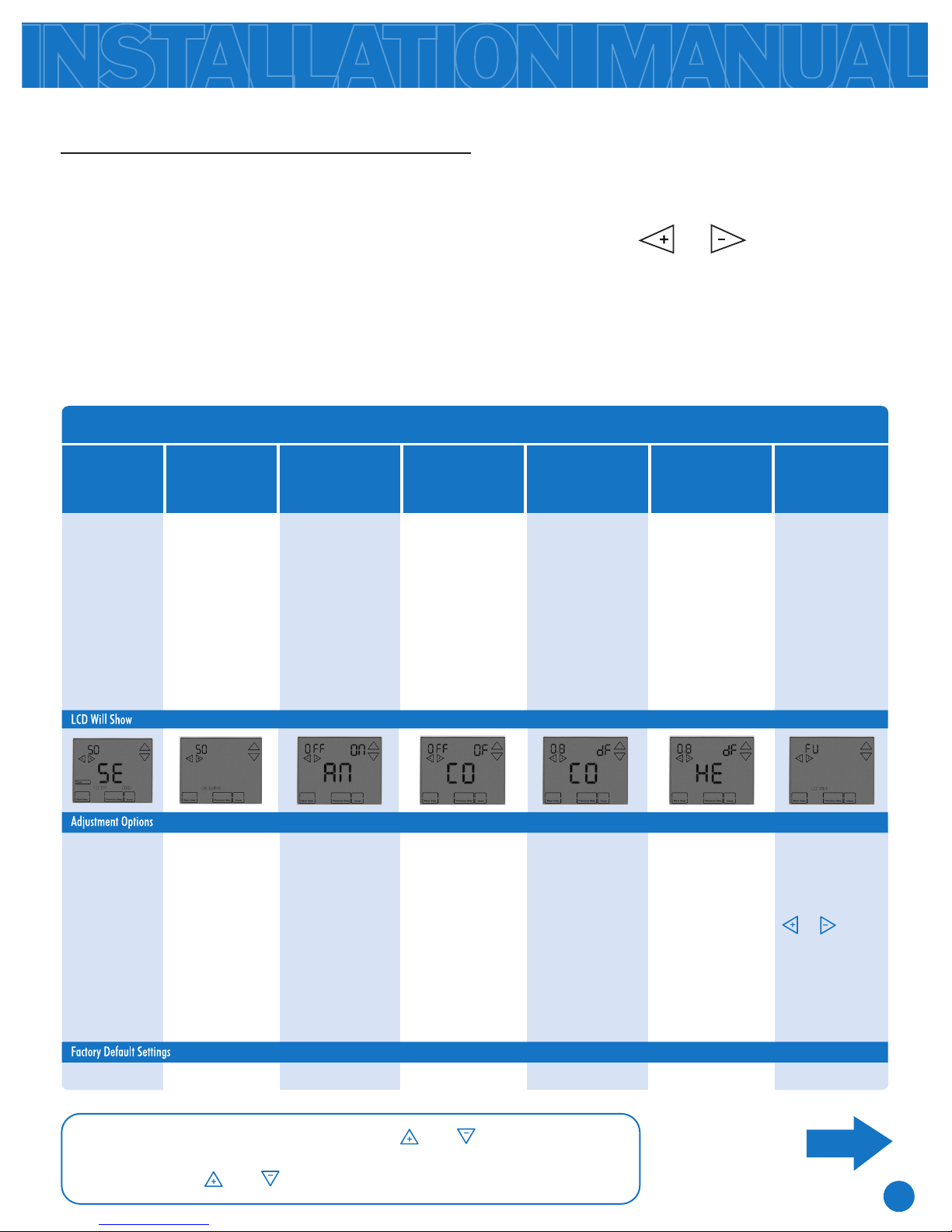

Technician Setup Menu

This thermostat has a technician set up menu
for easy installer configuration. To set up the
thermostat for your particular application:

Press MENU button

1.

Press and hold TECHNICIAN SETUP

2.

button for 3 seconds. This 3 second delay
is designed so that homeowners do not
accidentally access the installer settings.

Tech Setup Steps

TECHNICIAN SETUP MENU

3.

Configure the installer options as
desired using the table below.

Use the or keys to change
settings and the NEXT STEP or
PREVIOUS STEP key to move from
one option to another. Note: Only
press DONE key when you want to
exit the Technician Setup options.

Filter

Change

Reminder

This feature will
flash FILT in the
display after the
elapsed run time
to remind the
user to change the
filter. A setting of
OFF will disable
this feature.

You can adjust
the filter change
reminder from
OFF to 2000
hours of runtime
in 50 hour
increments.

Room

Temperature

Calibration

This feature allows
the installer to
change the
calibration of the
room temperature
display. For
example, if the
thermostat reads 70°
and you would like it
to read 72° then
select +2.

You can adjust the
room temperature
display to ready -4°F
to +4°F above or
below the factory
calibrated reading.

Minimum

Compressor

On Time

This feature allows the
installer to select the
minimum run time for
the compressor.
For example, a setting
of 4 will force the
compressor to run for
at least 4 minutes
every time the
compressor turns on,
regardless of the room
temperature.

You can select the
minimum compressor
run time from “off”,
“3”, “4”, or “5”
minutes. If 3, 4, or 5
is selected, the
compressor will run
for at least the
selected time before
turning off.

Compressor

Short Cycle

Delay

The compressor short
cycle delay protects
the compressor from
“short cycling”. This
feature will not allow
the compressor to be
turned on for 5
minutes after it was
last turned off.

Selecting ON will not
allow the compressor
to be turned on for 5
minutes after the last
time the compressor
was on. Select OFF
to remove this delay.

Cooling

Swing

The swing setting,
often called “cycle
rate”, “differential”
or “anticipation” is
adjustable. A smaller
swing setting will
cause more frequent
cycles and a larger
swing setting will
cause fewer cycles.

The cooling swing
setting is adjustable
from ±0.4°F to
±2°F. For example:
A swing setting of

0.5°F will turn the
cooling on at
approximately 0.5°F
above the setpoint
and turn the cooling
off at approximately

0.5°F below the
setpoint.

Heating

Swing

The swing setting,
often called “cycle
rate”, “differential”
or “anticipation” is
adjustable. A
smaller swing setting
will cause more
frequent cycles and a
larger swing setting
will cause fewer
cycles.

The heating swing
setting is adjustable
from ±0.4°F to
±2°F. For example:
A swing setting of

0.5°F will turn the
heating on at
approximately 0.5°F
below the setpoint
and turn the heating
off at approximately

0.5°F above the
setpoint.

Keypad
Lockout

Keypad lockout
allows you to
configure the
thermostat so that
none or some of
the keys do not
function.

Pick PA or FU

PA = partial keypad
lockout, which locks
all the keys except the
or keys.

FU = Full keypad
lockout, which locks
out all the keys.

Note: Keypad lockout
instructions are below.

OFF 0 ºF OFF ON 0.5 ºF 0.4 ºF NA

Note: To lock the keypad hold down the and keys for 3

seconds. You will see a lock in the display. To unlock the keypad
hold down the and keys for 3 seconds.

TECH SETUP

STEPS CONTINUED

ON THE NEXT PAGE

6

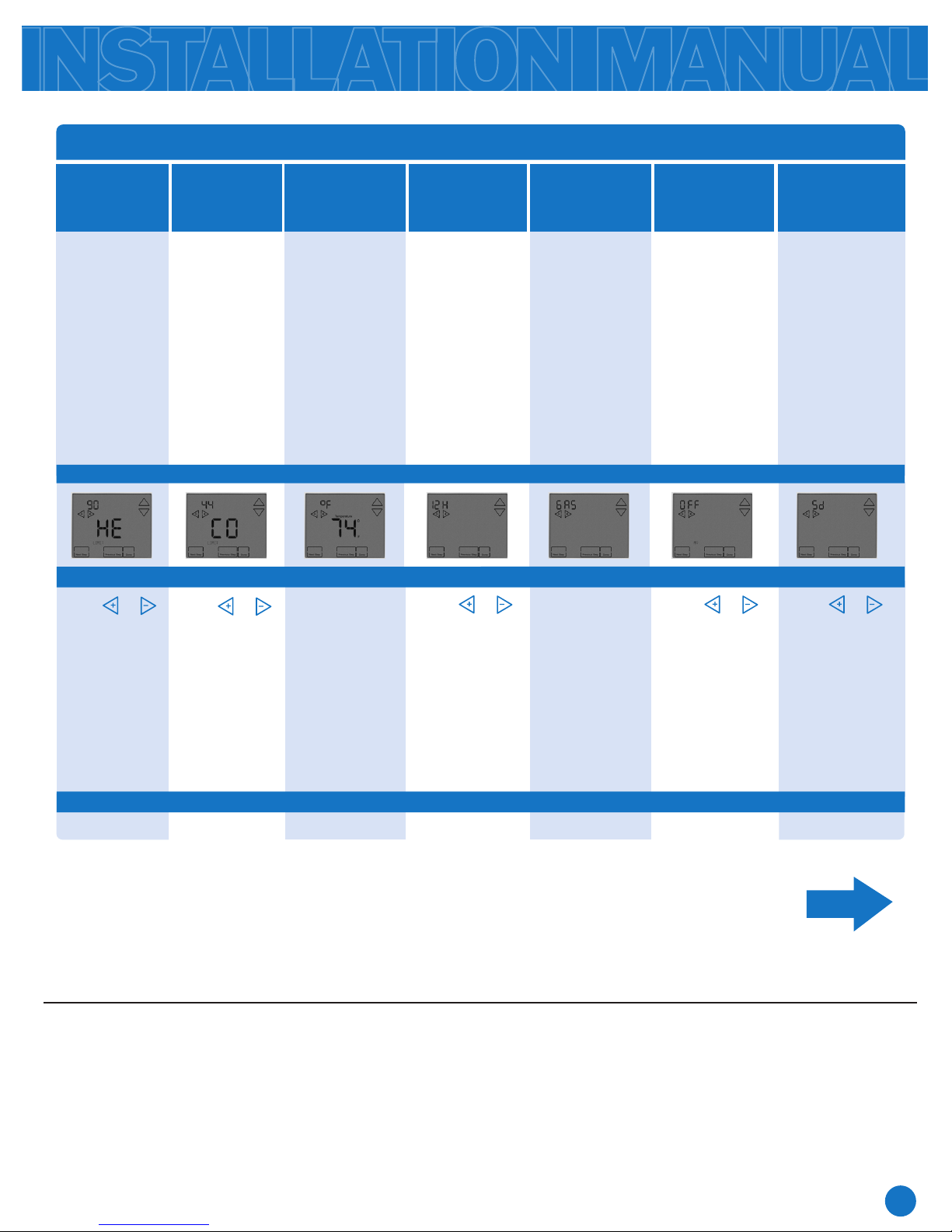

Tech Setup Steps (Continued from the previous page)

TECHNICIAN SETUP MENU

Heating

Temperature

Setpoint Limit

This feature
allows you to set a
maximum heat
setpoint value.
The setpoint
temperature
cannot be raised
above this value.

LCD Will Show

Adjustment Options

Use the or
key to select the
maximum heat
setpoint.

Cooling

Temperature

Setpoint Limit

This feature
allows you to set a
minimum cool
setpoint value.
The setpoint
temperature
cannot be lowered
below this value.

Use the or
key to select the
minmum cool
setpoint.

ºF or ºC

Select F for
Fahrenheit
temperature read
out or select C for
Celsius read out

ºF for Fahrenheit

ºC for Celsius

12 or 24

Hour Clock

You can select
either a 12 or 24
hour clock setting.

Use the or
key to select 12 or 24
hour clock.

Fan

Operation

Select GAS for
systems that
control the fan
during a call for
heat. Select ELEC
to have the
thermostat control
the fan during a
call for heat.

GAS

or

ELEC

Morning
Recovery

This feature turns your
system on before the
WAKE programming
time to ensure the
enviroment is at the
WAKE setpoint when
the WAKE time period
begins. This recovery
changes over time
based on the previous
day’s experience.

Use the or
key to turn on or off.

Program

Options

You can configure this
thermostat to have a
7 day program, a
5+1+1 program or
nonprogrammable.

Use the or
key to select 7d for 7
day, 5d for 5+1+1,
or 0d for
nonprogammable.

Factory Default Settings

90 ºF

44 ºF

ºF

PRO1 Tip

The second stage will turn on at 2x the swing setting. The second stage will turn off when 1x the
swing is reached. For example, if the swing setting is .8 degrees for heating and the thermostat is
set at 70ºF, the first stage will turn on at approximately 69.2ºF. The second stage will turn on at

68.4ºF. The second stage will turn off at 69.2ºF and the first will turn off at 70.8ºF.

12 Hour Clock

GAS

ON

STEPS CONTINUED

ON THE NEXT PAGE

5d

TECH SETUP

7

Tech Setup Steps (Continued from the previous page)

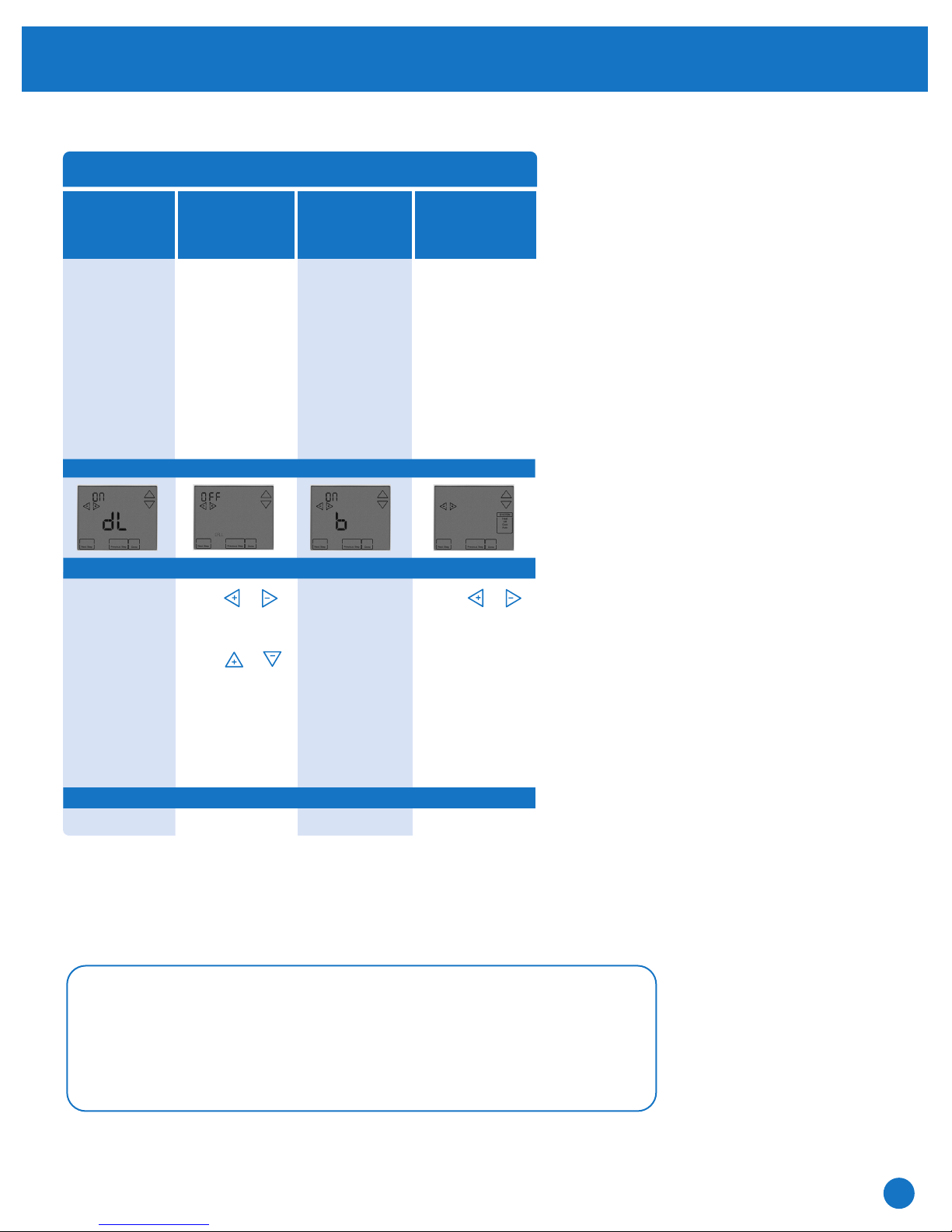

TECHNICIAN SETUP MENU

Display

Light

The display light can
be configured to
come on when any
key is pressed or
only when the light
key is pressed.

LCD Will Show

Adjustment Options

OFF configures
display light to come
on only with the light
key, which will save
battery power.

ON configures the
display light to come
on when any key is
pressed.

Contractor

Call Number

Allows you to put your
phone number in the
display.

Select ON to use this
feature then press
NEXT STEP.

Use the or
key to move from one
character to another.

Use the or
key to change the
flashing character to
your desired number.

Beep System

When any key is
pressed an audible
beep will sound.
There is an ON
or an OFF.

If ON is selected the
beep will sound.

If OFF is selected,
there is no sound.

You can configure the
system switch for the
particular application:
Heat - Off - Cool,
Heat - Off,
Cool - Off,
Heat - Off - Cool-Auto

Use the or
key until the desired
application is
flashing.

Switch

Factory Default Settings

ON ON

OFF

Note: If Contractor Call Number is selected ON, your phone number

will show in the display if there has been a continuous call for heating
or cooling for 24 hours or if the light button is held down for 3 seconds.
To remove the phone number from the display, hold the light button
down for 3 seconds.

Heat - Off - Cool

8

MOUNT THERMOSTAT & BATTERY INSTALLATION

Mount Thermostat

Align the 4 tabs on the subbase with
corresponding slots on the back of the
thermostat, then push gently until the
thermostat snaps in place.

On the back of the thermostat insert
2 AA Alkaline batteries (included).

9

PROGRAMMING THE THERMOSTAT

Set Time

Follow the steps below to set the day of the week and current time:

1.

Press MENU

2.

Press SET TIME

3.

Day of the week will be flashing. Use the or key below the time setting to select the current
day of the week.

4.

Press NEXT STEP

5.

The current hour is flashing. Use the or key below the time setting
to select the current hour. When using 12-hour time, make sure the correct a.m. or p.m. choice is selected.

Press NEXT STEP

6.

Minutes are now flashing. Use the or key below the time setting to select current minutes.

7.

Press DONE when completed

8.

Programming

All programmable Pro1 thermostats are shipped with an energy saving pre-program. You can customize
this default program by following the Set Program Schedule.

Your thermostat can be programmed to have each day of the week programmed uniquely (7 days), all
the weekdays the same, a separate program for Saturday, and a separate program for Sunday (5+1+1),
or nonprogrammable. There are four time periods for each program (WAKE, LEAVE, RETURN, SLEEP).
This thermostat has a programmable fan feature, which allows you to run the fan continuously during
any time period.

Factory Default Program

Day of the

Week

Weekday

Saturday

TimeEvents

Setpoint

Temperature (Heat)

Wake 6 a.m. 70° F (21° C) 75° F (24° C)

Leave 8 a.m. 62° F (17° C) 83° F (28° C)

Return 6 p.m. 70° F (21° C) 75° F (24° C)

Sleep 10 p.m. 62° F (17° C) 78° F (26° C)

Wake 8 a.m. 70° F (21° C) 75° F (24° C)

Leave 10 a.m. 62° F (17° C) 83° F (28° C)

Setpoint

Temperature (Cool)

Return 6 p.m. 70° F (21° C) 75° F (24° C)

Sleep 11 p.m. 62° F (17° C) 78° F (26° C)

Sunday

Wake 8 a.m. 70° F (21° C) 75° F (24° C)

Leave 10 a.m. 62° F (17° C) 83° F (28° C)

Return 6 p.m. 70° F (21° C) 75° F (24° C)

Sleep 11 p.m. 62° F (17° C) 78° F (26° C)

10

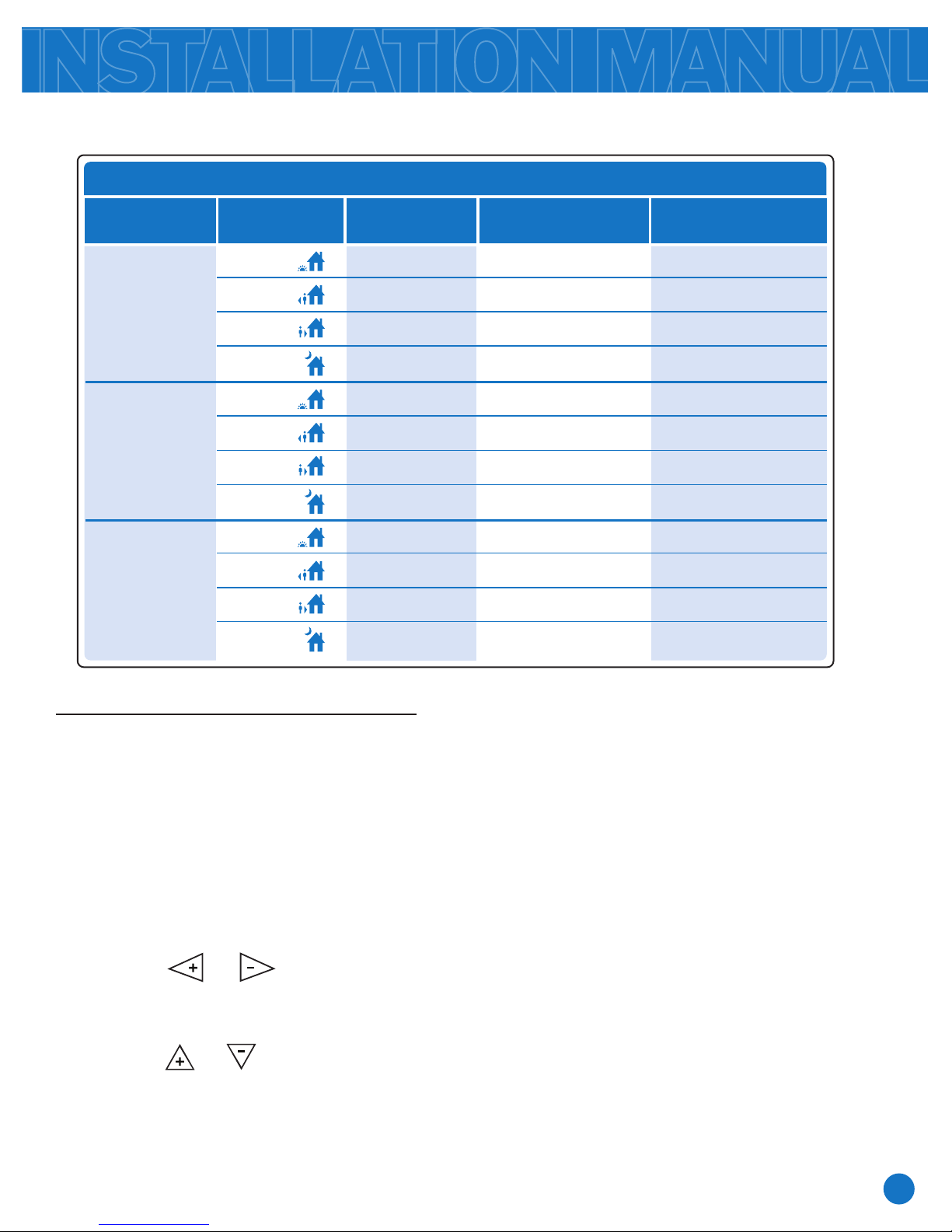

PROGRAMMING THE THERMOSTAT

You can use the table below to plan your customized program schedule if using 5+1+1.

Programming Table

Day of the

Week

Weekday

Saturday

Sunday

Wake

Leave

Return

Sleep

Wake

Leave

Return

Sleep

Wake

Leave

Return

Sleep

TimeEvents

Setpoint

Temperature (Heat)

Setpoint

Temperature (Cool)

Set Program Schedule

To customize your 5+1+1 program schedule, follow these steps:

Weekday:

1.

Select HEAT or COOL using the SYSTEM key.
Note: You have to program heat and cool each separately.

2.

Press MENU

3.

Press SET SCHEDULE Note: Monday-Friday is displayed and
the WAKE icon is shown. You are now programming the WAKE
time period for the weekday setting.

4.

Use the or key below the time setting to make your
time selection for the weekday WAKE time period. Note: If you
want the fan to run continuously during this time period, select
ON with the FAN key.

5.

Use the or temperature setpoint keys on the right side
of your screen to make your temperature selection for the
weekday WAKE period.

6.

Press NEXT STEP

Saturday:

8.

Repeat steps 4 through 6 for
Saturday WAKE time period,
for Saturday LEAVE time
period, for Saturday RETURN
time period, and for Saturday
SLEEP time period.

Sunday:

9.

Repeat steps 4 through 6 for
Sunday WAKE time period,
for Sunday LEAVE time
period, for Sunday RETURN
time period, and for Sunday
SLEEP time period.

Repeat steps 4 through 6 for weekday LEAVE time period, for

7.

weekday RETURN time period, and for weekday SLEEP time period.

11

PROGRAMMING THE THERMOSTAT

To customize your 7 day program schedule, follow these steps:

1.

Select HEAT or COOL using the SYSTEM key. You have to program heat and cool each separately.

2.

Press MENU

3.

Press SET SCHEDULE
Note: Monday is displayed and the WAKE icon is shown. You are now programming the WAKE

time period for the Monday setting.

4.

Use the or key below the time setting to make your time selection for the weekday
WAKE time period. Note: If you want the fan to run continuously during this time period, select ON
with the FAN key.

5.

Use the or temperature setpoint keys on the right side of your screen to make your tem­perature selection for the weekday WAKE period.

6.

Press NEXT STEP

7.

Repeat steps 4 thru 6 for Monday LEAVE time period, for Monday RETURN time period, and for
Monday SLEEP time period.

8.

Repeat steps 4 thru 7 for each of the remaining days in the week.

A Note About Auto Changeover:

Auto changeover will switch between heating
and cooling as needed. It is very important to
make sure the cooling setpoint temperature is at
least 5º above the heating setpoint temperature
and that the heating setpoint temperature is at
least 5º below the cooling setpoint temperature.

A Note About Programmable Fan:

The programmable fan feature will
run the fan continuously during any
time period it is programmed to be
on. This is the best way to keep the
air circulated and to eliminate hot &
cold spots in your building.

12

Specifications

Pro1 IAQ Inc.

1111 S. Glenstone
Suite 2-100
Springeld, MO 65804

Toll-free: 1-888-Pro1iaq (776-1427)
Toll Number (Outside the USA): 330-821-3600
Web: http://www.pro1iaq.com
Hours of Operation: Monday - Friday 9 AM - 6 PM Eastern

SPECIFICATIONS & CONTACT INFORMATION

The display range of temperature
The control range of temperature
Load rating
Display accuracy
Swing (cycle rate or differential)

Power source

Operating ambient
Operating humidity
Dimensions of thermostat

41ºF to 95ºF (5ºC to 35ºC)
44ºF to 90ºF (7ºC to 32ºC)
1 amp per terminal, 1.5 amp maximum all terminals combined
± 1ºF
Heating is adjustable from 0.4ºF to 2.0ºF
Cooling is adjustable from 0.4ºF to 2.0ºF
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)
Battery power from 2 AA Alkaline Energizer batteries
32º to +105º (0º to +41ºC)
90% non-condensing maximum

4.7”W x 4.4”H x 1.1”D

13
