Toptech TT-N-701, T701 Installation Manual

Mounting and Battery Installation

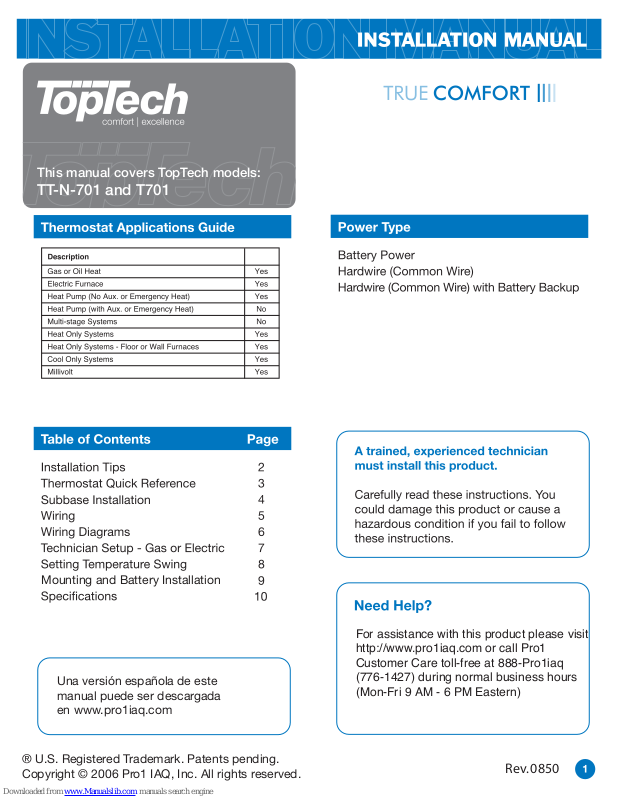

This manual covers TopTech models:

TT-N-701 and T701

Una versión española de este
manual puede ser descargada
en www.pro1iaq.com

® U.S. Registered Trademark. Patents pending.
Copyright © 2006 Pro1 IAQ, Inc. All rights reserved.

For assistance with this product please visit
http://www.pro1iaq.com or call Pro1
Customer Care toll-free at 888-Pro1iaq
(776-1427) during normal business hours
(Mon-Fri 9 AM - 6 PM Eastern)

Rev. 0850

Important:

The low battery indicator is displayed
when the AA battery power is low. If
the user fails to replace the battery
within 21 days, the thermostat
display will only show the low battery
indicator as a final warning before the
thermostat becomes inoperable.

Getting to know your thermostat

LCD

1

2

Fan Switch

3

System Switch

4

Easy Change Battery Door

5

Temperature

Setpoint Buttons

6

Displays the user selectable
setpoint temperature.

System operation indicators:
The COOL, HEAT or FAN
icon will display when the
COOL, HEAT or FAN is on.
NOTE: The compressor
delay feature is active if
these icons are flashing.
The compressor will not turn
on until the 5 minute delay
has elapsed.

Glow in the Dark Light Button

6

1

2

3 4

5

Low Battery Indicator:
Replace batteries when
indicator is shown.

Indicates the current
room temperature.
