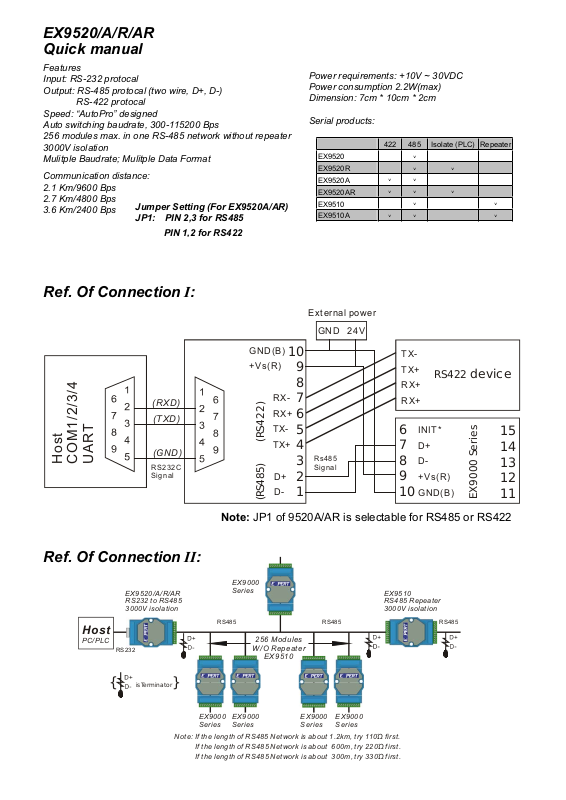

Page 1
EX9520/A/R/AR
,
2
Quick manual
Features
Input: RS-232 protocal
Output: RS-485 protocal (two wire, D+, D-)
RS-422 protocal
Speed: “AutoPro” designed
Auto switching baudrate, 300-115200 Bps
256 modules max. in one RS-485 network without repeater
3000V isolation
Mulitple Baudrate; Mulitple Data Format
Communication distance:
2.1 Km/9600 Bps
2.7 Km/4800 Bps
3.6 Km/2400 Bps
Jumper Setting (For EX9520A/AR)
JP1: PIN 2,3 for RS485
PIN1
2 for RS42
Ref. Of Connection I:
Power requirements: +10V ~ 30VDC
Power consumption 2.2W(max)
Dimension: 7cm * 10cm * 2cm
Serial products:
422 485 Isolate (PLC) Repeater
EX9520
EX9520R
EX9520A
EX9520AR
EX9510
EX9510A
External power
GND 24V
ˇ
ˇ ˇ
ˇˇ
ˇ ˇ ˇ
ˇˇ
ˇ ˇ ˇ
(RXD)
(TXD)
Host
COM1/2/3/4
UART
(GND)
RS232C
Signal
Ref. Of Connection II:
EX
9520/A/R/AR
RS232 RS485
to
3000V isolation
Host
PC/PLC
R 232S
GND(B)
+Vs(R)
(RS422)(RS485)
RX-
RX+
TX-
TX+
D+
D-
10
9
8
7
6
5
4
3
2
1
Rs485
Signal
TX-
TX+
RX+
RX+
6
7
8
9
10
RS422
INIT*
D+
D-
+Vs(R)
GND(B)
device
EX9000 Series
Note: JP1 of 9520A/AR is selectable for RS485 or RS422
EX9000
Series
RS485 RS485 RS485
256 Modules
W/O Repeater
EX9510
EXS9510
R 485 Repeater
3000V isolation
15
14
13
12
11
{}
is Terminator
EX9000
Series
Note: If the length of 485 Network is about 1.2km, try 110 first.RS Ƿ
If the length of 485 Network is about 600m, try 220 first.RS Ƿ
If the length of 485 Network is about 300m, try 330 first.RS Ƿ
EX9000
Series
EX9000
Series
EX9000
Series
Page 2
PC Network:
HOST
RS232
EX9520
PLC Network:
HOST
Remote Remote
RS232
EX9000
Series
R 485 256 Modules W/O E 9510SX
EX9520 EX9520
256 Remote
PC W/O Repeater
EX9510
EX9000
Series
RS232
EX9510
RS485
D+ power
PLC
RS232
RS232
EX9520R
EX9520
Repeater 9510EX
RS232 Devices Network:
HOST
RS232 Device
256 PLC W/O
R485S
PLC
RS232
EX9520R
D+ power
EX9510
D+ power
PLC
RS232
EX9520R
R485S
RS232 Device
RS232
EX9520
RS232
EX9520R
R485S
256 232 Device W/O
RS
Repeater 9510
EX
EX9000
Series
RS232
EX9520R
