Tops MP 5016, MP 6016, MP 7016 Quick Manual

TOPS DIGITAL VIDEO RECORDER

MP

Quick Manual

MP SERIES (Digital Video Recorder)

-High Performance H/W MPEG4 DVR

- Max.240fps network transmission speed

- Remote upgrade

- PDNS for floating IP Address

- HDD Mirroring with TERA1500A(External HDD Storage with IEEE1394)

- MP7016: 480fps(Live), 480fps(Record), 480fps(Playback), 16CH(Audio)

- MP6016: 480fps(Live), 480fps(Record), 240fps(Playback), 8CH(Audio)

- MP5016: 480fps(Live), 120fps(Record), 120fps(Playback), 4CH(Audio)

- Resolution: 720*480(576), 720*240(256), 360*240(256)

- O/S: Windows 2000

- HDD / CD / DVD Backup

- Two-Way Audio Communication between DVR and Remote site

- Relay (Alarm Out) On/OFF

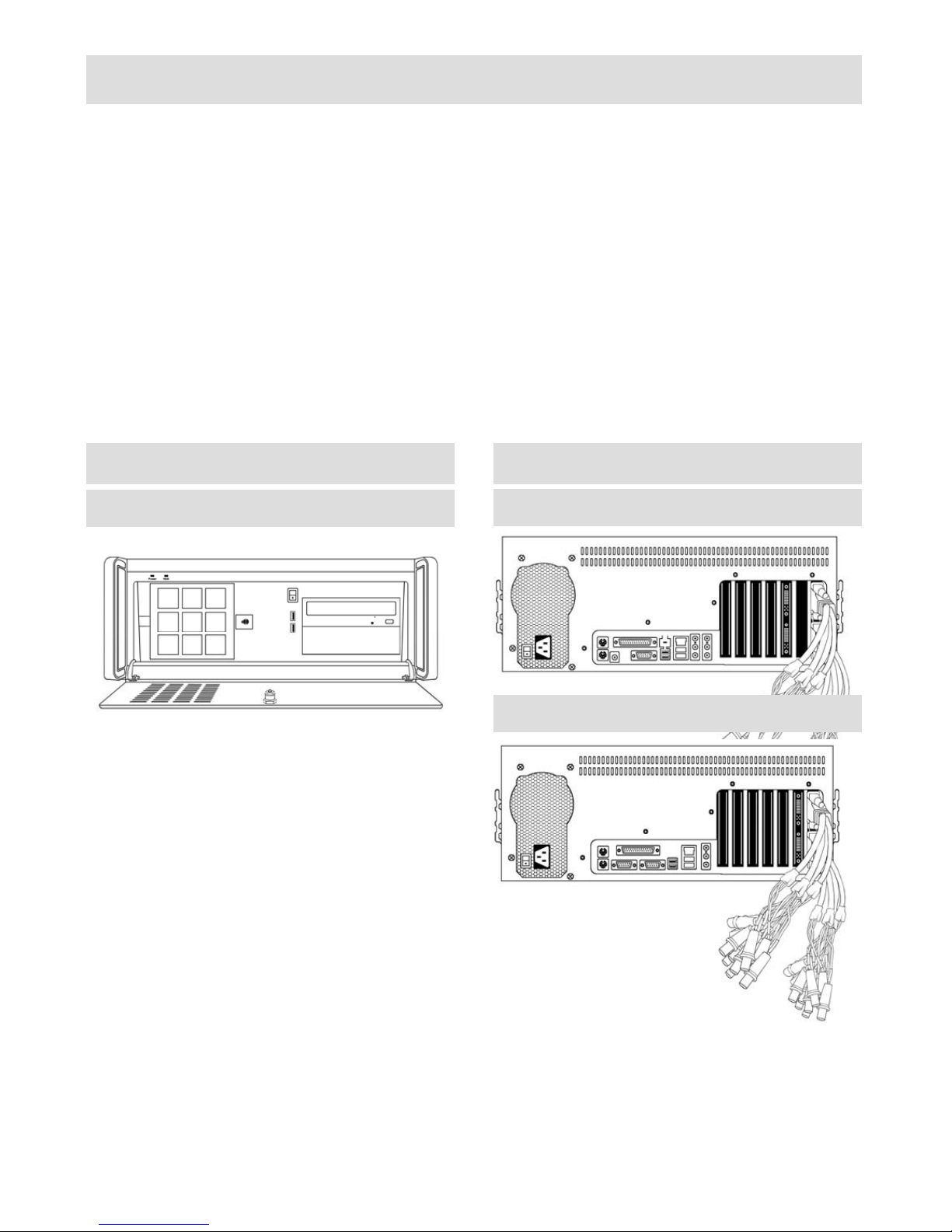

Front Layout Rear Layout

MP5016/6016/7016

①

⑤

②

④

⑥

① Power, HDD Led
② Power Switch
③ CD/DVD Expansion Rack
④USB Port
⑤Dust Filter
⑥Lock

③

MP6016/7016

①②③④

⑥

⑤

⑦

MP5016

①②③④

⑥

⑫

① Power Switch
②Mouse/Keyboard
③ Printer Port
④LAN Port
⑤ Audio Out (Green Port)
⑥VGA Port
⑦USB Port
⑧ Alarm Out
⑨ Sensor In
⑩ Camera In / Mux Out / Spot Out
⑪Audio In
⑫Pan/Tilt Port

⑤

⑦

⑧⑨⑩

⑪

⑧⑨⑩

⑪

SURVEILLANCE

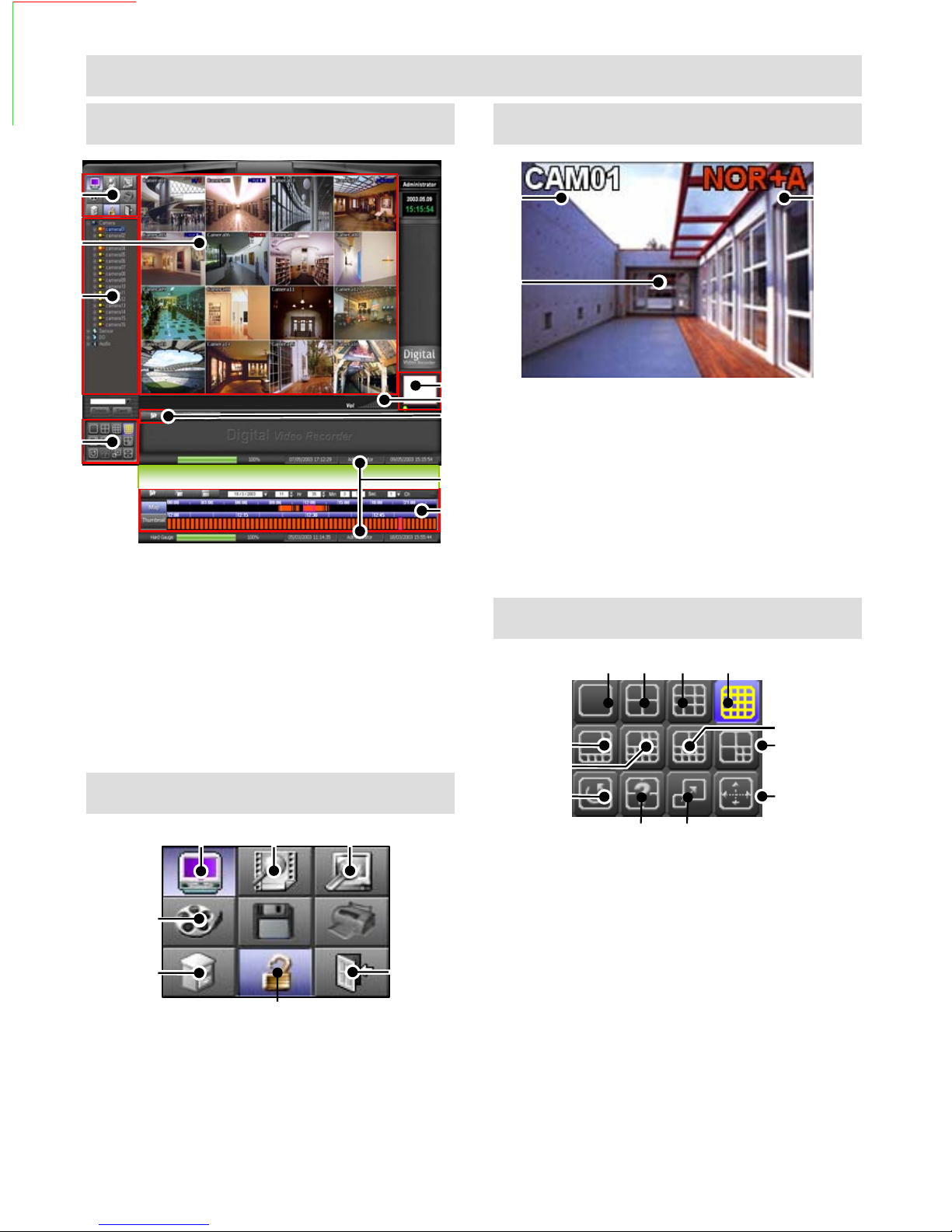

Main Mode

①

②

③

④

①Main Menu
② Live View
③ Camera Controller
④ Camera Layout
⑤Digital Zoom
⑥Volume Control
⑦ 1 CH Pop Up Search
⑧Log In User
⑨Map Search

⑤
⑥

⑦

⑧

⑨

Screen Information

①

③

① Camera Name
② Recording Status

NOR – Normal Recording
MOT – Motion Recording
SEN – Sensor Recording
MOT+SEN – Motion + Sensor
A – Audio Recording

③ Camera Image

Camera View Layout

②

①

⑤
⑥

③④

②

⑦
⑧

Main Menu

①

④

⑤

① Surveillance Mode
② Search Mode
③ Setup Mode
④ Backup Mode
⑤ Password / Rotation

Default P/W is “0”.
⑥ User Mode (Log In /Out)
⑦Shut Down

②③

⑥

⑦

⑨

⑩

①1 CH
②4 CH
③9 CH
④ 16 CH
⑤1 Main + 7 Sub CH
⑥ 1 Main + 12 Sub CH
⑦2 Main + 8 Sub CH
⑧3 Main + 4 Sub CH
⑨Rotation
⑩ User Selection
⑪Pop UP ON/OFF
⑫ Full Screen

⑪

⑫

SURVEILLANCE

User SelectionChannel Information

①
②
③
④
⑤

⑥
⑦
⑧

⑨

① Click “USER SELECTION” button
② Drag a cam from “CAMERA

INFORMATION” and drop it on the
“LIVE VIEW”

Note:
The below is the example of “User
Selection”.

Cam1. Cam2.

Cam3. Cam4.

Cam2. Cam1.

Cam4. Cam3.

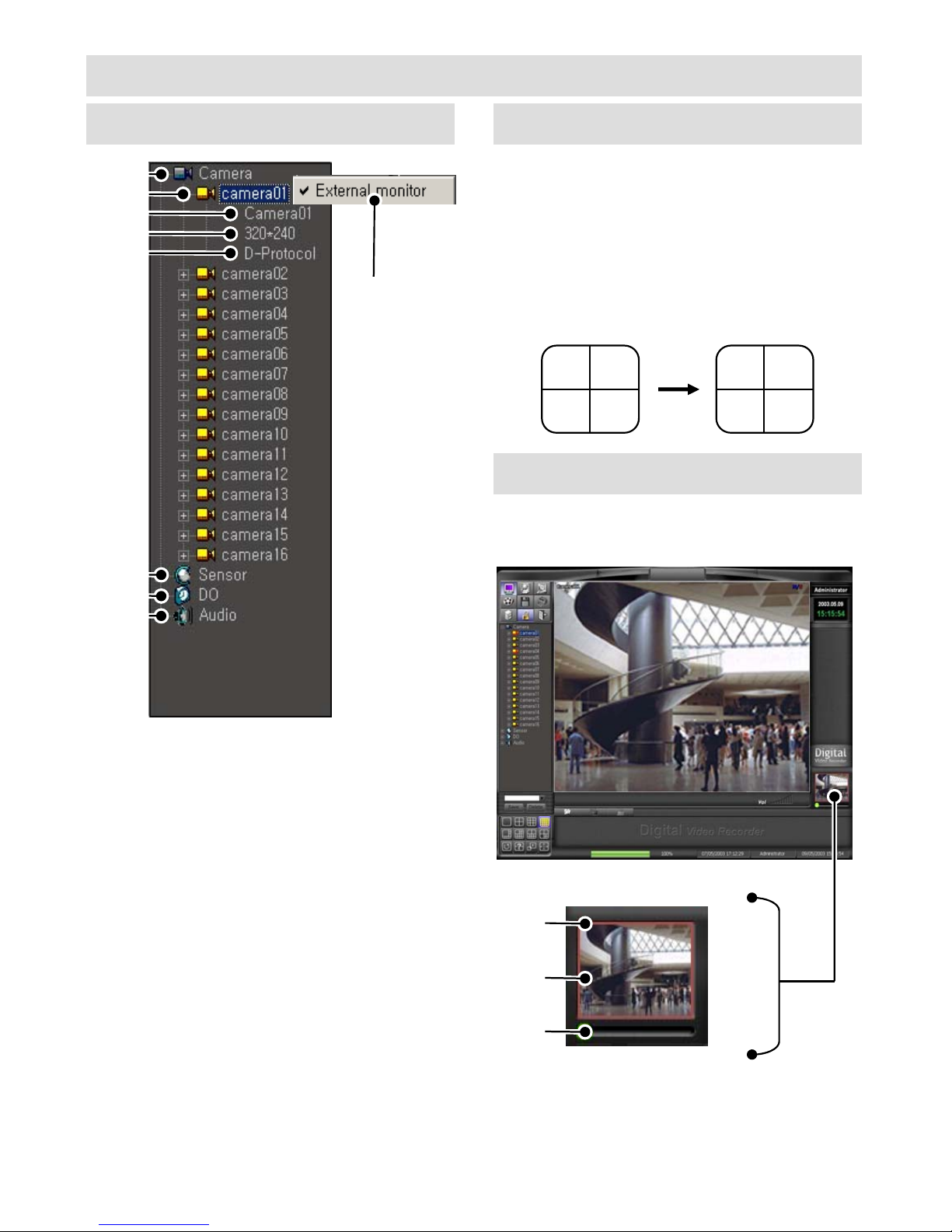

Digital Zoom

Digital Zoom is only available at 1 CH
layout.

MOT

MOT

① Camera Group
② Camera No.1
③ Camera Name
④ Camera Resolution
⑤ Camera Protocol
⑥ Sensor Group
⑦ D/O Group (Alarm Out)
⑧ Audio Group
⑨ External Monitor

NOTE:
Sub menu is available when right mouse
click each CH like “External Monitor” or
“ON/ OFF”

①

②

③

①Digital Zoom Box (RED)
② Panning View
③Digital Zoom Control Bar

SURVEILLANCE

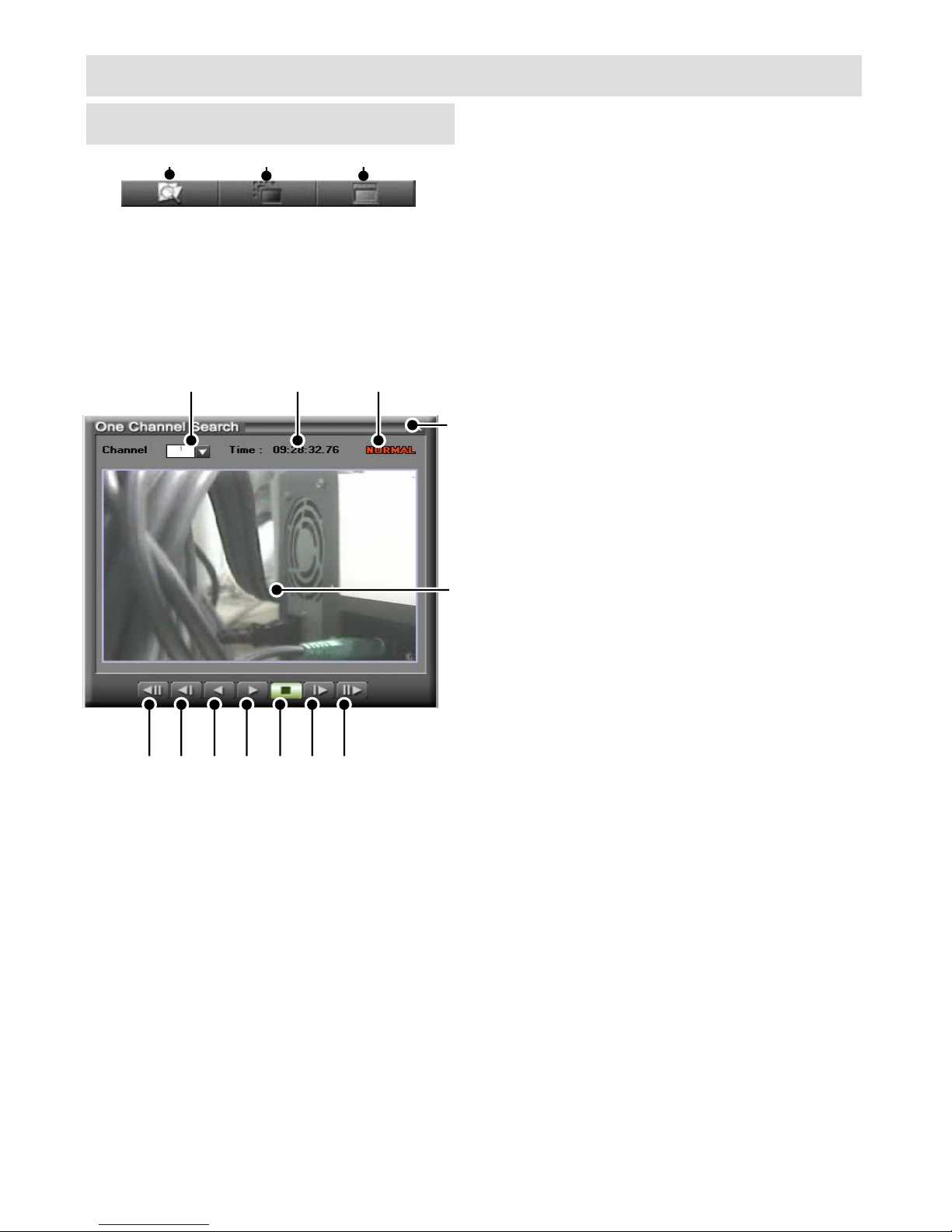

1CH Search

①

① 1CH Search
② Smart Search (Object Search)
③Map Search

Note:
1 CH Search is available at Surveillance
Mode

① ② ③

②③

④

⑤

⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫

①CH No.
②Rec. Time
③ Record Type
④Close 1 CH Search
⑤ Recorded Image
⑥First Image
⑦Previous Image
⑧Reverse
⑨Playback
⑩Stop
⑪Next Image
⑫Last Image

CONFIGURATION

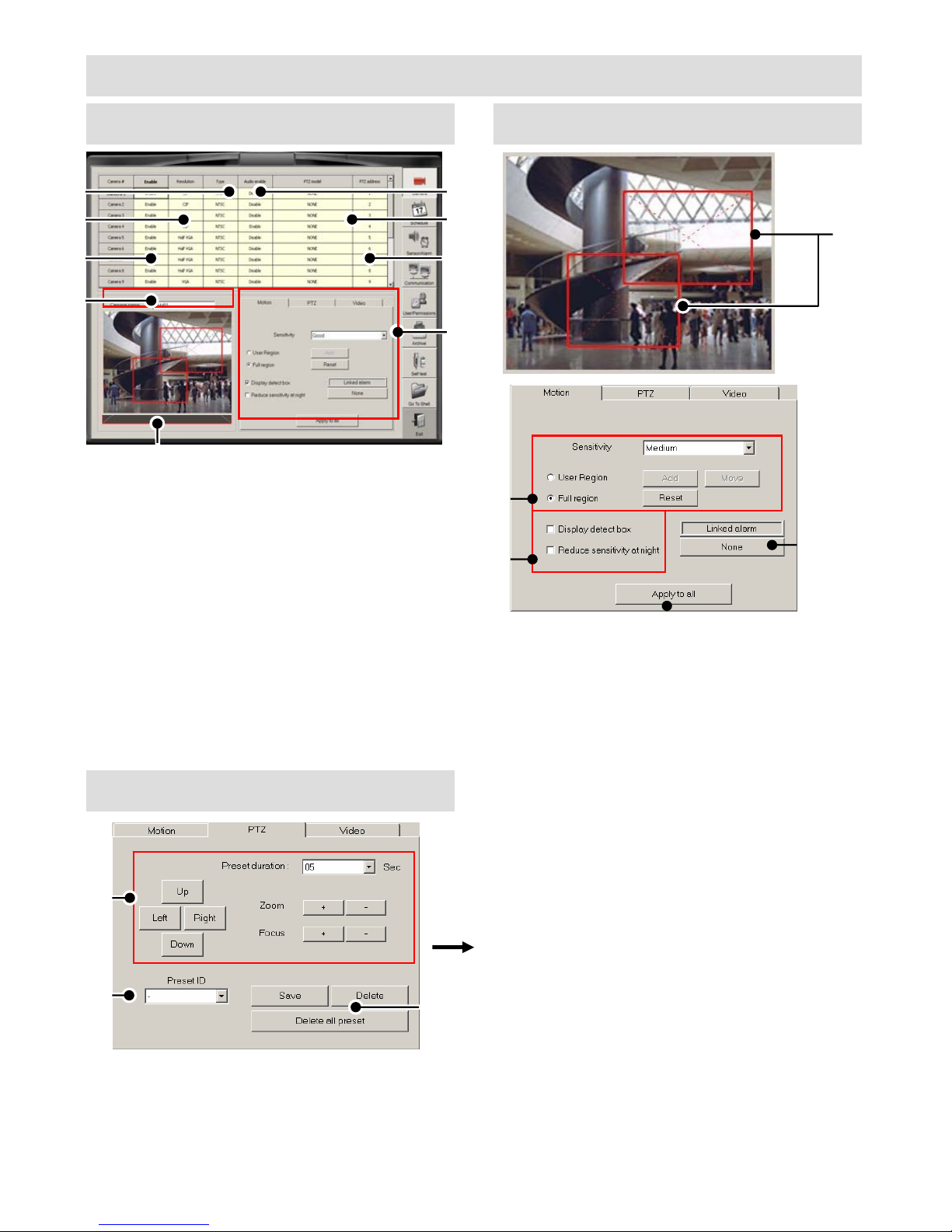

Camera /Sensor Motion Area

①
②

③

⑦

⑧

①NTSC/PAL
②Resolution (CIF/HALF VGA/VGA)
③ Camera On/Off
④Audio On/Of
⑤ PTZ Protocol
⑥ PTZ Address
⑦ Camera Name
⑧ Motion Setting Area
⑨ Motion, PTZ, Video (Color)

PTZ

④
⑤

①

⑥

⑨

②

④

③

⑤

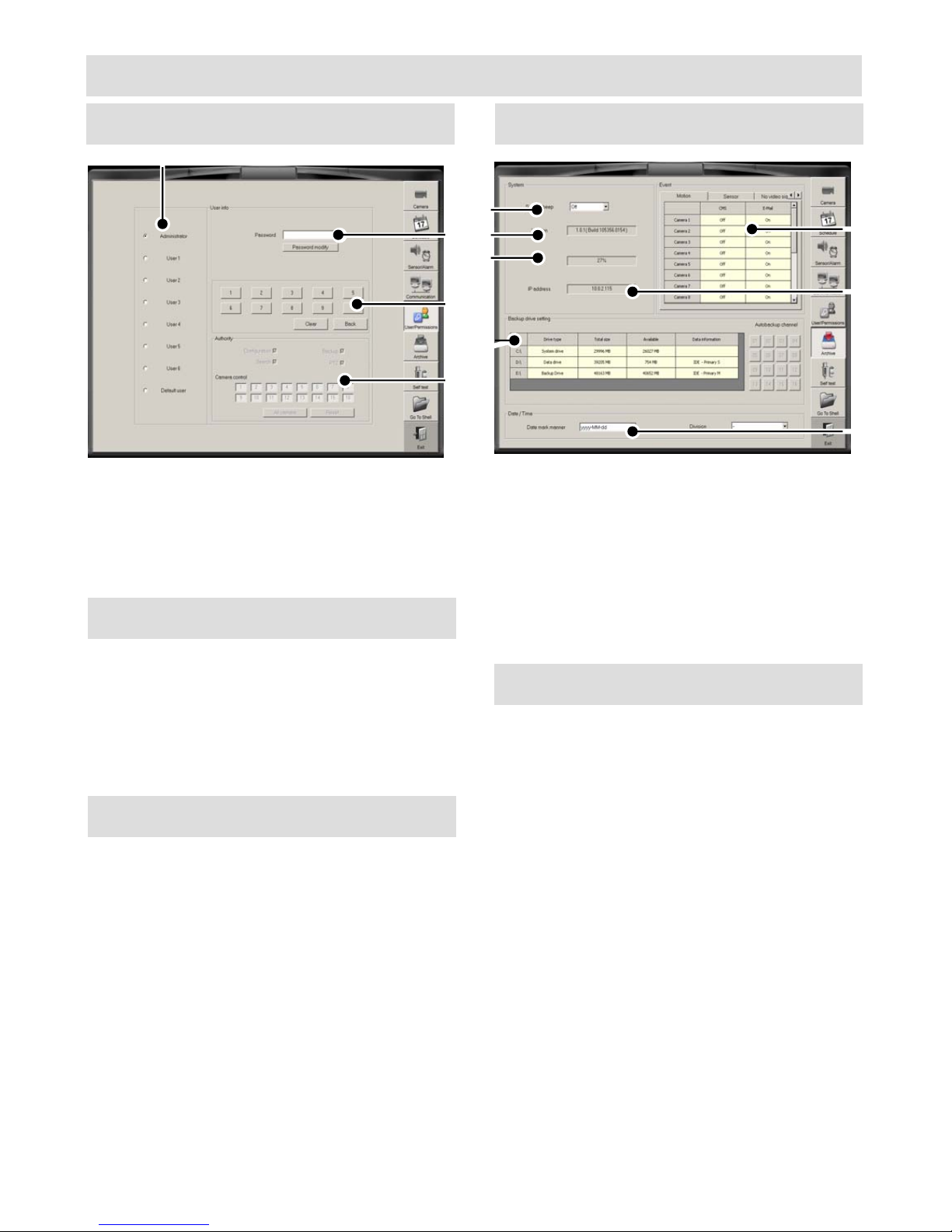

① User Setting Area
② User Defined – Small Area

Full Region –Full Area

③ Display Detection Box

Reduce Sensitivity at night
④ Motion-Alarm Setting
⑤ Apply to all cameras

①

②

③

①Direction, Zoom, Focus

Preset Duration
②Preset ID
③ Preset Save, Preset Delete.

Delete all Presets

CONFIGURATION

Schedule Network

①

②

③

④

⑨

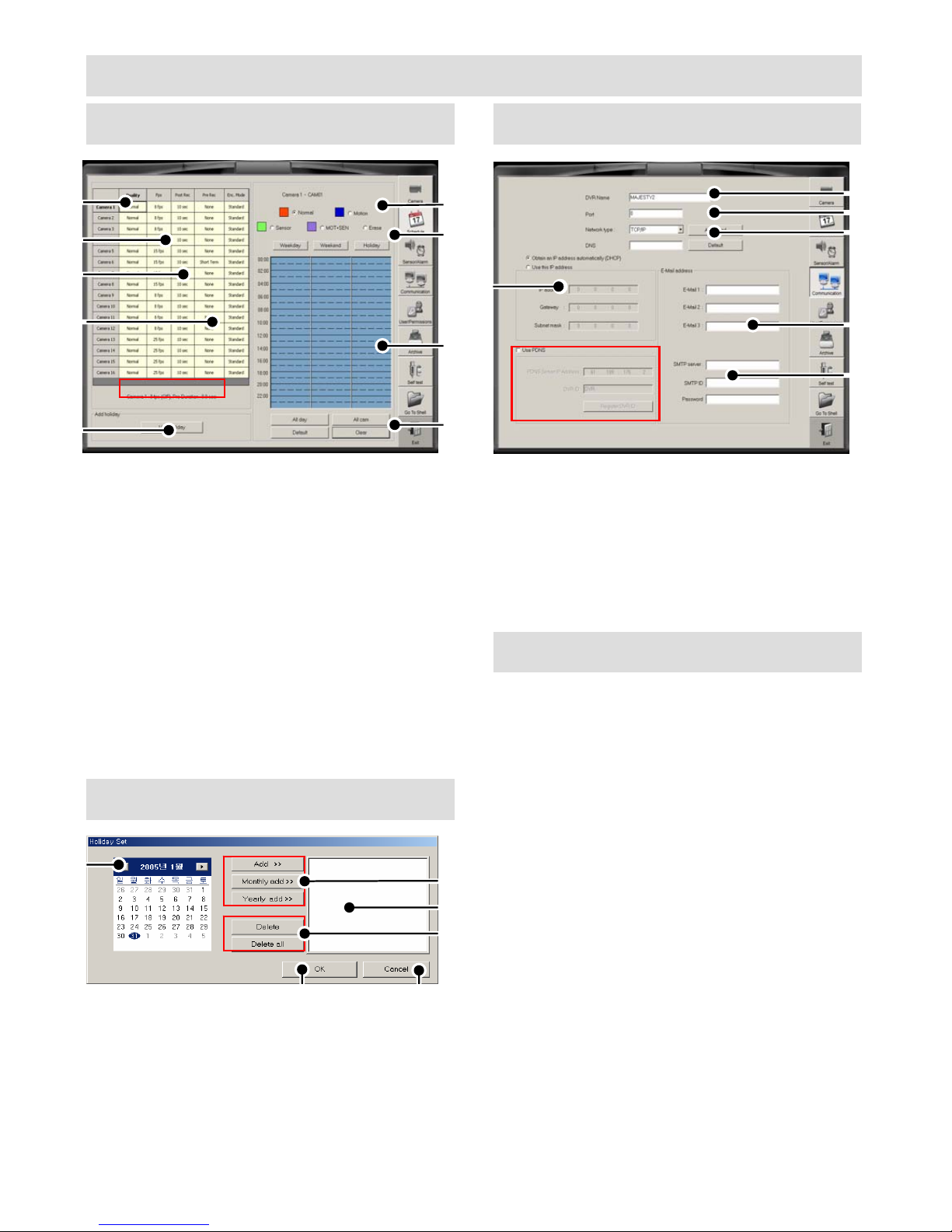

①Quality (5 Steps)
② Recording Speed
③ Post Recording (10Sec~5Min)
④ Pre Recording(4 Steps)
⑤ Recording Type Selection
⑥ Weekday, Weekend, Holiday
⑦ Schedule Setting Area
⑧Default

Clear –Delete a camera schedule
All Cam –Apply a schedule to all
Cameras
All Day –Apply a schedule to all days

⑨Add Holida

y

⑤

⑥

⑦

⑧

①
②

③

④

⑤

⑥

①DVR Name
② Network Port
③ Network Type (TCP/IP,MODEM)
④ DHCP/IP Setting
⑤ E-mail list for emergency transmission.
⑥ SMTP Server

How to set PDNS

①Tick “Use PDNS”

②Type “DVR ID”
③ Press “Register DVR ID”

Holiday

①

⑤

① Previous/Next Month
② Add, Monthly Add, Yearly Add
③ Added Holiday List Box
④ Delete(1 time), Delete all holidays
⑤Save & Exit
⑥Exit

Note:
If the DVR ID is already used on other
DVR, it will show warning message.

②
③
④

⑥

CONFIGURATION

User/Password Archive

①

①

②

②
③

⑤

① User Selection
② Password Configuration
③ Password No.
④ Configuration, Backup, Search, PTZ,

Camera Selection

Password Change

① Choose user
②Input P/W
③ Click “Password Modify” button
④ Input New P/W and confirm the P/W
⑤ E-mail list for emergency transmission.
⑥ SMTP Server

User Authority Change

③

④

④

① System Beep
②S/W Version
③ CPU Usage Status
④ Backup Drive Setting
⑤ Event Transmission Setting

(Motion, Sensor, No Video Signal)
⑥ IP Address
⑦DATE/TIME Forma

t

Backup Drive Setting

① Go to Backup Drive Setting
② Choose a drive

Ex) D:, E:, F:
③ Change the drive for Backup drive
④Save & Ex

it

⑥

⑦

① Choose user
② Change “Authority” like Configuration,

Backup, Search, PTZ, Camera

③Save & Exit

SEARCH

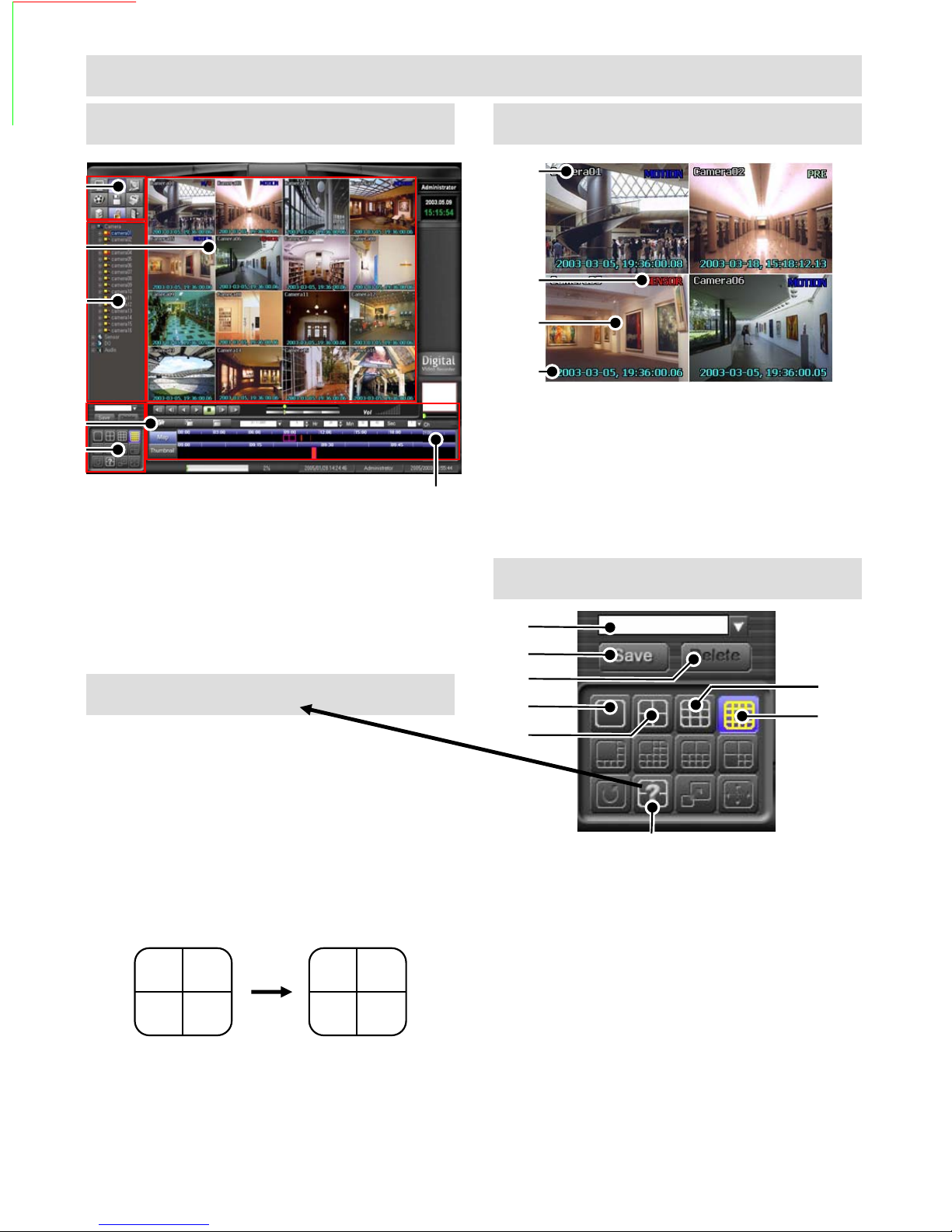

Main Mode Search Screen

①

②

②

③

④
⑤

① Search Mode
② Search Screen
③ Camera Information
④ Panorama Search Information
⑤ Camera Layout
⑥ Map & Thumbnail View

User Selection

① Click “USER SELECTION” button
② Drag a cam from “CAMERA

INFORMATION” and drop it on the
“SEARCH SCREEN”

⑥

①

②

③

④

① Camera Name
② Recorded Status
③ Playback Image
④ Recorded Time

Camera Layout

①
②

③
④

⑤

⑥

⑦

Note:
The search layout will be changeable.
The below is the example of “USER
SELECTION”.

Cam1. Cam2.

Cam3. Cam4.

Cam2. Cam1.

Cam4. Cam3.

⑧

① User Layout Name
② Save User Layout
③ Delete User Layout
④1CH
⑤4CH
⑥9CH
⑦16CH
⑧ User Selection

SEARCH

①②③

①Play Control

④
⑤

② Playback Speed
③ Audio Volume

⑥

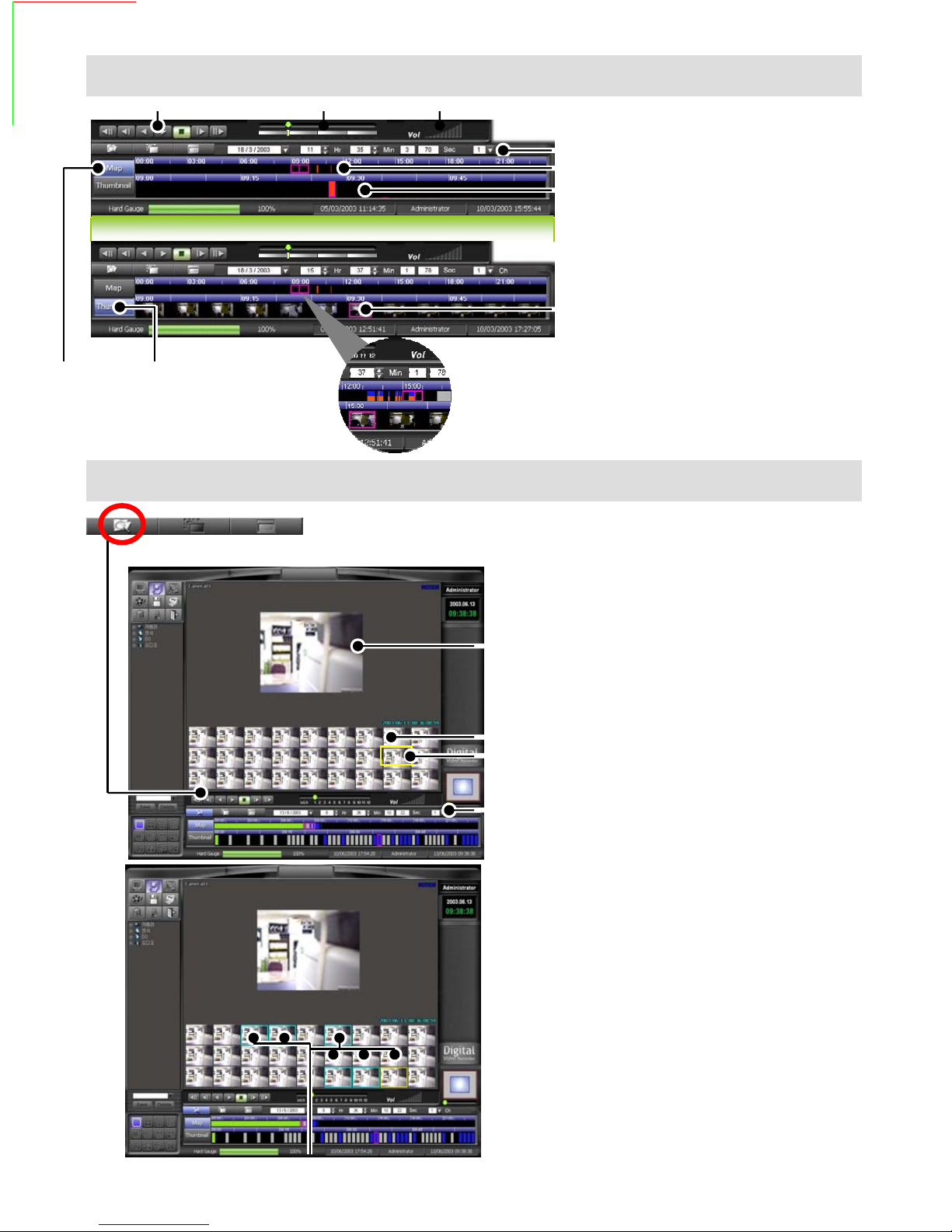

④ Year/Month/Hour/Min/CH Search
⑤ 24 Hour Map
⑥ 1 Hour map
⑦Hide Thumbnail Map
⑧Show Thumbnail Map

⑨

⑨ Show image every 5 minutes

⑦

⑧

Panorama Search

①

① 1CH Search Screen
② Panorama Screen
③ Playing Screen

②

④ Time/Camera Selection

③

④

NOTE:
Before saving AVI, JPG, BMP, user
should select the images like the
below.

①

① Selected Screen

SEARCH

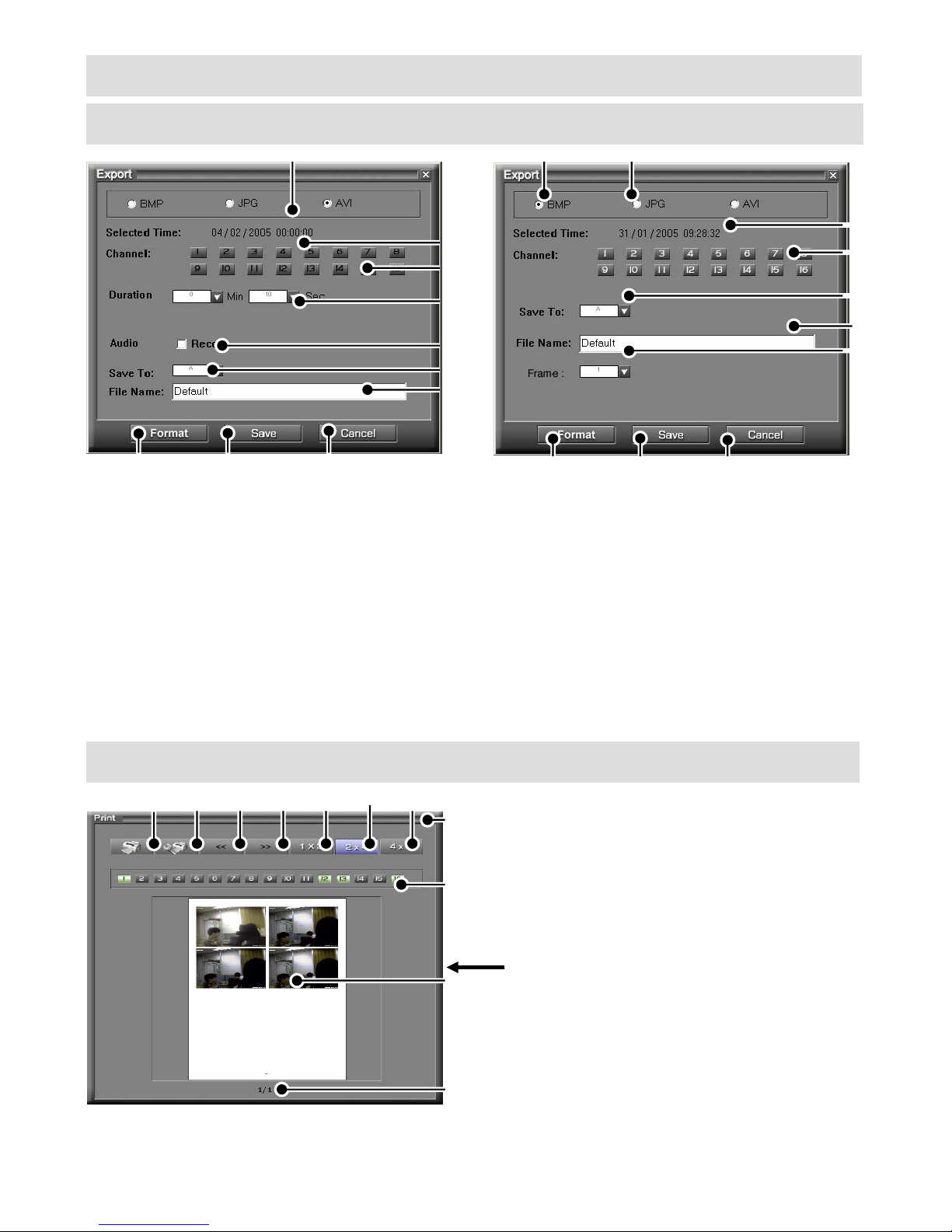

AVI, JPG, BMP Save

①

②
③

①

②

③
④

⑧

①AVI Save
② Selected Time
③ Camera No.
④AVI Duration
⑤ Audio Record
⑥ Drive Selection
⑦File Name
⑧Format Media
⑨Save
⑩Cancel

⑨

⑩

④

⑤
⑥
⑦

⑧

①BMP Save
②JPG Save
③ Selected Time
④ Camera No.
⑤ Drive Selection
⑥File Name
⑦ Count No.
⑧Format Media
⑨Save
⑩Cancel

⑨

⑤

⑥
⑦

⑩

Print

①⑪② ③ ④ ⑤ ⑥ ⑦

⑧

⑨

⑩

①Print
② Printer Setup
③Previous Print Image
④Next Print Image
⑤Layout 1X2
⑥ Layout 2X4
⑦Layout 4X8
⑧Close
⑨ Camera Selection
⑩Preview
⑪Page No

NOTE:
Printer Drive should be installed before
printing the image.
And make sure that printer is connected to
DVR and power is ON.

.

REMOTE MANAGEMENT SYSTEM(CLIENT)

- Remote DVR Server Upgrade

- Max.240fps network transmission speed with DVR Server

- AVI, JPG, BMP Save Available

- PTZ Control Available

- DVR Setup Available

- O/S: Windows 2000, XP

- Two-Way Audio Communication between DVR and Remote site

- Relay (Alarm Out) On/OFF

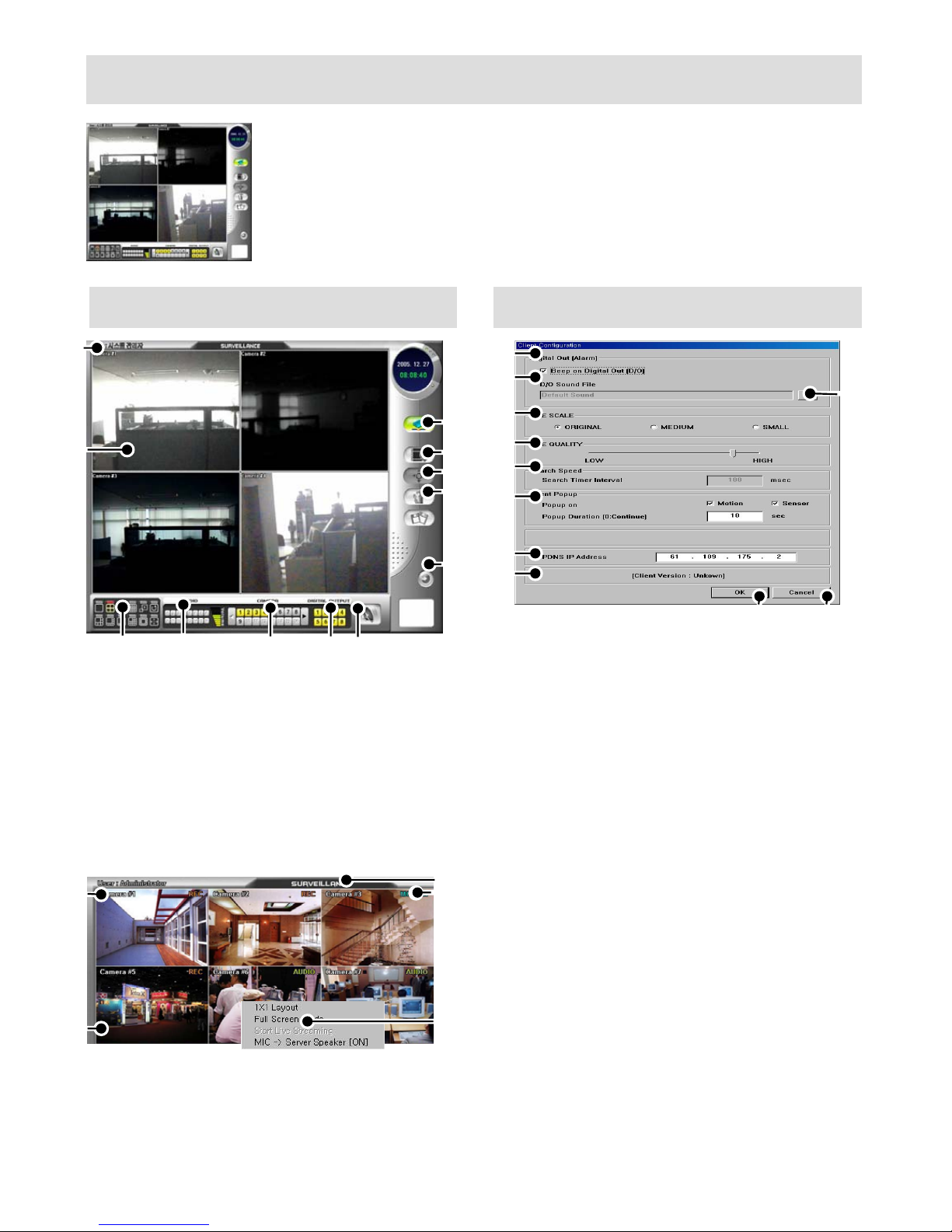

Client Surveillance

①

②

③④ ⑤⑥

① User level
② Network Live View
③ Screen Division
④ Audio Selection
⑤ Camera Selection
⑥ D/O (Alarm Out) Control
⑦ Network Speed Control
⑧ Connect / Disconnect
⑨ Search Mode (Client Configuration)
⑩ Pan/Tilt ⑪ Setup Mode ⑫ Exit

①

⑦

⑪

③
④

⑧

⑨
⑩

⑫

Client Configuration

①
②

③

④

⑤
⑥

⑦

⑧
⑨

⑩⑪
① Beep On/Off when Alarm
② Show the directory of sound file
③ Select the sound file
④ Select image size for transmission
⑤ Adjust image quality for transmission
⑥ Search Time interval to receive next

image from DVR
⑦ Event Pop up Selection
⑧PDNS IP Address
⑨ Save & Exit ⑩ Cancel

NOTE:

Live Scale: Original, Medium, Small
Original: Recorded Resolution on DVR
Medium: 320*240, Small:160*120

Audio

②

① Camera Name
②Audio Record
③ Show current mode
④ Show recording status
⑤Pop up Menu

- Choose one CH and right mouse click

⑤

Live Quality: Image Quality
If you want faster transmission from DVR
to Client. We recommend you to set live
scale “Small” and Image quality “Low”.
It will be faster than before but the image
quality is not good.

NOTE:
Live Scale is not available on ME,

MP,MPII DVR.

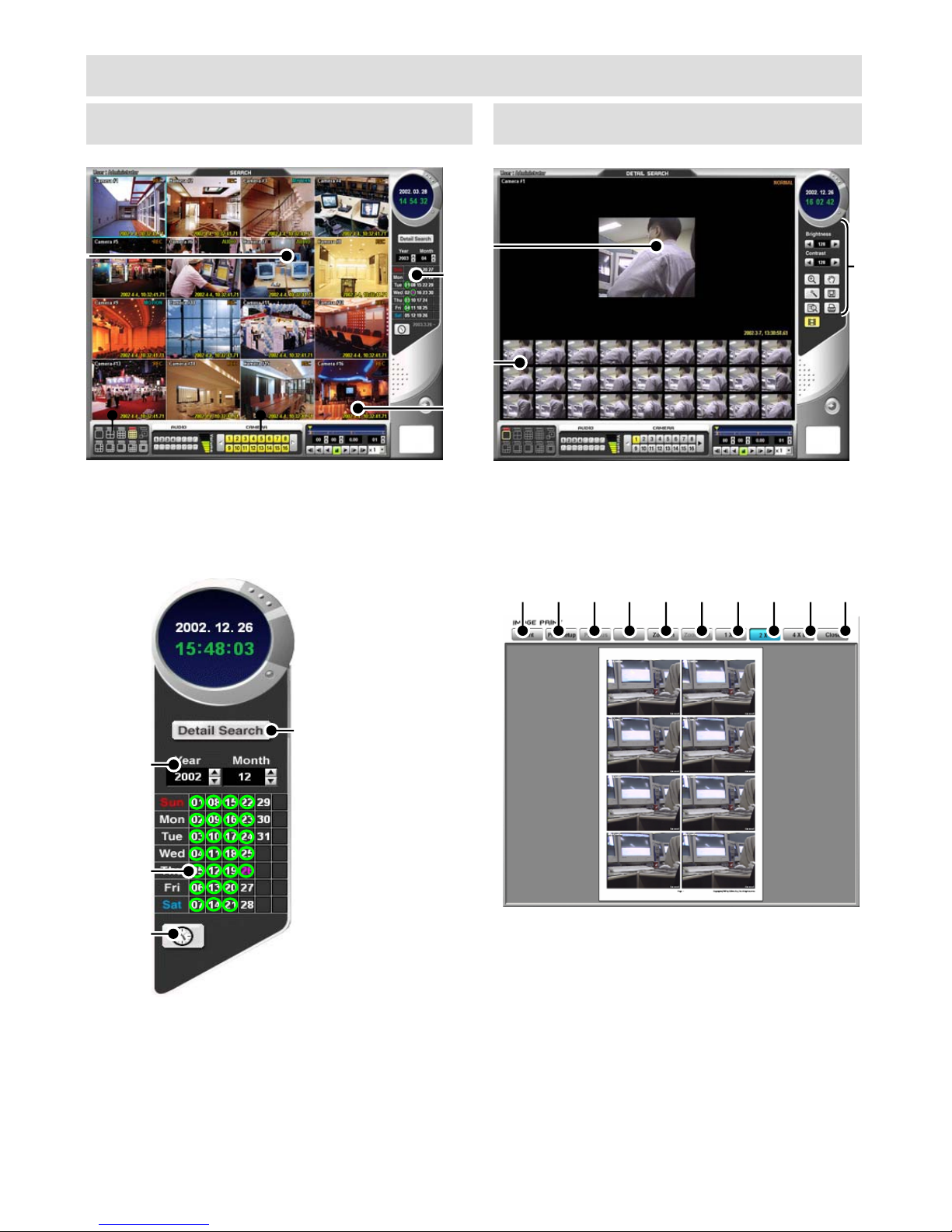

CLIENT SEARCH

Main Mode Detail Search

①

②③

① Playback Image
② Screen Division
③ Camera Selection
④Calendar
⑤ Playback Contro

l

④

⑤

①

③

②

① Playback Image
②Show continuous image
③Detail Search Menu

Zoom, Pan, AVI, JPG, BMP, Print

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

④

①

②

③

① Select Year / Month
② Show date with recorded data in circle
③ Daylight Search
④ JPG.BMP, AVI Save, Print. Color

NOTE:
JPG.BMP, AVI save is not available on
some modelse.

①Print
② Print Setup
③ Show previous image
④Show next image
⑤Zoom In
⑥Zoom Out
⑦ Preview 1X2 layout
⑧ Preview 2X4 layout
⑨ Preview 4X8 layout
⑩Clos

SPECIFICATION

CPU Celeron 2.53GHz Celeron 3.20GHz Pentium IV 3.0GHz

RAM DDR 512Mbytes

LAN 10/100mbyte

O/S Windows 2000

Camera Input 16 (NTSC/PAL)

Mux Out 1

Spot Out 1

MP 5016 MP 6016 MP 7016

Display

Record

Audio

Recording Resolution

Playback Speed Max.480fps for 16CH

Network Speed Max.240 fps for 16CH (Depends on Bandwidth and PC Spec)

File Size 1∼3 / 2∼6 / 4∼12 Kbytes (1 frame)

Compression H/W MPEG 4

Audio Compression ADPCM

Alarm (Option)

NTSC 480 fps

PAL

NTSC 240fps(1ch:30fps)

PAL

Input 8

output

In

Out

120fps(1ch:30fps)

100fps(1ch:25fps)

4

NTSC : 360x240/720x240/720x480(pixels)

PAL : 360x288/720x288/720x576(pixels)

200fps(1ch:25fps)

400 fps

1

16

16

480fps(1ch:30fps)

400fps(1ch:25fps)

16

Event Motion, Sensor

Backup CD/DVD/TERA1500,1500A

Mirroring Yes

Network LAN / Modem

Power 115-230V AC (47-63HZ)

Weight 20 kg

Dimension (mm) 431(w) x 177(h) x 457(d)

Operation Temp. +5 ∼ +40 ℃

Storage Temp. -5 ∼ +60 ℃

Humidity 30 ∼ 80 %RH (Non-condensing)
