Brief introduction
Thank you for purchasing the"Lightning"remote control model airplanes from TOP RC, and we hope this plane
will bring endless joy to you after you choose it.
1.Lightning is a sport glider for intermediate to advance pilots with basic flying skill and experience.
2.High Speed，stable flight and easy to control. Lightning can achieve axial rolls ，inverted flight ，inside loops，
outside loops and other aerobatic actions.
3.With modular and humanization design, Lightning is easy to carry and maintain.
4.With automatic heat dissipation function in power system, it ensures the high efficiency and prolongs the use life
of the motor, ESC and battery for Lightning.
5.With many Carbon Fiber reinforced Polymer material,it ensures the strong structure in the flight
Mian specifications
★Wingspan 1500mm
★Length 1016mm
★Weight 915g
★Thrust rate 1:1
Mian configuration
Motor
★ C2415-1150KV
ESC
★ 40A
Battery
★ 2200mAh 20C 11.1V
Servo
★ 9g*3+9g digital servo(metal gear)*1
Radio system
★4CH

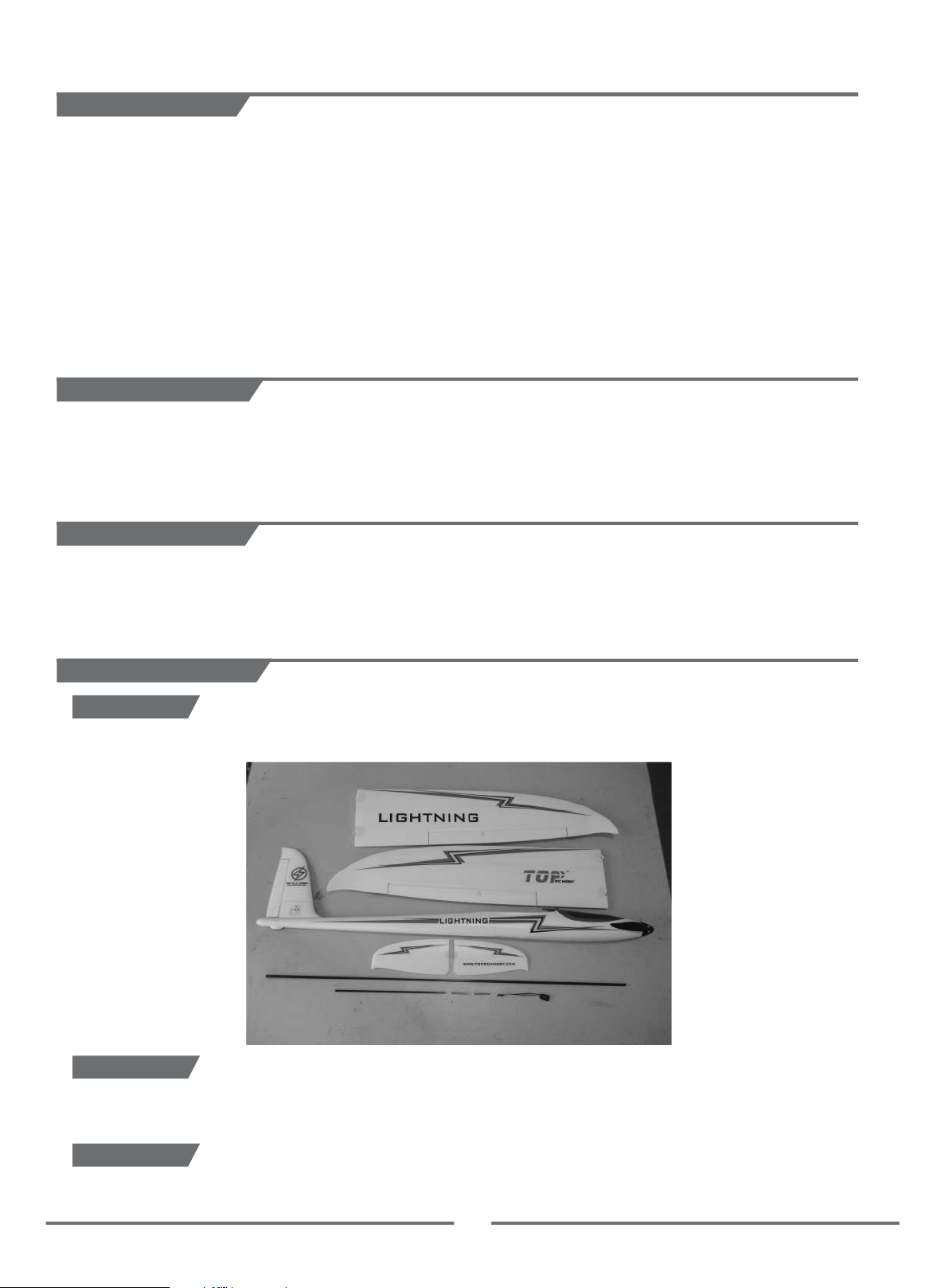

Product constitution
PNP version
Fuselage, Main Wings, Horizontal Wings,Connecting Rod for Horizontal Wings ,Connecting rod for Main Wings
ARF version
RTF Version Without Tx and Rx
KIT version
Without Any Electronic Parts
1
Page 4
Assemble processes

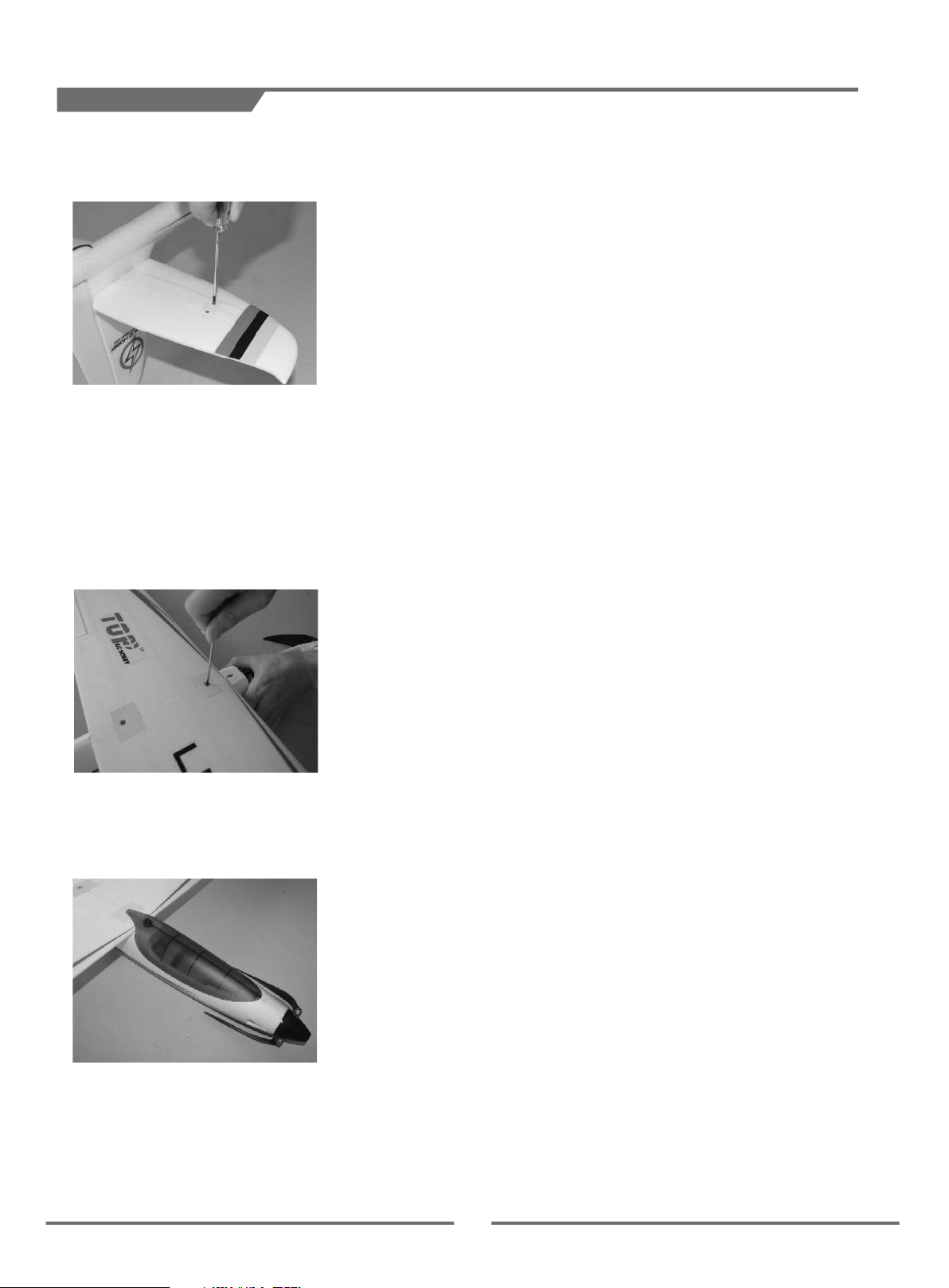

1.Assembly of the Horizontal Wings
Take of the horizontal wings and the connection rod for the horizontal wings,please install them to the assembling
groove at the tail parts of fuselage as per the right position,then lock the horizontal wings by screws.
2.Assembly of the Main Wings
Take of the Main wings&Aileron servo Y wire &Connection rod for the main wings&Screws. Firstly,please insert the
connecting rod into right and left main wings and connect them together.Then please connect aileron servo with
Receiver by the Y cable. Finally,please put the assembled main wings to the right position on the back of fuselage
and lock them by the screws.Please make sure there is no gap or shaking.
3.Close the canopy.then the assembly of "lightning"is finished
2
Page 5

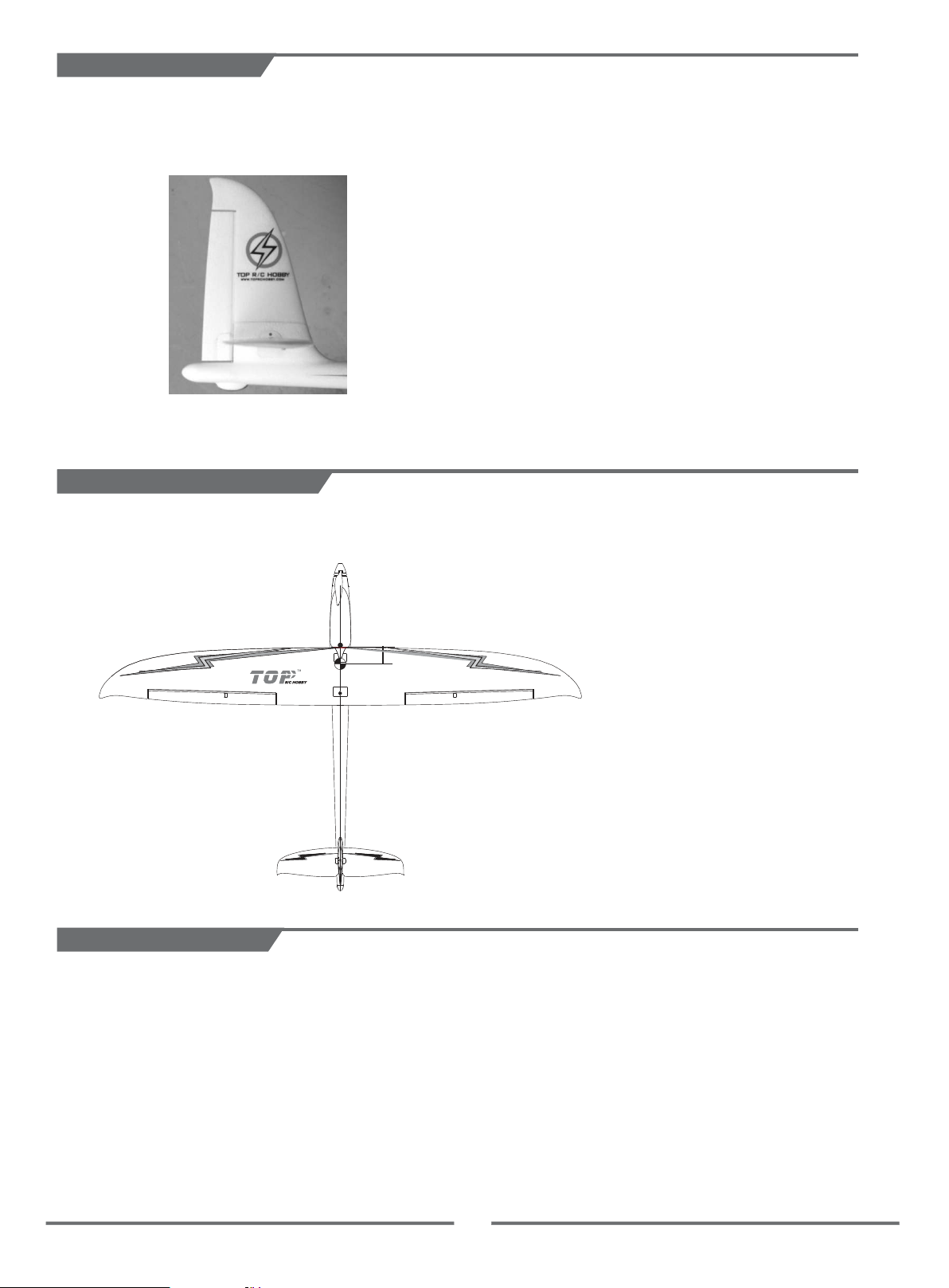

Adjustment steps
When the servo arm is at the natural position under power on,please adjust the horiztontal wing to the
location as showed in the picture.
Confirmation of CG Location
Check the center of gravity and make sure the CG of this plane should be within the range 60-50mm away from the
leading adge of the main wings as indicated in the picture.
60-50mm
LIGHTNING
Safety precautions
1.If you have the simulator, we suggest that you can practise your skill by the simulator before you fly
this model,which will bring some help for you.
2.Please climb the plane above the 50 meters with half throttle to fly it when you fly it for your first time,
then you will be familiar with the performance of this plane.
3.You should learn how to control this model blandly, it will reduce the possibility of crash and prolong
the usage life of the plane.
4.The turn radius should not be too little,or it will stall and it will increase the possibility of crash.
5.When taking off or landing the plane, you should against the wind.
6.Do not fly the model over your head or behind you, you should fly the model in front of you.
3
Page 6

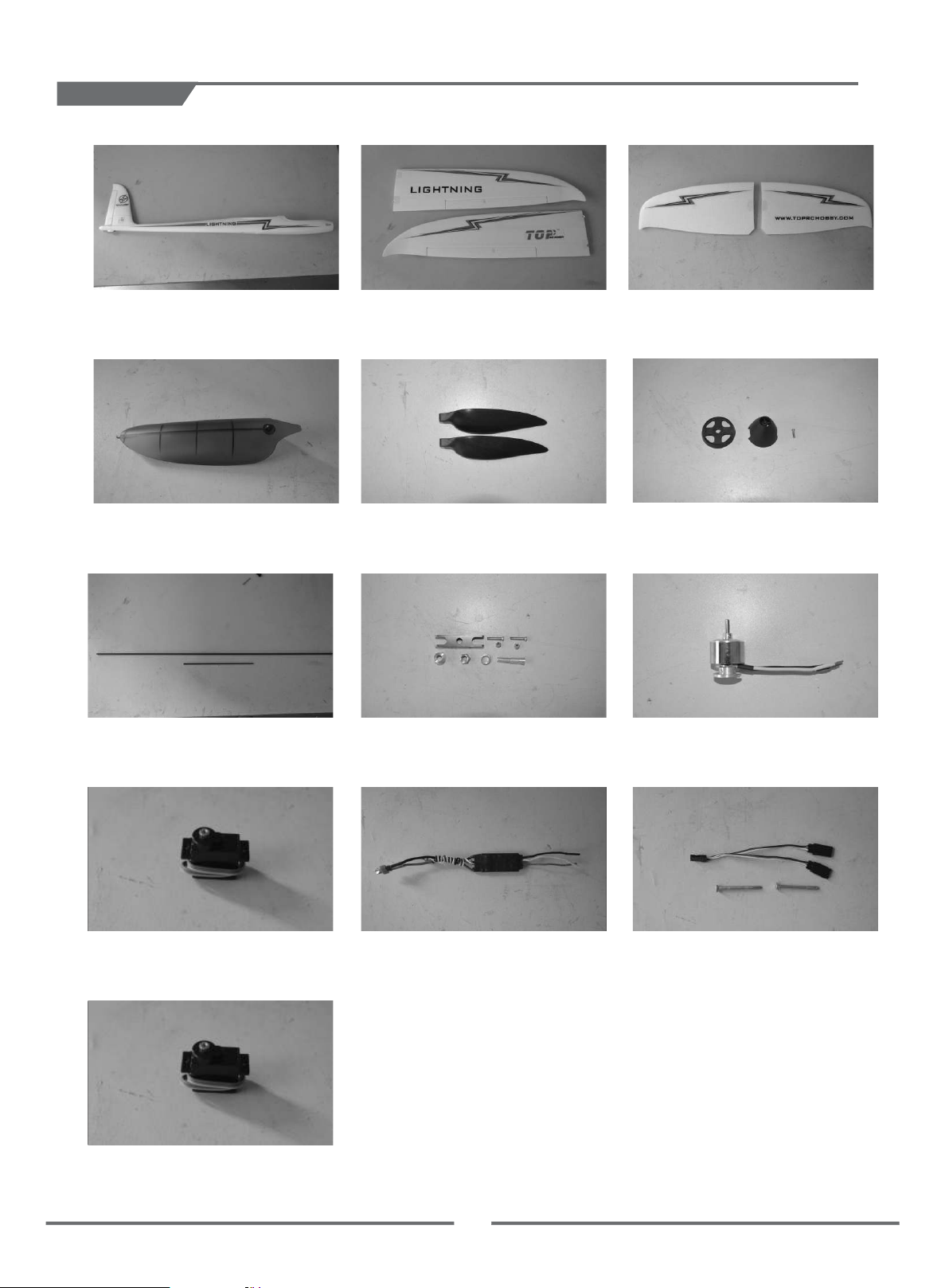

Spare parts
No:TOP03501
Fuselage set
No:TOP03504
Canopy set
No:TOP03507
Connecting rod
No:TOP03502No:TOP03503
Main wings setHorizontal wings set
No:TOP03506
Propeller set
No:TOP03509
Connector for propeller set
No:TOP03505
Spinner set
No:TOP40601
Out runner brushless C2415-1150KV
No:TOP30207No:TOP20401No:TOP03508
9g servo(metal gear)40A Brushless ESC
(with brake function)
No:Top30201
9g servo(plastic gear,wire:400mm)
Spare parts bag
4
