TD141THCA1
Tentative Ver.: 0.00

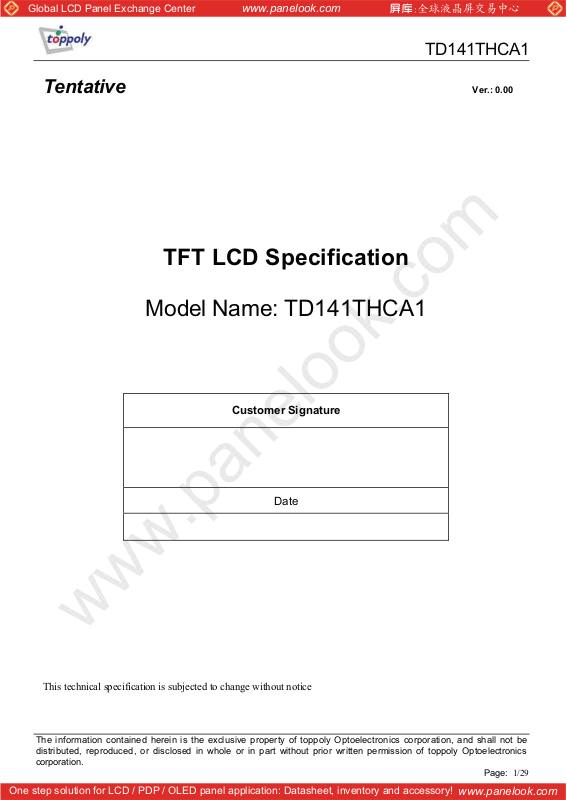

TFT LCD Specification
Model Name: TD141THCA1
Customer Signature
Date
This technical specification is subjected to change without notice
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 1/29
www.panelook.com
Page 2
Global LCD Panel Exchange Center
NO. Item Page
Cover Sheet 1
Table of Contents 2
Record of Revision 3
1 Features 4
2 General Specifications 4
3 Input / Output Terminals 5
4 Absolute Maximum Ratings 6
5 Electrical Characteristics 6
www.panelook.com
TD141THCA1
Table of Contents
6 Timing Chart 9
7 Optical Characteristics 13
8 Reliability 17
9 Handling Cautions 18

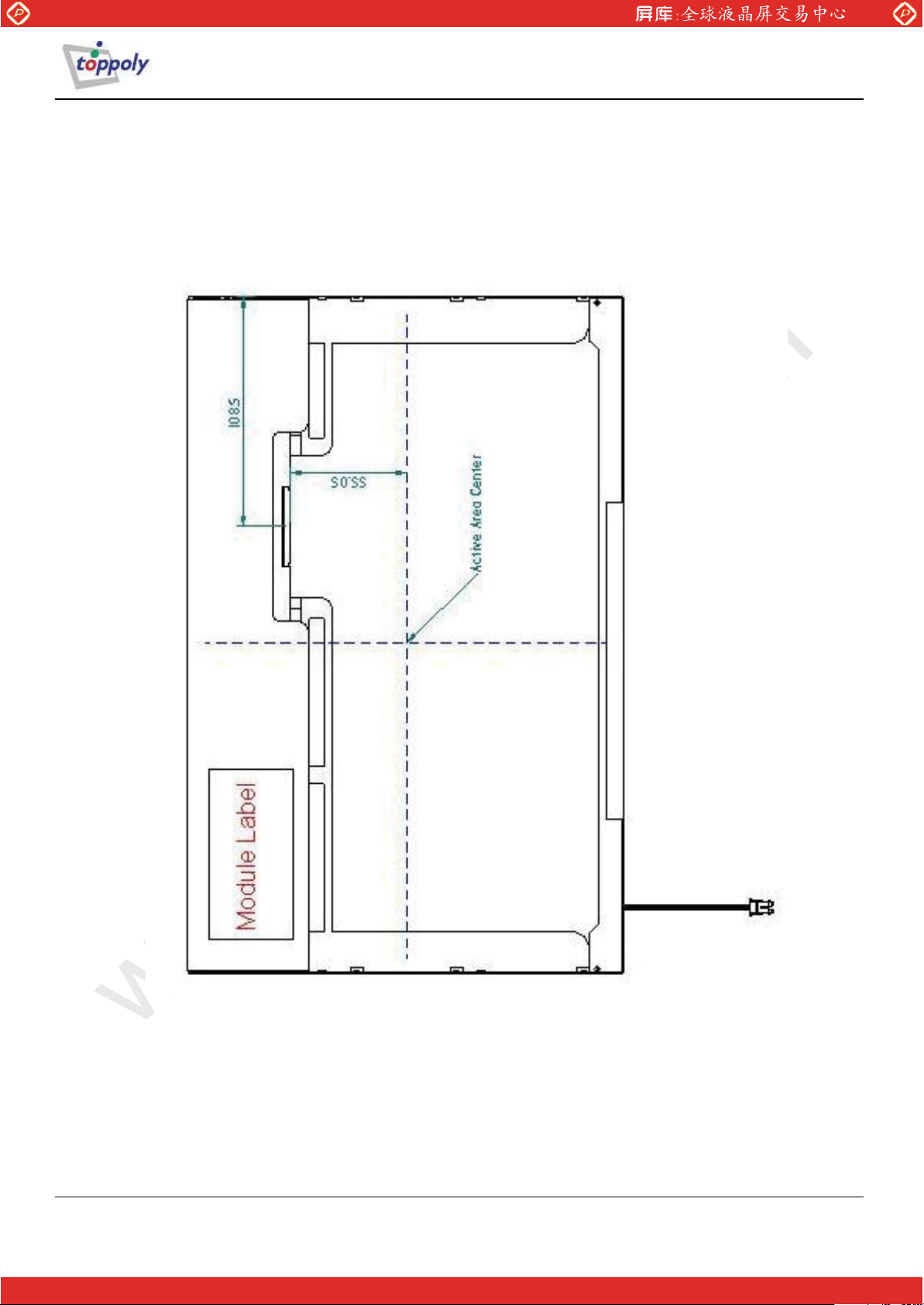

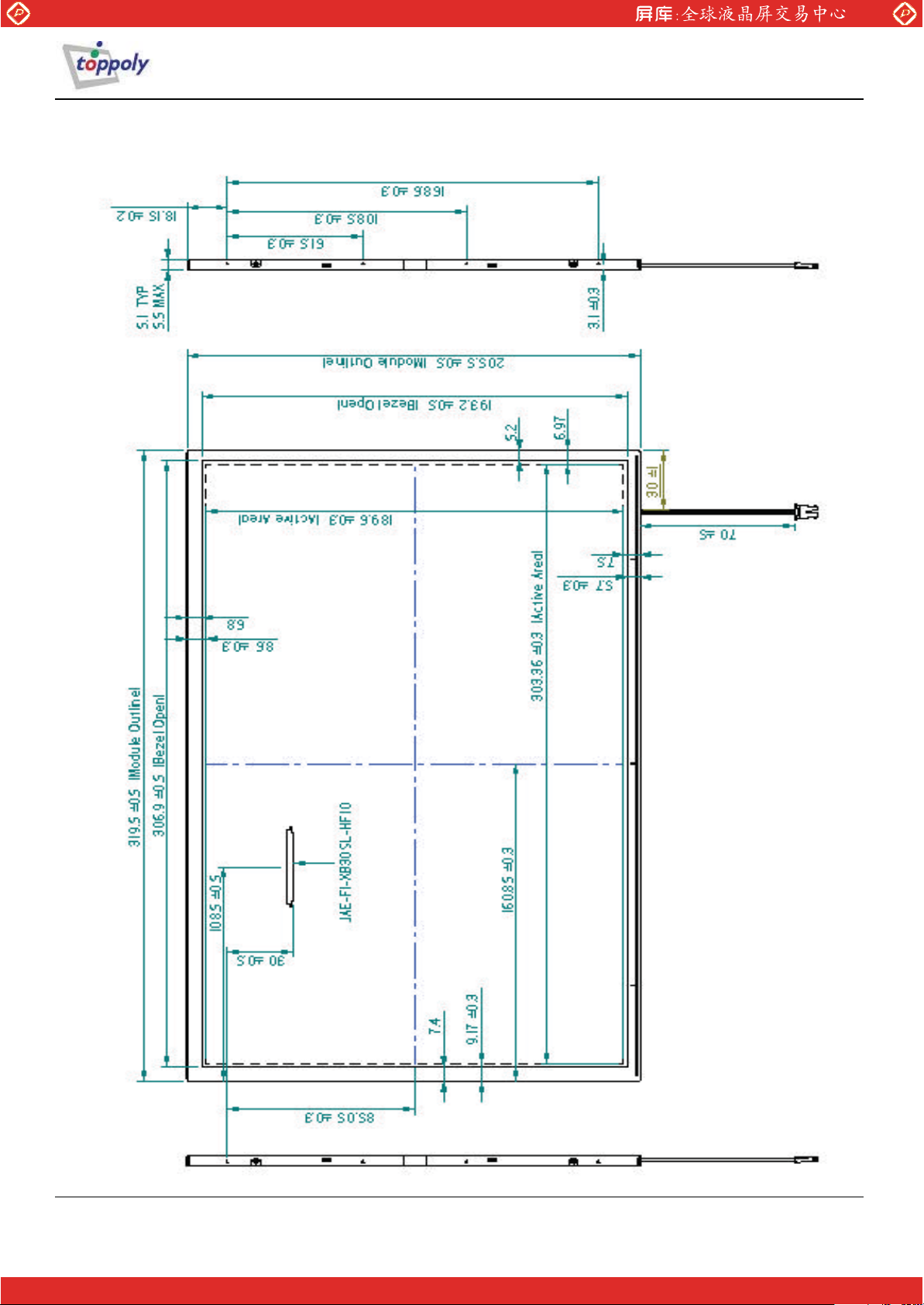

10 Mechanical Drawing 19

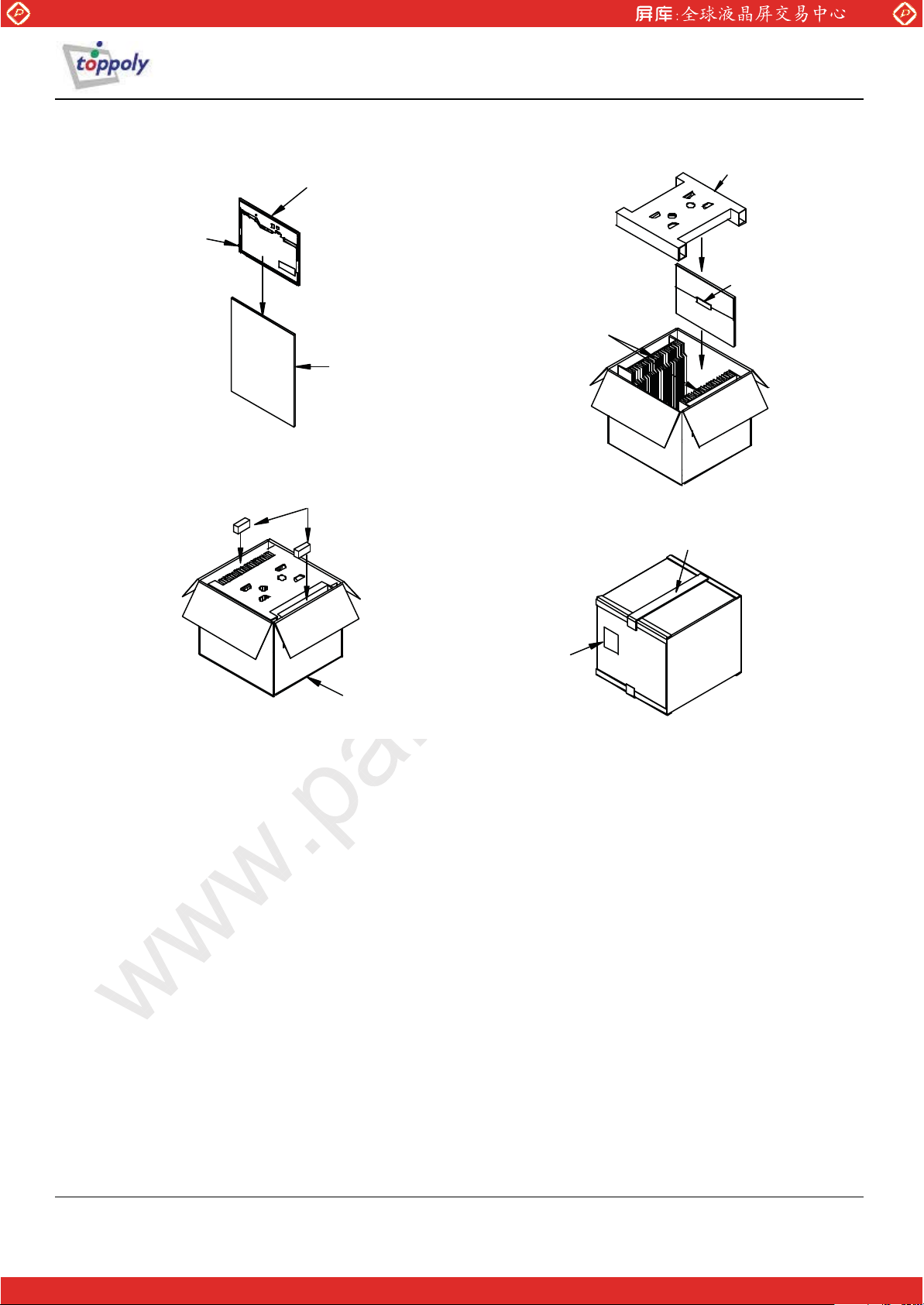

11 Packing Drawing 21
12

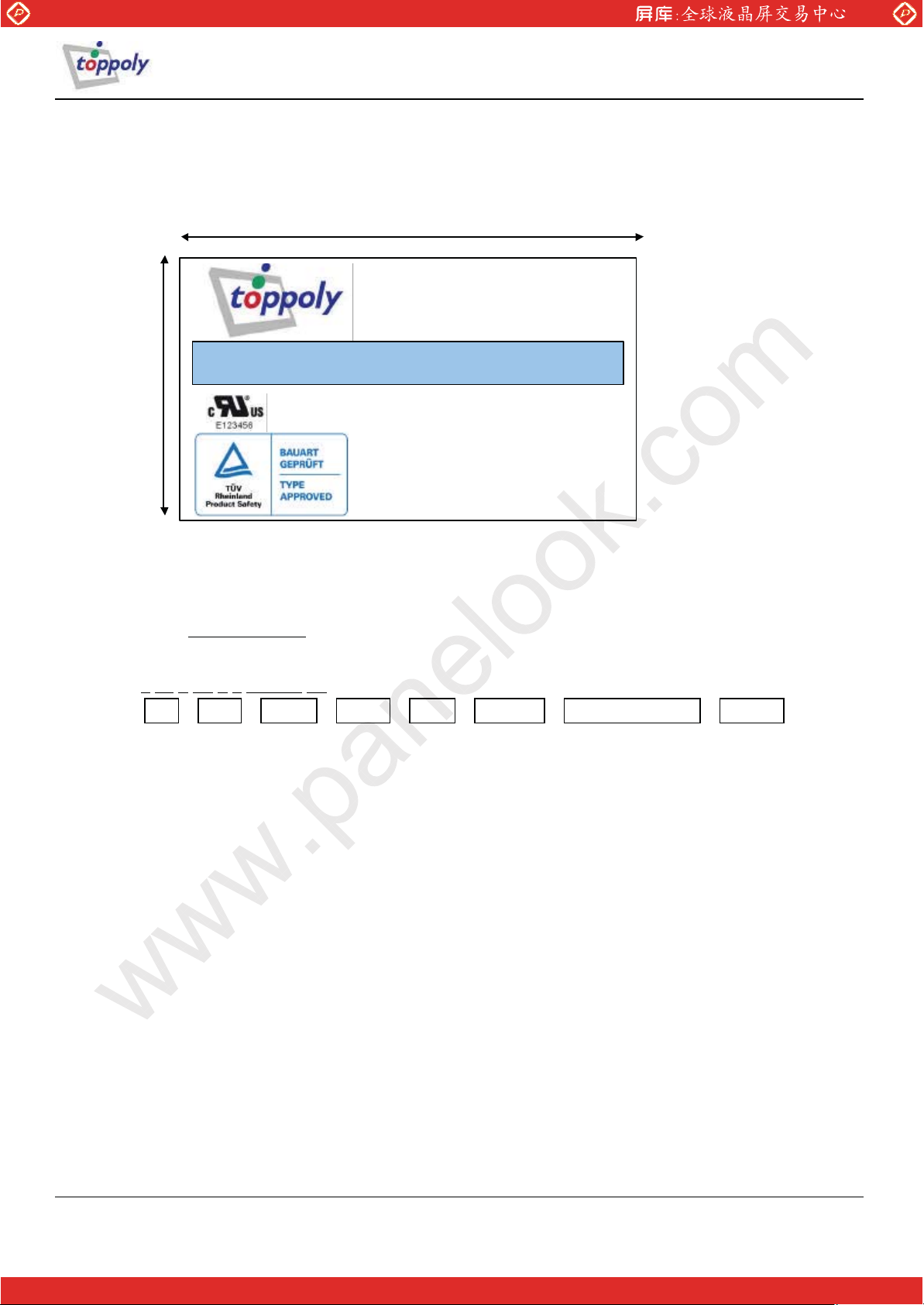

Module & Carton Label Drawing & Definition
Appendix1 EDID
22
24
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 2/29
www.panelook.com
Page 3
Global LCD Panel Exchange Center
Rev Issued Date Description
0.00 Oct. 26, 2005 New Create
www.panelook.com
TD141THCA1
Record of Revision
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 3/29
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. FEATURES
This module is a color active matrix LCD module that uses LTPS (Low Temperature Poly Silicon) TFT
(Thin Film Transistor). This module is composed of a color TFT-LCD panel, a driver circuit and a
backlight unit. The resolution of a 14.1” contains 1280 x 800 pixels and can display up to 262,144
colors.
(1) 14.1” WXGA (1280 x 800 pixels) display size for notebook PC
(2) LTPS TFT technology
(3) High contrast ratio, high aperture ratio and high-brightness
(4) LVDS interface system
(5) Onboard EDID chip
(6) Low power consumption.
(7) Thin and light weight
(8) RoHS compliant
www.panelook.com
TD141THCA1
2. GENERAL SPECIFICATIONS
Item Description Unit
Display Size 14.1” Diagonal inch
Aspect Ratio 16 : 10
Active Area 303.4 (H) x 189.6 (V) mm
Number of Dots 1280 (H) x RGB x 800 (V) dot
Pixel Pitch 0.237 (H) x 0.237 (V) mm
Color Arrangement R, G, B Vertical Stripe
Outline Dimension (typ.) 319.5 (H) x 205.5 (V) x 5.1 (T) mm
Weight (typ.) 415 g
Display Mode Normally White
Surface Treatment Glare + 3H Hard coating
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 4/29
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
3. INPUT/OUTPUT TERMINALS
3.1 TFT LCD Panel
Recommend Connector Type JAE FI-XB30S-HF10 or Compatible
TD141THCA1
Matching Connector Type
FPC : FI-X30M or Compatible
WIRE : FI-X30H or Compatible
Pin No Symbol Function Polarity Remark
1 VSS Ground
2 VDD Power supply +3.3 v
3 VDD Power supply +3.3 v
4V
EDID
DDC 3.3V power
5 NC Reserved for supplier test point
6 Clk
7 DATA
EDID
EDID
DDC Clock
DDC Data
8 Rin0- -LVDS differential data input (R0~R5, G0) Negative
1CH
9 Rin0+ +LVDS differential data input (R0~R5, G0) Positive
10 VSS Ground
11 Rin1- -LVDS differential data input (G1~G5, B0~B1) Negative
1CH
12 Rin1+ +LVDS differential data input (G1~G5, B0~B1) Positive
13 VSS Ground
14 Rin2- -LVDS differential data input (B2~B5, DE, Hsync, Vsync) Negative
1CH
15 Rin2+ +LVDS differential data input (B2~B5, DE, Hsync, Vsync) Positive
16 VSS Ground
17 Clk IN- -LVDS differential clock input (Clock input) Negative
1CH
18 Clk IN+ +LVDS differential clock input (Clock input) Positive
19 VSS Ground
20 No connect
21 No connect
22 VSS Ground
23 N.C No connect
24 N.C No connect
25 VSS Ground
26 N.C No connect
27 N.C No connect
28 VSS Ground
29 N.C No connect
30 N.C No connect
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 5/29
www.panelook.com
Page 6
Global LCD Panel Exchange Center
3.2 Light Source
Light Source Type: CCFL Back Light
Recommend Connector Type：JST BHSR – 02VS - 1
Pin NO. Symbol Color Function
1VHPink High Voltage
2VLWhite Low Voltage
4. ABSOLUTE MAXIMUM RATINGS
Item Symbol MIN MAX Unit Remark
Power Supply Voltage Vcc Vss-0.3 4.0 V
www.panelook.com
TD141THCA1
GND =0V
Logic Input Voltage Vin Vss-0.3
Lamp Current I
Lamp Frequency F
L
L
2.0 7.0
50 80 KHz
Operating Temperature Topr 0 +50
Storage Temperature Tstg -25 +60
Vss+0.3
（
）
V
rms
mA
℃
℃
Storage Humidity Hstg 10 90 %RH Note 4-1
Note 4-1: Maximum wet – bulb temperature at 39
or less.（Ta＞40
℃
No condensation
℃）
5. ELECTRICAL CHARACTERISTICS
5.1 TFT LCD Module
Item Symbol MIN TYP MAX Unit Remark
Voltage of power supply V
Differential Input
Threshold Voltage
Rush Current I
V
HIH
V
HIL
RUSH
V
I
DD
HIH
V
HIL
RUSH
3.0 3.3 3.6 V
-- -- 100 mV
V
-100 -- -- mV
-- -- 1.5 A Note 5.1
Ta=25
= +1.2V
CM
℃
Vsync Frequency f
Hsync Frequency f
Main Frequency f
V
H
DCLK
40 60 -- Hz
31.9 47.8 -- KHz
68 71 85 MHz
White -- 280 -- mA Note 5.2
Current of Power Supply
Mosaic -- 335 -- mA Note 5.2
Black -- 397 -- mA Note 5.2
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 6/29
www.panelook.com
Page 7
Global LCD Panel Exchange Center
Note 5-1: Refer to the following power-on condition
www.panelook.com
TD141THCA1
VDD rising time is 470 us
0.9V
DD
GND
0.1VDD
470us
Note 5-2: Power are measure as following test condition: fV=60 Hz, f
Current
Driving TFT LCD Module Block Diagram
1-CH LVDS INTERFACE
EDID Chip
Timing
Controller
DC to DC
Level
Shifter
Gamma
Reference
Common
Circuit
3.3V
=71 MHz, VDD =3.3V, DC
DCLK
PCB
LTPS WXGA Panel
4 ea 350 Pin
DRIVER With
TCP
PACKAGE
LVDS
DC POWER
SIGNAL LINE
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 7/29
www.panelook.com
Page 8
Global LCD Panel Exchange Center
5.2 Driving Backlight
The backlight system is an edge – lighting type with a single CCFL (Cold Cathode Fluorescent Tube)
The characteristics of a single lamp are shown in the following tables.
www.panelook.com
TD141THCA1
Ta=25
℃
Item Symbol MIN TYP MAX Unit Remark
Lamp Current I
Lamp Voltage V
Power Consumption P
Frequency F
L
L
L
L
3.0 6.0 6.5 mArms Note 5-1
I
576 680 704 Vrms
L
＝
6mA
-- 4.08 -- W Note 5-2
50 60 80 kHz Note 5-3
Operating Life time Hr 15,000 -- -- Hour Note 5-4
Lamp starting voltage Vs -- --
1160（25
1450（0
℃）
Vrms Note 5-5
℃）
Note) The performance of backlight, for example life time or brightness are deep influence by the
characteristic of the inverter. So all the parameters of inverter should be designed carefully. And
should not to produce too much leakage current from high-voltage output of the inverter.
The Inverter should be designed with the characteristic of lamp. Please make sure that a poor
lighting cause by the mismatch of the backlight and inverter never occur.
Note 5-1: Lamp current is measured with a high frequency current meter as show below.
High Voltage：(Pink)
LCD
Module
1
Low Voltage：(White)
2
Inverter
A
Switching Frequency：(50~80)KHz
Note 5-2: W＝I
Note 5-3: Lamp frequency may produce interference with horizontal synchronous frequency and this
may cause line flow on the display. Therefore lamp frequency shall be detached from the
horizontal synchronous frequency and its harmonics as far as possible in order to avoid
interference.
Note 5-4: Operating Life time is defined as lamp which are continue to operate under the condition
Ta=25℃ and I
brightness.
(TYP)× VL(TYP)
L
6mArms until the brightness is decreased to the 50% or lower than the initial
＝
L
Note 5-5: Above this value should be applied to the lamp for more than 1 second to startup, otherwise
the lamp may not be turned on.
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 8/29
www.panelook.com
Page 9
Global LCD Panel Exchange Center
6. TIMING CHART
6.1 1CH LVDS Channel Interface Data Mapping Diagram
(n-1)th cycle Present (n)th cycle (n+1)thcycle
ORXCLK+
ORXCLK-
www.panelook.com
TD141THCA1
ORX0(+/-)
ORX1(+/-)
OEX2(+/-)
OR1 OR0 OG0 OR5 OR4 OR3 OR2 OR1 OR0 OG0
OG2 OG1 OB1 OB0 OG5 OG4 OG3 OG2 OG1 OB1
OB3 OB2 DE Vsync Hsync OB5 OB4 OB3 OB2 DE
Note1: R/G/B [5] are the MSBs and R/G/B[0] are LSBs
6.2 Pixel Format in Display
1 1280
Line 1
R G B R G B R G B R G B
Active
TD141THCA1
R G B R G B R G B R G B
Line 800
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
Area
Edge
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 9/29
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com

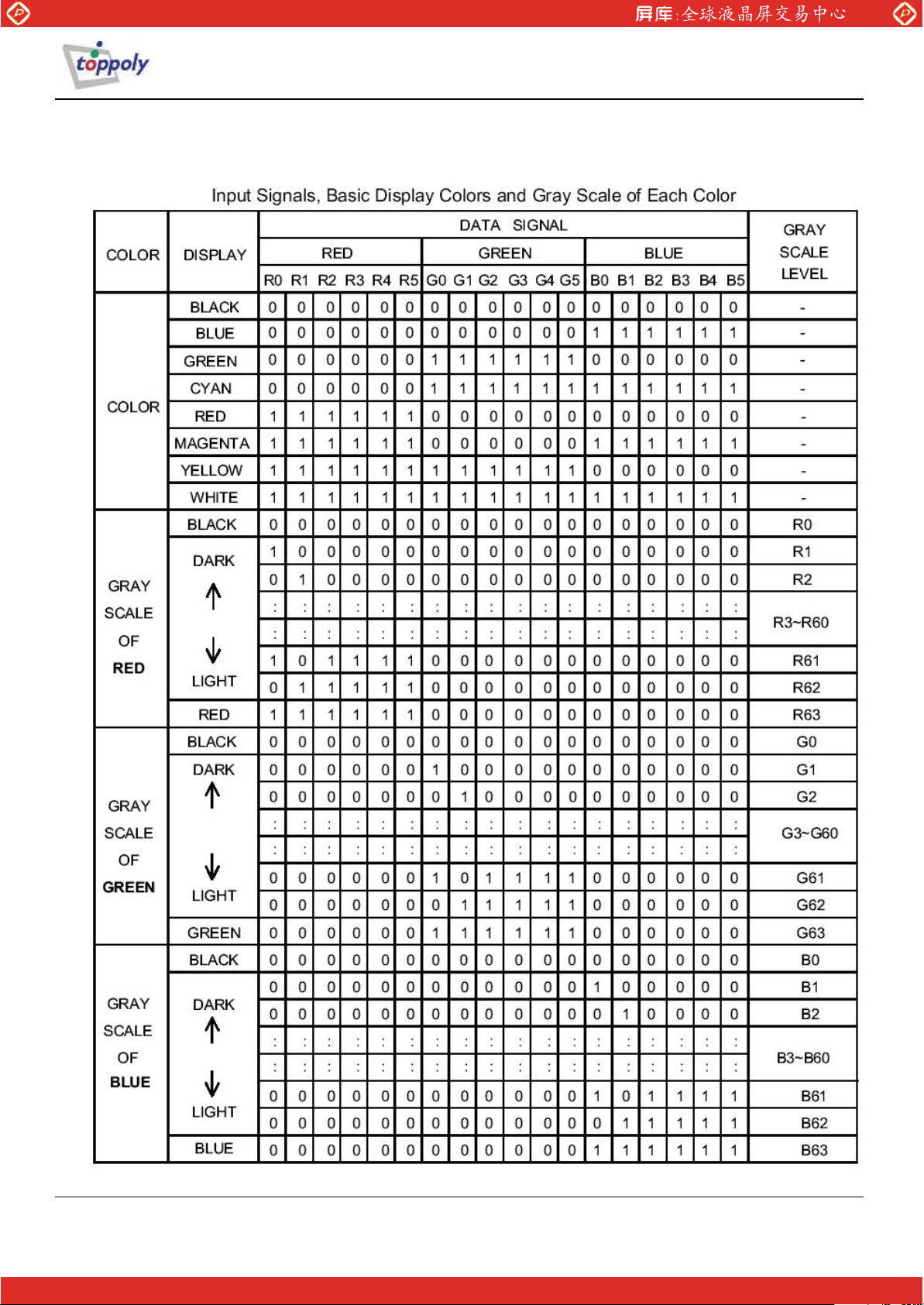

6.3 Input Signals, Basic Display Color and Gray Scale of Each Color
TD141THCA1
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 10/29
www.panelook.com
Page 11
Global LCD Panel Exchange Center
6.4 Interface Timing
a. Timing Parameters
Signal Item Symbol MIN TYP MAX Unit Note
www.panelook.com
TD141THCA1
Frame Frequency Cycle T
Vertical Active
Display Period T
Display Time
One Line
Cycle T
Scanning Time
Horizontal Active
Display Period T
Display Time
NOTE*: Tc = ain frequency’s clocks.

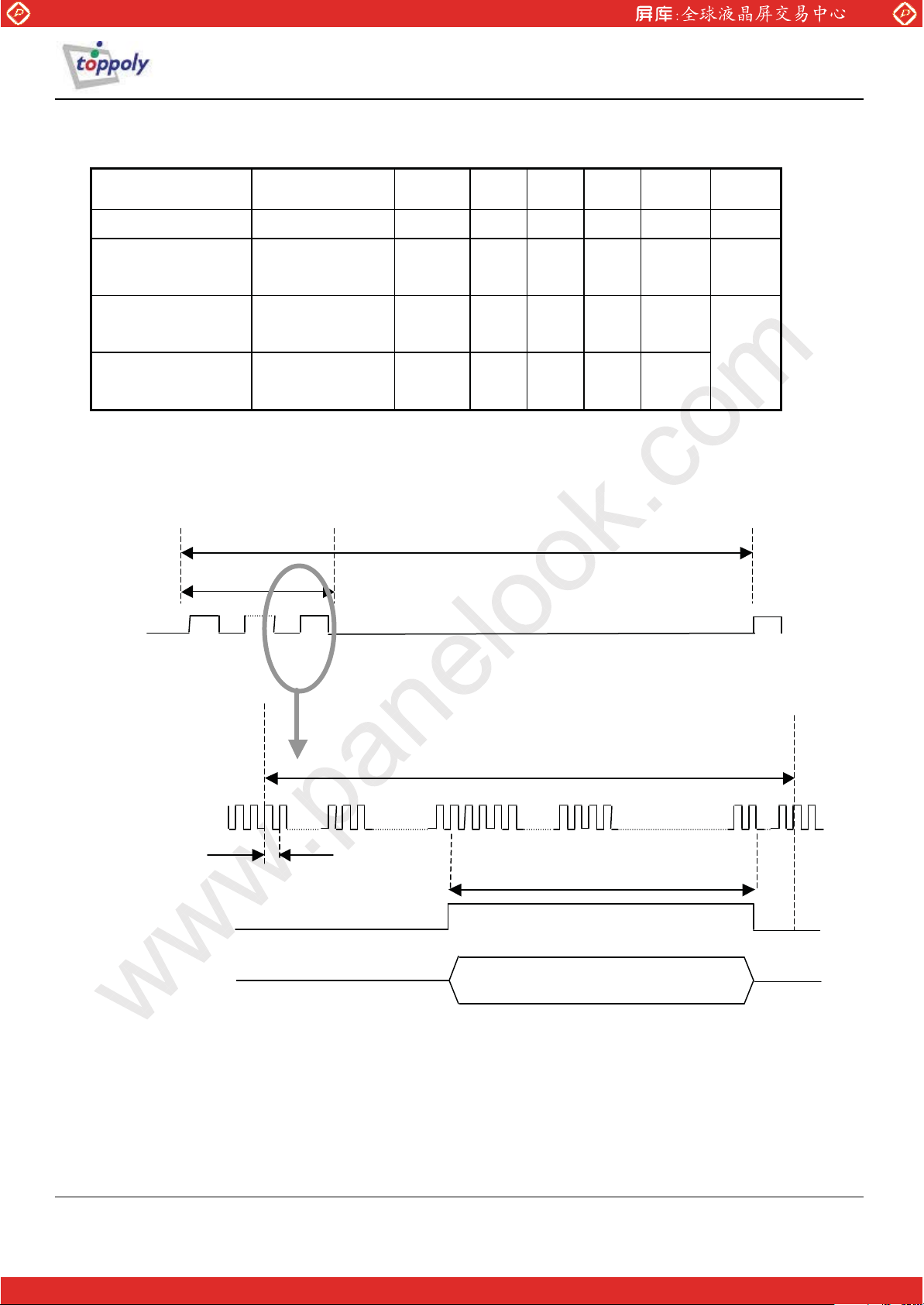

b. Timing Diagrams Of Interface Signal
T
VD
DE
V
VD
H
HD
T
V
- 823 - Lines
- 800 - Lines
- 1440 - Tc*
- 1280 - Tc*
T
H
DCLK
T
C
T
HD
DE
DATA
Valid display data (1280 pixel)
SIGNALS
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
Page: 11/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center

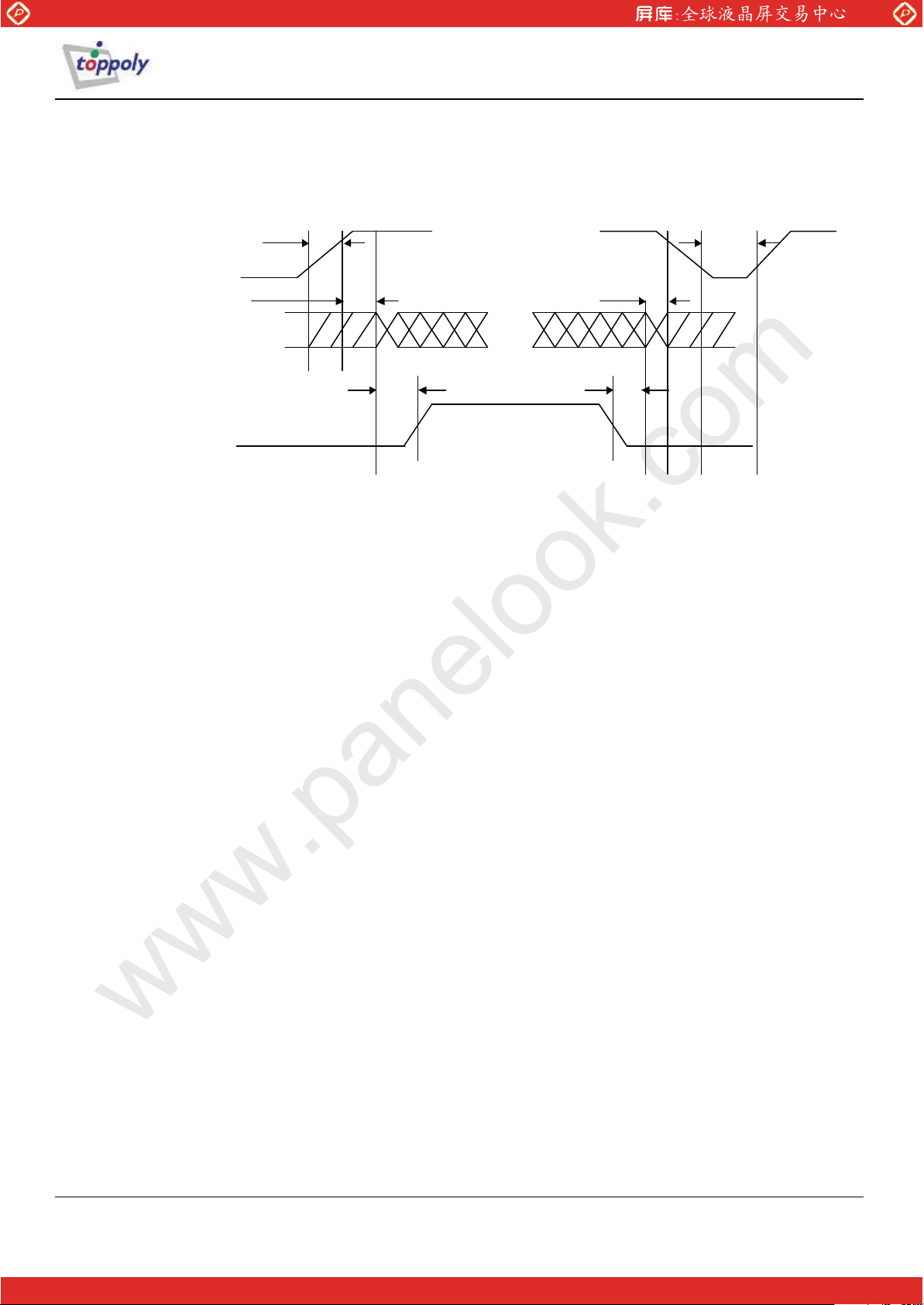

6.5 Power ON/OFF Sequence
To prevent a latch-up or DC operation of the LCD module, the power on/off sequence should be as
the diagram below.
0.1VDD 0.9VDD 0.9VDD 0.1VDD 0.1VDD
www.panelook.com
TD141THCA1
Power Supply VDD
LVDS Interface
Backlight
T1≦10ms 0≦T2≦50ms 0≦T3≦50ms 400ms≦T4 200ms≦T5 200ms≦T6
T1: VDD rising time from 0.1 VDD to 0.9 VDD.
T2: The time from 0.9VDD to valid data at power ON.
T3: The time from 0.9VDD to valid data at power OFF.
T4: VDD off time for window restarts.
T5: The time from valid data to B/L enable at POWER ON.
T6: The time from valid data off to B/L disable at power OFF.
0V
T1
T2
VALID
T5
50% 50%
T4
T3
T6
Apply the lamp voltage within the LCD operation range. When the backlight turns on before the LCD
operation or the LCD turns off before the backlight turns off, the display maybe momentarily become
white.
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 12/29
www.panelook.com
Page 13
Global LCD Panel Exchange Center
7. OPTICAL CHARACTERISTICS
7.1 Optical Specification
Item Symbol Condition MIN TYP MAX Unit Remarks
www.panelook.com
TD141THCA1
Ta=25
℃
Hor.
Θ
Viewing
Angle
Θ
Θ
Ver.
Θ
Contrast ratio
CR 300 - - Note 7-2
(5 Point
）
Rising Tr - 8 10
Response time
Falling Tf - 16 20
Luminance of White (5 Point) Y
R
Red
R
G
Color
Green
G
Chromaticity
B
(CIE1931)
Blue
B
11
12
21
22
L
X
Y
X
Y
X
Y
CR≧10
At center point
（
=0°
Θ
=0°
Φ
Normal
Viewing
Angle
40 45 -
40 45 -
degree Note 7-1
）
15 20 -
40 45 -
ms Note 7-4
150 185 - cd/m2Note 7-5
0.543 0.573 0.603
0.311 0.341 0.371
0.283 0.313 0.343
0.524 0.554 0.584
0.118 0.148 0.178
0.09 0.120 0.150
Note 7-6
W
White
W
δ
X
Y
L5
5 Points 0.8 - -
White Variation
δ
L13
13 Points 0.65 - -
7.2Basic measure condition
(1) Ambient temperature: Ta=25
(2) Vcc = 3.3V
°
(3) Fv = 60Hz
(4) f
= 108MHz(1CH) / 54MHz(2CH)
DCLK
(5) IL = 6mA
(6) Inverter model: HIU-766 (62K)
Environmental illumination:≦1 lux
(7) Optical measuring equipment are TOPCON BM-5A
℃
0.280 0.310 0.340
0.300 0.330 0.360
Note 7-3
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 13/29
www.panelook.com
Page 14
Global LCD Panel Exchange Center

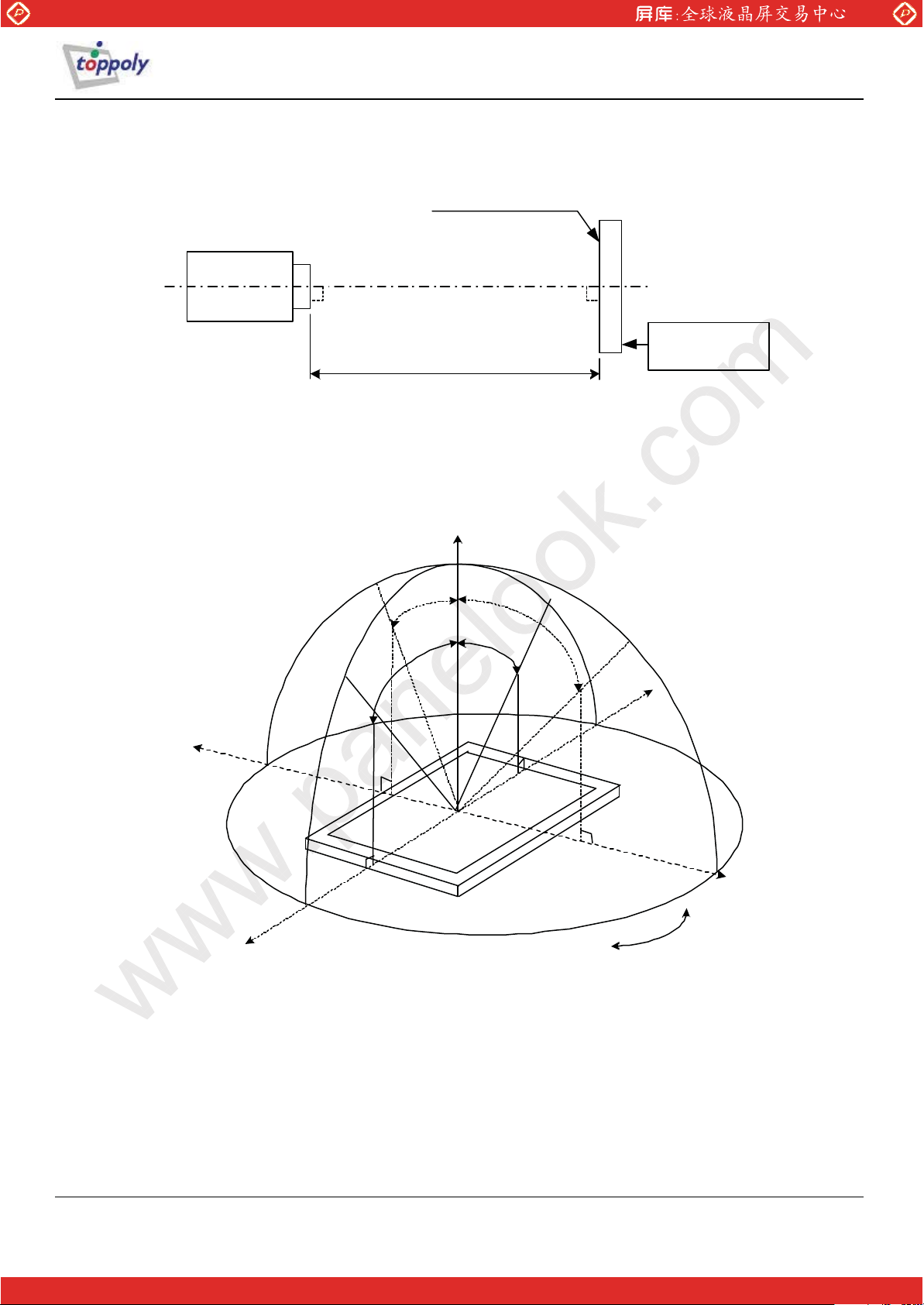

(8) Testing facility
Photometer
Note 7-1: Viewing angle diagrams:
www.panelook.com
TFT LCD Module
with Backlight
500mm
TD141THCA1
Video Signal
Input
: Viewing Angle
Θ
: Viewing Direction
Φ
12 O'clock
=90
Φ
°
9 O'clock
=180
Φ
°
Normal
Θ
21
Θ
12
Θ
= 0
Θ
°
Θ
11
22
Φ
3 O'clock
Φ=0°
6 O'clock
Φ
=270
°
TFT LCD Panel
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 14/29
www.panelook.com
Page 15
Global LCD Panel Exchange Center
m

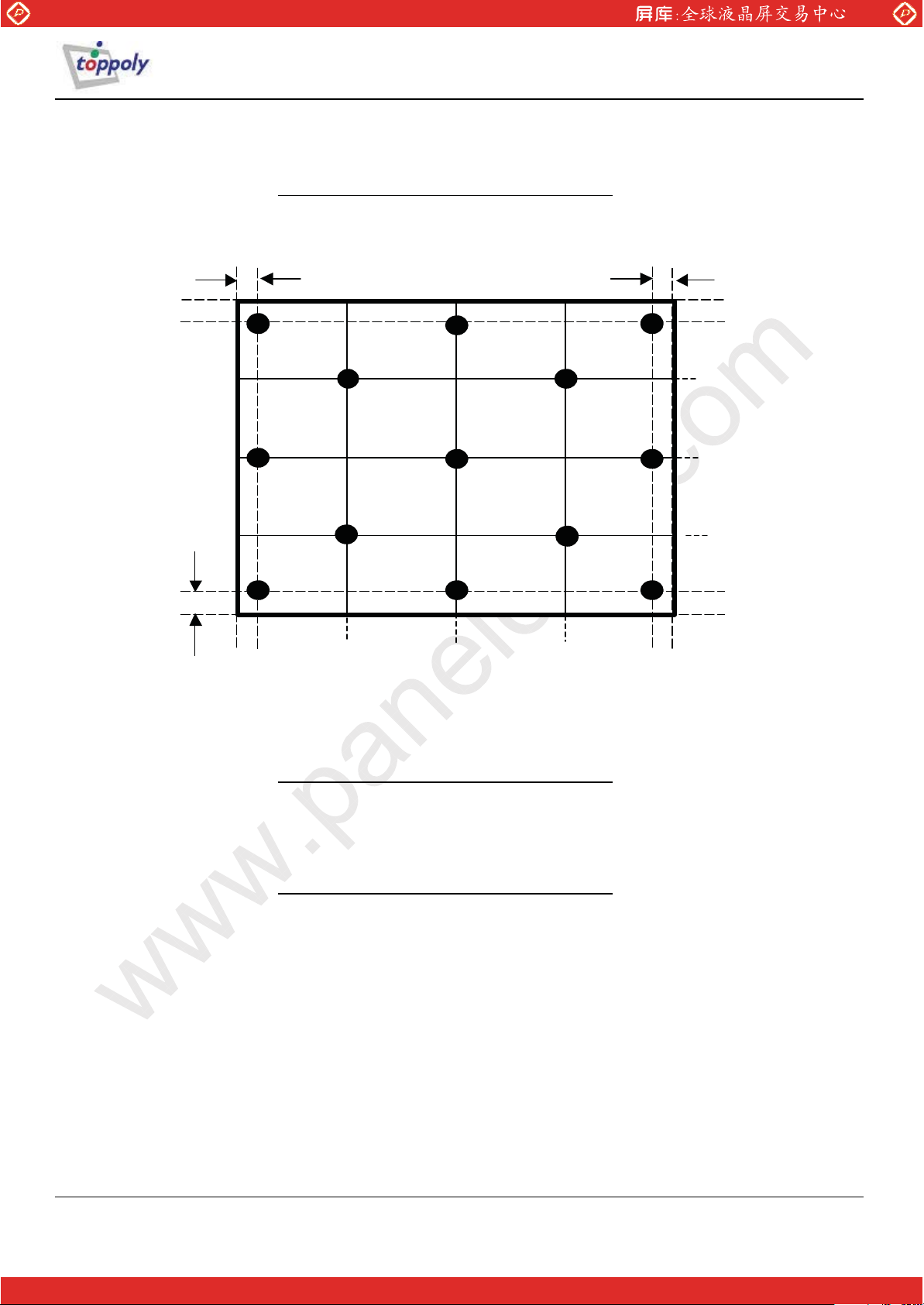

Note 7-2: Definition of Contrast ratio：Ratio of gray max (Gmax), gray min (Gmin) at 5 point
www.panelook.com
TD141THCA1
10mm
CR =
CR(A) + CR(B) +CR(C) + CR(D) +CR(E)
5
10m
FG
A
B
H
C
K
I
D
E
L
J
M
(100%)
(75%)
(50%)
(25%)
(0%)
(0%) (100%)
Note 7-3: Definition of uniformity;
(1)5 points, Test point (A,B,C,D,E) as Note 7-2
=
δ
L5
(2)13 points, Test point as Note 7-2
=
δ
L13
Minimum Luminance of 5 point
Maximum Luminance of 5 point
Minimum Luminance of 13 point
Maximum Luminance of 13 point
(50%)(25%) (75%)
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 15/29
www.panelook.com
Page 16
Global LCD Panel Exchange Center
m

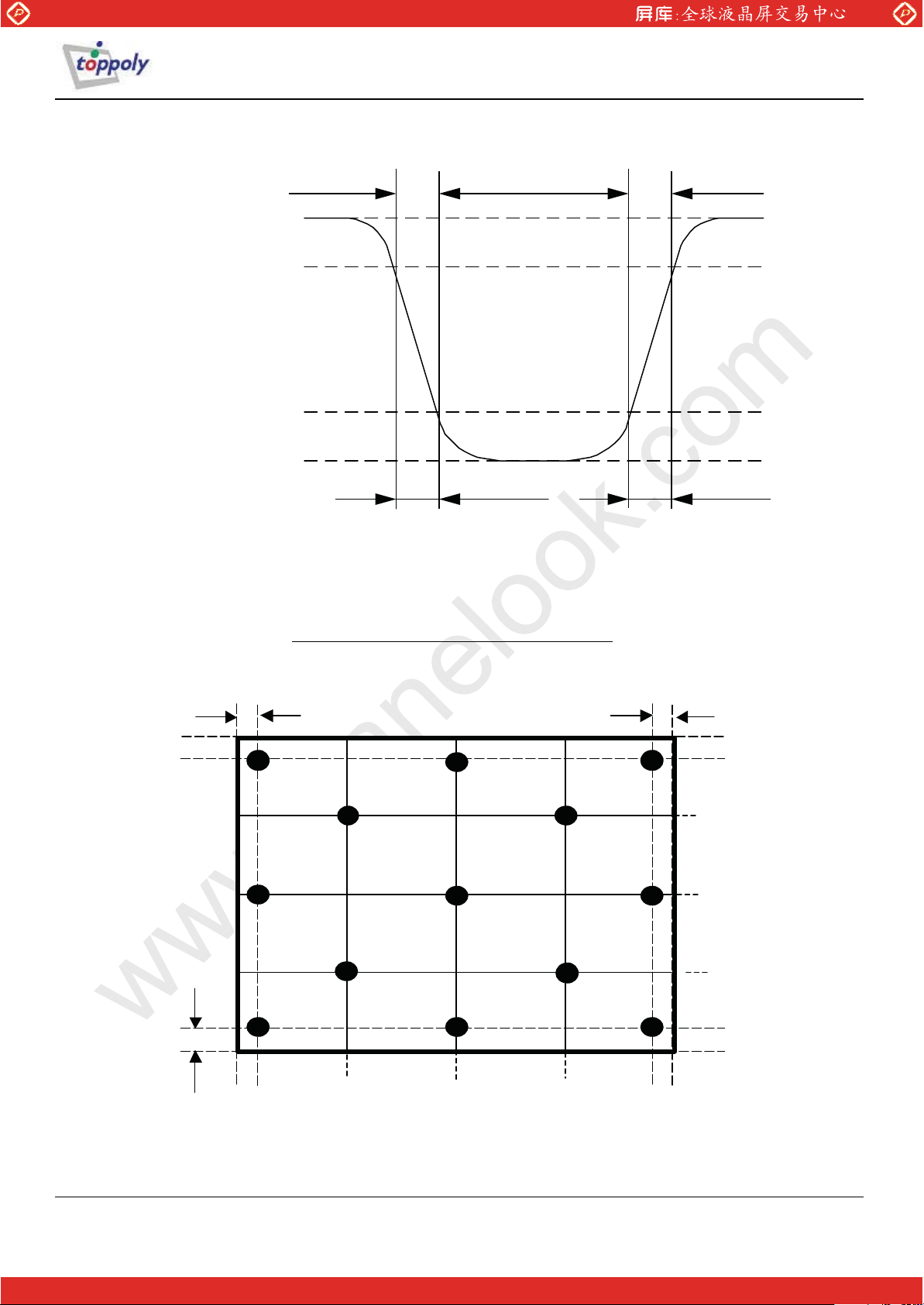

Note 7-4: Definition of response time:
www.panelook.com
TD141THCA1
White
Black
White
100%
90%
Luminance
10%
0%
Tr Tf
Note 7-5: Definition of Average Luminance of White：measure the luminance of white at 5 points.
Luminance of White (5 Point)（YL,
AVE
）
10mm
YL,
Y
+ YB + YC + YD+ Y
AVE
=
A
5
E
FG
A
C
I
D
K
L
10m
(100%)
H
B
(75%)
(50%)
J
E
(25%)
M
(0%)
(0%) (100%)
Note 7-6: To be measured in dark room environment and after lighting the backlight for 30 minutes.
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
(50%)(25%) (75%)
Page: 16/29
www.panelook.com
Page 17
Global LCD Panel Exchange Center

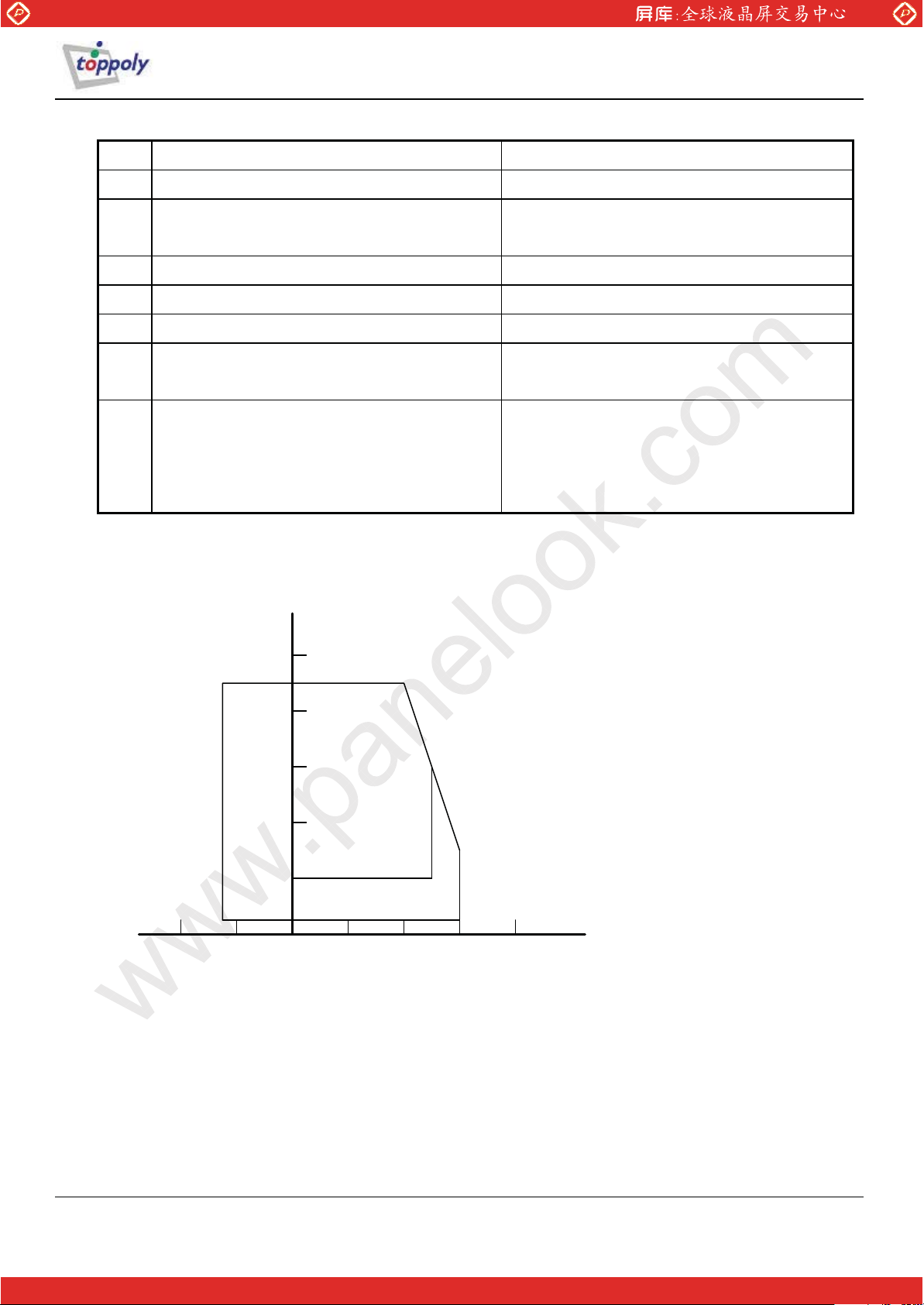

8. RELIABILITY
No Test Item Condition
www.panelook.com
TD141THCA1
1 High Temperature Operation
Ta=+50℃, 240hrs
2 High Temperature & High Humidity Operation
Ta=+40℃, 90% RH, 240hrs
No Condensation
3 Low Temperature Operation
4 High Temperature Storage
5 Low Temperature Storage
Ta=0℃, 240hrs
Ta=+60℃, 240hrs
Ta=-25℃, 240hrs
6 Shock (non-operation) Half-sine wave 220 G, 2ms, ±X, ±Y, ±Z
(Once for each direction)
7 Vibration (non-operation) Frequency: 10~500~10Hz
1.5 x 9.8m/s2 constant
Amplitude: 1.5mm; Sweep Time: 15min
Test Time: 1.0 hr for each direction of X, Y, Z
Ta: Ambient Temperature
Note 8.1: Evaluation should be tested after one hour of room temperature storage.
Note 8.2: Temperature and relative humidity range is shown as below.
Relative Humidity (% RH)
100
80
60
Operating Range
40
20
Storage Range
0 20406080-20-40
Temperature (℃)
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 17/29
www.panelook.com
Page 18
Global LCD Panel Exchange Center
9. HANDLING CAUTIONS
9.1 Module assembly working environment should in the clean room.
9.2 The polarizer is easy damaged, handle it carefully and do not press or scratch the surface by
sharp material.
9.3 Panel has polarizer protective film in the surface please remove the protection film of polarizer
slowly to prevent the electrostatic discharge.
9.4 Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
9.5 It is not permitted the pressure or impulse on the module, it may cause LCD panel or Backlight
damaged.
9.6 Wipe panel surface with special clean cloth of LCD when the surface is dirty.
9.7 Turn off the power supply before connecting and disconnecting signal input cable.
9.8 The lamp wire is very weak, do not handle panel only by lamp wire.
9.9 As the packing bag open, watch out the environment of the panel storage. High temperature and
www.panelook.com
TD141THCA1
high humidity environment is prohibited.
9.10 Please to storage the LCD module within the specification condition. High temperature or high
humidity environment may reduce the module performance.
9.11 Do not disassemble the module.
9.12 Do not touch the backlight connecter. The backlight start voltage about 1000Volts.it may cause
electrical shock.
9.13 Mounting screw hole can sustain torque 1.3 ~ 2.5 Kgf-cm.
9.14 Do not adjust the variable resistor that is located on the module back side.
9.15 I/F connector pins shall not to be touched directly with bare hands.
9.16 When the TFT LCD module is broken or liquid crystal leaks from the panel, it should be keep
always from the eyes or month. If your hand touches liquid crystal, wash your hand cleanly by
water and soap as soon as possible.
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 18/29
www.panelook.com
Page 19
Global LCD Panel Exchange Center
10. MECHANICAL DRAWING
www.panelook.com
TD141THCA1
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 19/29
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
TD141THCA1
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 20/29
www.panelook.com
Page 21
Global LCD Panel Exchange Center
11. PACKING DRAWING
www.panelook.com
TD141THCA1
(1)
Connector wire fix with
adhesive tape
(3)
14.1" Module
LDPE bag
Desiccant
(2)
Packing Assy
Module with LDPE bag
(Total module Qty in 1 cushion = 20 pcs)
(4)
Packing Assy(UP)
Tape
toppoly tape
Carton
Carton Label
Carton dimensions:L386xW346xH330
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 21/29
www.panelook.com
Page 22
Global LCD Panel Exchange Center
12. Module & Carton Label Drawing & Definition
12.1 The module Label Drawing & Definition illustration as below:
www.panelook.com
80mm
TD141THCA1
Serial No. Bar Code
40mm
A503002302.02 513T1AA000001A1
TD141THCA1
Made in Taiwan
a. Product Name: TD141THCA1
b. Lot ID: A503002302.02
c. Serial No.: There are 16 symbols as below,
5 13 T 1A A 0 000001 A1
Year＋Week＋Factory＋Version＋Grade＋Customer＋Sequential Number＋RR code
(1) Year is the last number of A.D
(2) The expression of Week is 01 ∼ 53 in order.
(3) The expression of Factory is one English letter, T for TP01 and N for NJ.
(4) The expression of Version is two English letters: Version of BOM
(5) The expression of Grade is one English letter: Product grade level
(6) The expression of Customer is one English letter: Customer service beforehand byte
(7) The order of sequential number is 000001~999999A00001~A99999B00001~B99999
and so on.
(8) The expression of code is two English letters: RR code
d. Made in Taiwan or Made in China (Module only).
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 22/29
www.panelook.com
Page 23
Global LCD Panel Exchange Center
12.2 The Packing Carton Label Drawing & Definition illustration as below:
Product ID TD141THCA1 QA Check
www.panelook.com
TD141THCA1
100mm
80mm
Carton ID
Serial No.
Quantity
Lot ID
TM51500001 Bar Code
From TD141T HCA1 513T1AA000001A1
To TD141T HCA1 513T1AA000020A1
20 Pcs
A503002302.02 20 Pcs
Made in Taiwan
Green Product
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 23/29
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
TD141THCA1
Appendix1 EDID
Header
Byte(dec) Byte(hex) Field Name and Comments Value(hex) Value(binary)
0 00 Header 00 0000 0000
1 01 Header FF 1111 1111
2 02 Header FF 1111 1111
3 03 Header FF 1111 1111
4 04 Header FF 1111 1111
5 05 Header FF 1111 1111
6 06 Header FF 1111 1111
7 07 Header 00 0000 0000
Byte(dec) Byte(hex) Field Name and Comments Value(hex) Value(binary)
8 08 51 0101 0001
909
10 0A 60 1100 0000
11 0B
12 0C 00 0000 0000
13 0D 00 0000 0000
14 0E 00 0000 0000
15 0F
16 10 Week of manufacture 00 0000 0000
17 11 Year of manufacture 0F 0000 1111
18 12 EDID Structure Ver. 01 0000 0001
19 13 EDID revision # 03 0000 0011
Byte(dec) Byte(hex) Field Name and Comments Value(hex) Value(binary)
20 14 Video input definition 80 1000 0000
ID Manufacturer Name
CA 1100 1010
ID Product Code
02 0000 0010
32-bit serial no.
00 0000 0000
21 15 Max H image size 1E 0001 1110
22 16 Max V image size 13 0001 0011
23 17 Display Gamma 78 0111 1000
24 18 Feature support 0A 0000 1010
Byte(dec) Byte(hex) Field Name and Comments Value(hex) Value(binary)
25 19 Red / green low bits 93 1001 0011
26 1A Blue / white low bits E5 1110 0101
27 1B Red x / high bits 92 1001 0010
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 24/29
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
TD141THCA1
28 1C Red y 57 0101 0111
29 1D Green x 50 0101 0000
30 1E Green y 8D 1000 1101
31 1F Blue x 25 0010 0101
32 20 Blue y 1E 0001 1110
33 21 White x 4F 0100 1111
34 22 White y 54 0101 0100
35 23 Established timing 1 00 0000 0000
36 24 Established timing 2 00 0000 0000
37 25 Established timing 3 00 0000 0000
Byte(dec) Byte(hex) Field Name and Comments Value(hex) Value(binary)
38 26 01 0000 0001
39 27
40 28 01 0000 0001
41 29
42 2A 01 0000 0001
43 2B
44 2C 01 0000 0001
45 2D
46 2E 01 0000 0001
47 2F
48 30 01 0000 0001
49 31
50 32 01 0000 0001
51 33
52 34 01 0000 0001
53 35
Standard timing #1
01 0000 0001
Standard timing #2
01 0000 0001
Standard timing #3
01 0000 0001
Standard timing #4
01 0000 0001
Standard timing #5
01 0000 0001
Standard timing #6
01 0000 0001
Standard timing #7
01 0000 0001
Standard timing #8
01 0000 0001
Byte(dec) Byte(hex) Field Name and Comments Value(hex) Value(binary)
54 36 Pixel Clock/10,000 (LSB) BC 1011 1100
55 37 Pixel Clock/10,000 (MSB) 1B 0001 1011
56 38 Horizontal Active=xxxx pixels (lower 8 bits) 00 0000 0000
57 39 Horizontal Blanking=xxxx pixels (lower 8 bits) A0 1010 0000
58 3A Horizontal Active/Horizontal Blanking(Thbp) 50 0101 0000
59 3B Vertical Active =xxxx lines 20 0010 0000
60 3C Vertical Blanking(Tvbp)=xxxx lines(DE Blanking min for 17 0001 0111
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 25/29
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
TD141THCA1
DE only panels)
61 3D Vertical Active : Vertical Blanking(Tvbp) (upper4:4bits) 30 0011 0000
62 3E Horizontal Sync, Offset (Thfp)=xxxx piexls 30 0011 0000
63 3F Horizontal Sync, Pulse Width=xxxx pixels 20 0010 0000
64 40 Vertical Sync,Offset (Tvfp)=xx lines
Sync Width=xx lines
65 41 Horizontal Vertical Sync Offset / Width upper 2 bits 00 0000 0000
66 42 Horizontal Image Size=xxx mm 2F 0010 1111
67 43 Vertical image Size=xxx mm BE 1011 1110
68 44 Horizontal Image Size / Vertical image size 10 0001 0000
69 45 Horizontal Border = 0 (Zero for Notebook LCD) 00 0000 0000
70 46 Vertical Border = 0 (Zero for Notebook LCD) 00 0000 0000
71 47 EDID Standard 18 0001 1000
72 48 Flag 00 0000 0000
73 49 Flag 00 0000 0000
74 4A Flag 00 0000 0000
75 4B Data Type Tag: Descriptor Defined by Manufacturer FE 1111 1110
76 4C Flag 00 0000 0000
77 4D ASCII(T) 54 0101 0100
78 4E ASCII(D) 44 0100 0100
36 0011 0110
79 4F ASCII(1) 31 0011 0001
80 50 ASCII(4) 34 0011 0100
81 51 ASCII(1) 31 0011 0001
82 52 ASCII(T) 54 0101 0100
83 53 ASCII(H) 48 0100 1000
84 54 ASCII(C) 43 0100 0011
85 55 ASCII(A) 41 0100 0001
86 56 ASCII(1) 31 0011 0001
87 57 End of ASCII string 0A 0000 1010
88 58 Padding with “Blank” character 20 0010 0000
89 59 Padding with “Blank” character 20 0010 0000
Byte(dec) Byte(hex) Field Name and Comments Value(hex) Value(binary)
90 5A Flag 00 0000 0000
91 5B Flag 00 0000 0000
92 5C Flag 00 0000 0000
93 5D Dummy Descriptor FE 1111 1110
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 26/29
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
TD141THCA1
94 5E Flag 00 0000 0000
95 5F ASCII (T) 54 0101 0100
96 60 ASCII (O) 4F 0100 1111
97 61 ASCII (P) 50 0101 0000
98 62 ASCII (P) 50 0101 0000
99 63 ASCII (O) 4F 0100 1111
100 64 ASCII (L) 4C 0100 1100
101 65 ASCII (Y) 59 0101 1001
102 66 End of ASCII string 0A 0000 1010
103 67 Padding with “Blank” character 20 0010 0000
104 68 Padding with “Blank” character 20 0010 0000
105 69 Padding with “Blank” character 20 0010 0000
106 6A Padding with “Blank” character 20 0010 0000
107 6B Padding with “Blank” character 20 0010 0000
108 6C Flag 00 0000 0000
109 6D Flag 00 0000 0000
110 6E Flag 00 0000 0000
111 6F FE 1111 1110
112 70 Flag 00 0000 0000
113 71 ASCII (T) 54 0101 0100
114 72 ASCII (D) 44 0001 0001
115 73 ASCII (1) 31 0011 0001
116 74 ASCII (4) 34 0011 0100
117 75 ASCII (1) 31 0011 0001
118 76 ASCII (T) 54 0101 0100
119 77 ASCII (H) 48 0100 1000
120 78 ASCII (C) 43 0100 0011
121 79 ASCII (A) 41 0100 0001
122 7A ASCII (1) 31 0011 0001
123 7B End of ASCII string 0A 0000 1010
124 7C Padding with “Blank” character 20 0010 0000
125 7D Padding with “Blank” character 20 0010 0000
126 7E Extension flag 00 0000 0000
127 7F Checksum D3 1101 0011
The information contained herein is the exclusive property of toppoly Optoelectronics corporation, and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of toppoly Optoelectronics
corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Page: 27/29
www.panelook.com
Loading...
