FLX 3 / FLX 5 / SOHO S12 FLX

SOHO FLX

1. Introduction

2. Installation Tips

3. Usefull Data

4. Quick Start

5. Satellite Layout of The Connector Panel

6. Satellite Back Panel Description

7. Satellite Down Connection

8. Satellite Up Connection

9. Subwoofer Back Panel Description

10. Technical Specifications

11. System Connection Plate

12. Wire Connections

13. Guarantee

14. Notes

4

4

4

5

6

8

11

12

13

14

16

19

20

21

3

Introduction

Thank you for choosing TOPP PRO. The new TOPP PRO ARRAY SERIES cabinets have been
designed to provide a cost effective high grade solution while maintainig high quality cabinet
construction and optimum components.
The array series, can be used for all types of applications including, but not limited to, churches,
conference centers and discos.
The woofer and neodymium driver combination provides excellent performance rivaling those
cabinets costing much more.

Speakers should be placed in a position that allows for unobstructed sound projection. In many
instances it is beneficial for speakers to elevate on tripod stands to achieve maximum dispersion
and reach. Consider TOPP PRO speaker stand or equivalent to raise speakers.
Using quality cables ensure best possible sound. Consider using TOPP PRO 16 or 14 gauge
cables or equivalent.
For best results match the speakers to a good amplifier that matches the wattage and
impedance of your speakers. Proper amplification power results in good quality audio and
longer component life. Check out.
Avoid pointing microphone directly at an amplified speaker otherwise could cause feedback
possible damaging speaker components and your hearing.

Our Professional Audio Products are designed and tested by a highly qualified engineering team
with more than 20 years of experience. Great care is placed in delivering products with excellent
performance, specifications and dependable reliability. Also great emphasis is placed in creating
and bringing to market products that can fill multiple applications and also offer customers
exceptional value.

Installation Tips

Usefull Data

Please write your serial number here for future reference.

4

4

Wall bracket

Satellite

Quick Start

When mounting a speaker onto any stand, always ensure that the stand is on a flat, level
sur-face, with the legs fully extended. Be sure to check that the maximum load weight for the
stands is greater than the weight of the ARRAY SYSTEMS loudspeaker. Never use a stand with a
maximum load weight lower than the speaker. Do not attempt to mout more than one speaker
on a stand at one time.
The ARRAY SYSTEMS loudspeakers are heavy. It is recommended that a second person to help
place the cabinet on a stand.

When the speaker is placed on a stand, always check the integrity and center of gravity of the
system If the speaker can be tipped easily, or the pole is swaying, it is recommended that you
lower the height of the stand. Position the stand and route cables so that the performers and the
audience cannot tip over or trip on the system.

Subwoofer

Pole

Satellite

5

Satellite Layout of The Connector Panel

More module

Versatile mounting options
Compared to many other speaker designs, the satellite Series is remarkably easy to install in
several ways. It can be hung easily with chains, strong wires and cables using the accessory
brackets.
There are also options for hanging with a pre-install rame by itself or configured with a
subwoofer.
There are also other options including ceiling and wall brackets as well as an adapter for use with
a dedicated stand.

One module

The direction of the bracket can be adjusted from any side.

The bracket support wall and leiling mounting with most 8 modules .
The direction and angle can be adjusted from any side.

5

6

5

7

Satellite Layout of The Connector Panel

You can insert each three different holes when connecting the rear bracket. You can obtain
different sound by different angles.

Align two units to make the latch hole in the same line. Insert the latch and lock the screw
tightly.

Adjust the angles of the unit (seven angles: 0° -1.5° -3.0° -4.5° -6.0° -8.0° -10° for FLX 3,nine
angles: 0° -1.5° -3.0° -4.5° -6.0° -7.5° -9.0° -10.5° -12° for FLX 5 can be adjusted), insert the rear
connecting pin into the related slot and put the latch into the hole.

Connect Manner

1

2

Adjustable sound dispersion(for example four pcs)

A system in configured by vertically stacking four speaker modules with a total driver
complement of four woofers and 12 tweeters(four tweeters of FLX 5) positioned along the baffle
surface, this configuration allows the variable directivity control and low-frequency dispersion
control comparable to using a large constant-directivity horn speaker. A choice of seven angles
for FLX 3 / nine angles for FLX 5 can be employed as needed.
For instance, a specific directivity angle, or each module can have its directivity independently set
for a specific coverage requirement. When two or multiple modules are connected to configure
an arc, they effectively function as an immense single speaker controlling directivity for
considerably lower frequencies. As a result, public address functions demonstrate optimal
intelligibility even in environments with long reverb times.

directivity
max angle 40 for FLX 3
max angle 48 for FLX 5

5

8

Satellite Layout of The Connector Panel

Minimal reflective effects

Whether mounted on the wall or ceiling, the satellite is remarkably free from the comb filter and
interference effects often encountered with other speaker designs. It can therefore produce more
low frequency output even when mounted on the wall or ceiling.

Small Array Configuration

This is an example of the HFC application with two

Satellite’s in a small array,

Do not stack more than two Satellite speakers on the pole.

NOTE: Be sure to lock the two speaker cabinets with the original hardware.

Suspension Safety Warning

Research and understand the local regulations and requirements of the country where you
intend to install the line array. The correct assembly of all associated hardware is required
for a safe suspension system. Two point suspension with uniform loading of each lifting
location is recommended when using FLX 3 / FLX 5 Array Frame.

Satellite Layout of The Connector Panel

5

9

A B

bracket Angles

bracket Angles

Bracket Angles

angles for FLX 3

(10° 8° 6° 3° 0° -3° -6° -8° -10°)

0°

+12°

-12°

angles for FLX 5

(12° 9° 6° 3° 0° -3° -6° -9° -12°)

angles for FLX 5

(0° 1.5° 3° 4.5° 6° 7.5° 9° 10.5° 12°)

angles for FLX 3

(0° 1.5° 3° 4.5° 6° 8° 10°)

10

Satellite Back Panel Description

6

a. set the slide switch at "parallel" position to make the product in parallel.

b. Set the switch at "series" position to make products in series, but the slide switch of the last

product has to set at "parallel" position.

1) INPUT: Receive the power coming
from an external power amplifier.

2) PARALLEL: power output for another
product to parallel, parallel and input
are link.

3) SERIES: Power output for another
satellite speaker to series.

4) Slide Switch: Parallel or Series
Transform Switch

1) INPUT: Receive the power coming
from an external power amplifier.
(SPK +1/-1 connected; +2/-2 not
connected).

2) THRU: Power output for satellite
speaker, under passive crossover filtered
at 180 Hz.
(SPK +1/-1 connected; +2/-2 not
connected).

1

4

2

3

FLX 3

FLX 5

1

2

7

11

Satellite Down Connection (FLX 3)

INPUT

- Power output for satellite speaker down connection

1

2

3

4

5

6

7

8

Module (1-3-5-7):

Module (2-4-6-8):

8 Module.array.

(4.ohms)

6 Module.array.

(5.33.ohms)

Module (1-3-5):

Module (2-4-6):

4 Module.array.

(8.ohms)

Module (1-3):

Module (2-4):

2 Module.array.

(4.ohms)

Module (1-2):

1 Module.array.

(8.ohms)

Module 1:

INPUT

INPUT

INPUT

INPUT

12

8

Satellite Up Connection (FLX 3)

- Power output for satellite speaker UP connection

INPUT INPUT INPUT INPUT INPUT

INPUT

1

2

3

4

5

6

7

8

Module (1-3-5-7):

Module (2-4-6-8):

8 Module.array.

(4.ohms)

6 Module.array.

(5.33.ohms)

Module (1-3-5):

Module (2-4-6):

4 Module.array.

(8.ohms)

Module (1-3):

Module (2-4):

2 Module.array.

(4.ohms)

Module (1-2):

1 Module.array.

(8.ohms)

Module 1:

INPUT

INPUT

INPUT

INPUT

9

Subwoofer Back Panel Description

1

2

3

4

5

6

78

9

10

14

13

12

11

17

15

16

(1) AC POWER SOCKET WITH MAIN FUSE.
(2) ON-OFF MAIN POWER SWITCH.
(3) IP CONTROL
(4) Preset Selector: FLX 3 / FLX 5 / User (Custom Sound)

FLX 3: Allow use this subwoofer with the 2 speaker satellite. Defaults Factory preset
FLX 5: Allow use this subwoofer with the 2 speaker satellite. Defaults Factory preset
User: Adjusts the Equalization according to the convenience of the user, depending on the

acoustics of the place and the implementation of the system. This setting can be performed
by a PC via LAN port, using a router for internet. This “preset” comes from factory set with
the parameters of the 2*FLX 3, after making the necessary changes you can be save into the

system.
(5) SWITCH FOR FRONT LED ON OR OFF
(6) THRU OUTPUT ON XLR CONNECTOR

This is a male XLR-type connector that produces exactly the same signal that is connected to

the main input jack or a mix of input1 and input2.
(7) POWER. GREEN LED, INDICATE ON STATUS.
(8) SIGNAL / LIMIT, RED LED, INDICATE ON STATUS.
(9) Input 2 Volume Control
(10) Input 1 Volume Control
(11) LINE / MIC SWITCH(CHANNEL INPUT1 ONLY)
(12) XLR AND 1/4” COMBO INPUT1

INPUT1 may accept a MIC or line-level signal via XLR or line-level signal via TRS 1/4” cable.
Be aware of the position of the MIC / line switch (11).

(13) XLR AND 1/4” COMBO INPUT2

INPUT2 may accept Hi-Z sources (such as guitars) via the TRS 1/4” input, or line-level signal
via XLR.
NEVER connect the output of an amplifier directly to the input of the loudspeaker. This could

damage the input circuitry of the active loudspeaker.
(14) RCA INPUTS(INPUT2 ONLY).
(15) CONVECTION FAN
(16) INPUT1 / MIX SWITCH (THRU OUTPUT)

This switch allows you to choose whether only the input1 signal is sent out to the next

loudspeaker(switch out-input1) or mix of the input1 and input2 signals are sent out to the

next loudspeaker(switch in-Mix).
(17) SPK connector to satellite: Use pins + 1 positive / -1 negative

13

14

10

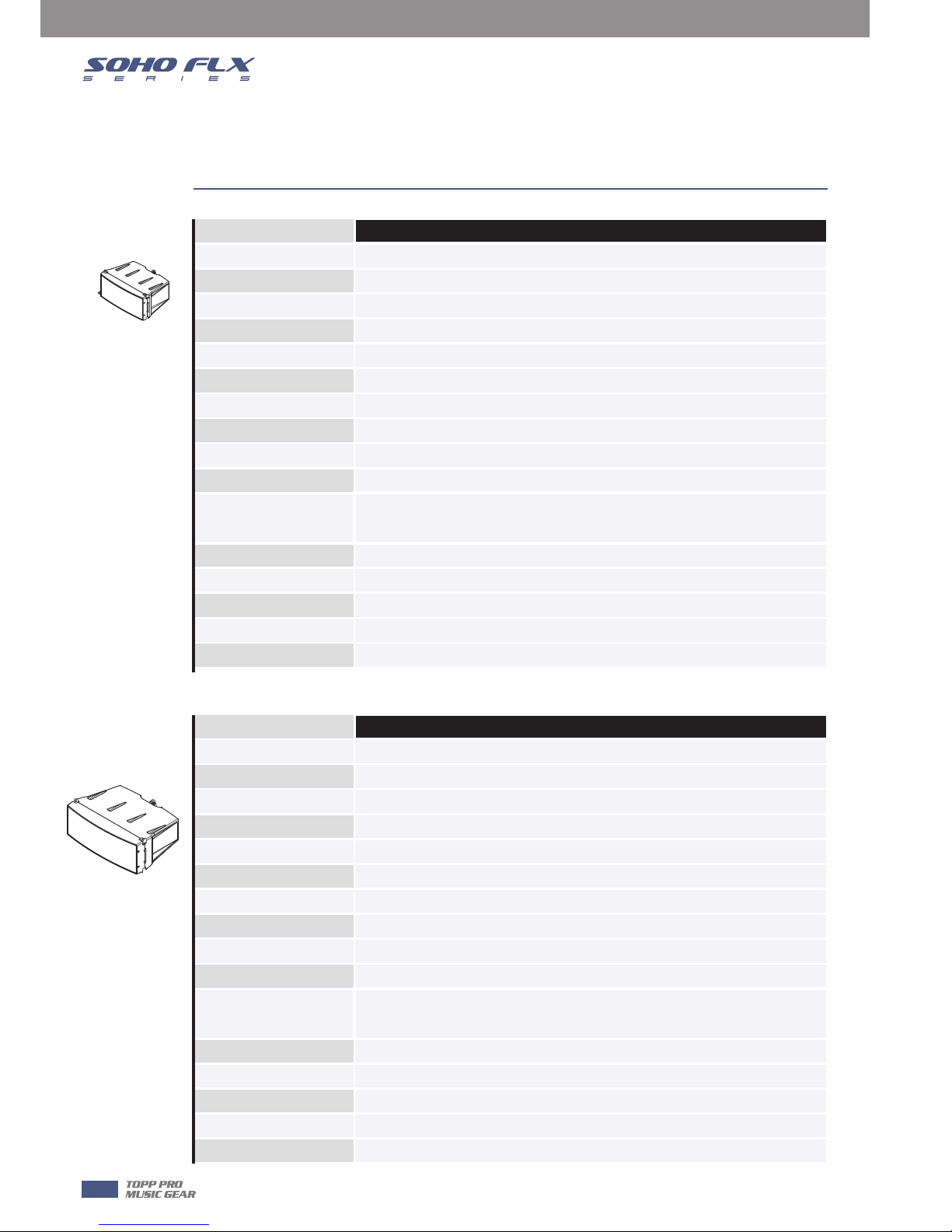

Technical Specifications

Model FLX-3

System Type 3" 2-way Passive System

Output Power 40W Continuous , 80W Program

Sensitivity (1W/1M) 90dB

Maximum SPL @ 1m 106dB Max.(calauated)

Frequency Response 100Hz-20kHz (-10dB)

Impedance 8 ohms

Transducer Low 2 x 3'' Woofer , 0.75'' (19mm) Voice Coil

Transducer High 3xΦ13mm (V.C) Neodymium Tweeter

Crossover Frequency 2.5kHz

Dispersion(-6dB) 100° Horizontal, 10° Vertical (one module)

Attachment Points Adjustable Rigging System, Vertical Splay Adjustable in

0° -1.5° - 3.0° - 4.5° - 6.0° - 8.0° - 10° Increments from 0°-10°

Connectors Parallel or Series φ6.3mm Socket / Selection Switch

Enclosure Construction Polypropylene Enclosure , steel Metal Grille with foam

Fittings information Steel Stirrup Material , 3Flying Points

Dimensions (HxWxD) (W)265mm*(H)124mm*(D)195mm ; (W)10.43" * (H)4.88" * (D)7.68"

Net Weight approach 3.2kg / 7.05 lbs

Model FLX-5

System Type 5'' 2-way Passive System

Output Power 120W Continuous , 240W Program

Sensitivity (1W/1M) 95dB

Maximum SPL @ 1m 115.5dB Max.(calauated)

Frequency Response 90Hz-20kHz (-10dB)

Impedance 8 ohms

Transducer Low 2x 5'' Woofer , 1.18'' (30mm) Voice Coil

Transducer High 1x 1'' Tweeter , 1'' (25mm)Voice Coil

Crossover Frequency 2.0kHz

Dispersion(-6dB) 100° Horizontal, 12° Vertical (one module)

Attachment Points Adjustable Rigging System,

Vertical Splay Adjustable in 1.5° Increments from 0°-12°

Connectors 2 x SPK4 Style

Enclosure Construction Polypropylene enclouse with side handles, steel Grille with foam

Fittings information Steel Stirrup Material , 3Flying Points

Dimensions (HxWxD) (W)430mm*(H)161mm*(D)304mm ; (W)16.93" * (H)6.33" * (D)11.96"

Net Weight approach 8.0kg / 17.63 lbs

15

10

Technical Specifications

96dB / 130dB Max

1 x 12", φ320mm-2.5" Voice Coin

SOHO S12 FLX

700 W Continuous /1400 W Program/2800 W Peak Class-D@4ohms

350 W Continuous /700 W Program/1400 W Peak Class-D@4ohms

350 W Continuous /700 W Program/1400 W Peak Class-D@4ohms

16

11

System Connection Plate

Make your initial connections with all the equipment powered off, and ensure that all the main
volume controls are turned completely down.

Two Active Subwoofers & Two Passive Satellite Speakers

1) Connect one side of the signal cable to the output of your mixer (left / right) with a TRS or
XLR connector and the other side of the cable to the line input (combo) in the active
subwoofer (with a TRS to XLR connector). Then connect the speakon cable from the output
of power in the Subwoofer to the satellites input.

2) Complete other connections as illustrated.

3) Turn on your mixer first, then the stereo power amplifier.

4) Turn up the volume controls of your amplifier to about70%.

5) Use PFL function to get the proper input level for the mixer, and adjust the Mian Mix Level
control to manipulate the output level.

6) After using, turn off your stereo power amplifier first, then the mixer.

Mixer

Subwoofer Subwoofer

Satellite

Line
Input

Line
Input

Satellite

PolePole

17

11

System Connection Plate

Mixer

Subwoofer Subwoofer

Satellite

Line
Input

Line
Input

Satellite

12

19

Wire Connections

Either the 1/4" TRS phone jack or XLR connector can be wired in balanced and unbalanced modes,
which will be determined by the actual application status, please wire your system as the
following wiring examples:

The series speaker connections are made via the rear panel 1/4" and/or Speakon connectors for
easy interface with industry standard cables. Standard, unshielded speaker wire (available at your
local pro audio or music store), with either 1/4" phone or Speakon connectors and wire gauge of
12-14 AWG is recommended.

If your amplifier uses binding posts you can use speaker cables with banana connectors, but be
sure to pay attention to the +/- polarity when making the connections. Make sure that the +
terminal of the speaker, or banana connector, is connected to the+ terminal of the power
amplifier, and that the - terminal of the speaker, or banana connector, is connected to the ­terminal of the power amplifier. It is important that your PA system is connected in-phase,
otherwise you will not have the proper low-end response and stereo image.

Use the following diagrams below to ensure proper connections when wiring your system:

20

13

Guarantee

21

14

Notes
