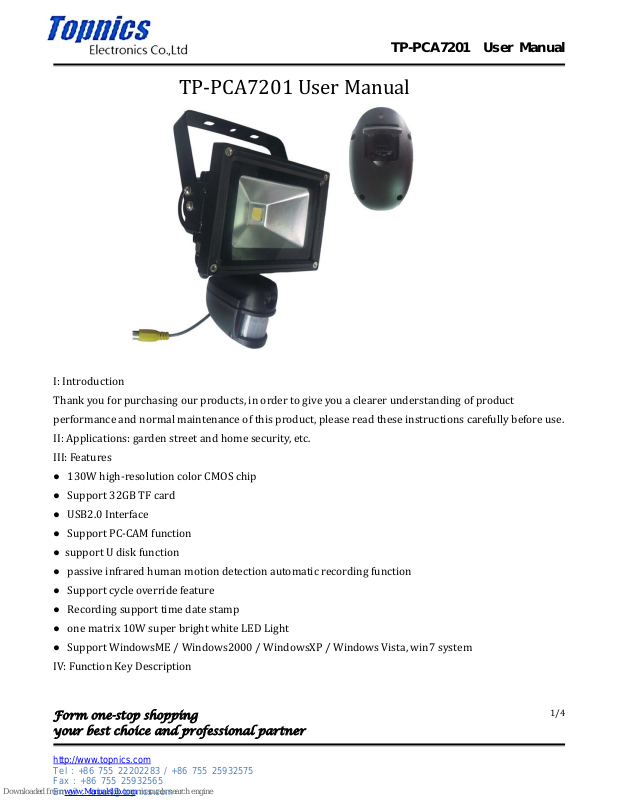

TP-PCA7201 User Manual

I: Introduction

Thank you for purchasing our products, in order to give you a clearer understanding of product

performance and normal maintenance of this product, please read these instructions carefully before use.

II: Applications: garden street and home security, etc.

III: Features

● 130W high-resolution color CMOS chip

● Support 32GB TF card

● USB2.0 Interface

● Support PC-CAM function

● support U disk function

● passive infrared human motion detection automatic recording function

● Support cycle override feature

● Recording support time date stamp

● one matrix 10W super bright white LED Light

● Support WindowsME / Windows2000 / WindowsXP / Windows Vista, win7 system

IV: Function Key Description

TP-PCA7201 User Manual

Form one-stop shopping
your best choice and professional partner

http://www.topnics.com

Tel : [phone]
Fax : [phone]
Email : [e-mail]

2/4

1: TF card slot

2: PIR sensor area and working lights

3: DC power input connector

4: light control sensor, control matrix LED white lights

lit and off (when PIR effective, when the light dark, the

white lights, when the light bright, the white light does

not shine)

5: White matrix LED lights

V: Operating Instructions

5.1: Video mode

5.1.1: When the power supply is not plugged in, insert the TF card in the correct direction

5.1.2: Install the product in the place to be monitored

5.1.3: connect an external power supply, The yellow lights at PIR sensors lit indicates normal boot into

standby mode.

5.1.4: In about one minute after power, PIR will stabilize at this time if anyone within range PIR

movement will be triggered recording, this time the red light in the PIR steady [(At this point, if the light

is weak, white LED lights, the light bright the white LED light dose not shine], blue lights flashing, it

indicates that it is recording, Without PIR sensors it stop recording. If people have been walking at PIR,

PIR is always active (the light dark, white light always lit)it always recording the longest three

minutes / segment packaging saved once.

5.1.5: After the PIR sensor off , the red light enters the standby state, it began recording when someone

move in the PIR sensor area

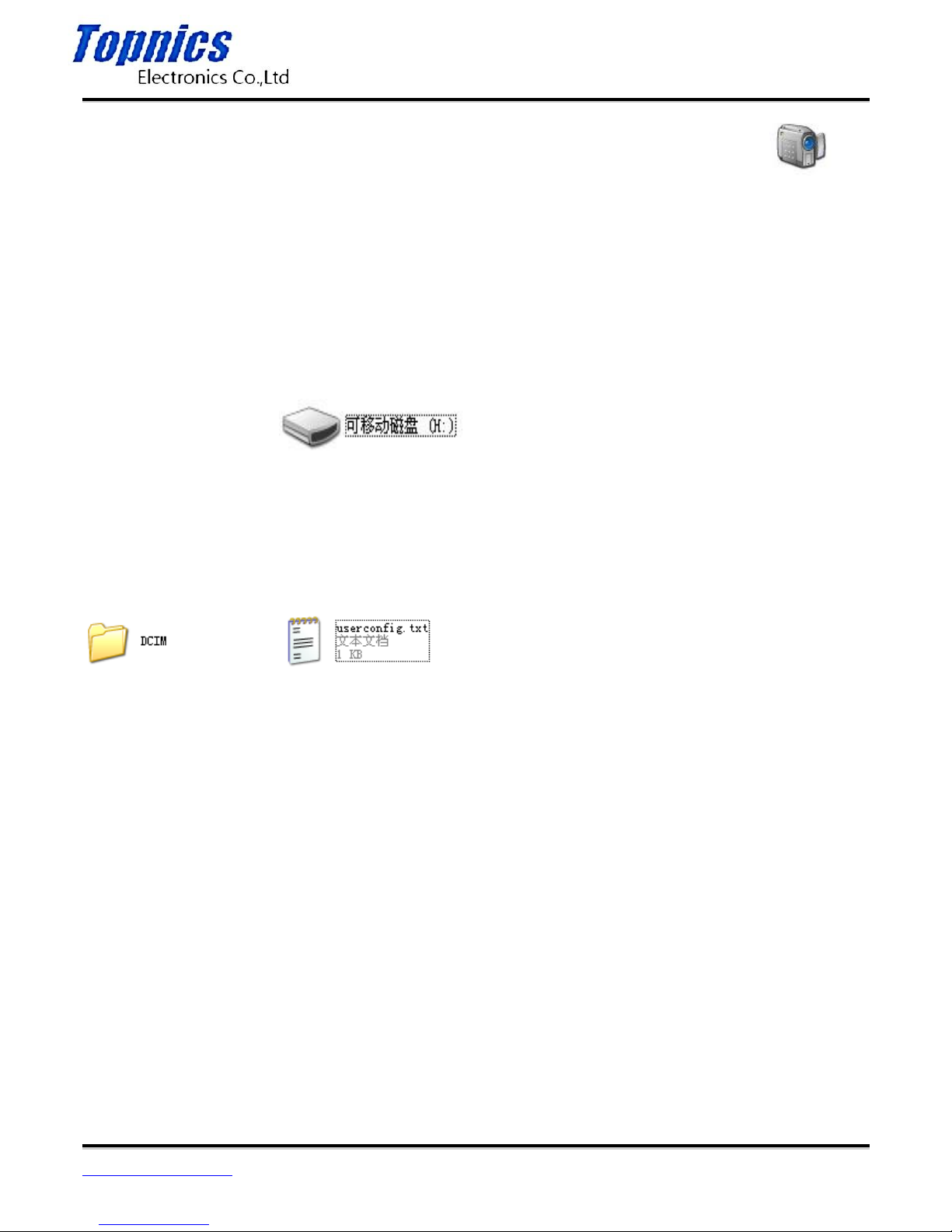

5.2 connected to the computer

5.2.1: PC-CAM mode (this mode can not insert TF card)

After installing the driver of the auto products were equipped with data cable connected to the computer,

and then turn on the power switch, the computer will buzz loudly, it was about 10 to second (and
