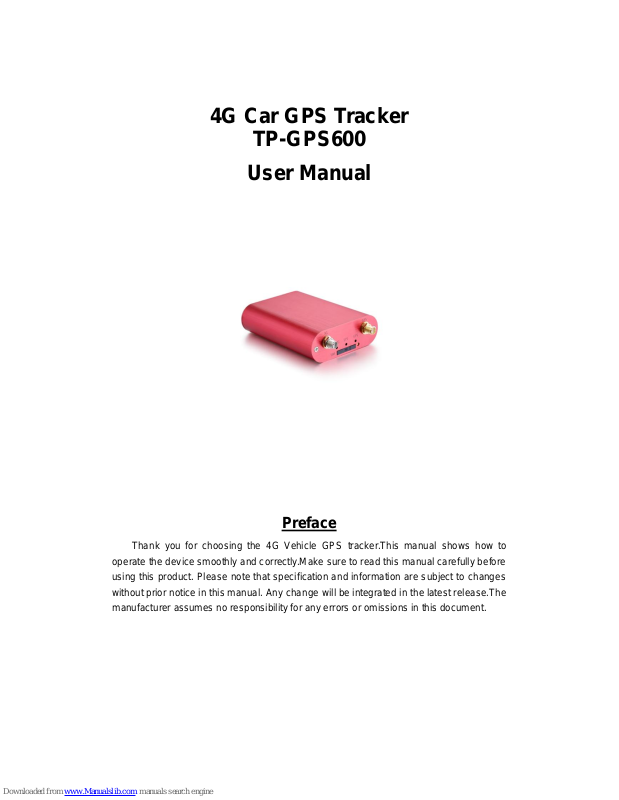

Topnics TP-GPS600 User Manual

4G Car GPS Tracker

TP-GPS600

User Manual

Preface

Thank you for choosing the 4G Vehicle GPS tracker.This manual shows how to operate the device smoothly and correctly.Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual. Any change will be integrated in the latest release.The manufacturer assumes no responsibility for any errors or omissions in this document.

Contents

1. Overview ......................................................................................................................... 1

2. Application ....................................................................................................................... 1

3. Specifications .................................................................................................................. 1

4. MT600 and Accessories ................................................................................................ 3

5. Appearance ..................................................................................................................... 3

6. First use .......................................................................................................................... 4

6.1 SIM Card installation ............................................................................................ 4

6.2 Indications .............................................................................................................. 5

6.2.1 CHG-Charge indicator(RED) ...................................................................... 5

6.2.2 SYS-System indicator(BLUE)..................................................................... 5

6.2.3 GPS-GPS indicator(GREEN) ..................................................................... 5

6.3 Device Button Instruction ............................................................................................ 5

6.4 Install 4G/GPS Antenna .............................................................................................. 6

6.5 Install the Power Wire & Relay ................................................................................. 6

6.6 Install the SOS ............................................................................................................ 7

6.7 Areas for Installation.................................................................................................... 7

6.7.1 Caution ............................................................................................................... 7

6.7.2 For added protection ......................................................................................... 7

7. Main Operation and Application ................................................................................... 8

7.1 Set Authorization Phone Number ....................................................................... 8

7.2 Delete authorization number ................................................................................ 8

7.3 Change the password .......................................................................................... 8

7.4 Single Locating ..................................................................................................... 8

7.5 SOS Alarm ............................................................................................................ 8

7.6 Geo-fence .............................................................................................................. 8

7.6.1 Enable the Geo-fence ................................................................................ 8

7.6.2 Disable the Geo-fence ............................................................................... 8

7.7 Remote cut off fuel and power .......................................................................... 9

7.8 External power cut off alarm .............................................................................. 9

7.9 Towing alarm ........................................................................................................ 9

7.10 Low battery Alarm(backup battery) ................................................................... 9

7.11 Low battery Alarm(car battery) .......................................................................... 9

7.12 High Temperature Alarm.................................................................................... 9

7.13 Over-speed alarm ............................................................................................... 9

7.14 Set time zone ..................................................................................................... 9

7.15 Set GPRS user name........................................................................................ 9

7.16 Set APN(Access Point Name) ........................................................................ 10

7.17 Set Server IP and PORT ................................................................................ 10

7.18 Set GPRS Upload Interval Time .................................................................... 10

7.18.1 ACC ON(Upload status is AUTO) ........................................................ 10

7.18.2 ACC OFF&Vehicle Move(Upload status is TOWED) ......................... 10

7.18.3 ACC OFF&Vehicle Still(Upload status is AUTOLOW) ........................ 10

7.19 Invalid GPS Data Upload ................................................................................ 10

7.20 SMS Response ON/OFF ................................................................................. 10

1. Overview

MT600 is the latest 4G GPS Tracker support LTE/UMTS/GSM.This device can locate and monitor any remote targets by SMS or server. The user also can remote cut off oil/power and check the historical record.

The unit features excellent and stable work performance.It used for vehicle tracking and fleet management.

2. Application

 4GLTE network support

 Real-time position inquire

 Vehicle trip history on web

 SOS alarm

 ACC switch alarm

 Geo-fence alarm  External power cut off alarm  Remote cut off fuel/power  Vehicle towing alarm  Overspeed alarm  Backup battery low power alarm

 Car battery low power alarm

 High temperature alarm

 Power saving mode  Camera(optional)  Door sensor(optional)  Fuel sensor(optional)

3. Specifications

Item

Specifications

Dimension

90(L)*70(W)*24(H)mm

Weight

140g

Input Voltage

12V-36V

Backup battery

700mAh/3.7v

GPS Chip

U-BLOX7

GPS Sensitivity

-162dBm

Channel

56 Channel

Item

Specifications

4G Frequency bands

TP-GPS600 FDD LTE: 800/850/900/1800/2100/2600MHz UMTS: 850/900/2100MHz GSM: 850/900/1800/1900MHz 600-A FDD LTE: 700/850/1700/1900MHz UMTS: 850/1700/1900MHz GSM: 850/1900MHz

600-C (Standard Version)

FDD LTE: 900/1800/2100MHz TDD LTE: 1900/2300/2500/2600MHz TDSCDMA: B34/B39 UMTS: 900/2100MHz GSM: 900/1800MHz

Positioning Accuracy

10m

Hot start

1s on average

Warm start

15s on average

Cold start

30s on average

Humidity

5%~95% non-concretion

Working temperature

-20°C to 70°C

Power consumption

70mA standby current

Antenna

external 4G/GPS antenna

Sensor

3D acceleration sensor, temperature sensor
