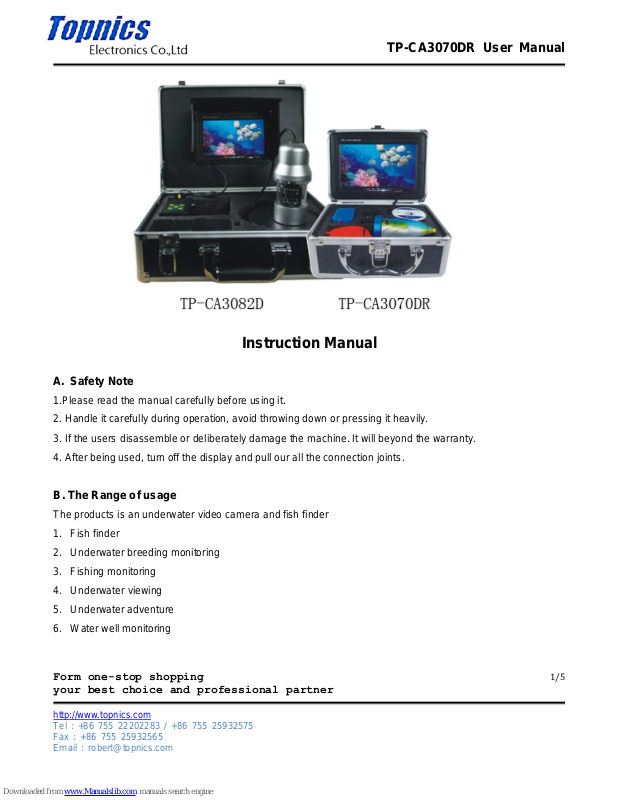

TP-CA3070DR User Manual
Form one-stop shopping
your best choice and professional partner
http://www.topnics.com
Tel : +86 755 22202283 / +86 755 25932575
Fax : +86 755 25932565
Email : [email protected]
1/5
Instruction Manual
A. Safety Note
1.Please read the manual carefully before using it.
2. Handle it carefully during operation, avoid throwing down or pressing it heavily.
3. If the users disassemble or deliberately damage the machine. It will beyond the warranty.
4. After being used, turn off the display and pull our all the connection joints.
B. The Range of usage
The products is an underwater video camera and fish finder
1. Fish finder
2. Underwater breeding monitoring
3. Fishing monitoring
4. Underwater viewing
5. Underwater adventure
6. Water well monitoring
Page 2
TP-CA3070DR User Manual
Form one-stop shopping
your best choice and professional partner
http://www.topnics.com
Tel : +86 755 22202283 / +86 755 25932575
Fax : +86 755 25932565
Email : [email protected]
2/5
C. Specifications
D. Display operation interface instructions
1. power
2. adjustment +
3. adjustment –
4. menu
Page 3
TP-CA3070DR User Manual
Form one-stop shopping
your best choice and professional partner
http://www.topnics.com
Tel : +86 755 22202283 / +86 755 25932575
Fax : +86 755 25932565
Email : [email protected]
3/5
E. How to operation
1. Boot
Connect all the connectors and press the power key, the system will start to work;
2. Menu Settings
1>Brightness
Press the MENU key to enter brightness setting, press the ”+ - ” key to set the brightness, and then press the
MENU key again to quit menu page after doing this.
2>Contrast
Continuously press the MENU key twice to enter contrast setting. Press the ”+ - ” key to set the contrast, and
then press the MENU key again to quit the menu after doing this.
3>Color setting
Continuously press the MENU key for three times to enter the color setting, press the ”+ - ”key to set the color,
and then press the MENU key again to quit the menu page after doing this.
3. Image mode
Press the “image mode” key, and the images will over turn in all directions.
Page 4
TP-CA3070DR User Manual
Form one-stop shopping
your best choice and professional partner
http://www.topnics.com
Tel : +86 755 22202283 / +86 755 25932575
Fax : +86 755 25932565
Email : [email protected]
4/5
F. Connection
TP-CA3070DR
G. Charging
When the battery power is low, it needs charging, and the method is as below:
1. Take out the battery and charger from the box.
2. Connect the charger to the battery(red to red, black to black).
3. Connect the charger to the alternating current of 110-200v, the red indicator means charging.
4. The green indicator means finishing charging.
Notes: to make sure the battery using age longer, please recharge it timely; otherwise, it will make it can not
recharged.
Page 5
TP-CA3070DR User Manual
Form one-stop shopping
your best choice and professional partner
http://www.topnics.com
Tel : +86 755 22202283 / +86 755 25932575
Fax : +86 755 25932565
Email : [email protected]
5/5
H. Product components and accessories
1> TP-CA3070DR Camera
1. Cable
2. Reel
3. Camera connector
4. Night-vision ligh
5. Lens
6. Hook
2> TP-CA3070DR System
1. float
2. battery
3. display
4. camera
5. cable
6. aluminum box
