Topia TV Antena User Manual

Rotating Digital Outdoor TV Antenna

User Manual

RETAIN THIS MANUAL FOR FUTURE REFERENCE

PLEASE READ THIS MANUAL CAREFULLY BEFORE US E

Rotating Digital Outdoor TV Antenna

Table of Contents

FEATURES ................................................................................................................................... 1

CAUTION ...................................................................................................................................... 2

SPECIFICATIONS ........................................................................................................................ 3

PARTS SCHEMATIC .................................................................................................................... 4

ASSEMBLY DIAGRAM ................................................................................................................ 6

i

Rotating Digital Outdoor TV Antenna

•

•

•

•

•

•

•

Features

VHF/UHF full channel with booster.
Two directors, two dipoles for good recepti vi ty.
Full-direction (360º) rotation.
Infrared remote control and electrical controlled rotation.
Low noise, high definition, clear pictures , good voice-overs.
Solid structure, rain proof.
Easy to use and install.

1

Rotating Digital Outdoor TV Antenna

Caution

1. Rotating motor and booster cannot be disas sembled freely.

2. Power supply should be kept at a 1 metre dist ance with the TV. Switch it off when not in use.

3. Remote control should be towards the direction of the reception window.

4. Adjust the direction by pushing the button on the power supply.

2

Rotating Digital Outdoor TV Antenna

Specifications

Channels Frequency (MHz) Gain(dB) Rotation Impedance(Q) Power

VHF 1-12 45-230 20

360° 75 110 /220VAC 50Hz

UHF13-69 470-860 28

3

Rotating Digital Outdoor TV Antenna

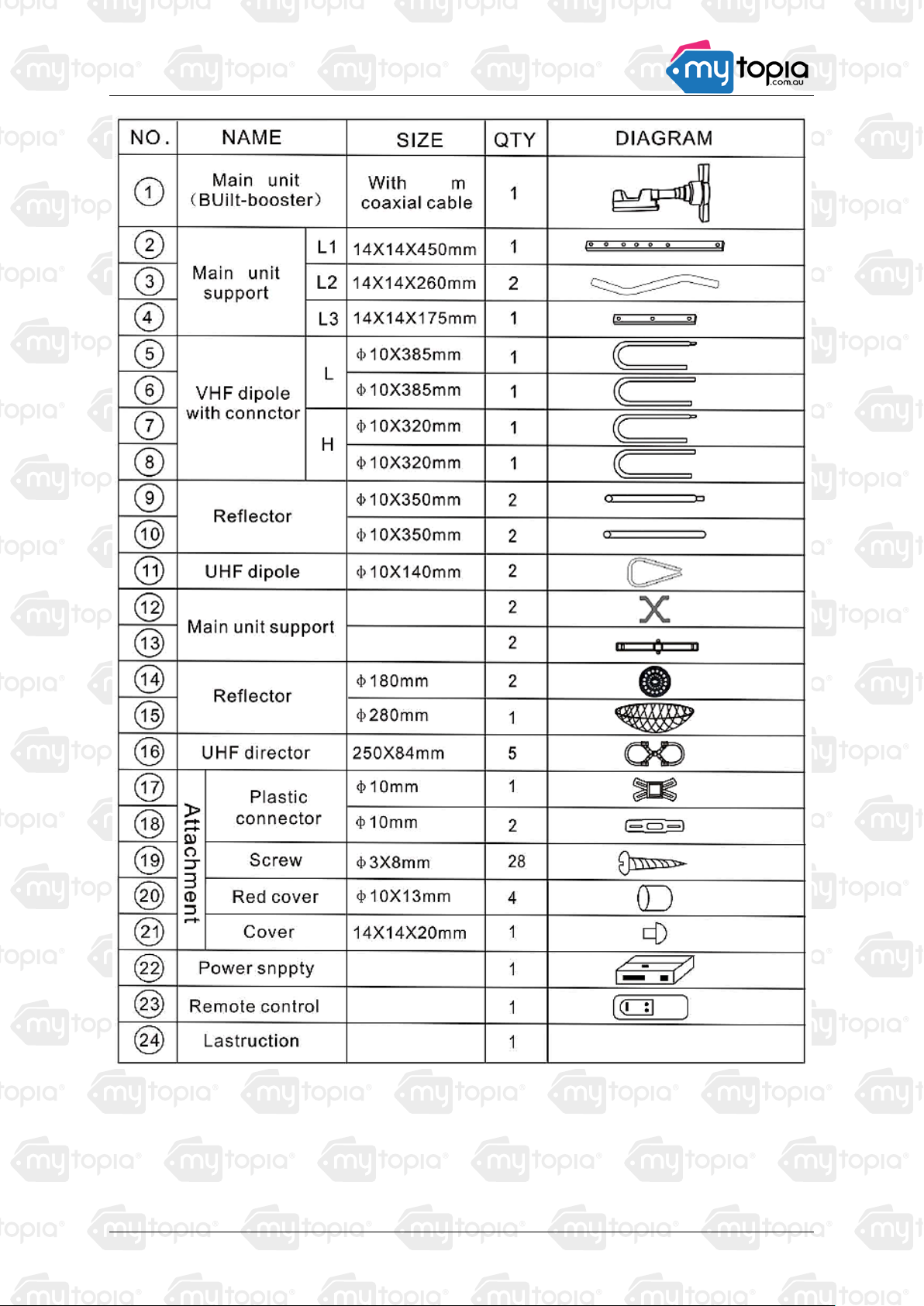

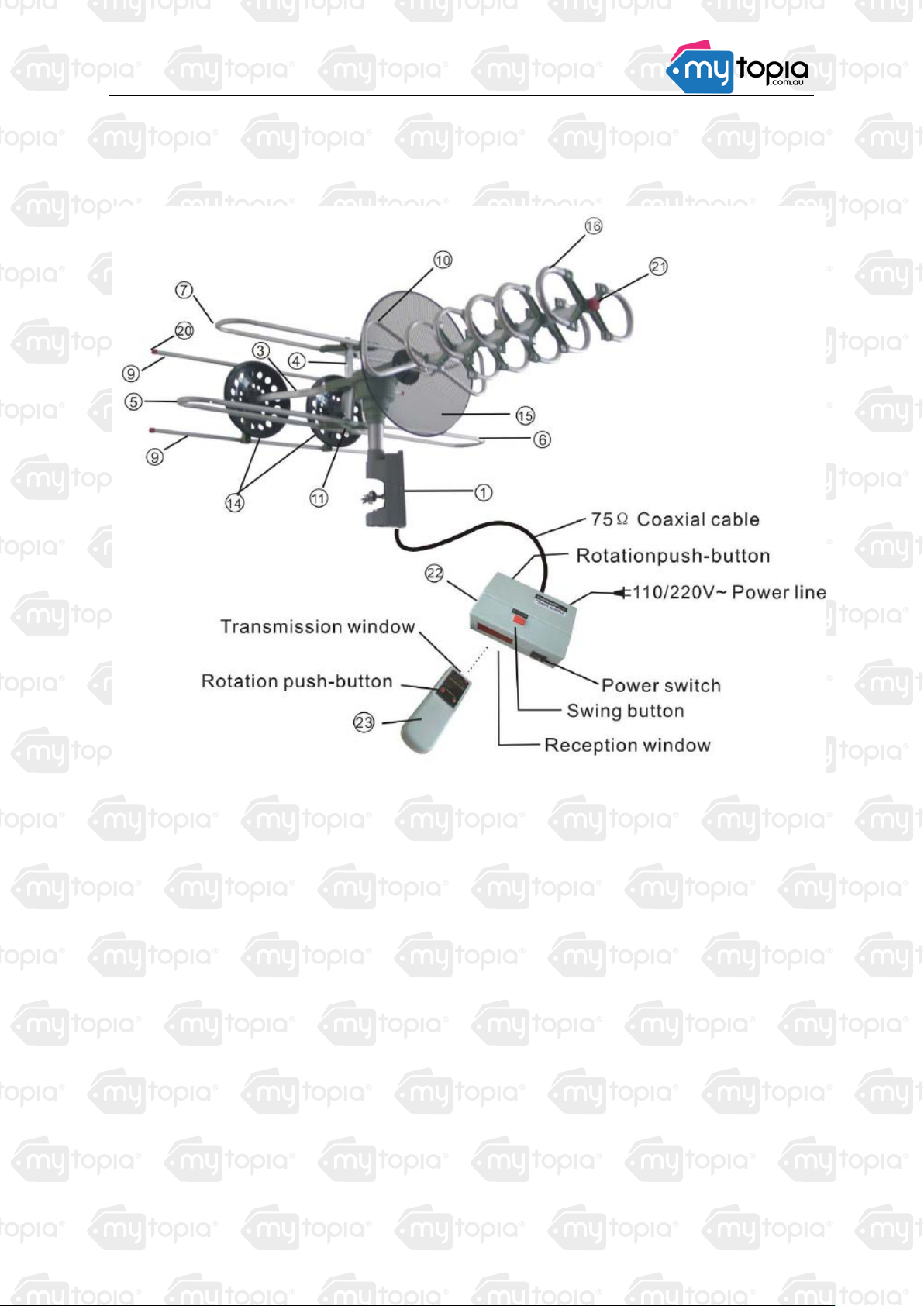

Parts Schematic

4

Rotating Digital Outdoor TV Antenna

5

Rotating Digital Outdoor TV Antenna

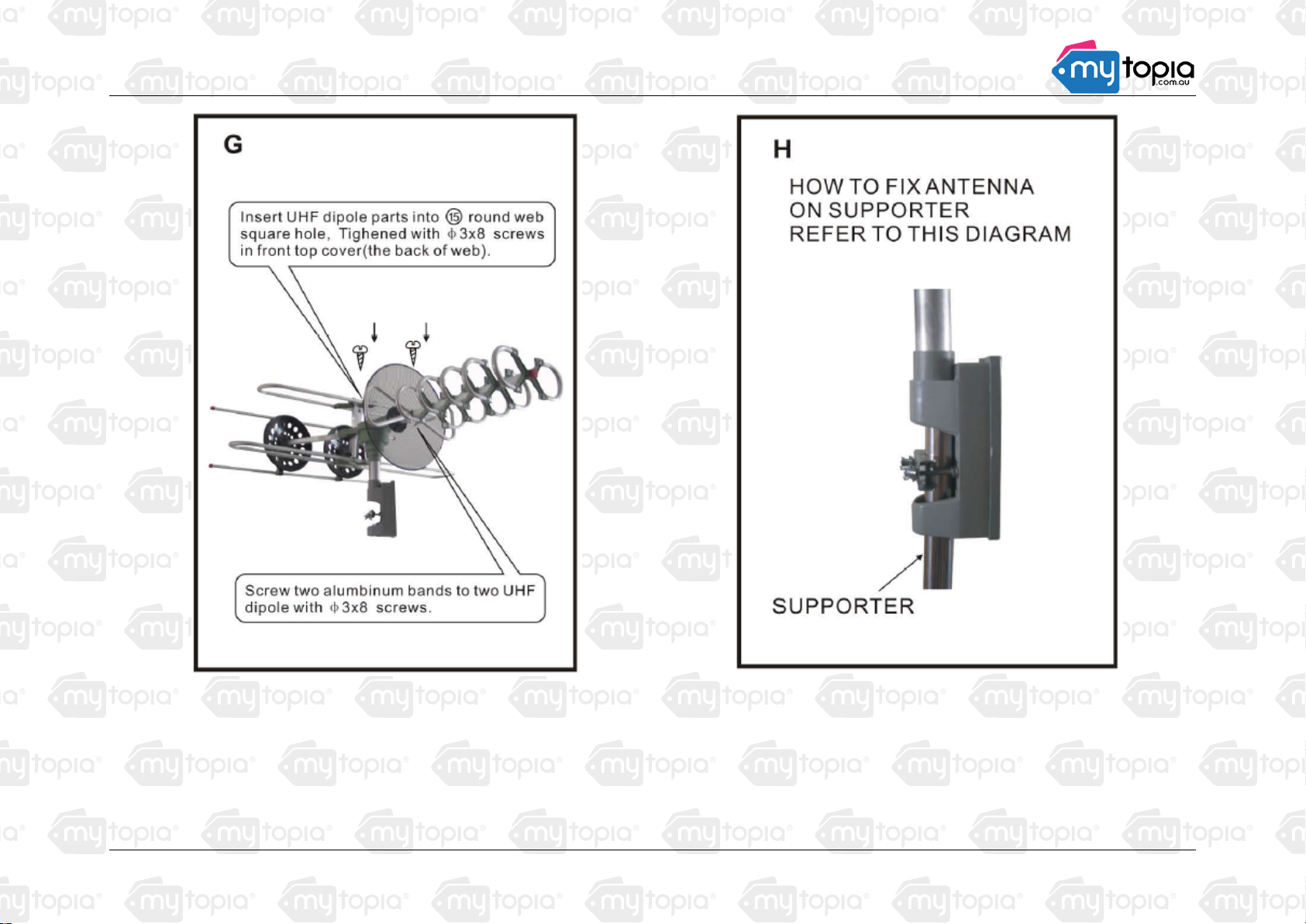

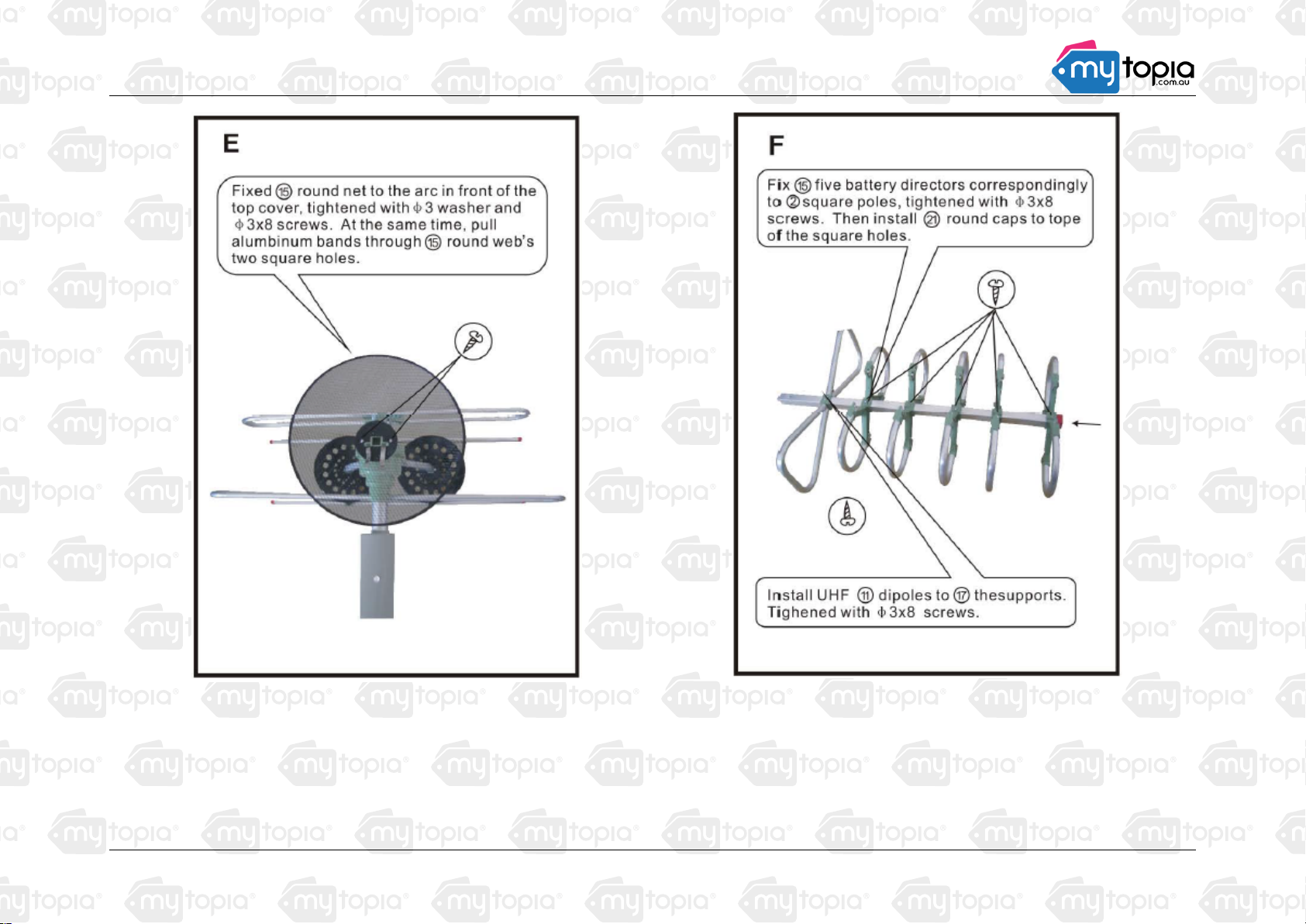

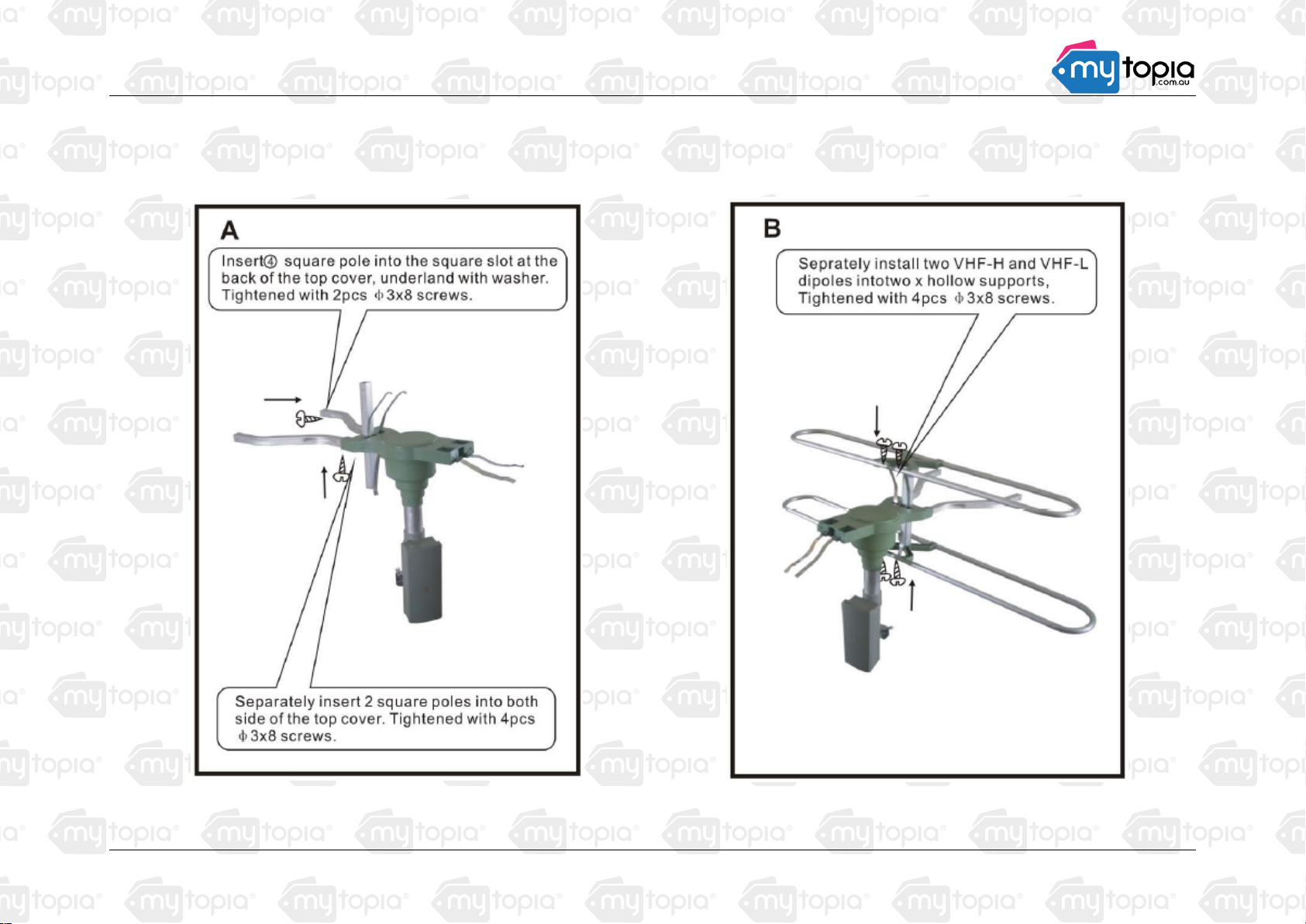

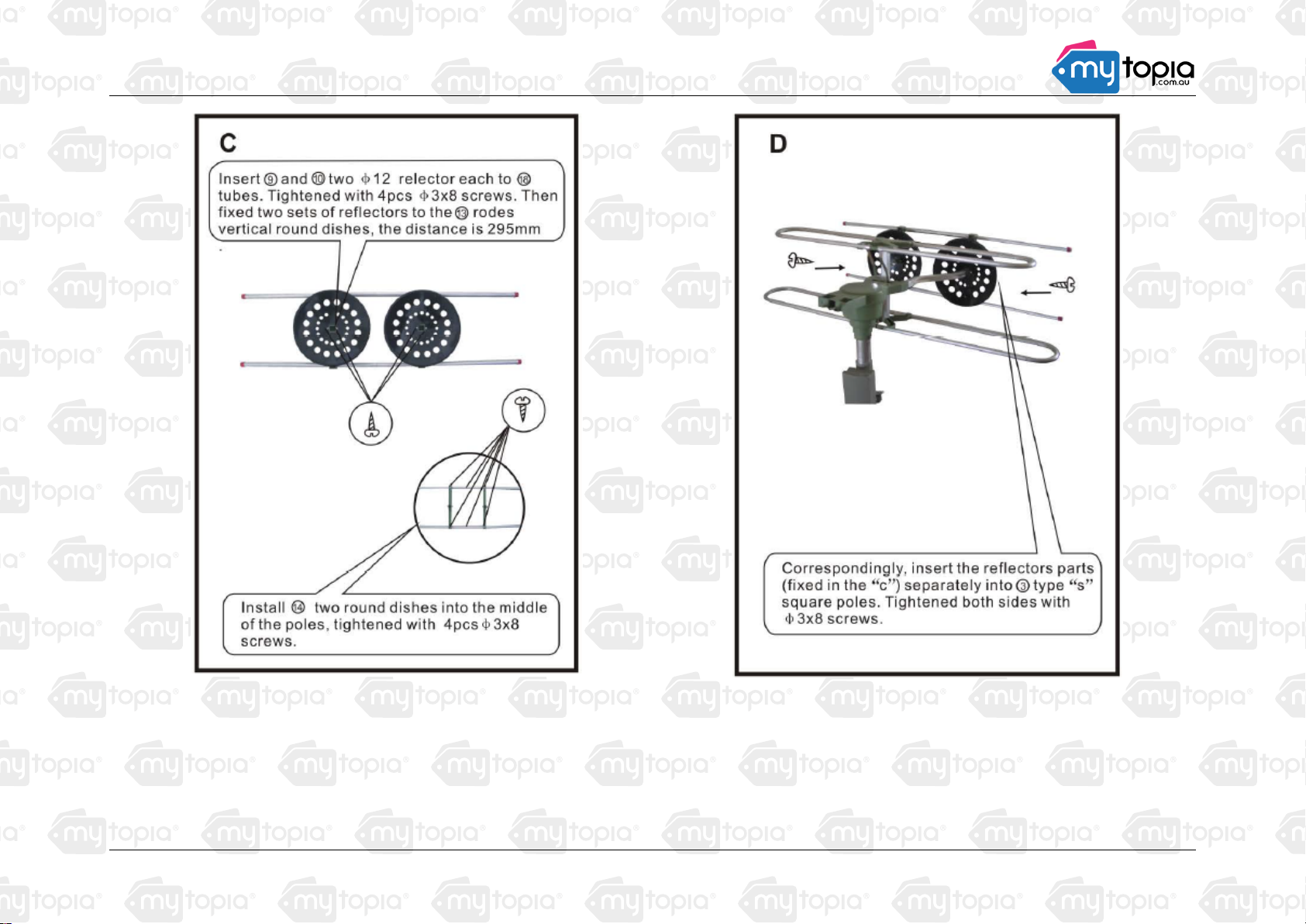

Assembly Diagram

6

Rotating Digital Outdoor TV Antenna

7

Rotating Digital Outdoor TV Antenna

8

Rotating Digital Outdoor TV Antenna

9
