FUNCTIONS & FEATURES
FM/AM/PA mode
◆
◆ Weather Channel 150-170MHz programmable
◆ CTCSS/DCS Code(Optional)
◆ Analog S/RF Meter + Digital SWR Meter
◆ PC programmable
◆ Dual Echo Controls
◆ SQ, ASQ Function
◆ RF Gain Adjustment
◆ Mike Gain Adjustment
◆ H/L Power AM H/M/L Power FM
◆ Programmable RB
◆ NB/ANL Function
◆ Repeater Offset Function
◆ Beep Voice Prompt
◆ TOT Function
◆ HI-CUT Filter
◆ Busy Channel Lock
◆
Talk-Back Monitor
Three Level LED Brightness Adjustment
◆
◆
SWR Protection
Voltage Protection
◆
1

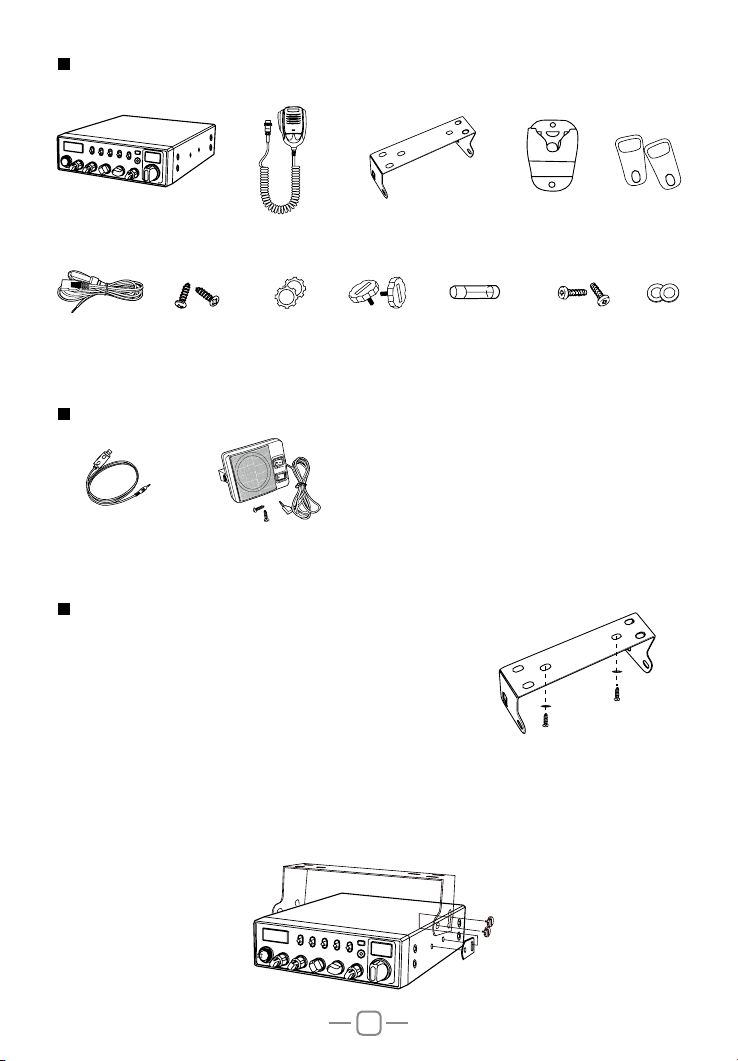

STANDARD ACCESSORIES
Radio
DC Power
Cable
Screws for
bracket
Microphone
Pads for
bracket
Mounting Bracket Non-slip
screws
Spare Fuses
(10A,250V)
Microphone
Hanger
Self-tapping
Screws
Mat
PadsAdjusting
OPTIONAL ACCESSORIE
USB Programming
Cable
External Speaker
INSTALLLATON
Choose the most appropriate location from a simple
and practical point of view. Your radio should not
interfere with the driver or crash the driver's knee or
leg when pushing brake.
1. Using the self-tapping screws and pads(2 sets) to x
the bracket.
2. Put the Non-slip mat on the 2 ends of the bracket and put in the radio. Then insert
the adjusting screws and check careful each screws, make sure the screws and
machine will not loose when the car shaking.
3. Choose suitable angle by the 3 screw holes in the two ends of bracket.
2
Microphone connection

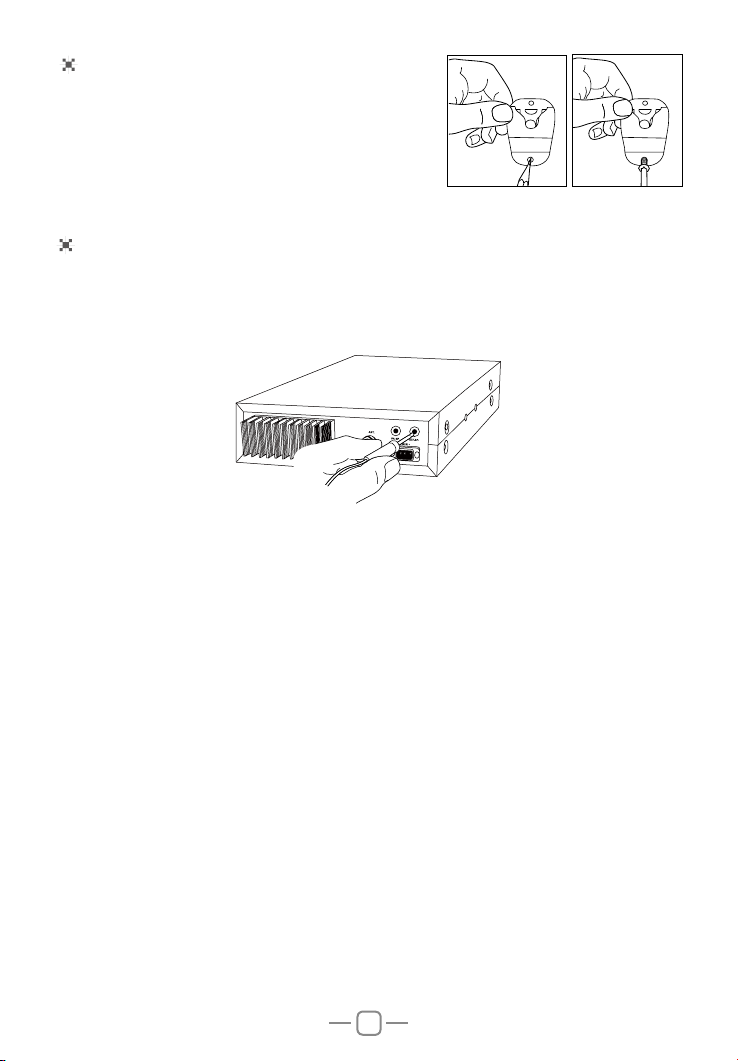

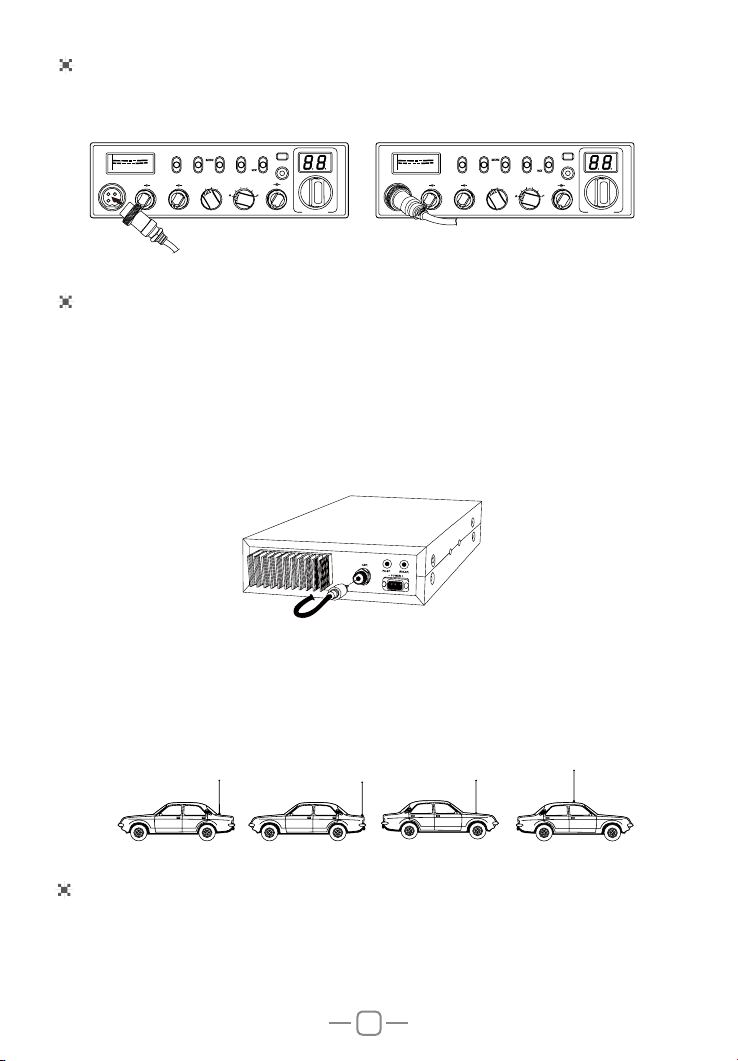

1. Plug microphone connector into jack.
2. Pull on the screw for microphone connector.
RX/TX
DIM
RF PWR
R
W
P
TX
1
4
23
NB/ANL
HI
ANL
�`�$�T
dB
1
+30
9
753
OFF
MIC
OFF
ANTENNA INSTALLATION
efore using this radio, please install a high efficent and properly adjusted
B
LO
RFG
SQ
VOL
MIG
BAND
H
H
DATA
L
M
NOR
L
EM
G
E VOL E DL
FM
AM
PA
Y
D
C
B
E
OFF
BAND
1
23
�`�$�T
1
753
MIC
OFF
RF PWR
R
W
P
TX
4
NB/ANL
HI
ANL
dB
+30
9
VOL
NOR
OFF
LO
EM
G
FM
RFG
SQ
MIG
PA
RX/TX
DIM
BAND
H
H
DATA
M
L
L
D
C
E VOL E DL
AM
Y
B
E
OFF
BAND
CB antenna, suitable antenna type and correct installation will provide
excellent communication.
Always use 50 Ohm coaxial cable for a single antenna and 75 Ohm cable for a dual
antenna system. Your antenna system should be 1.5:1 SWR or lower for best
performance. A SWR of 3:1 or higher could damage the transmitter.
1. Screw the antenna connector into the antenna jack.
2. Grounding the antenna system to ensure best performance of this radio.
WARNING:
▲ Always connect the
antenna before transmiting, or it might damage the radio.
▲ To avoid the risk of fire, electric shock, radio damage, all base station should
be equipped with a lightning protector.
▲ Be sure choose a matching antenna, Check with your local dealer.
3. The position of antenna can be put as following example:
POWER CONNECTION
This radio adopt 13.8V power supply, never connect it to 24V battery, And the 13.8V car
battery shall with sufcient current, or the LCD will become dark and Transmit power
will drop down.
3

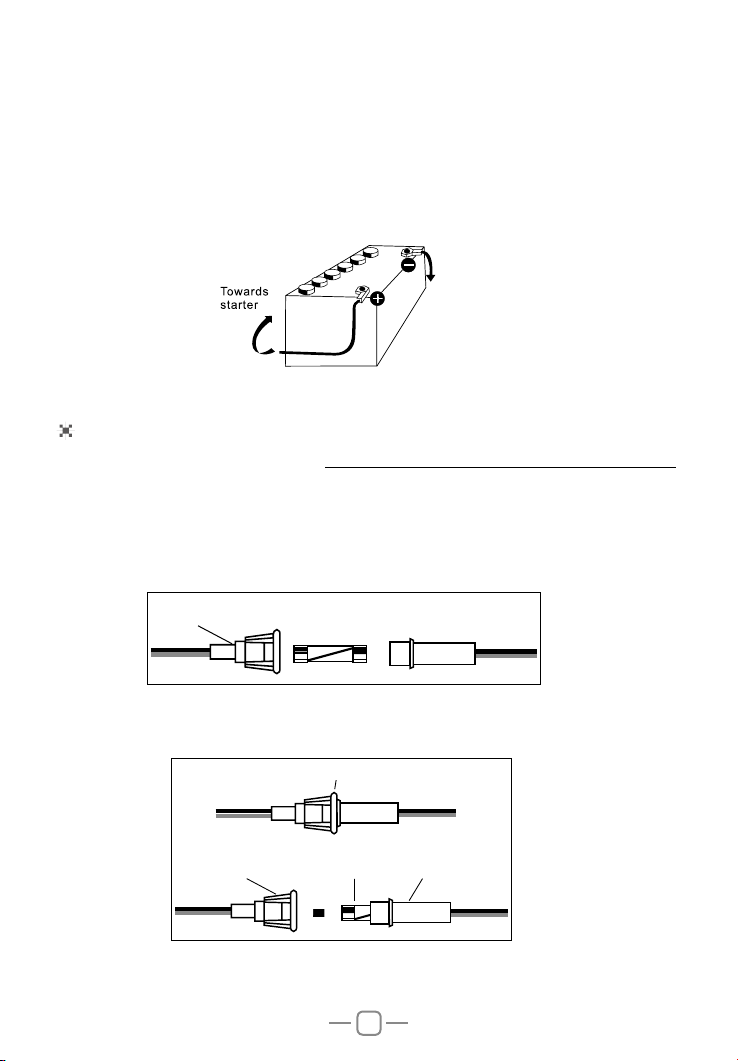

1. Connect positive red power cable with the + terminal of the battery.
2. Connect negative black power cable with the - terminal of the battery.
3. Connect the DC power cable to the transceiver's power supply connector.
▲ If a cigarette lighter is used, use one rated for at least 10 Amps.
▲ Locate the power cable away from high temperature, moisture, port
re and cable
insulator.
▲ Use a full power cable even it is longer than need, do not take off the fuse holder
from the cable.
Connected
to chassis
Replacing Fuse
This radio requires a 10A, 250V fuse. NEVER USE A FUSE WITH A HIGHER RATING.
If the fuse blows, determine the reason, then correct the problem.
After the problem is resolved, replace the fuse. If newly installed fuses continue
to blow, disconnect the power cable and contact your authorized dealer or an
authorized servicecenter:
1. Pull the two fuse cover in difference direction and open it.
10A 250V FUSE
IN-LINE
FUSE HOLDER
,
2.
Replace the blown fuse with good one, and close the fuse holder.
3. Be sure to use suggested fuse, or it might damage the radio.
IN-LINE
FUSE HOLDER
IN-LINE
FUSE HOLDER
FUSE
IN-LINE
FUSE HOLDER
4
Install Microphone Hanger
Choose a ideal location which will not interfere
the driver. Using supplied self-tapping screws and
pads(2 sets) to x the hanger.
Install External Speaker
If use an external speaker, please choose 8ohm speaker with 3.50mm mono band
(doulbe cable) plug.
1. Locate the external speaker in a suitable place.
2. Plug into the speaker jack.
5
GETTING ACQUAINTED

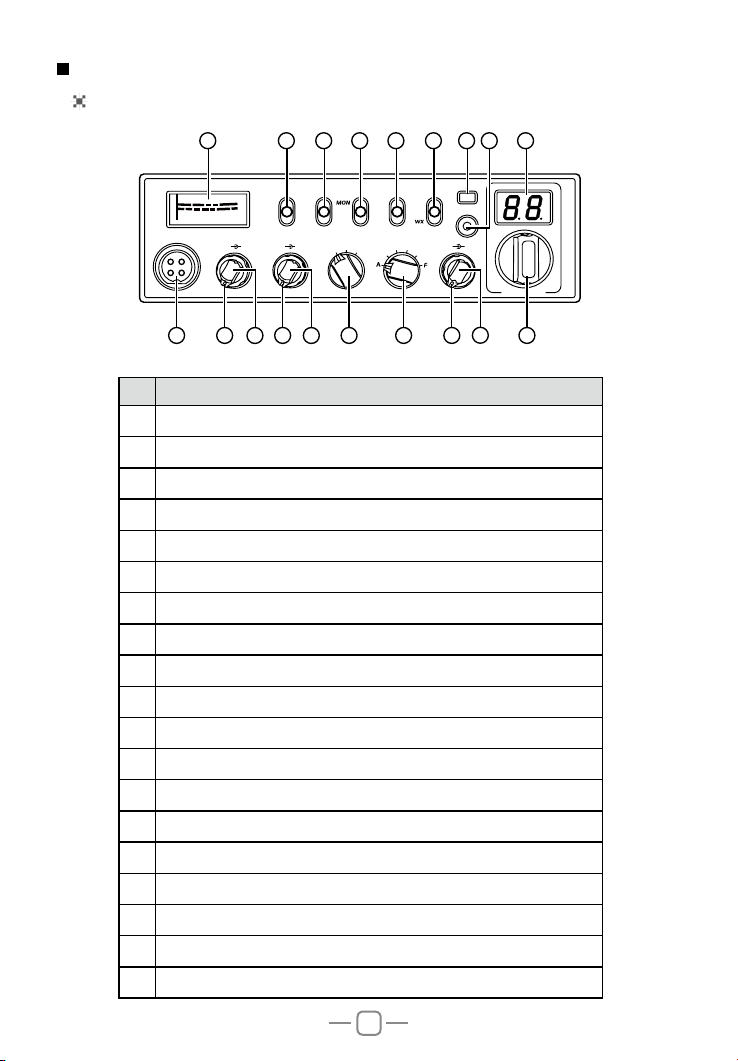

Front Panel
1
TX
4
1
23
�`�$�T
1
9
753
MIC
VOL
OFF
10 15 16 1912 1814
2 3 4 5 6 7 98
NB/ANL
RF PWR
HI
ANL
OFF
MIG
NOR
EMG
LO
FM
RFG
AM
PA
R
W
P
dB
+30
SQ
11 13
No. Functions
S/RF Meter
1
2 Control NB/ANL function on/off
3 Control power level
Monitor (Talk-Back) level control/EMG
4
5
Control LED brightness
6 Choose H and L band group
7 TX/RX indicator
8 PC programming port
Channnel & Multi-Function display
9
10 Mike connector
11 Power on/off volume level control
12 Squelch level control
13 Control Mike gain level
14 Control RF gain level
15 Choose AM/FM/PA mode
16 Choose working band
Control echo repeat times
17
Control echo delay time
18
19 Channel Switch
DIM
H
M
L
C
B
BAND
RX/TX
BAND
H
DATA
L
D
E VOL E DLY
E
OFF
17
6

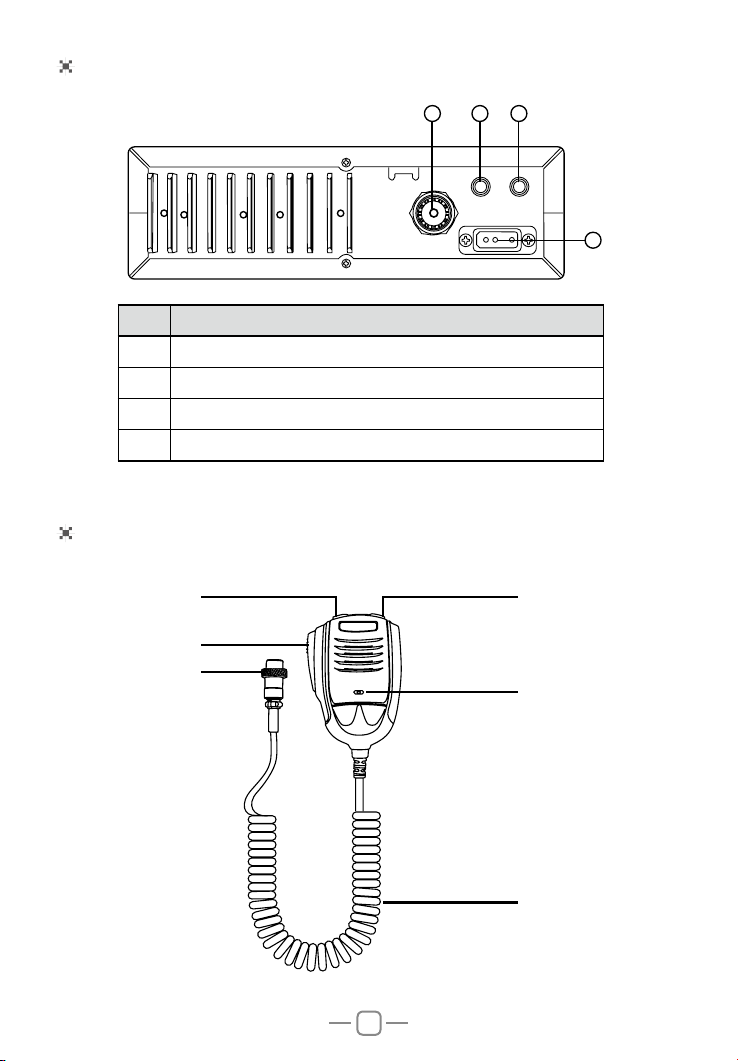

Rear Panel
22 21
ANT.
20
PA.SP. EXT.SP.
-
POWER
+
No. Functions
External Speaker Jack
20
PA Speaker Jack
21
22 Antenna Jack
23 Power Supply Jack
Microphone
Channel Down Channel UP
PTT
Connector
Mic
23
Microphone cable
7
HOW TO USE YOUR RADIO
OFF/ON Radio
1.
Turn VOL clockwise to switch on the radio, the radio will emit a beep. When the
LED displays frequency or channel, the radio is on.
2.
Turn VOL anti-clockwise to switch off the radio, the radio is OFF when hear a
Click from the switch.
Volume Control
When the radio is turned on, turn VOL clockwise will increase the volume, turn VOL
anti-clockwise will reduce the volume.
Note: Adjust the volume during communication to get suitable level.
Squelch Control
When the radio is standby, turn SQ outter shaft clockwise to adjust squelch level.
Mic Gain Control
When the radio is transmiting, turn MIC inner shaft to adjust Mic gain. Turn it clockwise
to increase gain, counter-clockwise to reduce gain.
RF Gain Control
When the radio is receiving, turn RFG outter shaft to adjust RF gain. Turn it clockwise
to increase gain, counter
Working mode Control
Turn the mode switch to choose AM/FM/PA mode.
-clockwise to reduce gain.
Working Band Control
Turn the band switch to choose A/B/C/D/E/F band.
Echo times Control
When Echo function is on, turn E VOL inner shaft to adjust echo repeat times. Turn
it clockwise to increase times, anti-clockwise to reduce times.
Echo duration Control
When Echo function is on, turn E DLY outter shaft to adjust echo duration time.
Turn it clockwise to increase delay, counter-clockwise to reduce delay.
Channel Selection
Turn the channel knob to select desired channel.
Clockwise to increase, counter-clockwise to reduce
channel.
8

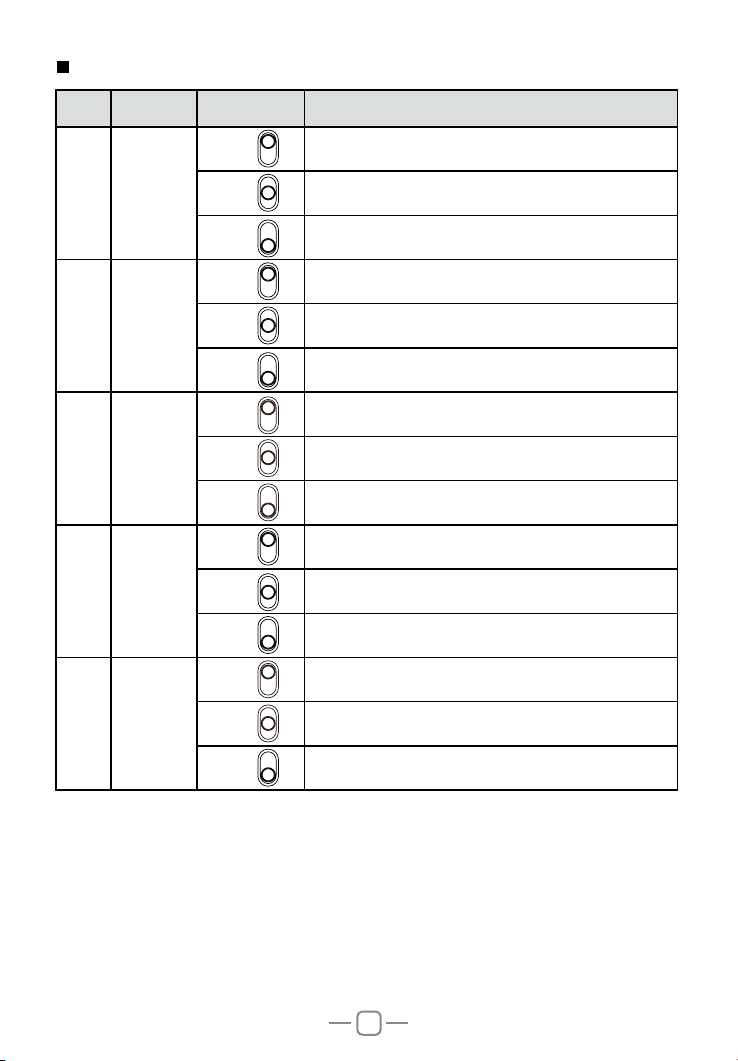

SLIDE SWTICH
No. Function Position Description
NB/ANL
1 NB/ANL
2 RF Power
MON
3
NOR
EMG
4 DIM
5 BAND
NB/ANL
NB/ANL
OFF
OFF
OFF
MON
NOR
EMG
MON
NOR
EMG
MON
NOR
EMG
ANL
ANL
ANL
WX
WX
WX
Trun on NB and ANL function
Turn on ANL fucntion
Turn off NB/ANL fucntion
HI
Set on high RF power AM: 10W FM: 10W
LO
HI
Set on super RF power AM: 10W FM: 40W
LO
HI
Set on low RF power AM: 4W FM: 4W
LO
Choose Monitor level. This radio has OFF~54 total
55 levels available
Radio works in normal channel
Radio works in EMG channel, EMG channel
available by programming
H
M
LED brightness is high level
L
H
M
LED brightness is middle level
L
H
M
LED brightness is low level
L
H
L
Choose higher frequency band group
H
L
Choose lower frequency band group
H
L
Turn on Weather channel function
9
ERROR CODE
When the RX/TX indicator
problem.
E1: Voltage too low
E2: Voltage too high
E3: WX function invalid
E4: Current BAND invalid
E5: TX SWR too high
light is yellow, LED displays code means the radio has
10
SPECIFICATIONS
GENERAL
Frequency Range 28.000-29.695MHz(Programmable)
Frequency Band L band: A/B/C/D/E/F H band : A/B/C/D/E/F
Channel 40 channels(programmable) in each band
Frequency Control Phase-Locked-Loop Synthesizer
Frequency Tolerance ± 5.0 ppm
Temperature Range -20℃to +50℃
Microphone with push-to-talk /UP/DN and coiled cord
Input Voltage 13.8V
Dimensions (in mm) 287(L)x200(W)x61(H)
Weight 1.75kg
Antenna Connector UHF, SO239
TRANSMITTER
Power Output AM: 10W/4W; FM:40W/10W/4W
Drain 8A(with modulation)
Modulation FM/AM
Unwanted Sideband 50dB
Frequency Response AM/FM: 300 to 3000Hz
Output Impedance 50ohms, unbalanced
11
RECEPTION
AM: 1.0μV for 10dB(S+N)/N at greater than 1/2 watt
Sensitivity
Adjacent-Channel Selectivity AM/FM: 60dB
Image Rejection More than 65dB
IF Frequency AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF
RF Gain Control 45dB adjustable for optimum signal reception
Automatic Gain Control(AGC)
Squelch
Audio Output Power 3 watts into 8 ohms
Frequency Response AM/FM: 300 to 3000Hz
Built-in Speaker 8 ohms, round
External Speaker(Not Supplied) 8 ohms, disables internal speaker when connected
Note: Specications are subject to change without notice due to advancements in
technology.
of audio output
FM: 1.0μV for 20dB(S+N)/N at greater than 1/2 watt
of audio output
Less than 10dB change in audio output for inputs
from 10 to 100,000 microvolt
Adjustable; threshold less than 1.0μV.
Automatic Squelch Control(only AM/FM)1.0μV
For more information, technical suport, and programing
software visit:
www.topguntec.com
12
Top Gun Technologies
www.TopGunTec.com
