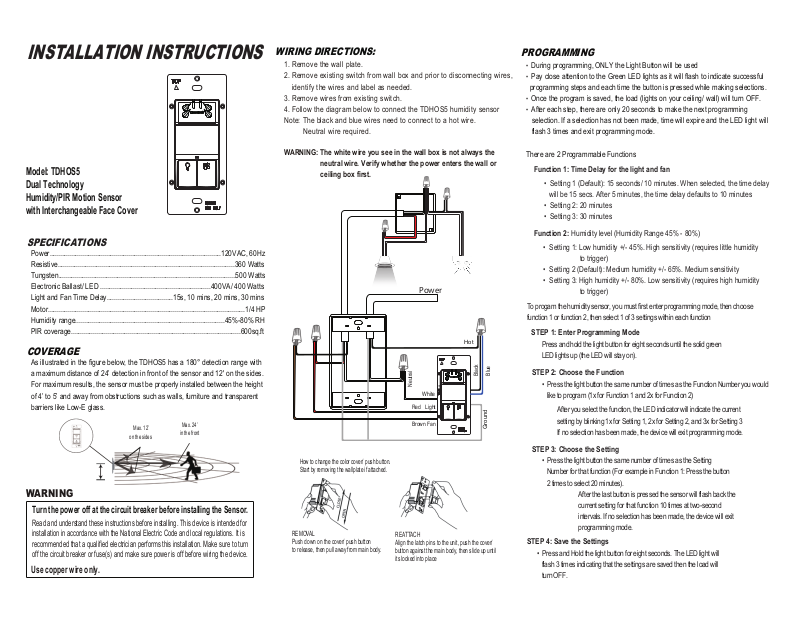

Page 1
INSTALLATION INSTRUCTIONS
WIRING DIRECTIONS:
1. Remove the wall plate.
2. Remove existing switch from wall box and prior to disconnecting wires,
identify the wires and label as needed.
3. Remove wires from existing switch.

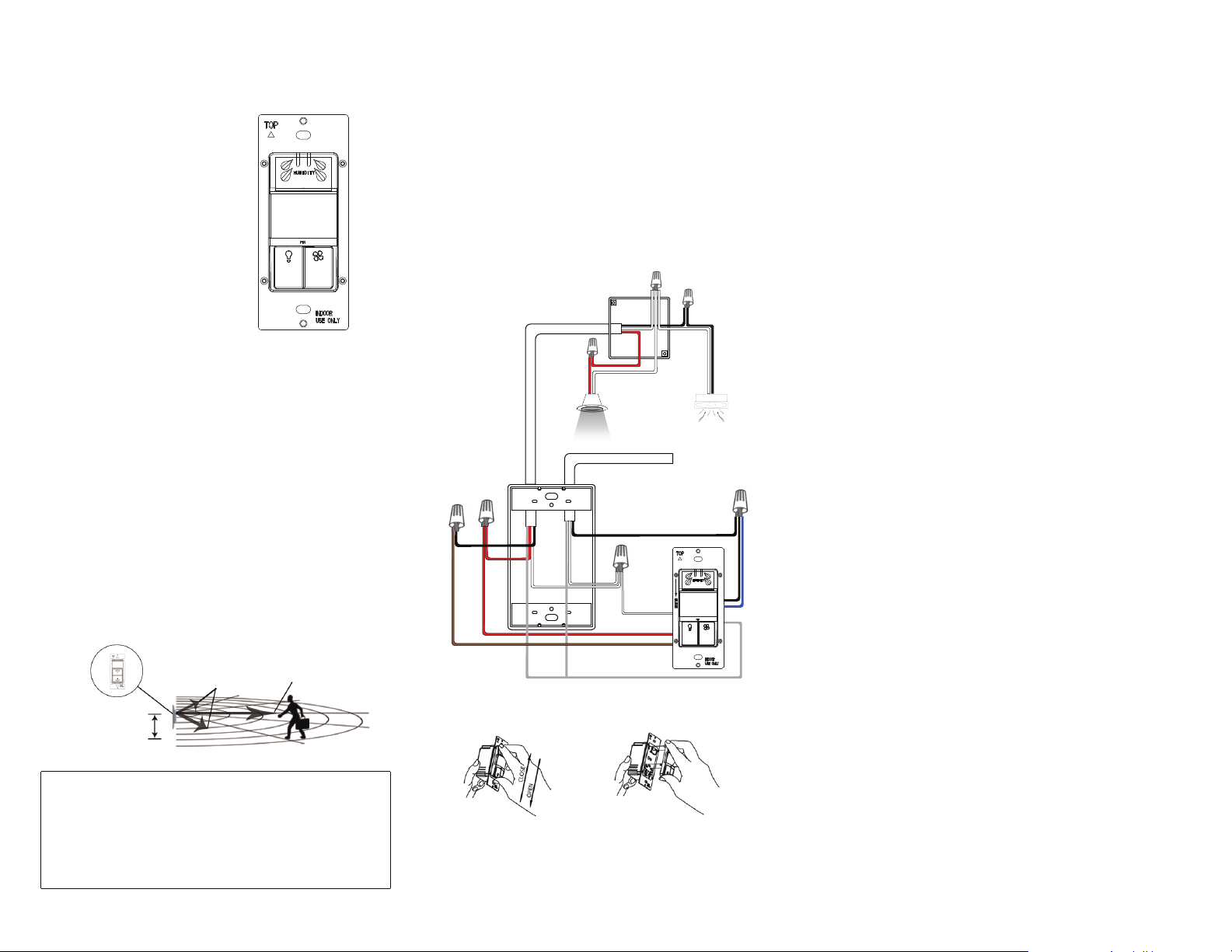

4. Follow the diagram below to connect the TDHOS5 humidity sensor
Note: The black and blue wires need to connect to a hot wire.
Neutral wire required.
PROGRAMMING
• During programming, ONLY the Light Button will be used
• Pay close attention to the Green LED lights as it will flash to indicate successful
programming steps and each time the button is pressed while making selections.
• Once the program is saved, the load (lights on your ceiling/ wall) will turn OFF.
• After each step, there are only 20 seconds to make the next programming
selection. If a selection has not been made, time will expire and the LED light will
flash 3 times and exit programming mode.
Model: TDHOS5
Dual Technology
Humidity/PIR Motion Sensor
with Interchangeable Face Cover
SPECIFICATIONS
Power.............................................................................................120VAC, 60Hz
Resistive................................................................................................360 Watts
Tungsten................................................................................................500 Watts
Electronic Ballast/ LED ............................................................400VA/ 400 Watts
Light and Fan Time Delay....................................15s, 10 mins, 20 mins, 30 mins
Motor...........................................................................................................1/4 HP
Humidity range.................................................................................45%-80% RH
PIR coverage............................................................................................600sq.ft
COVERAGE
As illustrated in the figure below, the TDHOS5 has a 180° detection range with
a maximum distance of 24’ detection in front of the sensor and 12' on the sides.
For maximum results, the sensor must be properly installed between the height
of 4’ to 5’ and away from obstructions such as walls, furniture and transparent
barriers like Low-E glass.
Max. 12’
on the sides
Max. 24’
in the front
WARNING
Turn the power off at the circuit breaker before installing the Sensor.
Read and understand these instructions before installing. This device is intended for
installation in accordance with the National Electric Code and local regulations. It is
recommended that a qualified electrician performs this installation. Make sure to turn
off the circuit breaker or fuse(s) and make sure power is off before wiring the device.
Use copper wire only.
WARNING: The white wire you see in the wall box is not always the
neutral wire. Verify whether the power enters the wall or
ceiling box first.
Power
Hot
Black
Neutral
White
Red Light
How to change the color cover/ push button.
Start by removing the wallplate if attached.
REMOVAL
Push down on the cover/ push button
to release, then pull away from main body.
Brown Fan
REATTACH
Align the latch pins to the unit, push the cover/
button against the main body, then slide up until
its locked into place
Ground
Blue
There are 2 Programmable Functions
Function 1: Time Delay for the light and fan
• Setting 1 (Default): 15 seconds/ 10 minutes. When selected, the time delay
will be 15 secs. After 5 minutes, the time delay defaults to 10 minutes
• Setting 2: 20 minutes
• Setting 3: 30 minutes
Function 2: Humidity level (Humidity Range 45% - 80%)
• Setting 1: Low humidity +/- 45%. High sensitivity (requires little humidity
to trigger)
• Setting 2 (Default): Medium humidity +/- 65%. Medium sensitivity
• Setting 3: High humidity +/- 80%. Low sensitivity (requires high humidity
to trigger)
To progam the humidity sensor, you must first enter programming mode, then choose
function 1 or function 2, then select 1 of 3 settings within each function
STEP 1: Enter Programming Mode
Press and hold the light button for eight seconds until the solid green
LED lights up (the LED will stay on).
STEP 2: Choose the Function
• Press the light button the same number of times as the Function Number you would
like to program (1x for Function 1 and 2x for Function 2)
After you select the function, the LED indicator will indicate the current
setting by blinking 1x for Setting 1, 2x for Setting 2, and 3x for Setting 3
If no selection has been made, the device will exit programming mode.
STEP 3: Choose the Setting
• Press the light button the same number of times as the Setting
Number for that function (For example in Function 1: Press the button
2 times to select 20 minutes).
After the last button is pressed the sensor will flash back the
current setting for that function 10 times at two-second
intervals. If no selection has been made, the device will exit
programming mode.
STEP 4: Save the Settings
• Press and Hold the light button for eight seconds. The LED light will
flash 3 times indicating that the settings are saved then the load will
turn OFF.
Page 2
EXAMPLE
Programming Example: Change the time delay of the switch from
10 minutes to 20 minutes as follows:
1. Press and hold the light button for eight seconds. The green LED light
will come on solid.
2. Press the light button once for Function 1: Time Delay.
3. The green LED light will now flash once every 2 seconds indicating the
current time delay, which is at 10 minutes.
Press the light button 2 times to choose Setting 2 (20 minutes).
The green LED light now will flashes two times every
2 seconds indicating the new time delay of 20 minutes.
4. Press and Hold the light button for eight seconds. The LED light will
flash 3 times indicating
that the settings are saved then the load will turn OFF.
OCCUPANCY/VACANCY MODES
Users can change between occupancy and vacancy modes by pressing and
holding the light and fan buttons simultaneously for about 10 to 15 seconds.
When the green LED indicator on the light button comes on, it indicates the
mode has been changed from either occupancy to vacancy or vacancy to
occupancy mode.
• Occupancy Mode (default) - Lights Auto On/Automatic Off
Light: Auto On, Auto Off. The Lights will automatically turn ON when
motion is detected and automatically turn OFF by Time Delay.
• When the light button is used to turn ON, lights turn ON. The
lights will then turn OFF when the time delay expires.
• When manual button is used to turn OFF the lights before the
timer expires, the lights turn off. The sensor will not turn the lights
on again for another 3 minutes. After 3 minutes, the sensor will
reset and will turn ON lights if motion is detected.
• Vacancy Mode - Lights Manual On/Automatic Off
Light: Manual On, Auto Off. Manual button is used to turn the Lights ON
and automatically turn OFF by Time Delay.
• When manual button is used to turn OFF the lights before the
timer expires, the lights turn off. The sensor will not turn the lights
on again
• If motion is detected (within 30 seconds) of the lights turning off,
the Lights will come back ON
FAN MODES
The fan only has one mode: Auto On, Auto Off. The fan will turn ON
automatically when the humidity level reaches the selected (high, medium,
or low) level and will automatically turn OFF when the humidity level drops
low enough
• After running for 30 minutes, if the humidity level has not dropped low
enough, the fan will pause for 5 minutes, then resume for another
30 minutes.
• This is a feature that prevents the motor on the ventilation fan
from overheating
• When the manual button is used to turn ON, the fan will turn ON for
30 minutes and automatically turn OFF.
• Overriding the fan’s Auto On function: When the manual button is
used to turn OFF the fan, the fan will turn OFF immediately and the
humidity sensor will stop detecting humidity until it is reset by the user.
• This is a great feature if you live in areas with very high humidity
and you don’t want the fan to come on throughout the night
• To Reset the fan’s Auto On function: Use the fan button to turn ON the
fan and allow it to turn off on it’s own (30 minutes).
NOTES
What is Time Delay
• For the PIR motion sensor, time delay is the time from the last
motion detected until the light is automatically turned OFF
• The fan has only one time setting and that is to run in 30 minute
intervals. Anytime the fan comes on whether by use of the button or
automatically, the fan will run for only 30 minutes. If humidity in the
room is still at a high level after running for 30 minutes, the TDHOS5
will pause for 5 minutes and resume for another 30 minutes.
High Relative Humidity (RH) locations
• If you live in high humidity areas, consider using the highest humidity
setting for the lowest sensitivity (Function 2, setting 3). If the fan runs
non-stop even with setting 3 selected, you should override the auto-on
until the relative humidity (RH) in your area drops below 80% RH.
LED indicators
• The Light LED indicator will flash green when motion is detected.
• The Fan LED indicator will turn solid red when humidity is detected.
If the manual button is used and no humidity is detected, the LED
indicator will stay white.
TROUBLESHOOTING
•
If the switch does not seem to turn on (
indicator light does not flash).
Check if the device is wired properly. It requires a NEUTRAL wire for
operation. Often the WHITE wire is used as a LOAD wire for the light and
is indicated by a black electrical tape wrapped around the wire. Be sure
that the Black AND Blue leads are connected to the incoming HOT wire.
Also make sure that the HOT and LOAD wires are not reversed.
• If the humidity sensor does not turn on the fan, but the fan button works.
Change the humidity level to a lower setting. Then reset the fan by using the
fan button to manually turn ON the fan. Wait 30 minutes for the fan to turn off.
The humidity sensor will reset after the 30 minutes.
• If the light does not turn on but the indicator light is flashing .
The switch may be in Vacancy Mode. Press and hold both light and fan
buttons for 10 seconds to switch to Occupancy mode.
If the load does not work and the
WARRANTY
This device is warranted to be free of material and workmanship defects for 1 year from the date of purchase. Original receipt or proof of purchase from an authorized retailer must be presented upon warranty claim. ALL claims
must be verified and approved by Top Greener, Inc. Warranties from other TOPGREENER products may vary. This warranty is nontransferable and does not cover normal wear and tear or any malfunction, failure, or defect
resulting from misuse, abuse, neglect, alteration, modification, or improper installation. To the fullest extent permitted by the applicable state law, Top Greener, Inc. shall not be liable to the purchaser or end user customer of
TOPGREENER products for direct, indirect, incidental, or consequential damages even if Top Greener, Inc. has been advised of the possibility of such damages. Top Greener, Inc’s total liability under this or any other warranty,
express or implied, is limited to repair, replacement or refund. Repair, replacement or refund are the sole and exclusive remedies for breach of warranty or any other legal theory.
© 2018 Top Greener, Inc.
CA, U.S.A. WWW.TOPGREENER.COM 0211200082-09
