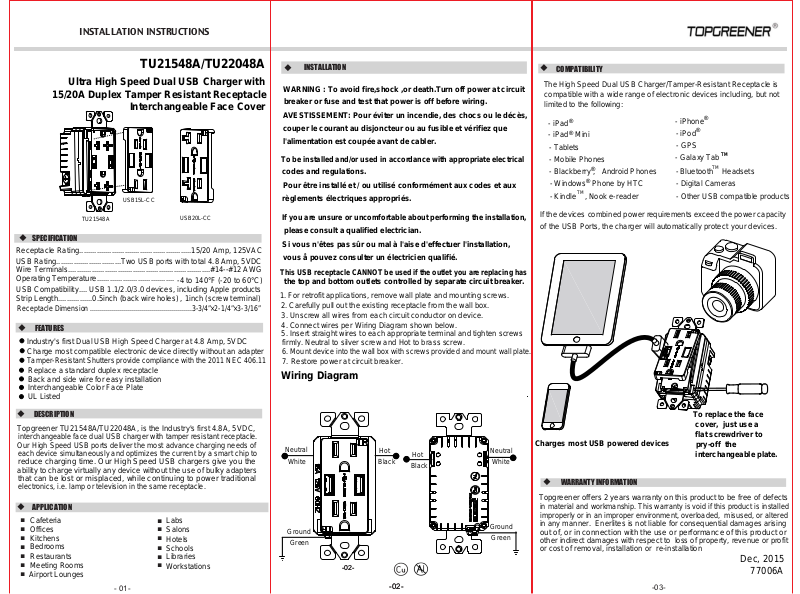

INSTALLATION INSTRUCTIONS
TU21548A/TU22048A
Ultra High Speed Dual USB Charger with
15/20A Duplex Tamper Resistant Receptacle
Interchangeable Face Cover
USB15L-CC
TU21548A
SPECIFICATION
Receptacle Rating....................................................15/20 Amp, 125VAC
USB Rating..............................Two USB ports with total 4.8 Amp, 5VDC
Wire Terminals..................................................................#14--#12 AWG
Operating Temperature....................................
USB Compatibility.... USB 1.1/2.0/3.0 devices, including Apple products
Strip Length................0.5inch (back wire holes) , 1inch (screw terminal)
Receptacle Dimension ...................................................3-3/4”×2-1/4”×3-3/16”
FEATURES
Industry's first Dual USB High Speed Charger at 4.8 Amp, 5VDC
Charge most compatible electronic device directly without an adapter
Tamper-Resistant Shutters provide compliance with the 2011 NEC 406.11
Replace a standard duplex receptacle
Back and side wire for easy installation
Interchangeable Color Face Plate
UL Listed
USB20L-CC
-4 to 140°F (-20 to 60°C)
INSTALLATION
WARNING : To avoid fire,shock ,or death.Turn off power at circuit
breaker or fuse and test that power is off before wiring.
AVESTISSEMENT: Pour éviter un incendie, des chocs ou le décès,
couper le courant au disjoncteur ou au fusible et vérifiez que
l'alimentation est coupée avant de cabler.
To be installed and/or used in accordance with appropriate electrical
codes and regulations.
Pour être installé et / ou utilisé conformément aux codes et aux
règlements électriques appropriés.
If you are unsure or uncomfortable about performing the installation,
please consult a qualified electrician.
Si vous n'êtes pas sûr ou mal à l'aise d'effectuer l'installation,
vous å pouvez consulter un électricien qualifié.
This USB receptacle CANNOT be used if the outlet you are replacing has
the top and bottom outlets controlled by separate circuit breaker.
1. For retrofit applications, remove wall plate and mounting screws.
2. Carefully pull out the existing receptacle from the wall box.
3. Unscrew all wires from each circuit conductor on device.
4. Connect wires per Wiring Diagram shown below.
5. Insert straight wires to each appropriate terminal and tighten screws
firmly. Neutral to silver screw and Hot to brass screw.
6. Mount device into the wall box with screws provided and mount wall plate.
7. Restore power at circuit breaker.

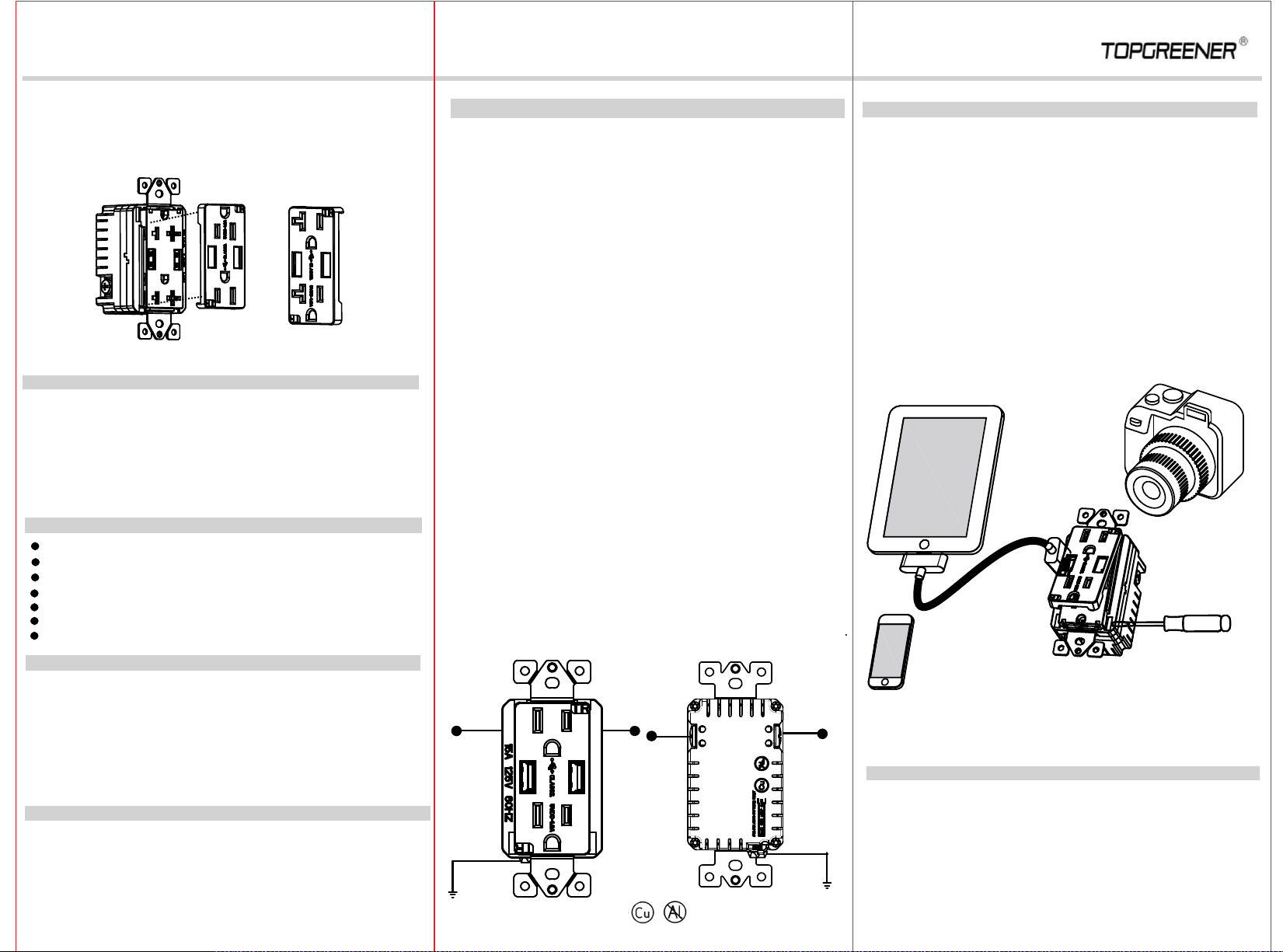

Wiring Diagram
COMPATIBILITY
The High Speed Dual USB Charger/Tamper-Resistant Receptacle is
compatible with a wide range of electronic devices including, but not
limited to the following:
®
- iPad
®
- iPad Mini
- Tablets
- Mobile Phones
- Blackberry , Android Phones
- Windows Phone by HTC
- Kindle , Nook e-reader
®
®
TM
®
- iPhone
®
- iPod
- GPS
- Galaxy Tab
- Bluetooth Headsets
TMTM
TM
- Digital Cameras
- Other USB compatible products
If the devices combined power requirements exceed the power capacity
of the USB Ports, the charger will automatically protect your devices.
DESCRIPTION
Topgreener TU21548A/TU22048A, is the Industry's first 4.8A, 5VDC,
interchangeable face dual USB charger with tamper resistant receptacle.
Our High Speed USB ports deliver the most advance charging needs of
each device simultaneously and optimizes the current by a smart chip to
reduce charging time. Our High Speed USB chargers give you the
ability to charge virtually any device without the use of bulky adapters
that can be lost or misplaced, while continuing to power traditional
electronics, i.e. lamp or television in the same receptacle.
APPLICATION
Cafeteria
Offices
Kitchens
Bedrooms
Restaurants
Meeting Rooms
Airport Lounges
Labs
Salons
Hotels
Schools
Libraries
Workstations
- 01-
Neutral
White
Ground
Green
To replace the face
cover, just use a
flat screwdriver to
Hot
Black
Hot
Black
Neutral
White
Charges most USB powered devices
WARRANTY INFORMATION
pry-off the
interchangeable plate.
Topgreener offers 2 years warranty on this product to be free of defects
in material and workmanship. This warranty is void if this product is installed
improperly or in an improper environment, overloaded, misused, or altered
Ground
Green
in any manner. Enerlites is not liable for consequential damages arising
out of, or in connection with the use or performance of this product or
other indirect damages with respect to loss of property, revenue or profit
or cost of removal, installation or re-installation
-02-
-02-
-02-
-02-
-03-
Dec, 2015
77006A
