T8803 PRO Vehicle GPS Tracker
(GSM +GPS+SMS/GPRS)
（Waterproof）
User Manual
&
Operation Command (SMS)
V2.3
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 2 -
TOPFLYTECH
CONFIDENTIAL
Thanks for your purchase of the high quality GPS trackers from TOPFLYTECH
company. Please read this user manual and operation command carefully to
obtain guidance on installation and operation. The following describes this
device. We will not publish notification should there be cosmetic or color change,
actual product prevails.
This vehicle GPS tracker product rides on GPRS communication technology,
GPS satellite positioning and internet technology. It can realize the real time
remote monitoring and control of the vehicle though a powerful service platform
( http://tracker.topflytech.com ). It provides customers with cost reduction,
efficiency increased, safety guarantee and transparency management. Currently,
it has been widely used in commercial transportation, corporate vehicle fleet,
intelligent transportation, logistics distribution, car rental, engineering machinery,
marine transportation and other fields.
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 3 -
TOPFLYTECH
CONFIDENTIAL
Table of Content
Quick Reference of Connection Diagram……………………………………………………………..5
1. Product Functions.………………………………………………………..…….……...….….….….6
2. Accessories Introduction……..……..…………………………………..…….……………..….…..6
3. Usage Environment……….……………………………………………..……….………...…….….6
4. Key Technical Parameters…………....………………………………...…………………….….…7
4.1 Basic Parameters…..……..……………………………………..……….………..….…...….7
4.2 Indicator Lights Status….……………………………………….…………………....…….…7
5. Installation Manual ……………………………………………………...……………….…………..7
5.1 SIM Card Pre-installation Note.……………….……………..…………………....………….7
5.2 SIM Card Installation and Removal….……...………………………….………...………….8
5.3 Installation….………………………………..………………………….…………...………….8
5.4 Relay Wiring Method………………….…………………………………………..…..……….8
6. Cautions of Device Wiring………………………….……………………………………….………8
6.1 Power Supply Line…...………………….………………………………………………..…...9
6.2 Microphone Line..……………………….……………………………………………….…….9
6.3 SOS Alarm Line………………………………….…………………………………………..…9
6.4 Microphone & SOS Line……………………………………………………………..…..……9
7. Device Configuration………...…………………….…….…………………..….….…….…………9
8. Operation of Device………………….…………………………..……………….……..….….……9
8.1 Power On and Power Off…..………………...……………………..……..…….…..……..…9
8.2 Indicator Lights…….……………………………………………….…….……..…..…….……9
8.3 Location Search….…………………………………………………….…..……………...….10
8.4 SOS Alarm…….…………………………………………………...…..………………..…….10
8.5 Monitoring………….………………………………………………...….……..…....…..……10
8.6 Fuel Cut……...…….…………….…………………………………….…..………….…..…..10
8.7 Restore Fuel Supply……………….……….………………………….…..……….……......11
9. Trouble Shooting……………………………………..……………………..…….………..…..…..11
9.1 Unable to Connect….…………………………..……………………………..…….….…….11
9.2 Backstage Shows Offline……………….……………………………………..……….…….11
9.3 Prolong Inability to Locate……………………..…………………...……..…..…………….11
9.4 Severe Drifting in Location……………………..…………………….………..………….…12
9.5 Abnormal Command Reception…….……………………………….………..………........12
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 4 -
TOPFLYTECH
CONFIDENTIAL
10. Warranty Details…………………..……………………………………………....…....……...…12
10.1 Special Statement…………...……………..….……………………………...……….……12
10.2 Warranty Period……………………………....…………………….......……….………….12
10.3 After Sales Service…………………………..………………………………...…..….……12
11. Operation Command (SMS)………….…………………………..……………..…….…..…..…12
Command Instruction………………….....…...…………...……...………...…………....…..…12
Command Setting List……………………………………………...…..…………...……..….…13
11.1 APN Setting……………………………………...……………….....…………………….…14
11.2 Server Setting…….…….………………………………..……………………………….....14
11.3 Upload Interval Setting…………………………..…………………..…………………..…15
11.4 Heartbeat Setting………….………………………………..……….………………………15
11.5 GMT Setting………..…………………………………………………………….….……….15
11.6 PIN Setting…….………………………..…..…………………..…..…….….….……..……16
11.7 Manager Setting………………...………….……………………...….…………………….16
11.8 Manager Delete………………...………….…………….……………………….………….16
11.9 Manager List………………...………….…………….………………….……….………….16
11.10 Antitheft Setting………….…..…………...………………………………..….….………..17
11.11 Drag Setting…………………………………………………………………..…….………17
11.12 Speed Limit Setting…………………………..………….…………….….……….………17
11.13 SMS Tracking Mode Setting……….…...………………..…………………..………..….17
11.14 SIM Card Credit Checking……….…...………………..……………..……..…….…..….18
11.15 Relay Control……………………………………………………………….…..……..……18
11.16 Google Map Search……………….…………………...........……………………………19
11.17 Identity Read Back…….………………………………...……………….………………..19
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 5 -
PIN1
PIN3
PIN4
PIN5
PIN6
PIN8
PIN7
PIN2
Connector
PIN No.
Line Color
Function
1
1
Red
Power+
2
Black
Power-
3
Orange
ACC detect
(Digital input 1)
4
Yellow
Relay control
(Digital output 1)
2 5 Green
Digital input 2
(Door/AC…)
3
6
Orange
SOS
7
Red
Microphone
8
Black
GND
Fuse
Connector1
Connector3
Connector2
TOPFLYTECH
CONFIDENTIAL

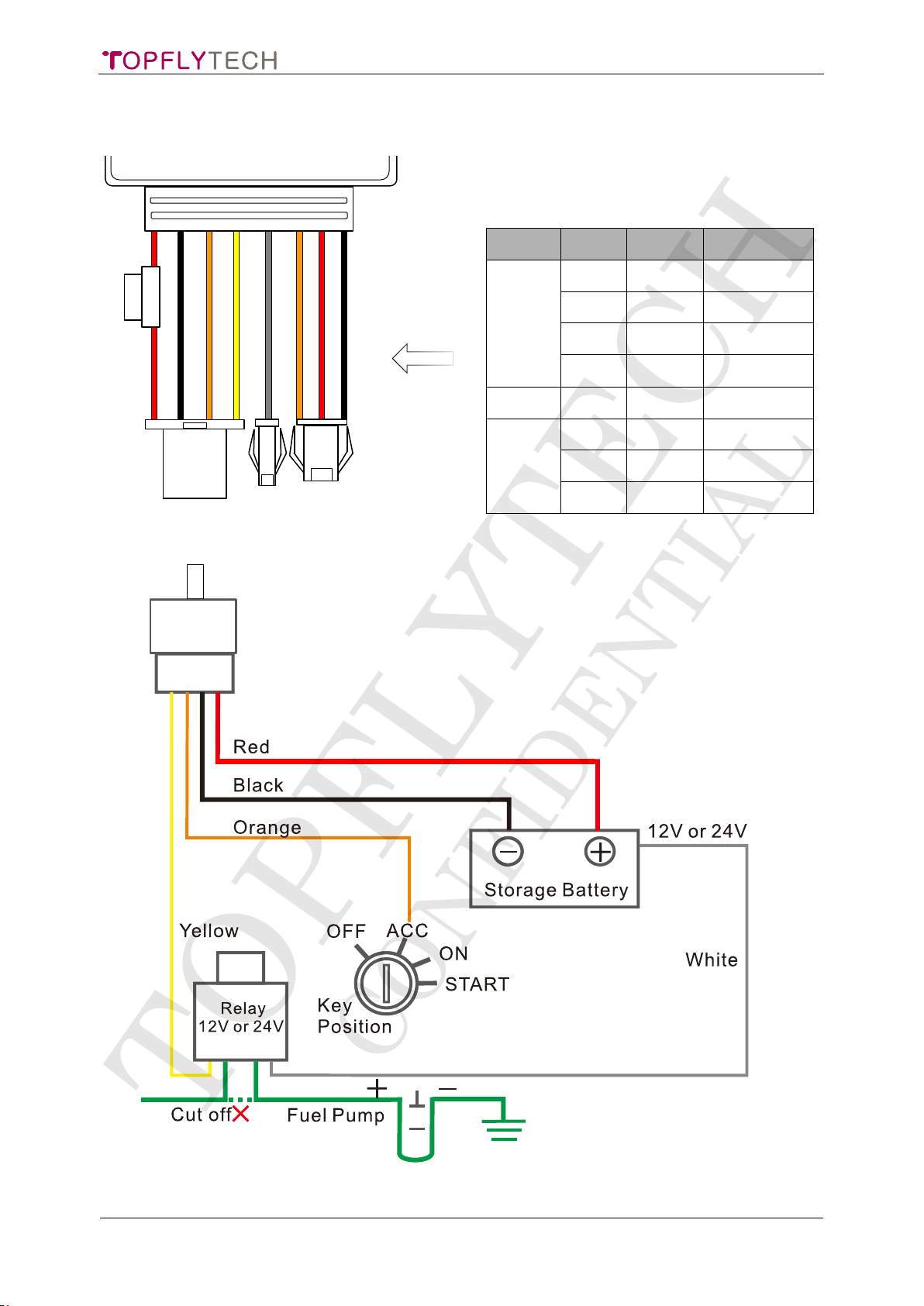

Quick Reference of Connection Diagram
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 6 -
TOPFLYTECH
CONFIDENTIAL
1. Product Functions
Waterproof IP66;
Quad band GSM (850/900/1800/1900MHz);
Wide DC input range: 6-36V;
GPS continuous positioning, GPRS timing upload;
Vehicle location tracking;
ACC ignition signal test, vehicle status prompt;
AC(Air Conditioner) detection (Car door or any other digital input signal);
SIM credit check (USSD);
Tow car alarm;
Antitheft alarm;
Built-in battery for alarm when the power line is cut off illegally;
External fuel cut;
External SOS button for emergency call for help;
External microphone for remote voice monitor.
2. Accessories Introduction (Pictures for reference only)
Sponge Double-side Adhesive Tape (Standard) Power Supply Extension Line (Standard)
1 Digital Input Extension Line (Standard) Microphone & SOS Line (Optional)
Relay (Optional) – 12V/24V
3. Usage Environment
Operation temp：-20°C ~ 65°C (-4°F ~ 149°F)
Storage temp：-30°C ~ 80°C (-22°F ~ 176°F)
Operation humidity: 10% ~ 80% (Non-condensing)
Storage humidity：0% ~ 90% (Non-condensing)
Install in area away from rain or snow
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
Power Supply
6~36V DC
Built-in Battery Capacity
465mAh/3.7V
GSM Frequency
Quad band (850/900/1800/1900MHz)
Standby Current
5mA/12V, 3mA/24V
Work Current
14mA/12V, 8mA/24V
GPS Frequency
1575MHz
GPS Accuracy
<15m
A-GPS Accuracy
<100m
GPS Sensitivity
-162dBm
GPS Startup Time
Hot start<3S, Warm start<15S, Cool start<60S
Dimension
80*40*12mm
Net Weight
79g
Fast Blink
GSM Network Searching
Slow Blink
GSM Normal Operation
Fast Blink
GPS Satellite Searching
Slow Blink
GPS Positioning Done
- 7 -
TOPFLYTECH
CONFIDENTIAL
4. Key Technical Parameters
4.1 Basic Parameters
4.2 Indicator Lights Status
1) Red light (GSM status indicator）
2) Blue light (GPS status indicator）
Note:
1) Indicator lights go out automatically after the device turn on for 5 minutes. No indicator light
prompt.
2) If want to check the working status of the device according to the indicator lights, you can
dial the phone number of the SIM card which is in the device. Then the indicator lights begin
to blink. After 5 minutes, the lights will go out again.
3) Slow Blink: Indicator light last for 3 second, then go out for 1 second.
Fast Blink: Indicator light last for 1 second, then go out for 1 second.
5. Installation Manual
5.1 SIM Card Pre-installation Note
1) Power off device before installing or removing SIM card.
2) SIM card should have its GPRS function enabled.
3) Telephone enquiries will function only if Caller ID function is enabled.
4) If SIM card is locked via PIN, please to unlock SIM.
5) Ensure sufficient store value in SIM card.
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 8 -
TOPFLYTECH
CONFIDENTIAL
5.2 SIM Card Installation and Removal
1) Put SIM card into the card slot.
2) Press the waterproof rubber ring on the device by using the cover of the SIM card.
3) Locking the cover of SIM card by screw.
4) Stick the ornament accessories on the four screws.
Note: The waterproof rubber ring must be flat, or it cannot play a role of waterproof.
5.3 Installation
1) Engage technician recommended by your dealer to undertake concealed installation.
During the installation, ensure the device top side (the reception face) face upward.
Secure the device in place with our standard double-side adhesive tape.
2) Notes
Install in concealed location to prevent theft or damage.
Avoid proximity with emission source such as parking sensor, burglar alarm and other
communication devices.
There is sponge double sticky tape (special for car) as standard accessory for this product.
(It should keep the surface clean, dry and smooth. The stickiness will be better after 24
hours). Or use cable ties to secure device in place.
Device comes with GSM and GPS antennas. Please ensure reception surface faces
upward and not shielded by metallic surfaces. Suggested installation location:
- Beneath console of front wind screen;
- Around dashboard (nonmetallic coating);
- Beneath console of backwind screen.
Note: Thermal screen on windscreen may affect antenna reception causing malfunction.
Please find alternative location.
5.4 Relay Wiring Method
1) White line connects to anode of dc power (+12V/+24V), the yellow line connects to the relay
control line of the device (yellow line).
2) There is oil pump in the oil pipe of the controlled vehicle. Cut off the Positive supply of the oil
pump. Connect the positive supply of oil pump to one of the green lines. The other end is
connected to another green line.
Note: Ensure the voltage of battery and relay compatible to prevent mal-function or damage.
You should check the battery voltage of the engine in advance.
Generally, it is 12V or 24V.
6. Cautions of Device Wiring
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 9 -
TOPFLYTECH
CONFIDENTIAL
6.1 Power Supply Line (Please refer to the Connection Diagram in the first page.)
1) Standard voltage supply of this device is 6V-36VDC. Please use factory supply lines.
The red line is positive power supply, the black line is negative power supply.
2) Orange line (ACC) connects to ON/OFF switch of vehicle ACC will enable service platform
to access the exact status of ignition switch of the vehicle.
3) The oil cut off line (yellow line) connects to the yellow line on the oil cut off line of relay.
Secure relay to a dry place using a cable tie. It is also advisable to protect the relay with a
plastic bag.
6.2 Microphone Line
External Microphone line (2 Pin) enables remote voice monitoring function.
6.3 SOS Alarm Line
External SOS alarm line (2 Pin) is used for emergency call for help.
6.4 Microphone & SOS Line
External Microphone & SOS Line (3 Pin) is used for Microphone and SOS alarm function.
7. Device Configuration
Refer to Operation Command in this manual.
8. Operation of Device
8.1 Power On and Power Off
Power On: Insert a SIM card and plug in the main power line. Device turns on automatically.
Power Off: Remove SIM card, disconnect the main power, device power off automatically
around 5 ~ 10 seconds.
8.2 Indicator Lights
1) GSM Status Indicator
When device automatically tries to search for GSM network signals, Red indicator light will
be in fast blink. When the device gets the signals and establishes connection to the service
provider, Red indicator light will be in slow blink.
2) GPS Status Indicator
When device automatically tries to search for GPS satellite signals, Blue indicator light will
be in fast blink. When the device gets the satellite signals and the position had been
located, Blue indicator light will be in slow blink.
The light goes out automatically after the device turn on for 5 minutes. No indicator light
prompt. If want to check the working status of the device according to the indicator lights, you
can dial the phone number of the SIM card which is in the device. Then the indicator lights
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 10 -
TOPFLYTECH
CONFIDENTIAL
begin to blink. After 5 minutes, the lights will go out again. (This function can be used for
checking the signal status of the GSM and GPS.)
8.3 Location Search
1) Dial Query
You can dial the SIM card number of the device, hang up in 10 seconds after the ringing,
then it will return the location information. But if hang up after 10 seconds, it will get into the
monitoring mode automatically.
2) SMS Query
When inquire the location information of the device, you can send a location inquiry SMS to
the SIM card of the device, and then the device will return the location information or global
coordinates of the last known location of the device.
For the SMS format, please refer to the Operation Command in this manual.
3) Platform Query
User can log on the Global Positioning Service Platform provided by the dealer to access
the location of the vehicle. Consult your dealer for web address of the service platform.
8.4 SOS Alarm
During emergencies, press and hold down SOS button for 1 second will activate an SOS alarm
to be sent. The device will dial all the preset Manager phone numbers in sequence for 3 times
until any one of the Managers answer the call. If no answer after 3 times dialing, it will stop to
dial. It will also send SOS SMS to Managers for 1 time. In addition, the device will also send
SOS alarm to the service platform.
Note: The Manager phone numbers should be set up first, and then the SMS and SOS function
can be activated.
8.5 Monitoring
When preset Manager dials the device, the device will enter into monitoring mode after 10
seconds. Manager can monitor the audio situation of the vehicle. The device will not activate
monitoring mode when the incoming call numbers are not those of Manager.
Note:
1) If no Manager setting, any telephone calling can dial to monitoring.
2) If setting the Manager, only the Manager can dial to monitoring.
8.6 Fuel Cut
When needed, Service Platform or Manager can issue a fuel cut command. Under the premise
of safe driving, fuel supply is cut off, disabling the vehicle from being driven. Ensure the vehicle
safety, device will cut off fuel supply only when GPS positioning is set and the vehicle speed is
lower than 20 km/h. (If the vehicle speed is higher than 20km/h or the GPS positioning is not
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 11 -
TOPFLYTECH
CONFIDENTIAL
set, device will return “SET RELAY DELAY, SPEED IS MORE THAN 20KM/H#” or “SET RELAY
DELAY, GPS UNFIXED#”. Then device will keep waiting until the vehicle speed is monitored
lower than 20km/h, device will return “SET RELAY ENABLE OK, RELAY:1# ”.)
8.7 Restore Fuel Supply
When needed, Service Platform or Manager can issue a restore fuel supply command.
9. Trouble Shooting
9.1 Unable to Connect to Service Platform
If the device unable to connect to the service platform after the initial installation, please try to
inspect device for:
1) Is main power supply connected correctly?
2) Is SIM card installed properly? Please refer to user manual on this section.
3) Inspect the status of the indicators.
Dial the phone number of the SIM card which is in the device. Then the indicator lights
begin to blink. Under normal operating condition, Red GSM indicator and Blue GPS
indicator are both in slow blink. After 5 minutes, the lights will go out again.
9.2 Backstage Shows Offline
First check if the indicator lights runs normally. If there is no condition to observe the situation,
one can first check SIM card status. The process as follow:
1) Dial the SIM card number to listen for ring tone.
2) Whether the vehicle in an area with no GSM.
3) Observe the area where connection is lost, are all hand held devices in the area affected or
just some of them. This will help diagnose whether it is the faulty of the service provider’s
network.
4) Whether your SIM card charge is in arrears.
5) If the lost connection happens on the last day of the month, please check whether the
GPRS service has been terminated.
9.3 Prolong Inability to Locate
If GPS function of the device had been activated but the device fail to perform location service
for prolong period, please inspect the device for the following:
1) Is the vehicle located in an area with no GPS satellite coverage?
2) Is the reception service facing upwards during installation?
3) The device should be installed in an area with no electromagnetic wave absorption material
(eg. Metallic sheet) blocking its reception. It is important to note that there is no thermal
screen in the windscreen (this thermal screen contains high metallic content that absorbs
electromagnetic waves). Failure to do so will affect the integrity of GPS signal, affecting
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 12 -
TOPFLYTECH
CONFIDENTIAL
location accuracy and causing inability to pin point the correct location.
9.4 Severe Drifting in Location
In an area with poor GPS signal reception (area with high rise buildings), severe drifting of the
location may happen. Move to an area that is spacious and unblocked by tall buildings to
perform accurate locating function.
9.5 Abnormal Command Reception
1) Check if the command set is correct.
2) Whether the vehicle is in an area with no GSM.
3) Inspect to ensure SIM card is properly inserted.
10. Warranty Details
10.1 Special Statement
1) Should there be technical change of this device in future, please pardon for not notifying
our existing customers.
2) Should the external look and color of the device be changed, the actual device will prevail.
3) Warranty card is suitable for the warranty of the below mentioned IMEI numbered device.
4) Please keep the warranty card. For warranty repair, produce this warranty card together
with the purchase receipt from the dealer.
10.2 Warranty Period
Warranty repair is valid for a year from the date of purchase, providing not damaged by user.
10.3 After Sales Service
The following list conditions under which the device outside of warranty period can be repaired
with an appropriate fee:
1) Warranty period expired.
2) Damage caused by unauthorized dismantling and repair of the device.
3) Damage caused by improper installation, usage, maintenance and poor handling.
4) Torn or illegible product IMEI number label.
5) Non-matching of warranty card and product model number or tampering of warranty card.
11. Operation Command (SMS)
Command Instruction
Command format is no case sensitive.
Command can be sent via mobile phone or Web. The symbols are English Characters
(each 1 byte).
Command content is separated by comma, end with ”#”, italics symbols require user input.
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
Function
Command Format
APN Setting
APN,Current PIN,APN Name,GPRS User Name,GPRS PIN#
Server Setting
IP,Current PIN,Server Domain Name or IP,Port Number#
Upload Interval Setting
TIMER,Current PIN,Upload Time(ACC on):Upload Time(ACC
off):Angle Compensation:Distance Compensation#
Heartbeat Setting
HBT,Current PIN,Heartbeat Interval#
GMT Setting
GMT,Current PIN,Time Zone#
PIN Setting
PASSWORD,Current PIN,New PIN#
Manager Setting
MANAGERA,Current PIN,Manager Code:Manager Phone Number#
Manager Delete
MANAGERD,Current PIN,Manager Code#
Manager List
MANAGERL,Current PIN#
Antitheft Setting
ANTITHEFT,Current PIN,Antitheft Status(On/Off)#
Drag Setting
DRAG,Current PIN,Distance#
Speed Limit Setting
SPEED,Current PIN,Upper Speed Limit#
SMS Tracking Mode
TRACK,Current PIN,SMS Tracking Time#
SIM Card Credit Checking
BALANCE,Current PIN,Dialing Number of SIM Card Credit
Checking#
SIM Card Credit Checking
FORWARD,Current PIN,Service Center Number,SIM Card Credit
Checking Command#
Relay Control (Fuel Cut)
RELAY,Current PIN,Relay Status(On/Off)#
Google Map Search
GOOGLE,Current PIN#
Identity Read Back
MYSELF#
- 13 -
TOPFLYTECH
CONFIDENTIAL
Command set successfully, device will return OK via SMS and execute it; Or there is no
message returned, you should set again.
Example: Change device password from factory setting of ‘0000’ to ‘12345678’.
The command format is: PASSWORD,0000,12345678#
Command Setting List
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 14 -
TOPFLYTECH
CONFIDENTIAL
11.1 APN Setting
APN,Current PIN,APN Name,GPRS User Name,GPRS PIN#
APN Name:
Range: APN of service provider
Length Limit: 1 ~ 32
Default: cmnet
GPRS User Name:
Range: Alpha, numeric
Length Limit: 0 ~ 32
Default: <Null>
GPRS PIN:
Range: Alpha, numeric
Length Limit: 0 ~ 32
Default: <Null>
a. Upon receipt of command set, device will automatically re-connect to server and return
message SET APN OK.
Note:
1) The APN of different country should be reset according to the operator APN of each country.
2) If you only have the APN Name, the SMS setting is: APN,Current PIN,APN Name#
3) If you only have the APN Name and GPRS User Name, the SMS setting is:
APN,Current PIN,APN Name,GPRS User Name#
11.2 Server Setting
IP,Current PIN,Server Domain Name or IP,Port Number#
Server Domain Name or IP:
Range: Alpha, numeric and symbols
Length Limit: 1 ~ 128
Default: <Null>
Port Number:
Range: Positive Integer
Range limit: 0 ~ 65535
Default: 0
a. Upon receipt of command set, device will automatically re-connect to server and return
message SET IP OK.
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 15 -
TOPFLYTECH
CONFIDENTIAL
11.3 Upload Interval Setting
TIMER,Current PIN,Upload Time(ACC on):Upload Time(ACC off):Angle Compensation:
Distance Compensation#
Upload Time (ACC on):
Range: Positive Integer
Range Limit: 0 ~ 65535
Default: 30
Upload Time (ACC off):
Range: Positive Integer
Range Limit: 0 ~ 65535
Default: 600
Angle Compensation:
Range: Positive Integer
Range Limit: 0 ~ 90 degree
Default: 45 degree
Distance Compensation:
Range: Positive Integer
Range Limit: 0 ~ 65535 meters
Default: 2000 meters
a. Upon receipt of command set, device will return message SET TIMER OK.
11.4 Heartbeat Setting
HBT,Current PIN,Heartbeat Interval#
Heartbeat Interval:
Range: Positive Integer
Range Limit: 0 ~ 255 minutes
Default: 5 minutes
a. Upon receipt of command set, device will return message SET HBT OK.
11.5 GMT Setting
GMT,Current PIN,Time Zone#
Time Zone:
Range: Floating point
Range Limit: -12.0 ~ 12.0
Default: 8.0
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 16 -
TOPFLYTECH
CONFIDENTIAL
a. Upon receipt of command set, device will return message SET GMT OK.
11.6 PIN Setting
PASSWORD,Current PIN,New PIN#
PIN:
Range: Alpha, numeric
Length Limit: 1 ~ 10
Default: 0000
a. Upon receipt of command set, device will return message SET PASSWORD OK.
11.7 Manager Setting
MANAGERA,Current PIN,Manager Code:Manager Phone Number#
Manager Code:
Range: Positive Integer
Range limit: 1 ~ 4
Manager Phone Number:
Range: Phone number
Length Limit: 0 ~ 40
Default: <Null>
a. Upon receipt of command set, device will return message SET MANAGERA OK.
Note: Set the Manager phone number with appointed code, the max Manager number is 4.
11.8 Manager Delete
MANAGERD,Current PIN,Manager Code#
Manager Code:
Range: Positive Integer
Range limit: 1 ~ 4
a. Upon receipt of command set, device will return message SET MANAGERD OK.
11.9 Manager List
MANAGERL,Current PIN#
a. Upon receipt of command set, device will return message SET MANAGERL OK.
Note: All the Manager phone numbers will be listed.
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 17 -
TOPFLYTECH
CONFIDENTIAL
11.10 Antitheft Setting
ANTITHEFT,Current PIN,Antitheft Switch(On/Off)#
Antitheft Switch:
Range: Positive Integer
Range limit: 0 or 1
Default: 0
a. Upon receipt of command set, device will return message SET ANTITHEFT OK.
Note: This function is only effective when ACC off.
11.11 Drag Setting
DRAG,Current PIN,Distance#
Distance Range:
Range: Positive Integer
Range limit: 0 ~ 65535 meters
Default: 0
a. Upon receipt of command set, device will return message SET DRAG OK.
Note:
1) This function will be started automatically when ACC Off.
2) We suggest the distance setting is no less than 100meters.
11.12 Speed Limit Setting
SPEED,Current PIN,Upper Speed Limit#
Upper Speed Limit (km/hr):
Range: Positive Integer
Range limit: 0 ~ 32767
Default: 0
a. Upon receipt of command set, device will return message SET SPEED OK.
Note: Set “Upper Speed Limit” to zero will turn off Speed Alarm.
11.13 SMS Tracking Mode Setting
TRACK,Current PIN,SMS Tracking Time#
SMS Tacking Time Range:
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 18 -
TOPFLYTECH
CONFIDENTIAL
Range: Positive Integer
Range limit: 0, 1, 2 ~ 65535 Seconds
Default: 0
a. Upon receipt of command set, device will return message SET TRACK OK.
Note：
1) SMS Tracking Time:
0: GPRS tracking mode
1: No GPRS tracking mode
2 ~ 65535: SMS tracking mode
11.14 SIM Card Credit Checking
BALANCE,Current PIN,Dialing Number of SIM Card Credit Checking#
a. Upon receipt of command set, device will return message SET BALANCE OK.
b. Then it will return the SIM card credit checking result.
FORWARD,Current PIN,Service Center Number,SIM Card Credit Checking Command#
a. Upon receipt of command set, device will return message SET FORWARD OK.
b. Then it will return the SIM card credit checking result.
Note: Please choose one of the above two commands according to your local conditions.
11.15 Relay Control (Fuel Cut)
RELAY,Current PIN,Relay Status(On/Off)#
Relay Status:
Range: Positive Integer
Range limit: 0 or 1
Default: 0
Note:
1) Relay status
1: Fuel cut;
0: Fuel supply restore.
2) If vehicle speed is higher than 20km/h or the GPS positioning is not set, device will return
“SET RELAY DELAY, SPEED IS MORE THAN 20KM/H#” or “SET RELAY DELAY, GPS
UNFIXED#”. Then device will keep waiting until the vehicle speed is monitored lower than
20km/h, device return “SET RELAY ENABLE OK,RELAY:1# ”.
3) If recover the fuel, device will return “SET RELAY DISABLE OK,RELAY:0# ”.
4) In order to ensure the vehicle safety, we set the speed with 20km/h.
http://www.topflytech.com
This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved.
Any unauthorized copy or transmission of the document wholly or partially shall be held liable.
- 19 -
TOPFLYTECH
CONFIDENTIAL
11.16 Google Map Search (Already Built-in)
GOOGLE,Current PIN#
a. Upon receipt of command set, device will return the following:
http://maps.google.com/maps?q=<Latitude>, <Longitude>
11.17 Identity Read Back
MYSELF#
a. Upon receipt of command set, device will return the following:
Imei: <IMEI>
Password: <Current PIN>
Note:
1) If the tracker has been set with the Manager phone number, only the Manager can use
“MYSELF#”. If no Manager setting, the device will return the IMEI and current PIN when
it received “MYSELF#” from any mobile phone.
2) This command can be used to retrieve password.
Loading...
