operator manual
TF91-TRS vacuum sweeper
Table of Contents
TF100-TRS I
Table of Contents
1.1 Usage conformant with intended purpose .......................................................................... 2
2.1 Safety device ...................................................................................................................... 4
3.1 Sweeper description ........................................................................................................... 5
3.2 Initial start-up ...................................................................................................................... 6
4.1 Movement operation ........................................................................................................... 7
4.2 Sweeping operation ............................................................................................................ 7
4.3 Sweeping wet refuse ........................................................................................................... 7
4.4 After sweeping .................................................................................................................... 7
4.5 Setting the traversing mechanism ...................................................................................... 8
4.6 Parking the sweeper ........................................................................................................... 8
4.7 Emptying the dustbin .......................................................................................................... 9
5.1 Safety Information ............................................................................................................. 10
5.2 Cleaning ............................................................................................................................ 10
5.3 Filter cleaning .................................................................................................................... 10
5.4 Changing the filter ............................................................................................................. 11
5.4.1 Dismantling the filter .......................................................................................... 11
5.4.2 Filter mounting ................................................................................................... 11
5.5 Battery charging ................................................................................................................ 11
5.6 Side brushes ..................................................................................................................... 12
5.6.1 Mounting the side brushes ................................................................................ 12
5.6.2 Removing the Sidebrushes ............................................................................... 12
5.7 Changing the main brooms ............................................................................................... 12
5.7.1 Dismantling the main brooms ............................................................................ 12
5.7.2 Assembling the main brooms ............................................................................ 13
5.8 Maintenance chart ............................................................................................................ 14
5.8.1 Maintenance daily .............................................................................................. 14
5.8.2 In addition, after every 50 running hours ........................................................... 14
5.8.3 In addition, after every 100 running hours ......................................................... 14
5.9 Malfunctions / error messages and troubleshooting ......................................................... 15
5.10 Technical Data .................................................................................................................. 16
5.11 Product marking ................................................................................................................ 16
5.12 Disposal ............................................................................................................................ 16
5.13 Accessories and spare parts ............................................................................................ 16
Table of Contents
II TF100-TRS
5.14 Service .............................................................................................................................. 17
5.15 Transport ........................................................................................................................... 17
6 EC Declaration of conformity ........................................................................................................ 18
Table of Contents
TF91-TRS I
2 TF91-TRS
1 Introduction
This operating manual contains instructions for using the hand-operated
sweeper.
Our products are subject to continuous improvement. Therefore, design
changes that were made after this manual went to print could not be
incorporated. If you have any questions, please contact our Service
department.
The operating manual must be read and applied by all persons who
operate the sweeper.
Apart from the operating manual and the regulations for accident prevention applicable in the country of use and the location of use, the
common, recognised rules for safe and technically correct working must
also be followed.
1.1 Usage conformant with intended purpose
The appliance is intended exclusively for sweeping on solid surfaces (for
example. parking areas, walkways, and shop floors). The area to be
swept should not be wet.
The sweeper may only be used by reliable and instructed personnel.
prevent children, juveniles and other unauthorised persons from using
the machine (e.g. by pulling out the key after use).
Any other use, or any use over and above that, will be considered to be
non-conformant with intended purpose. The manufacturer rejects any
and all liability for damage resulting from such use. The risk is that of the
user alone.
Usage conformant with intended purpose also includes compliance with
the operating manual and the inspection and maintenance specifications. Drive the sweeper only along expressly marked routes and spaces.
TF91-TRS 3
2 Safety information
1. The machine should only be used in a flawless state, as
well as in keeping with its intended purpose, in a safetyconscious and risk-conscious manner and in compliance
with these operating instructions.
2. In addition to the operating manual, please heed general legal and other binding regulations for accident prevention
and environmental protection.
3. Sweeping and picking up of flammable, toxic or explosive
substances, along with flammable gases or diluted acids
and solvents, burning or smouldering objects is prohibited!
4. The appliance is not suitable for picking up fluids, cables,
cords, wires or the like.
5. The machine should only be used with the dust box fitted to
prevent injuries caused by parts being slung out.
6. Transporting loads with the sweeper is not allowed.
7. Faults should be eliminated immediately, particularly those
that could impair safety.
8. Do not make any changes, modifications or additions to the
sweeper without the approval of the manufacturer.
9. Replacement parts must meet manufacturer specifications.
This is always ensured by using original replacement parts.
10. Ensure that operating media, auxiliary media and replacement parts are disposed of in a safe and environmentallyfriendly manner, particularly batteries!
11. Suitable non-slip footwear should be worn to avoid accidents.
12. If you have any questions, please contact our Service department.
13. Persons (including children) who are not able to use this
machine safely due to their physical, sensory or mental capabilities or their inexperience or lack of knowledge may not
use this machine without the supervision or instruction by a
responsible person! Children should be supervised to ensure that they do not play with the appliance.
14. Caution: loose clothing can be caught and drawn in on rotating parts.
15. The operating instructions provided by the battery manufacturer relating to his product and legal specifications for the
handling of accumulator batteries should be heeded!
4 TF91-TRS
16. Charge flat batteries directly after use and only in wellventilated rooms.
17. Keep naked flames and electrical sparks away from the
charging area, since a highly-explosive electrolytic gas mixture is generated when batteries are being charged.
18. Note that the accumulator batteries are filled with battery acid.
19. Batteries should always be kept clean and dry to avoid
leakage currents! Never short-circuit battery poles!
20. Smoking, eating and drinking should be avoided in the vicinity of the battery charging station to avoid risks to health.
21. Batteries should only be charged with the hood opened and
secured with the holder.
2.1 Safety device
The hood switch prevents the machine from getting switched on when
the hood is open and switches off the machine if it is opened during
operation
TF91-TRS 5
3 Sweeper description
3.1 Sweeper description
The suction sweeper is driven by an electric motor.
Sweeping is done with two side brushes which convey the refuse to the
two main brooms that are mounted at 90 degrees to the direction of
motion. The rollers throw the refuse overhead in the rear dirt collector.
The dust that is collected by the main brooms is kept in a lamellar filter
in the machine by the dust extraction.
The lamellar filter can be cleaned by a manually actuated filter vibrator.
1
handle bar
6
dustbin
2
driving lever
7
hood
3
operating console
8
side brushes
4
filter cleaning lever
5
dustbin holder
1
operating lever, left side brush / operating lever, right side
brush
2
key switches
3
batter meter
4
operating lever, main brooms
6 TF91-TRS
3.2 Initial start-up
Ensure that the machine was supplied complete and undamaged.
In case of any objections, contact your specialist dealer or our Service
department.
Open the packaging and carefully lift the machine off the pallet.
Reach under the frame of the machinery to lift it. There is a risk of
injury if you attempt to lift the machinery by the hood, the side
brush retainer, or the dustbin!
Open the hood and fasten it.

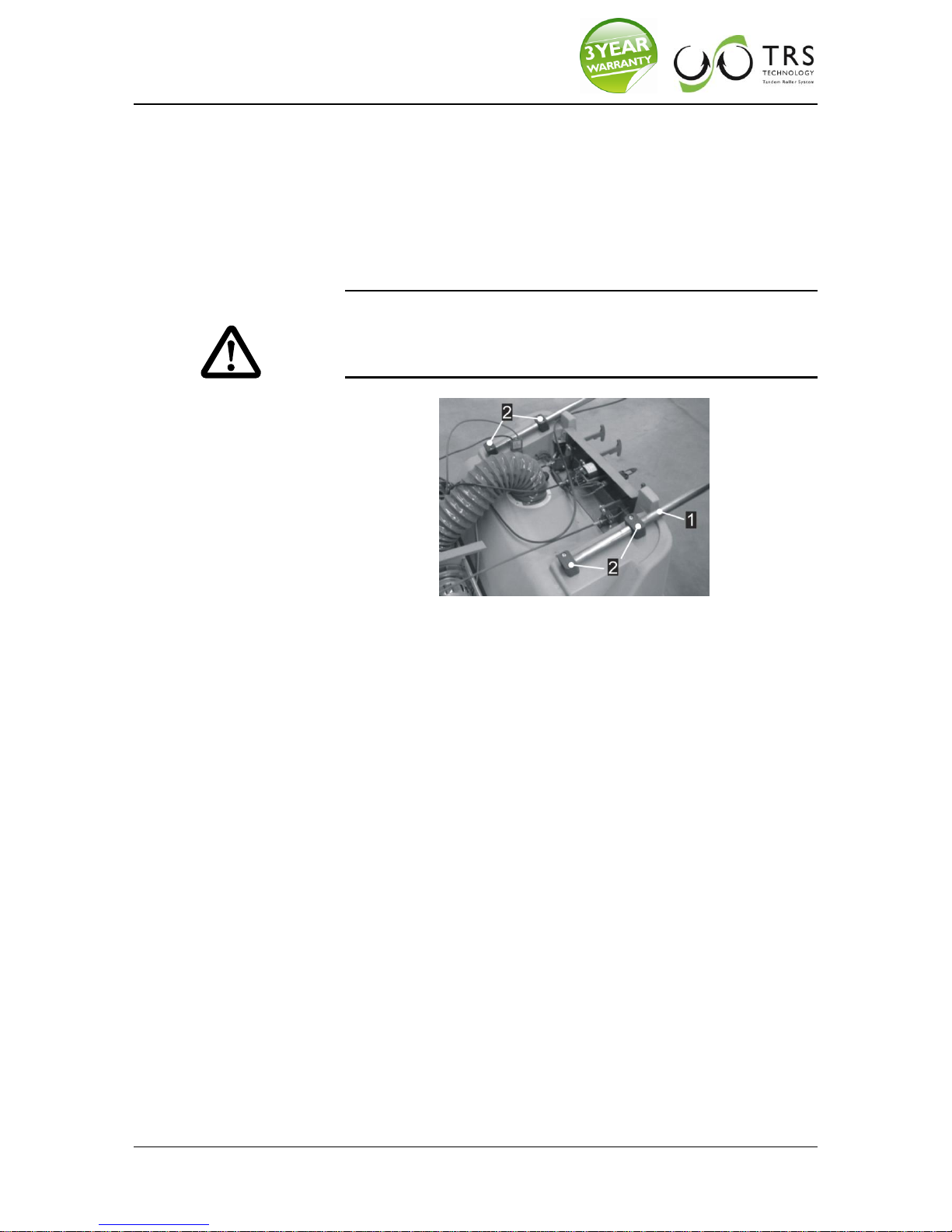

Push the handle bar -1- into the receptacles till the cross hoop is at
hip height (ergonomically correct height).
Tighten the handle bar screws -2-.
Set the side brush arms to the top position and mount the side
brushes.
Connect the battery.
Close the hood again.
The sweeper is ready for operation.
CAUTION!
TF91-TRS 7
4 Operation
4.1 Movement operation
Insert the key in the key switch and rotate it in the clockwise direc-
tion: The electric motor starts.
Pull the movement lever: The sweeper moves forward.
If the lever is released, the sweeper remains at standstill.
4.2 Sweeping operation
The height adjustment of the side brushes and the main broomss is
done via levers on the operating console. Each of the side brushes can
be used invdividually.
Start the movement operation.
By lifting and pushing forward the corresponding lever, the side
brushes and/or the main brooms can be deployed in a purposeful
manner.
(Also see "Device description")

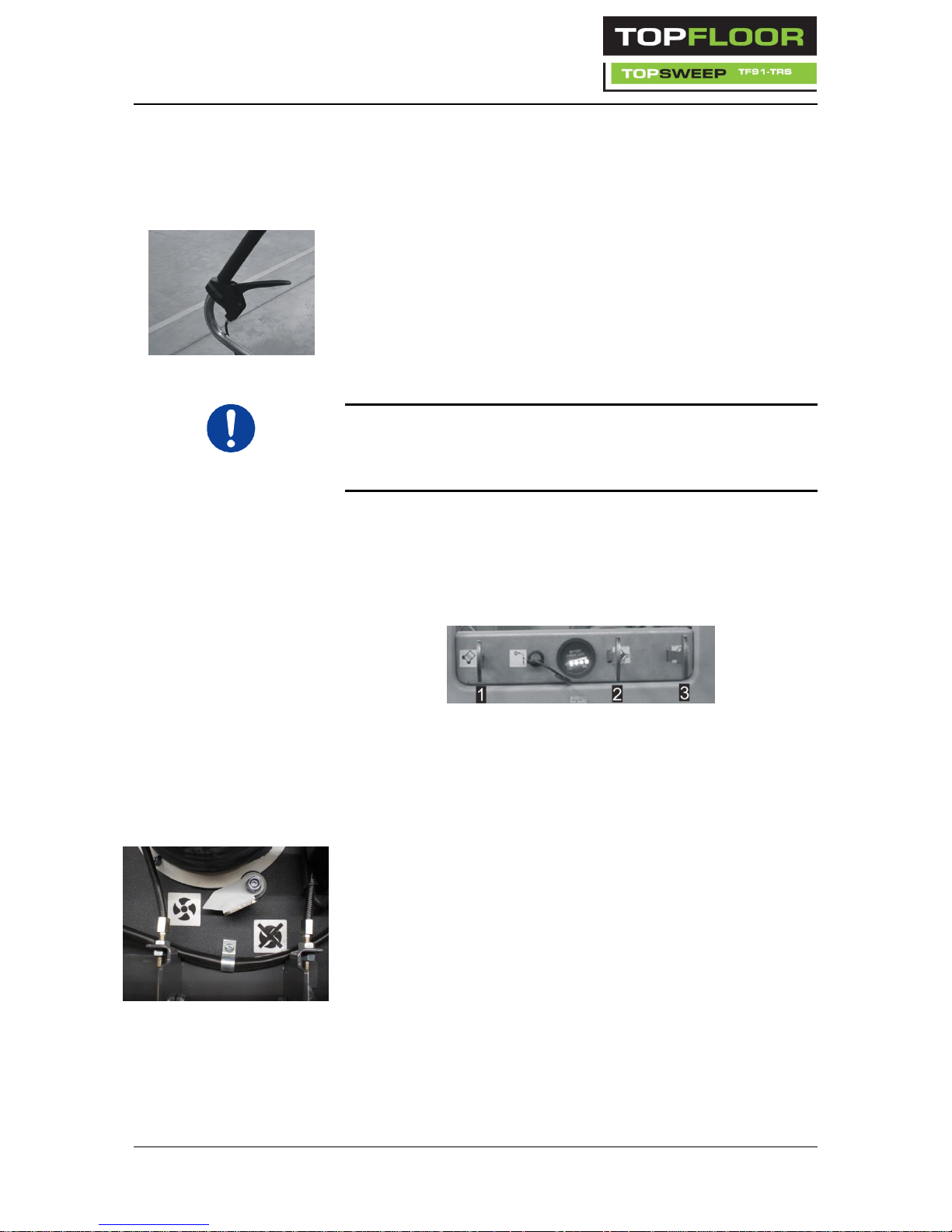

1
Operating lever, left side brush
2
Operating lever, main brooms
3
Operating lever, right side brush
4.3 Sweeping wet refuse
For sweeping wet refuse, it is recommended that the fan shutter be
closed, to prevent clogging and softening of the filter.
This is how to adjust the fan shutter.
With the machine switched off, open the hood and fasten it.
To close the fan shutter, rotate the lever -1- to the front position.
To open the fan shutter, you must get the lever -1- into the rear position.
4.4 After sweeping
Switch off the machine.
8 TF91-TRS
Adjust the side brushes and main brooms in the upper position.
If the main brooms are not set to their top position, the bristles of
the side brushes will be put under permanent load in their offposition and consequently will wear prematurely when used!
Always empty the dustbin once you've finished sweeping.
4.5 Setting the traversing mechanism
The traversing mechanism can be readjusted at the adjusting screws at
the handle and at the belt tensioner.
Adjust the belt tensioner in such a way that the belt lies loosely on
the handle without tension.
It should be possible to press the belt 4 cm inwards in the middle till the
first resistance is felt.
4.6 Parking the sweeper
Move the machine to an area provided (assigned) for the purpose.
The sweeper does not have any brakes.
Therefore, secure the sweeper against rolling away (e.g: wheel
chocks).
Turn the key in the anticlockwise direction to switch off the motor
and pull out the key.
Improper handling of the suction sweeper can result in harm to
persons and property!
Prevent unauthorised usage of the suction sweeper, by:
never leaving the suction sweeper unattended when it is ready for
operation,
Caution!
Caution!
TF91-TRS 9
pulling out the key of the key switch when leaving the sweeper (for
example, at the end of the working day or depending on deployment),
keeping the key separately from the sweeper.
4.7 Emptying the dustbin
In order to ensure proper sweeping performance, the dustbin has to be
emptied at regular intervals.

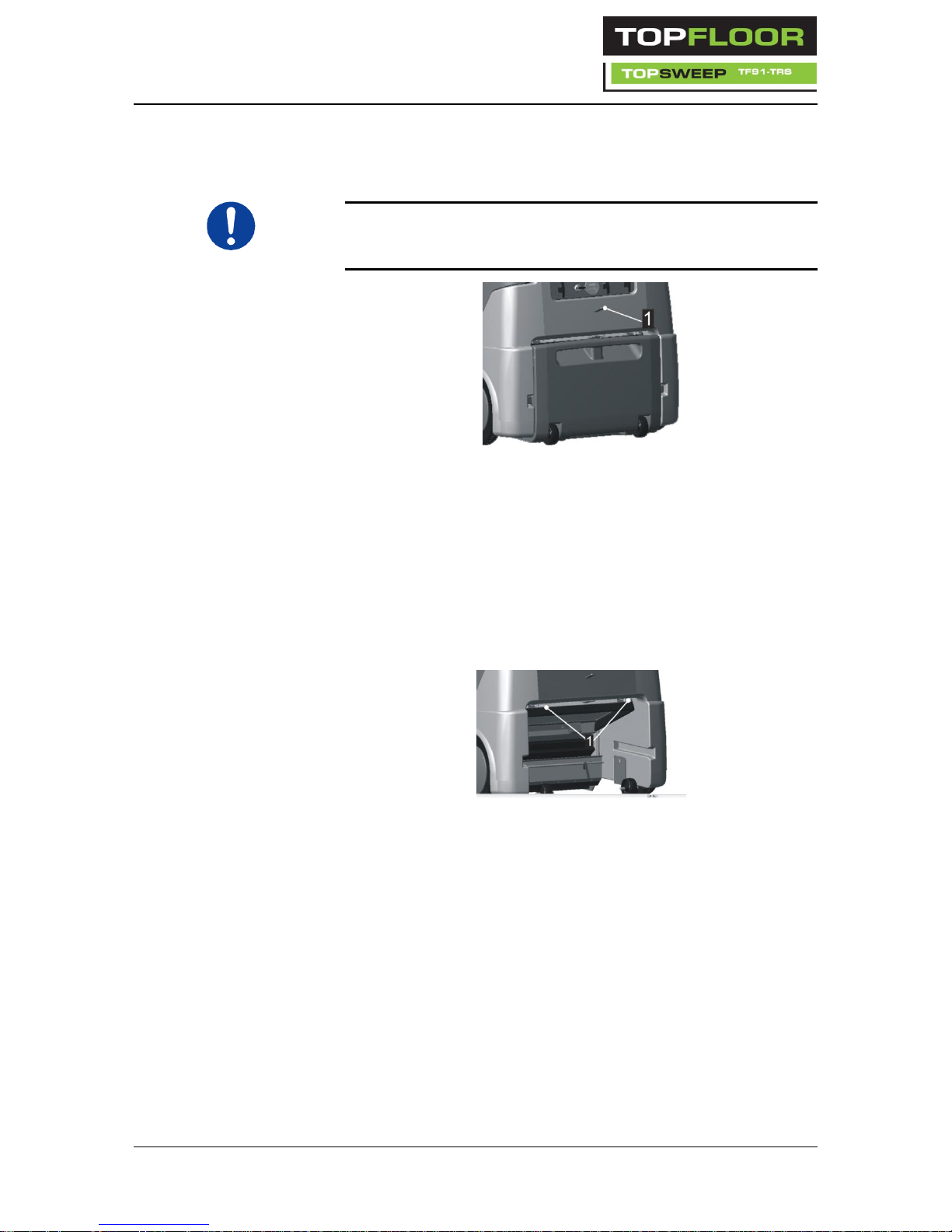

Lift the dustbin securing device -1- and pull the dustbin on the han-
dle -2- from the frame of the machine.
Empty the dustbin into a suitable container.
Push the dustbin back into the machine.
Do not park the sweeper with a full dustbin.
10 TF91-TRS
5 Maintenance
5.1 Safety Information
Only complete the type of maintenance work described in the following
chapter. All other maintenance and upkeep work may only be carried
out by the manufacturer or by companies and persons authorised by the
manufacturer, who are familiar with the relevant safety specifications,
because portable devices in industrial use are subject to the safety test
according to VDE 0701.
Closely follow the steps listed in the maintenance instructions. The improper completion of maintenance tasks may result in malfunctions
when using the sweeper and may possibly render the warranty granted
null and void.
When working on the electrical system, the battery should be disconnected.
Maintenance work/ troubleshooting at the electric motor must not be
done while the electric motor is running.
Use only flawless and appropriate tools to complete maintenance work.
Note the requirements for spare parts.
If covers and/or safety devices were removed during maintenance
work/repairs, they will have to be reattached prior to starting the sweeper.
For carrying out any work on the sweeper, it must be switched off and
secured from rolling away by accident.
5.2 Cleaning
The suction sweeper may only be cleaned in the off state, when it is dry.
The suction sweeper is a machine with electrical components.
Moisture damages the electronics of the device. Moisture can result in leakage currents and short-circuits!
Do not use any high-pressure cleaners
5.3 Filter cleaning
Make sure the dust collector has been installed.
Move the filter cleaning lever -1- back and forth a few times.
WARNING
TF91-TRS 11
The filter gets cleaned as a result.
The dust that is stripped off falls in the dustbin.
It is recommended to wait for a few seconds till the dustbin is emptied, till the fine dust has settled.
5.4 Changing the filter
5.4.1 Dismantling the filter
First remove the dustbin.
Press the filter holders –1-inwards in such a way that they point to
one another.
Take out the filter downwards
5.4.2 Filter mounting
Place the filter in the filter frame and press the filter frame upwards
with the hand.
Hold the filter frame in this position.
Rotate the filter holder outwards with the other hand.
5.5 Battery charging
To charge the battery, you must:
switch off the sweeper,
open the hood and fasten it,
12 TF91-TRS
pull out the charging plug and connect to the plug of the charger,
switch on the charger.
Charging the Battery is only allowed when the hood is opened and
fastened. Make sure the hood is never closed during the process.
The charging process takes about 10 hours.
The battery charger has an automatic cut-off and can therefore remain
connected to the battery even for a longer time without any problems.
This ensures that you always have a fully charged battery available
when you start work.
Exclusively use this charge cable or you may experience trouble with
the charging process or you may break the battery charger or the battery.
You must not use the sweeper if it is connected with the battery charger.
5.6 Side brushes
5.6.1 Mounting the side brushes
Hold the side brushes below the side brush arm and rotate the side
brushes in such a way that the side brush clips are located below the
relevant recesses.
Press the side brush upwards till it tangibly clicks into place.
5.6.2 Removing the Sidebrushes
Press the clips -1- below the side sweeper brushes inwards and at the
same time, pull down the side sweeper brushes downwards.
5.7 Changing the main brooms
The main brooms consist of two split shells with brushes.
Screws join the split shells.
5.7.1 Dismantling the main brooms
To dismantle the main brooms, follow the procedure below:
Remove the dustbin.
Dismantle the batteries.
Press the handle bar onto the floor till the front of the machine
points upwards.
WARNUNG
TF91-TRS 13
Support the machine securely (for example: second person).
Rotate the main brooms until the threaded joints on the main
brooms become visible.
Loosen and remove these threaded joints.
Remove the main brooms split shells from the shaft and if required,
clean the running gear box and the shaft.
5.7.2 Assembling the main brooms
The split shells of the main brooms have square recesses. These recesses serve for locating the main brooms axis.
The two split shells must be put on the rectangular axis of the brush
roller in such a way that the axis fits exactly into the recess of the
split shells.
Then, screw each set of brushes with 3 screws each, till you can no
longer see a gap between the split shells
14 TF91-TRS
5.8 Maintenance chart
5.8.1 Maintenance daily
Check the machine as to visual damages and correct operation.
Empty the dust container.
Check the brushes-, roller tunnel for any parts that are sticking to
them or for jammed debris, which narrow the brush tunnel and restrict the free movement of the roller brushes.
Charge the battery.
Check the state of the dust filter, clean it if required.
5.8.2 In addition, after every 50 running hours
Check if main brooms are worn or obstructed by foreign objects and
replace, if necessary.
Check sweeping contour and readjust, if necessary.
Check if side brush adjustment is worn and readjust or replace, if
necessary.
5.8.3 In addition, after every 100 running hours
Check all belts for cracks or impermissible elongation, replace if
required.
Check all bearings for wear.
Check all seals as to damage and tightness.
Check cable joints for firmness, replace faulty cables.
Check the dust filter and replace if necessary.
Check dust suction for foreign objects, and clean.
TF91-TRS 15
5.9 Malfunctions / error messages and
troubleshooting
Error
Possible causes
Possible remedies
Engine does not work
Key-operated switch has not
been activated
Turn the key in the key-operated
switch
Fuel tank is empty
Fill up fuel tank
The hood is still open
Close the hood
Fault in the electrical cables
Check all the plug-and-socket
joints and restore the contact
Sweeping result not satisfactory
Side brushes or brush rollers not
lowered
Lower
Side brushes or brush rollers
worn
Readjustment and if required,
replacement of the brushes
Trajectory clogged by dirt
Check and clean the roller space
Brush rollers are stuck because
of dirt, cables, strings or something similar
Clean the brush rollers and roller
bearings, check the bearings for
damage
Side brushes are stuck because
of dirt, cables, strings or something similar
Check the side brushes and remove whatever is stuck
Side brushes and/or roller belts
are worn
Control and replacement of the
belts
Fault in the traversing mechanism
Traversing mechanism not correctly set
Set traversing mechanism
Traversing mechanism belt worn
Checking and replacement of the
belt
Blockage of the driving roller or
the running wheels owing to dirt
Remove blockage
Heavy dust accumulation while
sweeping
Filter heavily soiled
Clean the filter (see “Filter clean-
ing”)
Filter used up / Filter material
worn
Check and replace filter
Filter not correctly fitted
Correct filter position
Leaks and result suction of impure air in the area of the filter
chamber
Check for suction of impure air
16 TF91-TRS
5.10 Technical Data
Dimension and Weight
Length
1150 mm
Width
790 mm
Height
600 mm
Weight
105 kg
Sweeping Width
Main main brooms
500 mm
With Side brushes
900 mm
Dust Container Volume
60 L
Battery
Voltage
12 V
Capacity
50 / 66 / 70 / 80
Vibration
< 2m/s²
Noise level
< 76 dB(A)
5.11 Product marking
5.12 Disposal
Dispose of faulty parts, especially electrical components, batteries and
plastic parts according to the locally applicable waste disposal specifications.
Used batteries must be disposed of according to Directive 2006/66/EC.
5.13 Accessories and spare parts
Accessories and spare parts must conform to the requirements of the
manufacturer. This is ensured by using genuine replacement parts.
Vacuum Sweeper
TF91-TRS
Rated Power: KW
Serial Number:
Supplier:
Crescent Industrial
Berrington House, Berrington Road, Leamington Spa, CV31 1NB
TF91-TRS 17
5.14 Service
Crescent Industrial
Berrington House
Berrington Road
Leamington Spa
CV31 1NB
T: 0845 33 77 695
F: 0845 33 78 695
W: crescentindustrial.co.uk
5.15 Transport
Transport the machine only in the switched-off condition, sufficiently well
fastened.
18 TF91-TRS
6 EC Declaration of conformity
according to the EC Machine Directive 2006/42/EC, Appendix II, No. 1A
Mr. Stephen Stacey – Management of Crescent Industrial, 170 Masons Road, StratfordUpon-Avon, Warwickshire, CV37 9NF - is authorized to arrange technical information.
We hereby declare that the machine described below corresponds, in its
conception and construction, as well as the model brought into use by us,
to the basic safety and health requirements of the EC Machine Directive
2006/42/EC. In case of a change being made that has not previously been
agreed with us, this declaration will lose its validity.
Supplier: Crescent Industrial
Berrington House, Berrington Road, Leamington Spa,
CV31 1NB
Designation of the machine: TF91-TRS
Machine type: Vacuum Sweeper with Tandem-Roller-System (TRS)
relevant EC Directives: Directive 2006/42/EC
Directive 2000/14/EC
Directive 2004/108/EC
The following standards, in particular, were applied:
EN 292
EN 294
DIN EN 61000-6-2
DIN EN 60335-1
DIN EN 60335-2-69
DIN EN 60335-2-72
Leamington Spa, 29 November 2012 ………………………………
Stephen Stacey
(Senior Partner)
TF91-TRS 19
20 TF91-TRS
Distributed by:
tel 0845 33 77 695
Berrington House, Berrington Road
Leamington Spa e info@c-ind.co.uk
Warwickshire CV31 1NB w www.crescentindustrial.co.uk
Loading...
