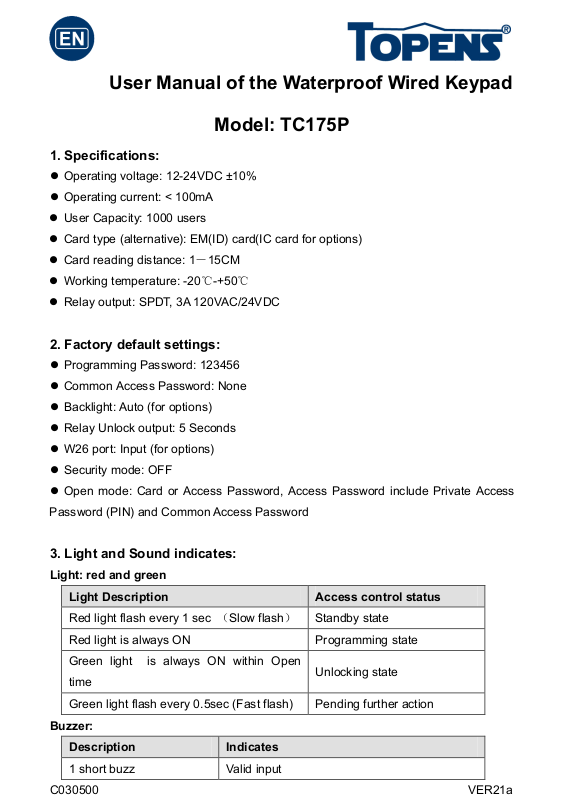

User Manual of the Waterproof Wired Keypad
Model: TC175P
1. Specifications:
Operating voltage: 12-24VDC ±10%
Operating current: < 100mA
User Capacity: 1000 users
Card type (alternative): EM(ID) card(IC card for options)
Card reading distance: 1-15CM
Working temperature: -20℃-+50℃
Relay output: SPDT, 3A 120VAC/24VDC
2. Factory default settings:
Programming Password: 123456
Common Access Password: None
Backlight: Auto (for options)
Relay Unlock output: 5 Seconds
W26 port: Input (for options)
Security mode: OFF
Open mode: Card or Access Password, Access Password include Private Access
Password (PIN) and Common Access Password
3. Light and Sound indicates:
Light: red and green
Light Description Access control status
Red light flash every 1 sec (Slow flash) Standby state
Red light is always ON Programming state
time
Green light flash every 0.5sec (Fast flash) Pending further action
Buzzer:
Description Indicates
1 short buzz Valid input
C030500 VER21a
Unlocking state
![](/html/85/85f6/85f6aead39f2b99ead127dad9dc21a26b10a376250eacb9ab498b5c36cb2d543/bg2.png)
3 short buzz Invalid input
This wire has been cut off
Power-(12-24VDC negative)
This wire has been cut off
Power-(12-24VDC negative)
1 long buzz Programming success
Continuous long buzz Restoring factory programming passwords
4. Definition of the output wires:
JP1 terminal:
JP2 terminal
*NOTE: The red wire of the both 2 terminals has been cut off and it has been
soldered to the PCB of the keypad. Thus you can connect the 12-24VDC power
supply to the RED wire on the PCB and the BLACK wire of JP2 to power up the
keypad.
5. Wire connection of the keypad to the gate & door opener

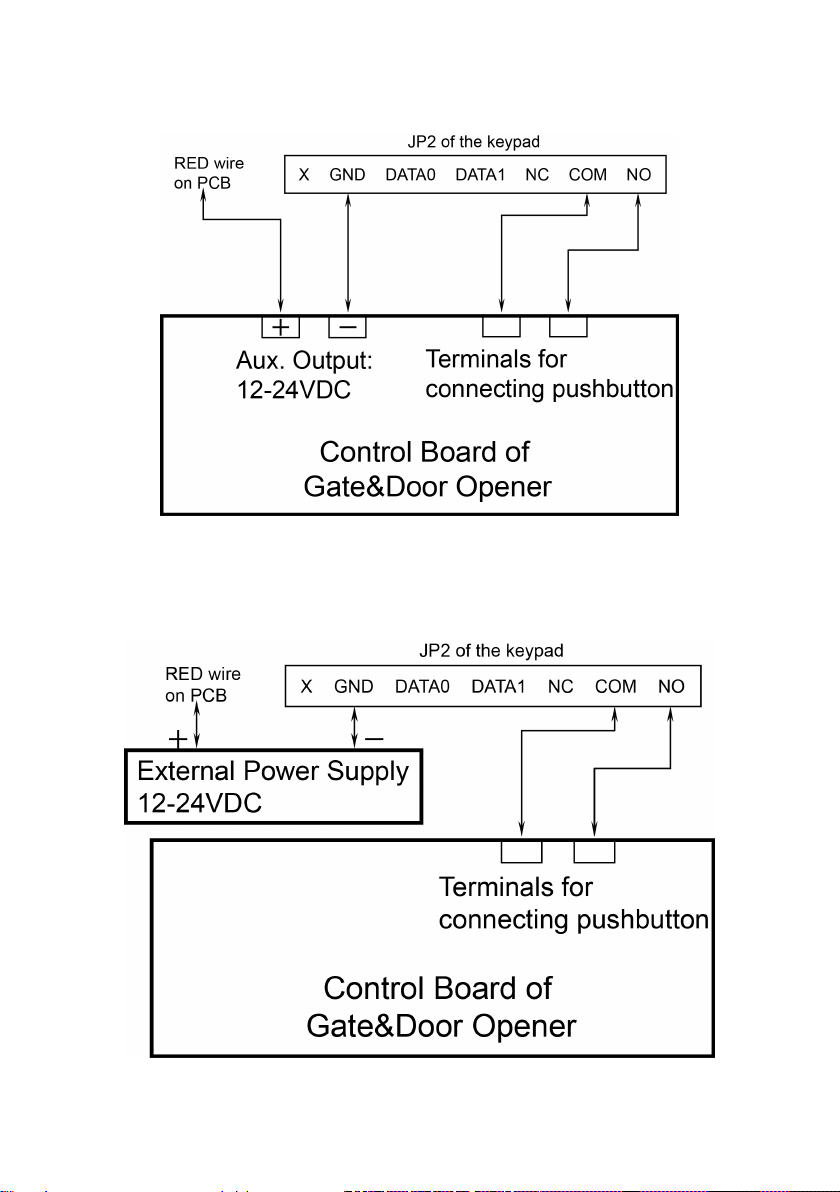

NOTE: Below wiring diagram is a universal wiring diagram of the connection
between the keypad and the opener. You can refer to the user manual of the
