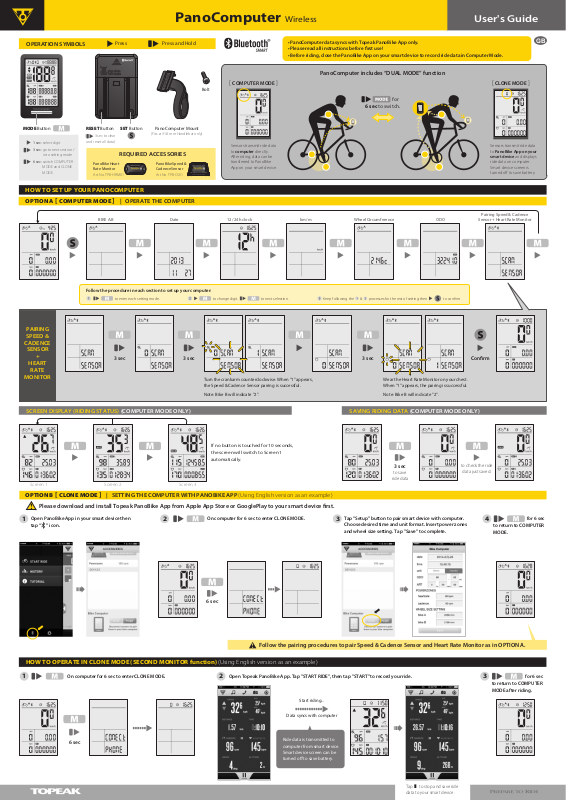

Topeak TPB-C01 User Manual
PanoComputer
Wireless
User's Guide
OPERATION SYMBOLS
1 sec: select digit
3 sec: go to next section /
into setting mode
6 sec: switch COMPUTER
MODE and CLONE
MODE.
RESET ButtonMODE Button
( 3 sec to clear
and reset all data)
PanoBike Heart
Rate Monitor
Art No. TPB-HRM01 Art No. TPB-CS01
Press Press and Hold
SET Button
PanoComputer Mount
(Fits ø 31.8 mm Handlebar only)
REQUIRED ACCESSORIES
PanoBike Speed &
Cadence Sensor
HOW TO SET UP YOUR PANOCOMPUTER
OPTION A [ COMPUTER MODE ] | OPERATE THE COMPUTER
BIKE A.B Date 12/ 24h clock km/ m ODO
Bolt
[ COMPUTER MODE ]
Sensors transmit ride data
to computer directly.
After riding, data can be
transferred to PanoBike
App on your smart device.
• PanoComputer data syncs with Topeak PanoBike App only.
• Please read all instructions before first use!
• Before riding, close the PanoBike App on your smart device to record ride data in Computer Mode.
PanoComputer includes “DUAL MODE” function
[ CLONE MODE ]
for
6 sec to switch.
Sensors transmit ride data
to PanoBike App on your
smart device and displays
ride data on computer.
Smart device screen is
turned off to save battery.
Wheel Circumference
Pairing Speed & Cadence
Sensor + Heart Rate Monitor
GB
Follow the procedure in each section to set up your computer:
to enter each setting mode.
PAIRING
SPEED &
CADENCE
SENSOR
+
HEART
3 sec 3 sec
RATE
MONITOR
SCREEN DISPLAY (RIDING STATUS) (COMPUTER MODE ONLY)
Screen 1 Screen 2 Screen 3
to change digit. to next selection.
Turn the crankarm counterclockwise. When "1" appears,
the Speed & Cadence Sensor pairing is successful.
Note: Bike B will indicate "2".
If no button is touched for 10 seconds,
the screen will switch to Screen 1
automatically.
Keep following the & processes for the rest of setting then to confirm .
3 sec
Wear the Heart Rate Monitor on your chest.
When "1" appears, the pairing is successful.
Note: Bike B will indicate "2".
SAVING RIDING DATA (COMPUTER MODE ONLY)
3 sec
to save
ride data
Confirm
to check the ride
data just saved.
OPTION B [ CLONE MODE ] | SETTING THE COMPUTER WITH PANOBIKE APP (Using English version as an example)
Please download and install Topeak PanoBike App from Apple App Store or GooglePlay to your smart device first.
Open PanoBike App in your smart device then
1 2 3 4
tap “ ” icon.
On computer for 6 sec to enter CLONE MODE.
6 sec
Tap "Setup" button to pair smart device with computer.
Choose desired time and unit format. Insert power zones
and wheel size setting. Tap "Save" to complete.
Follow the pairing procedures to pair Speed & Cadence Sensor and Heart Rate Monitor as in OPTION A.
HOW TO OPERATE IN CLONE MODE (SECOND MONITOR function) (Using English version as an example)
1 2 3
On computer for 6 sec to enter CLONE MODE.
Open Topeak PanoBike App. Tap "START RIDE", then tap "START" to record your ride.
Start riding...
for 6 sec
to return to COMPUTER
MODE.
for 6 sec
to return to COMPUTER
MODE after riding.
6 sec
Data syncs with computer
Ride data is transmitted to
computer from smart device.
Smart device screen can be
turned o to save battery.
Tap II to stop and save ride
data to your smart device.
PanoComputer
Wireless
TRANSMITTING RIDE DATA TO PANOBIKE APP (COMPUTER MODE ONLY) (Using English version as an example)
User's Guide
On computer
1 2 3 4
for 6 sec to enter CLONE MODE.
On Smart Device, open Topeak PanoBike App and
tap "History" icon
Tap " " to transfer new ride data to Topeak PanoBike App.
After the transmitting,
The computer is ready to
transmit your riding data.
HOW TO INSTALL PANOCOMPUTER
2
3mm Allen Key
1
Install the bracket on the handlebar.
HOW TO RELEASE PANOCOMPUTER
1
Press the lever
Turn-on Bluetooth® on your smart device first.
DISPLAY FUNCTION
Current Speed
Average Speed
Maximum Speed
Trip Distance
Install the
computer
Release the
2
computer
* “Current Cadence” Requires optional PanoBike Speed & Cadence Sensor.
* “Current Heart Rate” Requires optional PanoBike Heart Rate Monitor.
* Wheel circumference default: 2235 mm
Accumulated Distance
Ride Time
Accumulated Ride Time
Low Battery Indicator
12H/ 24H clock
Pace Indicator
Bike A and Bike B
Current Cadence *
Current Heart Rate *
Bluetooth® System
SmartPhone Connected
NOTE: Any transmitted data deleted from smart device history cannot
be recalled from PanoComputer.
199 km/h, 199 mi/h
199 km/h, 199 mi/h
199 km/h, 199 mi/h
0.00~9999.99 km or m
0.00~99999.9 km or m
0 : 00 : 00~99 : 59 : 59
0000 : 00~9999 : 59
< 2.7 V
1 : 00 ~12 : 59 (12 H)
0 : 00 ~23 : 59 (24 H)
0~199 RPM
0~199 BPM
INCREMENTSSPECIFICATIONS ACCURACY
±
0.1 km/h or mi/h
0.1 km/h or mi/h
0.1 km/h or mi/h
0.1 km or m
0.1 km or m
1 Second
1 Minute
1 Minute
1 %
±
0.1 %
±
0.1 %
±
0.1 %
±
0.1 %
±
0.1 %
±
0.1 %
0.003 %
±
the current trip record
number will appear on
screen.
SLEEP MODE
in COMPUTER MODE
During non-riding
status, if no button is
touched for 10 minutes,
the computer will go
into Sleep Mode.
Please press “MODE” to
wake up the computer.
in CLONE MODE
During non-riding
status, if no Bluetooth®
signal is connected, the
computer will go into
Sleep Mode after 2
minutes.
Please press “MODE” to
DETERMINE WHEEL CIRCUMFERENCE
wake up the computer.
METHOD A) CHOOSE FROM WHEEL CIRCUMFERENCE DATA BELOW METHOD B) MEASURE WHEEL CIRCUMFERENCE
40-305
47-305
34-305
40-355
47-355
40-406
47-406
47-507
50-507
40-559
47-559
50-559
54-559
56-559
38-622
56-622
16x1.50
16x1.75
16x2.00
18x1.50
18x1.75
20x1.50
20x1.75
24x1.75
24x2.00
26x1.50
26x1.75
26x1.95
26x2.10
26x2.20
700x38C
29x2.00
Wheel Circumference Wheel Circumference
1185
1195
1245
1340
1350
1490
1515
1890
1925
2010
2023
2050
2068
2083
2180
2272
Tire Size DesignationTire Size Designation
20-571
23-571
25-571
57-584
60-584
20-622
23-622
25-622
28-622
30-622
32-622
35-622
54-622
57-622
650C Tubular
650x20C
650x23C
650x25C
27.5x2.25(650B)
27.5x2.35(650B)
700C Tubular
700x20C
700x23C
700x25C
700x28C
700x30C
700x32C
700x35C
29x2.10
29x2.25
1920
1938
1944
1952
2217
2230
2130
2086
2096
2105
2136
2146
2155
2168
2288
2320
KM/ H:
Wheel Circumference
= mm x 3.14
mm x 3.14
SPECIFICATION
Tech: Bluetooth® Smart (BLE 4.0) super low energy technology
Mount: Handlebar Mount (ø 31.8 mm only)
Battery Lifetime (max.): 360 hours (1 hr/ day use) *
Battery: CR2032 x 1 pc (included)
Transmission Range: <10 meter (33 ft)
Waterproof: IPX 7
Operating temperature: -10°C ~ 50°C (14°F~122°F)
Weight: 30 g / 1.06 oz (computer only)
* Overall battery life is dependent on usage profile and battery condition.
for 6 sec to
return to COMPUTER MODE.
LOW BATTERY
Battery < 2.7 V
For your safety, PanoComputer has a Max
MAX HEART RATE ALARM
Heart Rate Alarm function. When Heart Rate
exceed Max limit, the Heart icon will be shown
in black. Set Max Heart Rate limit in Topeak
PanoBike App.
* “HEART RATE” Requires optional PanoBike
Heart Rate Monitor.
IMPORTANT NOTE
CLEAR ALL DATA SETTING will clear all stored data.
1.
CLEAR ALL DATA SETTING is required during FIRST SETUP or BATTERY CHANGE.
2.
All data will be cleared when replacing the battery. Before changing battery, write down stored data ODO and ART.
3.
The TOPEAK PANOCOMPUTER can be used in the rain but should not be intentionally submerged underwater.
4.
Do not leave the computer exposed to direct sunlight when not riding the bicycle.
5.
Do not disassemble the computer body or its accessories.
6.
Check relative positions and gap between sensor and magnet periodically.
7.
Do not use harsh chemicals to clean the computer body or its accessories.
8.
Remember to pay attention to the road while riding.
9.
Check the computer mount before each ride to ensure a secure connection.
10.
Dispose of used batteries according to local regulations.
11.
TROUBLE SHOOTING
Check the following before bringing unit in for repair.
PROBLEM CHECK ITEMS REMEDY
No display 1. Is the battery exhausted?
No current
speed or
incorrect data
Irregular display
LCD is black
Display is slow
No current
heart rate data
2. Is the battery installed correctly?
1. Is it in setup mode?
2. Are the relative positions and gap between sensor and magnet correct?
3. Is the wheel circumference correct?
Did you leave the computer in direct sunlight when
not riding the bicycle for a long while?
Is the temperature below -10˚C (14˚F)?
1. Is the chest strap being worn correctly?
2. Is the battery of heart rate monitor exhausted?
1. Replace the battery.
2. Make sure that the positive (+) pole of the battery is facing the battery cap.
1. Refer to the data setting procedure and complete the adjustment.
2. Refer to INSTALLATION and re-adjust correctly.
3. Refer to CIRCUMFERENCE SETTING and enter correct value.
Refer to "Clear All Data setting" and initiate the computer again.
Place the computer body in the shade to return to normal state.
The unit will return normal state when the temperature rises.
1. Make sure the position of chest strap is correct.
2. Replace the battery.
CHANGING BATTERY
Operation Time up to
360 hrs.
+
CR2032
-
Remove the Battery Cover rst
1
Change
2
the battery
TOPEAK PANOBIKE APP
The ultimate cycling performance app that utilizes your
smartphone’s powerful Bluetooth® Smart capabilities and
transforms it into your bike computer, personal training
and health management device.
This app combines the functions of phone, cycle computer,
GPS, music player, camera, and heart rate monitor (requires
purchase of separate PanoBike Heart Rate Monitor) into
one program that allows you to have loads of fun on your
bike ride.
PanoComputer Syncs
with PanoBike App
only.
iOS 5 or above Android OS 4.3 or above
(Download for Free)
(Download for Free)
OPTIONAL ACCESSORIES
RideCase Mount RX
Art No. TC1022
PanoComputer
Mount
Art No. TPB-CM01
WARRANTY
2-year Warranty: All electronic and mechanical components against manufacturer defects only.
Batteries are not covered under any implied warranty.
Warranty Claim Requirements
To obtain warranty service, you must have your original sales receipt. Items returned without a sales
receipt will assume that the warranty begins on the date of manufacture. All warranties will be void if
the product is damaged due to user crash, abuse, system alteration, modification, or used in any way
not intended as described in this manual.
* The specifications and design are subject to change without notice.
Please contact your Topeak dealer with any questions.
For USA customer service, call: 1-800-250-3068
Website: www.topeak.com
Copyright © Topeak, Inc. 2014
M-TPB-C01-GB 04/14
