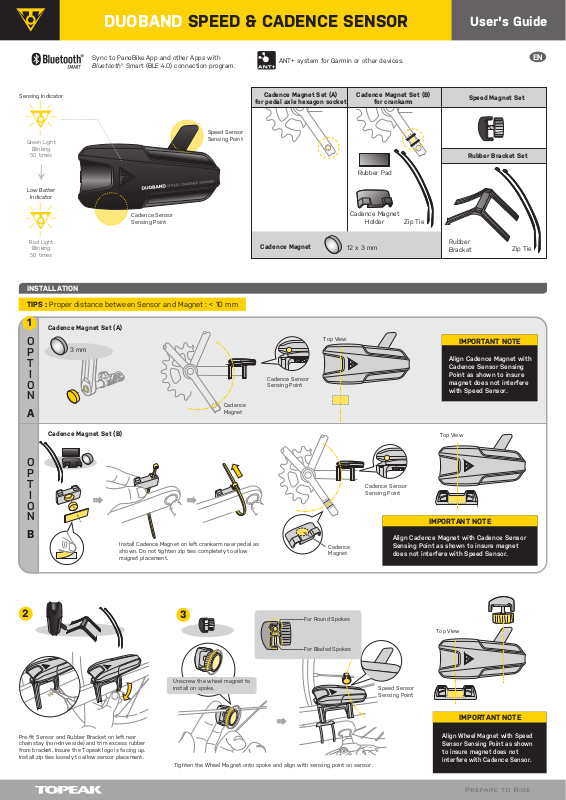

Topeak SC03 Users Manual
DUOBAND
SPEED & CADENCE SENSOR
User's Guide
Sync to PanoBike App and other Apps with
Bluetooth® Smart (BLE 4.0) connection program.
Sensing Indicator
Speed Sensor
Green Light
Blinking
50 times
Low Batter
Indicator
Red Light
Blinking
50 times
Cadence Sensor
Sensing Point
Sensing Point
INSTALLATION
TIPS : Proper distance between Sensor and Magnet : < 10 mm
1
Cadence Magnet Set (A)
O
P
3 mm
T
I
O
N
A
Cadence
Magnet
ANT+ system for Garmin or other devices.
Cadence Magnet Set (A)
for pedal axle hexagon socket
Cadence Magnet
Cadence Sensor
Sensing Point
12 x 3 mm
Top View
Cadence Magnet Set (B)
for crankarm
Rubber Pad
Cadence Magnet
Holder
Zip Tie
Speed Magnet Set
Rubber Bracket Set
Rubber
Bracket
Zip Tie
IMPORTANT NOTE
Align Cadence Magnet with
Cadence Sensor Sensing
Point as shown to insure
magnet does not interfere
with Speed Sensor.
EN
Cadence Magnet Set (B)
O
P
T
I
O
N
B
2
Install Cadence Magnet on left crankarm near pedal as
shown. Do not tighten zip ties completely to allow
magnet placement.
3
Unscrew the wheel magnet to
install on spoke.
Cadence
Magnet
For Round Spokes
For Bladed Spokes
Top View
Cadence Sensor
Sensing Point
IMPORTANT NOTE
Align Cadence Magnet with Cadence Sensor
Sensing Point as shown to insure magnet
does not interfere with Speed Sensor.
Top View
Speed Sensor
Sensing Point
Pre-fit Sensor and Rubber Bracket on left rear
chainstay (non-drive side) and trim excess rubber
from bracket. Insure the Topeak logo is facing up.
Install zip ties loosely to allow sensor placement.
Tighten the Wheel Magnet onto spoke and align with sensing point on sensor.
IMPORTANT NOTE
Align Wheel Magnet with Speed
Sensor Sensing Point as shown
to insure magnet does not
interfere with Cadence Sensor.
DUOBAND
4
SPEED & CADENCE SENSOR
Pair with PanoBike App
5
5~10 mm
User's Guide
Adjust angle and position of sensor to
achieve recommended magnet distances
and aligning sensing points.
5~10 mm
SPECIFICATION
Tech: Bluetooth® Smart & ANT+ super low energy technology, Dual Mode
Battery Lifetime (approx): 900 hr
Battery: CR2032 x 1 pc (included)
Transmission Range: < 5 meter (16.4 ft)
Waterproof: IPX 7
Operation Temperature: -10ºC ~ 50ºC (14ºF ~ 122ºF)
Weight: 20 g / 0.70 oz
TOPEAK PANOBIKE+ APP
The ultimate cycling performance app that utilizes your
smartphone’s powerful Bluetooth® Smart capabilities and
transforms it into your bike computer, personal training and
health management device.
This app combines the functions of phone, cycle computer,
GPS, music player, camera, and heart rate monitor (requires
Sync to PanoBike+
App and other Apps
with Bluetooth® Smart
(BLE 4.0) connection
program.
purchase of separate DuoBand Heart Rate Monitor) into one
program that allows you to have loads of fun on your bike
ride.
Download PanoBike+ App and follow
or
the procedures to pair with
PanoBike+ App.
After pairing with PanoBike+ App successfully,
make sure the Sensor is installed and
tightened securely on left rear chainstay by
using needle nose pliers before trimming
excess zip tie.
TROUBLE SHOOTING
1. Why can’t I connect the sensor with PanoBike+ App?
• Make sure the Bluetooth® system in your smartphone has been open.
• Is the battery exhausted? Replace battery.
2. Display is slow?
• Is the temperature below -10ºC (14ºF)? The unit will return normal state when the temperature rises.
3. No current speed or incorrect data?
• Make sure the magnets are aligned to pass by the sensor as the crankarm and wheel spin.
CAUTION
1. The Sensor and hardware can be used in the rain but should not be used underwater.
2. Do not disassemble the Sensor and hardware.
3. Check relative positions and gap between sensor and magnets periodically.
4. Do not use harsh chemicals to clean the Sensor and hardware.
5. Remember to pay attention to the road while riding.
CHANGING BATTERY
RELEVANT ACCESSORIES
Operation Time up to
900 hr. / 2.5 yr.
* 2.5 years with 1 hr/ day use
RideCase series
iOS 5 or above
(Download for Free)
Android OS 4.3
or above
(Download for Free)
FCC INFORMATION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment
This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter.
Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment
+
CR2032
-
NOTE:
Install the
sensor battery
before first use.
DuoBand
Heart Rate Monitor
Art No. TPB-HRM05
WARRANTY
2-years Warranty: All mechanical components against manufacturer defects only. Batteries are not covered under any
implied warranty.
Warranty Claim Requirements
To obtain warranty service, you must have your original sales receipt. Items returned
without a sales receipt will assume that the warranty begins on the date of manufacture.
All warranties will be void if the product is damaged due to user crash, abuse, system
alteration, modification, or used in any way not intended as described in this manual.
* The specifications and design are subject to change without notice.
Please contact your Topeak dealer with any questions. For USA customer service,
call: 1-800-250-3068 / www.topeak.com
* Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
* iPhone is a registered trademark of Apple Inc.
* App Store is a service mark of Apple Inc.
Copyright © Topeak, Inc. 2016Manufacture : ALATECH TECHNOLOGY
M-TPB-SC03 EN 09/16
Made in Taiwan
FCC ID：R3S-SC03
MODEL：TPB-SC03
