Topeak PrepStation Pro User Manual
UP
GB
WARRANTY
4th Tray
6th Tray
7th Tray
Wheel Base
2nd Tray
5th Tray
1st Tray
3rd Tray
Wheel base can be pulled
out to extend working base
for greater stability
7th Tray
3rd Tray2nd Tray
5th Tray
7mm Spanner
TPS-SP43
4th Tray
PrepStation Case Cover
Art No. TPS-01PB
PocketShock DXG
Art No. TPSMB-DX
HackSaw
Art No. TPS-SP47
User's Guide

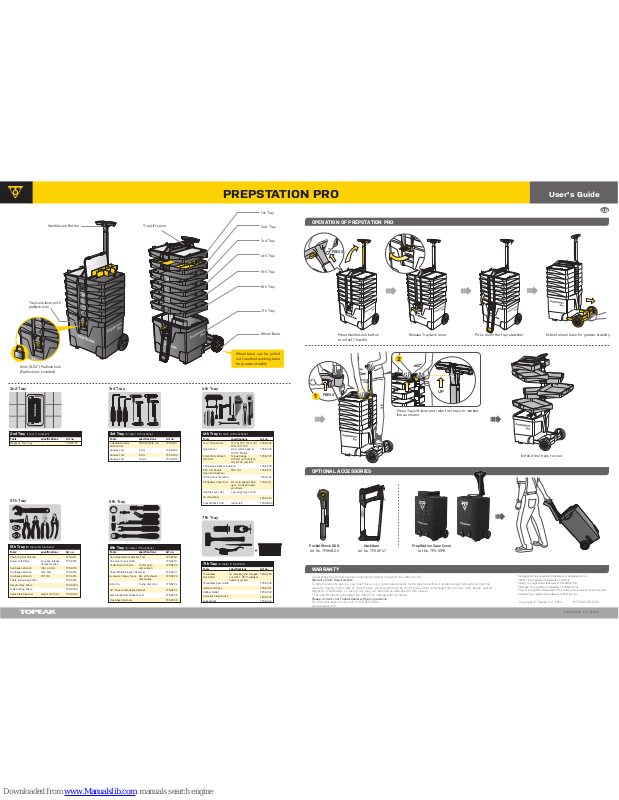

PREPSTATION PRO
OPERATION OF PREPSTATION PRO
OPTIONAL ACCESSORIES
Press HandleLock button
to unfold T-handle
Release TrayLock lever PULL down the tray stabilizer
Extend wheel base for greater stability
Extend tool trays for use
2
PRESS
1
HandleLock Button
6mm (0.24”) Padlock hole
(Padlock not included)
TrayLock lever with
padlock hole
2-year Warranty: All mechanical components against manufacturer defects only.
Warranty Claim Requirements
To obtain warranty service, you must have your original sales receipt. Items returned without a sales receipt will assume that the
warranty begins on the date of manufacture. All warranties will be void if the product is damaged due to user crash, abuse, system
alteration, modification, or used in any way not intended as described in this manual.
* The specifications and design are subject to change without notice.
Please contact your Topeak dealer with any questions.
For USA customer service call : 1-800-250-3068
www.topeak.com
Copyright © Topeak, Inc. 2014
M-TPS-05-GB 10/14
6th Tray
TrayLift Lever
PRESS
3rd Tray (9 tools / 13 functions)
Tools specifications Art no.
DuoHex Tool 6 mm TPS-SP02
DuoHex Tool 8 mm TPS-SP03
DuoHex Tool 10 mm TPS-SP04
T-Handle DuoHex 2/2.5/3/4/5/6 mm TPS-SP01
Wrench Set
2nd Tray (1 tool / 1 function)
Tools specifications Art no.
Magnetic Tool Tray TPS-MT01
Tools
5th Tray (10 tools / 18 functions)
specifications Art no.
Cable & Housing Cutter TPS-SP16
Adjustable Spanner adjust 0-35 mm TPS-SP36
Needle Nose Pliers TPS-SP29
Side Cutting Pliers TPS-SP30
Chainring Nut Wrench TPS-SP11
DuoSpoke Wrench 13G/ 4.3 mm TPS-SP13
DuoSpoke Wrench 14G/ 15G TPS-SP14
DuoSpoke Wrench M7/ M9 TPS-SP15
PowerLink Pliers For easy release
of master links
TPS-SP12
Tools specifications Art no.
7th Tray (6 tools / 8 functions)
Half Round Rasp
Rubber Mallet
Sprocket Clean Brush
TPS-SP33
BucketSeat
TPS-SP46
TPS-SP32
TPS-SP31
Threadless
Nut Setter
TPS-SP25
Threadless Saw Guide TPS-SP26
Tools specifications Art no.
6th Tray (10 tools / 13 functions)
Freewheel Remover TPS-SP39
1/2” Driver Extendable Ratchet TPS-SP37
External Bottom Bracket Tool
TPS-SP38
Chain Whip/Sprocket Remover TPS-SP21
Hydraulic Caliper Press Fits all hydraulic
disc brakes
TPS-SP23
Pedal Wrench 15mm 15 mm open
end wrench
TPS-SP20
RotorTru Truing disc rotor TPS-SP24
Universal Crank Puller TPS-SP19
Cartridge Bottom Bracket Tool TPS-SP18
Tools
4th Tray (19 tools / 28 functions)
Quad Driver
specifications
4/6 mm flat head &
#1/ #2 Phillips
Shuttle Lever Set 1 pc long/ 2 pcs short
Art no.
All Speeds Chain Tool For multi speed chain
up to 11 speed hollow
pin chains
TPS-SP41
8/10 mm Double
Open End Spanner
8/10 mm TPS-SP27
Chain Hook & Wear Indicator TPS-SP09
ComboTorq Wrench
& Bit Set
Torque Range :
3-12 Nm with 3/4/5/6
mm & T25 tool bits
TPS-SP07
TPS-SP06
Torx® Wrench Set T7/ T9/ T10/ T15/ T20/
T25/ T27/ T30
TPS-SP05
T25 DuoTorx® Wrench TPS-SP34
(Optional)PocketShock DXG
TPSMB-DX
32TPI / 10” (254mm)
HSS-Bi-Metal
for installing star- flanged
nut with 1- 1/8” threadless
head set system
Press TrayLift lever and raise tool trays to marked
line as shown
* Campagnolo® is a registered trademark of Campagnolo S.r.I.
* Teflon® is a registered trademark of DuPont.
* Mavic® is a registered trademark of SALOMON S.A.
* Shimano® is a registered trademark of Shimano® Inc.
* Torx® is a registered trademark of the Camcar Corp. division of Textron Inds.
* Octalink® is a registered trademark of Shimano Inc.
* Torx® is a registered trademark of the Camcar Corp. division of Textron Inds.
* Octalink® is a registered trademark of Shimano Inc.
* Campagnolo® is a registered trademark of Campagnolo S.r.I.
* Teflon® is a registered trademark of DuPont.
2mm Saw
Guide Spacer
1.2mm Saw
Guide Spacer
2mm Saw
Guide Spacer
1.2mm Saw
Guide Spacer
Preset
4mm Allen Key
Half Round Rasp
Art no. TPS-SP31
Option 1
Option 2
For Carbon Saw Blade
DuoSpoke Wrench
DuoSpoke Wrench (13G/ 4.3 mm)
Art no. TPS-SP13
13G
(3.5mm)
Shimano®
(4.3mm)
DuoSpoke Wrench (14G/ 15G)
Art no. TPS-SP14
15G
(3.2mm)
14G
(3.4mm)
Threadless Saw Guide
Art no. TPS-SP26
DuoSpoke Wrench (M7/ M9)
Art no. TPS-SP15
Mavic®
M7
Mavic®
M9
Art no. TPS-SP13-15
Threadless Nut Setter
Rubber Mallet
Art no. TPS-SP32
• Star nut not included
Art no. TPS-SP25
OPERATION OF POWERLINK PLIERS
OPERATION OF CABLE & HOUSING CUTTER
Cable & Housing Cutter
PowerLink Pliers
Art no. TPS-SP12
Art no. TPS-SP16
Chainring Nut WrenchSprocket Clean Brush
Art no. TPS-SP11Art no. TPS-SP33
Chain Hook & Wear Indicator
" STEP 2 " can fully engage a roller
" STEP 2 " can't engage a roller
Chain replacement
required
Chain in good condition
CHAIN WEAR INDICATOR
CHAIN HOOK
Art no. TPS-SP09
GB
User's Guide

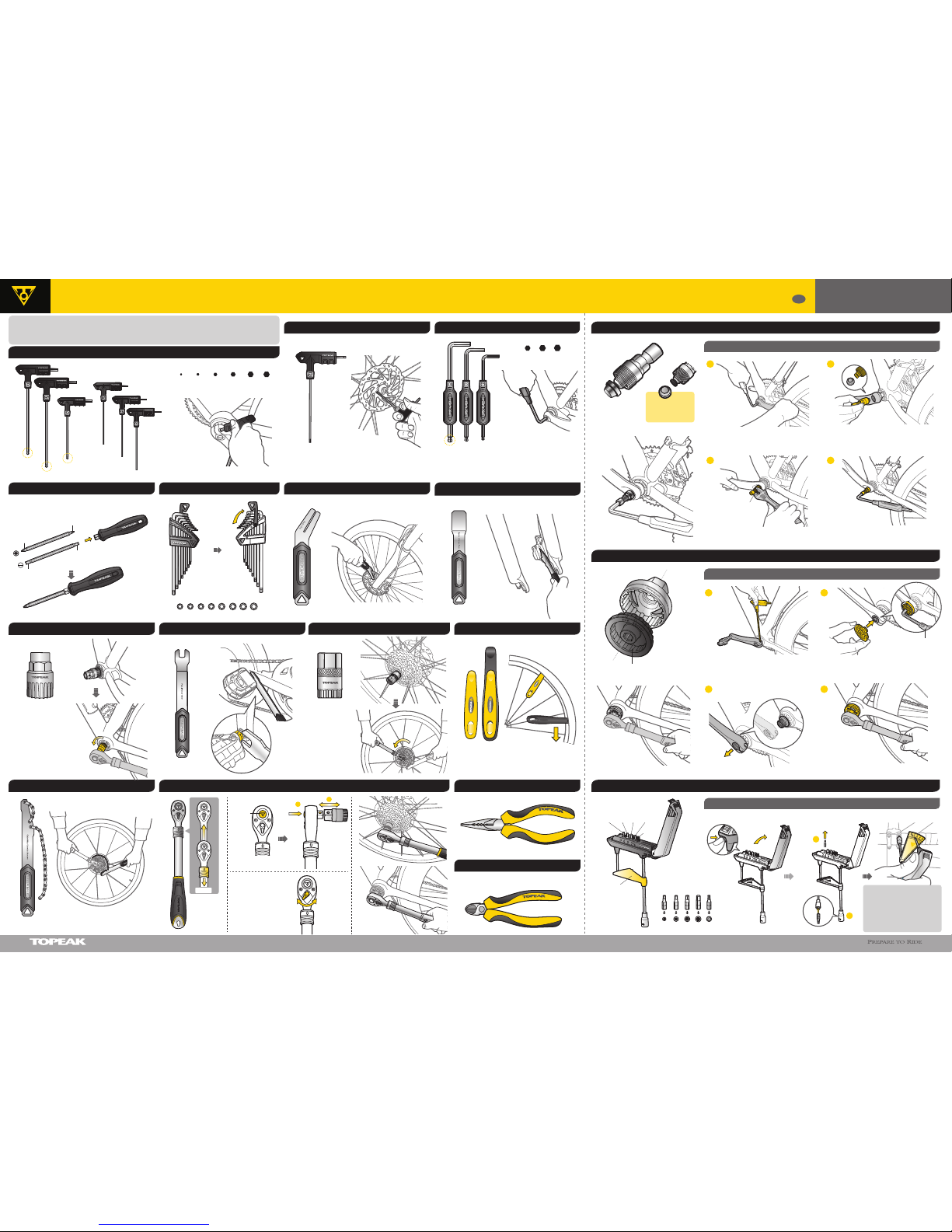

PREPSTATION PRO - TOOLS
Copyright © Topeak, Inc. 2014 M-TPS-05-TOOLS-GB 10/14
USING THREADLESS NUT SETTER
A.
B.
Rubber Mallet
Art no. TPS-SP32
Rubber Mallet
Art no. TPS-SP32
8/10mm Double Open End Spanner
Art no. TPS-SP27
7mm Spanner
Art no. TPS-SP43
Half Round Rasp
Art no. TPS-SP31
Adjustable Spanner
Art no. TPS-SP36
* Shimano® is a registered trademark of Shimano® Inc.
* Mavic® is a registered trademark of SALOMON S.A.
All Speeds Chain Tool
Art no. TPS-SP41
1.
2
.
1
2
3 4
1 2
3
4 5
INSTALLATION INSTRUCTION FOR CAMPAGNOLO® 11-SPEED HOLLOW CHAIN PIN
After pressing the special replacement pin into Campagnolo® 11-Speed chain and breaking off the
guide portion, the break off end of the chain rivet is required to be peened to prevent chain failure.
Before
After
3/4 Turn
HOW TO REPLACE CHAIN PIN
Use Chain Hook to hook chain and hold
the target chain rivet in center position.
Snap off new chain pin guide.
Press out old chain pin and
replace with new chain pin.
Press chain
pin as little
as possible
to loosen
the stiff link.
WARNING
1.2.When pressing in the chain
pin, push down on the top of
the chain to keep it fully
engaged in the chain tool
cradle. Make sure the press
pin of the chain tool is
centered against the chain
pin.
Inspect chain rivet again and
be sure chain links can bend
freely after replacement.
MAINTENANCE
Lubricate and maintain tool with Teflon® based lubricant when needed.
To prevent rusting, keep tool dry.
Fits multi-speed chains, including Campagnolo® 11 speed.
Use Primary Chain
Link Fence to
install or remove
chain pin. Use
Secondary Chain
Link Fence to
loosen stiff links.
Primary Chain
Link Fence
Secondary
Chain Link Fence
Target chain rivet
1. Chain Pin Breaker
2. Rivet Anvil of Hollow Pin
3. Chain Hook
3
1
2
1
2
1
2
3
1) Pu t "STEP 1" inside chain space and fully engage a roller 2) PRESS "STEP 2" on a roller
