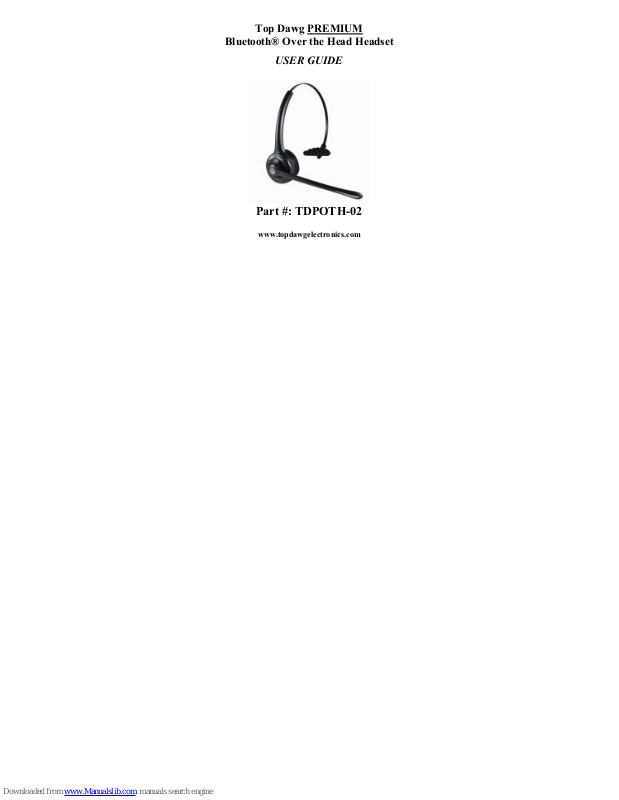

Top Dawg PREMIUM
Bluetooth® Over the Head Headset
USER GUIDE
Part #: TDPOTH-02
www.topdawgelectronics.com
Page 2
Read before using dual ear stereo headset:
Thank you for purchasing our Top Dawg Premium headset TDPOTH-
02. Please check the contents of this package to verify the items listed
on the package are included. Be sure to read this User Guide before you
use the Headset. The TDPOTH-02 has been developed using
Bluetooth® wireless technology and is capable of connecting with
Bluetooth® devices designed with Audio Gateway and PDAs. Desktop
and notebook computers can be connected and paired with the Headset
using a USB Bluetooth® Dongle. Before using the Headset, please
verify your Bluetooth® device (phone, PDA) complies with
Bluetooth® V2.l and supports the Bluetooth® Headset or Handsfree
A2DP AVRCP Profiles.
Specifications
-Product Model No: TDPOTH-02
-Standard Convention/Signal Output: B1uetooth® V2.l, Class II
-Frequency Band: 2.4OHz - 2.483S0Hz, ISM Band
-TaIk/Standby Time: Up to 13 hours/ Up to 220 hours
-Supporting Profile: Headset & Handsfrce, A2DP, AVRCP
-Connection: Peer to Peer
-Data Encryption: 128 bits encrypted
-Power Capacity: Rechargeable Li-Polymer
-Power Supply: 5V DC, l00-240 AC adapter
-Operation Temperature: -10 to 55 Celsius
-Facility Saving Temperature: -20 to 60 Celsius
-Operation Moisture: 10% - 90% (non-concrete status)
-Safety Regulation: CE,FCC,BQB
Page 3
Product overview
- Max4x Noise Cancellation Technology; blocks 4 times the
external noise
- Can be used while it is charging
- 13 Hour Talk time - 200 Hour Stand-by Time
- Multi-point Technology - can pair to up to 2 connections at
same time
TDPOTH-02 Bluetooth® Stereo Headset Structure
Please insert same pictures of the headset with the diagrams and arrows
pointing out functions of the headset
Page 4
Primary Operation
1. Turn on: In the off state, Press the function button for 4-5 seconds.
The indicator light will flash blue 3 times slowly.
2. Turn off: In the on state, Press the function button for 4-5 seconds.
The indicator light will flash red 3 times slowly.
3. Put Headset in Paring Mode; In the off state, press and hold the
multifunction key 7 seconds until red and blue LED flash alternately.
4. Answer a call: Press the multifunction key one time while the call
coming in to answer from the headset.
5. End a call: Press the multifunction key one time while talking to end
a call from the headset.
6. Reject a call: Press and hold multifunction key about 2 seconds to
reject the incoming call.
7. Voice dialing: While in the headset and mobile connecting state,
press and hold multifunction key 3 seconds until you hear a beep to
operate the voice dialing. (to use this function, your mobile must
support this option)
8. Redial number: Press the multi-function button twice.
9. Audio transfer between phone and headset: Press the increase
volume button for 2 seconds
10. Mute/Cancel mute: Press the increase volume decrease (-) button at
for 2-3 second
Pairing Headset with one Device:
a. Turn on both the headset and the device.
b. Hold the headset's multi-function button for 8 seconds until its blue
and redindicator lights flash alternately, now the headset is ready to
pair for any device.
c. Activate Bluetooth® function of the device so the device is in
Page 5
bluetooth searching mode and search for Bluetooth® devices (please
refer to the device’s manual for more instruction)
d. Select "TDPOTH-02" among the device's searched devices list and
then confirm according to its indications.
e. Input pin code "0000" if a passcode is asked for. Now confirm that
the headset is paired, in which the blue indicator light flashes.
Pairing Headset with Two Devices
Bluetooth headset TDPOTH-02 has multi-point function for connection
to two mobile devices simultaneously.
a. Please pair the first phone following above pairing steps.
b. Turn off the first connected phone's Bluetooth function temporarily.
c. After finished pairing with the second phone, turn off the headset,
and then power on the first paired phone's Bluetooth function and then
restart the headset. Then, the headset will connect to both the two
paired phones automatically.
Charging the Headset:
This headset includes a built-in Lithium Polymer battery. To charge the
unit:
1. Plug the charger into proper outlet.
2. Plug the unit end of charger into the power outlet of headset.
3. During charging, the indicator light will turn red. When charging is
complete, the indicator light will shut off or flash red to alert you that
the headset is fully charged.
Page 6
Troubleshooting:
If disconnection occurs, please check the following factors:
1. Ensure that the headset has enough power, is turned on and has been
successfully paired to the mobile.
2. The Bluetooth® function of the mobile is enabled.
3. Ensure the distance between the headset and mobile is not over 30
feet, or there is wall or other disturbance or other electrical devices
between headset and mobile.
4. Some mobile can support the switching between music and calling
for Bluetooth® connection, while other phones will not support this
function.
Important operation notice: Bluetooth® paring
Bluetooth® paring is the phrase used for Bluetooth® products use: it
makes the Bluetooth® devices connect wirelessly to other devices via
simple operation. For example, you must enable the Bluetooth®
function on your mobile phone or device, if you want to use the mobile
and Bluetooth® headset, then put the headset in pairing mode and
search for the headset in your bluetooth function on your device, pair
and connect by password.
Page 7
Battery information:
Your device is powered by a rechargeable battery. The full
performance of a new battery is achieved only after two or three
completed charge and discharge cycles. The battery can be charged and
discharged hundreds of times, but it will eventually wear out. Please
disconnect the connection between charger and headset when not
charging. Do not leave a fully charged battery connected to a charger
for over 24 hours, since overcharging may shorten battery lifetime. If
left unused, a fully charged battery will lose power over time. Leaving
the device in extreme hot or cold temperatures, such as in closed car in
summer or winter conditions, will reduce the capacity and lifetime of
the battery. A device in extreme hot or cold enviroments may not work
temporarily, even when the battery is fully charged. Battery
performance is particularly limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Battery may
also explode if damaged.
Contact Information:
Top Dawg Electronics
13630 Immanuel Rd, Ste E
Pflugerville, TX 78660
512-251-8472
www.topdawgelectronics.com
Page 8
Top Dawg Electronics
Limited Warranty
What warranty covers: Manufactuer warrants to original purchaser
that the product funished hereunder shall be free from defects in
materail and workmanship under normal use and service. In the event
of any defect in material or workmanship, the manufacturer will for
twleve (12) months from the date of delivery of product to purchaser,
F.O.B. point of origin replace any defective parts in respect to the
product or replace the product with new or like new product at
manufacturers option. In the event of a defect, return the product in tact
to the manufacturer (shipping to manufacturer will be paid by
purchaser) with evidence of purchase date within last 12 months for
proper handling of the warranty claim.
What is Not Covered:
− Defects or damage resluting from use of products in other than
it normal and customary manner
− Defective or damage from misuse, accident, water or neglect
− Scraches or cosmeteic damage that does not effect operation of
the product
− Product damge or bodily injury
− Contact TD to purchase extended replacement warranty
General Provions: This warranty is given in lieu of all other express
warranties, implied warranties, including without limitation, implied
warranties or merchantability and fitness for a particular purpose, are
limited to the duration of this limited wrranty, in no event shall the
manufacturer or seller be liable for damages in excess of the purchase
price of the product
