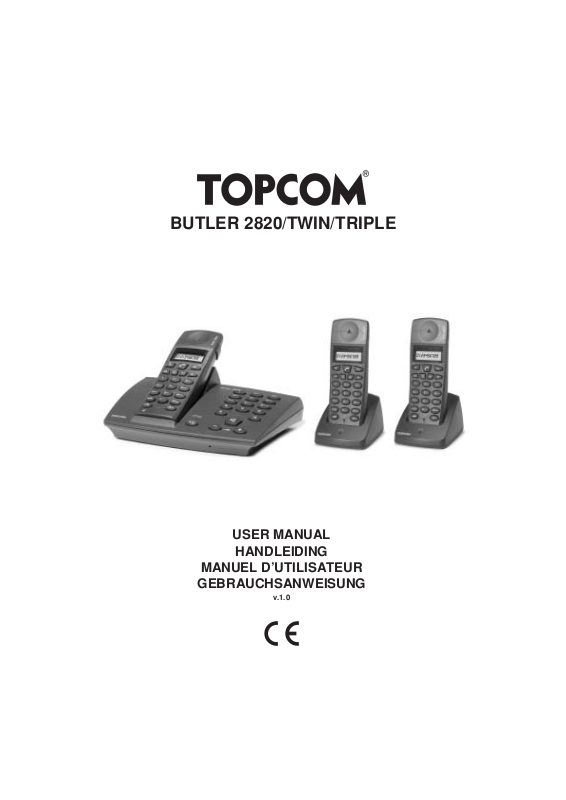

Topcom BUTLER 2820 User Manual

BUTLER 2820/TWIN/TRIPLE

USER MANUAL

HANDLEIDING

MANUEL D’UTILISATEUR

GEBRAUCHSANWEISUNG

v.1.0

To use ‘Caller ID’ (display caller), this service has to be activated on your phone line. Normally you need a separate subscription from your

telephone company to activate this function. If you don’t have the Caller ID function on your phone line, the incoming telephone numbers

Pour utiliser la fonction ‘Caller ID/Clip’ (affichage de l’appelant), ce service doit être activé sur votre ligne téléphonique. Généralement, vous

avez besoin d’un abonnement séparé de votre compagnie de téléphone pour activer cette fonction. Si vous n’avez pas la fonction ‘Caller

ID - Affichage Appelant’ sur votre ligne téléphonique, les numéros de téléphone entrants n’apparaîtront PAS sur l’écran de votre téléphone.

Om de ‘Nummerweergave’ te kunnen gebruiken, moet deze dienst geactiveerd zijn op uw telefoonlijn. Om deze dienst te activeren, hebt U

hiervoor meestal een apart abonnement van uw telefoonmaatschappij nodig. Indien U geen nummerweergavefunctie hebt op uw

Zur Verwendung der ‘Rufnummernanzeige’ muss dieser Dienst erst für Ihre Telefonleitung freigegeben werden. Zur Aktivierung dieser

Dienstleistung benötigen Sie meistens ein separates Abonnement Ihrer Telefongesellschaft.Wenn Sie für Ihre Telefonleitung keine

telefoonlijn, zullen de inkomende telefoonnummers NIET op de display van uw toestel verschijnen.

Rufnummernanzeigefunktion haben, erscheinen die eingehenden Telefonnummern NICHT im Display Ihres Gerätes.

will NOT be shown on the display of your telephone.

!! Important !!

!! Belangrijk !!

!! Wichtig!!

This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC.

The Declaration of conformity can be found on :

http://www.topcom.net/support/cedeclarations.php

GB The features described in this manual are published with reservation to modifications.

NL De in deze handleiding beschreven mogelijkheden worden gepubliceerd onder voorbehoud

van wijzigingen.

F Les possibilités décrites dans ce manuel sont publiées sous réserve de modifications.

D Die in dieser Bedienungsanleitung umschriebenen Möglichkeiten, werden vorbehaltlich

Änderungen publiziert.

Topcom Butler 2820

1. BUTTONS 5

2. DISPLAY 7

3. INSTALLATION 7

3.1 Basestation 7

3.2 Handset charger units 8

3.3 Handset 8

4. BATTERY LOW INDICATION 8

5. HANDSET OPERATION 9

5.1 Outgoing calls 9

5.2 Incoming calls 9

5.3 Activate/deactivate hands free function 9

5.4 Programming memory numbers 9

5.5 Calling a memory number 10

5.6 Mute function 10

5.7 Setting the volume 10

5.8 Paging 10

5.9 Cut of range warning 10

5.10 Flash button (R) 10

5.11 Setting the ring volume and melody 10

5.12 Key lock 11

5.13 Setting the dialling mode 11

6. CALLER-ID FUNCTION (CLIP) 11

6.1 New calls 11

6.2 Consulting the Call list 11

6.3 Calling a number from the Call list 11

6.4 Erasing a number from the Call list 12

6.5 Store a number from the call log into the memory 12

7. REGISTER/DE-REGISTER A HANDSET 12

7.1 Register to a Topcom B2800/2820 base 12

7.2 Removing a handset 12

8. CALL TRANSFER AND INTERCOM BETWEEN TWO HANDSETS 13

8.1 Call transfer and conference call during an external call 13

8.2 Internal call (intercom) 13

9. BASE TELEPHONE OPERATION 13

9.1 Making a call 13

9.2 Adjusting the speaker volume 13

9.3 Setting the dial mode for the base 13

9.4 Transfer a call from base to handset 14

9.5 Setting the base flash time 14

10. TOPCOM WARRANTY 14

10.1 Warranty period 14

10.2 Warranty handling 14

10.3 Warranty exclusions 14

11. TROUBLESHOOTING 15

12. TECHNICAL DATA 15

13. DEFAULT SETTINGS HANDSET 15

ENGLISH

Topcom Butler 2820 3

Topcom Butler 2820

SAFETY INSTRUCTIONS

•Only use the charger plug supplied. Do not use other chargers, as this may damage the battery cells.

•Only insert rechargeable batteries of the same type. Never use ordinary, non-rechargeable batteries. Insert rechargeable batteries so they connect to the right poles (indicated in the battery compartment of the handset).

• Do not touch the charger and plug contacts with sharp or metal objects.

•The operation of some medical devices may be affected.

•The handset may cause an unpleasant buzzing sound in hearing aids.

• Do not place the basic unit in a damp room or at a distance of less than 1.5 m away from a water source. Keep water away from the handset.

• Do not use the telephone in environments where there is a risk of explosions.

•Dispose of the batteries and maintain the telephone in an environment-friendly manner.

• As this telephone cannot be used in case of a power cut, you should use a mainsindependent telephone for emergency calls, e.g. a mobile phone.

•This telephone uses rechargable batteries. You have to dispose of the batteries in an environment friendly manner according to your specific country regulations.

NiMH

CLEANING

Clean the telephone with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents.

4 Topcom Butler 2820

Topcom Butler 2820

1. BUTTONS

2876

Butler 2820C

Butler 2820

ENGLISH

ABC

DEF

HANDSET

1 Numerical buttons 2Line button 3 Redial / Pause button

4Flash R/ Scroll R/ 5 Memory button 6 Mute button 7Int button Int 8 Call log/Scroll / 9 Volume/melody

button / 10 Key lock 11 Ringer

ON/OFF 12 Handsfree

GHI

INT

ABC

GHI

PQRS

DEF

JKL

MNO

WXYZ

TUV

10313

PQRS

MNO

JKL

WXYZ

TUV

BASE

13 Paging button

(to retrieve the handset) 14 Charge indicator (LED) 15 Base telephone dialling keys 16 Flash key R 17 Redial key 18 OFF-hook base telephone LED 19 Line/Handsfree base telephone key

Topcom Butler 2820 5

Topcom Butler 2820

19 Tone/pulse switch 20 Flash time switch

300 ms

100 ms

6 Topcom Butler 2820

Topcom Butler 2820

2. DISPLAY

ICON: MEANING:

You are online New numbers in call list Rechargeable battery level indicator

The antenna indicates the quality of reception.

The antenna blinks when the handset is out of range! Microphone is muted Memory records are being retrieved or set up The keypad is locked There are more digits on the left There are more digits on the right During hands free When ring buzzer is turned off There are new messages in your voice mail

During internal call

HS-x x = handset number

ENGLISH

3. INSTALLATION

3.1 BASESTATION

•Plug one end of the phone cable into the phone unit and the other end into the telephone line wall socket.

• Connect the small plug of the AC adaptor to the phone and the other end of the adapter cable to the electric socket.

TEL.

SOCKET

Telephone cord

Power cable

Topcom Butler 2820 7

Topcom Butler 2820

3.2 HANDSET CHARGER UNITS (ONLY TWIN/TRIPLE VERSION)

• Connect the AC adaptor to the electric socket

3.3 HANDSET

•Insert 2 rechargeable batteries (AAA) inside the battery compartment of the handset..

Put the handset on the base unit. The red Charge LED will lit as long as the handset is on the base. Charge the handset for a period of 24 hours before using the handset for the first time. To extend the battery life time, discharge the batteries completely from time to time. As soon as the handset emits a warning tone or when the battery icon is empty, you have to put it back on the base unit for charging.

4. BATTERY LOW INDICATION

When the battery is empty, the handset no longer carries out operations. When a battery is completely empty and you have put the handset on the base unit for a short period of time, the Battery symbol will appear to be fully charged but this is actually not the case. The battery capacity will decrease rapidly. We advise you to put the handset on the base unit for 12 hrs so that it can be recharged completely.

• Full battery

• Empty battery

When you are in the middle of a conversation and the battery is almost empty, the handset will emit a warning signal. Place the handset on the base unit to charge.

8 Topcom Butler 2820

Topcom Butler 2820

5. HANDSET OPERATION

5.1 OUTGOING CALLS

5.1.1 Making a phone call

• Press the Line button . You will hear the dial tone.

• Enter the desired telephone number.

• Press the Line button when you want to terminate the call.

5.1.2 Call setup with dial preparation

• Enter the desired telephone number. An incorrect number can be corrected by means of the Mute button . When you haven’t pressed a button for 10 seconds, the number you’ve already entered will disappear and the handset returns to standby mode.

• Press the Line button . The number will be dialled automatically.

• Press the Line button when you want to terminate the call.

5.1.3 Redialling the last n

• Press the Line key .

•The Line/Charge indicator (LED) on the base unit will blink.

• You will hear the dial tone.

• Press the Redial key . The number you last called is dialled automatically.

5.1.4 Redial one of the last 3 n

• Press the Redial key . The number you last called appears on the display. If you would like to dial one of the last 3 numbers dialled, press the Redial key a few times until the desired number appears on the display.

• Press the Line key .

•The number shown on the display is dialled automatically.

•After finishing your call, press the Line key to hang up.

5.2 INCOMING CALLS

•When a call comes in, the handset will start to ring. The LED on the base will blink.

• Press the Line button to answer the incoming call.

5.3 ACTIVATE/DEACTIVATE HANDS FREE FUNCTION

This function allows you to communicate without having to pick up the handset. When you are on the phone, press the Hands free key to activate the hands free function. Press the same button to deactivate the hands free function.

Note : When you are calling in hands free mode and you want to change the volume, press the Volume button. Attention !! When you use the hands free function for a long time, the batteries will be empty more quickly!!

5.4 PROGRAMMING MEMORY NUMBERS

You can program 10 indirect numbers (of max. 25 digits) in the phone’s memory.

• Press and hold the Memory button until the -icon appears on the display.

• Enter the telephone number you whish to store.

• Press the Memory button again to confirm.

• Enter the memory location (0-9) where you want to store the number.

• You will hear a confirmation tone and the -icon will disappear.

Remarks : If you wish to insert a pause, press the Redial/Pause button on the location where you want a pause

of 3 sec.

umber dialled

umbers dialled

ENGLISH

Topcom Butler 2820 9

Topcom Butler 2820

5.5 CALLING A MEMORY NUMBER

• Press the Memory button , followed by the number of the memory location (0-9).

• Press the Line button . The memory number will be dialled automatically.

• Press the Line button when you want to terminate the call.

5.6 MUTE FUNCTION

It is possible to deactivate the microphone during a conversation. Now you can speak openly without being heard by your correspondent.

• Press the Mute button during a conversation. The microphone will be deactivated. The MUTE symbol . appears on the display.

• Press the Mute button again when you want to continue the conversation.

5.7 SETTING THE VOLUME

During a conversation you can set the volume by pressing the Volume button . You can set the volume alternatively in Hi, Medium and Low.

Note: The hands free receiver volume is also adjustable as above described!

5.8 PAGING

When you press the Paging button on the base unit, the handset emits a ringing signal for 20 seconds. This signal helps you find a lost handset. Press any key to stop the ringing on a handset.

5.9 OUT OF RANGE WARNING

When the handset is out of the working range of the base unit during a conversation, the unit will emit a warning signal to warn the user that he has to move closer towards the base unit.

5.10 FLASH BUTTON (R)

When you press the R button, also called flash or recall, the unit generates a line interruption (of 100 ms or 250 ms). It gives you the possibility to use the special services of your telephone provider and/or to transfer calls when you have a telephone exchange.

5.10.1 Setting the Flash time

• Press and hold the redial button for 3 sec.

•The display will show: ‘S’ for 100ms or ‘L’ for 250ms

•The ﬂash time setting will disappear after 2 sec. from the display

Caution: The base ﬂash time is different from the handset ﬂash time. To set the base ﬂash time, please refer to § 9.5.

5.11 SETTING THE RING VOLUME AND MELODY

5.11.1 Handset melody

• Press and hold the melody button until the current melody is heard.

• Select the desired melody (1-9) by means of the scroll keys or by entering a number (1 - 9).

• Press again to conﬁrm the setting

5.11.2 Handset ring v

• Press the volume button in standby

•The handset will ring in the current volume

• Press 1-5 or use the scroll keys to select the desired volume

• Press ’0’ to turn the volume OFF

Remark: You can turn the ringer volume of each individual handset ON or OFF by simply press and hold the key in standby.

olume

10 Topcom Butler 2820

Topcom Butler 2820

5.12 KEY LOCK

When the keypad is locked, pressing any key will have no effect during standby (except holding the key).

• Press and hold the key

• appears on the display and the keypad is locked

• Press and hold the key again to un-lock the keypad

When there is an incoming call, you can still answer the call by pressing the Line button . During the call, the keypad functions as normal. When the call is ended, the keypad will be locked again

5.13 SETTING THE DIALLING MODE

There are two types of dialling mode: DTMF/Tone dialling (the most common) (default) Pulse dialling (for older installations)

To change the mode of dialling:

• Press and hold the ﬂash R button to toggle between dialling modes: ‘P’ will appear when set to pulse or ‘T’ when set to tone (DTMF) dialling

•After 5 sec. the unit returns to standby

•

Caution: The base dialling mode is independent from the handset. To set the base dial mode please look at §9.3.

6. CALLER-ID FUNCTION (CLIP)

The Topcom B2820 displays the telephone numbers of incoming calls. This function is only possible if you are subscribed to a telephone operator that provides this service. Contact your telephone provider for more information. When you receive a call, the numbers are saved in a Call list. This list can hold 20 telephone numbers (each of max. 25 digits). If the number is longer then 14 digits, you can press the key to show the other digits!

6.1 NEW CALLS

When you’ve received a new unanswered call, the CLIP symbol will blink on the display.

6.2 CONSULTING THE CALL LIST

• Press the Call Log button . The last received call is shown on the display. If the list is empty, ‘NO CLIP’ is shown on the display.

•The following will be shown on the display:

Progress number Time (24h format) *

Date (DD-MM) *

ENGLISH

•After 5 seconds, the telephone number will be shown. You can skip the date/time by pressing the button.

• Use the left scroll key to scroll to the previous call. Use the button to show the next call.

•You can leave the Call list by pressing the button.

6.3 CALLING A NUMBER FROM THE CALL LIST

• Scroll through the Call list until the desired number is shown on the display.

• Press the Line button . The number will be dialled automatically.

Topcom Butler 2820 11

Topcom Butler 2820

6.4 ERASING A NUMBER FROM THE CALL LIST

• Scroll through the Call list until the desired number is shown on the display.

• Press and hold the Mute button for 3 sec. to erase the number.

6.5 STORE A NUMBER FROM THE CALL LOG INTO THE MEMORY

• Scroll through the Call list until the desired number is shown on the display.

• Press and hold the Memory button for 3 sec.

• Enter the memory location (0-9) where you want to store the number

• Enter the Memory button again to conﬁrm and to go back to standby

7. REGISTER/DE-REGISTER A HANDSET

7.1 REGISTER TO A TOPCOM B2800/2820 BASE

You can subscribe 5 handsets to one base unit. By default, each handset is subscribed on the base unit upon delivery (base unit 1).

!!! You only need to subscribe the handset if: !!!

•The handset subscription has been removed from the base unit (e.g. for reinitialisation)

• You want to subscribe a different handset to this base unit.

The underlined procedure is only applicable to a Topcom Butler 24xx, 28xx, 29xx handset and base unit!! Keep the Paging key on the base unit pressed for 10 seconds until the Line/Charge indicator on the base unit begins to blink rapidly. The Line/Charge indicator will blink rapidly for one minute. During this minute, the base unit is in register mode and you must do the following to subscribe the handset:

• Press and hold the and key for 3 sec.

•The following will appear on the display:

• Enter the number of the base unit you would like to subscribe the handset to (1-4)

•The unit will start searching for the base and when found it will ask to enter the pin code (4 digits):

• Enter the base pin code (0000). If the pin is wrong, the handset will restart the searching for the base.

•When the handset is registered, it will show ‘HS’ followed by the handset number.

7.2 REMOVING A HANDSET

You can remove a handset from a base to allow another handset to be registered:

• Press and hold the mute and redial key for 3 sec.

12 Topcom Butler 2820

Topcom Butler 2820

• Enter the pin code (0000). If the pin is wrong, the handset will go back to standby.

PIN 1234 H5-

• Enter the handset number (1-5) you want to remove

•The unit will go back to standby is the removal is successfully. If not, it will ask again to enter the handset number

Remark: You can only remove existing handsets and others then the one you are using

8. CALL TRANSFER AND INTERCOM BETWEEN TWO

HANDSETS

8.1 CALL TRANSFER AND CONFERENCE CALL DURING AN EXTERNAL CALL

• During an external call, press the INT key followed by the number (1 - 5) of the other handset.

•The other handset will start to ring:

- When the other handset takes the line you can talk internally. If you hang up, the external line will be connected with the other handset.

If you press and hold the INT key for 3 seconds you can talk with the 2nd handset and external line at the same time (conference call)

- Or press the INT key again to return to the external call.

• Press the Line button to end the call.

8.2 INTERNAL CALL (INTERCOM)

• In standby press the INT key followed by the number (1-5) of the other handset.

• The other handset will start to ring. You can stop the ringing by pressing the Line button .

• If the other handset answers the call by pressing the Line button you can talk internally.

• Press the Line button to end the call.

9. BASE TELEPHONE OPERATION

You can also make a telephone call by using the base station handsfree speakerphone.

9.1 MAKING A CALL

• Press the Handsfree base dialling key to take the line

• Press the numeric keys on the base to form a telephone number

• Press again the Handsfree base dialling key to end the telephone conversation

9.2 ADJUSTING THE SPEAKER VOLUME

Press the ‘+’ or ‘-’ key during base handsfree conversation to adjust the speaker volume. If the speaker volume is too loud there is the possibility that the speaker starts to oscillate (flute tone). To avoid this, please lower the speaker volume.

Caution: The handsfree communication is half duplex which means that if the person on the other side of the line starts to speak, the microphone is muted, so the person can’t hear you at that time. Please try to avoid speaking to each other at the same time.

9.3 SETTING THE DIAL MODE FOR THE BASE

You can set the base dialling mode in Pulse(P) or Tone/DTMF(T) by the switch at the bottom of the base.

Caution: The base dialling mode is independent from the handset.

ENGLISH

Topcom Butler 2820 13

Topcom Butler 2820

To set the handset dial mode please look at §5.13.

9.4 TRANSFER A CALL FROM BASE TO HANDSET

During base handsfree conversation you can transfer the call to any registered handset by pressing the paging key . The line indicator LED will start to blink.

• You can take over the line by any registered handset when pressing the line-key .

•Or press the paging key again if you don’t want to transfer the call

Note: The handsets will not ring during transfer!!

9.5 SETTING THE BASE FLASH TIME

You can set the base flash time by the switch at the bottom of the base. You can set it in 100ms or 300ms.

Note: The base ﬂash time is different from the handset ﬂash time. To set the handset ﬂash time, please refer to §5.10.1.

10. TOPCOM WARRANTY

10.1 WARRANTY PERIOD

The Topcom units have a 24-month warranty period. The warranty period starts on the day the new unit is purchased. The warranty on batteries is limited to 6 months after purchase. Consumables or defects causing a negligible effect on operation or value of the equipment are not covered. The warranty has to be proven by presentation of the original purchase receipt, on which the date of purchase and the unit-model are indicated.

10.2 WARRANTY HANDLING

A faulty unit needs to be returned to a Topcom service centre including a valid purchase note. If the unit develops a fault during the warranty period, Topcom or its officially appointed service centre will repair any defects caused by material or manufacturing faults free of charge. Topcom will at its discretion fulfil its warranty obligations by either repairing or exchanging the faulty units or parts of the faulty units. In case of replacement, colour and model can be different from the original purchased unit. The initial purchase date shall determine the start of the warranty period. The warranty period is not extended if the unit is exchanged or repaired by Topcom or its appointed service centres.

10.3 WARRANTY EXCLUSIONS

Damage or defects caused by incorrect treatment or operation and damage resulting from use of non-original parts or accessories not recommended by Topcom are not covered by the warranty. Topcom cordless phones are designed to work with rechargeable batteries only. The damage caused by the use of non-rechargeable batteries is not covered under warranty. The warranty does not cover damage caused by outside factors, such as lightning, water and fire, nor any damage caused during transportation. No warranty can be claimed if the serial number on the units has been changed, removed or rendered illegible. Any warranty claims will be invalid if the unit has been repaired, altered or modified by the buyer or by unqualified, nonofficially appointed Topcom service centres.

14 Topcom Butler 2820

Topcom Butler 2820

11. TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

No Display Batteries not charged Check the position of the batteries

Recharge the batteries

No dialling tone Telephone cable not

Volume of conversation partner too low Adjust the volume during the conversation

Handset ringer volume too low Adjust the ringer volume

properly connected

Check the connection of the telephone cable

by pressing the volume key

12. TECHNICAL DATA

Range: up to 300 m in open space

Dialling options: DTMF (tone) and Pulse Batteries: 2 x 1.2V, 600 mAh AAA Type NiMH rechargeable Max. standby time: approx. 120 hours Max. talk time: 13 hours Ambient temperature: +5 °C to +45 °C Permitted relative air humidity: 25 to 85 % Power supply base adapter: 220/230V , 50 Hz Memories 10 indirect with max. 25 digits

up to 50 m in buildings

13. DEFAULT SETTINGS HANDSET

Flash time 100 ms Dialling mode Tone Ring volume Level 3 Ring melody Ringer 8 Base pin 0000

ENGLISH

The CE symbol indicates that the unit complies with the essential requirements of the R&TTE directive.

Topcom Butler 2820 15

Topcom Butler 2820

1. TOETSEN/LED 18

2. DISPLAY 20

3. INSTALLATIE 20

3.1 Basis 20

3.2 Handset lader 21

3.3 Handset 21

4. BATTERIJ LEEG INDICATOR 21

5. WERKING HANDSET 22

5.1 Uitgaande gesprekken 22

5.2 Inkomende oproepen 22

5.3 Handenvrij-functie aan-/uitschakelen 22

5.4 Geheugennummers programmeren 22

5.5 Een geheugennummer oproepen 23

5.6 Tijdelijke uitschakeling van de microfoon (Mute) 23

5.7 Volume regelen 23

5.8 Paging 23

5.9 Buiten Bereik-waarschuwing 23

5.10 Flashtoets (R) 23

5.11 Het belvolume en de beltoon instellen 23

5.12 Toetsenbord blokkeren 24

5.13 De kiesmodus instellen 24

6. NUMMERWEERGAVE (CLIP-CALLER ID) 24

6.1 Nieuwe oproepen 24

6.2 Raadplegen van de Oproeplijst 24

6.3 Oproepen van een nummer uit de Oproeplijst 25

6.4 Telefoonnummers uit de Oproeplijst wissen 25

6.5 Nummer uit de oproeplijst in het geheugen opslaan 25

7. AANMELDEN/AFMELDEN VAN EEN HANDSET 25

7.1 Aanmelden op een Butler 2800/2820 basis 25

7.2 Handset verwijderen (afmelden) 26

8. OPROEPDOORSCHAKELING EN INTERCOMGESPREKKEN

TUSSEN TWEE HANDSETS 26

8.1 Doorverbinden en conferentie gesprek tijdens externe communicatie 26

8.2 Interne oproep (intercom) 26

9. BASISSTATION TELEFOON 26

9.1 Telefoneren 26

9.2 Luidspreker volume aanpassen 27

9.3 Kiesmode op de basis instellen 27

9.4 Gesprek doorverbinden van basis naar handset 27

9.5 Basis flashtijd instellen 27

10. GARANTIE 27

10.1 Garantieperiode 27

10.2 Afwikkeling van garantieclaims 27

10.3 Garantiebeperkingen 27

11. PROBLEMEN VERHELPEN 28

12. TECHNISCHE GEGEVENS 28

13. FABRIEKSINSTELLINGEN HANDSET 28

16 Topcom Butler 2820

Topcom Butler 2820

VEILIGHEIDSVOORSCHRIFTEN

•Gebruik enkel de meegeleverde adapter. Geen vreemde adapters gebruiken, de accucellen kunnen hierdoor beschadigd worden.

•Gebruik enkel oplaadbare batterijen van hetzelfde type. Gebruik nooit gewone, niet oplaadbare batterijen. Let bij het plaatsen van de oplaadbare batterijen op de polariteit (aangeduid in de batterijruimte van de handset).

• Raak de laad- en stekkercontacten niet aan met scherpe en metalen voorwerpen.

• De werking van medische toestellen kan worden beïnvloed.

• De handset kan een onaangenaam gezoem veroorzaken in hoorapparaten.

• Het basisstation niet opstellen in vochtige ruimten en niet op minder dan 1,5 m van een waterbron. De handset niet in aanraking brengen met water.

• De telefoon niet gebruiken in explosieve omgevingen.

•Ontdoe u op een milieuvriendelijke wijze van de batterijen en de telefoon.

• Daar bij stroomuitval met dit toestel niet kan getelefoneerd worden, in geval van nood een telefoon gebruiken die geen netstroom nodig heeft bvb. een GSM.

• Deze telefoon gebruikt heroplaadbare batterijen die op een milieuvriendelijke manier, volgens nationale regels dienen te worden ontdaan.

NiMH

REINIGEN

Veeg de telefoon met een licht vochtig doek of met een antistatische doek af. Gebruik nooit reinigingsmiddelen of agressieve oplosmiddelen.

NEDERLANDS

Topcom Butler 2820 17

+ 39 hidden pages
