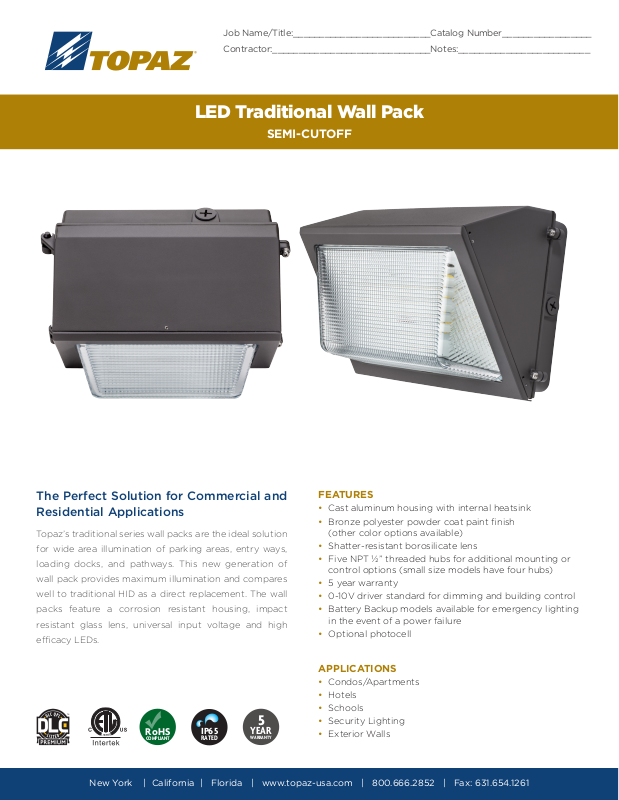

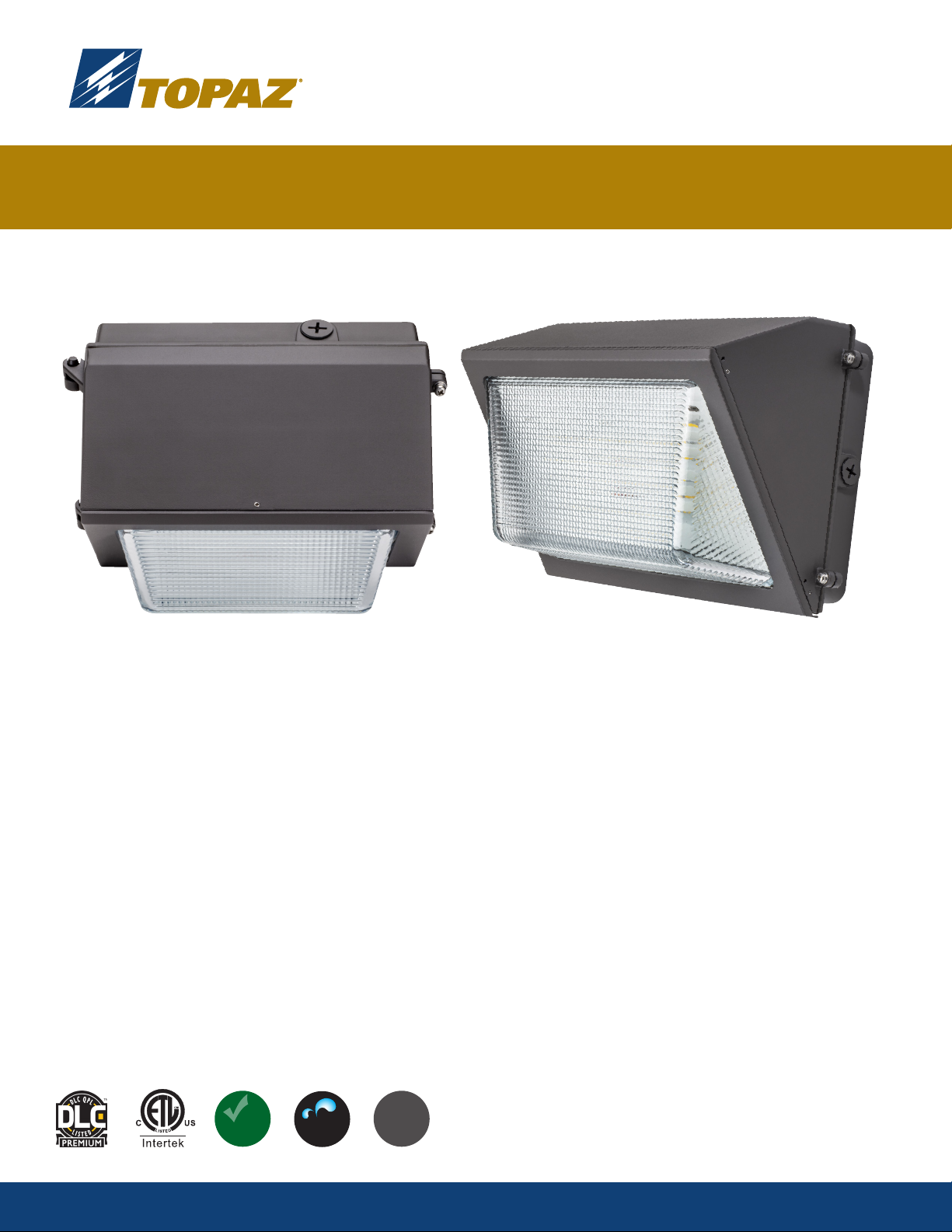

LED Traditional Wall Pack

SEMI-CUTOFF

The Perfect Solution for Commercial and Residential Applications

Topaz’s traditional series wall packs are the ideal solution

for wide area illumination of parking areas, entry ways,

loading docks, and pathways. This new generation of

wall pack provides maximum illumination and compares

well to traditional HID as a direct replacement. The wall

packs feature a corrosion resistant housing, impact

resistant glass lens, universal input voltage and high

ecacy LEDs.

RoHS

COMPLIANT

IP65

RATED

YEAR

WARRANTY

FEATURES

• Cast aluminum housing with internal heatsink

• Bronze polyester powder coat paint ﬁnish

(other color options available)

• Shatter-resistant borosilicate lens

• Five NPT ½” threaded hubs for additional mounting or

control options (small size models have four hubs)

• 5 year warranty

• 0-10V driver standard for dimming and building control

• Battery Backup models available for emergency lighting

in the event of a power failure

• Optional photocell

APPLICATIONS

• Condos/Apartments

• Hotels

• Schools

• Security Lighting

• Exterior Walls

Page 2

Job Name/Title:__________________________Catalog Number_________________

Contractor:______________________________Notes:_________________________

LED Traditional Wall Pack

GENERAL SPECIFICATIONS

Input Voltage, Hz: 120-277V, 60Hz Average Rated Life: 100,000 hours (L85) @ 77°F ambient* CRI: 80 CCT: 5000K Ambient Operating Temp: -22°F to 112°F Power Factor: >0.9 THD: <20% Surge protection: 6kV IES Distribution: Type IV LED Chip Type: Samsung 2835 IP Rating: IP65 Wet location Driver: Sosen high power

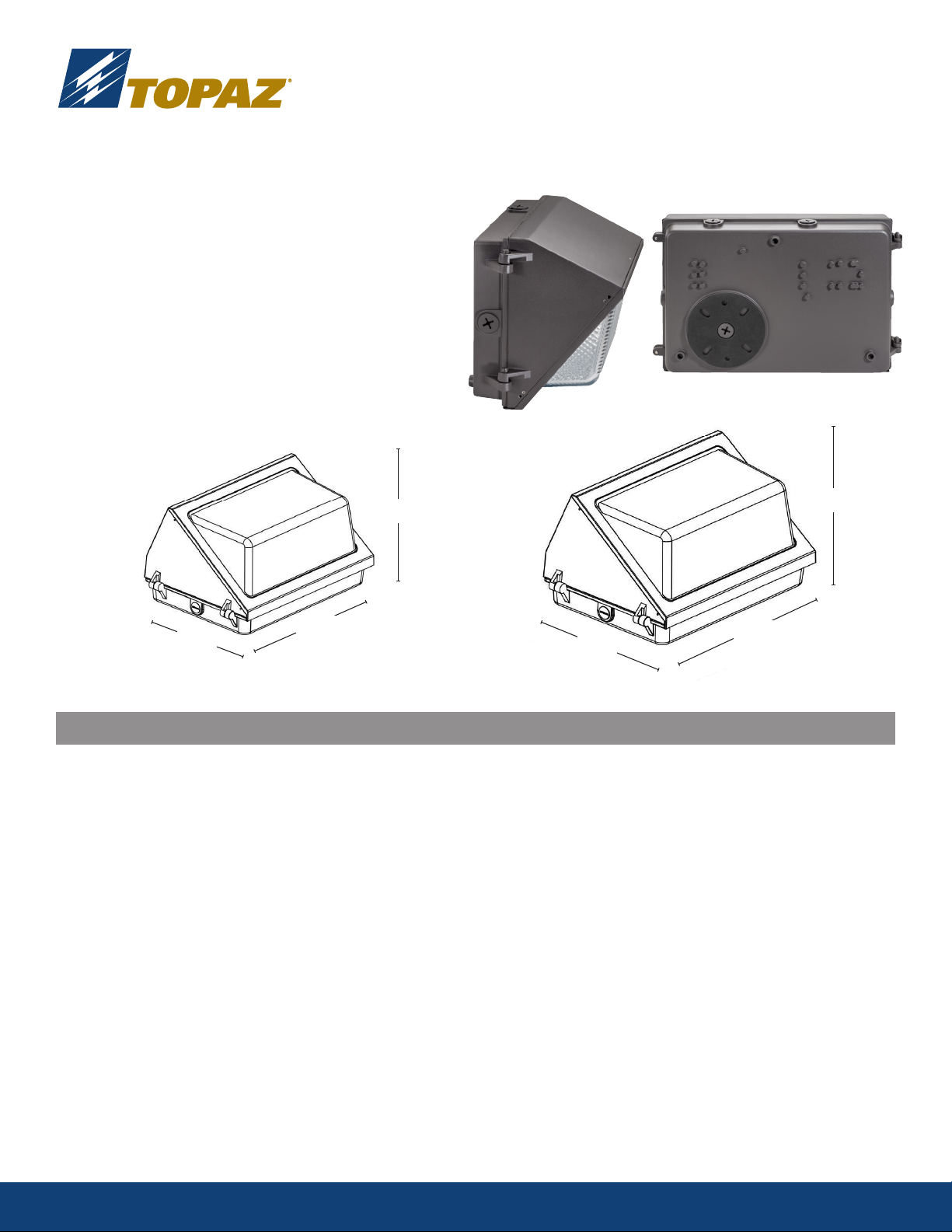

SMALL LARGE

6.61"

SEMI-CUTOFF

7.72 "

7.59"

10.62"

9.48"

14.6"

SPECIFICATIONS / ORDER INFO

Order Input Amps DLC Lumens Replacement Catalog Number Code UPC @120V Watts ID Lumens Per watt HID PK Qty

SMALL WALL PACK

F-WP-28W/50K/BZ/HE 74491 751338029088 340mA 28W PLJPXUCYRNTP 3,640 130 100W 1/4 F-WP-40W/50K/BZ/HE 74493 751338029095 490mA 40W PLOGTXC3TK8S 5,540 139 150W 1/4

LARGE WALL PACK

F-WP-50W/50K/BZ/HE 74495 751338029101 610mA 50W PLB1O8R42MVI 7,065 141 175W 1/4 F-WP-60W/50K/BZ/HE 74497 751338029118 730mA 60W PLCUC9CKHISB 8,280 138 250W 1/4 F-WP-100W/50K/BZ/HE 74498 751338029125 1200mA 100W PLHW8AG2V00J 14,400 144 320W 1/4 F-WP-120W/50K/BZ/HE 74499 751338029132 1471mA 120W PL2KQ4RHE1YT 16,945 141 400W 1/4

LARGE WALL PACKS WITH EMERGENCY BACKUP

F-WP-40W/50K/BZ/EM 74524 751338029316 490mA 40W PLOGTXC3TK8S 5,540 139 150W 1/4 F-WP-50W/50K/BZ/EM 74525 751338029347 610mA 50W PLB1O8R42MVI 7,065 141 175W 1/4 F-WP-60W/50K/BZ/EM 74526 751338029408 730mA 60W PLCUC9CKHISB 8,280 138 250W 1/4 F-WP-100W/50K/BZ/EM 74528 751338029439 1200mA 100W PLHW8AG2V00J 14,400 144 320W 1/4 F-WP-120W/50K/BZ/EM 74529 751338029453 1471mA 120W PL2KQ4RHE1YT 16,945 141 400W 1/4

NOMENCLATURE

Example: F-WP-40W/50K/BZ/EM

F=Fixture / WP=Wall Pack / 40=40 Watts / 50K=5000K CCT/ BZ=Bronze Finish/ EM=Emergency Backup HE=High Efficiency

*50,000 hours (L70) @ 45°C (112°F) ambient. Specifications subject to change without notice.
