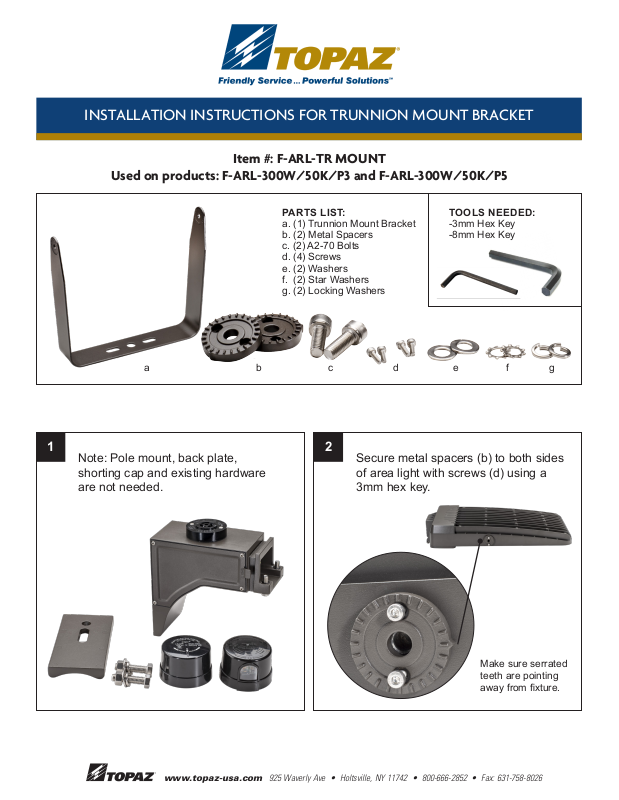

INSTALLATION INSTRUCTIONS FOR TRUNNION MOUNT BRACKET
Item #: F-ARL-TR MOUNT
Used on products: F-ARL-300W/50K/P3 and F-ARL-300W/50K/P5

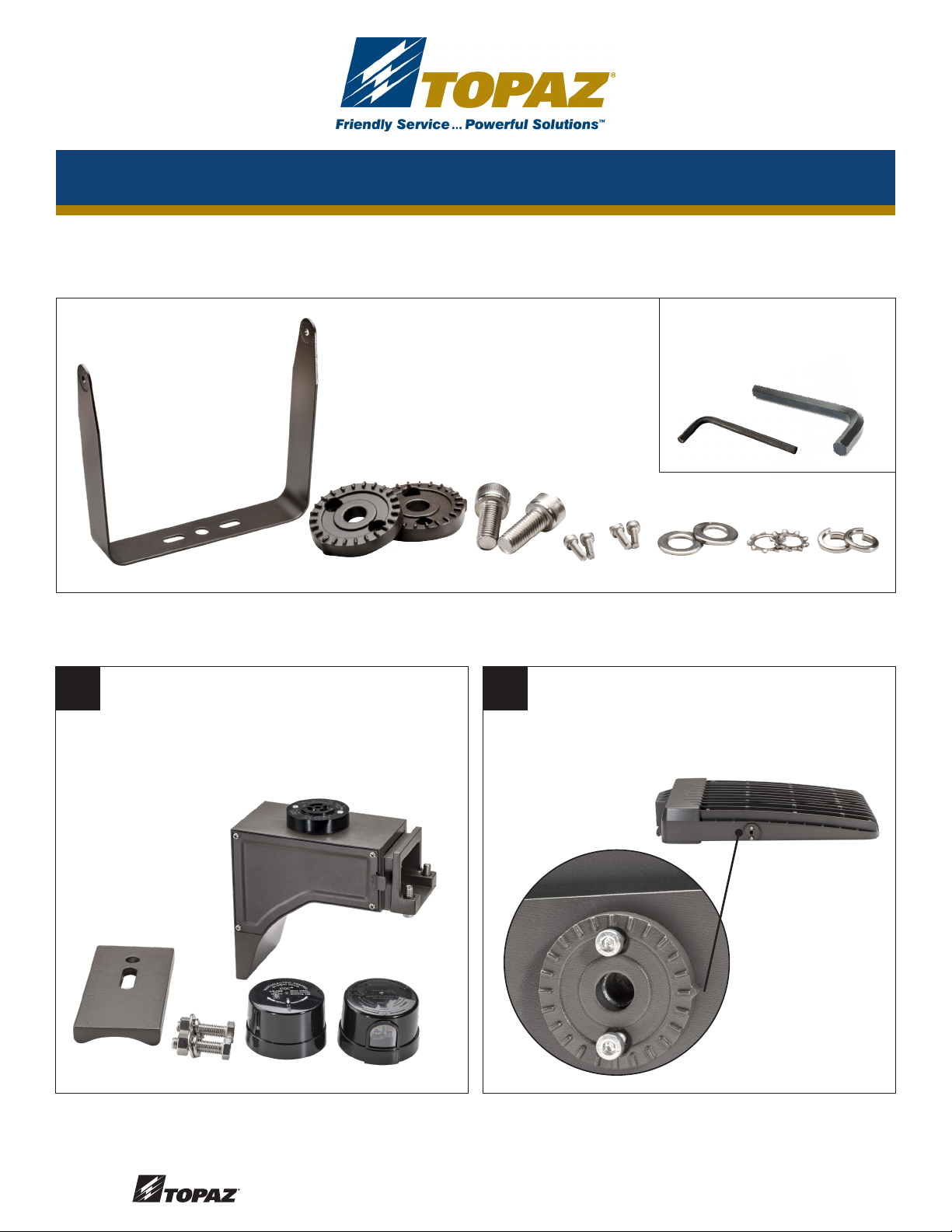

PARTS LIST:
a. (1) Trunnion Mount Bracket
b. (2) Metal Spacers
c. (2) A2-70 Bolts
d. (4) Screws
e. (2) Washers
f. (2) Star Washers
g. (2) Locking Washers
a b c d e f g
1 2
Note: Pole mount, back plate,
shorting cap and existing hardware
are not needed.
TOOLS NEEDED:
-3mm Hex Key
-8mm Hex Key
Secure metal spacers (b) to both sides
of area light with screws (d) using a
3mm hex key.
Make sure serrated
teeth are pointing
away from xture.
www.topaz-usa.com 925 Waverly Ave • Holtsville, NY 11742 • 800-666-2852 • Fax: 631-758-8026
Page 2
3

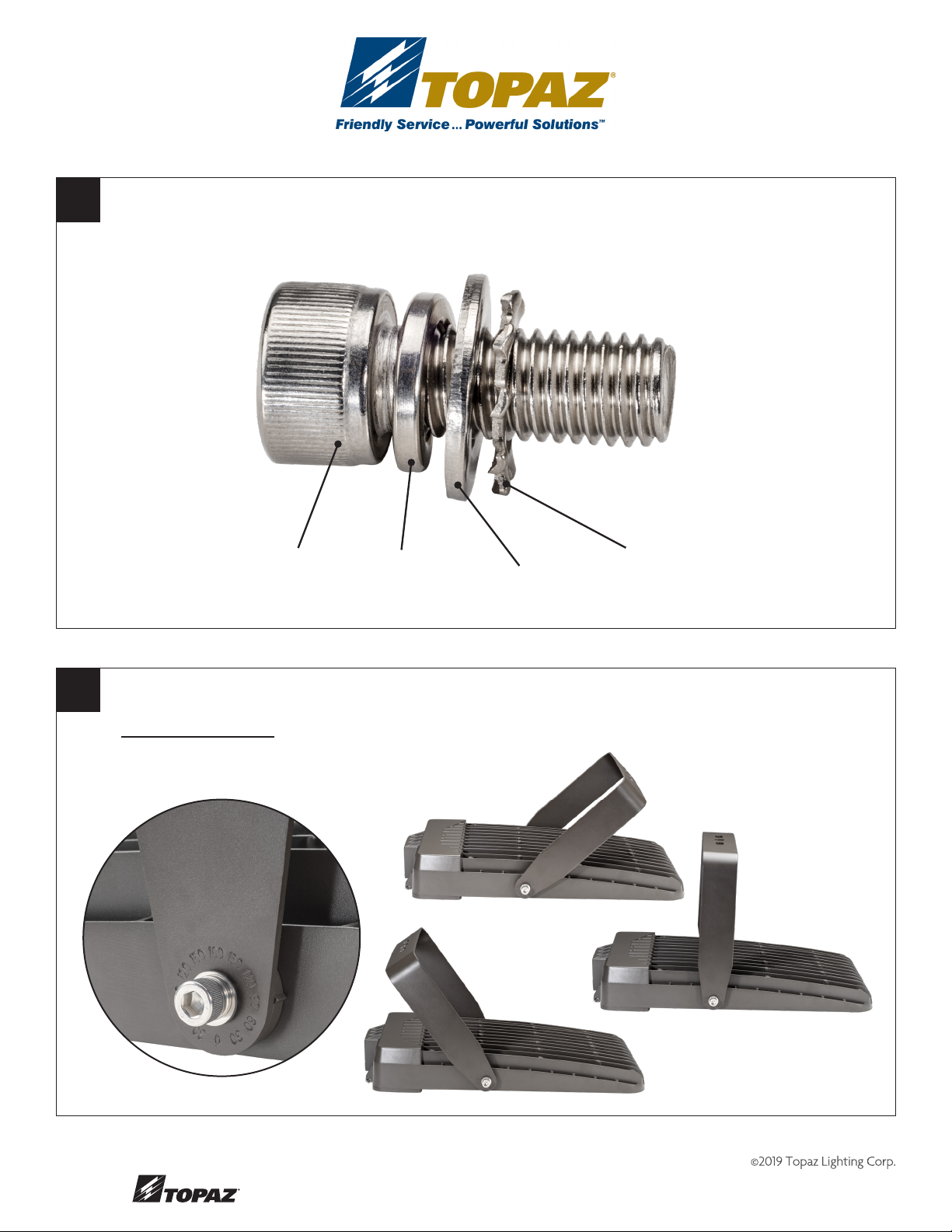

Place (1) locking washer, (1) washer, and (1) star washer on bolt in this order:
A2-70 Locking Star
Bolt Washer Washer Washer
(c) (g) (e) (f)
4
Secure mounting bracket, bolts and washers to area light using a 8mm hex key.
Do not tighten fully. Adjust mounting bracket to desired position, then tighten down
to lock mounting angle.
