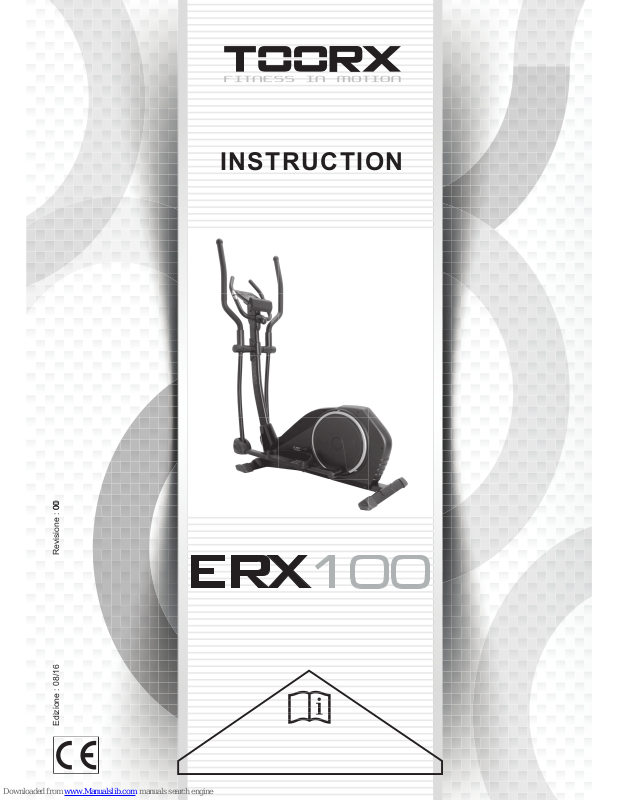

TOORX ERX100 Instruction

Edizione : Revisione : 00

INSTRUCTION

08/16 00

Dear Customers,

We want to thank you for having chosen an Elliptical Trainer and

wish you a lot of fun and success during training.

Please note and follow the enclosed safety and assembly instructions

carefully.

If you have questions please do not hesitate to contact us.

Table of Content as below:

1.) Safety Instruction

2.) Exploded Drawing

3.) Parts List

4.) Assembly Instruction

5.) Computer Instruction

EXPLODED DRAWING

111

110

112

PART LIST

Part#

Description

Quantity

1

Computer

1

2

End cap for handlebar

2

3L

Handlebar (Left)

1

3R

Handlebar (Right)

1

4

handlebar foam

2

5

End cap for upper handlebar

2

6

Upper handlebar foam

5

7

Hand pulse pads

2

8

Self-tapping screw M3.2

2

9

Upper handleba

1

10

Hand Pulse cable

2

11

Allen screw M8*20

12

12

Spring washer φ8

16

13

Curved washer 8*19*1.5T

8

14L

Plastic cover (Left)

1

14R

Plastic cover (Right)

1

15

Screw M5*12

7

16

Upper computer cable

1

17

Screw M5*12mm

4

18

Self-tapping screw M4*15

5

19L-1

Plastic cover for left handlebar

1

19L-2

Plastic cover for left handlebar

1

19R-1

Plastic cover for right handlebar

1

19R-2

Plastic cover for right handlebar

1

20

Screw M5*8

4

21

Washerφ19.5*φ38*0.5

2

22

Rotation rod

1

23L

Plastic cover for rod (Left)

1

23R

Plastic cover for rod (Right)

1

24

Handlebar post

1

25

TuberΦ8*13*35

1

26

Round-shaped Knob

1

27

Lower handlebar

2

28

Tuber spacer

6

29

Washer 8.5*36*3T

2

30

Allen screw M8*20

2

31L

Footplate (Left)

1

31R

Footplate (Right)

1

32

Screw M6*50

4

33

Screw M4*15

7

34L

Plastic cover

2

34R

Plastic cover

2

36

Allen screw M10*78

2

37

Tuber spacerφ14*42.3MM

4

38

Handlebar pivot bushesφ14*42.3MM

2

39

Washer 10*19*2

2

40

Nut M10 2 41

cable 1 42

Front plastic cover

1

43

Lower computer cable

1

44

Washer 8*19*1.5T

4

45L

Front end cap (left)

1

45R

Front end cap (Right)

1

46

Front stabilizer

1

47

Allen screw M8*57

2

48L

Pedal connecting tube left

1

48R

Pedal connecting tube Right

1

49

Screw M6*12

1

50

Washer 6*13*1T

1

51

Idler 1 52

Curved washer

2

53

Axle for idler

1

54

Washer 10*19*1.5

2

55

Nut M10 1 56

Spring washerΦ6

2

57

Screw M6*16

2

58

Main frame

1

59

Motor 1 60

Screw M5*15

3

61

Adjuster 2 62

Hex nut M10*1.25*4T

2

63

Spring washerφ6

4

64

Washer 6*16*2

4

65

Knob M6 4 66

Bearing 2 67

C-shaped knob

2

68

Washer 8*21*2T

2

69

Allen screw M8*20

2

70

End cap 2 71

Plastic cover for round cover

2

72

Self-tapping screw

6

73L

Chain cover (Left)

1

73R

Chain cover (Right)

1

74

Screw M5*15

14

75

Joint lever for chain cover

2

76

Nut M10*1.25

2

77

Round cover

2

78

Crank 2 79

Washer 5*16*1

8

80

Self-tapping screw

8

81

C-shapped washer

1

82

Curved washer

1

83

Washer 2 84

Bearing 6004RS

2

86

Sensor 1 87

DC cable

1

88

Screw M8*20

2

89

Belt wheel

1

90

Pedal axle

1

91

Allen screw

4

92

Belt 1 93L

Rear end cap left

1

93R

Rear end cap right

1

94

Rear stabilizer

1

95

Washer 6*13*1.5T

1

96

Magnet fixed axleφ12

1

97

Magnet holder

1

98

Nut M6

2
