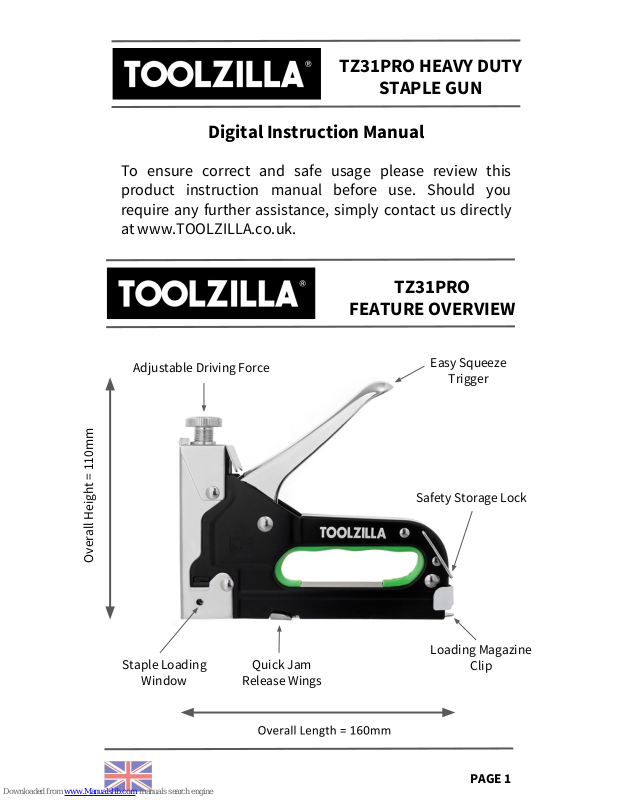

TZ31PRO HEAVY DUTY
STAPLE GUN
Digital Instruction Manual
To ensure correct and safe usage please review this
product instruction manual before use. Should you
require any further assistance, simply contact us directly
at www.TOOLZILLA.co.uk.
TZ31PRO
FEATURE OVERVIEW
Adjustable Driving Force
Safety Storage Lock
Quick Jam
Release Wings
Staple Loading
Window
Overall Height = 110mm
Easy Squeeze
Trigger
Loading Magazine
Clip
PAGE 1
Firstly, release the loading magazine by unclipping the
loading magazine clip, as shown in the image below.
Secondly, pull the loading mechanism open. Thirdly,
position the staples within the channel ensuring legs or nails
are pointing down. Finally, push the magazine closed and
test on a disposable surface or on an inconspicuous area
before applying to task.
Please note: Narrow Crown and U staples should enter the
loading magazine centrally, while brad nails should be
loaded to either the right or left hand side of the loading
chamber.
HOW TO LOAD THE
TZ31PRO
PAGE 2
Increase Decrease
Increase the driving force by turning power adjuster
clockwise. Decrease the driving force by turning power
adjuster anti-clockwise.
HOW TO ADJUST THE
DRIVING FORCE
Firstly, position the staple gun vertically. Secondly, applying
thumb and figures to the base wings, push down and apart
to release the quick jam release function. Finally, remove the
staple jam and close before reloading.
HOW TO OPEN THE
QUICK JAM RELEASE
PAGE 3
Please ensure that the staple gun is empty after use and
before storing. The TZ31PRO should be stored out of reach of
pets and children with the safety lock engaged, as shown in
the image below.
HOW TO STORE THE
TZ31PRO
The TZ31PRO comes complete with a 600 staple selection
pack containing 200 Narrow Crown Staples, 200 Cable
Staples, and 200 Brad Nails. Suitable for DIY and office
applications, such as carpeting, upholstery, roofing, low
voltage wiring, insulation, house-wrap, carpentry, hobby and
craft, and more! Replacement staples can be purchased from
any reputable hardware store or Amazon.
COMPATIBILITY:
Narrow Crown Staples 4-14MM (Arrow T50, Rapid 140)
Round Crown Staples 10-12MM (Arrow T18, Rapid 28)
Brad Nails 10-14MM (Arrow T50 BN, ESCO 300)
TZ31PRO STAPLE
COMPATIBILITY
PAGE 4
Hand tool usage can be dangerous. Always wear safety
goggles and protective gloves during use. Keep out of reach
of children. Check live wires are not present during use. Do
not overreach when using staple gun. Only use the staple
sizes which are specified on the product packaging and
product description. Follow all health and safety regulations
at all times during use. Select the appropriate size and type
of tool to suit the application. Please note that the included
staples are made of a mix of metals and are not 100% steel.
Open packaging with care. Do not attempt to dismantle and
reassemble TOOLZILLA products. Replacement parts are not
available. TOOLZILLA hand tools have been designed for
professional use in standard DIY applications.
SAFETY INFORMATION
PAGE 5
THE TOOLZILLA® MISSION
"Our mission is to challenge the limits and status quo of
product development, providing well-designed, functional,
and affordable tools worldwide."
ABOUT TOOLZILLA®
TOOLZILLA® was founded in the UK in 2015 by Alexander
and Benjamin, two lifelong friends with a goal of creating
an innovative tool company that could deliver unmatched
customer satisfaction. The TOOLZILLA® team are working
every day to bring our customers the very best quality tools
and service possible. We believe our success is owed to one
key factor: we love what we do!
Please Consider The Environment Before Printing
ABOUT US
