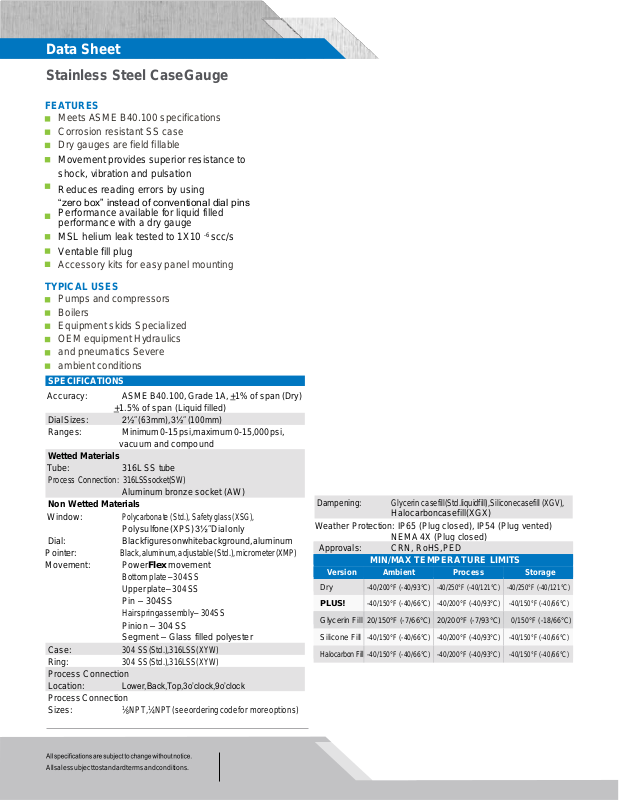

Data Sheet
Stainless Steel Case Gauge
Wetted Materials
Tube: 316L SS tube
Process Connection: 316LSSsocket(SW)
Aluminum bronze socket (AW)
FEATURES
Meets ASME B40.100 specifications
Corrosion resistant SS case
Dry gauges are field fillable
Movement provides superior resistance to
shock, vibration and pulsation
Reduces reading errors by using
“zero box” instead of conventional dial pins
Performance available for liquid filled
performance with a dry gauge
MSL helium leak tested to 1X10
-6
scc/s
Ventable fill plug
Accessory kits for easy panel mounting
TYPICAL USES
Pumps and compressors
Boilers
Equipment skids Specialized
OEM equipment Hydraulics
and pneumatics Severe
ambient conditions
SPECIFICATIONS
Accuracy: ASME B40.100, Grade 1A, +1% of span (Dry)
+1.5% of span (Liquid filled)
Dial Sizes:
2½˝ (63mm), 3½˝ (100mm)
Ranges: Minimum 0-15 psi,maximum 0-15,000 psi,
vacuum and compound
Non Wetted Materials
Window:
Polycarbonate (Std.), Safety glass (XSG),
Polysulfone (XPS) 3½˝ Dial only
Dial: Blackfiguresonwhitebackground,aluminum
Pointer:
Black, aluminum, adjustable (Std.), micrometer (XMP)
Movement: PowerFlex movement
Bottom plate – 304 SS
Upper plate – 304 SS
Pin – 304SS
Hairspringassembly– 304SS
Pinion – 304 SS
Segment – Glass filled polyester
Case:
304 SS(Std.),316LSS(XYW)
Ring:
304 SS(Std.),316LSS(XYW)
Process Connection
Location:
Lower,Back,Top,3o’clock,9o’clock
Process Connection
Sizes:
1
⁄
8
NPT,
1
⁄
4
NPT (see ordering code for more options)
Dampening:
Glycerin casefill(Std.liquidfill),Siliconecasefill (XGV),
Halocarboncasefill(XGX)
Weather Protection: IP65 (Plug closed), IP54 (Plug vented)
NEMA 4X (Plug closed)
Approvals: CRN, RoHS,PED
MIN/MAX TEMPERATURE LIMITS
Version
Ambient
Process
Storage
Dry
-40/200°F (-40/93°C)
-40/250°F (-40/121°C)
-40/250°F (-40/121°C)
PLUS!
-40/150°F (-40/66°C)
-40/200°F (-40/93°C)
-40/150°F (-40/66°C)
Glycerin Fill
20/150°F (-7/66°C)
20/200°F (-7/93°C)
0/150°F (-18/66°C)
Silicone Fill
-40/150°F (-40/66°C)
-40/200°F (-40/93°C)
-40/150°F (-40/66°C)
Halocarbon Fill
-40/150°F (-40/66°C)
-40/200°F (-40/93°C)
-40/150°F (-40/66°C)
Allsalessubjecttostandardtermsandconditions.
Page 2
Data Sheet
Stainless Steel Case Gauge
(22)
.87
(39.1)
1.54
(69.9)
Ø 2.75
(4.1)
Ø.16
(100.6)
Ø 3.96
(79.5)
Ø 3.13
BOLT
CIRCLE
(60.6)
2.39
(21.3)
.84
(11)
.44
FLATS
(17.7)
.70

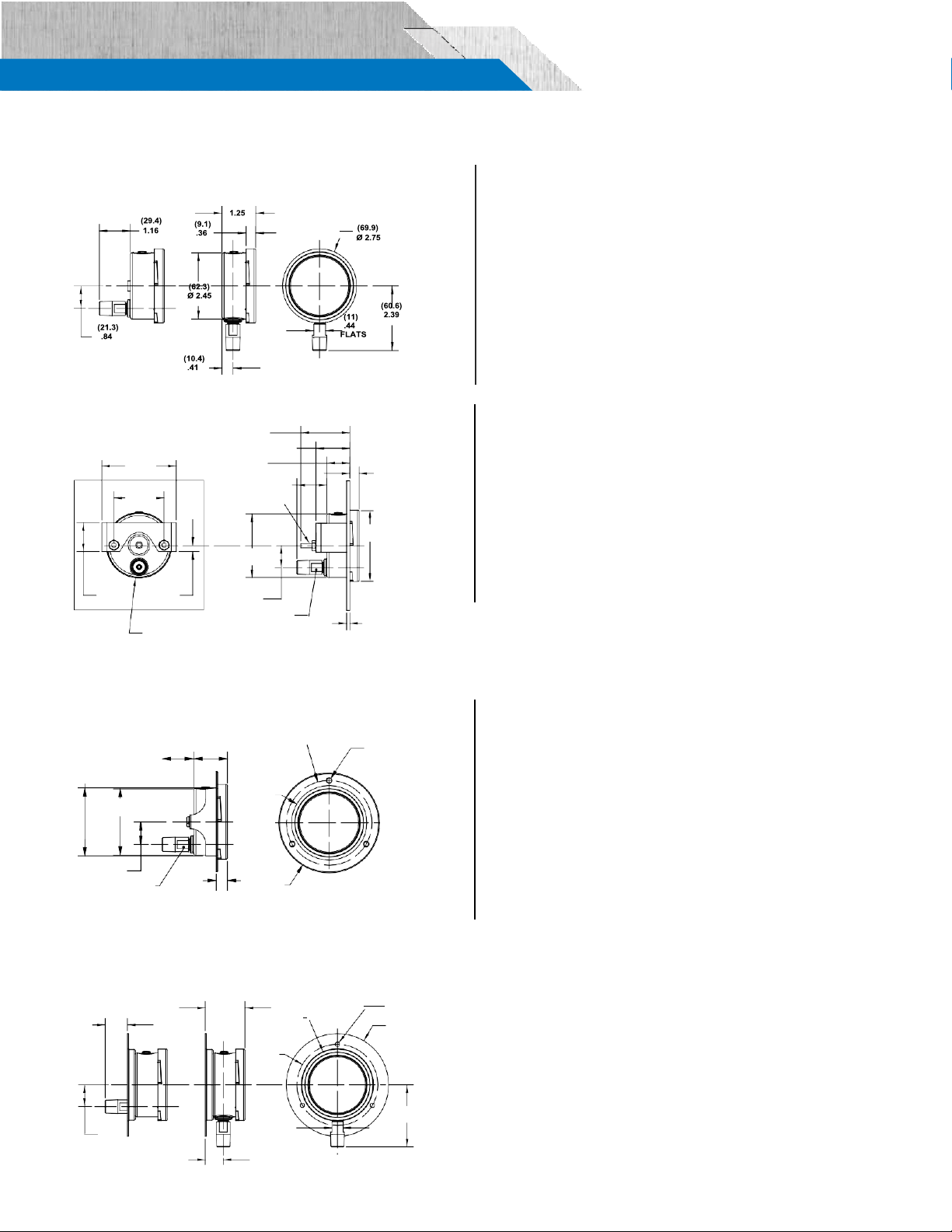

DIMENSIONS (dimensions in [ ] are millimeters)
21⁄2˝ Lower
and
Back Connect
21⁄2˝ Back Connect (XUC)
(31.7)
(48)
1.89
(33.3)
(73.3)
2.88
(49.2)
1.94
(22.6)
1.31
.89
(29.4)
1.16
#8-32 STUDS
& 3/8 HEX NUT
(62.3)
Ø 2.45
(9.1)
.36
(69.9)
Ø 2.75
(28.4)
1.12
(6.4)
.25
PANEL CUTOUT
(21.3)
.84
.44 (11)
FLATS PANEL
2.53(64) ±.03(1)
1/16 (2) TO 1/4 (6)
21⁄2˝ Back
Connect (XFF)
(31.7)
(79.5)
(4.1)
PANEL CUTOUT
Ø 2.53 (64) MIN
Ø
2.59 (66) MAX
(62.3)
Ø 2.45
(21.3)
.84
.44 (11)
FLATS
(29.4)
1.16
1.25
(10.6)
.42
Ø 3.13 BOLT
CIRCLE
(69.9)
Ø 2.75
(93.7)
Ø 3.69
Ø .16
21⁄2˝ Lower and
Back
Connect (XFW)
