Tool Solutions PRO User Manual

CONTENTS

Features·················································· 3

Preparation

Parts of the detector····································4

Assembling the detector································4

Adjusting the search coil································6

Installing the batteries··································6

Using the headphones··································7

Functions and Indications

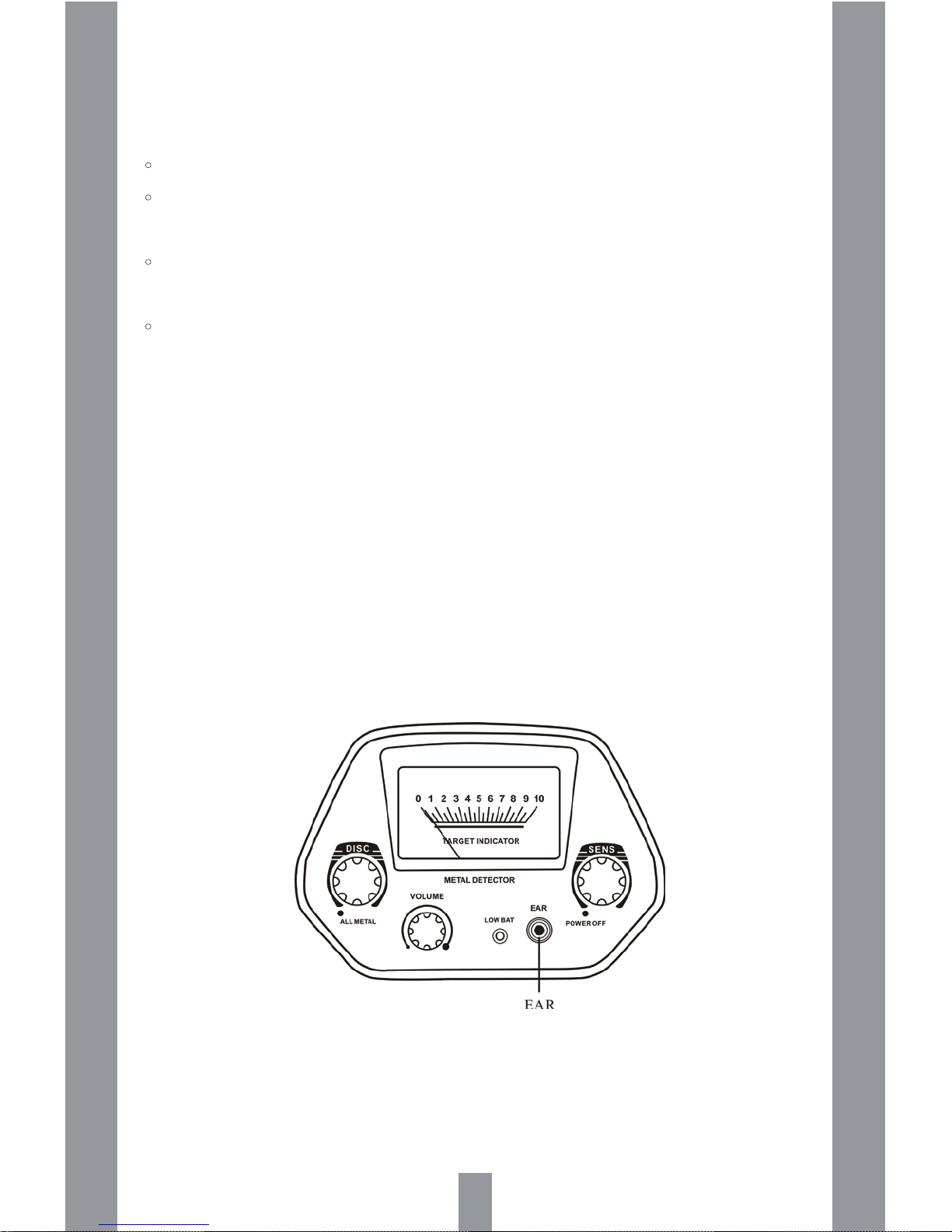

Parts of t

he control box······································ 8

Displays·················································· 9

Operation

Using the detector·····

····································· 9

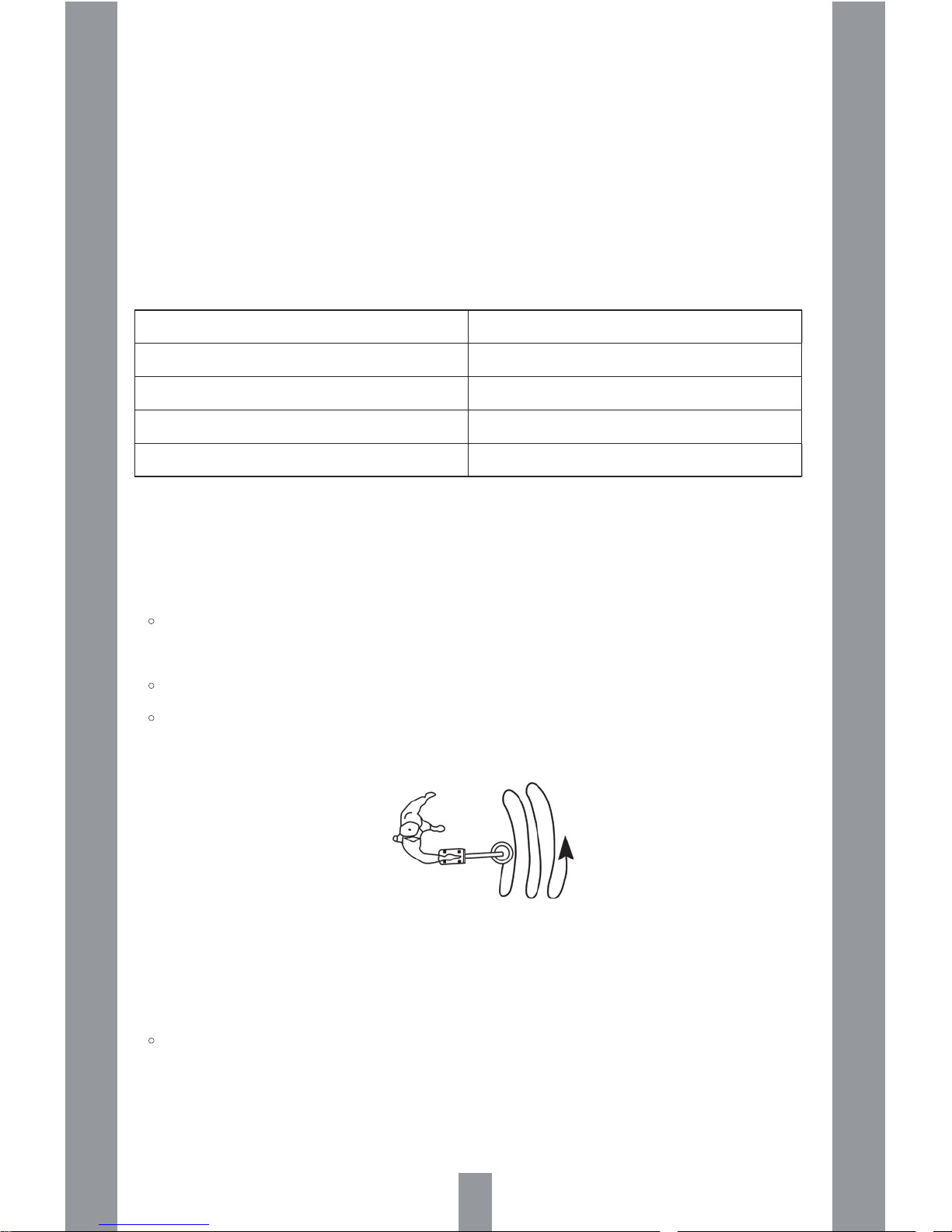

Search coil sweeping hints···································10

Factors that affect the detecting·······························10

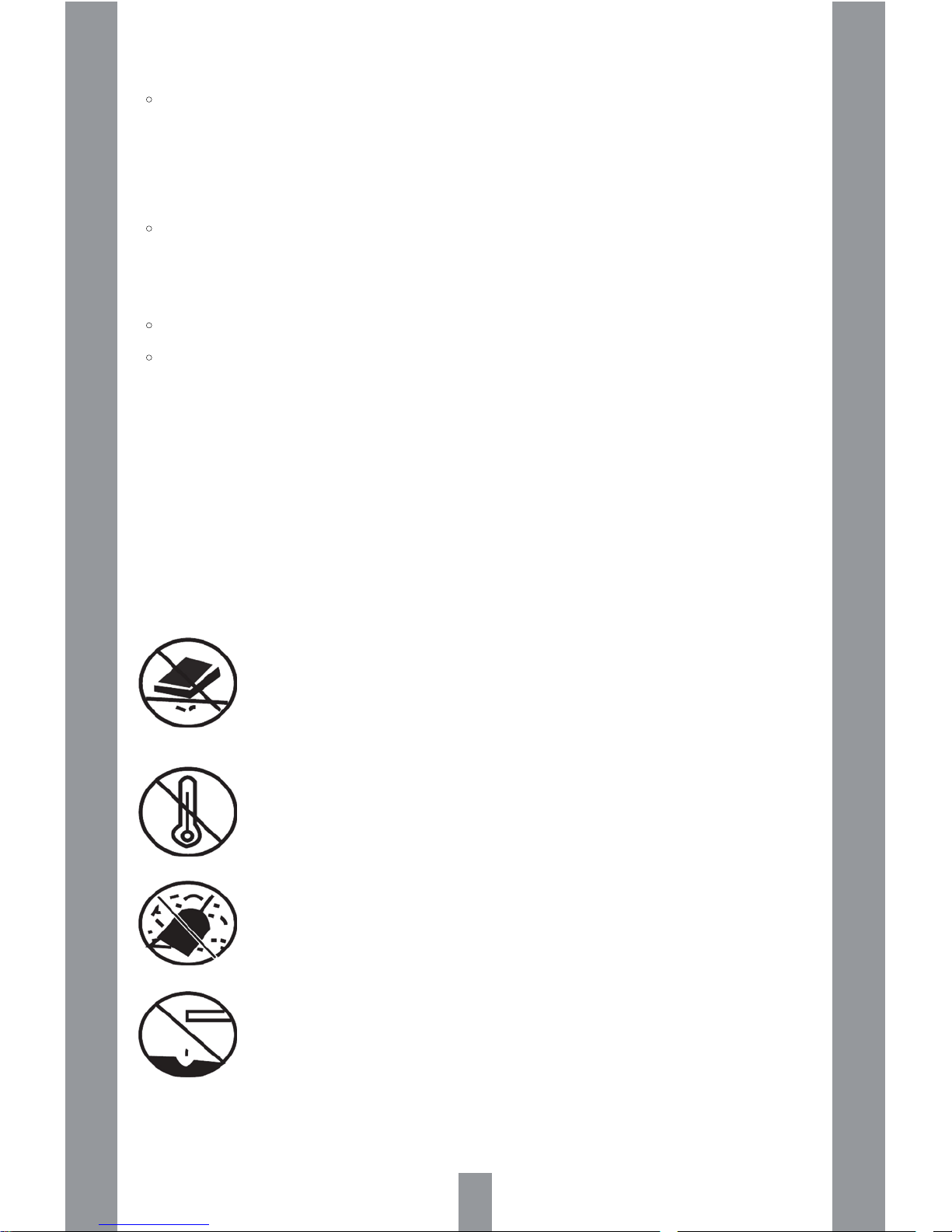

Care and maintenance······································11

Treasure Hunter’s Code of Ethics ·····························12

3

FEATURES

With your metal detector, you can hunt for coins, relics, jewelry, gold,

and silver just about anywhere. This metal detector is versatile and easy

to use. Features include:

Two Operation Modes: All Metal, Disc

ALL METAL – Lets you search for all different types of metal with auto

ground balance and high sensitivity. It’s the best operation mode.

DISC – Discriminates what kind of metal is being detected.

Volume – To adjust the volume level of speaker and headphone.

Earphone Jack – Lets you connect headphones (not supplied) to the

detector.

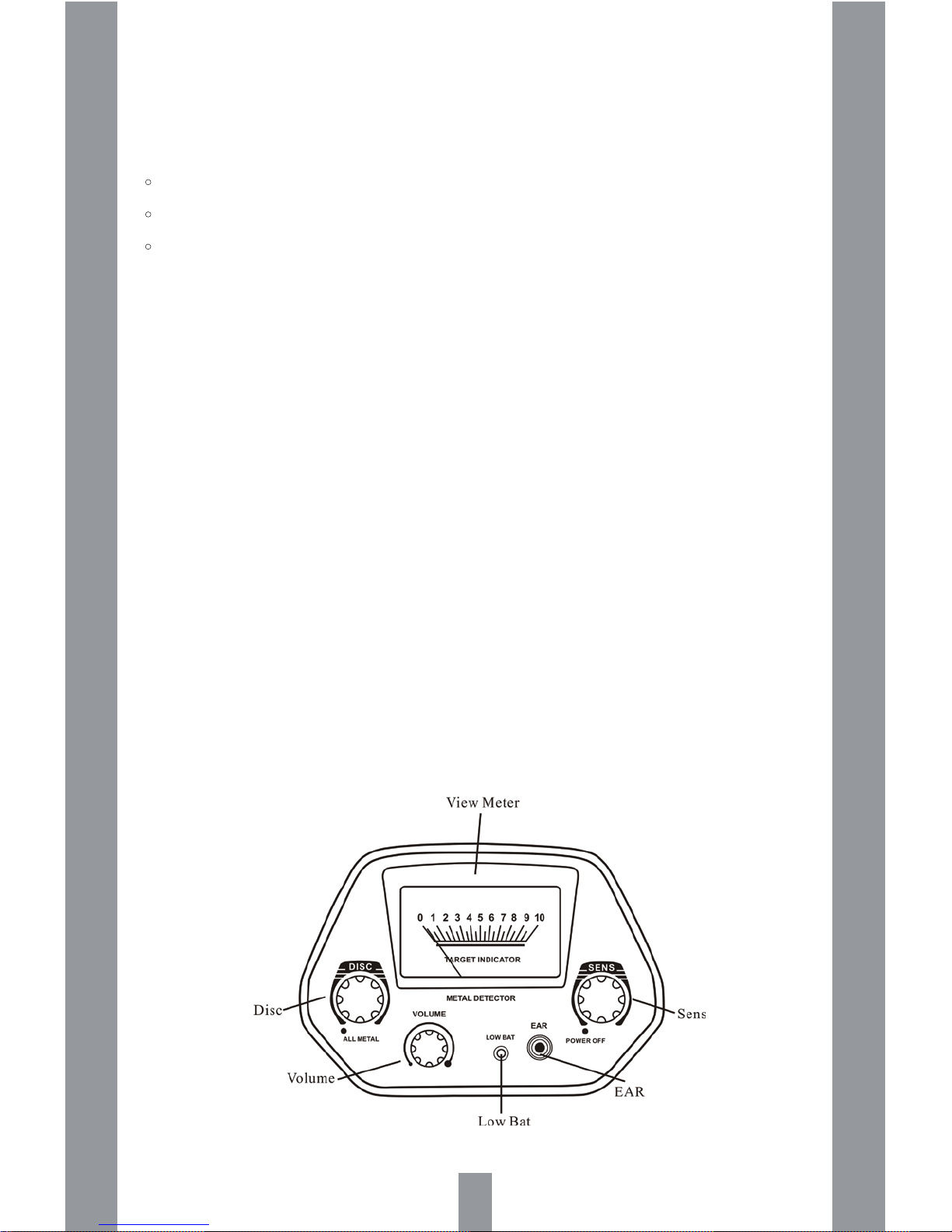

View Meter and Pointer – The meter pointer swings to the right if metal

is found.

Waterproof Search Coil – Lets you search for metal objects under

shallow water.

Note: The search coil is waterproof, but the control housing is not.

Adjustable Stem – Lets you adjust the detector’s length.

Operates on two 9V alkaline batteries (not supplied).

4

• Dispose of any junk you may find, only in approved areas. Do not

leave it for the next treasure hunter to find.

PARTS OF THE DETECTOR

PREPARATION

ASSEMBLING THE DETECTOR

Assembling the detector is easy and requires no special tools. Just follow

these steps.

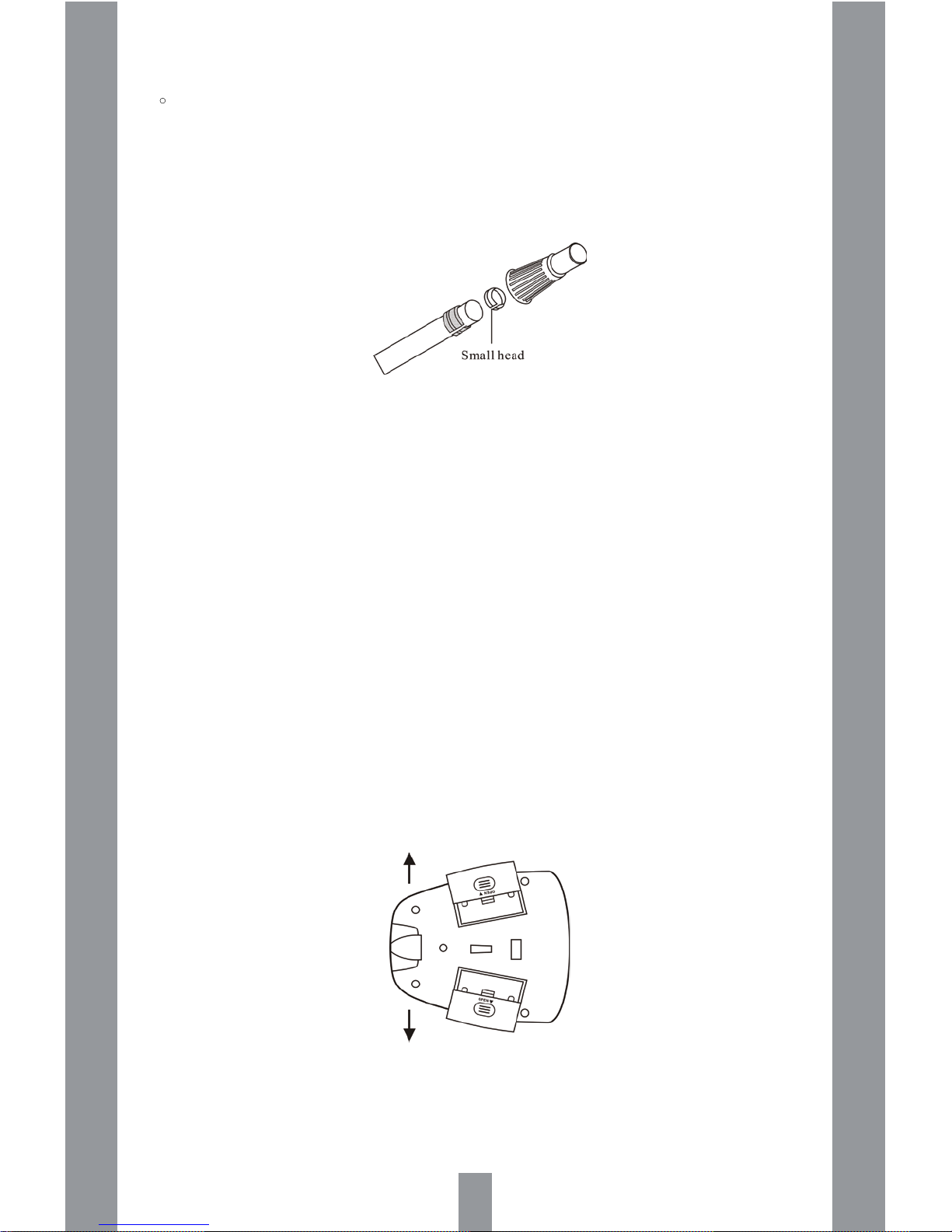

1. Unscrew the knobs on the search coil and remove the knobs and the

connector. Insert the smaller stem and align the holes on the search coil

bracket and the stem. Push the connector through the holes, then

replace and tighten the knobs.

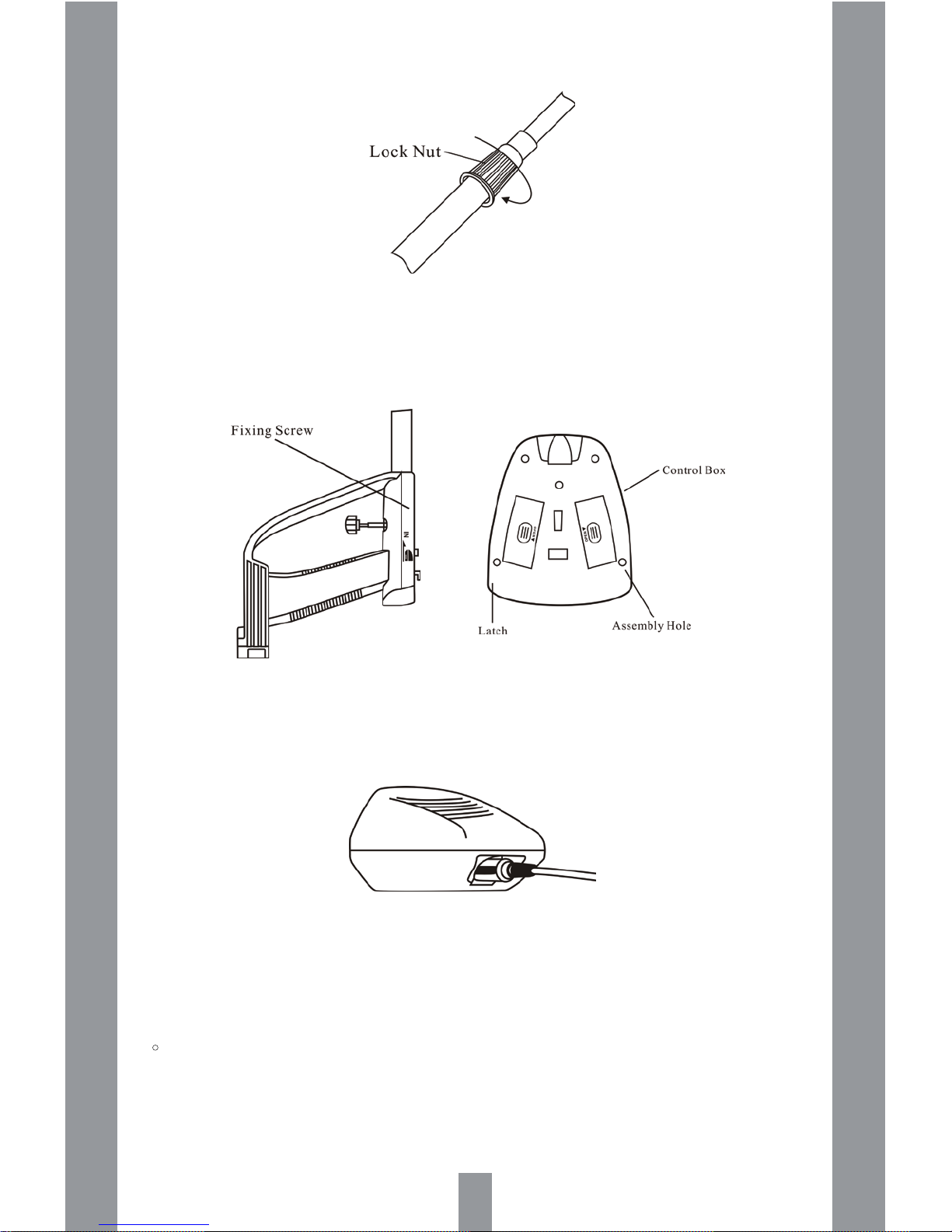

2. Loosen the stem’s lock nut (connected with the handl

e) in the direction

of the arrow. Then insert the smaller stem into the big stem connected

with the handle. Turn the stem’s lock nut in the reverse direction of the

arrow to lock it in place.
