XHC & LCC 1 GHz Headend Combiners
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA

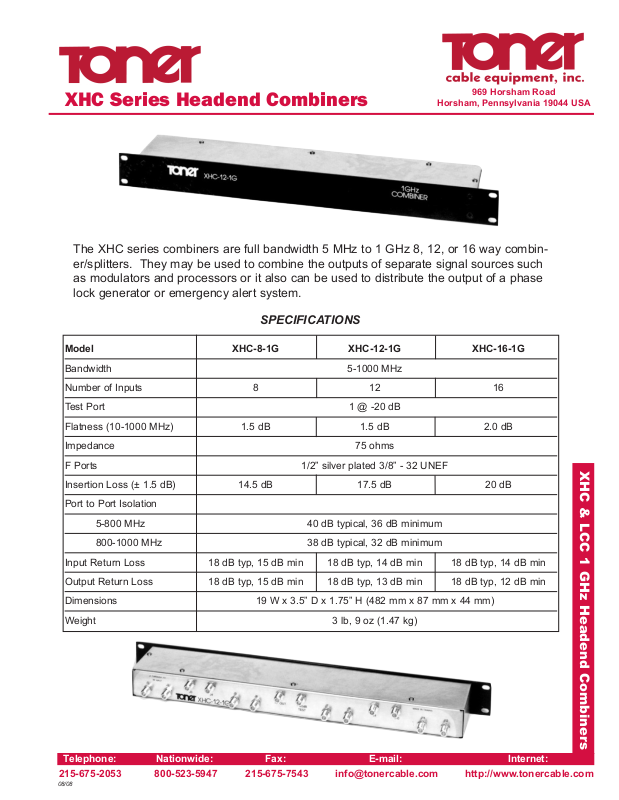

XHC Series Headend Combiners
The XHC series combiners are full bandwidth 5 MHz to 1 GHz 8, 12, or 16 way combiner/splitters. They may be used to combine the outputs of separate signal sources such
as modulators and processors or it also can be used to distribute the output of a phase
lock generator or emergency alert system.
Model XHC-8-1G XHC-12-1G XHC-16-1G
Bandwidth 5-1000 MHz
Number of Inputs 8 12 16
Test Port 1 @ -20 dB
Flatness (10-1000 MHz) 1.5 dB 1.5 dB 2.0 dB
Impedance 75 ohms
F Ports 1/2” silver plated 3/8” - 32 UNEF
Insertion Loss (± 1.5 dB) 14.5 dB 17.5 dB 20 dB
Port to Port Isolation
5-800 MHz 40 dB typical, 36 dB minimum
800-1000 MHz 38 dB typical, 32 dB minimum
Input Return Loss 18 dB typ, 15 dB min 18 dB typ, 14 dB min 18 dB typ, 14 dB min
Output Return Loss 18 dB typ, 15 dB min 18 dB typ, 13 dB min 18 dB typ, 12 dB min
Dimensions 19 W x 3.5” D x 1.75” H (482 mm x 87 mm x 44 mm)
Weight 3 lb, 9 oz (1.47 kg)
SPECIFICATIONS
©Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.
Telephone: Nationwide: Fax: E-mail: Internet:
XHC & LCC 1 GHz Headend Combiners
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
The LCC-12-1G is a full bandwidth, 5 to 1000 MHz, 12 way combiner. This unit
features 12 F type inputs and 1 F type output on the back with a -20 dB test point
on the front for convenience.
SPECIFICATIONS
Frequency Range 5 MHz to 1 GHz
Flatness 3 dB 10 MHz to 1000 MHz
Inputs 12
Test Ports -20 dB
Output Ports 1
Isolation 34 dB typical
30 dB minimum
Insertion Loss 17 dB typical
20 dB maximum
Input Return Loss 15 dB typical
12 dB minimum
Output Return Loss 15 dB typical
12 dB minimum
Impedance 75 ohm
Size (LxWxD) 19 x 3 1/8” x 3/12
483 mm x 79 mm x 44 mm
Weight 3 lb-9 oz
1.47 kg
LCC-12-1G Headend Combiner
