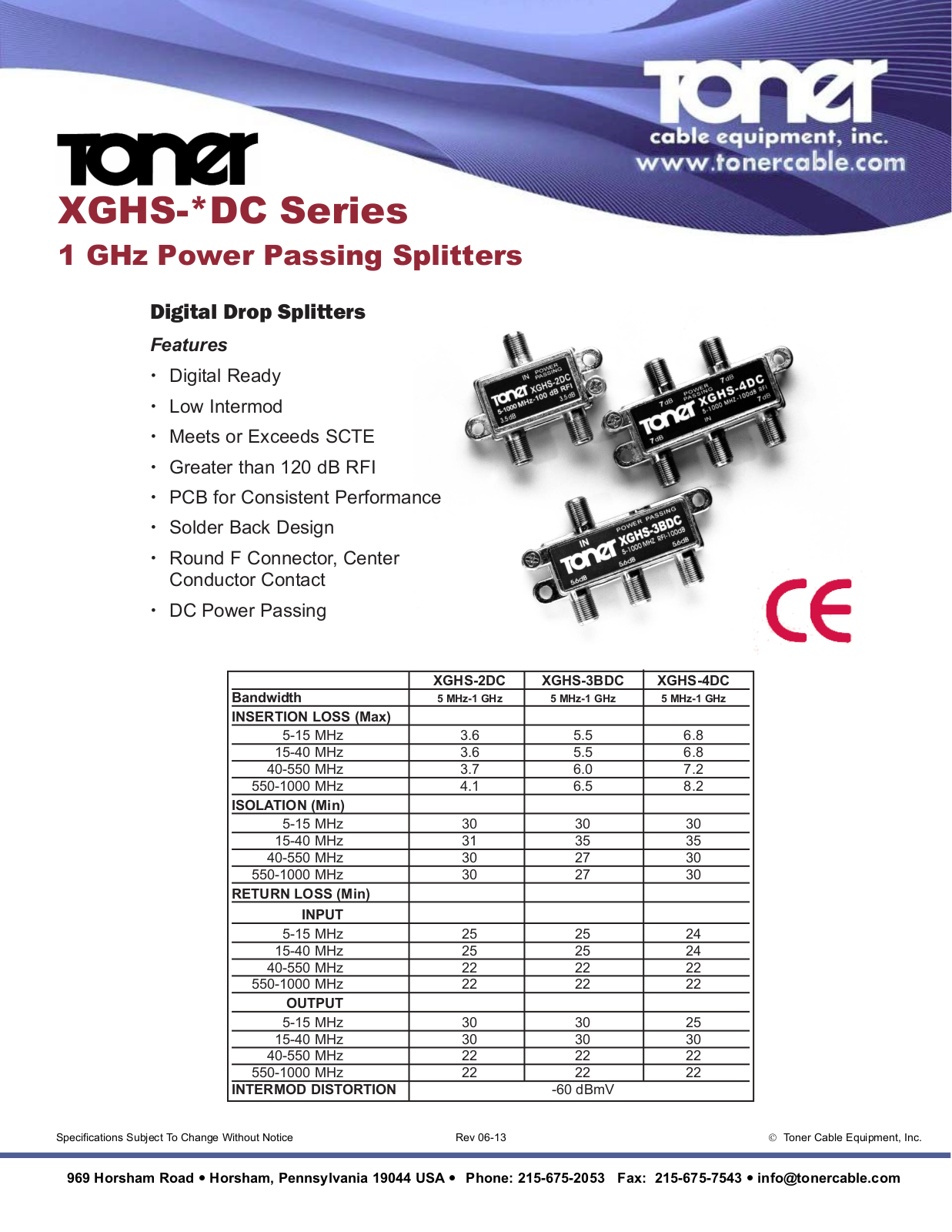

Toner Cable XGHS-2DC User Manual

XGHS-*DC Series

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

XGHS-2DC XGHS-3BDC XGHS-4DC

Bandwidth 5 MHz-1 GHz 5 MHz-1 GHz 5 MHz-1 GHz
INSERTION LOSS (Max)

5-15 MHz 3.6 5.5 6.8

15-40 MHz 3.6 5.5 6.8

40-550 MHz 3.7 6.0 7.2

550-1000 MHz 4.1 6.5 8.2

ISOLATION (Min)

5-15 MHz 30 30 30

15-40 MHz 31 35 35

40-550 MHz 30 27 30

550-1000 MHz 30 27 30

RETURN LOSS (Min)

INPUT

5-15 MHz 25 25 24

15-40 MHz 25 25 24

40-550 MHz 22 22 22

550-1000 MHz 22 22 22

OUTPUT

5-15 MHz 30 30 25

15-40 MHz 30 30 30

40-550 MHz 22 22 22

550-1000 MHz 22 22 22

INTERMOD DISTORTION -60 dBmV

Digital Drop Splitters

Features

x Digital Ready

x Low Intermod

x Meets or Exceeds SCTE

x Greater than 120 dB RFI

x PCB for Consistent Performance

x Solder Back Design

x Round F Connector, Center

Conductor Contact

x DC Power Passing

1 GHz Power Passing Splitters

Specifications Subject To Change Without Notice Rev 06-13 © Toner Cable Equipment, Inc.
