Toner Cable WS3G User Manual

Frequency (MHz) 5-40 MHz 40-550 MHz 550-950 MHz 950-2150 MHz 2150-3000 MHz
WS3G-2 Insertion Loss (max dB) 4.4 4.5 5.0 5.5 6
WS3G-3 Insertion Loss (max dB) 5.5/9.0 5.8/10.0 6.0/11.0 6.5/12.0 7.0/13.0
WS3G-4 Insertion Loss (max dB) 8.2 8.3 8.5 9 15.5

All models Isolation (min dB) 20 20 20 20 20
All models Input/Output 12 12 12 12 12
Return Loss (min dB)

Specifications Subject To Change Without Notice Rev 11-11 ©Toner Cable Equipment, Inc.

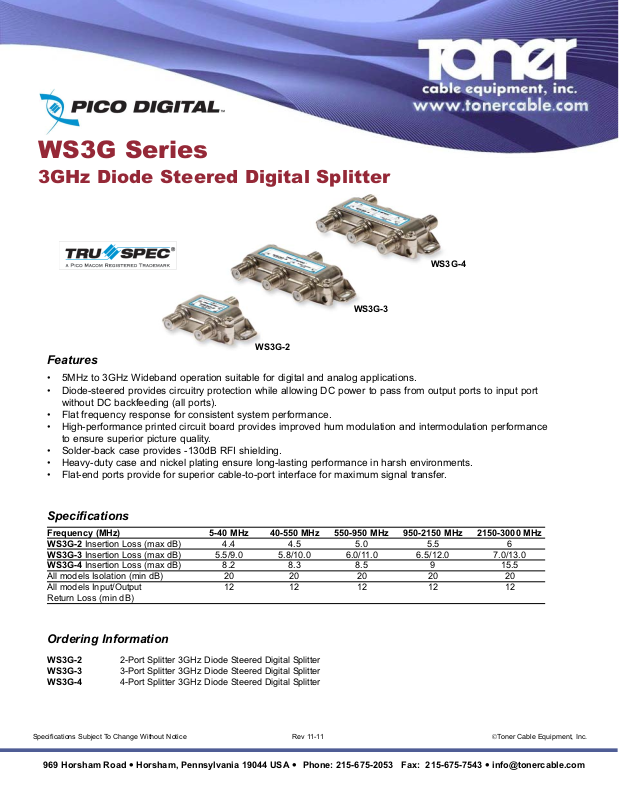

WS3G Series

3GHz Diode Steered Digital Splitter

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

Features

• 5MHz to 3GHz Wideband operation suitable for digital and analog applications.

• Diode-steered provides circuitry protection while allowing DC power to pass from output ports to input port
without DC backfeeding (all ports).

• Flat frequency response for consistent system performance.

• High-performance printed circuit board provides improved hum modulation and intermodulation performance
to ensure superior picture quality.

• Solder-back case provides -130dB RFI shielding.

• Heavy-duty case and nickel plating ensure long-lasting performance in harsh environments.

• Flat-end ports provide for superior cable-to-port interface for maximum signal transfer.

Ordering Information

WS3G-2 2-Port Splitter 3GHz Diode Steered Digital Splitter
WS3G-3 3-Port Splitter 3GHz Diode Steered Digital Splitter
WS3G-4 4-Port Splitter 3GHz Diode Steered Digital Splitter

Specifications

WS3G-2

WS3G-3

WS3G-4
