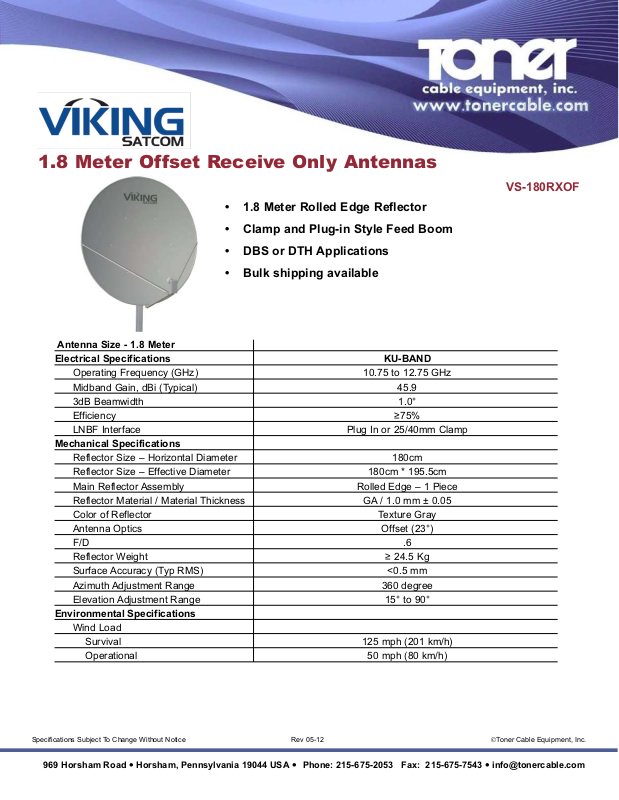

Toner Cable VS-180RXOF User Manual

1.8 Meter Offset Receive Only Antennas

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

Antenna Size - 1.8 Meter

Electrical Specifications KU-BAND

Operating Frequency (GHz) 10.75 to 12.75 GHz
Midband Gain, dBi (Typical) 45.9
3dB Beamwidth 1.0°
Efficiency ≥75%
LNBF Interface Plug In or 25/40mm Clamp

Mechanical Specifications

Reflector Size – Horizontal Diameter 180cm
Reflector Size – Effective Diameter 180cm * 195.5cm
Main Reflector Assembly Rolled Edge – 1 Piece
Reflector Material / Material Thickness GA / 1.0 mm ± 0.05
Color of Reflector Texture Gray
Antenna Optics Offset (23°)
F/D .6
Reflector Weight ≥ 24.5 Kg
Surface Accuracy (Typ RMS) <0.5 mm
Azimuth Adjustment Range 360 degree
Elevation Adjustment Range 15° to 90°

Environmental Specifications

Wind Load

Survival 125 mph (201 km/h)
Operational 50 mph (80 km/h)

• 1.8 Meter Rolled Edge Reflector

• Clamp and Plug-in Style Feed Boom

• DBS or DTH Applications

• Bulk shipping available

VS-180RXOF

Specifications Subject To Change Without Notice Rev 05-12 ©Toner Cable Equipment, Inc.
