Pico Macom TSMS2150X Series Multiswitch
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA

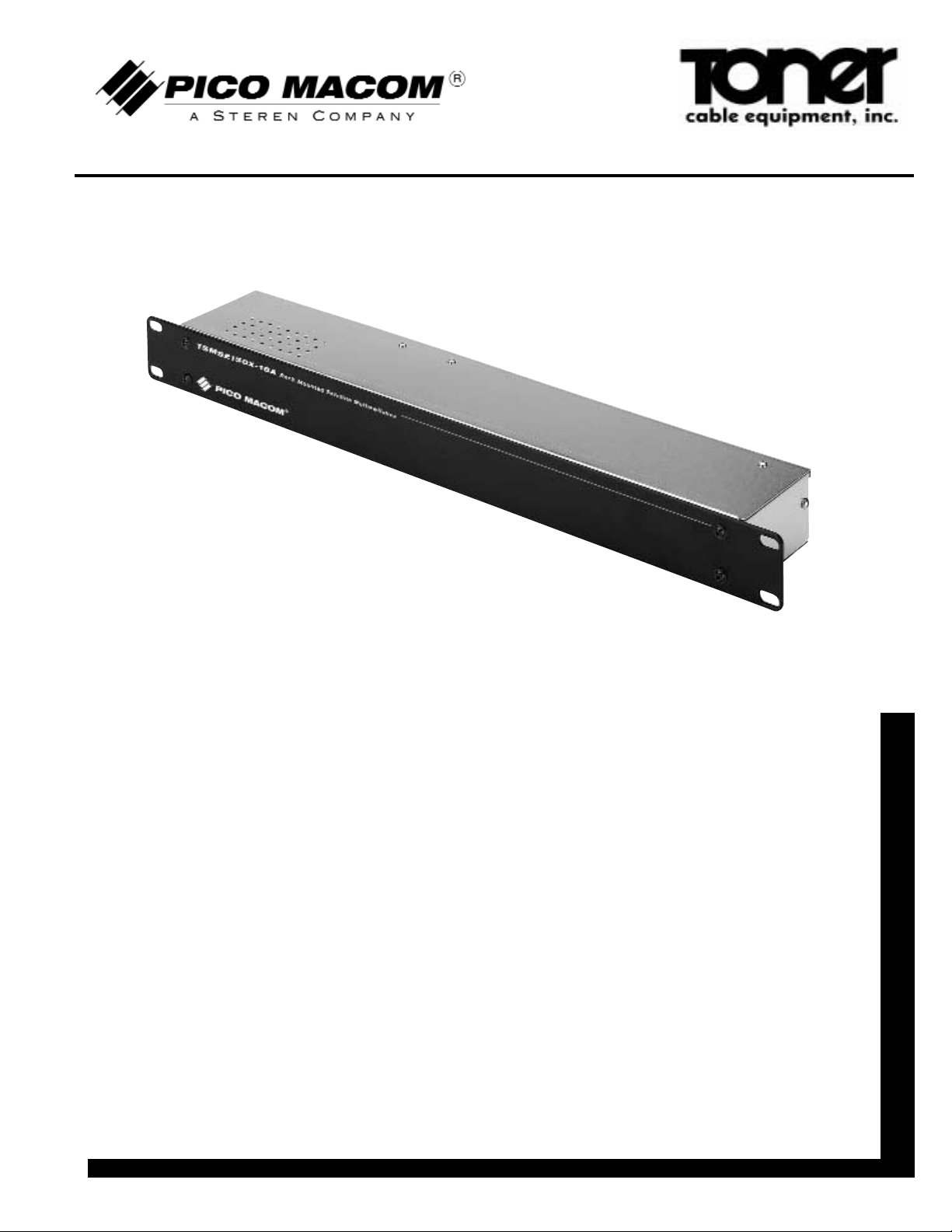

TSMS2150X Series Rack-Mounted Multiswitches
TSMS2150X Series
Rack-Mounted Satellite Multiswitches
Pico Macom’s TSMS-2150X Series rack-mounted satellite
multiswitches can be used in every SMATV application requiring satellite 950-2150 MHz IF distribution. The easy mount
enclosure and all rear panel connections provide for rack
mounting or quick and easy wall mounting by simply turning
the unit face to the wall. The TSMS-2150X-8AUV allows 2
LNB inputs and 1 off-air antenna input (40-806 MHz) and provides 8 outputs, while the TSMS-2150X-16A allows 2 LNB
inputs and provides 16 outputs. The advanced circuit design
incorporates a pin diode matrix to route any of the inputs to
any of the outputs by utilizing the 13-14V RightCircular/Vertical or 17-18V Left-Circular/Horizontal switching
control supplied by the satellite receivers, thus eliminating digital artifacts that result from mechanical relay switching. To
compensate for insertion loss, both versions use separate
built-in amplifiers for satellite and/or VHF/UHF signals. The
TSMS-2150X series, used with the external power supply, will
supply power to the LNBs reducing heat build up within the
multiswitch and prolong the life of the unit.
! Wide frequency range
(TSMS2150-16A 950-2150 MHz;
TSMS2150-8AUV 40-2150 MHz)
! Simple interface design provides 2
satellite polarity inputs and 8 or 16
outputs, for quick installation
! All rear panel connection access
allows rack or wall mount flexibility
! PIN diode matrix reduces polarity
transfer time and digital artifacts
providing consistent picture quality
! Polarity is selected by receiver
supplied voltage (14V/18VDC)
compatible with most DTH satellite
services
! Antenna signal combines with
satellite on output eliminating
external combining, reducing cost
and clutter
! 500 mA voltage power pass-
through reduces cost by providing
satellite receiver path for LNB
power
! Built-in amplifier compensates for
insertion losses reducing need of
external amplification
! External UL Approved power sup-
ply reduces heat buildup thus
increasing unit life
TSMS2150X Series
Rack-Mounted Satellite Multiswitches
Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.
Telephone: Nationwide: Fax: E-mail: Internet:
Pico Macom TSMS2150X Series Multiswitch
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
Ordering Information
LNB Input Frequency: 950-2150 MHz
Switching Voltage: 13-14 VDC-RHCP
17-18 VDC-LHCP
External Power Adapter: 24 VDC 600 mA
DC Passing Capacity: 500 mA
Connectors: “F” Type
Weight (without AC Adapter): 5.1 lbs
TSMS-2150X-8AUV 4.5 lbs
TSMS-2150X-16AUV 5.1 lbs
Dimensions: 19”L x 2.87”D x 1
3
/4”H
Total # of Channels Max. Input Level Max. Output Level
7 17 dBmV -4 dBmV
15 8 dBmV -6 dBmV
TSMS2150X Specifications
Output Level
TSMS2150-8AUV 8 Outputs TSMS2150-16AUV 16 Outputs
TSMS2150X-8AUV
TV Antenna Input Frequency: 40-860 MHz
Insertion Loss:
950-1750 MHz -6 dB minimum
1750-2150 -10 dB
40-860 MHz -4 dB typical
Isolation:
Horizontal/Vertical -25 dB
Output-to-Output -14 dB
TSMS2150X-16A
Insertion Loss:
950-1750 MHz -8 dB typical
1750-2150 MHz -13 dB typical
2050-2150 MHz -16 dB typical
Isolation:
Horizontal/Vertical -20 dB
Output-to-Output -12 dB

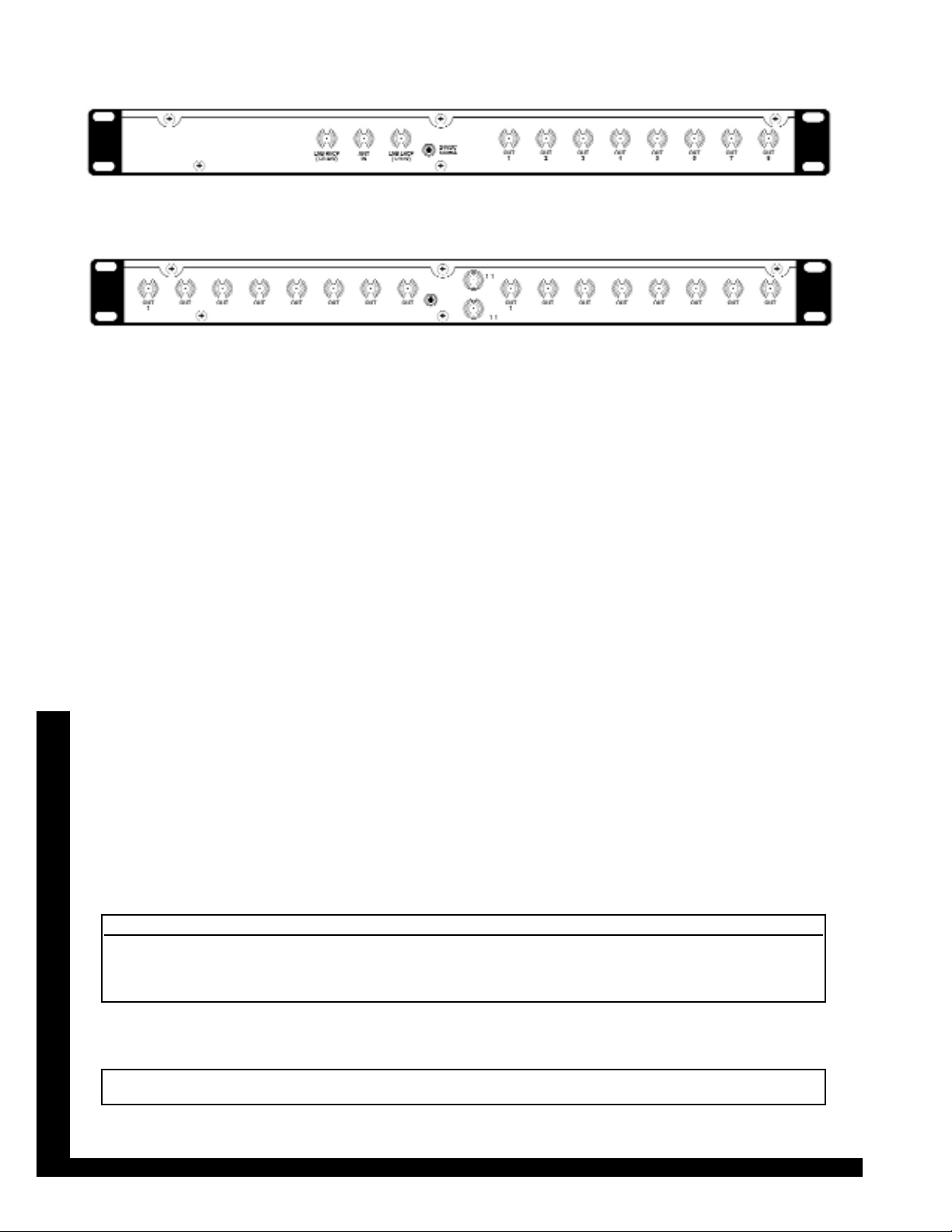

TSMS2150X-8AUV Rear View
TSMS2150X-16A Rear View
