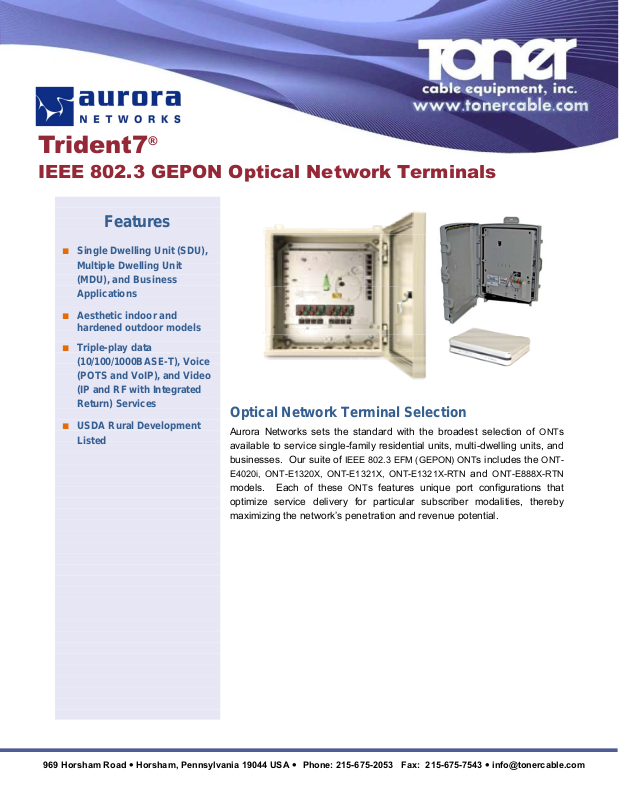

Toner Cable Trident7 User Manual

Trident7

®

IEEE 802.3 GEPON Optical Network Terminals

Features

■ Single Dwelling Unit (SDU),

Multiple Dwelling Unit
(MDU), and Business
Applications

■ Aesthetic indoor and

hardened outdoor models

■ Triple-play data

(10/100/1000BASE-T), Voice
(POTS and VoIP), and Video
(IP and RF with Integrated
Return) Services

■ USDA Rural Development

Listed

Optical Network Terminal Selection

Aurora Networks sets the standard with the broadest selection of ONTs
available to service single-family residential units, multi-dwelling units, and
businesses. Our suite of

E4020i, ONT-E1320X, ONT-E1321X, ONT-E1321X-RTN

models. Each of these
optimize service delivery for particular subscriber modalities, thereby
maximizing the network’s penetration and revenue potential.

IEEE 802.3 EFM (GEPON) ONTs includes the ONT-

and ONT-E888X-RTN

ONTs features unique port configurations that

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

Trident7®

IEEE 802.3 GEPON Optical Network Terminals

IEEE 802.3 GEPON Optical Network Terminals

Indoor ONTs

The ONT-E4020i includes a market-leading four (4) 10/100/ 1000BASE-T ports.
Standard on the
feature, which allows data to be managed on a per-port basis, thereby
providing a powerful mechanism through which network operators may glean
additional revenue through differentiated services. Multiple ports provide
subscribers the option of dedicated ports for
multiple computers without the need for a separate hub or router inside the
residence. The
embedded residential gateway feature with a licensed software upgrade.

Outdoor ONTs

The Aurora Networks outdoor ONT series provides one (1)

10/100/1000BASE-T and 3 10/100BASE-T data ports with per-

port

QoS, two (2) POTS ports, and one (1) available RF port

for native support of both analog and
integrated
small business applications, this
hardened and does not require an environmentally
controlled enclosure. A snap feature on the cover ensures
a water resistant electronics compartment while individual
self-sealing ports prevent water and insects from entering.
The
temperatures ranging from -40° to +60° C, has dimensions
of 10.9” H x 8.9” W x 2.9” D, and weighs 5.6 pounds.

RF return. Suitable for residential, SOHO, and

ONT-E132x series is designed to operate in

ONT-E4020i is Aurora’s per-port Quality of Service (QoS)

IP video, VoIP services, or

ONT-E4020i also provides the capability to activate an

QAM video with

ONT series is field

Trident7

®

ONT-E4020i

ONT-E1321X-FRU-E in

ENID-CH Enclosure

The

ONT-E888 is designed to deliver a suite of advanced services to as many as eight subscribers via eight (8)
10/100BASE-T ports with per-port QoS, eight (8) POTS ports, and eight (8) RF ports with integrated RF return. This
ONT is environmentally hardened, designed for -40° to +60° C operation, and can be pole or wall mounted. The
ONT-E888 is 15.5” H x 11.75” W x 8.5” D and weighs 21.6 pounds.

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

Trident7®

Trident7

®

IEEE 802.3 GEPON Optical Network Terminals

IEEE 802.3 GEPON Optical Network Terminals

802.3 EFM (GEPON) ONT Specifications

Units ONT-E4020i ONT-E1320X ONT-E1321X ONT-E1321X-RTN ONT-E888X-RTN

Network Interface
Optical Interface SC/APC SC/APC SC/APC SC/APC SC/APC
Fiber Type Single-mode Single-mode Single-mode Single-mode Single-mode
Transmit Wavelength nm 1310 1310 1310 1310 1310
Mean Launch Power dBm +1 to +4 +1 to +4 +1 to +4 +1 to +4 +1 to +4
Receive Wavelength (Data) nm 1490 1490 1490 1490 1490
Receive Wavelength (RF Video) nm N/A N/A 1550 1550 1550
Receive Sensitivity @1310nm dBm -27 -26 -26 -26 -26
Receive Sensitivity @ 1550nm

(48 dB CNR, 3 EDFA Cascade,
78 Analog Cable TV channels)

Receive Overload @ 1490nm dBm -3 -3 -3 -3 -3
Receive Overload @ 1550nm dBm NA N/A >+1 >+1 >+1
Narrowcast Data Rate Mbps 1250 1250 1250 1250 1250
Narrowcast Line Code 8B10B 8B10B 8B10B 8B10B 8B10B

Analog POTS Lines 2 2 2 2 8
REN 5 5 5 5 5
Inside Wiring (Maximum) ft. 300 300 300 300 300

Ethernet Ports
(Physical Connector)

Aggregate Data Throughput Mbps 1000 1000 1000 1000 800

RF Video Ports
(Physical Connector)

RF Video Output Bandwidth MHz NA NA 54 - 1000 54 - 1000 54 – 1000
RF Output Level

(@ 870 MHz, 3.5% OMI)
RF Output Tilt

(Nominal, 54-870 MHz)
Optional RF Return NA NA N/A SCTE 55-1, DSG SCTE 55-1, DSG

Dimensions (W x H x D) in. 9 x 1.5 x 6.2 8.9 x 10.9 x 2.9 8.9 x 10.9 x 2.9 8.9 x 10.9 x 2.9 11.75 x 15.5 x 8.5
mm 228 x 38 x 157.5 226 x 277 x 74 226 x 277 x74 226 x 277 x 74 298 x 394 x 216
Weight lbs. 1 5.6 5.6 5.6 21.6
kg .45 2.5 2.5 2.5 9.8
Operating Temperature F +32 to +113 -40 to +140 -40 to +140 -40 to +140 -40 to +140

C 0 to +45 -40 to +60 -40 to +60 -40 to +60 -40 to +60

Input Voltage VDC 12 12 12 12 -48
Maximum Power Consumption W 5 11.5 13 13 36
Standby Power Consumption W NA <7 <7 <7 NA

MTBF hrs. >200k >200k >200k >200k >200k
Availability % 99.99 99.99 99.99 99.99 99.99

Specifications Subject To Change Without Notice Rev 10-12 © Toner Cable Equipment, Inc.

dBm NA N/A -5 -5 -5

Telephony

Data

0 0

dBmV NA NA +17 +/- 3 +17 +/- 3 +17 +/- 3

dB NA NA +3 +3 +3

(4)

10/100/1000BASE-

T (RJ-45)

(1) 1000BASE-T

(3) 10/100BASE-T

(RJ-45)

RF Video

Physical Characteristics

Power

Reliability

(1) 1000BASE-T

(3) 10/100BASE-T

(RJ-45)

1

(Female F-type) 1 (Female F-type) 8 (Female F-type)

(1) 1000BASE-T

(3) 10/100BASE-T

(RJ-45)

(8) 10/100BASE-T

(RJ-45)
