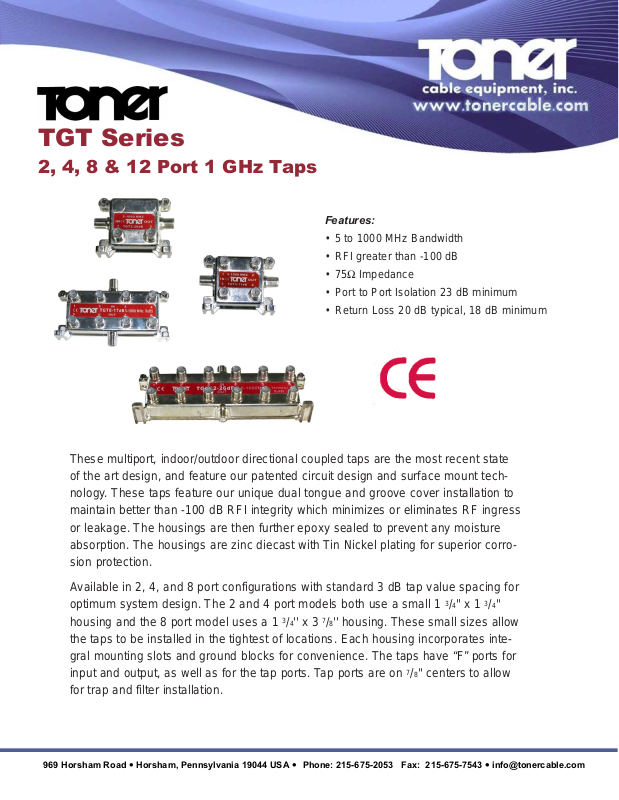

TGT Series

Features:

• 5 to 1000 MHz Bandwidth

• RFI greater than -100 dB

•75Ω Impedance

• Port to Port Isolation 23 dB minimum

• Return Loss 20 dB typical, 18 dB minimum

These multiport, indoor/outdoor directional coupled taps are the most recent state
of the art design, and feature our patented circuit design and surface mount tech­nology. These taps feature our unique dual tongue and groove cover installation to
maintain better than -100 dB RFI integrity which minimizes or eliminates RF ingress
or leakage. The housings are then further epoxy sealed to prevent any moisture
absorption. The housings are zinc diecast with Tin Nickel plating for superior corro­sion protection.

Available in 2, 4, and 8 port configurations with standard 3 dB tap value spacing for
optimum system design. The 2 and 4 port models both use a small 1

3

/4'' x 1 3/4''

housing and the 8 port model uses a 1

3

/4

'' x 3

7

/8

'' housing. These small sizes allow
the taps to be installed in the tightest of locations. Each housing incorporates inte­gral mounting slots and ground blocks for convenience. The taps have “F” ports for
input and output, as well as for the tap ports. Tap ports are on

7

/8'' centers to allow

for trap and filter installation.

2, 4, 8 & 12 Port 1 GHz Taps

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

TGT Series

Return Loss 5-15 MHz 15-40 MHz 40-550 MHz 550-1000 MHz

Input ≥23 dB ≥25 dB ≥20 dB ≥20 dB
Output ≥25 dB ≥25 dB ≥22 dB ≥20 dB
Tap ≥25 dB ≥28 dB ≥20 dB ≥20 dB

Isolation

Port to Port ≥32 dB ≥35 dB ≥27 dB ≥27 dB
Tap to Output ≥40 dB ≥40 dB ≥27 dB ≥26 dB

Tap Value Maximum Insertion Loss (dB) at frequency
Model –1.0 dB 5-15 MHz 15-40 MHz 40-550 MHz 550-1000 MHz
2 PORT

TGT2-4T 4.0 dB Terminating Tap
TGT2-8 8.5 dB 3.6 3.6 3.6 4.2
TGT2-11 11.0 dB 2.5 2.5 2.6 3.0
TGT2-14 14.5 dB 1.4 1.4 1.4 2.4
TGT2-17 17.0 dB 1.0 1.0 1.0 1.6
TGT2-20 20.0 dB 0.8 0.8 0.8 1.4
TGT2-23 23.0 dB 0.8 0.8 0.8 1.3
TGT2-26 26.0 dB 0.8 0.8 0.8 1.3
TGT2-29 29.0 dB 0.8 0.8 0.8 1.3
TGT2-32 32.0 dB 0.8 0.8 0.8 1.3

4 PORT

TGT4-8T 8.5 dB Terminating Tap
TGT4-11 11.0 dB 3.6 3.6 3.8 4.4
TGT4-14 14.5 dB 2.5 2.3 2.6 3.0
TGT4-17 17.0 dB 1.4 1.4 1.4 2.4
TGT4-20 20.0 dB 1.0 1.0 1.0 1.6
TGT4-23 23.0 dB 0.8 0.8 0.8 1.4
TGT4-26 26.0 dB 0.8 0.8 0.8 1.3
TGT4-29 29.0 dB 0.8 0.8 0.8 1.3
TGT4-32 32.0 dB 0.8 0.8 0.8 1.3

8 PORT

TGT8-11T 11.0 dB Terminating Tap
TGT8-14 14.5 dB 3.6 3.6 3.8 4.4
TGT8-17 17.0 dB 2.5 2.3 2.6 3.0
TGT8-20 20.0 dB 1.4 1.4 1.4 2.4
TGT8-23 23.0 dB 1.0 1.0 1.0 1.6
TGT8-26 26.0 dB 0.8 0.8 0.8 1.4
TGT8-29 29.0 dB 0.8 0.8 0.8 1.3
TGT8-32 32.0 dB 0.8 0.8 0.8 1.3

12 PORT (– 2 dB)

TGT12-17 17.5 dB 2.6 2.6 3.0 3.5
TGT12-20 20.0 dB 2.0 2.0 2.3 2.5
TGT12-23 22.5 dB 1.4 1.4 1.7 2.3
TGT12-26 26.0 dB 1.0 1.0 1.3 1.6
TGT12-29 29.0 dB 0.7 0.7 0.9 1.5

2, 4, 8 & 12 Port 1 GHz Tap

Specifications
