GbE INPUTS
Input Connector Type 2 x RJ-45
Layer 1 Ethernet GbE (1000Base-T)
Layer 2 Addressing/Protocols Unicast (IP address and Port),
Multicast
MPEG Transport SPTS/MPTS (ITU13818-1)
DVB-ASI INPUT
Input Connectors 4 x 75Ω BNC
Format Per EN50053-9
Return Loss -15dB
ETHERNET COMMUNICATION MANAGEMENT PORT
Input Connector Type 1 x RJ-45
Layer 2 Ethernet 10/100Base-T
Layer 4 Protocol TCP/IP
QAM-RF OUTPUT
Output Frequency Range 50-1002 MHz
RF Channels Twelve (6 or 8 MHz)
QAM Modulation Modes 16, 32, 64, 128, 256
QAM Types ITU-A (DISH/DVB), ITU-B (USA/DCII)
QAM Symbol Rates 2.24~2.98, 4.85 to 7.0 Msps
PCR Re-Stamping Auto
Output Level
(effective, per channel) >45 dBmV
(combined, 12 channel) >32 dBmV
Output Attenuation 0-10 dB (0.5 dB step)
Output Level Flatness (50-1002 MHz) ±0.75 dB
Spurious >60 dBc
Output Connector 1 x 75Ω, F-Female
Output Return Loss >15 dB
GENERAL
INTERNAL AC POWER SUPPLY
Line Voltage 93-254 VAC, 47-63 Hz
Power Consumption 40 W
EXTERNAL DC POWER BACKUP
Voltage 12VDC±5% VAC
Current <6A.
ORDERING INFORMATION
SQM1200 12 RF Channel GbE/ASI Input Edge QAM
X-PS External Redundant Power Supply

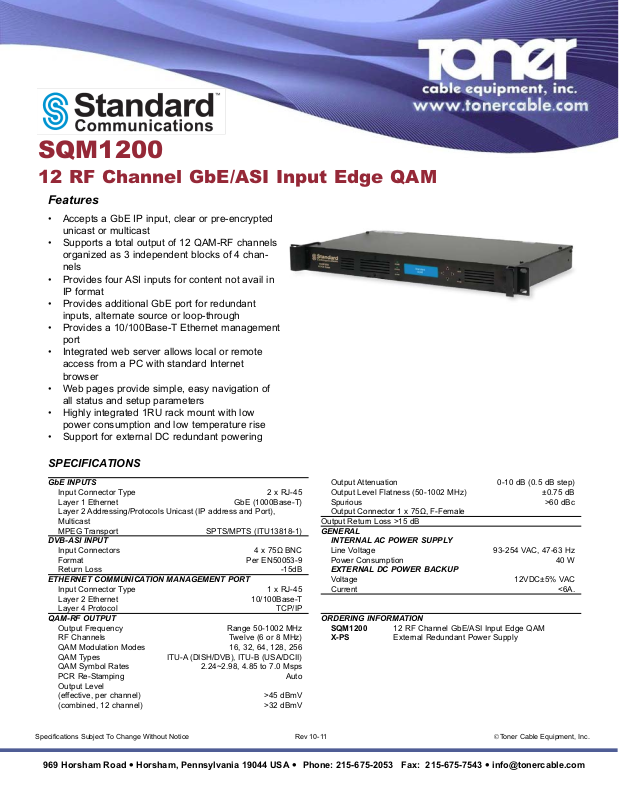

SPECIFICATIONS
SQM1200
12 RF Channel GbE/ASI Input Edge QAM
Features
• Accepts a GbE IP input, clear or pre-encrypted
unicast or multicast
• Supports a total output of 12 QAM-RF channels
organized as 3 independent blocks of 4 channels
• Provides four ASI inputs for content not avail in
IP format
• Provides additional GbE port for redundant
inputs, alternate source or loop-through
• Provides a 10/100Base-T Ethernet management
port
• Integrated web server allows local or remote
access from a PC with standard Internet
browser
• Web pages provide simple, easy navigation of
all status and setup parameters
• Highly integrated 1RU rack mount with low
power consumption and low temperature rise
• Support for external DC redundant powering
