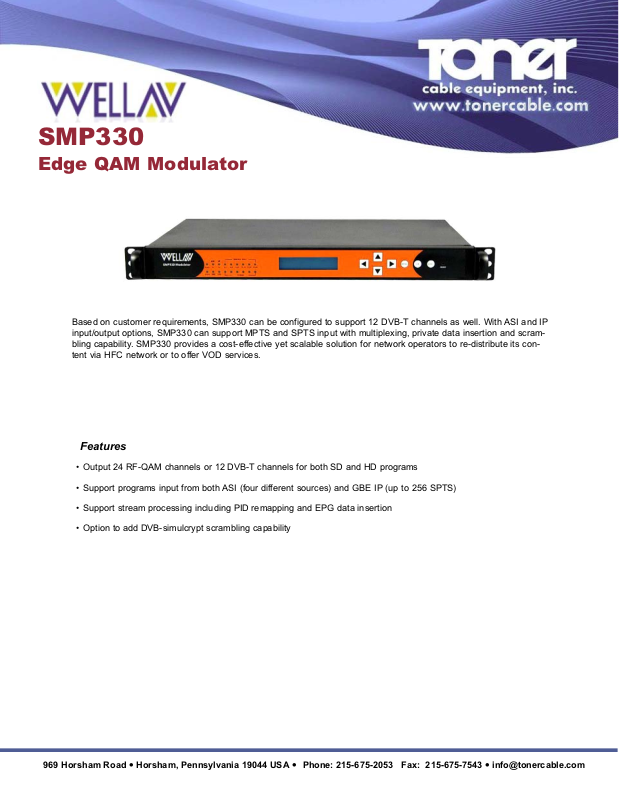

Toner Cable SMP330 User Manual

SMP330

Edge QAM Modulator

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

Based on customer requirements, SMP330 can be configured to support 12 DVB-T channels as well. With ASI and IP
input/output options, SMP330 can support MPTS and SPTS input with multiplexing, private data insertion and scram­bling capability. SMP330 provides a cost-effective yet scalable solution for network operators to re-distribute its con­tent via HFC network or to offer VOD services.

Features

• Output 24 RF-QAM channels or 12 DVB-T channels for both SD and HD programs

• Support programs input from both ASI (four different sources) and GBE IP (up to 256 SPTS)

• Support stream processing including PID remapping and EPG data insertion

• Option to add DVB-simulcrypt scrambling capability

Specifications Subject To Change Without Notice Rev 02-13 ©Toner Cable Equipment, Inc.

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

SMP330

Edge Qam Modulator

QAM RF Outputs

Physical Outputs three connectors for 8XRF
Output Frequency Range 48 -862 MHz

Output Frequency Step Size 50 KHz

RF Channel 24 (6/7/8 MHz)
QAM Modulation Mode 16/32/64/128/256 QAM
QAM Type ITU-T J.83 Annex A/ C,

Annex B (64/256QAM)

Symbol Rate 1.0~6.9 MBauds
Output Level

Effective, per channel 90~115 dBuV
Combined, 24 channel 90~106dBuV
MER ≥40dB (Equalized)
BER ≤5×10-9 (64QAM,6.875Msps)

DVB-T Output (optional)

Physical Outputs three connectors for 4XRF
Output Frequency Range 50 -858 MHz

Output Frequency Step Size 50 KHz

Transmission Mode 2K, 8K
Guard Interval 1/4, 1/8, 1/16 and 1/32
Constellation QPSK, 16QAM, 64 QAM
FEC 1/2, 2/3, 3/4, 5/6, 7/8

Output Level
Effective, per channel 90~115 dBuV
Combined, 4 channel 90~112dBuV

GBE IP Input

Interface 1 x 1000 Mbps per port
IP Encapsulation MPEG TS over UDP/RTP
MPEG TS MPTS and SPTS
I/O Processing Up to 12 Sockets(MPTS),

256Sockets(SPTS) max

at 72 Mbps per socket
Addressing Unicast and Multicast
Management IGMPv1, IGMPv2, IGMPv3
Forward Error Correction ProMPEG

DVB ASI Inputs

Interface 4 BNC connectors

(2 ASI inputs and 2ASI outputs), 75Ω
MPEG Format 188/204Bytes per TS
I/O Processing 1 MPTS/SPTS per port,

up to 120 Mbps per port

Re-multiplexing

PID Re-mapping and Filtering

MPTS Output Synchronization
Routing Any Input to Any Output
Redundancy Input Service Redundancy &

IP Port Redundancy

DVB Scrambling (future feature)

TS Streams up to 24 TS streams

(maximum 72 Mbps per TS)
Support DVB simulcrypt (maximum 4 CAS simultaneously)
CAS support Irdeto, Conax, Viaccess, Nagravision,

Verimatrix, Novel-Super TV, CTI

Dvcrypt and other DVB-simulcrypt

CAS
Scrambling level Program or PID

Management

Interface 100Base-TX, RJ45
NMS Wellav Digital Service Manager
Web-based Management (future feature)

Support SNMP

Physical & Environment

Input Voltage 90 – 260 VAC
Power Consumption Approx 100 W
Rack Space 1 RU
Dimension (WxHxD) 19 x 1.75 x 17.3”

480mm x 44mm x 440mm
Operating Temperature 0 to 50°C
Storage Temperature -40 to 65°C
Relative Operating Humidity <95%

Order Information

SQM QAM/OFDM Modulator
SSQM QAM/OFDM Modulator w/scrambling
