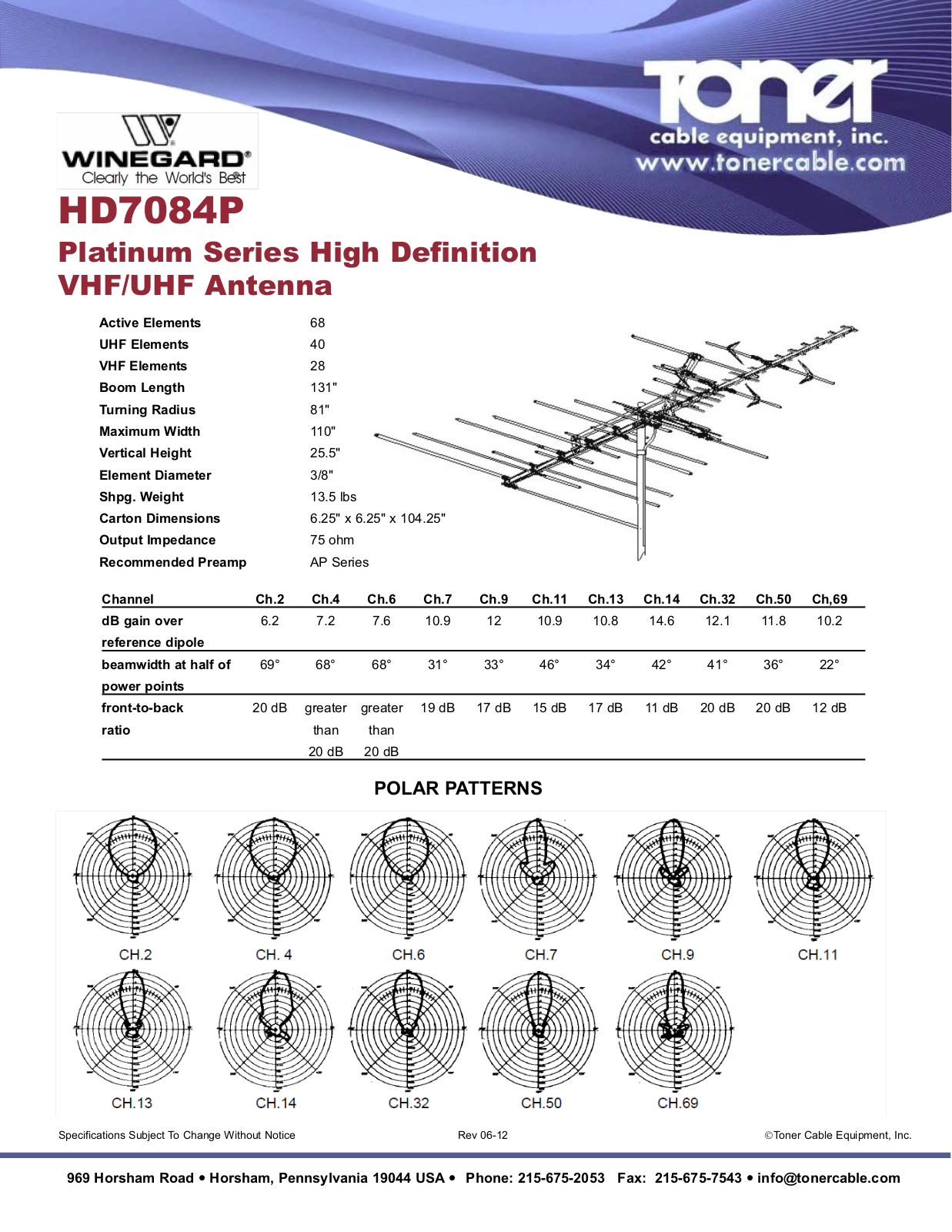

HD7084P
Platinum Series High Definition
VHF/UHF Antenna
969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 linfo@tonercable.com
Active Elements 68
UHF Elements 40
VHF Elements 28
Boom Length 131"
Turning Radius 81"
Maximum Width 110"
Vertical Height 25.5"
Element Diameter 3/8"
Shpg. Weight 13.5 lbs
Carton Dimensions 6.25" x 6.25" x 104.25"
Output Impedance 75 ohm
Recommended Preamp AP Series
Channel Ch.2 Ch.4 Ch.6 Ch.7 Ch.9 Ch.11 Ch.13 Ch.14 Ch.32 Ch.50 Ch,69
dB gain over 6.2 7.2 7.6 10.9 12 10.9 10.8 14.6 12.1 11.8 10.2
reference dipole
beamwidth at half of 69° 68° 68° 31° 33° 46° 34° 42° 41° 36° 22°
power points
front-to-back 20 dB greater greater 19 dB 17 dB 15 dB 17 dB 11 dB 20 dB 20 dB 12 dB
ratio than than
20 dB 20 dB
POLAR PATTERNS
