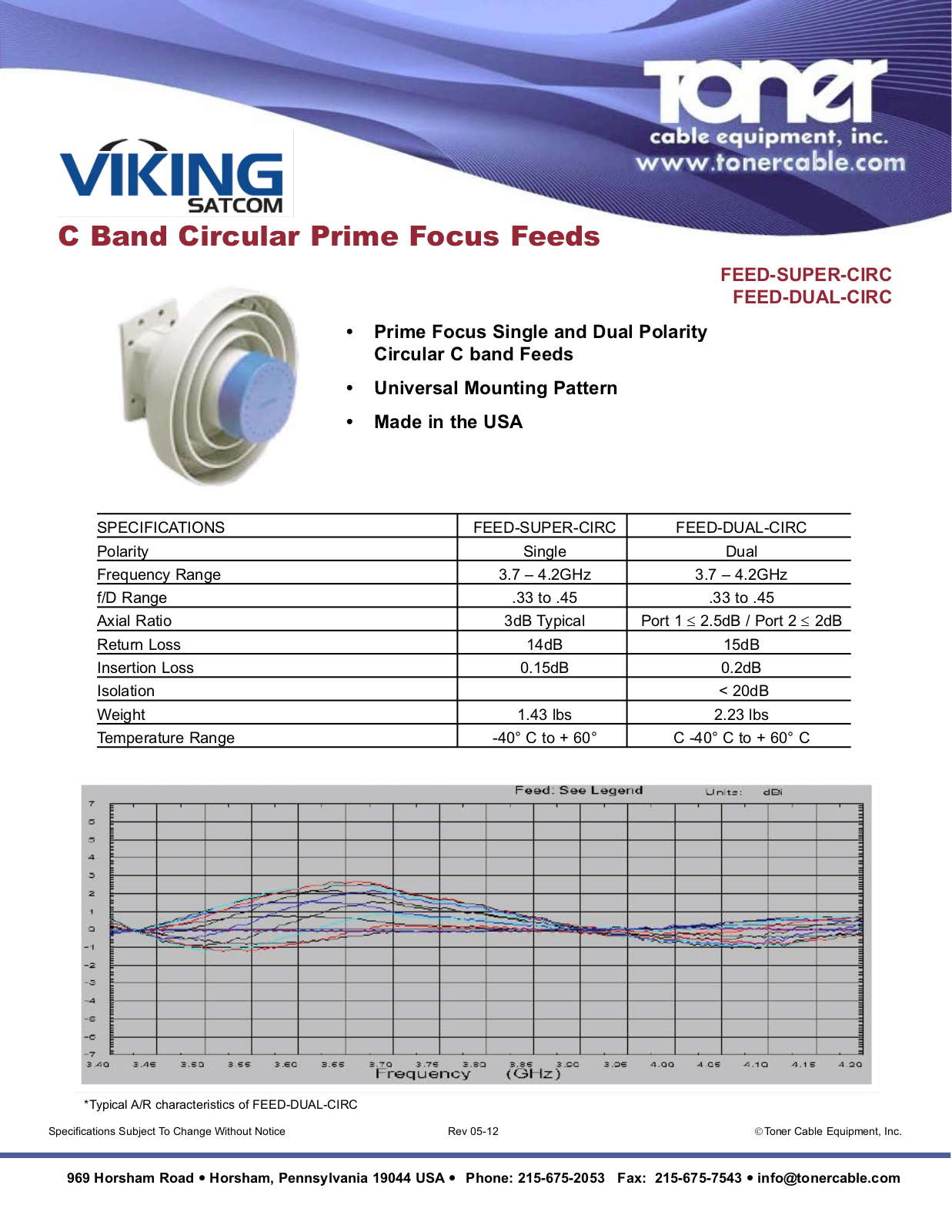

Toner Cable FEED-SUPER-CIRC User Manual

C Band Circular Prime Focus Feeds

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

Specifications Subject To Change Without Notice Rev 05-12 ©Toner Cable Equipment, Inc.

SPECIFICATIONS FEED-SUPER-CIRC FEED-DUAL-CIRC

Polarity Single Dual

Frequency Range 3.7 – 4.2GHz 3.7 – 4.2GHz

f/D Range .33 to .45 .33 to .45

Axial Ratio 3dB Typical Port 1 ≤ 2.5dB / Port 2 ≤ 2dB

Return Loss 14dB 15dB

Insertion Loss 0.15dB 0.2dB

Isolation < 20dB

Weight 1.43 lbs 2.23 lbs

Temperature Range -40° C to + 60° C -40° C to + 60° C

• Prime Focus Single and Dual Polarity
Circular C band Feeds

• Universal Mounting Pattern

• Made in the USA

FEED-SUPER-CIRC

FEED-DUAL-CIRC

*Typical A/R characteristics of FEED-DUAL-CIRC
