Toner Cable ET-1 User Manual
Telephone: Nationwide: Fax: E-mail: Internet:
06/05
Toner Drop & Installation Material
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA

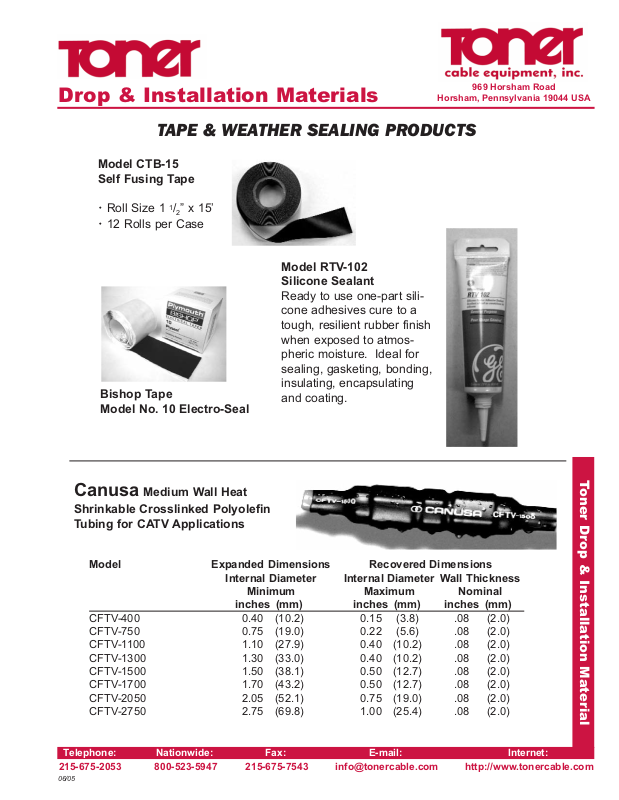

Drop & Installation Materials
TAPE & WEATHER SEALING PRODUCTS
Canusa Medium Wall Heat
Shrinkable Crosslinked Polyolefin
Tubing for CATV Applications
Model Expanded Dimensions Recovered Dimensions
Internal Diameter Internal Diameter Wall Thickness
Minimum Maximum Nominal
inches (mm) inches (mm) inches (mm)
CFTV-400 0.40 (10.2) 0.15 (3.8) .08 (2.0)
CFTV-750 0.75 (19.0) 0.22 (5.6) .08 (2.0)
CFTV-1100 1.10 (27.9) 0.40 (10.2) .08 (2.0)
CFTV-1300 1.30 (33.0) 0.40 (10.2) .08 (2.0)
CFTV-1500 1.50 (38.1) 0.50 (12.7) .08 (2.0)
CFTV-1700 1.70 (43.2) 0.50 (12.7) .08 (2.0)
CFTV-2050 2.05 (52.1) 0.75 (19.0) .08 (2.0)
CFTV-2750 2.75 (69.8) 1.00 (25.4) .08 (2.0)
Model CTB-15
Self Fusing Tape
¬ Roll Size 1
1
/2” x 15’
¬ 12 Rolls per Case
Model RTV-102
Silicone Sealant
Ready to use one-part silicone adhesives cure to a
tough, resilient rubber finish
when exposed to atmospheric moisture. Ideal for
sealing, gasketing, bonding,
insulating, encapsulating
and coating.
Bishop Tape
Model No. 10 Electro-Seal
©Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.
Telephone: Nationwide: Fax: E-mail: Internet:
Toner Drop & Installation Material
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
WP-81-I Ivory Plastic Wall Plate with F-81
WP-81-W White Plastic Wall Plate with F-81
WP-81-B Brown Plastic Wall Plate with F-81
WP-81-ID Ivory Plastic Wall Plate with Dual F-81
WP-81-I3G Ivory Plastic Wall Plate with F-81 3 GHz
WP-81-SS Stainless Steel Wall Plate with F-81
WP-81-SS-D Stainless Steel Wall Plate with Dual F-81
WP-SS Stainless Steel Wall Plate with 3/8” Hole
WP-SS-D Stainless Steel Wall Plate with Dual 3/8” Hole
WP-SS-O Stainless Steel Wall Plate with Offset 3/8” Hole
BP-1-IV Ivory Plastic Wall Plate with 3/8” Hole
BP-2-IV Ivory Plastic Wall Plate with Dual 3/8” Hole
BP-3-IV Ivory Plastic Blank Wall Plate
BP-SS-1 Stainless Steel Blank Plate
WP-81-I
WP-81-I-D BP-1-IV
BP-2-IV
BP-3-IV
WP-81-SS
WALL PLATES
AB-SWITCH
Model AB-2
¬ High 90 dB isolation
exceeds FCC specifications
