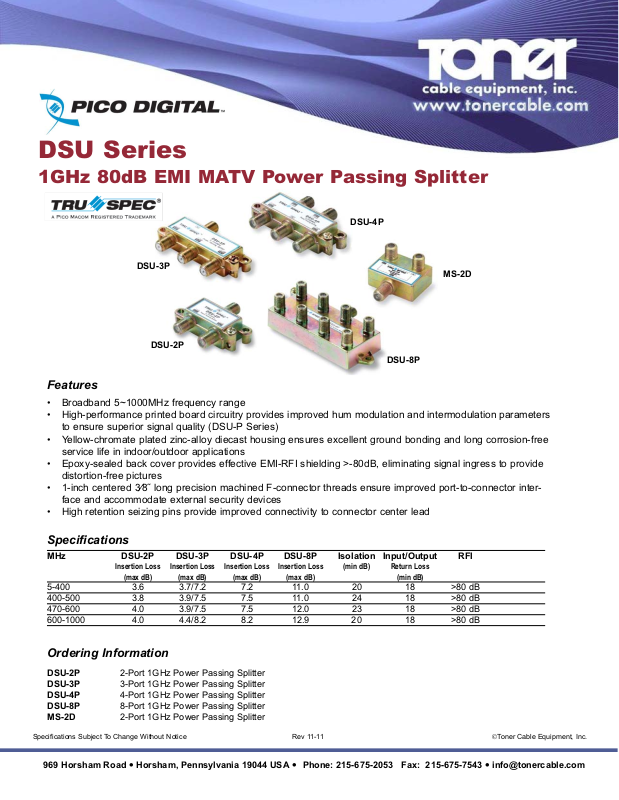

Toner Cable DSU User Manual

Specifications Subject To Change Without Notice Rev 11-11 ©Toner Cable Equipment, Inc.

DSU Series

1GHz 80dB EMI MATV Power Passing Splitter

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

Features

• Broadband 5~1000MHz frequency range

• High-performance printed board circuitry provides improved hum modulation and intermodulation parameters
to ensure superior signal quality (DSU-P Series)

• Yellow-chromate plated zinc-alloy diecast housing ensures excellent ground bonding and long corrosion-free
service life in indoor/outdoor applications

• Epoxy-sealed back cover provides effective EMI-RFI shielding >-80dB, eliminating signal ingress to provide
distortion-free pictures

• 1-inch centered 3⁄8˝ long precision machined F-connector threads ensure improved port-to-connector inter­face and accommodate external security devices

• High retention seizing pins provide improved connectivity to connector center lead

Ordering Information

DSU-2P 2-Port 1GHz Power Passing Splitter
DSU-3P 3-Port 1GHz Power Passing Splitter
DSU-4P 4-Port 1GHz Power Passing Splitter
DSU-8P 8-Port 1GHz Power Passing Splitter
MS-2D 2-Port 1GHz Power Passing Splitter

DSU-2P

DSU-3P

MS-2D

DSU-8P

DSU-4P

MHz DSU-2P DSU-3P DSU-4P DSU-8P Isolation Input/Output RFI

Insertion Loss Insertion Loss Insertion Loss Insertion Loss (min dB) Return Loss

(max dB) (max dB) (max dB) (max dB) (min dB)

5-400 3.6 3.7/7.2 7.2 11.0 20 18 >80 dB
400-500 3.8 3.9/7.5 7.5 11.0 24 18 >80 dB
470-600 4.0 3.9/7.5 7.5 12.0 23 18 >80 dB
600-1000 4.0 4.4/8.2 8.2 12.9 20 18 >80 dB

Specifications
