“F” Series Male One Piece Compression Connectors
Telephone: Nationwide: Fax: E-mail: Internet:
06/08
Snap-N-Seal Compression Connectors & Tools
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA
Snap-n-Seal Compression Connectors & Tools
UltimateTM“F” Series
Compression Connectors
Thomas & Betts introduces the Ultimate™ Snap-NSeal® Compression Connector, the newest addition to
the Snap-N-Seal® system. Look for the classic design
of this T&B connector. With its user-friendly, pre-positioned and detachably coupled plastic sleeve, the
Ultimate™ Snap-N-Seal® Connector incorporates
time-proven advantages for a reliable connection.
Model Sleeve Tool*
Number Color
SNS1P6U Red
1,2,3
With its user-friendly,
pre-positioned and
detachably coupled
plastic sleeve, the
Snap-N-Seal® One
Piece Connector
incorporates time-proven advantages for a reliable
connection. Snap-N-Seal® One Piece Connectors use
the same proven 360° compression design and installation tools as other LRC® Snap-N- Seal® products.
Model Post Sleeve Sleeve Tool*
Number I.D. I.D. Color
SNS1P59U .154 .253 Orange 1,2
SNS1P59QS .154 .275 Green 1,2
SNS1P59HEC .154 .290 White 1,2
SNS1P6 .191 .290 Blue 1,2
SNS1P6QS .191 .315 Violet 1,2
Technical Specification
PHYSICAL PROPERTIES
Nut, Post and Collar: Brass
Nut and Collar Finish: Cadmium with
Iridescent Chromate Coating
Post Finish: Tin Plated
O-Ring: Ethylene Propylene
ELECTRICAL PROPERTIES
Return Loss: > -30 dB up to 1 GHz Typical
Insertion Loss: < -0.18 dB up to 1 GHz Typical
MECHANICAL PROPERTIES
Cable Retention : 40 lbs minimum
Complies to SCTE IPS-SP-404
Cable Insertion Force: <20 lbs typical
ENVIRONMENTAL PROPERTIES
Temperature Rating: -40°F (-40°C) to 140°F (60°C)
Technical Specification
PHYSICAL PROPERTIES
Nut, Post and Collar: Brass
Nut and Collar Finish: Cadmium with
Iridescent Chromate Coating
Post Finish: Tin Plated
O-Ring: Ethylene Propylene
ELECTRICAL PROPERTIES
Return Loss: -30 dB up to 1 GHz Typical
Insertion Loss: < -0.18 dB up to 1 GHz Typical
RFI Shielding: -95 dB typical (60% Bonded Foil Cable)
MECHANICAL PROPERTIES
Cable Retention : 40 lbs minimum
Complies to SCTE IPS-SP-404
Cable Insertion Force: <20 lbs
ENVIRONMENTAL PROPERTIES
Temperature Rating: -40°F (-40°C) to 140°F (60°C)
Snap-N-Seal Tools
CST596711 Cable
Stripping Tool
(*1)
Cable Type - Series 59, 59QS,
6, 6QS, 7 and 11
SNSUTL Compression
Installation Tool
(*2)
Cable Type - Series 59, 59QS, 6
and 6QS
IT1000 Stripping &
Installation Tool
(*3)
Cable Type - Series 59, 59QS, 6
and 6QS
©Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.
Telephone: Nationwide: Fax: E-mail: Internet:
Snap-N-Seal Compression Connectors & Tools
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
Extending the use of our Snap-N-Seal® technology,
Thomas & Betts introduces the Snap-N-Seal® RCA
connector. Designed to interface with all standard RCA
female jacks and utilizing standard or tri-shield SCTE
specification 6 series drop cable, this product gives the
installer maximum flexibility for creating and placing
audio cables in home entertainment systems.
Model Sleeve Tool*
Number Color
SNS1P6RMBL Blue 1,2
SNS1P6RMY Yellow 1,2
SNS1P6RMW White 1,2
SNS1P6RMR Red 1,2
SNS1P6RMG Green 1,2
SNS1P6RMBK Black 1,2
Introducing super premium Snap-N-Seal® precision
BNC compression connectors from Thomas & Betts.
Four connector options are available. SNS59HECBNC
designed for applications using CommScope® series
F59HEC-2 Headend Cable, S59HEC Headend Cable,
or Times Fiber Communications, Inc. series 02241V
Headend Cables. SNS59HECBNCB designed for
applications using Belden® series 1505A Serial Digital
Video Cable, 9167 Broadband Headend Cable or
Belden® 9275 or 8241 cables. SNS6BNC designed for
applications using RG6 cable. SNS6QSBNC designed
for applications using RG6 quad shield cable.
Model Cable Center Cond Post Sleeve Sleeve Tool*
Number Types Dia Range ID ID Color
SNS59HECBNC Commscope F59 HEC-2 0.22 to .036 0.154 0.290 White 1,2
Times Fiber 02240V
Times Fiber 02241V
Commscope S59 HEC
SNS59HECBNCB Belden 9167 Broadband Headend 0.22 to 0.36 0.154 0.253 Orange 1,2
Belden 1505A Serial Digital Video
Belden 8241
SNS6BNC RG6 0.32 to .040 0.191 0.290 Blue 1,2
SNS6QSBNC RG6QS 0.32 to .040 0.191 0.315 Violet 1,2
Technical Specification
PHYSICAL PROPERTIES
Body Components: Brass
Body Finish: Cadmium
Terminal/Contact: Brass Beryllium Copper
Insulators: TPX
ELECTRICAL PROPERTIES
Return Loss: -30 dB up to 20 MHz Typical
Insertion Loss: -0.05 dB up to 20 MHz Typical
RFI Shielding: -120 dB Typical up to 20 MHz Typical
MECHANICAL PROPERTIES
Cable Retention : 40 lbs minimum
Complies to SCTE IPS-SP-404
Cable Insertion Force: <20 lbs
ENVIRONMENTAL PROPERTIES
Temperature Rating: -40°F (-40°C) to 140°F (60°C)

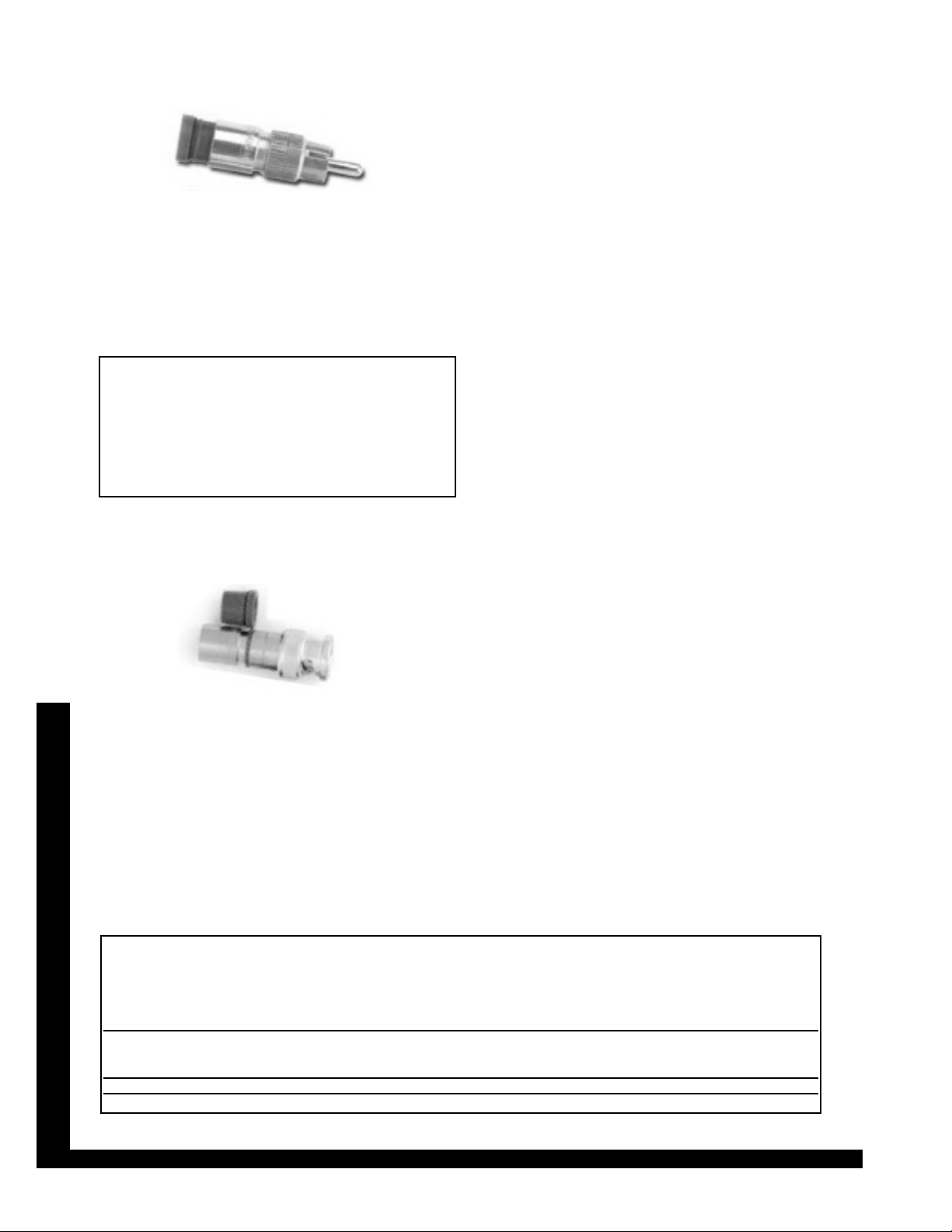

RCA Type Male Compression Connectors
BNC Compression Connectors
Technical Specification
PHYSICAL PROPERTIES
Body Components: Brass CDA 360
Body Finish: Nickel
Nut: Zinc Alloy with Nickel Plate
Terminal/Contact: Beryllium Copper
with Silver Plate
Insulators: TPX
O-Rings: Ethylene Propylene
ELECTRICAL PROPERTIES
Return Loss: -30 dB up to 1 GHz Typical
Insertion Loss: -0.2 dB up to 1 GHz Typical
RFI Shielding: -65 dB Typical
MECHANICAL PROPERTIES
Cable Retention : 40 lbs min
Complies to SCTE IPS-SP-404
Cable Insertion Force: <20 lbs
ENVIRONMENTAL PROPERTIES
Temperature Rating: -40°F (-40°C) to 140°F (60°C)
