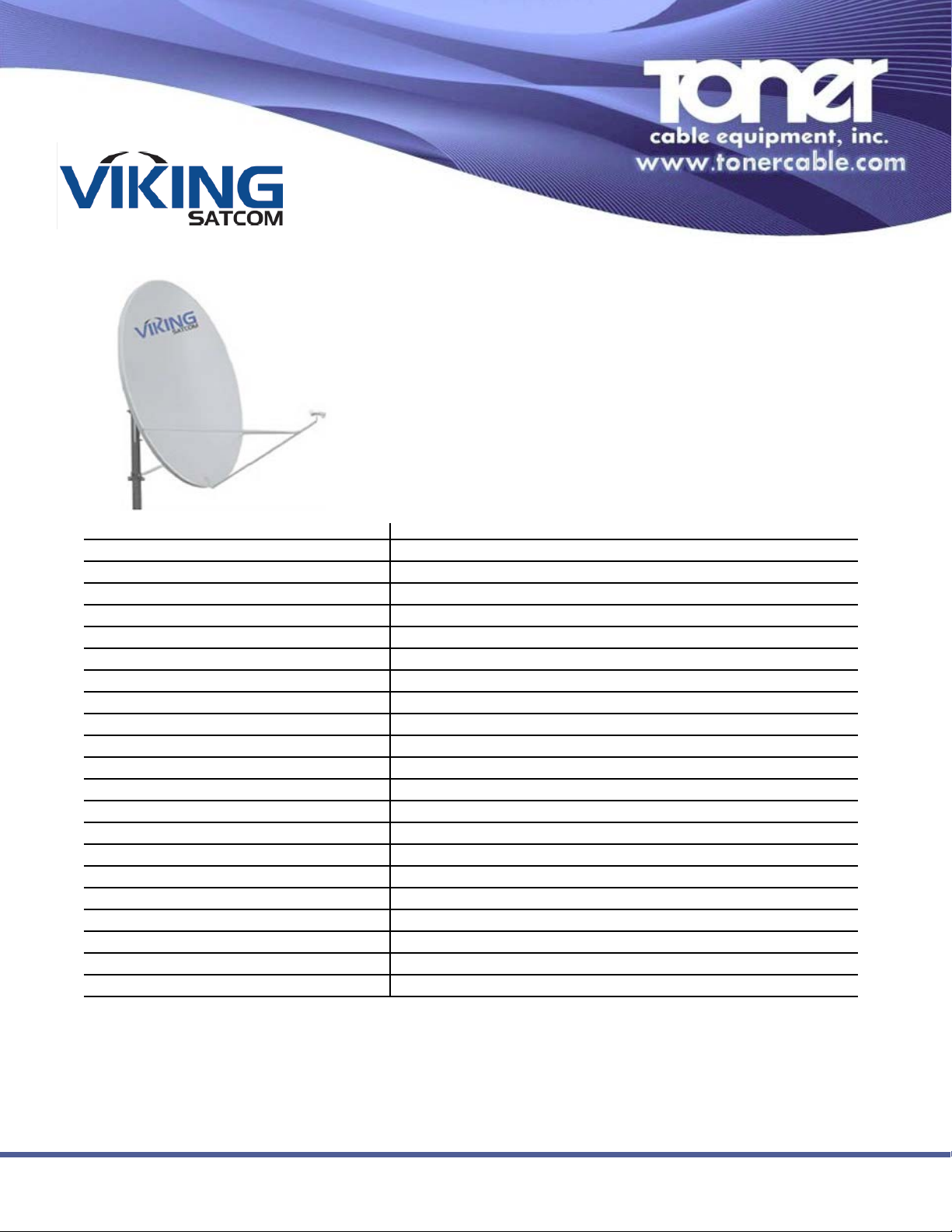

2.4 Meter Offset Antennas
969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: 215-675-2053 Fax: 215-675-7543 linfo@tonercable.com
Antenna Size 2.4 Meter
Electrical Specifications KU-BAND
Operating Frequency (GHz) 10.95 to 12.75
Midband Gain, dBi (Typical) 47.6
3dB Beamwidth .71°
Noise Temperature (@30° Elevation) 28K
Cross Polarization – On Axis 30dB
VSWR (Maximum) 1.3:1
First Sidelobe 20 dB
Feed Interface WR 75 or 40mm Clamp
Mechanical Specifications
Reflector Material Aluminum – 1 Piece
Antenna Optics Offset
Offset angle 22.3°
F/D Ratio .610
Surface Accuracy (Typical RMS) .018”
Mast Pipe Size 4.50”
Azimuth / Elevation Travel (Fixed) Azimuth 360° / Elevation 10° - 90°
Environmental Specifications
Wind Load
Survival 125 mph (201 km/h)
Operational 60 mph (96 km/h)
• Hydroformed Aluminum Construction
• Heavy Duty Az-El Fine Tune Mount
• Extremely Stable Pointing Accuracy
AND-240OF
Specifications Subject To Change Without Notice Rev 05-12 ©Toner Cable Equipment, Inc.
